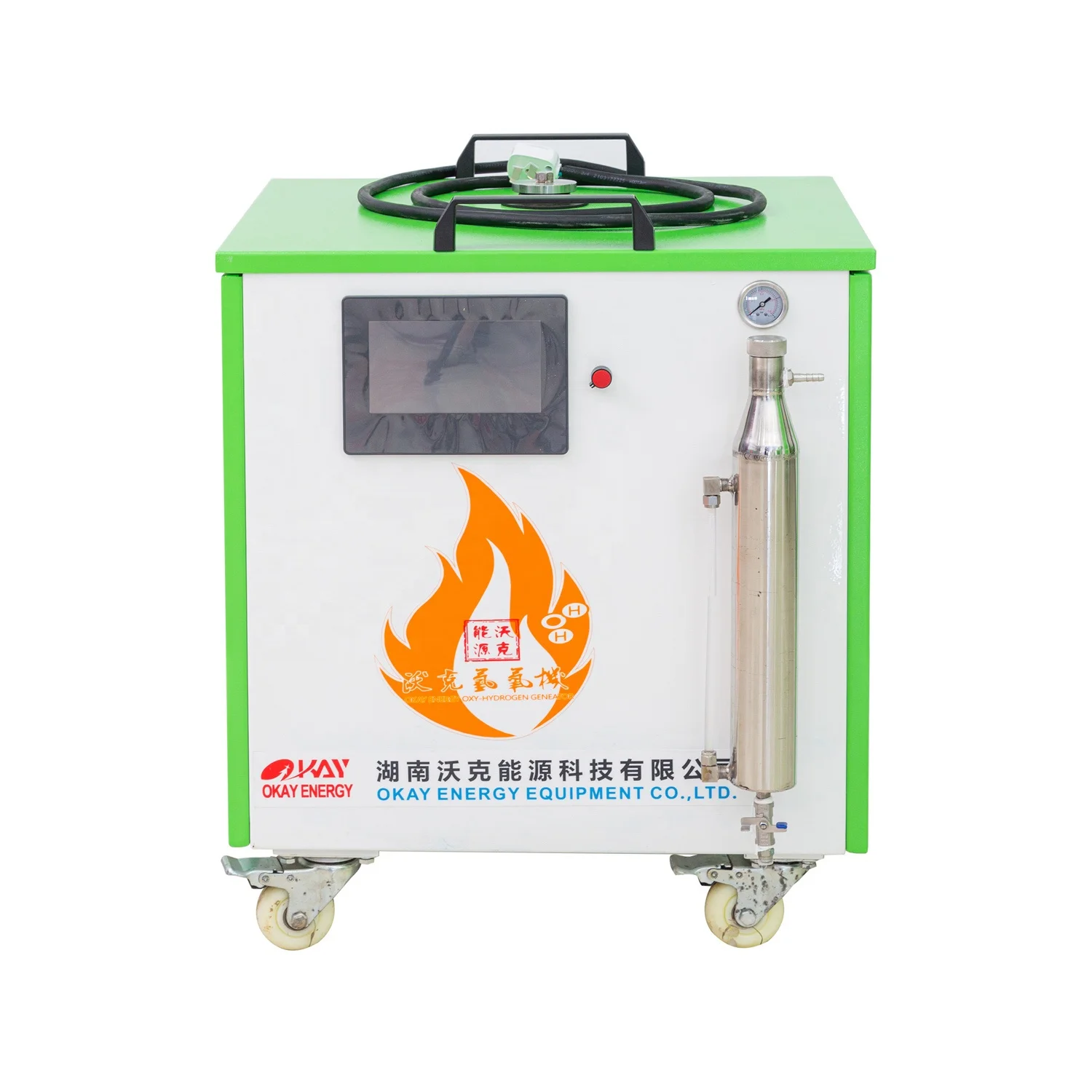

HHO Water Welding Machine Oxyhydrogen HHO Brown Gas Welding Machine Gas Welder
HHO Water Welding Machine Oxyhydrogen HHO Brown Gas Welding Machine Gas Welder
HHO Water Welding Machine Oxyhydrogen HHO Brown Gas Welding Machine Gas Welder
HHO Water Welding Machine Oxyhydrogen HHO Brown Gas Welding Machine Gas Welder
HHO Water Welding Machine Oxyhydrogen HHO Brown Gas Welding Machine Gas Welder
HHO Water Welding Machine Oxyhydrogen HHO Brown Gas Welding Machine Gas Welder
HHO Water Welding Machine Oxyhydrogen HHO Brown Gas Welding Machine Gas Welder

HHO Water Welding Machine Oxyhydrogen HHO Brown Gas Welding Machine Gas Welder

Share on (1601308834013):


Price:

Quantity:


Product Overview

Description

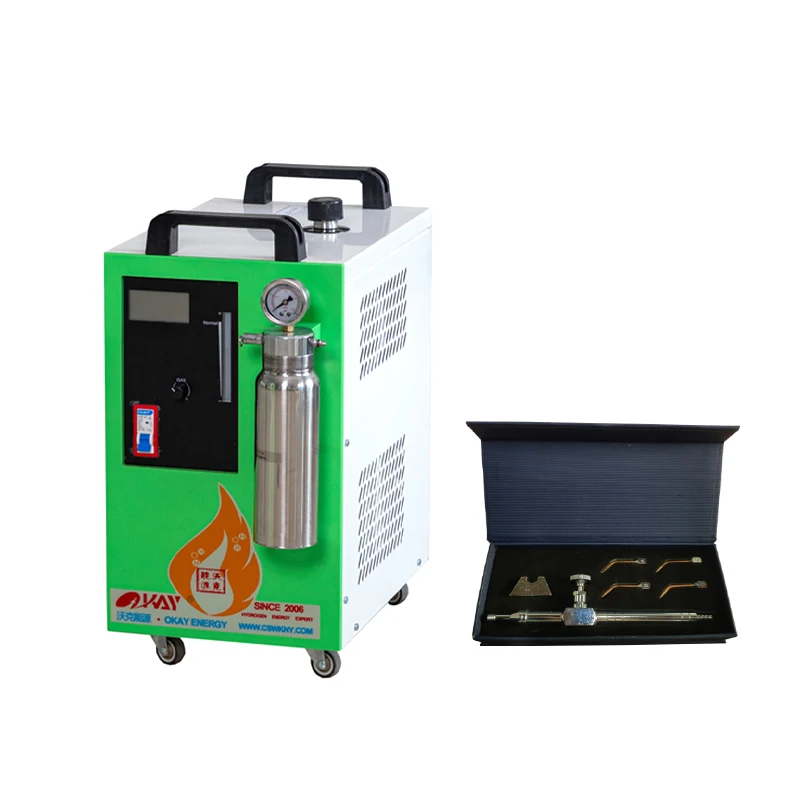

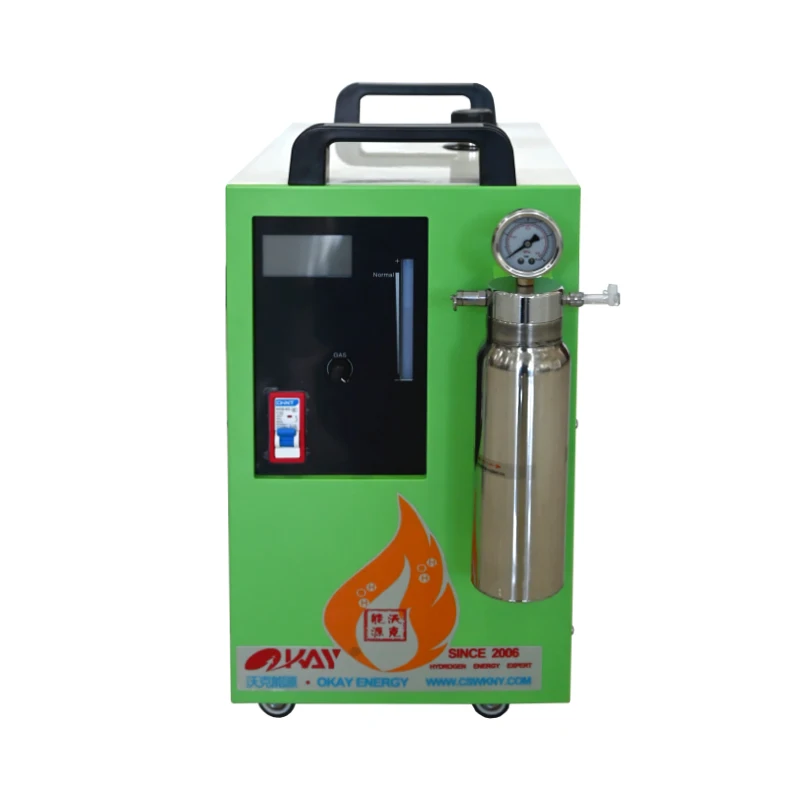

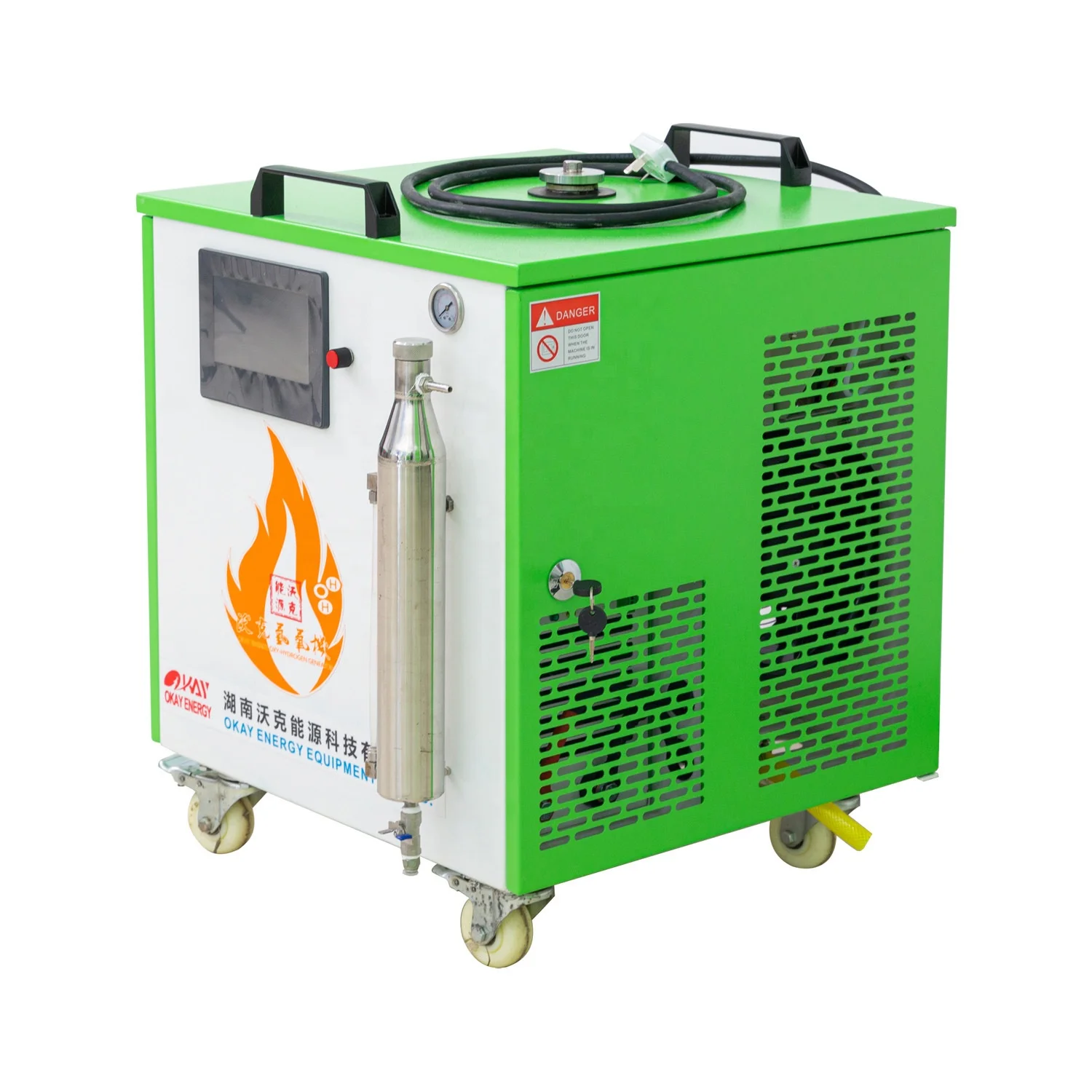

Professional Energy Saving Oxy hydrogen Flame Welding Machine Welder for Industrial
Our oxyhydrogen generator is quite safe since it does not require gas cylinders and norisks of leakage and explosion.

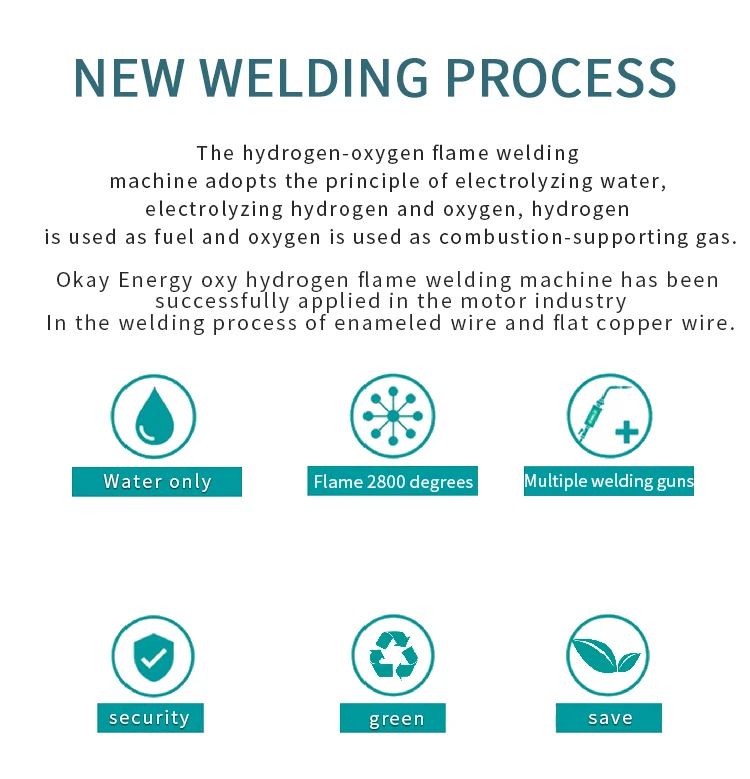

Oxyhydrogen generator consumes water and electricity,electrolyze water into H2 and O2,we can use H2 and O2 as source of flame replacing acetylene or natural gas or other fuel.

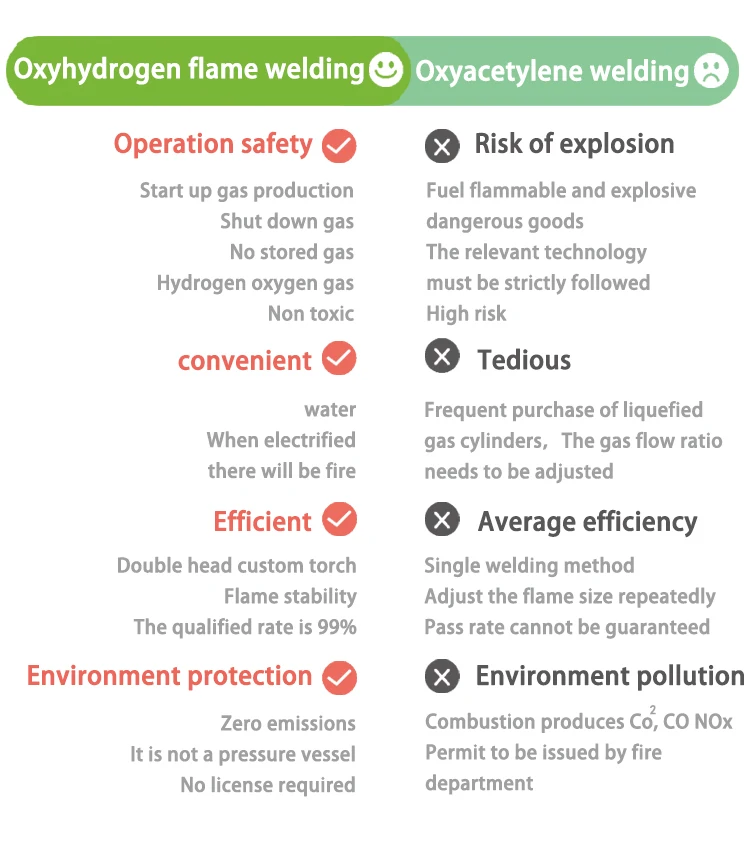

Our Advantages




Cost saving
Oxy hydrogen Generator saves 60% cost compared to acetylene. Saves 40% compared to propane. The fuel is just pure water and a little electricity.
Welding precisely

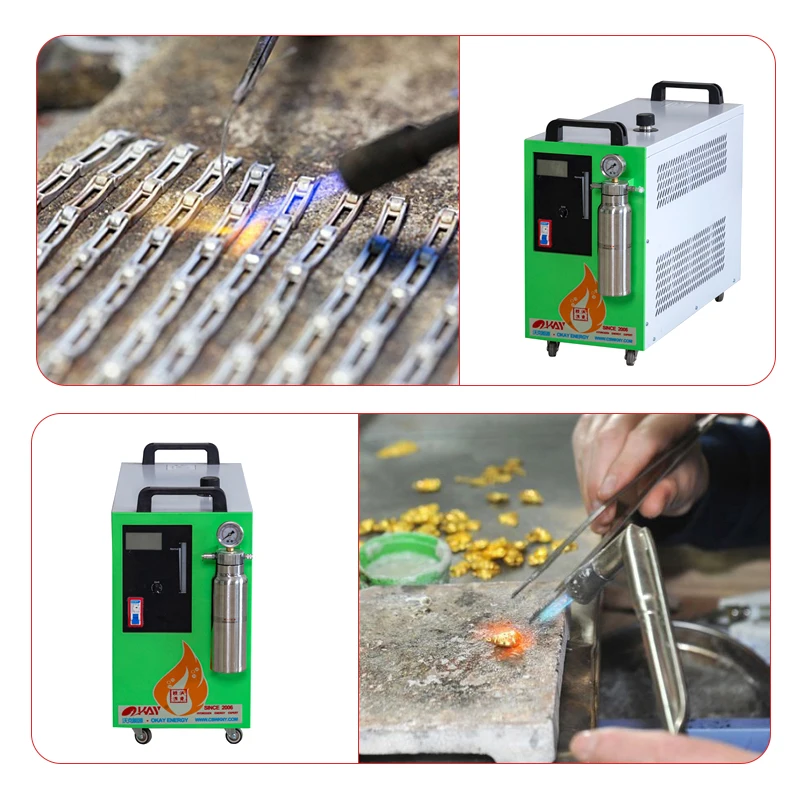

The flame is concentrated, it can achieve welding precisely. Suitable for the precious metal such as jewelry
welding and avoid the metal loss.
Welding quickly
The oxy-hydrogen flame calorific value reaches 34000Kcal/kg,and temperature high up to 2800 degree. It can make the welding spot reaches melting point in 1 second.
Clean flame
Oxy-hydrogen flame combustion doesn't form any carbide, so there is no black spot after welding. And it will not influent the rigidity & flexibility of workpiece. Make jewelry stay beautiful in perfect condition.
Safe & Convenient
Oxy hydrogen generator can produce gas automatically without gas cylinder. Just need pure water & electricity as fuel. No worry for cylinder explodes.The machine will turn on or off automatically by detecting the gas pressure.The gas output volume is adjustable. Easy to operate.

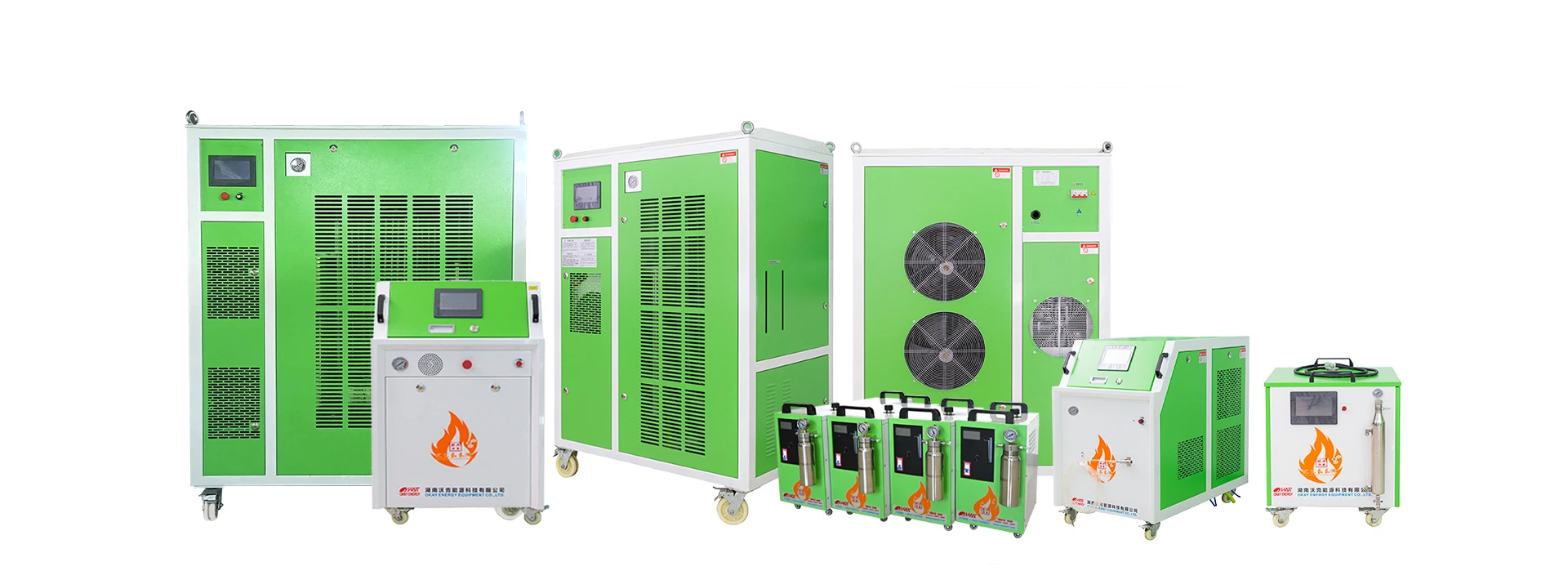

Technical Data


Model
SOH100
OH200
OH300
OH400
OH600
OH800
OH1000
AC Voltage(V)
220/110
220/110
220/110
220/110
220/110
220/110
220/110
Rated Power(KW)
0.4
0.8
1.2
1.4
2
3
3.5
Max.Gas Output(L/h)
100
200
300
400
600
800
1000
Max.Working Pressure(kg/cm2)
2
2
2
2
2
2
2
Max.Water Consumption(L/h)
0.06
0.11
0.17
0.23
0.35
0.43
0.53
Water Feed
manual
manual
manual
manual
manual
manual
manual
Dimension-L*W*H(mm)
520*300*540
450*246*470
575*246*470
695*246*470
945*246*470
660*550*800
700*550*880
Gross Weight(kg)
15
17
23
26
45
70
80
Ventilation Space Requirement(mm)
200
200
200
200
200
200
200


Model
OH1500
OH2000
OH3000
OH5500
OH7500
OH10000
OH20000
AC Voltage(V)
380,three phase
380,three phase
380,three phase
380,three phase
380,three phase
380,three phase
380,three phase
Gas Output(L/h)
0-1500
0-2000
0-3000
0-5500
0-7500
0-10000
0-20000
Max.Working
Pressure(Mpa)
0.2
0.2
0.2
0.2
0.2
0.2
0.2
Max. Water Consumption(L/h)
0.9
1.08
1.8
2.8
4
5.6
10.75
Water Feed
auto
auto
auto
auto
auto
auto
auto
Dimension(L*W*H-mm)
1200*800*1200
1200*800*1200
1300*800*1300
1500*800*1450
1650*800*1500
1520*900*1490
2300*1100*1800
Gross Weight(kg)
250
280
330
396
552
610
1140
Ventilation Space Requirement(mm)
400 in each direction
400 in each direction
400 in each direction
400 in each direction
400 in each direction
400 in each direction
400 in each direction

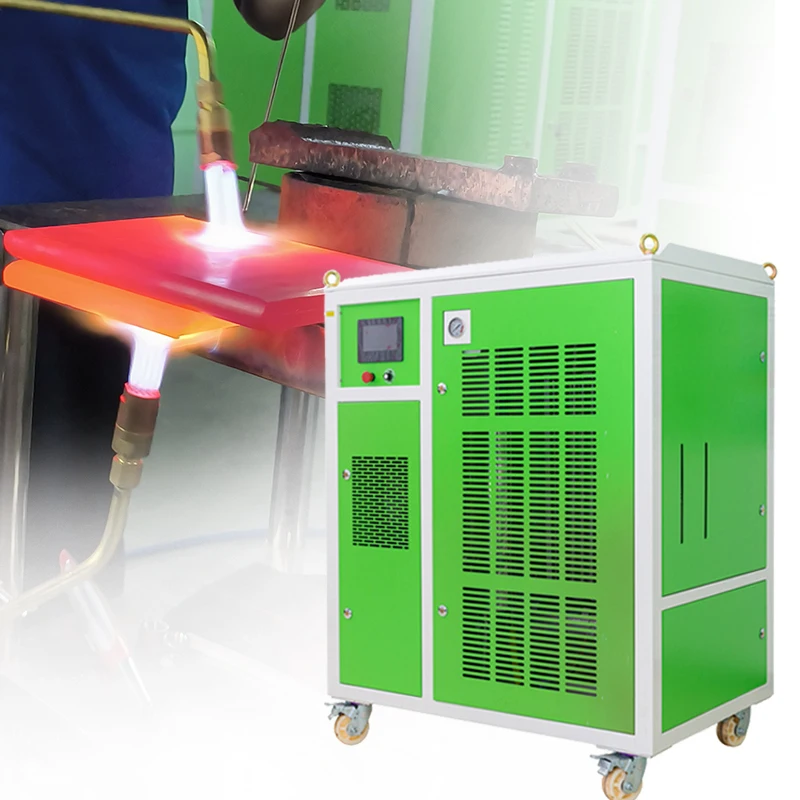

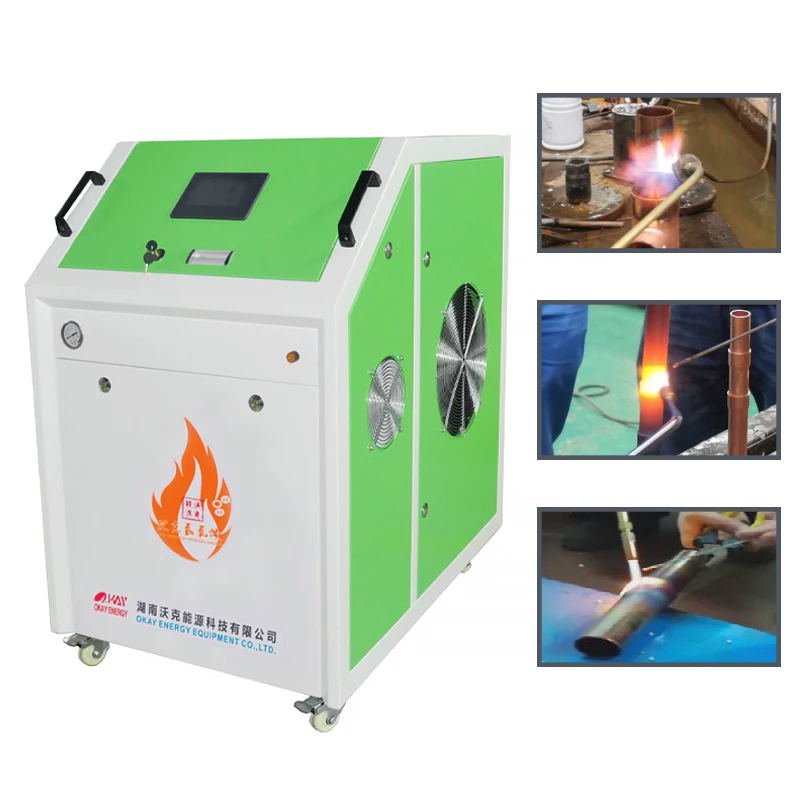

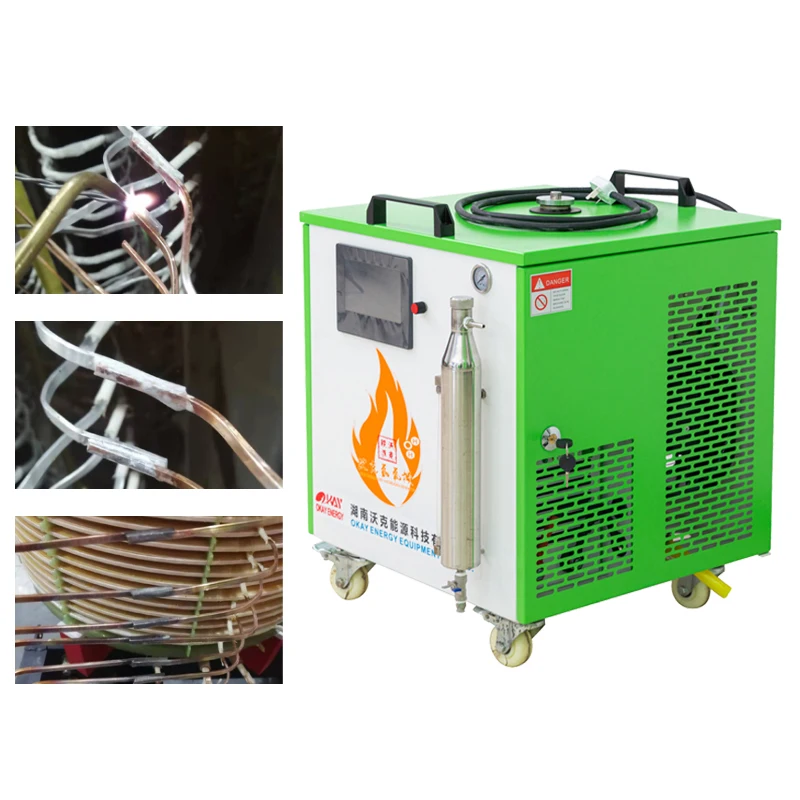

Applications




After-sale Service and Warranty
Global call support center, any question can be replied within 1 day.
• 24 hours hot phone line support.
• 24 hours email support.
• 24 hours phone message support.
• 24 hours WhatsApp and Skype support.
• 1 year product warranty and technical support for lifelong.
