6m China Small Asphalt Paver Asphalt Concrete Pavers Machine Paver RP603

6m China Small Asphalt Paver Asphalt Concrete Pavers Machine Paver RP603

Category: >>>
Supplier: Caterbe Construction Equipment (Wuhan) Co. Ltd.Caterbe Ltd.

Price:$45,000.00-60,000.00

Quantity:

Product Overview

Description

Products Description

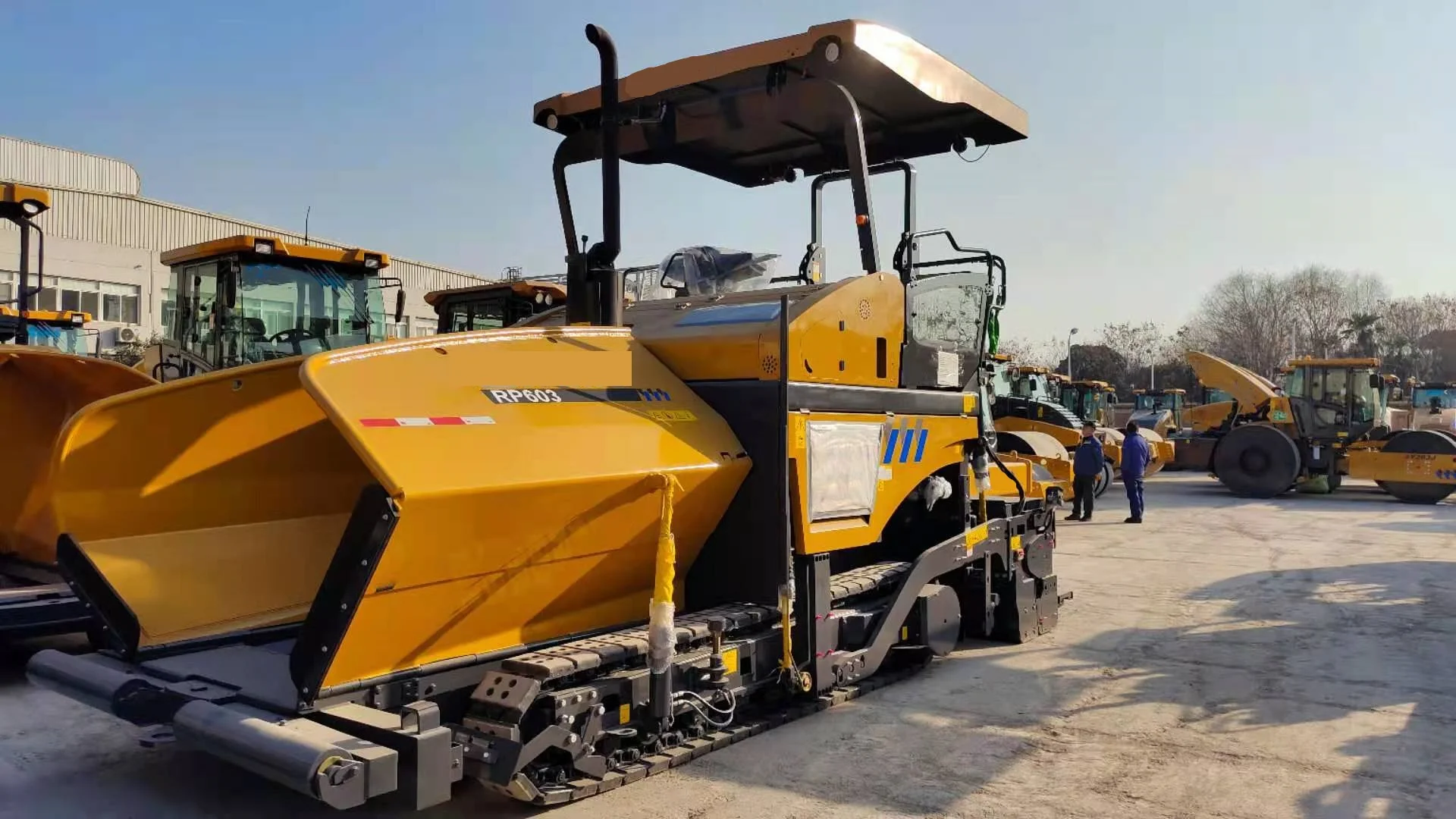

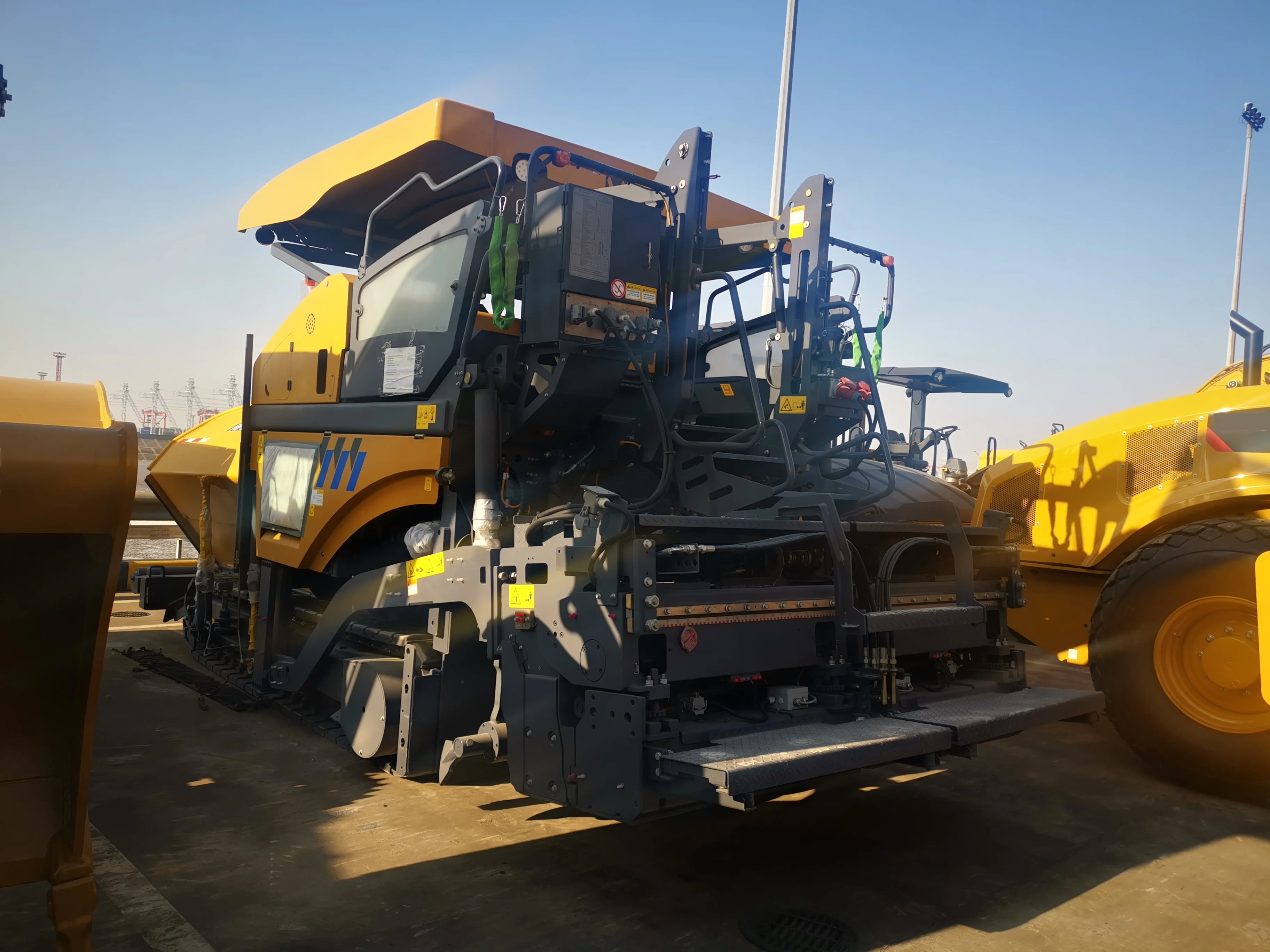

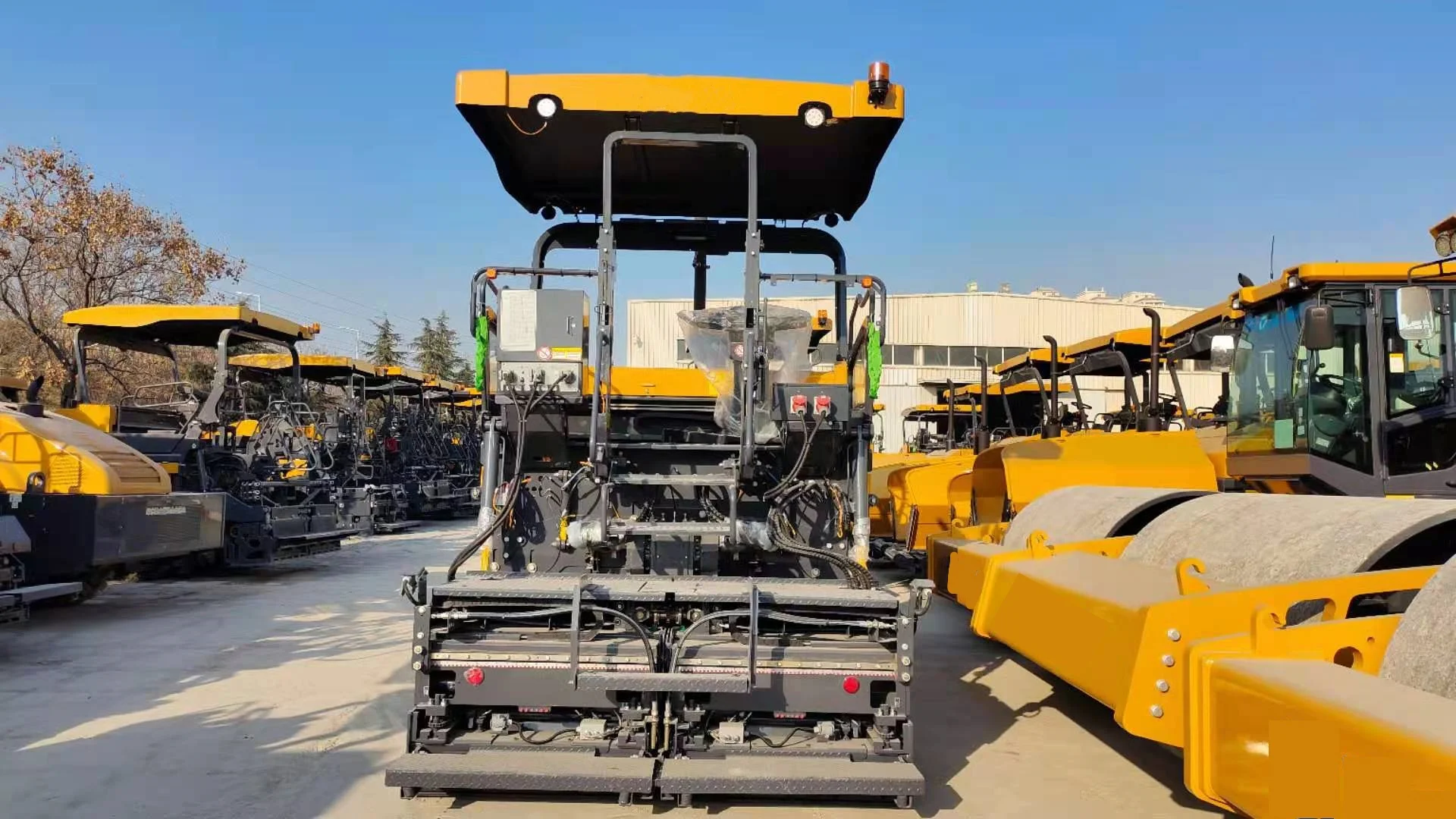

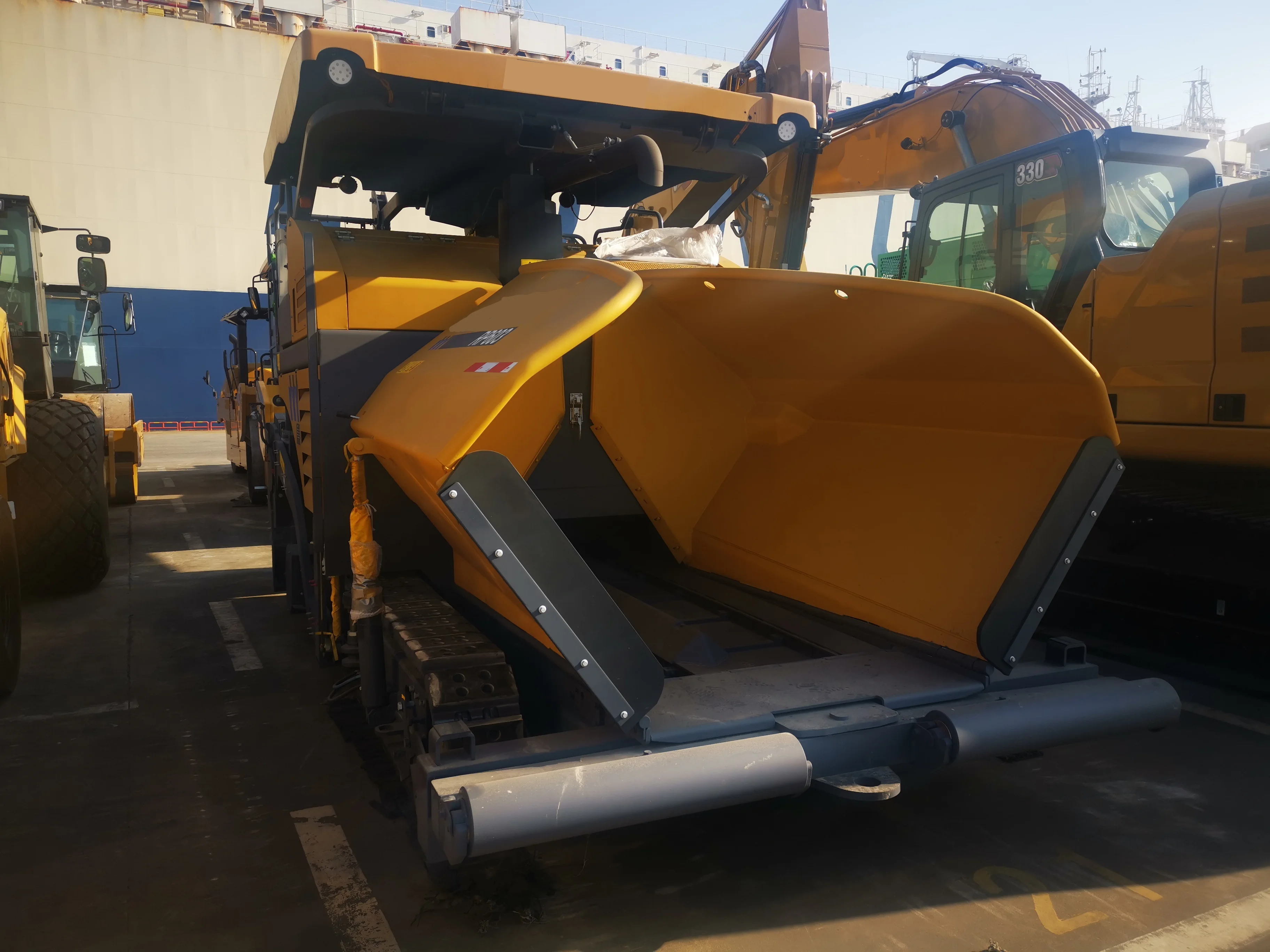

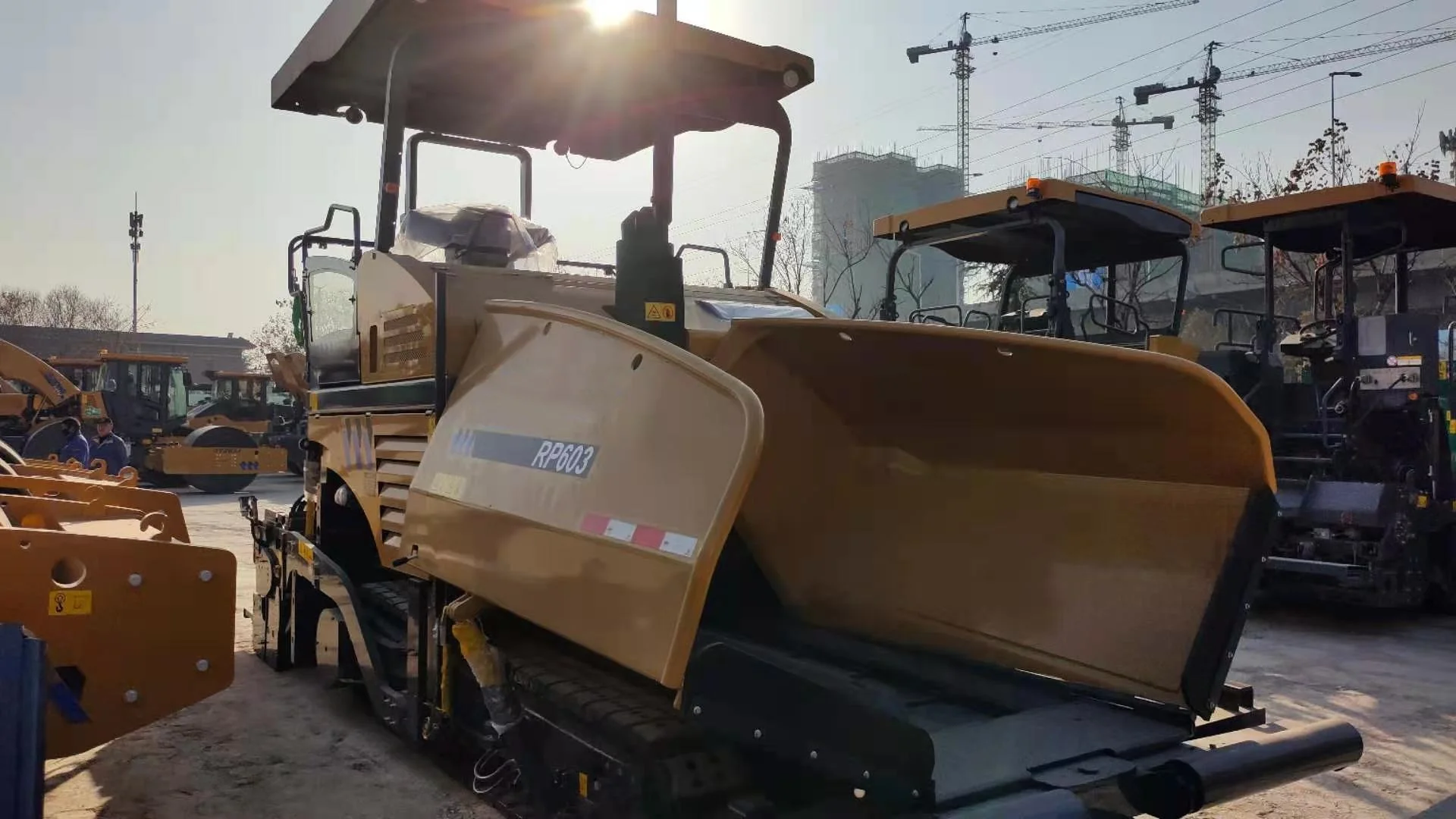

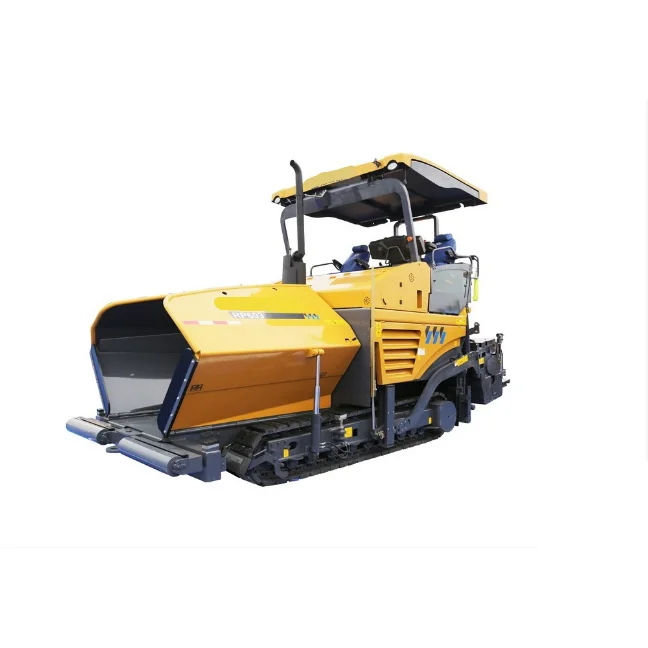

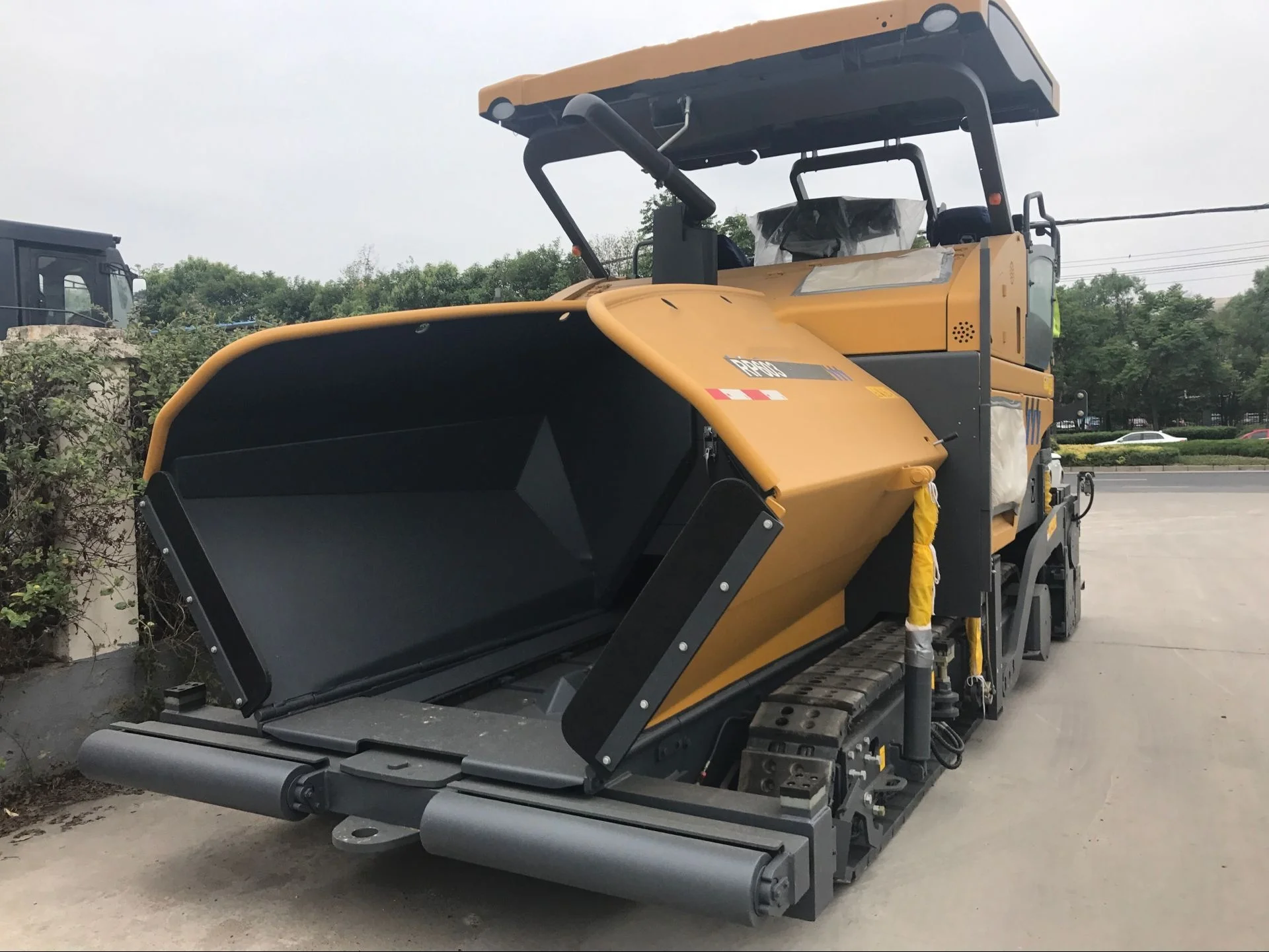

RP603 Asphalt Crawler Paver

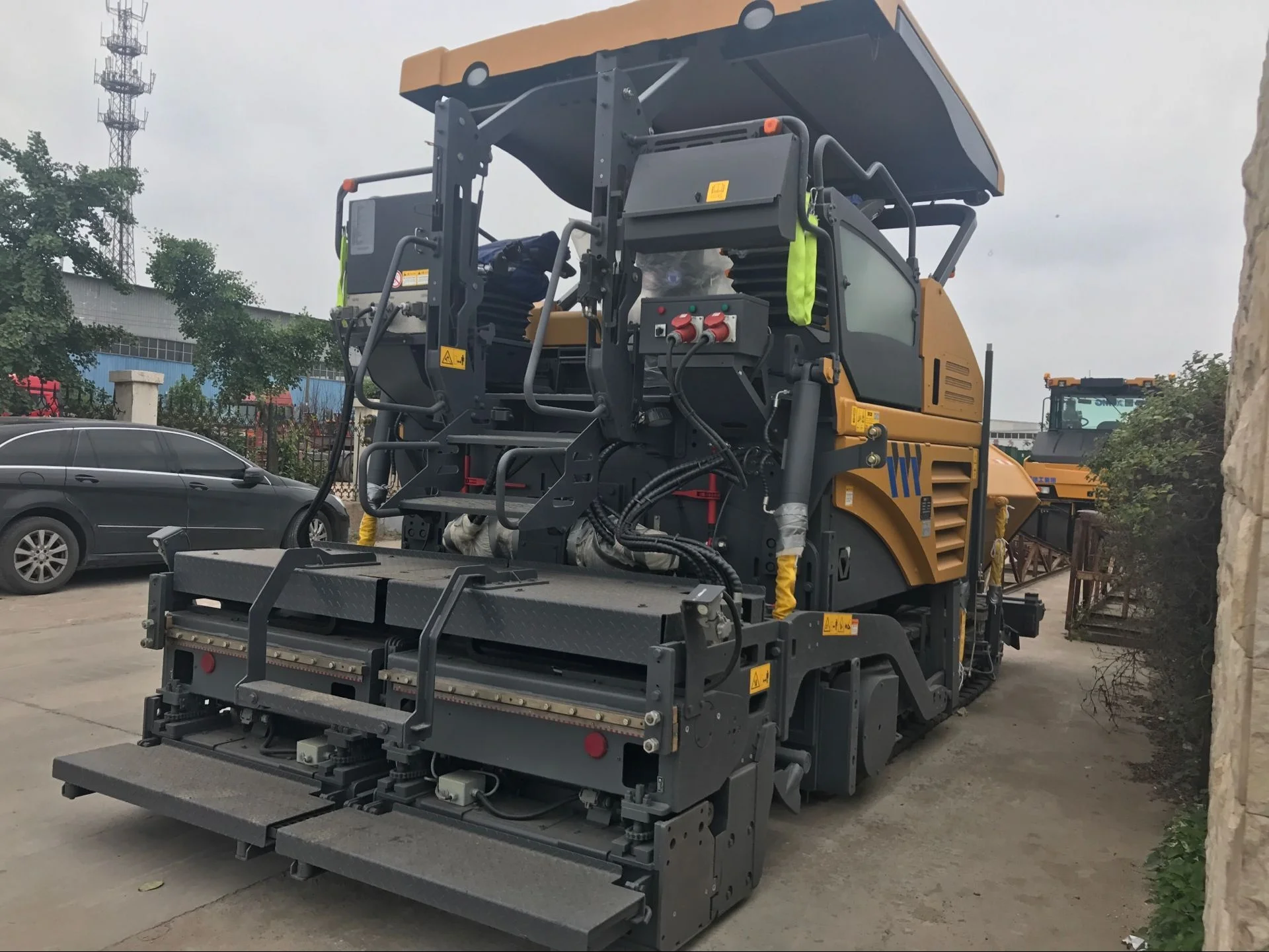

RP603 paver can be applied in the construction work of highway asphalt pavement of various grades for paving different types and gradations of asphalt concrete materials. Due to electric heating hydraulic telescopic screed, it is especially suitable for urban construction, municipal maintenance and other projects.

The machine incorporates full hydraulic drive and micro- computer control, realizing automatic control of material level and leveling. High level of automation in combination with the new generation ergonomic operation platform, providing more simple, faster operation experience.

* The control mode is upgraded to mature CAN communication, intelligent paving management function allowing real-time monitoring and automatic fault diagnosis of the whole vehicle.

* The walking control utilizes the technology of constant speed automatic control to avoid the paving speed affected by load.

* Ultrasonic automatic control technology is adopted to control the material level. The material level can be controlled stably and the auger speed can be adjusted continuously.

* Digital automatic leveling technology ensures high evenness, filling the requirements of high-grade road construction.

Product Paramenters

ltem	Unit	RP603
Basic Pave Width	m	2.5~4.75
Maximum Pave Width	m	6
Maximum Layer Thickness	mm	350
Maximum Paving Speed	m/min	20
Maximum Travel Speed	km/h	3
Hopper Capacity	t	14
Maximum Laydown Rate	t/h	400

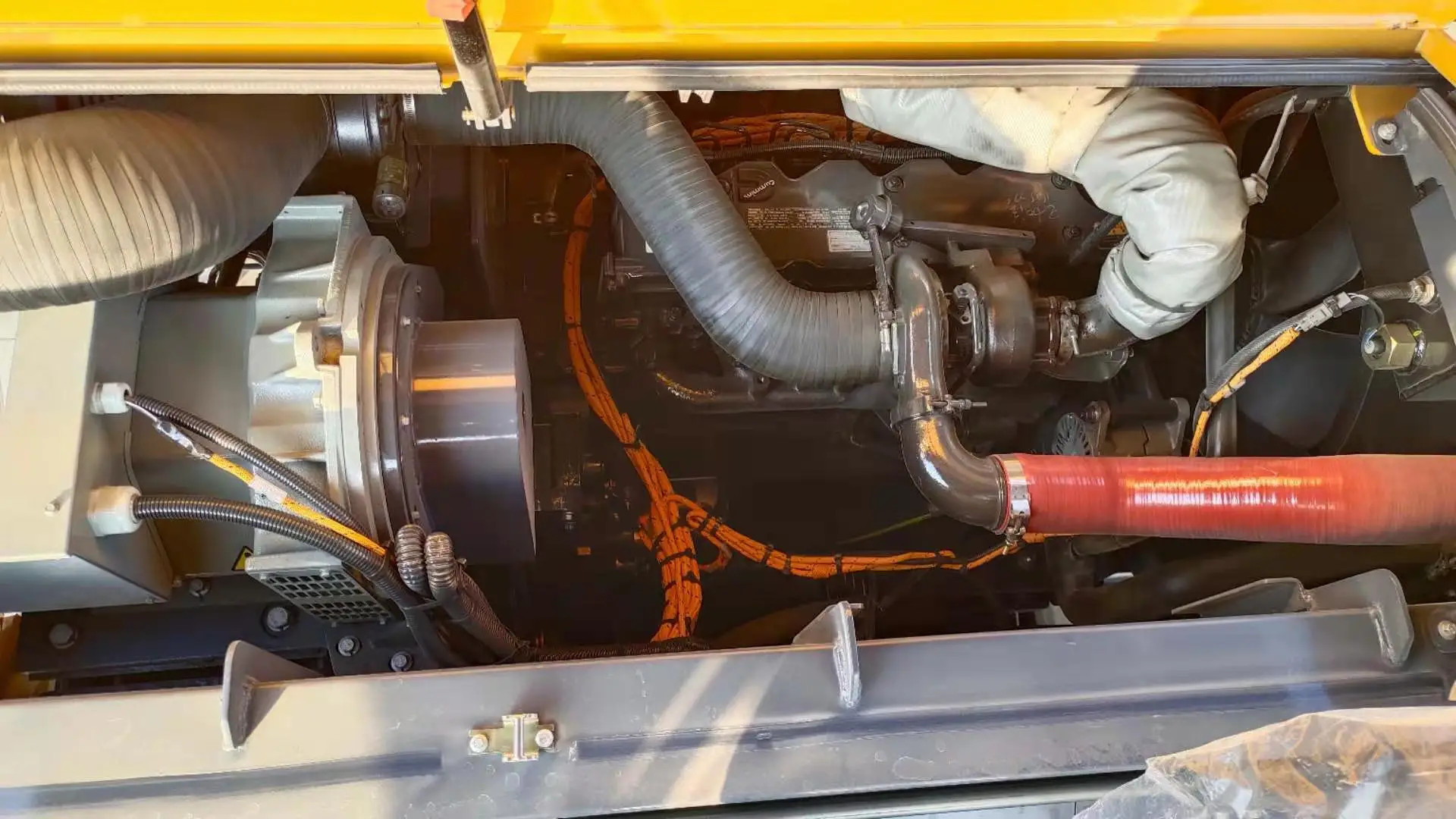

Engine and Type	-	QSB6.7-C170
Rated Power	kW/rpm	129/2200
Shipping Dimension (LxWxH)	mm	668025003180
Shipping Weight	t	18.5
Full Dimension (LxWxH)	mm	668025004000
Full Weight	t	19
