High Quality small car trailers aluminum car trailer car trailers prices
- Category: >>>
- Supplier: Jinan Hanyang Automotive Technology Co. Ltd.Jinan Ltd.
Share on (1601320816280):
Product Overview
Description

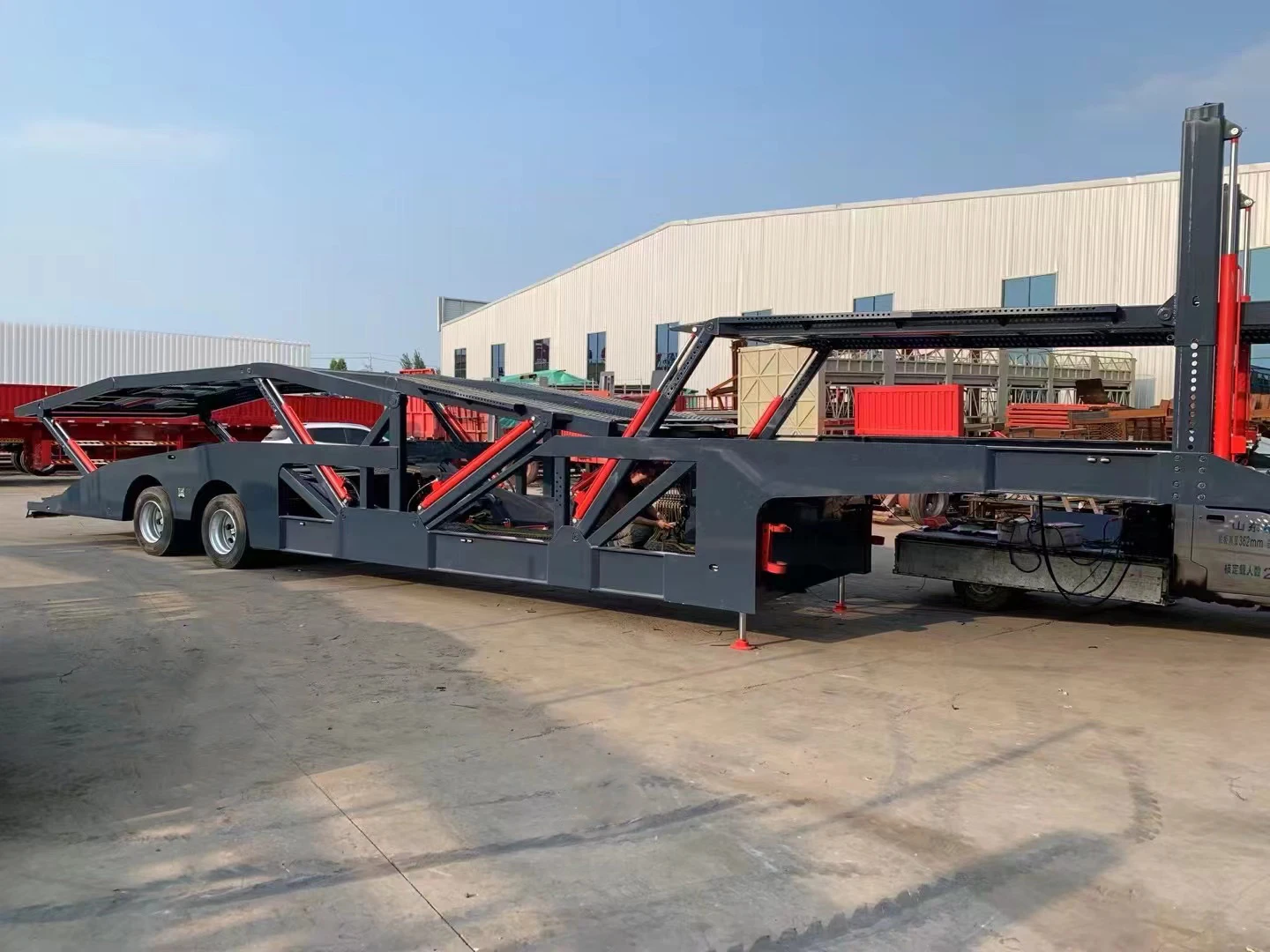

Car Carrier Semi-Trailer

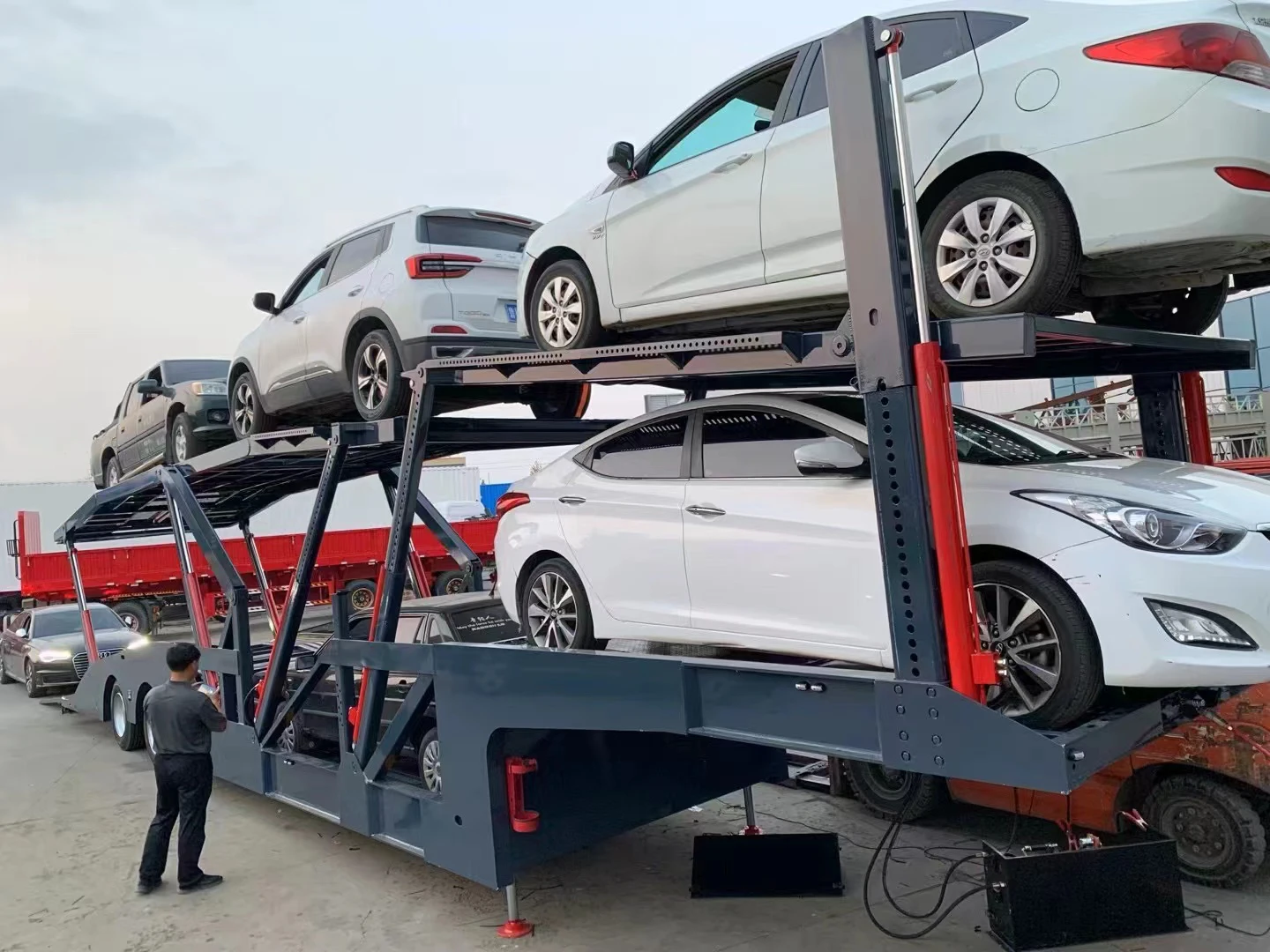

The loading part of the truck is a semi-trailer designed.It mainly carries cars, and can also carry vans, commercial vehicles, jeeps and other passenger cars.
The body for the rod, cabinet structure, light structure, light weight, mostly for the upper and lower two layer loading platform, the platform adopts hydraulic cylinder open, steel wire rope pulley structure, stable lifting, height multi-positioning and other advantages.
The vehicle lightweight design, the overall frame load, light weight, about 30% lighter than similar vehicles. Light weight, high speed, low fuel consumption, let customers create more economic benefits.
Safe and convenient operation: all loading and unloading platform lifting control operation is reliable, can be clearly observed, accurate operation。Axles are available from Fuwa, BPW or other brands.Landing Gear is available from JOST or other brands.
Trailer Model | Car Carrier Trailer |
Overall Dimension(LxWxH) | 20000×2600×4200mm |
Capacity | 10 - 12 units vehicles |

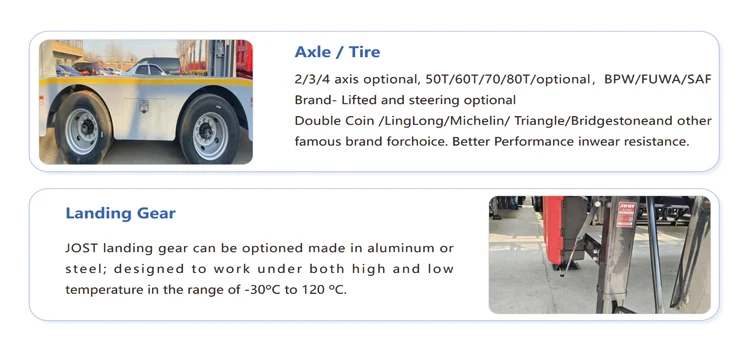

Axle | 2 Axles *13/16 Ton Vehicle Master/FUWA/BPW/Other |
Suspension system | Standard Mechanical suspension |
The material of Main beam | The height of the beam is 500 mm, top 10mm,middle 6mm,bottom 12mm;T700 high strength steel |
Tire Type and quantity | Chinese brand Tire 12R22.5/4 pcs. |
Rim | 9.0×22.5 |
Traction Pin | 2",diameter 50.8 mm ,loading 16 ton |
Tool Box | 1 Standard |
Landing Gear | standard 28 ton |
1. Voltage: 24v; 2. Receptacle: 7 ways (7 wire harness); Tail lamp with turn signal, brake light & reflector, side lamp etc. One | |
Electrical system | set 6-core standard Cable. |
Color | According to customer's requirement |

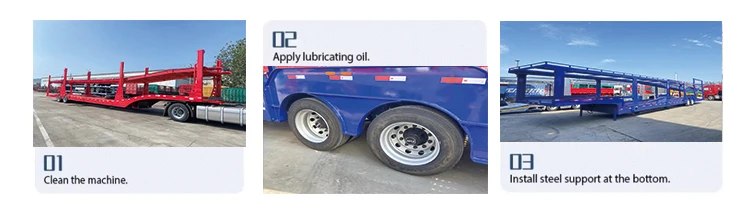

Packing | Polish with wax before shipping |

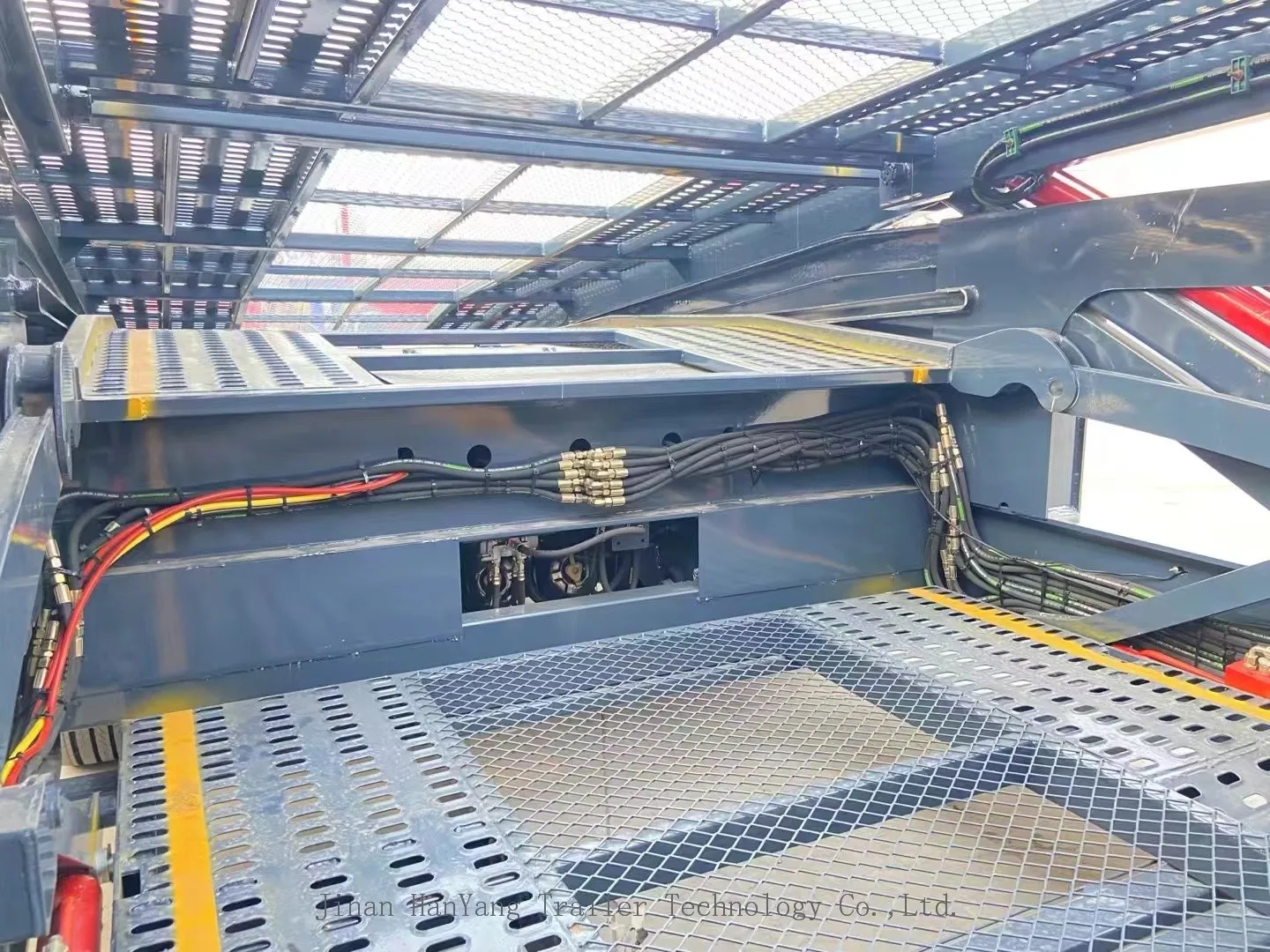

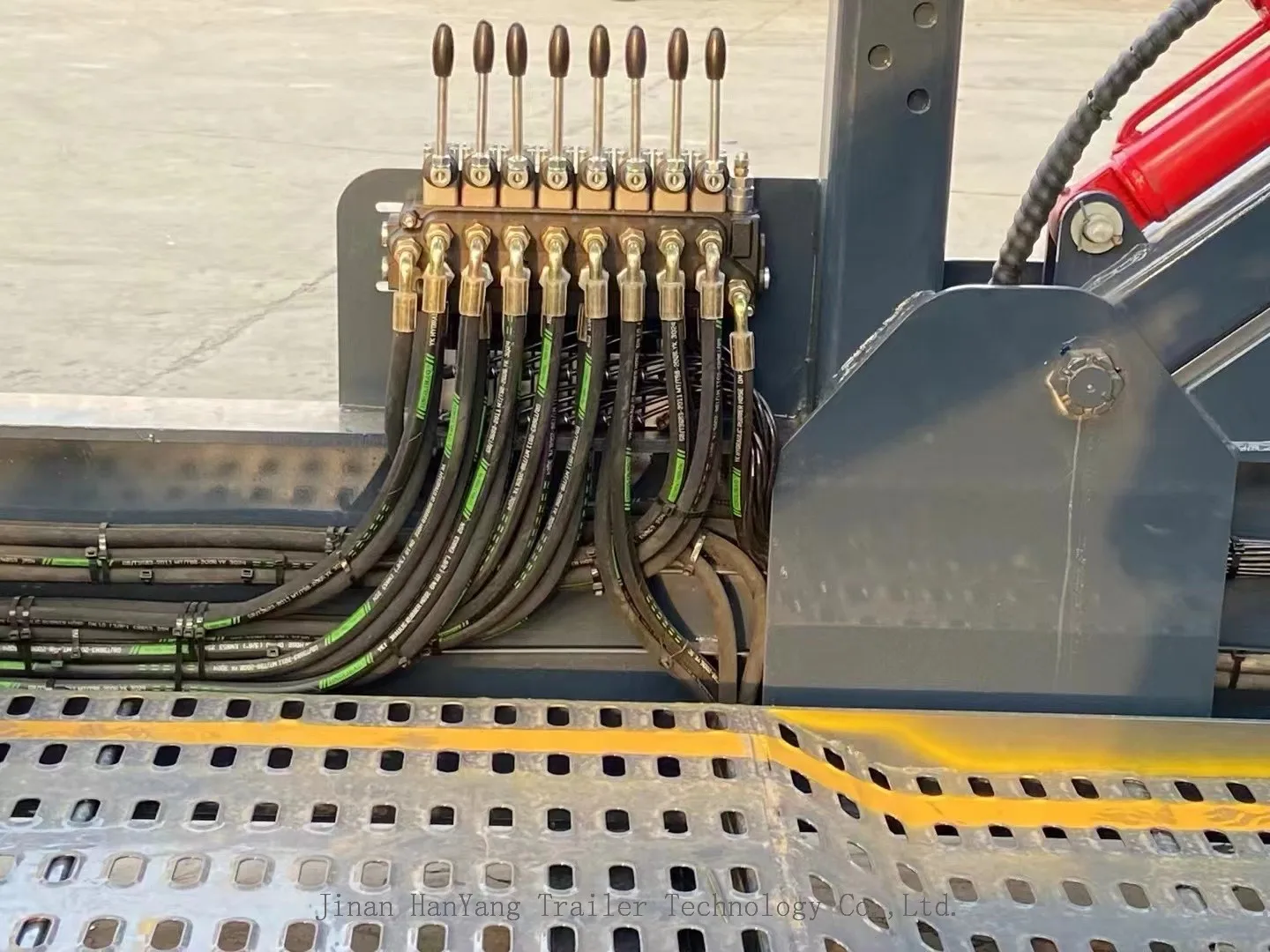

1.Top platform can be adjusted up and down by hydro-cylinder and chain block, totally 4 pcs of cylinder in each trailer. | |
Noted | 2. The roof of trailer can be down about 20cm.We can control by hand when go through limited high place as bridge or some thing. |
