Lpcb 1 4 Loop Addressable Fire Alarm System Smoke Detector Intelligent Addressable Fire Alarm Control Panel
- Category: >>>
- Supplier: Zhongshan Huoming Technology Co. Ltd.Zhongshan Ltd.
Share on (1601320897736):
Product Overview
Description
Product Description
Product Description：
LPCB Intelligent Fire Alarm Control Panel
* The CIE can have up to 48 zones, which can be distributed in one or more loops , with alarm and fault/disable indicators.
* 1-4 loops can be selected, with a maximum of 255 addressable points for a single loop, Max totaling 1020 addressable points including but not limited sounder strobe (TCSG5266) under EN54-3, addressable heat detector (TC5162) under EN54-5, addressable photoelectric smoke detector (TC5161) under EN54-7, manual call point (TCSB5264) under EN54-11,I/O module (TCMK5263) under EN54-18 and loop isolator (TCMK5260) under EN54-17.
* High-speed processor has been used in this control panel with faster data processing speed and larger data capacity.
* 7-inch color LCD screen with display resolution of 800 × 480. Information is more visual.
* Block terminals are all pluggable with clear marks, which is convenient for installation, commission and maintaining.
* Programming can be operated on the panel or by computer.
* The loop has strong anti-interference performance and the system is stable and reliable, convenient for field operating and commissioning.
* Super data capability, available for 2000 pieces of information of each fire alarm, faults and etc.
* Multi-operation levels have been applied on this control panel. Each level applies to variety operations which are protected by passwords, with the second level password of three digits and the third level password of six digits.
* The control panel is capable of detecting faults from points (smoke detectors)as EN54-2 Clause 8.3.
* 1-4 loops can be selected, with a maximum of 255 addressable points for a single loop, Max totaling 1020 addressable points including but not limited sounder strobe (TCSG5266) under EN54-3, addressable heat detector (TC5162) under EN54-5, addressable photoelectric smoke detector (TC5161) under EN54-7, manual call point (TCSB5264) under EN54-11,I/O module (TCMK5263) under EN54-18 and loop isolator (TCMK5260) under EN54-17.
* High-speed processor has been used in this control panel with faster data processing speed and larger data capacity.
* 7-inch color LCD screen with display resolution of 800 × 480. Information is more visual.
* Block terminals are all pluggable with clear marks, which is convenient for installation, commission and maintaining.
* Programming can be operated on the panel or by computer.
* The loop has strong anti-interference performance and the system is stable and reliable, convenient for field operating and commissioning.
* Super data capability, available for 2000 pieces of information of each fire alarm, faults and etc.
* Multi-operation levels have been applied on this control panel. Each level applies to variety operations which are protected by passwords, with the second level password of three digits and the third level password of six digits.
* The control panel is capable of detecting faults from points (smoke detectors)as EN54-2 Clause 8.3.
Specification
Model Number | TC5109 |
Place of Origin | Liaoning, China |
Brand Name | TC |
Product name | Automatic Fire Alarm Control Panel (LPCB) |
Certification | LPCB,CE |
Power Supply | AC230V |
Backup Battery | lead-acid batteries 12V12AH*2 |
LCD Screen Size | 7-inch color LCD screen; Resolution: 800×480 |
Capacity | 255,510,765,1020 addressable points, 1Loop - 4Loop |
No.of loop | 1 Loop |
Communication Interface | RS232,RS485,CAN,USB |
Temperature range | -5℃ ~ 50℃ |
Relative humidity | 5 to 95%,non-condensing |
Packing & Delivery
Packaging Details: | Standard safety export package / carton (Box + Foam) |
Single package size | 48*41*20cm |
Single gross weight | 12kg |
Company Profile
We Recommend
Wireless Fire Alarm System Addressable Control Panel 1 Loop 250 points Smart
US $375.00-$450.00

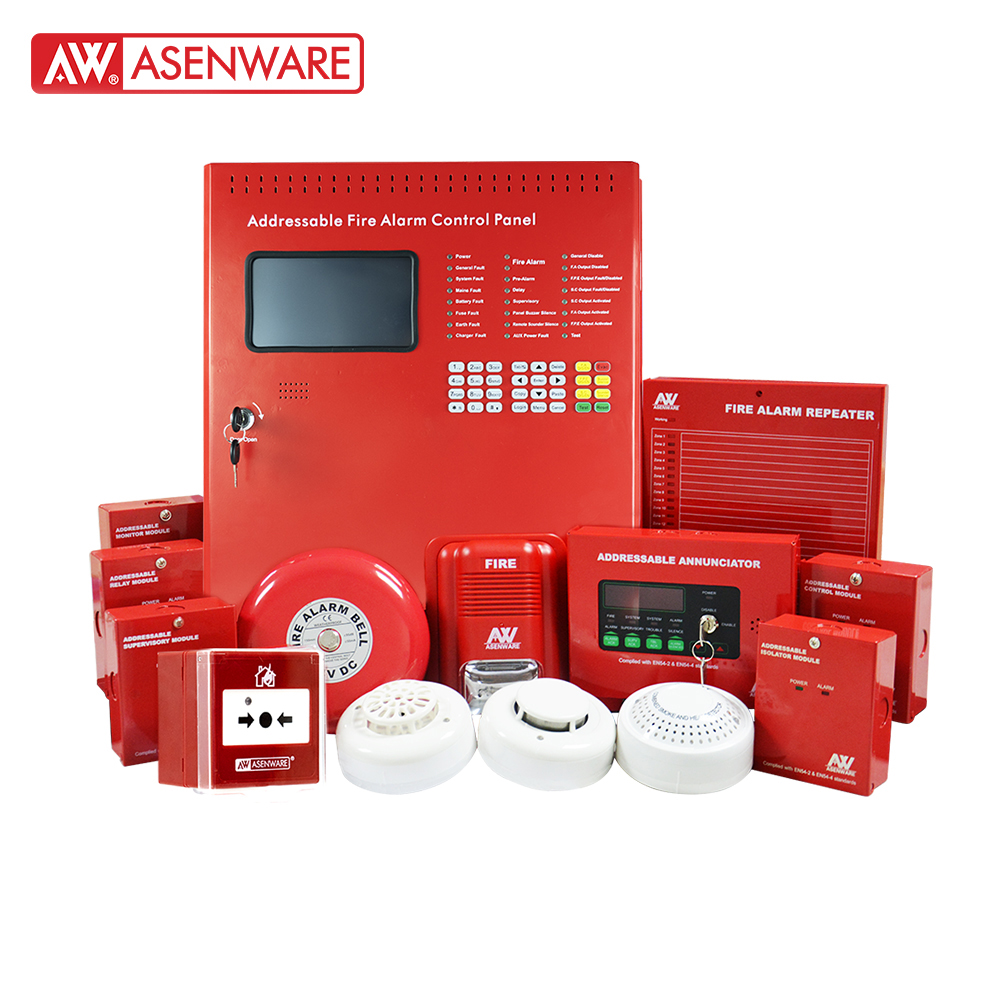

Asenware addressable fire detection total alarm system
