Compressed Natural Gas Dispenser Compressor Filling Stations for Mobile Station CNG Fuelling Station

Share on (1601322669723):


Price:$70,000.00-80,000.00

Quantity:


Product Overview

Description



Related Products


CNG semi trailer
Hydrogen transportation
CNG Station


Product Description

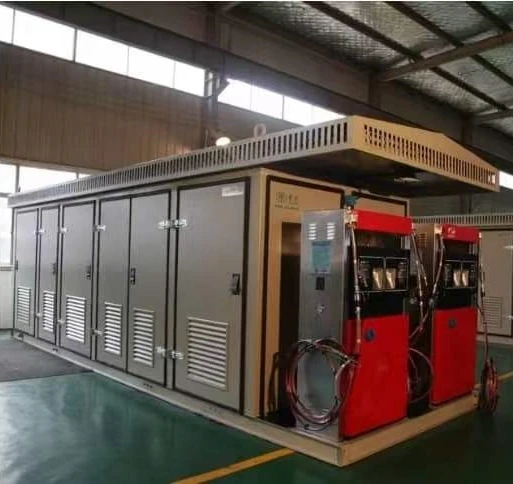

CNG INTEGRATED STATION ONE-STOP SERVICE

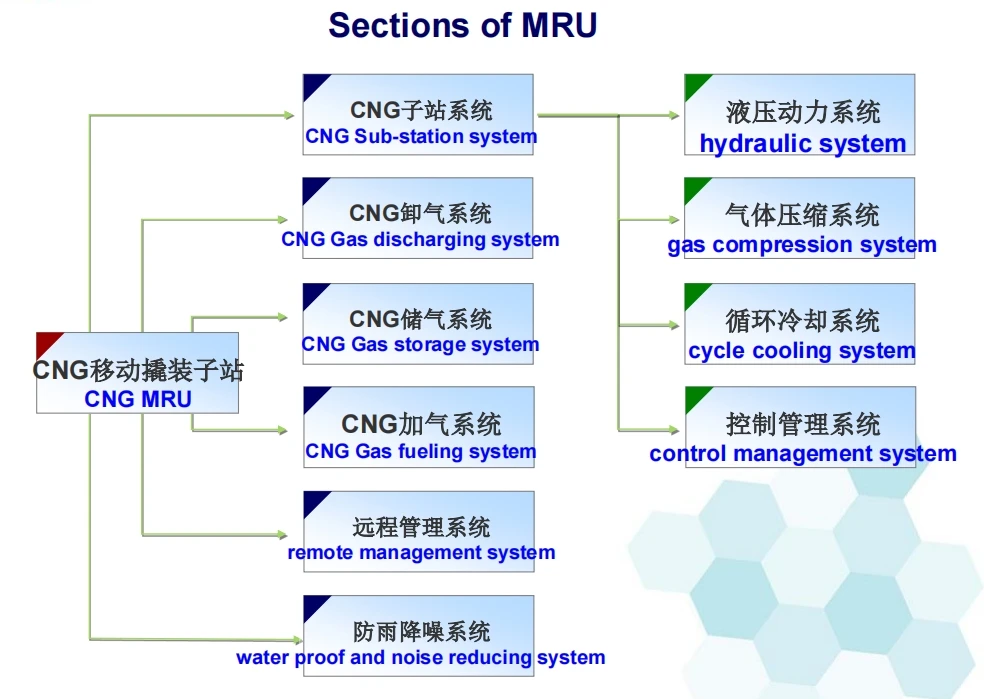

Configuration List


NO.
product
Details
qty
1
Compression
system
Explosion-proof three-phase asynchronous motor
Power 22kW, speed 1480r/min,
Rated voltage 380V
1 set
Hydraulic pump
Pressure 32MPa, rotation speed 1480r/min
1 set
Compression cylinder
inlet pressure3-20MPa, outlet pressure ≤25MPa
1 set
In-sled process pipe fittings
Pipe joints, ferrule tees, and other components are made of high-quality products to ensure the quality of the equipment.
1 set
In-skid process valves
DN15, DN6, stainless steel material
1 set

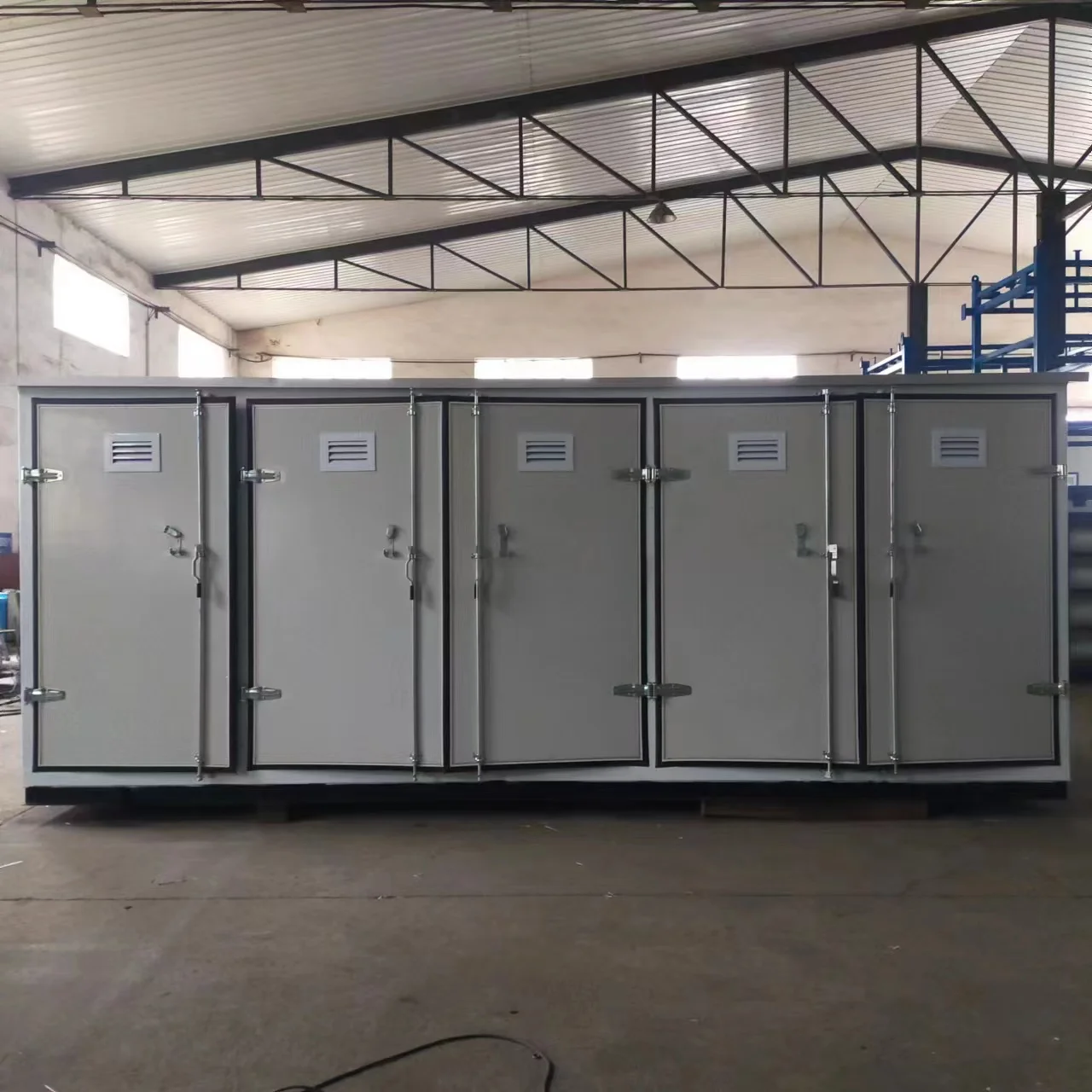

sled, box
Skid mounted, easy to move
1 set
2
CNG discharging system
Rated working pressure: 20MPa, maximum working pressure: 25MPa, flow range (3~80) m3/min
1 set
3
CNG gas dispenser
Double gun gas dispenser, Rated working pressure: 20MPa, maximum working pressure: 25MPa
1 set
4

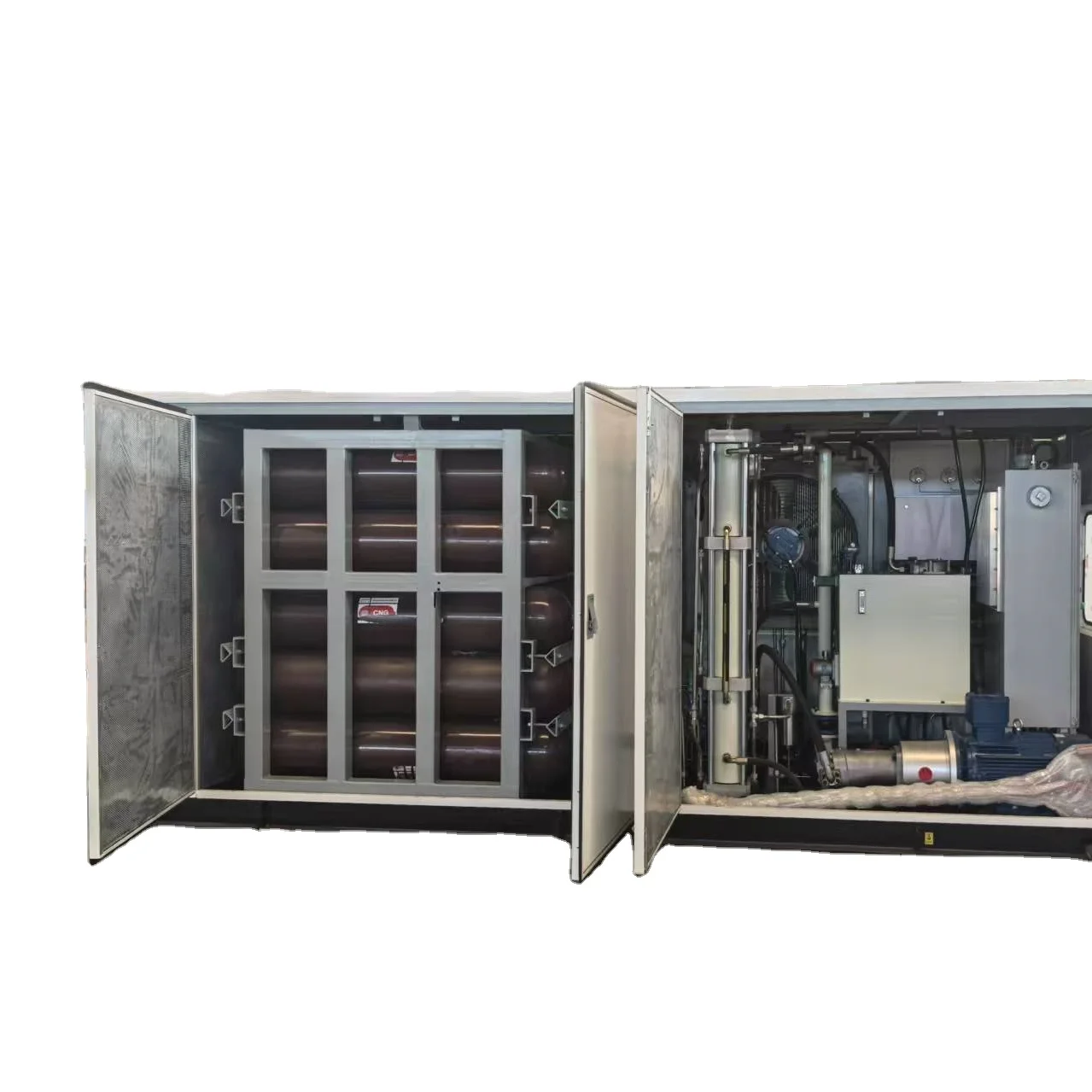

CNG gas storage bottle
Working pressure 20MPa, design pressure: 25MPa,Single bottle water capacity: 200L, water capacity 1.8m3, High: Medium ratio: 1:2
1 set
5
Compressor control system
Integrated control system
1 set

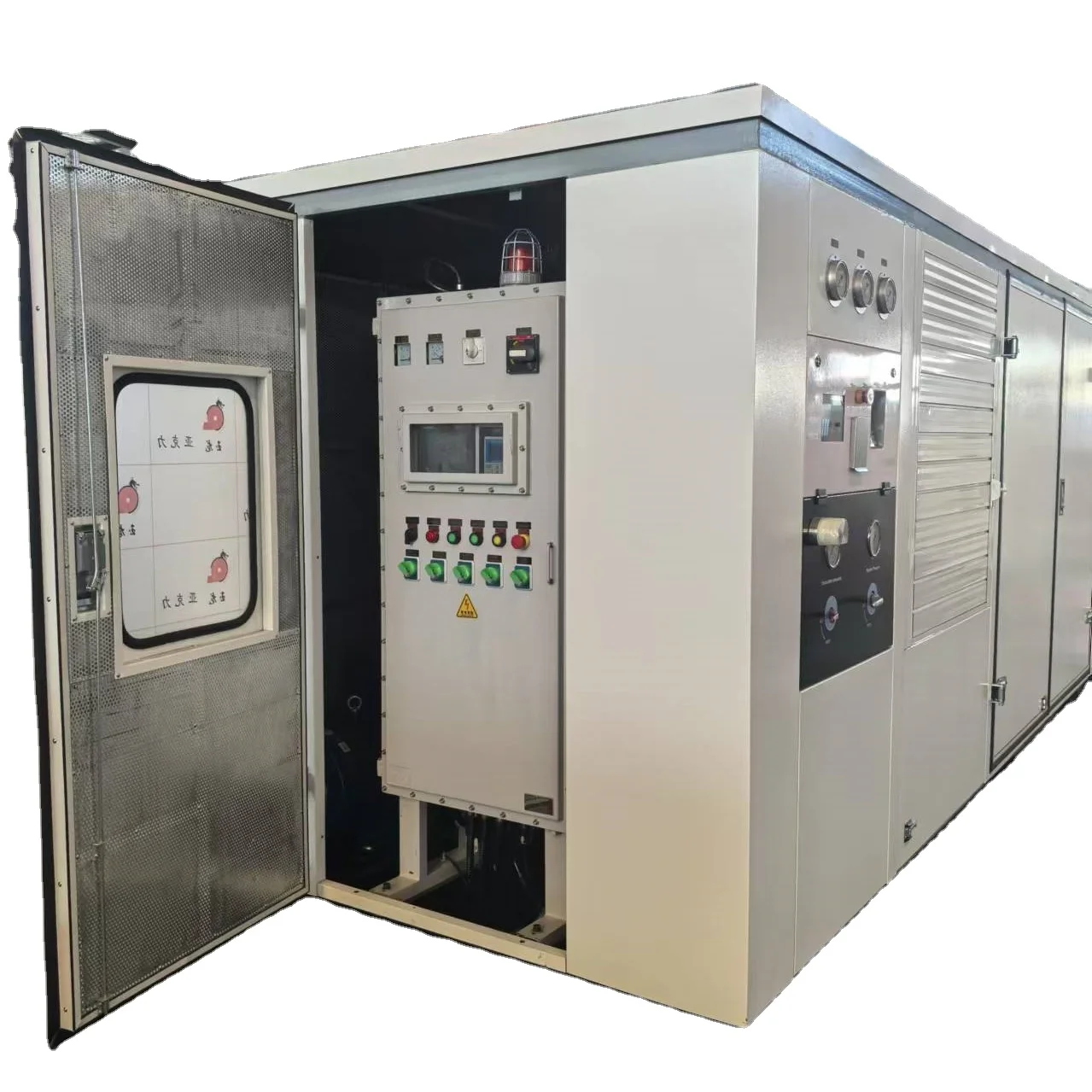

PLC control cabinet
Siemens PLC and Pro-face touch screen, Omron switching power supply
1 set
Explosion-proof boxes and hoses
1 set




Company Profile


Jiangsu Huayan has the design & fabrication capacity of Hydrogen stationary storage tanks, including above-ground, underground, mounded, etc. All kinds of tanks could be customized according to the customers' requirements.

An integrated skid is an integration of a hydrogen refueling station, such skid integrates the hydrogen compressor, cooling system, buffer tank and refueling/metering/control systems, thus achieving hydrogen energy compression, metering, and refueling. With an adoption of modular and integrated design, the hydrogen refueling station with integrated skid can facilitate equipment's overall transportation and installation, thus effectively saving costs for station establishment. Integrated skids of 200 kg/d or 500 kg/d can be manufactured according to customers' demands.

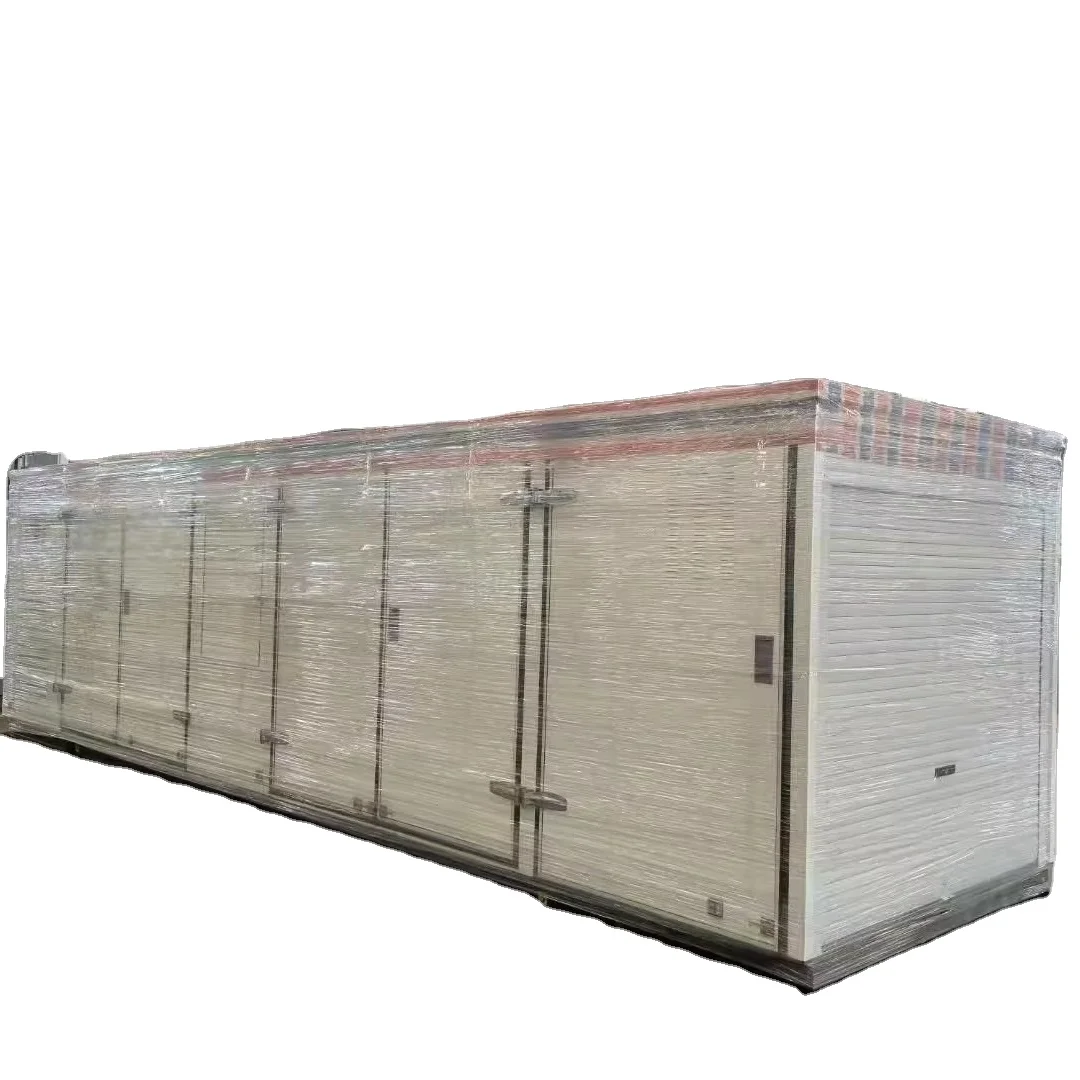

Packing & Delivery




FAQ


1. What are the main components of a CNG long tube trailer?
1. trailer
2. framework
3. large-cubage seamless steel cylinders
4. for safety cabin
5. back operation cabin

2. What products can you provide?
We specialize in producing LPG cylinders, LNG cylinders, Cryogenic Liquid Storage tanks (LO2, LN2, LAr, LCO2, and LNG), etc. Any interests you can feel to contact us for details.

3. May I have the best price from you?
Sure. We are always on the way to promoting our product price and service competitiveness.

4. Do you provide a one-stop service so I can save my time and labor?
You will own a professional team in China by cooperating with HUAYAN.

5. What's the delivery time?

If they are standard models, then we can ship them out within 60 days after payment.
If customized, 110 days can be ready for shipment.
