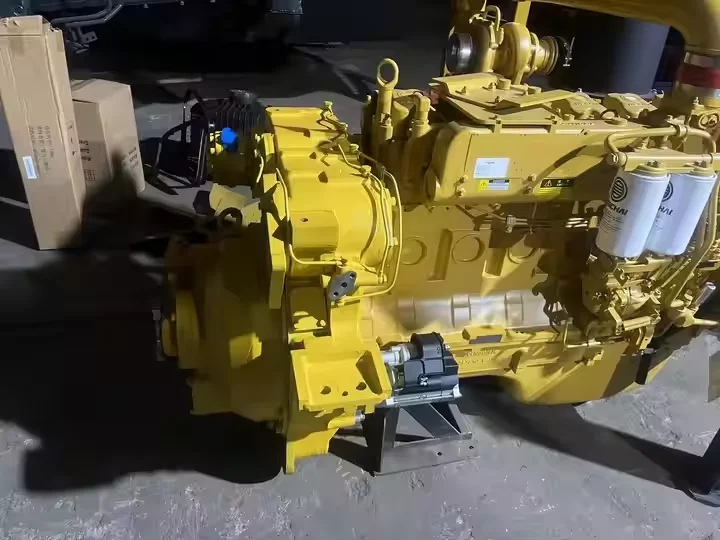

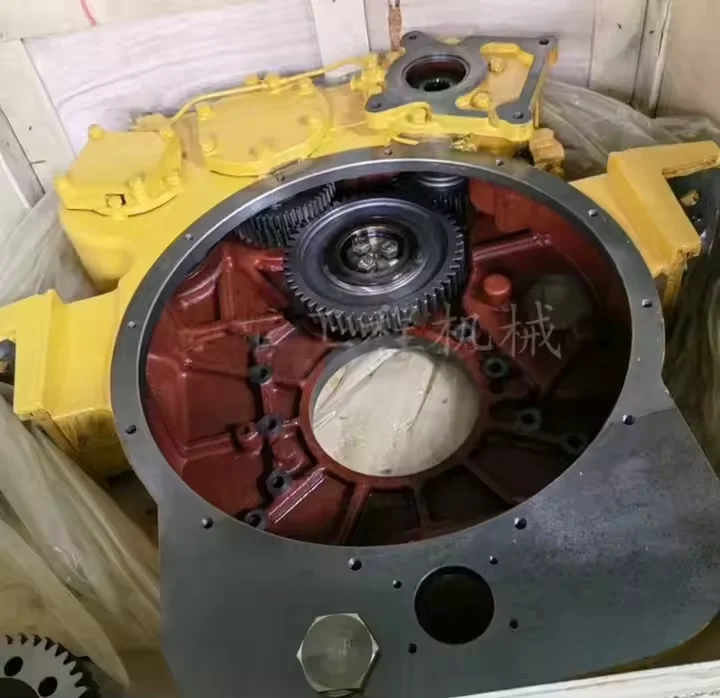

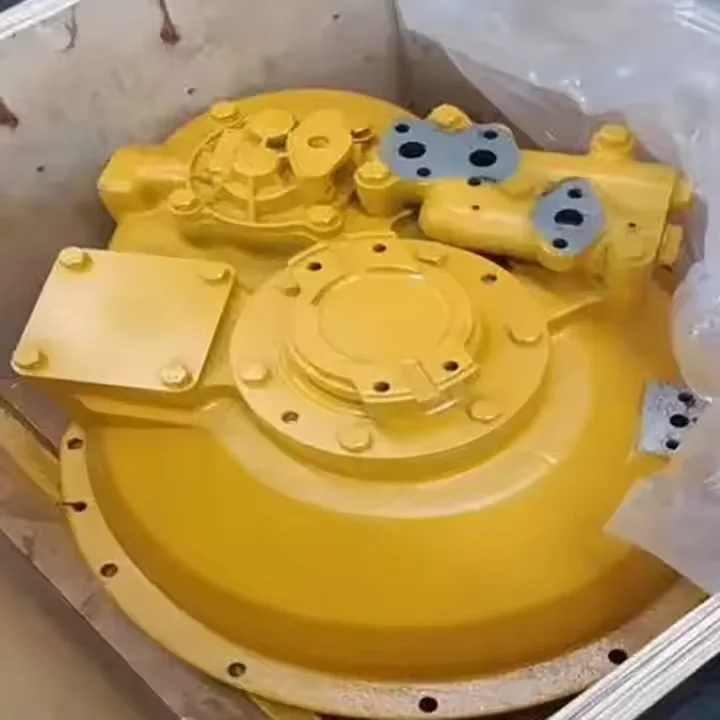

Shantui SD16 Spare parts flywheel housing assembly 16Y-02B-00001 equipped with weichai or shangchai engine
NO. | PART NO. | PART NAME | Q'TY |
1 | 16Y-02A-70000 | Rear bracket | 2 |
2 | 16Y-02A-00043 | Plate | 4 |
3 | 01010-51845 | Bolt | 8 |
4 | 04020-01434 | Cylindrical pin | 4 |
5 | 16Y-02B-00001 | Flywheel | 1 |
6 | 01252-51290 | Screw | 2 |
7 | 07000-02010 | O-ring | 1 |
8 | 16Y-02A-00042 | Plug | 1 |
9 | 01010-51260 | Bolt | 11 |
10 | 16Y-02B-00005 | Plate | 1 |
11 | 16Y-02B-00006 | Washer | 1 |
12 | 01643-30825 | Washer | 8 |
13 | 01010-50816 | Bolt | 8 |
14 | 01212-50408 | Screw | 2 |
15 | 16Y-02B-00007 | Pointer | 1 |
16 | 16Y-02A-00029 | Cover | 1 |
17 | 16Y-02A-00030 | Washer | 1 |
18 | 16Y-02A-00001 | Plug | 1 |
19 | 16Y-02A-00002 | Washer | 1 |
20 | 16Y-02B-00003 | Gear | 1 |
21 | 16Y-02B-00004 | Pin | 1 |
22 | 16Y-02A-00006 | Idle gear | 1 |
23 | 16Y-02A-50000 | Bearing | 1 |
24 | 07000-62015 | O-ring | 1 |
25 | 16Y-02B-00002 | Idler wheel axle | 1 |
26 | 07046-12016 | Dish-shaped plug | 2 |
27 | 16Y-02A-00009 | Washer | 2 |
28 | 16Y-02A-00008 | Bolt | 2 |
23A | 16Y-02A-00044 | Washer | 2 |
part No. | part name | used for |
16Y-02B-00001 | FLYWHEEL HOUSING | SHANTUI SD16 |
23Y-01B-00000 | FLYWHEEL HOUSING | SHANTUI SD22 |
6710-23-4000 | FLYWHEEL HOUSING | SHANTUI SD32 |
