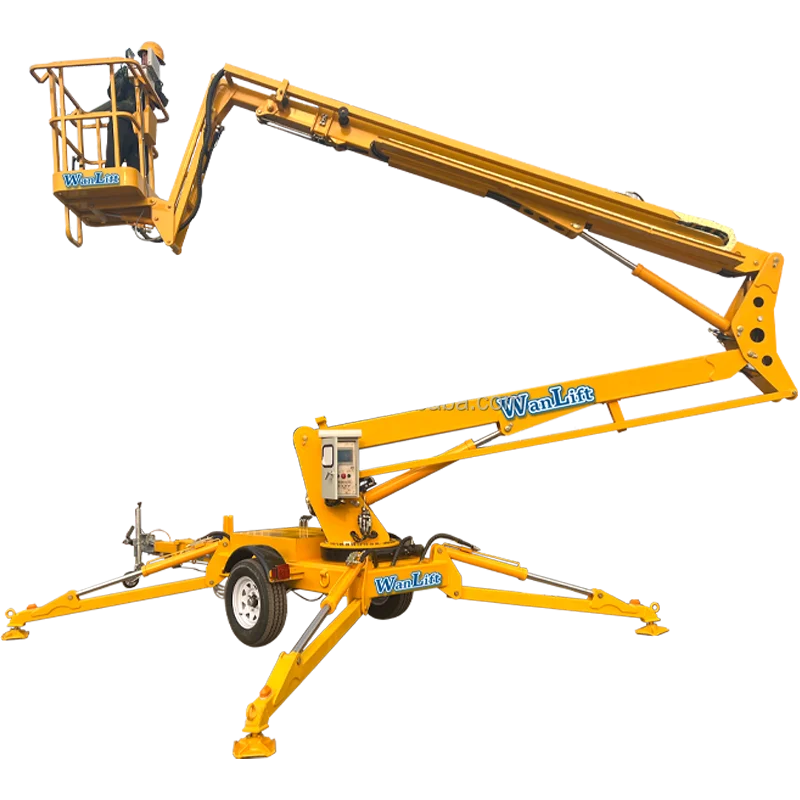

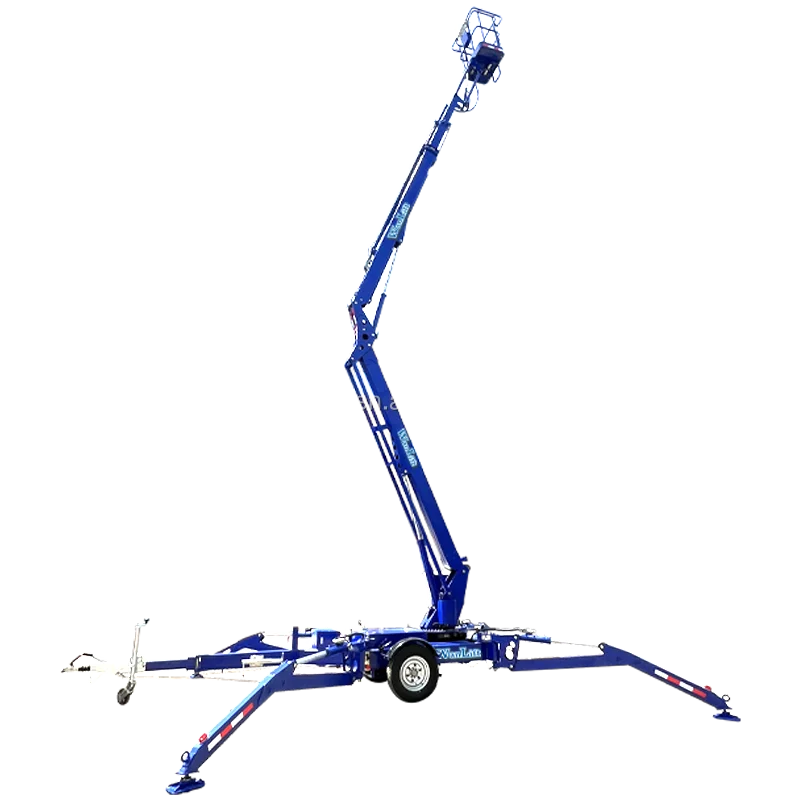

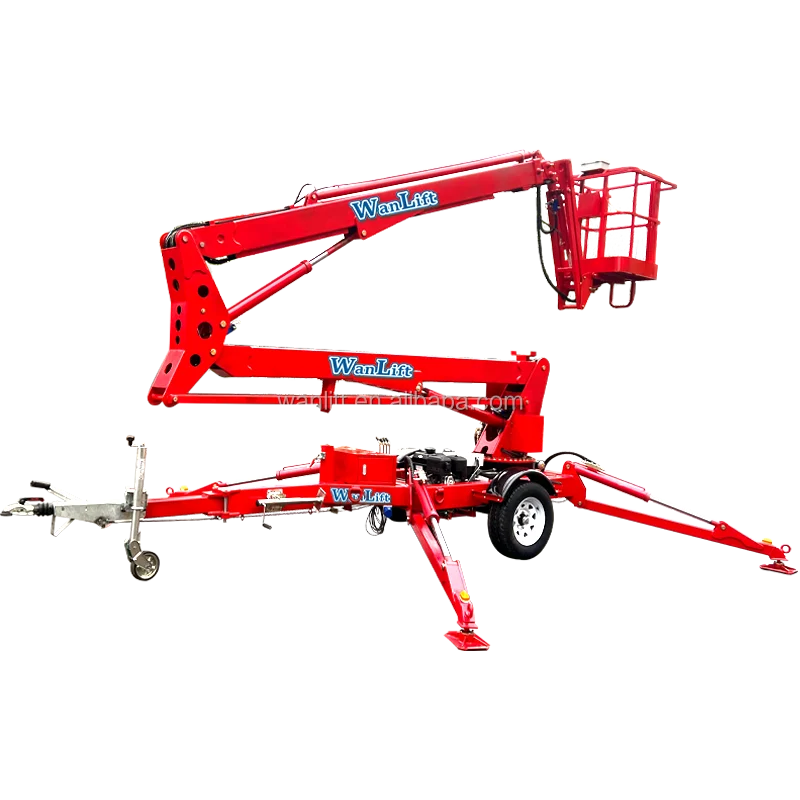

CE TUV certificated 16m Truck Mounted Cherry Picker Boom Lift Articulating Mobile Aerial Man Bucket Basket Platform
- Category: >>>
- Supplier: Qingdao Wanlift Machinery Manufacturing Co. Ltd.Qingdao Ltd.
Share on (1601329344648):
Product Overview
Description
Product Description

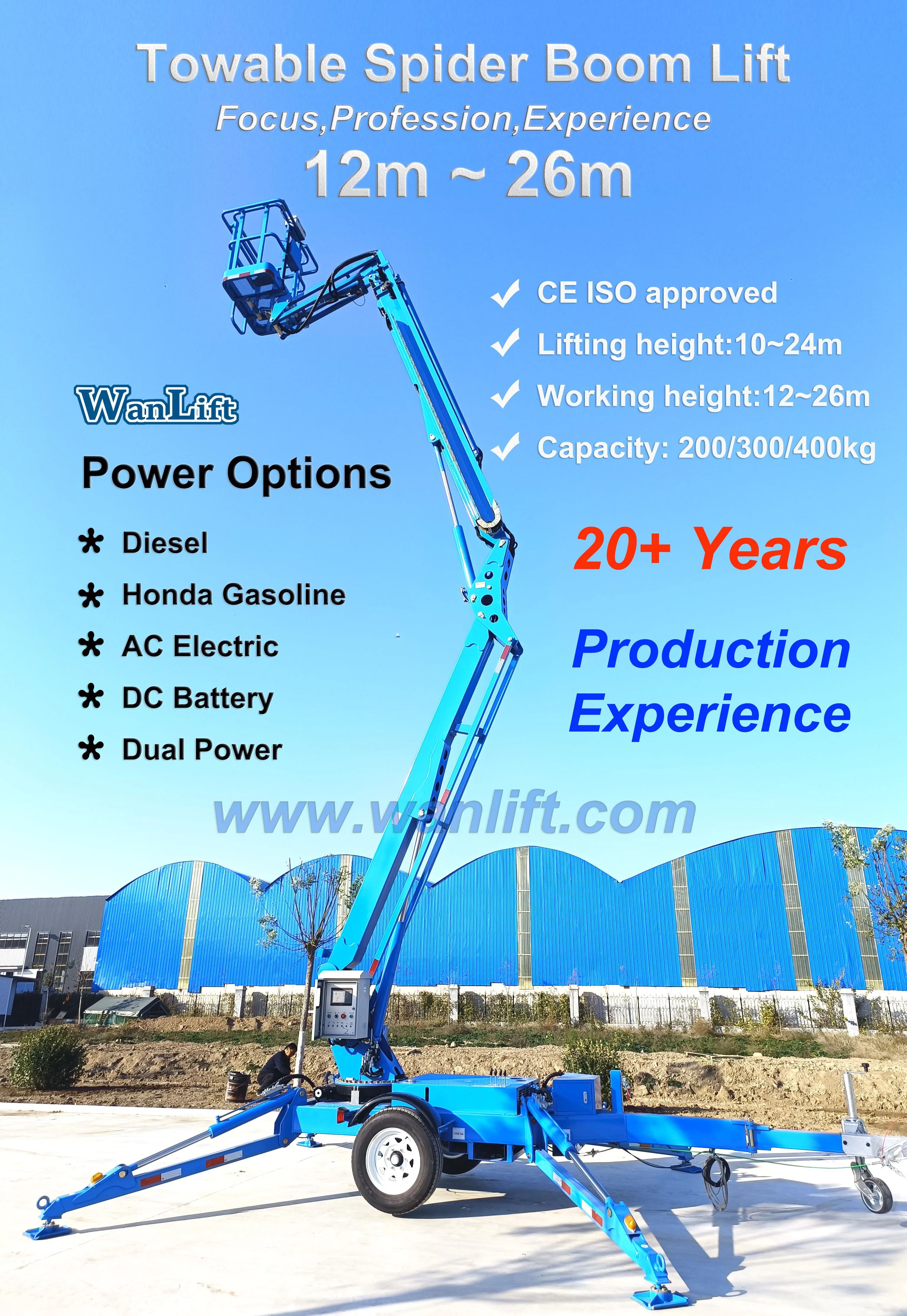

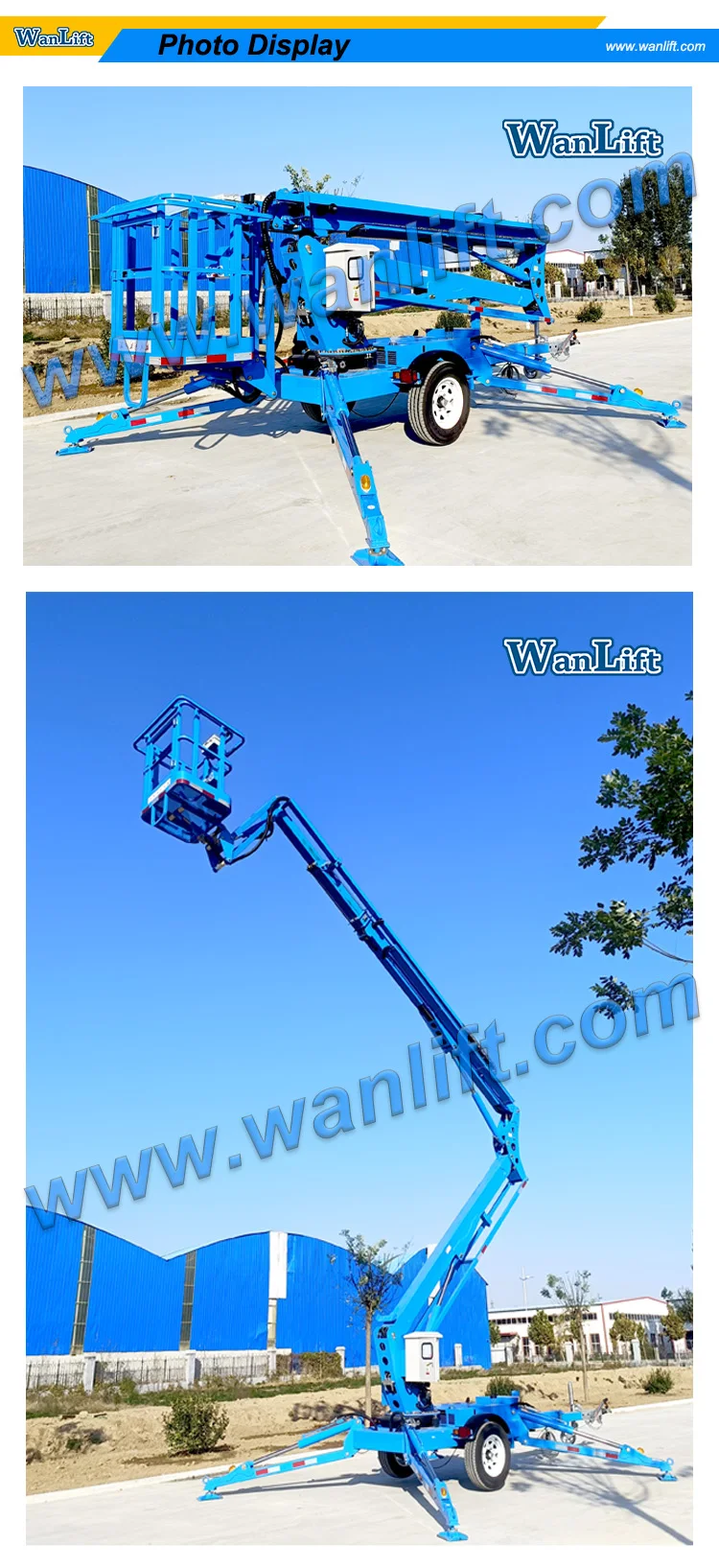

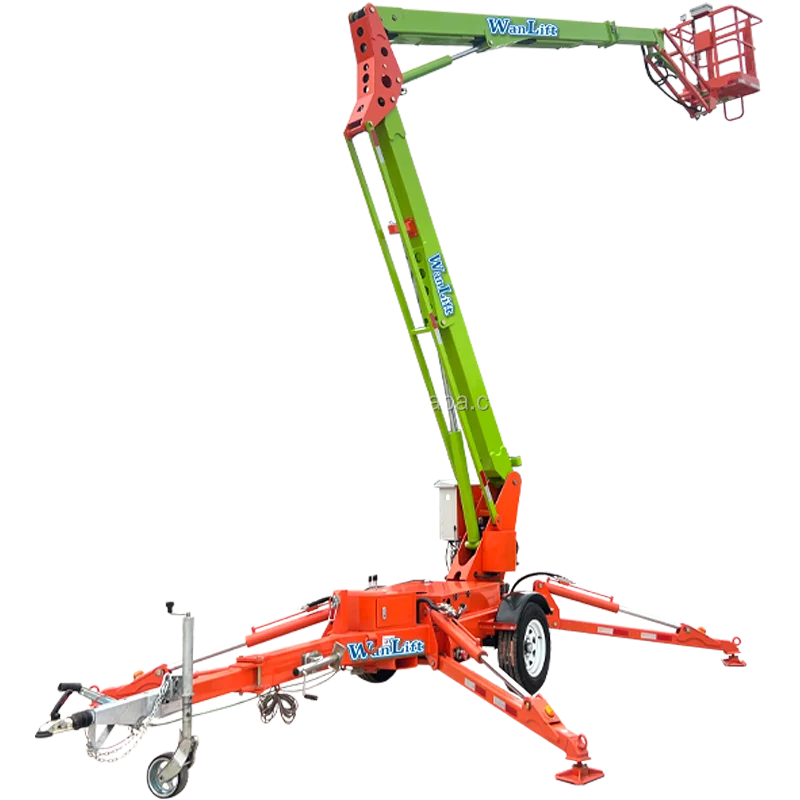

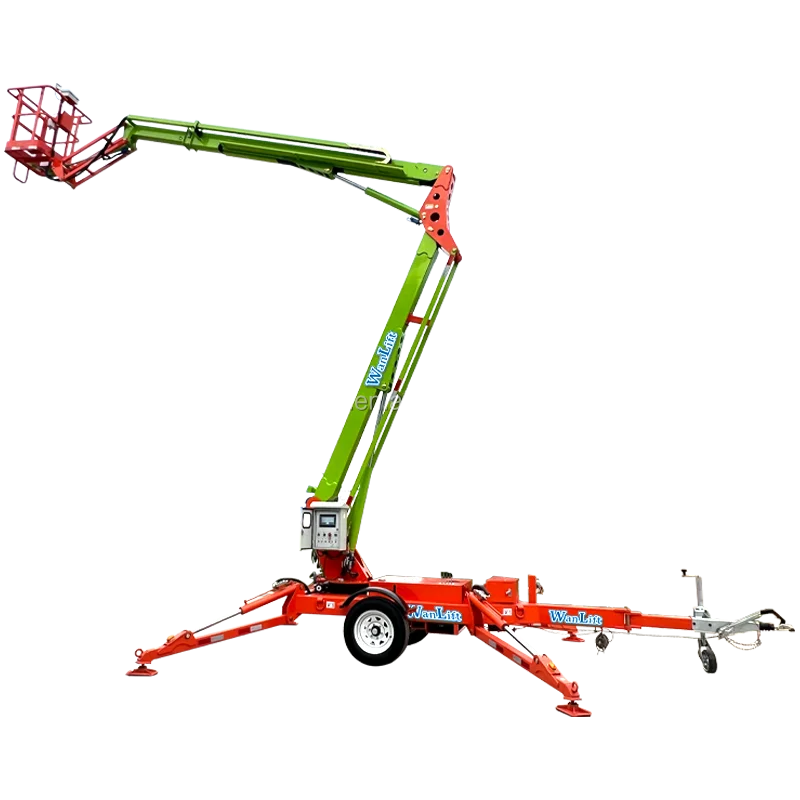

"Qingdao Wanlift Machinery Manufacturing Co.,Ltd",We are an old manufacturer located in Qingdao,China.The spider towable boom lift we produced are very popular among our international clients.Height from 12m to 26m.Capacity is 200kg,can be customized to 300kg 400kg and 500kg.Use Germany ALKO re-tractor,towing speed can reach 110km/h.There are different power engine which you can select,like AC electric,DC battery,diesel,gasoline or dual power.Our boom lifts are of very good quality,meet Europe and America standards.CE,ISO9001 approved.Produced with matured technology,boom lifting are safe,reliable and human friendly operation.

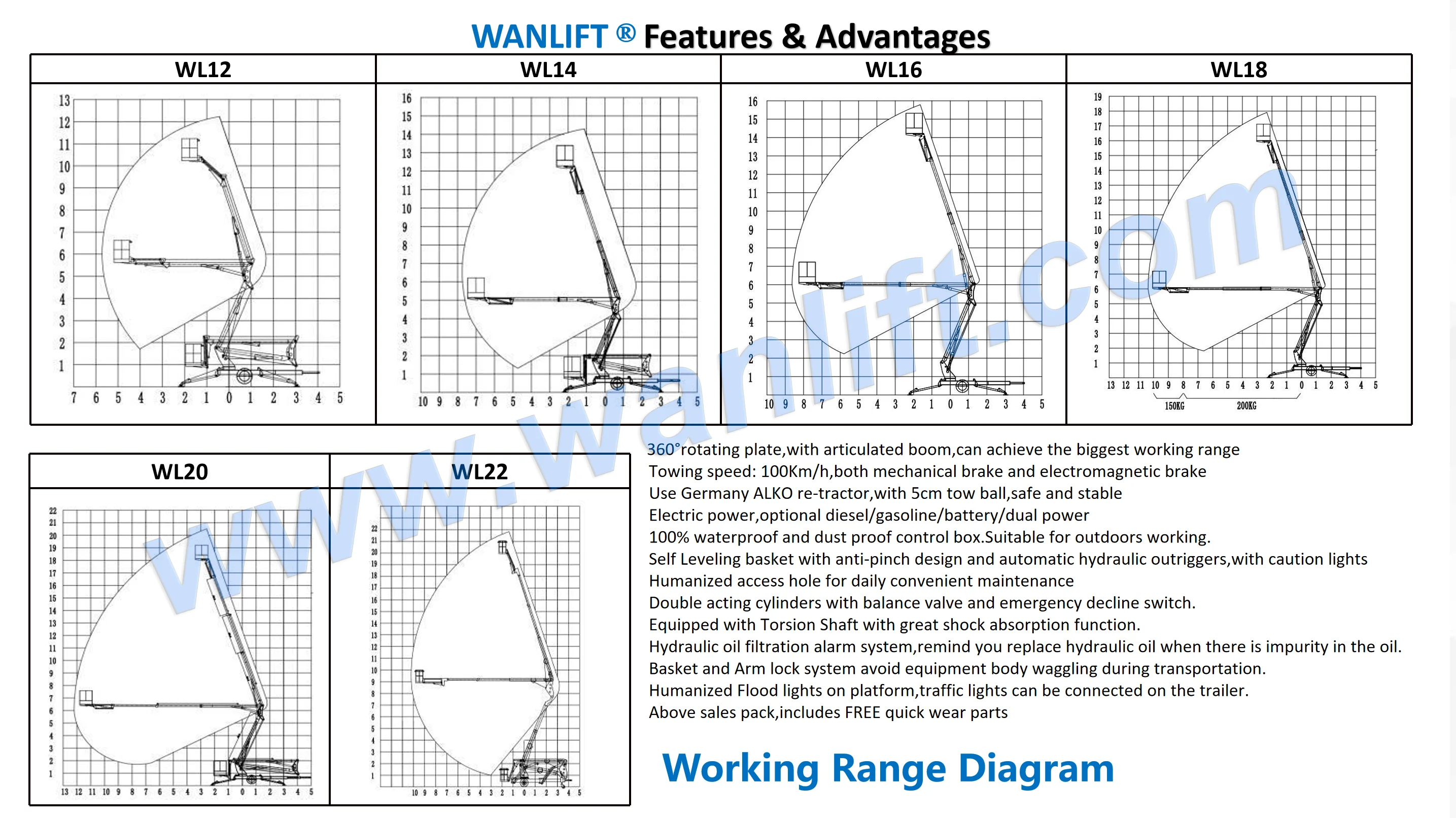

- 360°rotating plate,with articulated boom,can achieve the biggest working range
- Towing speed: 100Km/h,both mechanical brake and electromagnetic brake
- Use Germany ALKO re-tractor,with 5cm tow ball,safe and stable
- Electric power,optional diesel/gasoline/battery/dual power

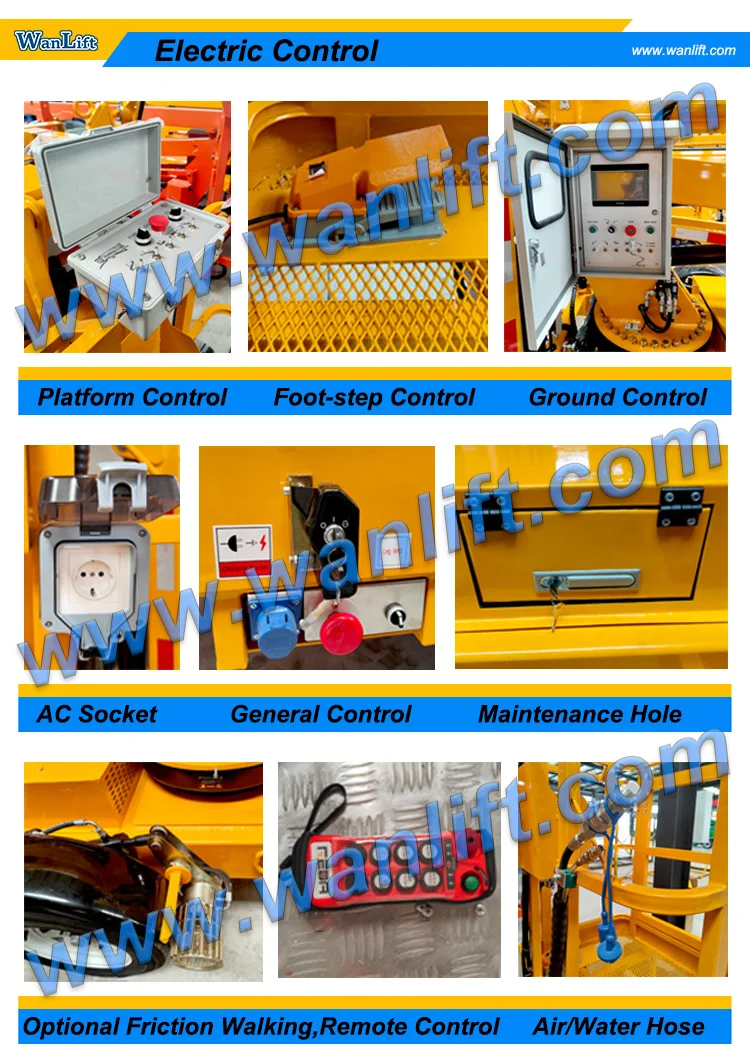

- 100% waterproof and dust proof control box.Suitable for outdoors working.
- Self Leveling basket with anti-pinch design and automatic hydraulic outriggers,with caution lights
- Humanized access hole for daily convenient maintenance
- Double acting cylinders with balance valve and emergency decline switch.
- Equipped with Torsion Shaft with great shock absorption function.
- Hydraulic oil filtration alarm system,remind you replace hydraulic oil when there is impurity in the oil.
- Basket and Arm lock system avoid equipment body waggling during transportation.
- Humanized Flood lights on platform,traffic lights can be connected on the trailer.
- Above sales pack,includes FREE quick wear parts
| Model Type | Working Height(m) | Max Platform Height(m) | Working Radius(mm) | Machine Size(m) | Packing Size(m) | Basket Size(mm) |
| WL12 | 12 | 10 | 5500 | 5.2*1.7*2.1 | 6.3*1.7*2.1 | 900*700 |
| WL14 | 14 | 12 | 6500 | 5*1.7*2.1 | 7.3*1.7*2.1 | 900*700 |
| WL14T | 14T | 12T | 7800 | 4.7*17*2.1 | 5.8*17*2.1 | 900*700 |
| WL16T | 16 | 14 | 8500 | 5.55*1.7*2.1 | 5.55*1.7*2.1 | 900*700 |
| WL18T | 18 | 16 | 10500 | 5.7*1.7*2.2 | 6.8*1.7*2.2 | 900*700 |
| WL20T | 20 | 18 | 11000 | 5.7*1.8*2.25 | 7.6*1.8*2.25 | 900*700 |
| WL20A | 20A | 18A | 10500 | 5.5*1.8*2.25 | 6.6*1.8*2.25 | 900*700 |
| WL22T | 22 | 20 | 11000 | 5.8*1.9*2.25 | 6.9*1.9*2.25 | 900*700 |

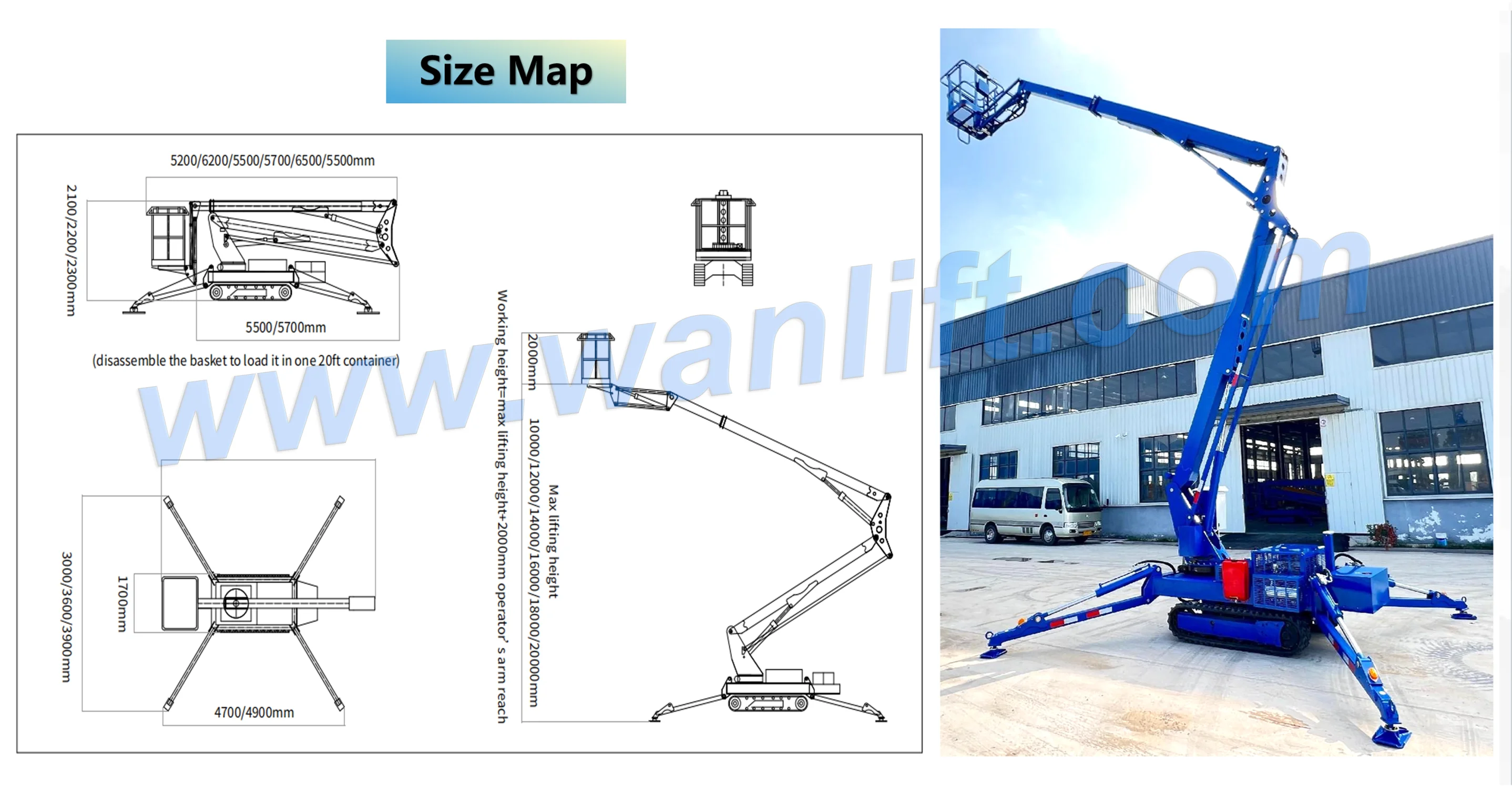

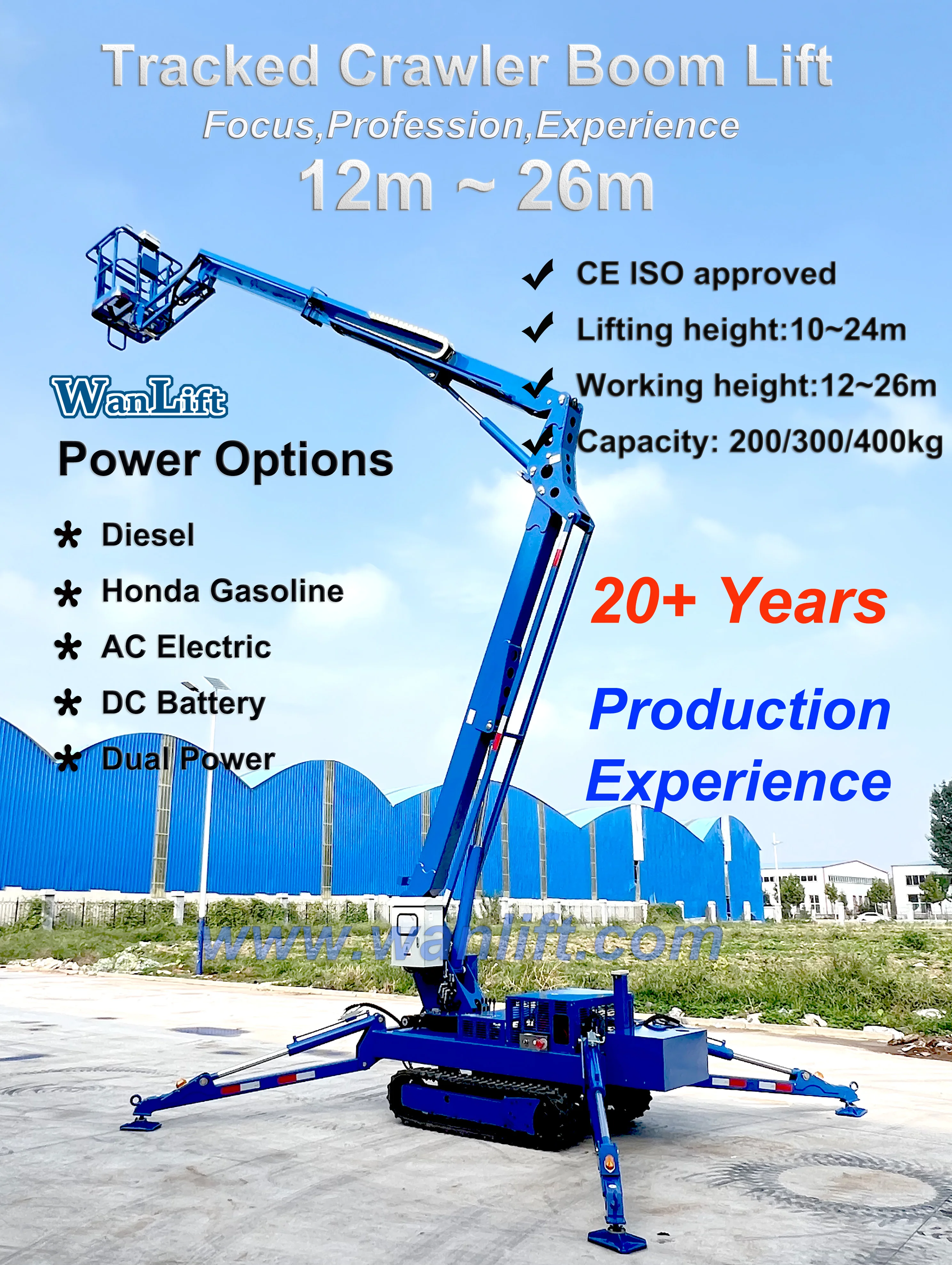

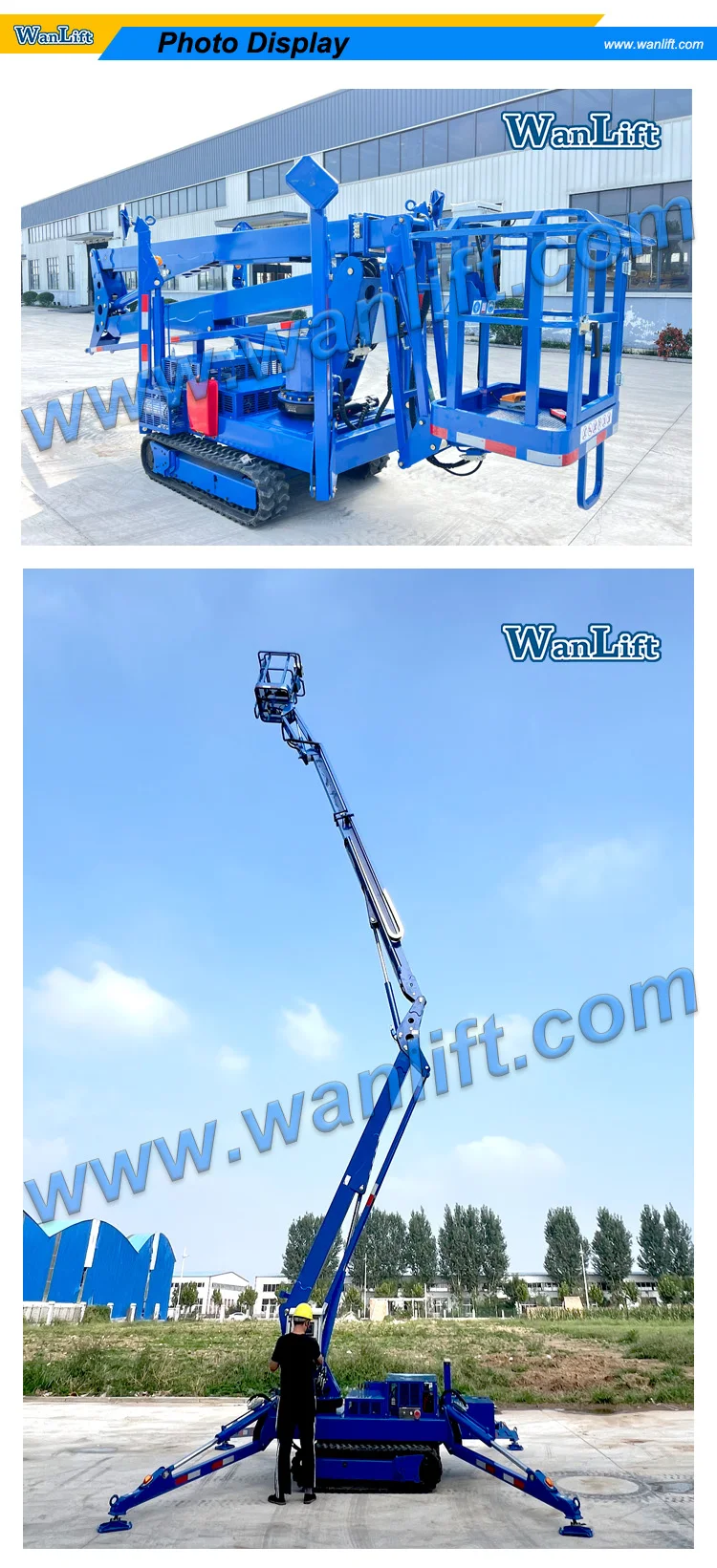

Tracked Boom Lift
The biggest advantage of tracked crawler boom lift is that it is small in size, heavy duty materials can be lifted, 360 degrees of rotation, and its structure can be flexibly adjusted, and the spider LIFT with the legs can enter the narrow working environment. Can adapt to a variety of terrain of the construction site, in the narrow road, more slope, ground silt and other car lifts can not enter the place.The boom lifting equipment can be used for both fuel and electricity and pure electricity, environmental protection and energy saving, which can protect the engine, reduce the wear of the engine, but also save fuel, save the cost.The tracked crawler chassis are available for all terrain.
| Model Type | Working Height(m) | Max Platform Height(m) | Working Radius(mm) | Machine Size(m) | Packing Size(m) | Basket Size(mm) |
| WL12C | 12 | 10 | 5500 | 5.2*1.7*2.1 | 6.3*1.7*2.1 | 900*700 |
| WL14C | 14 | 12 | 6500 | 5*1.7*2.1 | 7.3*1.7*2.1 | 900*700 |
| WL14TC | 14T | 12T | 7800 | 4.7*17*2.1 | 5.8*17*2.1 | 900*700 |
| WL16TC | 16 | 14 | 8500 | 5.55*1.7*2.1 | 5.55*1.7*2.1 | 900*700 |
| WL18TC | 18 | 16 | 10500 | 5.7*1.7*2.2 | 6.8*1.7*2.2 | 900*700 |
| WL20TC | 20 | 18 | 11000 | 5.7*1.8*2.25 | 7.6*1.8*2.25 | 900*700 |
| WL20AC | 20A | 18A | 10500 | 5.5*1.8*2.25 | 6.6*1.8*2.25 | 900*700 |
| WL22TC | 22 | 20 | 11000 | 5.8*1.9*2.25 | 6.9*1.9*2.25 | 900*700 |

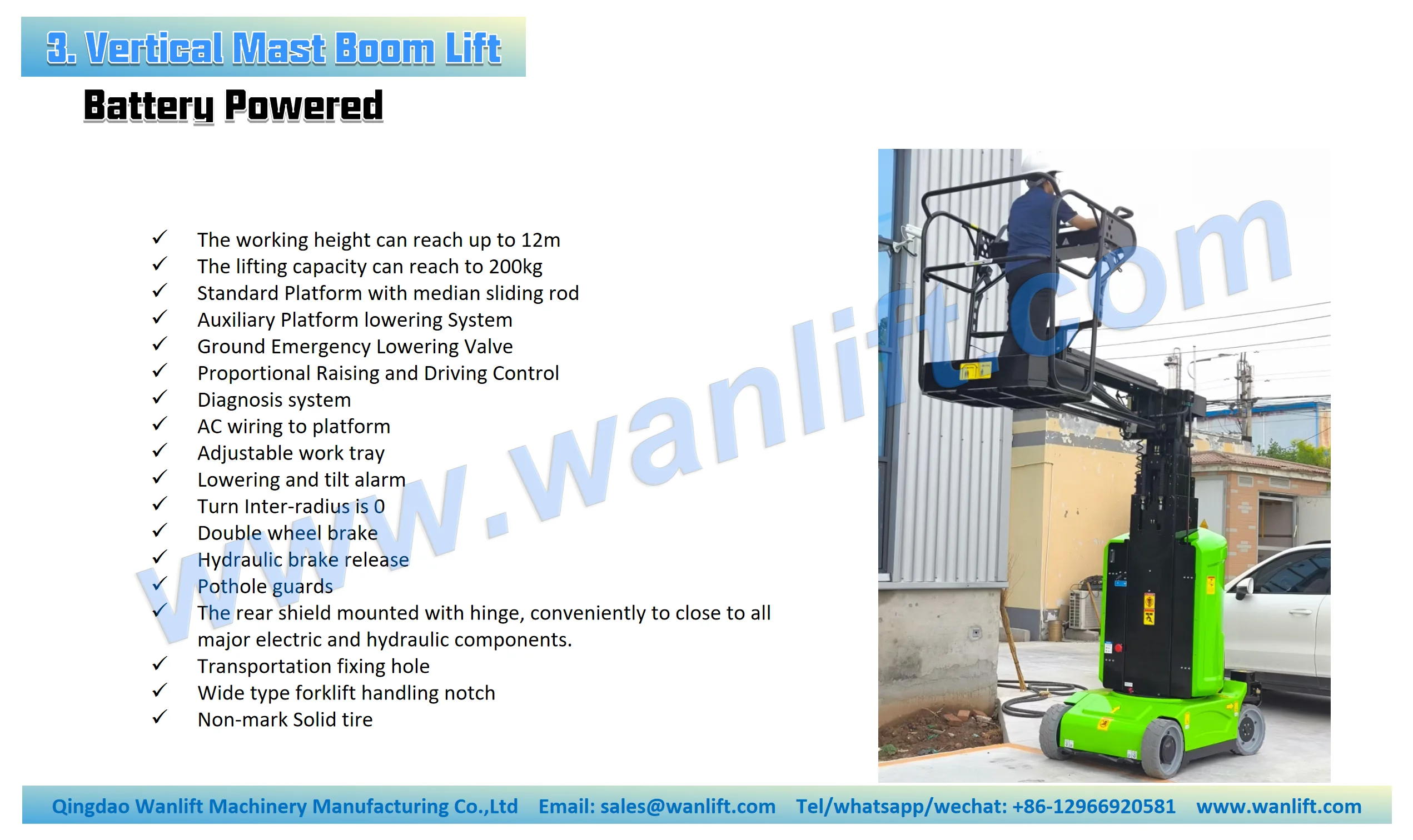

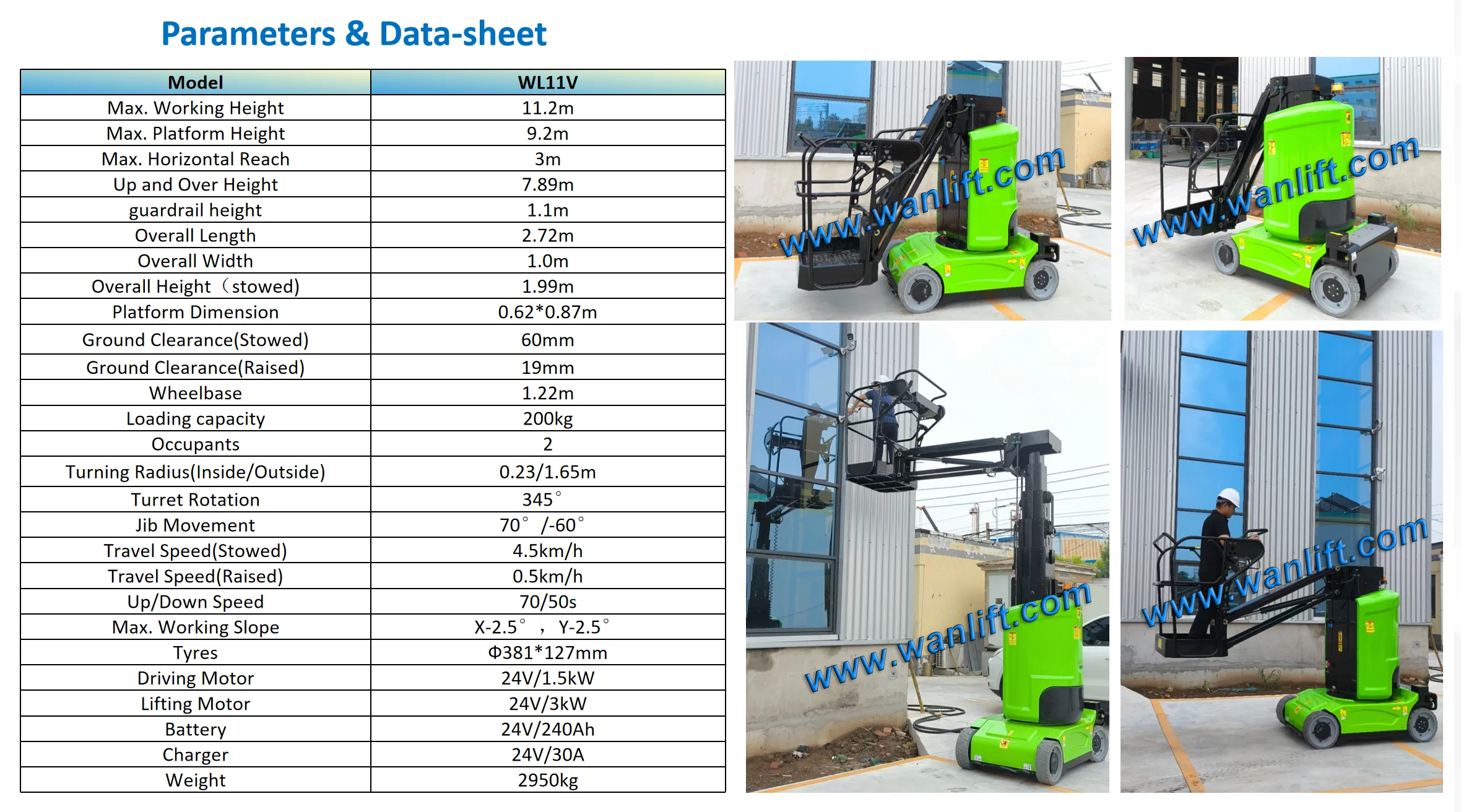

Vertical Boom Lift

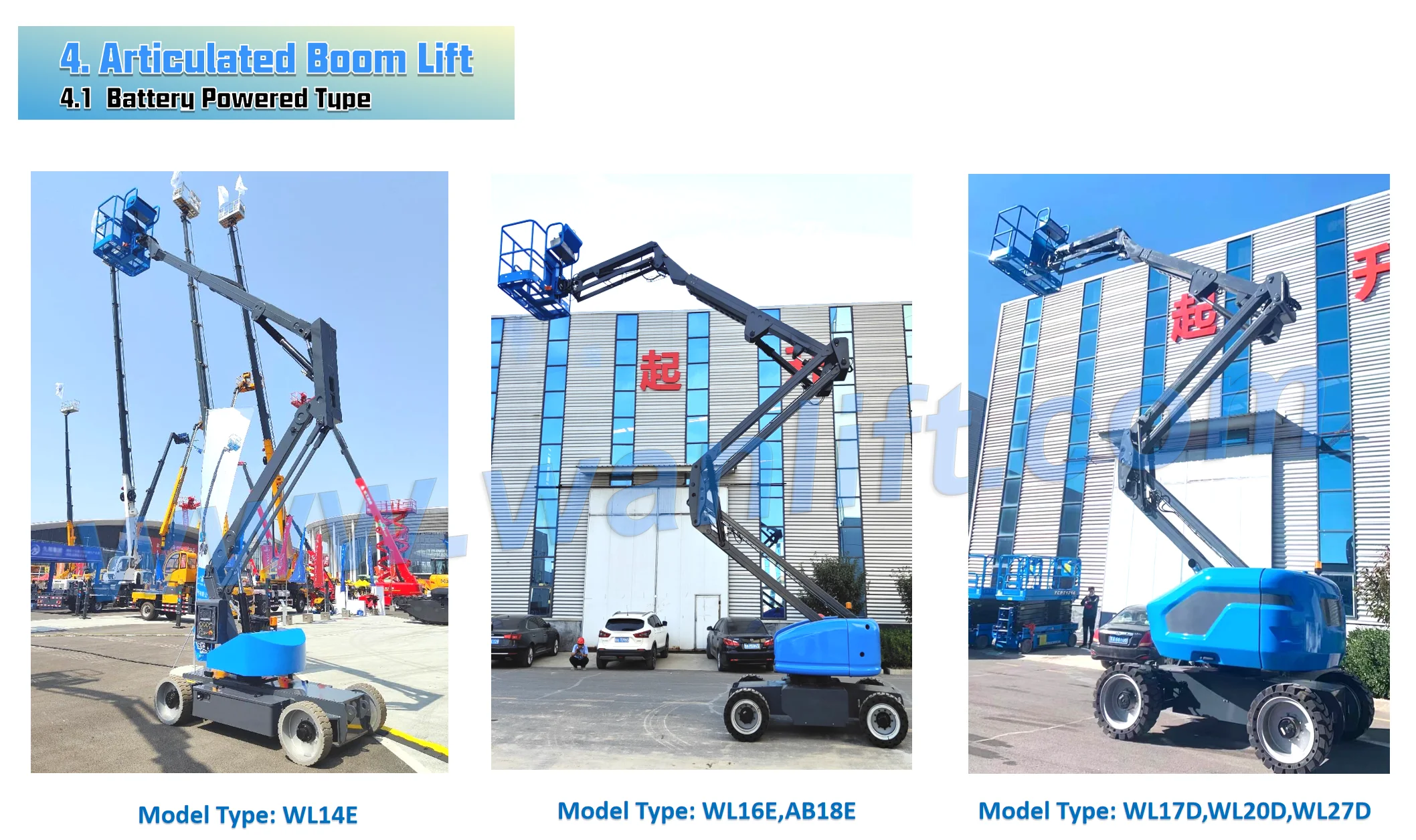

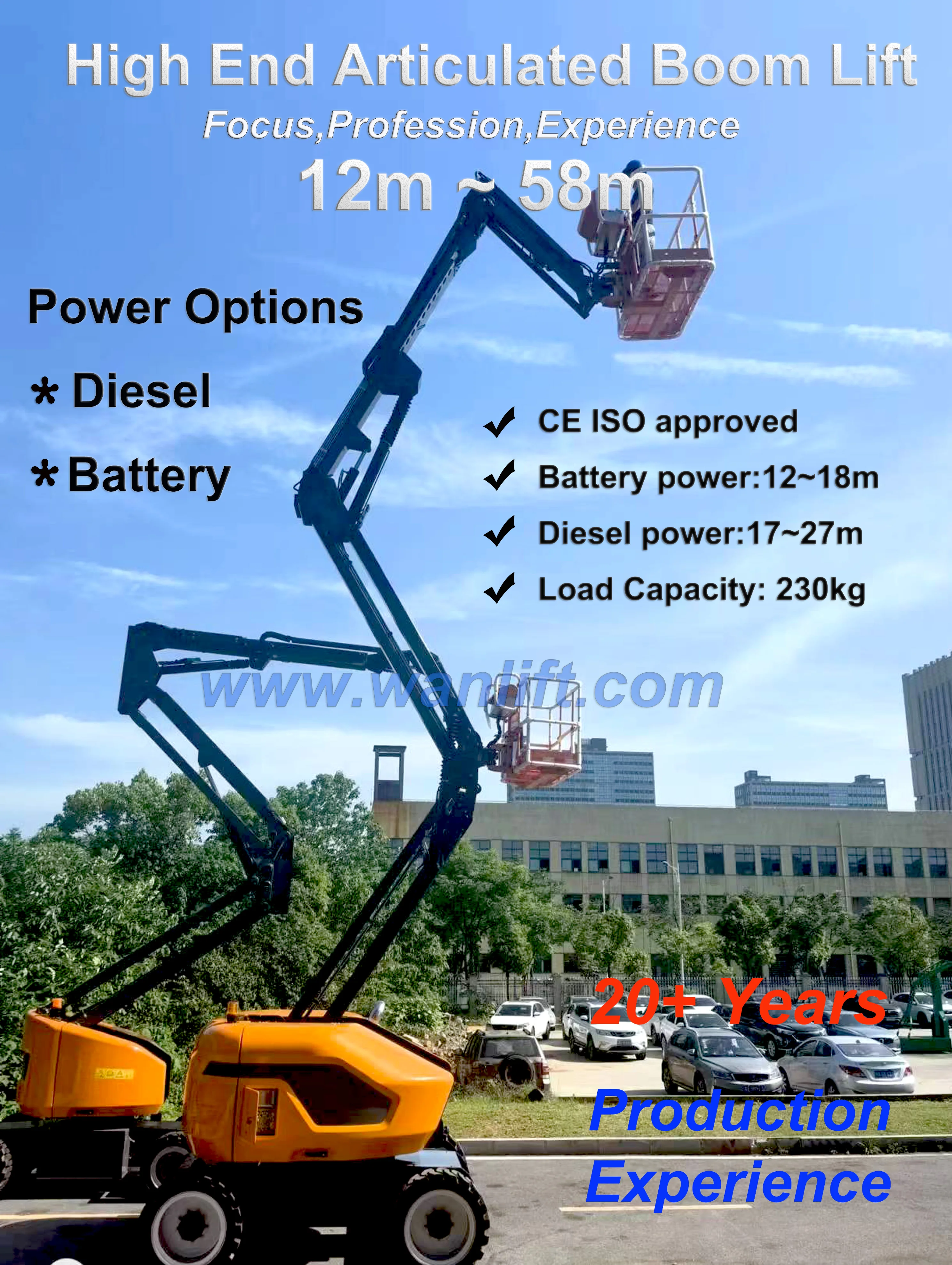

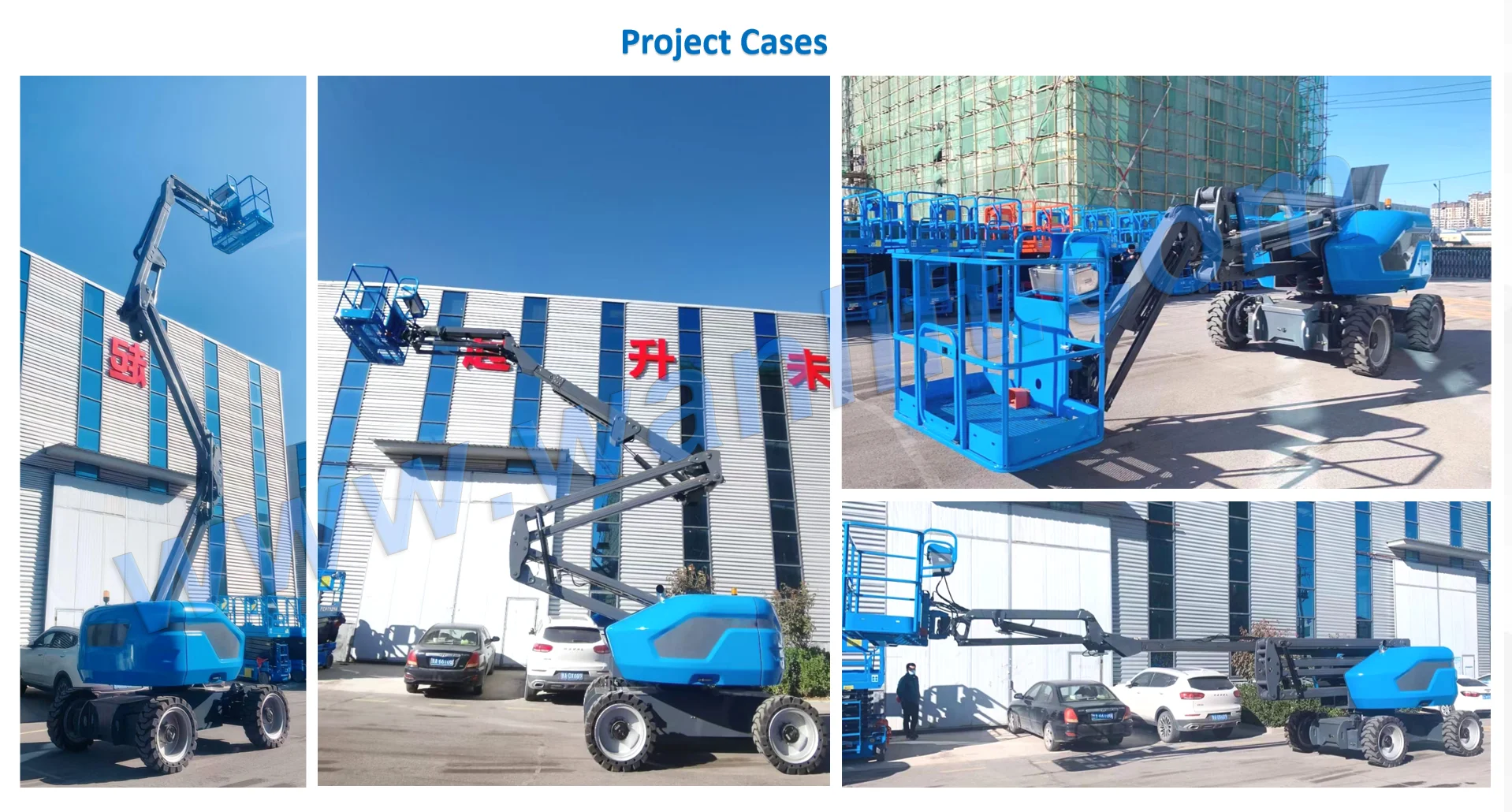

Articulate Boom Lift

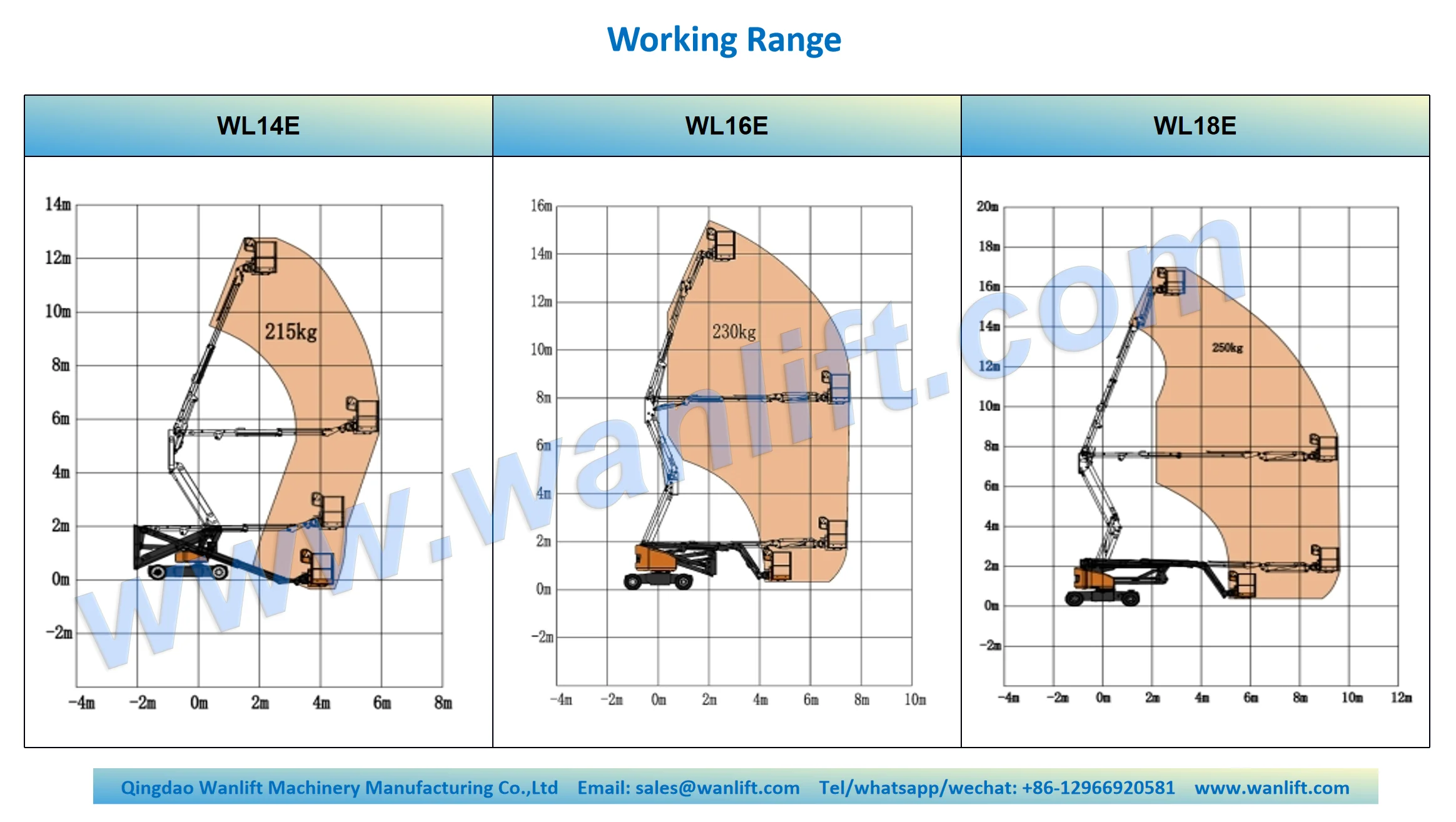

1> Battery Powered Articulated Boom Lift
Model Type No. | WL14E | WL16E | WL18E |
Working Height Max | 13.6 m | 15.9m | 17.7m |
Platform Height Max | 11.6 m | 13.9m | 15.7m |
Lifting capacity | 215kg | 230kg | 230kg |
Working Radius Max | 5.4m | 7.9m | 7.25m |
Length( stowed) | 5.5m | 6.58m | 7.7m |
Width (stowed) | 1.5m | 1.76m | 2.32m |
Height(stowed) | 2m | 1.98m | 2.35m |
Wheel base | 2m | 2m | 2.28m |
Ground clearance | 0.12m | 0.2m | 0.28m |
Platform Size | 1.16*0.73*1.1m | 1.53*0.76*H1.1m | 1.53*0.76*H1.1m |
Inner turning radius | 1.2m | 0.8m | 1.4m |
Outer turning radius | 3.45m | 3.5m | 4.4m |
Speed(stowed) | 4km/h | 5.1km/h | 5.3km/h |
Travel speed(raised) | 0.65km/h | 0.8km/h | 1.1km/h |
Max working tilt angle | 3° | 4° | 5° |
Platform Leveling | Automatic leveling | Automatic leveling | Automatic leveling |
Swing Speed | 0~0.8rmp | 0~0.8rmp | 0~0.8rmp |
Grade ability | 30% | 30% | 30% |
Driving wheel | 22*7 non marking rubber wheel | 26*12-16 solid tire | 5° |
Battery | 420AH,6V*8PCS | 420AH,6V*8 | 26*12-16 solid tire |
Machine Weight | 4200kg | 6800KG | 420AH,6V*8 |

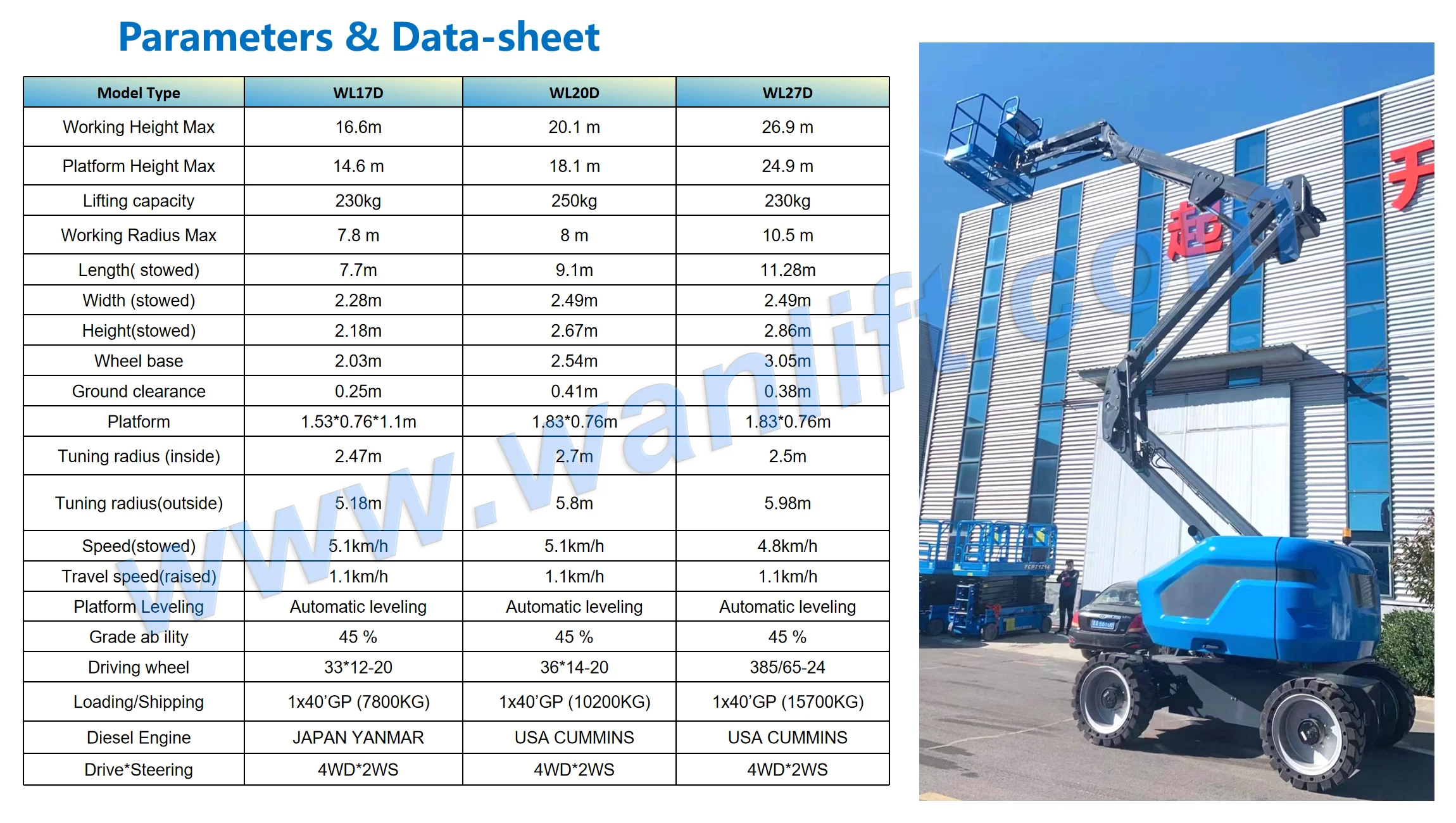

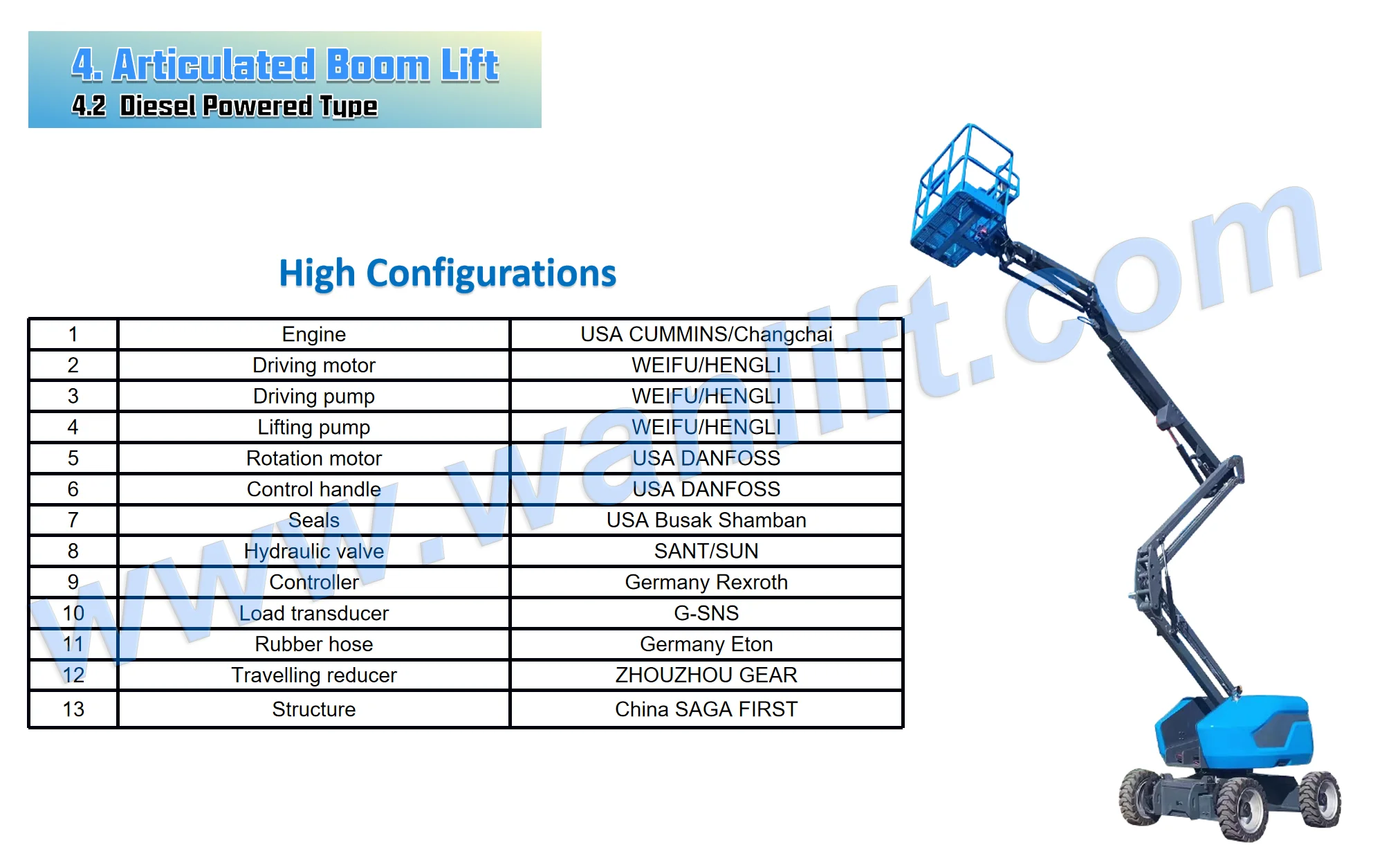

2> Diesel Powered Articulated Boom Lift
Company Information

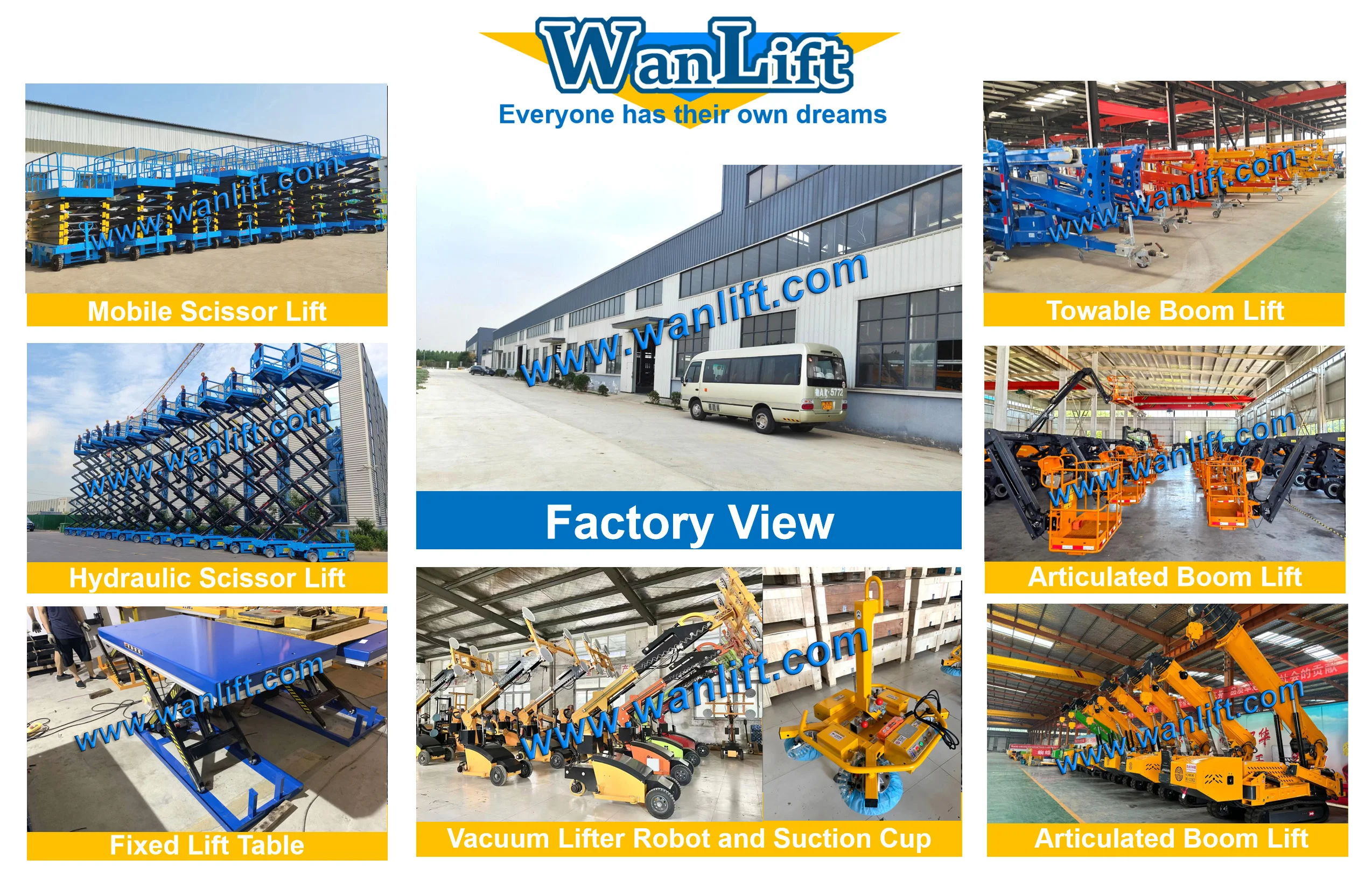

Qingdao Wanlift Machinery Manufacturing Co., Ltd., is a national high-tech enterprise specializing in the research, production, and sales of various lifting platforms and aerial work platforms. Our main products encompass a range of lifting platforms, aerial work platforms, and vacuum lifters,while also offering customers a variety of automated and intelligent lifting solutions, including automated assembly lines, intelligent machine tools, machining centers, and industrial robots.
Wanlift aspire to become a leading manufacturer of lifting platforms in China. We continuously explore and experiment with quality improvements, striving to elevate our product quality to new heights. With the lifting platform as our core product, we continuously develop other types of lifting platforms and related intelligent devices with enhanced functionality to meet market demands.
Wanlift strive to improve our production processes, incorporate advanced intelligent processing equipment, and collaborate with leading institutions such as Institute of Technology, as well as advanced enterprises from Japan and Australia. After over a decade of effort, our products have been adopted by more than 5000 domestic enterprises, and since 2007, we have gradually expanded into America, Eastern Europe, Southeast Asia, the Middle East, Russia,and other countries and regions, earning high praise from our customers.

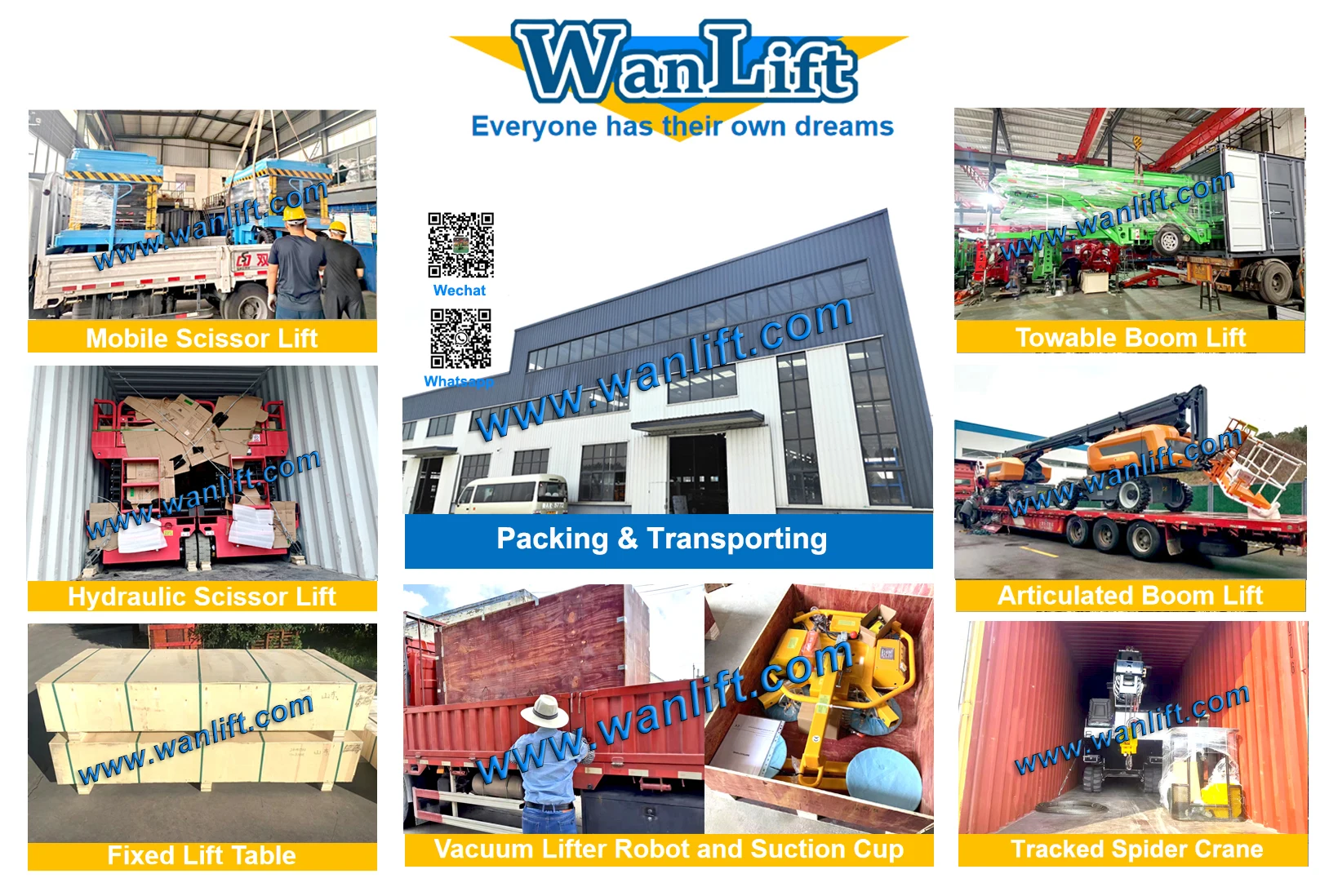

Packaging & Shipping
Usually,we transport our lifting equipments by sea to your closed seaport.Trade term are EXW,FOB,FCA,CIF.Besides,we can transports by sea+land door to door by DDU and DDP terms and conditions.As a normal packing,they can be packed in nude,paper carton,wooden cartons and bubble wramp.Our closed port are Qingdao port.Shanghai,Ningbo,Guangzhou,Tianjin,Yiwu,Foshan are also available.
