One Station automatic isobaric beer keg filling machine single head barrel filler
- Category: >>>
- Supplier: Shandong Micet Group Industrial Equipment Co. Ltd.Shandong Ltd.
Share on (1601332920660):
Product Overview
Description

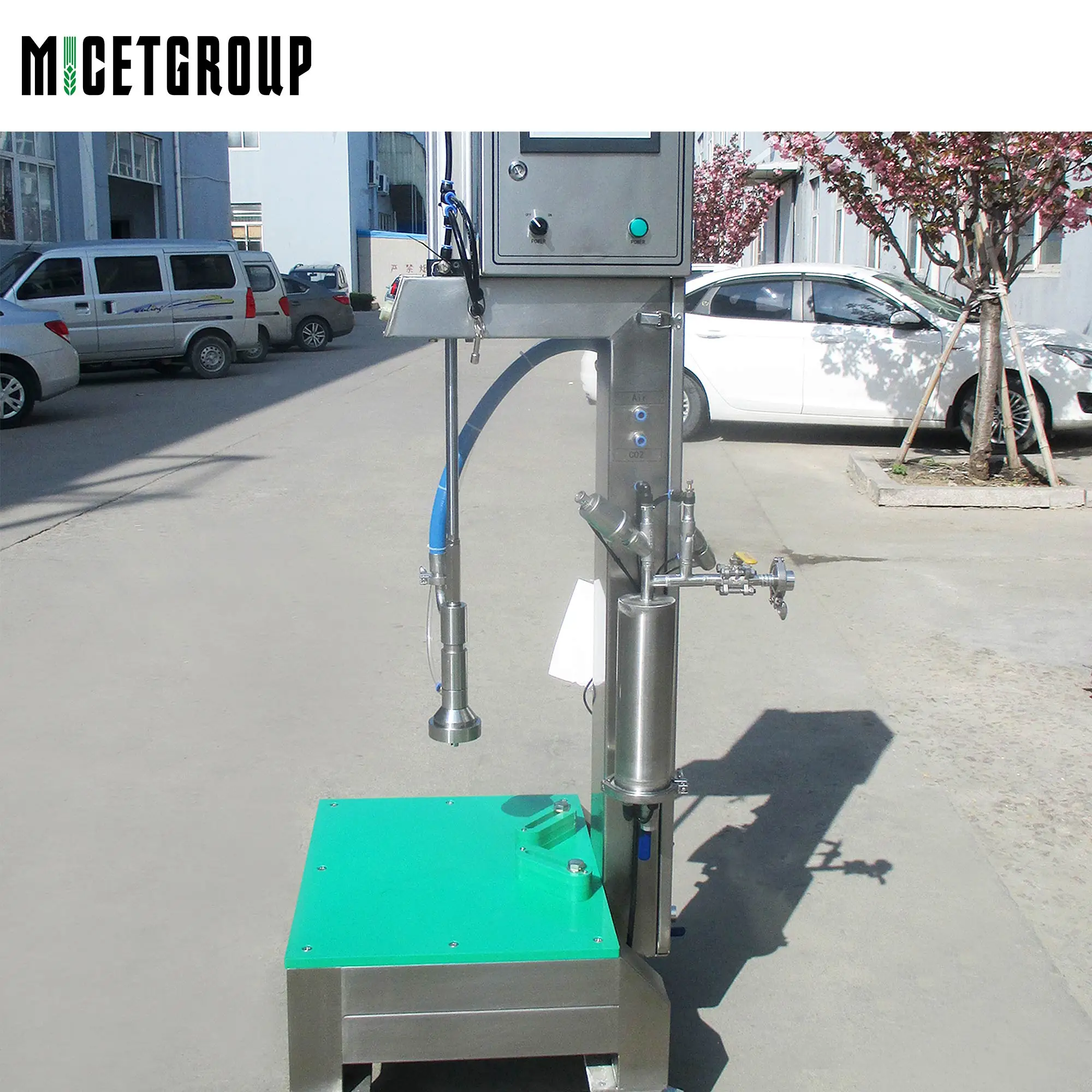

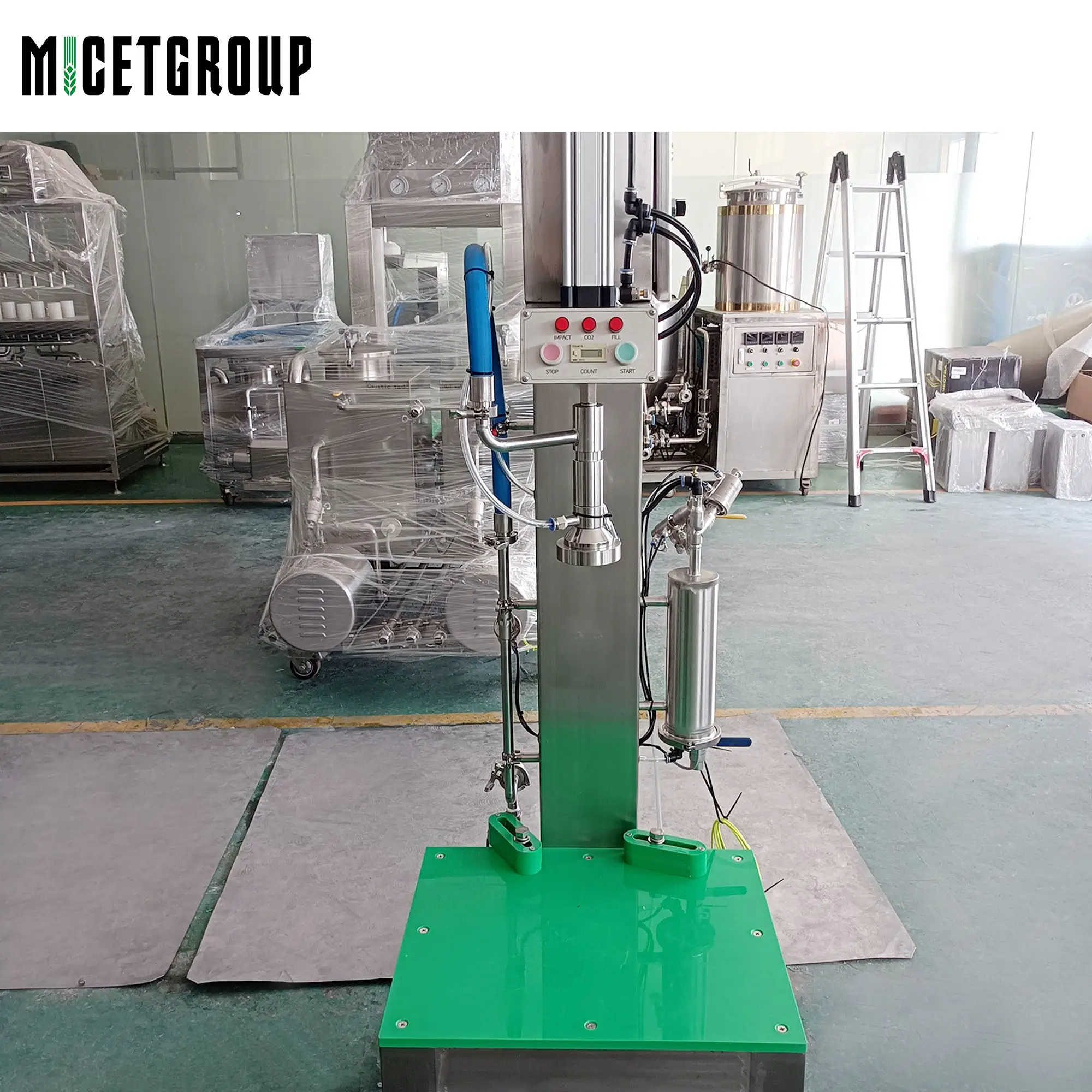

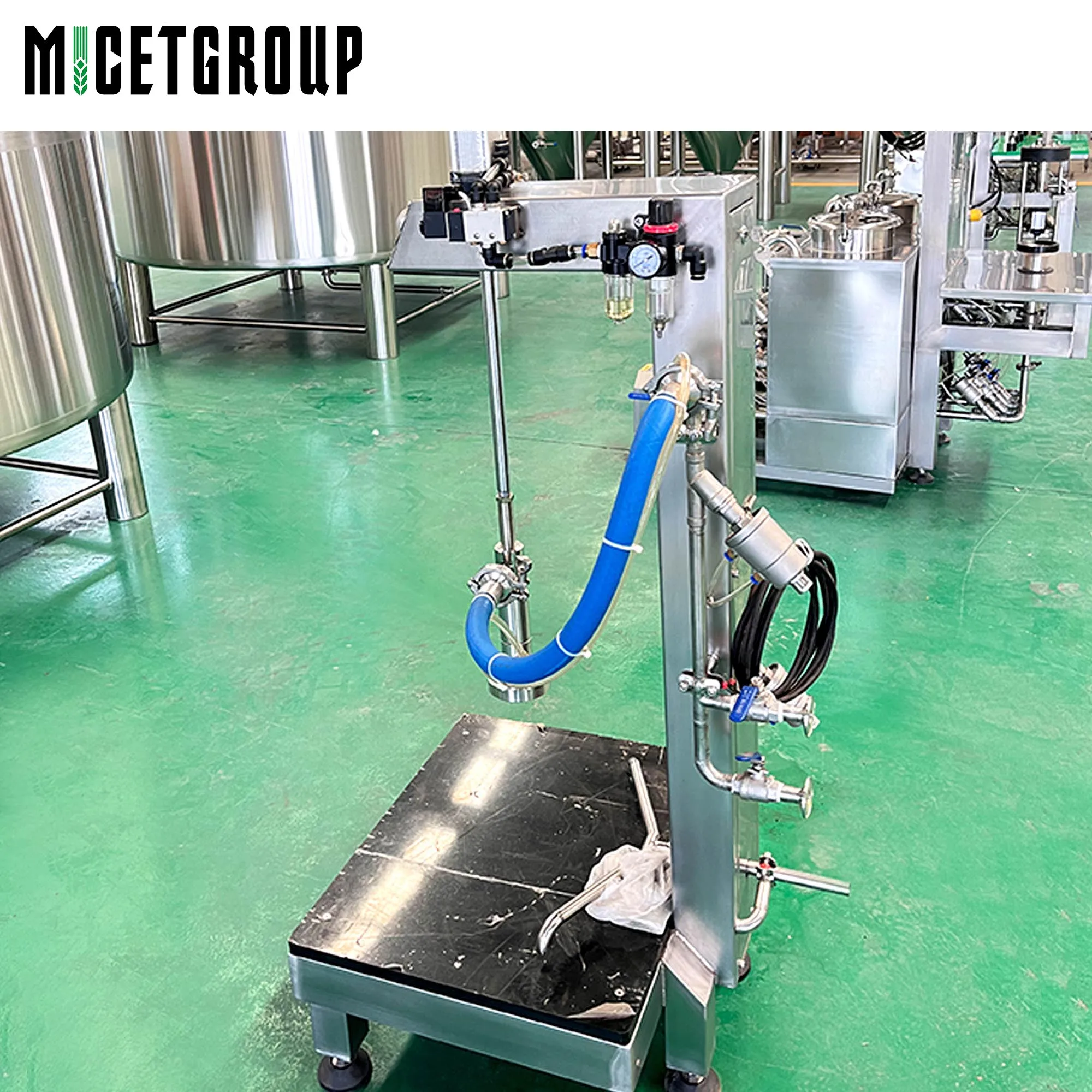

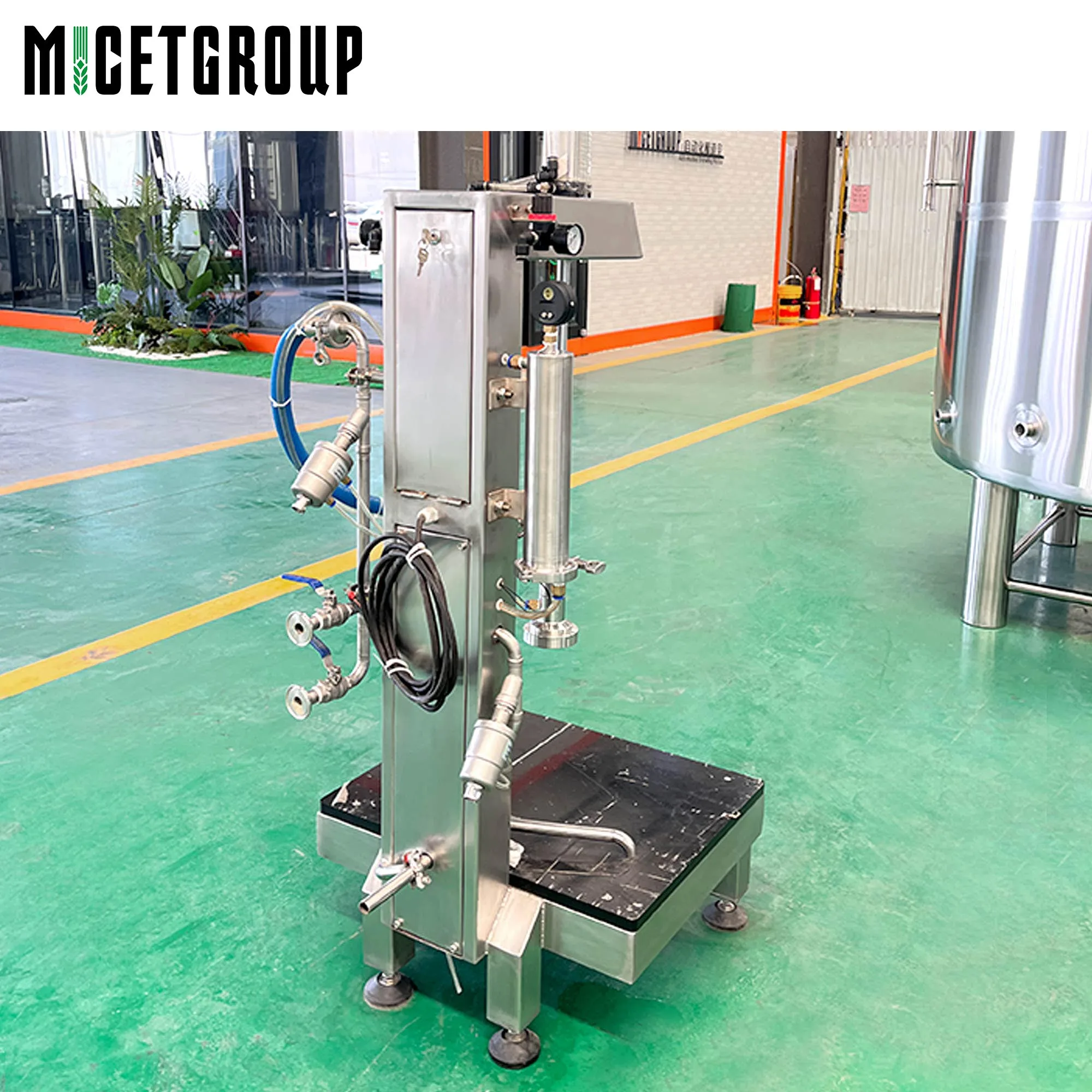

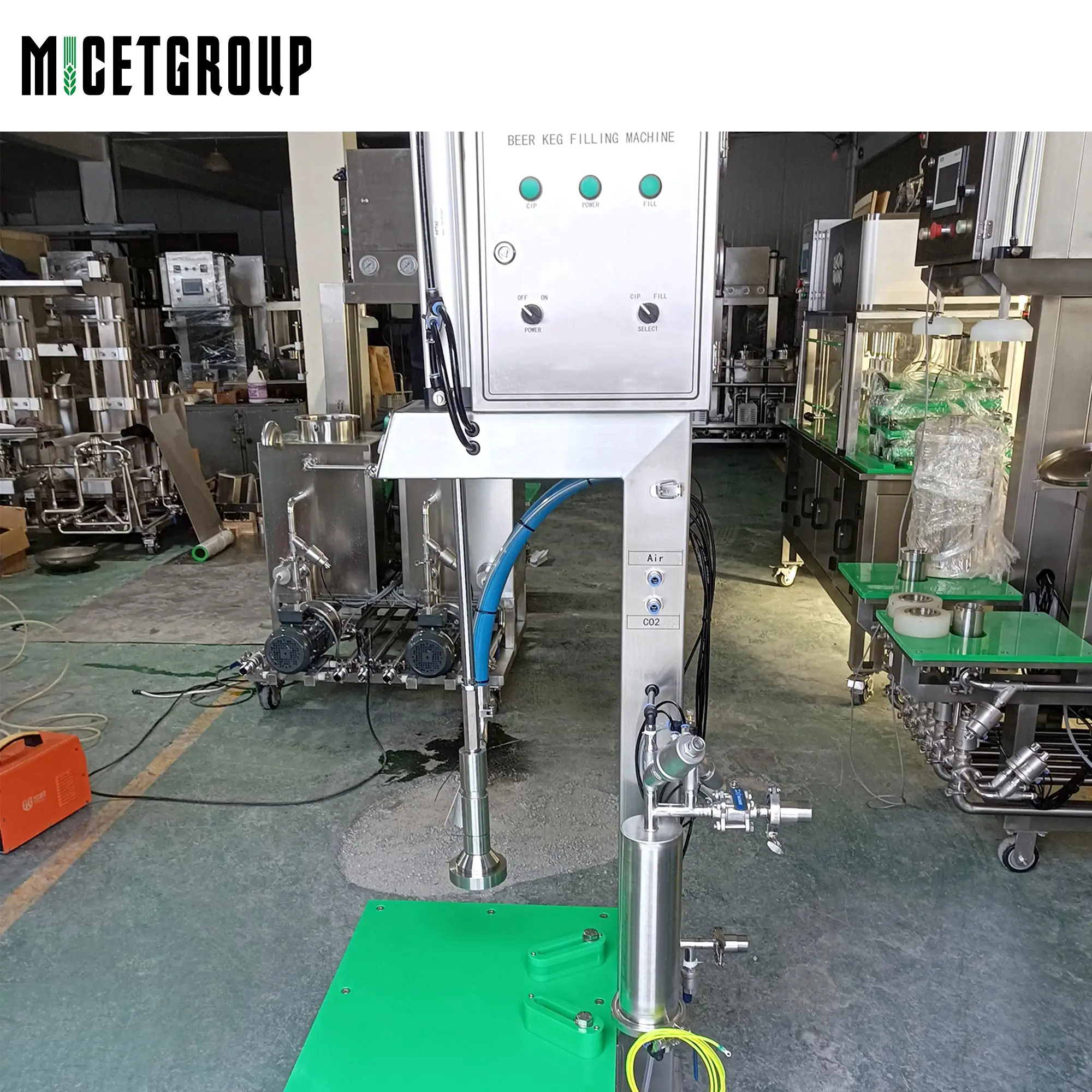

One Station automatic isobaric beer keg filling machine single head barrel filler
Beer filling machine is the core equipment of the beer production line. Our beer filling system uses stainless steel as the production material. Stainless steel is not easy to wear, and it is easy to clean. Micet Craft provides you with a cheap and efficient way of filling beer. We can provide single head/double heads keg filling machine,single head/double heads keg washing machine,integrated keg washing and filling machine.
Product Paramenters
Equipment Outer Dimensions | 660*750*1800mm |
Net Weight | 100KG |
Production Capacity | 30-40kegs/hour |
Applicable Bottles | customized |
Working Stations | filling head&cleaning head |
Power Supply Voltage | Customized |
Air source pressure | 0.5-0.6Mpa | ||||||
Beer source pressure | 0.15-0.25Mpa | ||||||
Co2 pressure | 0.2-0.3Mpa | ||||||
Cylinder valve pressure | 0.5-0.6Mpa | ||||||
Air blow pressure | 0.3Mpa | ||||||
Filling protection pressure | 0.05-0.10Mp | ||||||
Main Function And Feature
The machine is mainly made up of frame, electrical control system, filling system, pressure
preparing and pressure keeping system.
1. Performance is stable and reliable with high working efficiency. It is developed and designed
for all kinds of beer refreshing vessels (stainless steel keg, plastic keg, draft beer keg), and it is
also used for filling of all kinds of beverage.
2. All procedures are wholly automatically controlled by SIMEMS PLC from Germany. All
technical parameters (time value) can be adjusted without stopping the machine.
3. The electricity, air and pipe lines are all separated individually, avoiding short circuit caused
by condensed water because of the ultra‐low environment temperature, and convenient for
repairing.
4. It is supplied with self cleaning function. The cleaning and sanitizing process is simple and no
residue is left.
5. Anaerobic filling technology is adopted to guarantee the purity of beer and its delicious
flavor.
6. The function of the pressure keeping system is stable, and liquor loss is the lowest in the
similar products.
preparing and pressure keeping system.
1. Performance is stable and reliable with high working efficiency. It is developed and designed
for all kinds of beer refreshing vessels (stainless steel keg, plastic keg, draft beer keg), and it is
also used for filling of all kinds of beverage.
2. All procedures are wholly automatically controlled by SIMEMS PLC from Germany. All
technical parameters (time value) can be adjusted without stopping the machine.
3. The electricity, air and pipe lines are all separated individually, avoiding short circuit caused
by condensed water because of the ultra‐low environment temperature, and convenient for
repairing.
4. It is supplied with self cleaning function. The cleaning and sanitizing process is simple and no
residue is left.
5. Anaerobic filling technology is adopted to guarantee the purity of beer and its delicious
flavor.
6. The function of the pressure keeping system is stable, and liquor loss is the lowest in the
similar products.

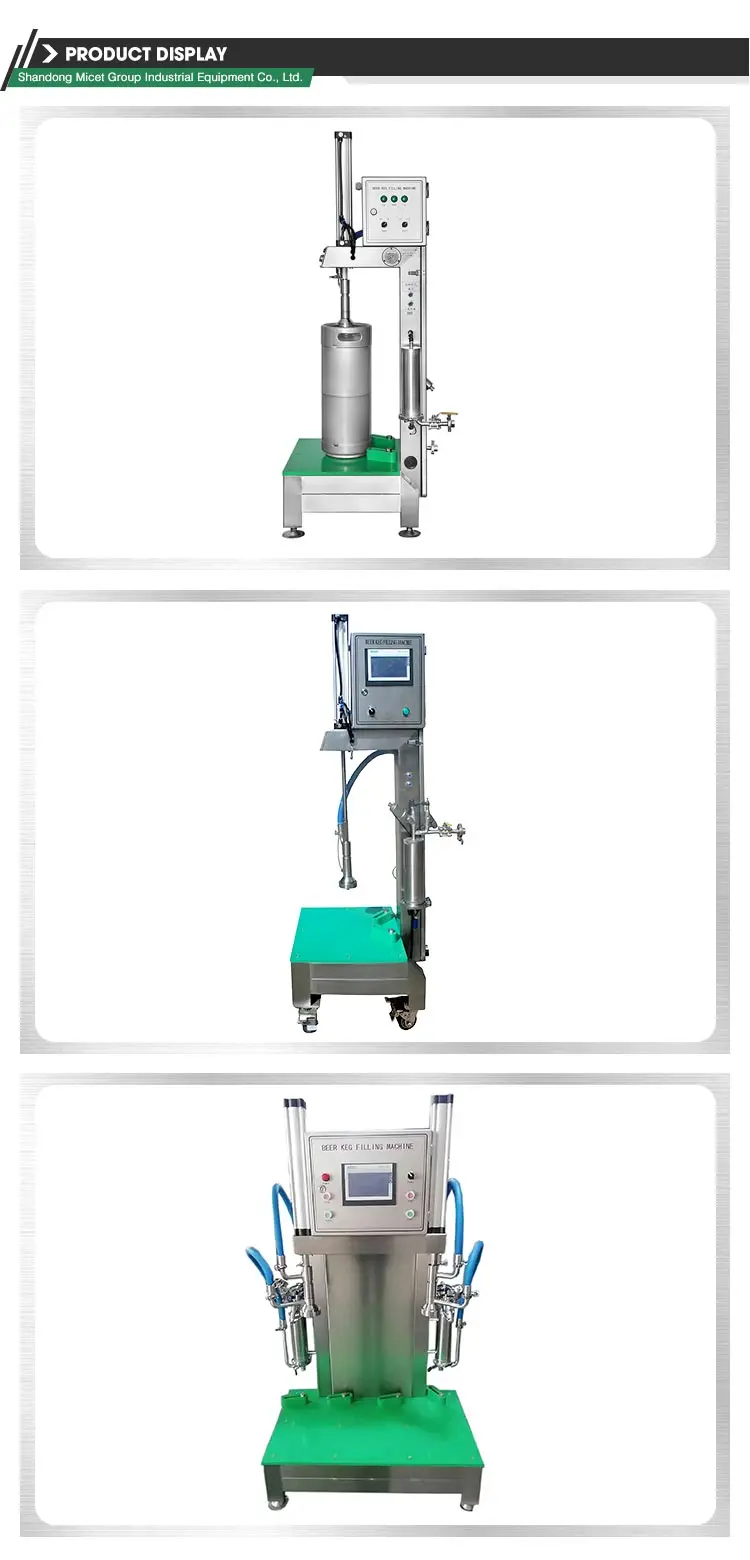

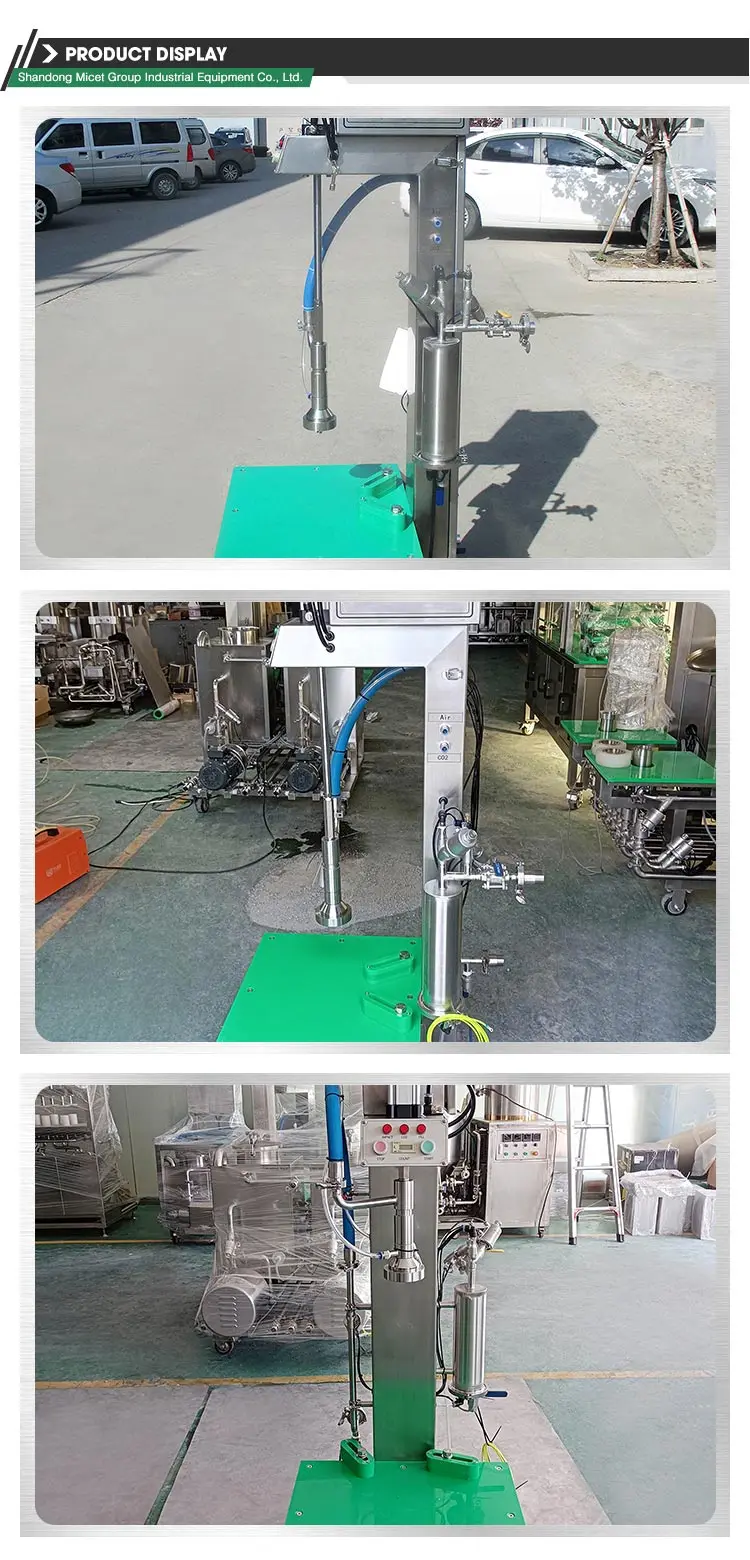

Product Display
Work Process
Filling Process:
Load the keg → Pressing → co2 pressure preparing → CO2 blowing spear → open the spear → filling →Co2 blowing filling heads→ stop → unload the keg;
Load the keg → Pressing → co2 pressure preparing → CO2 blowing spear → open the spear → filling →Co2 blowing filling heads→ stop → unload the keg;
CIP process:
Connect CIP liquid to beer inlet → Install washing accessory → start → time’s up → stop
Connect CIP liquid to beer inlet → Install washing accessory → start → time’s up → stop

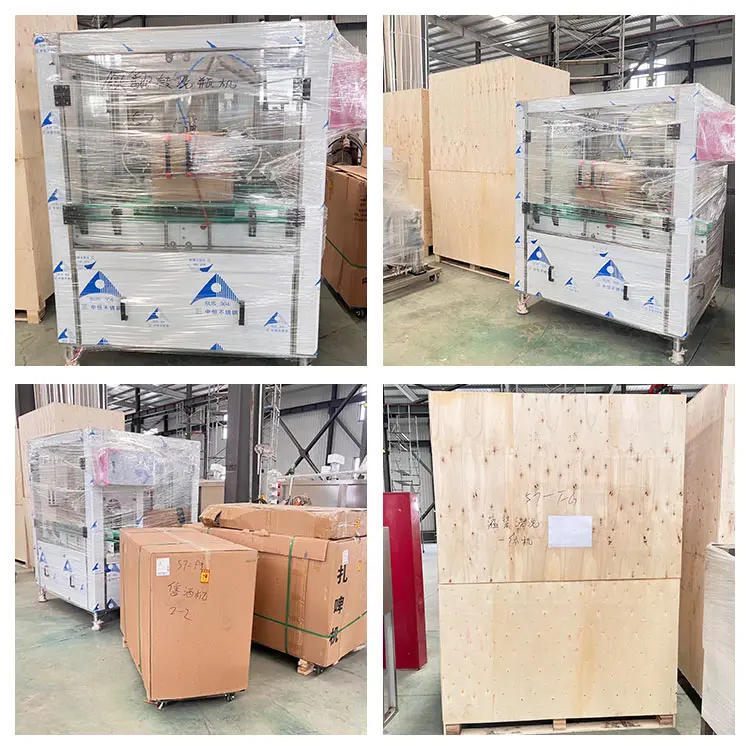

Shipping and Packaging
FCL shipping
1. Shipping department will work out the checking list with all that will be shipped.
2. Different parts will be packed in different wooden box for customers to find easily
3. All tanks ports with a plastic cover to prevent dust;
4.Tanks on cradle must be secured with bolts.
5. The cradle and tanks will be fixed inside the container by bolts and steel wires.
6. After shipping, we will have the completed loading pictures and checking list with all parts pictures provided to customers.
FAQ
Can you customize products according to customer requirements？
Yes, we support product customization.We are a factory, so you can tell our sales manager about the product requirements, and our engineers will design your own drawings for you.
What is your payment term?
1. T/T transfer, 40% advance payment for start production, after paying 60% balance payment for shipping. 2. Paypal or trade assurance is available.
What is your warranty term?
Main machine guarantee for three years we'll provide free repairing. If anywhere goes wrong during. During this period accessories and electronic components will have a one-year free warranty. Anything is broken during the warranty. The replacements will be Sent immediately and get within. Provide daily maintenance and technical services.
