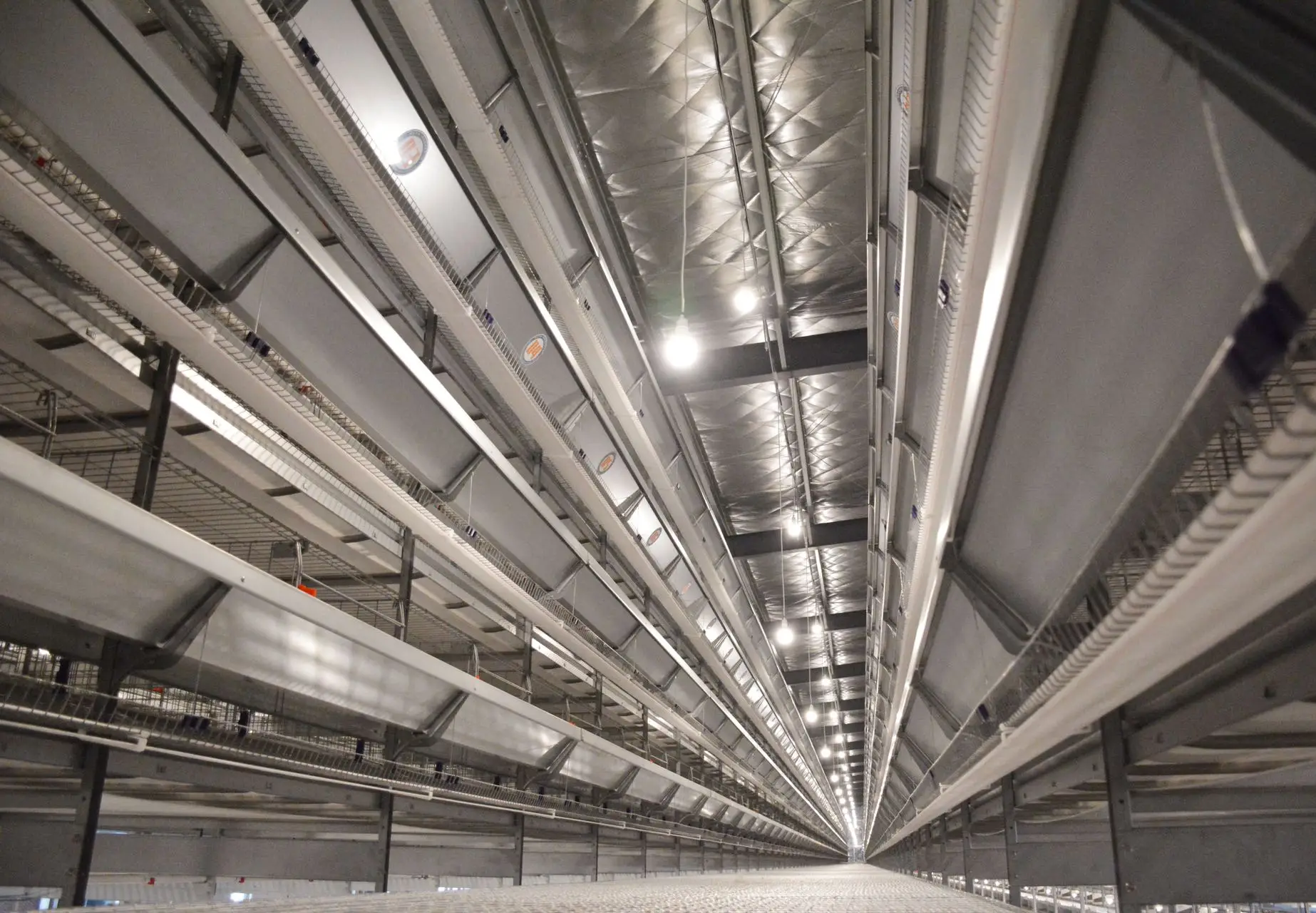

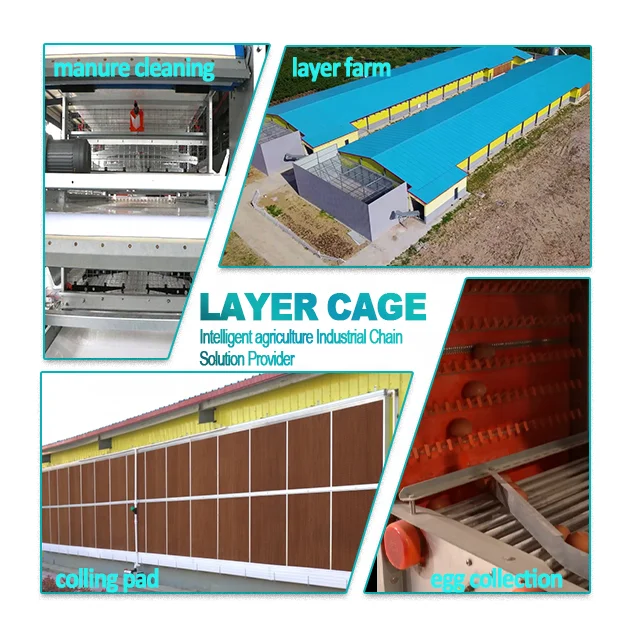

RAISETECH auto layer cage for egg collection is used for 3 Tiers 8 Tiers layer chicken cage used for farm
- Category: >>>
- Supplier: Raisetech Co. Ltd.Raisetech Ltd.
Share on (1601335699363):
Product Overview
Description
Standard products specification
Model | 30000 layers | 40000 layes | 50000 layers |
4 ties 4 rows | 82*12m | 105*12m | / |
4 ties 5 rows | 67*14m | 84*14m | 105*14 |
Model | 60000 layer | 70000 layer | 80000 layer | 90000 layer | 100000 layer |
8 ties 4 rows | 82*12m | 93*12m | 105*12m | 117*12m | / |
8 ties 5 rows | 67*14m | 77*14m | 86*14m | 95*14m | 105*14m |
8 ties 6 rows | / | 66*17m | 74*17m | 82*17m | 89*17m |

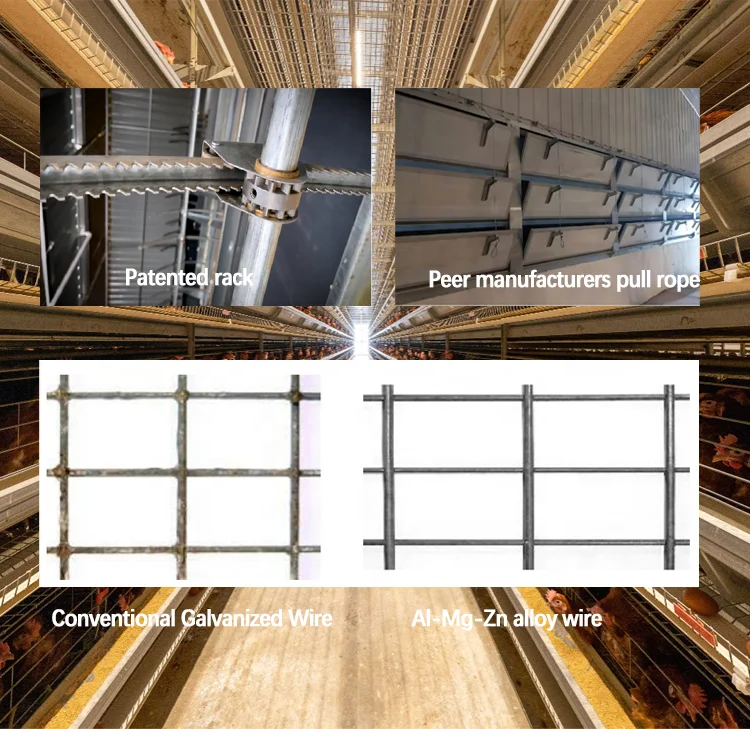

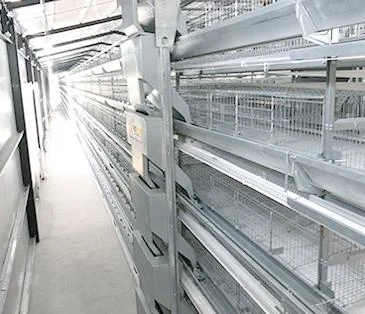

1.CAGE frame
Cage width: 1200mm
Section length: 1200mm
Layer height: 675mm
Cage height: 640mm
Section length: 1200mm
Layer height: 675mm
Cage height: 640mm
Three-layer cage height: 2320mm
Four-layer cage height: 3020mm
A standard 17-meter wide chicken coop can be arranged in 6 rows.greatly improve the utilization rate of breeding space
Three-layer single-section cage rearing: 288 animals Four-layer single-section cage rearing: 384 animals.

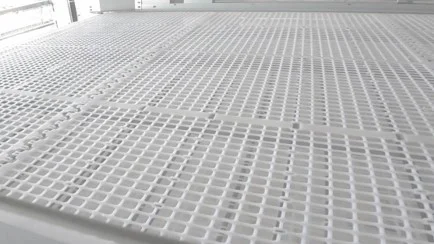

Plastic Slat
Material: PP engineering plastics
Structure: reasonable design
Structure: reasonable design
Features: excellent strength, good toughness

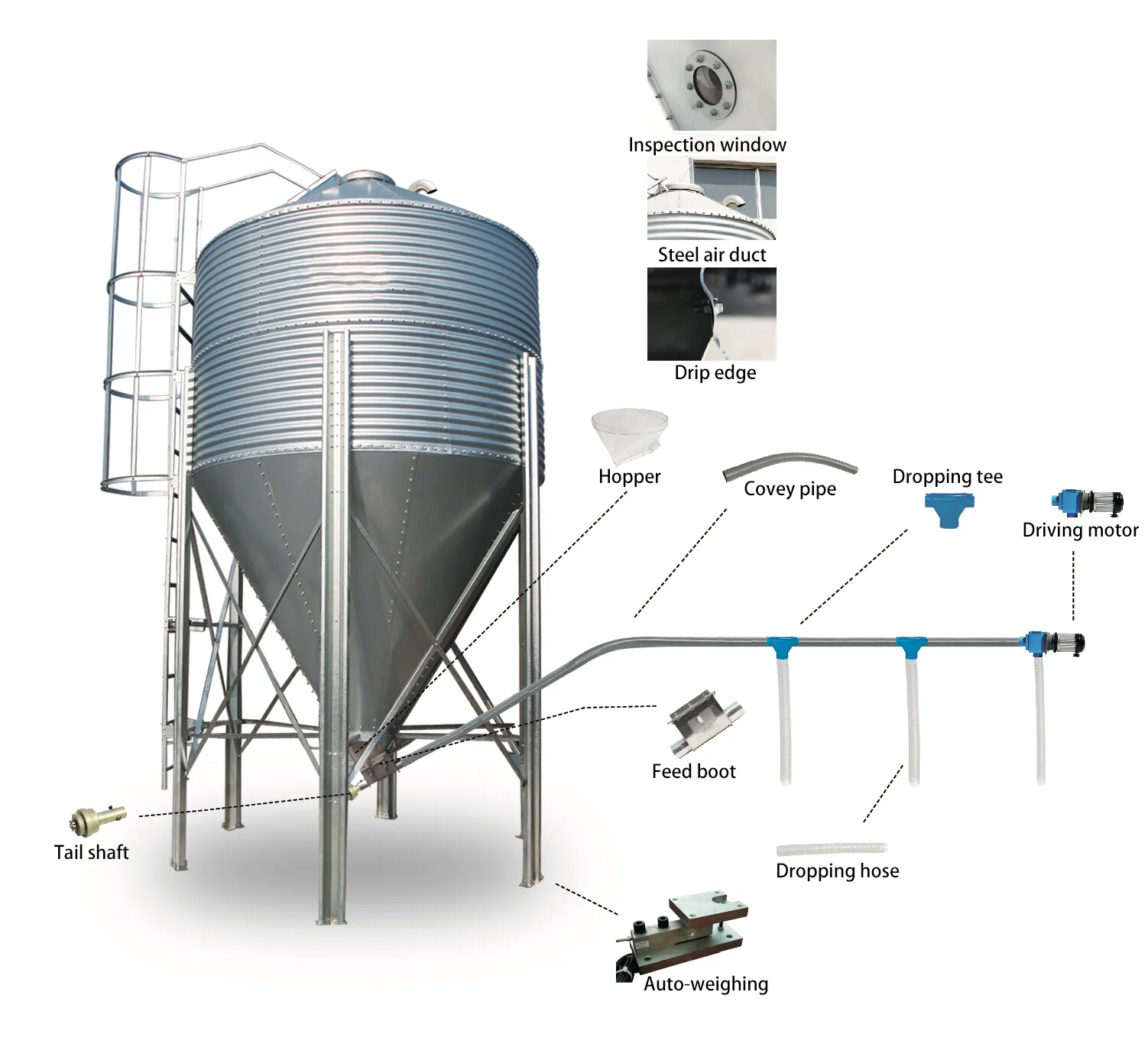

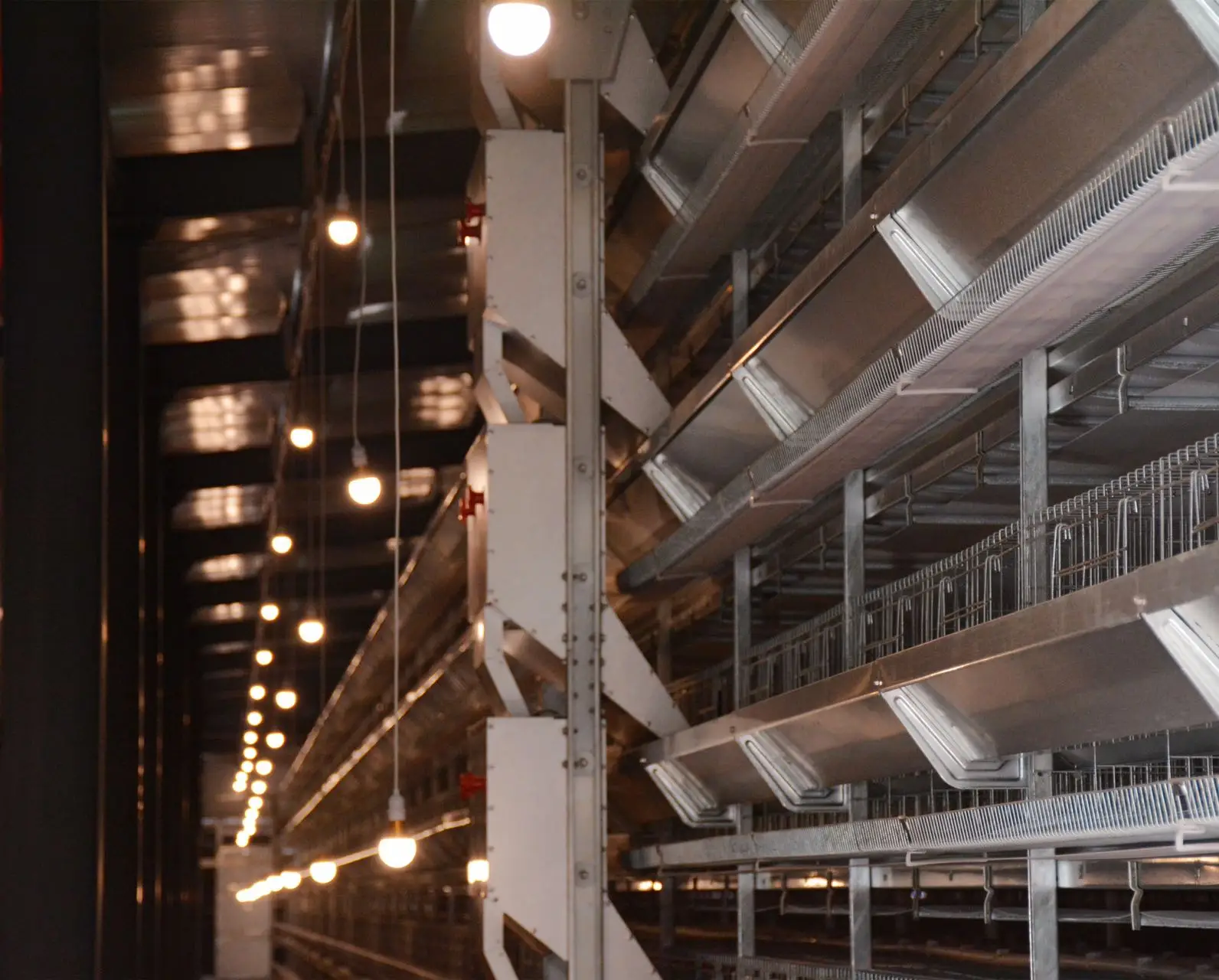

2.Main Feeding System(2 sets/per house).
auto-deliver feed quickly and evenly to the feeding area, reducing the time for manual operation and the situation of feed waste, improving the production efficiency and quality of chicken rearing.
1. Silo material is hot-dip galvanized steel. Zinc thickness: 275g/m 2 with actual capacity 90%. Feeding density 0.65 tons/m3, Anti-corrosion;
2.Materials: Separate filling and dispensing equipment,transport capacity: 73 kg/min. Outer tube 110mm*2mm,,Auger:90mm,
3.Composed of TS Corner,TS chain,Feed Trough,Drive Motor(1.5KW/2.2KW),Feed Hopper(65kg),Single layer feeding can be achieved.
2.Materials: Separate filling and dispensing equipment,transport capacity: 73 kg/min. Outer tube 110mm*2mm,,Auger:90mm,
3.Composed of TS Corner,TS chain,Feed Trough,Drive Motor(1.5KW/2.2KW),Feed Hopper(65kg),Single layer feeding can be achieved.

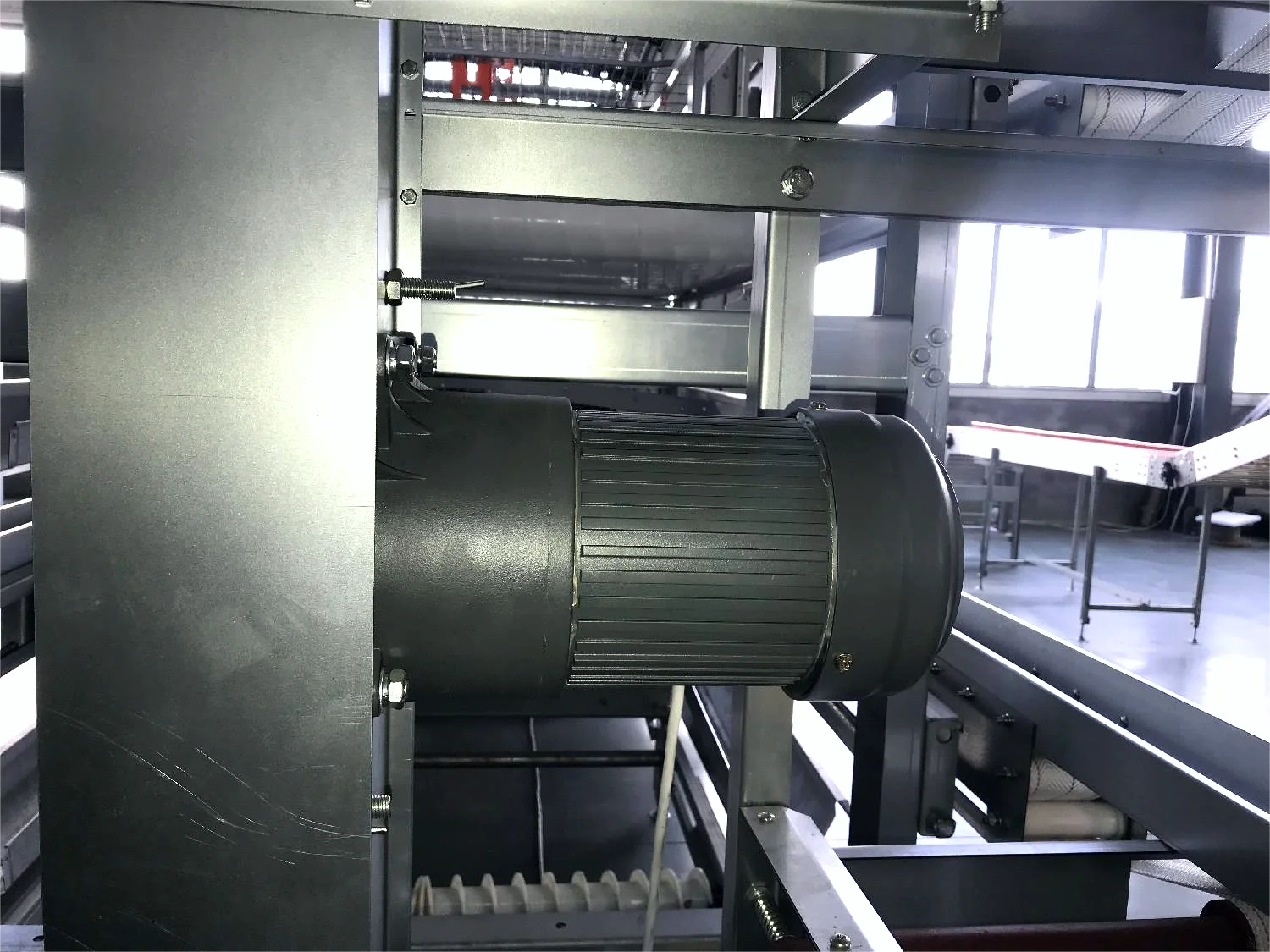

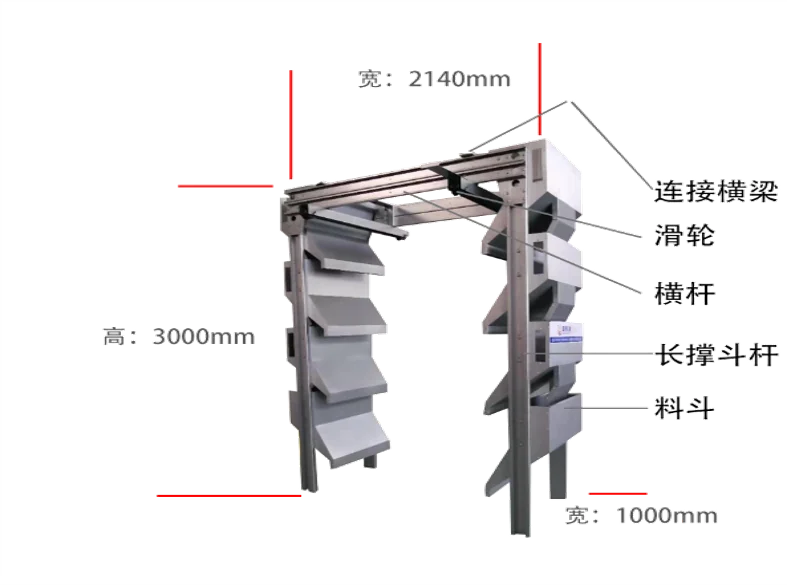

Each layer has two hoppers with a thickness of 1.2 mm, the material is hot-dip galvanized steel. Each hopper has a capacity of 65 kg, top layer 70 kg; China's leading brand Wanxin Motor Motor power: 0.75KW, Wire: 5mm steel wire, Speed: 8.67m/min.

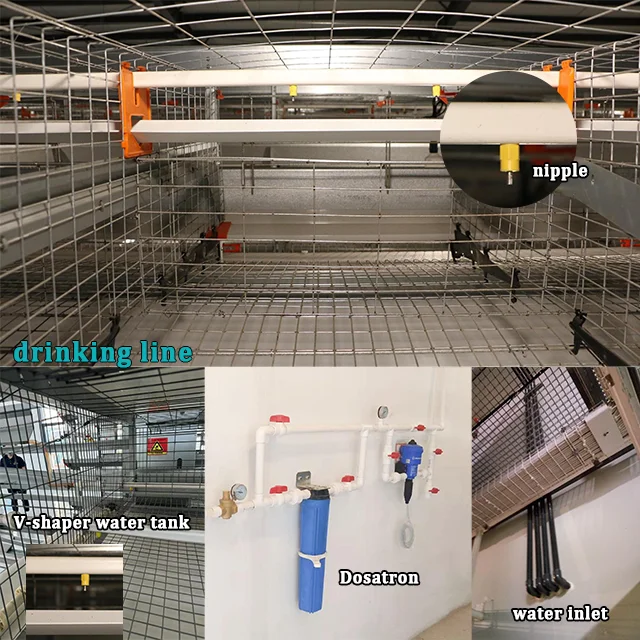

1, water front parts
2, drinking nipples and cups
3, hanging system
4, regulator
5, water end parts
2, drinking nipples and cups
3, hanging system
4, regulator
5, water end parts

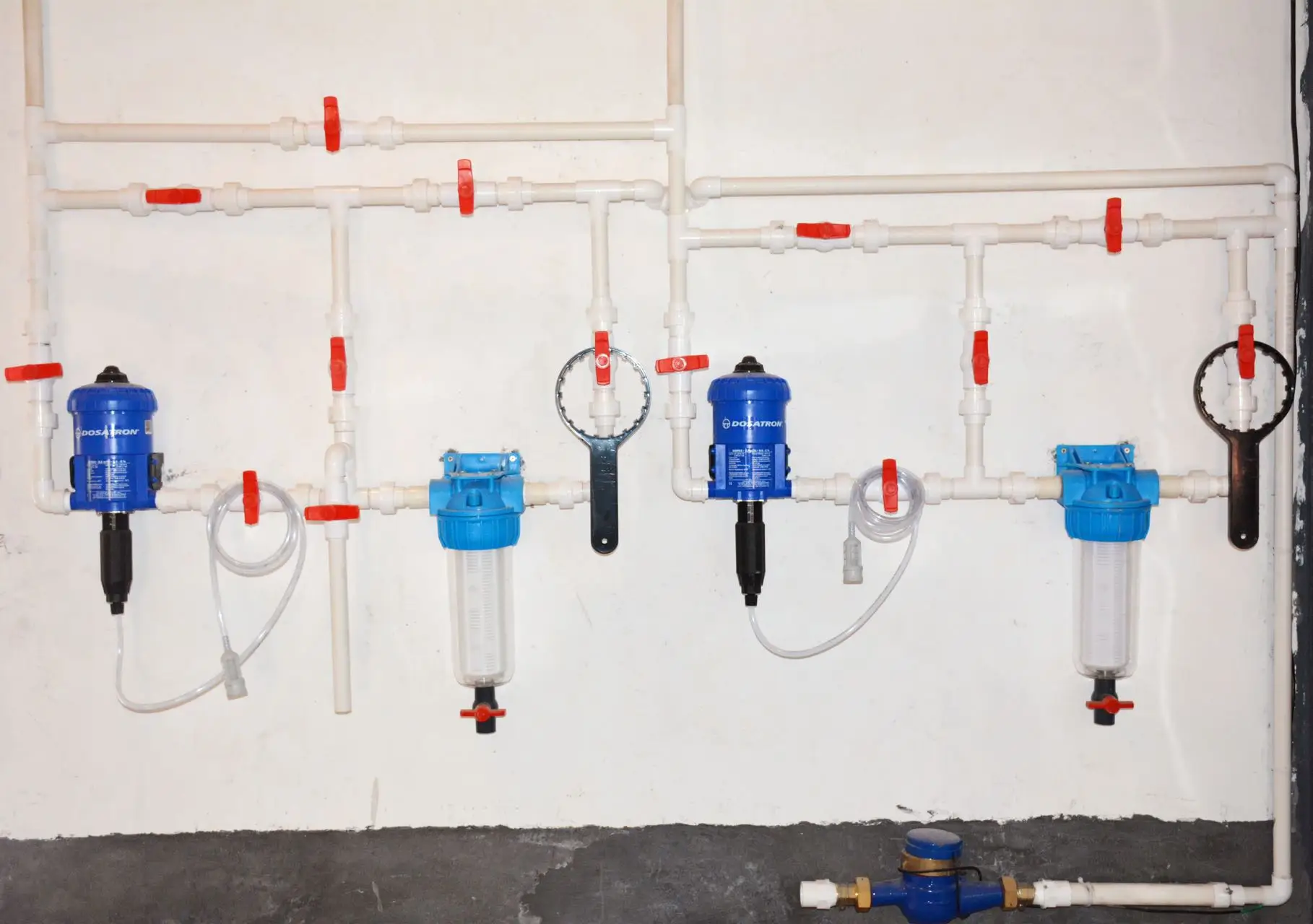

Water front parts.
■Water front parts includes water inlet,filter,water meter,medictor.
■Water quality is of vital importance for most drinking systems. Raisetech water front kit is not only capable of water supply and medicating,it can also flush the sediment in the tube with its large diameter flushing tube line,which serves to protect the system and reduce the labor for maintenance work.
■Water quality is of vital importance for most drinking systems. Raisetech water front kit is not only capable of water supply and medicating,it can also flush the sediment in the tube with its large diameter flushing tube line,which serves to protect the system and reduce the labor for maintenance work.

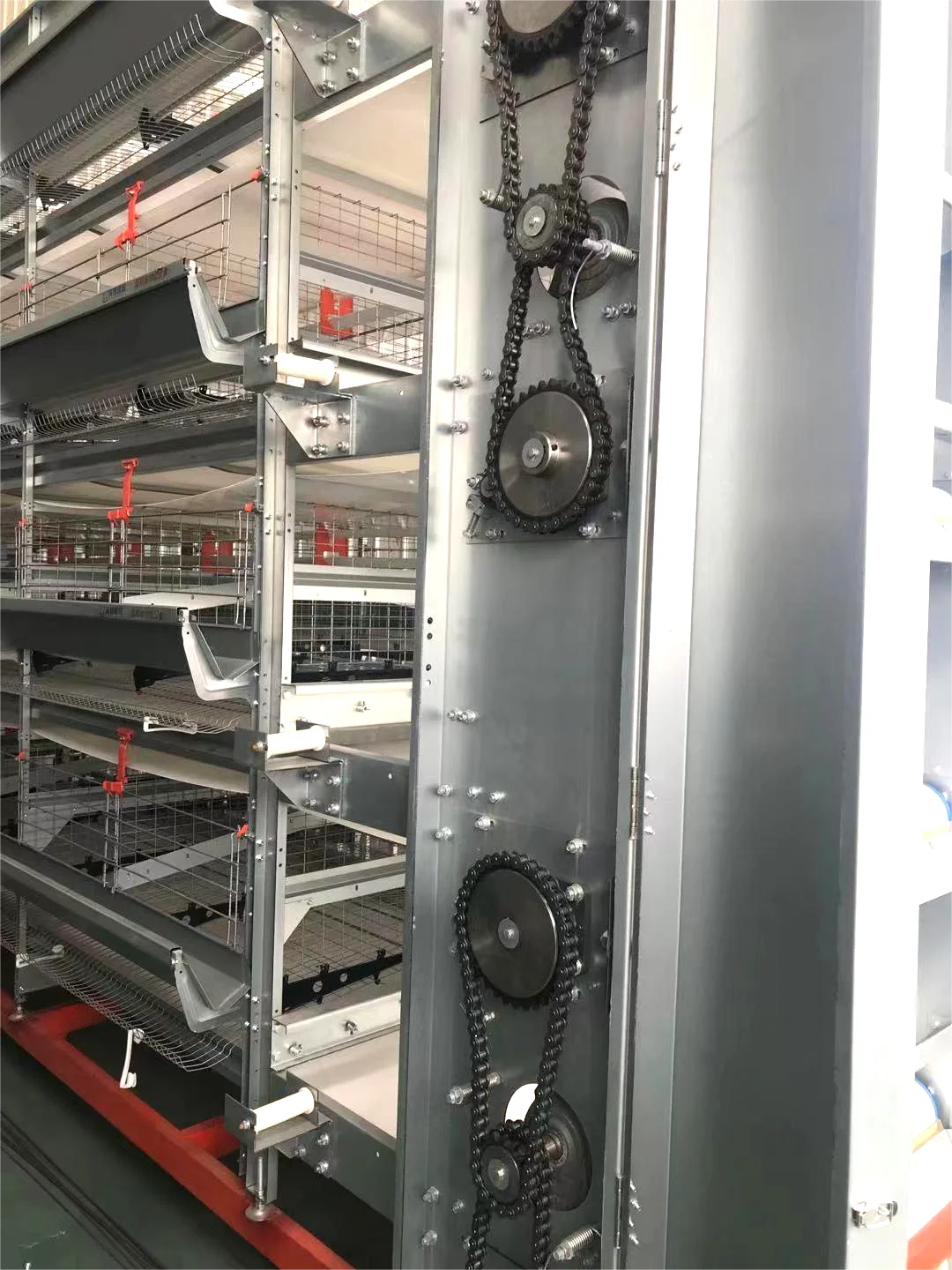

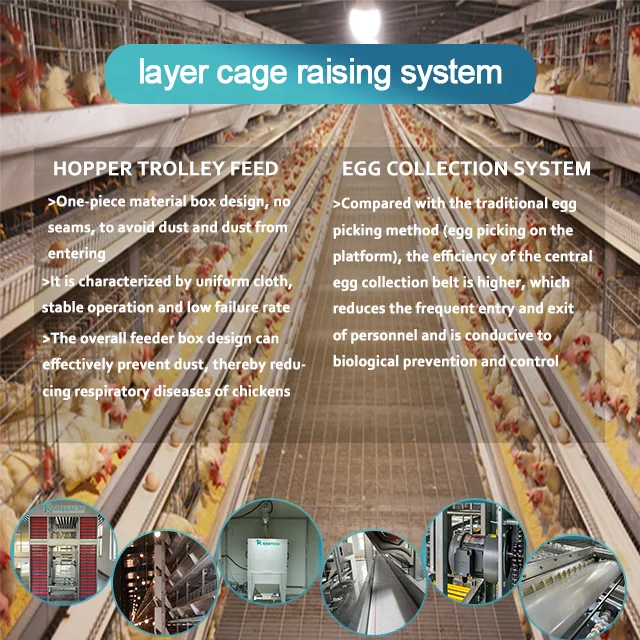

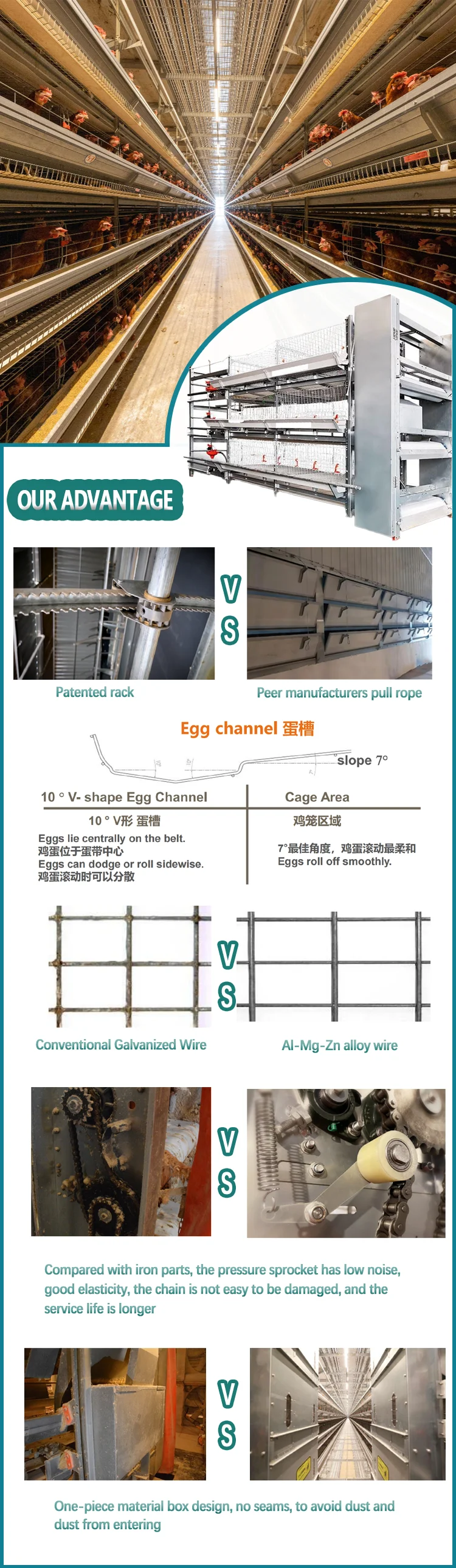

Egg Collection
1. 2mm hot dip galvanized side panels at 3m/min speed ,Motor power of China top brand Wanxin Motor: 04KW.
2. Egg conveyor The material is PP woven belt, thickness 1.2mm, width 100mm
2. Egg conveyor The material is PP woven belt, thickness 1.2mm, width 100mm
Egg Belt
3. U shape egg bracket,egg belt wheel bracket with egg belt tensioning part with accessories
4. PP Belt and egg Claw
4. PP Belt and egg Claw

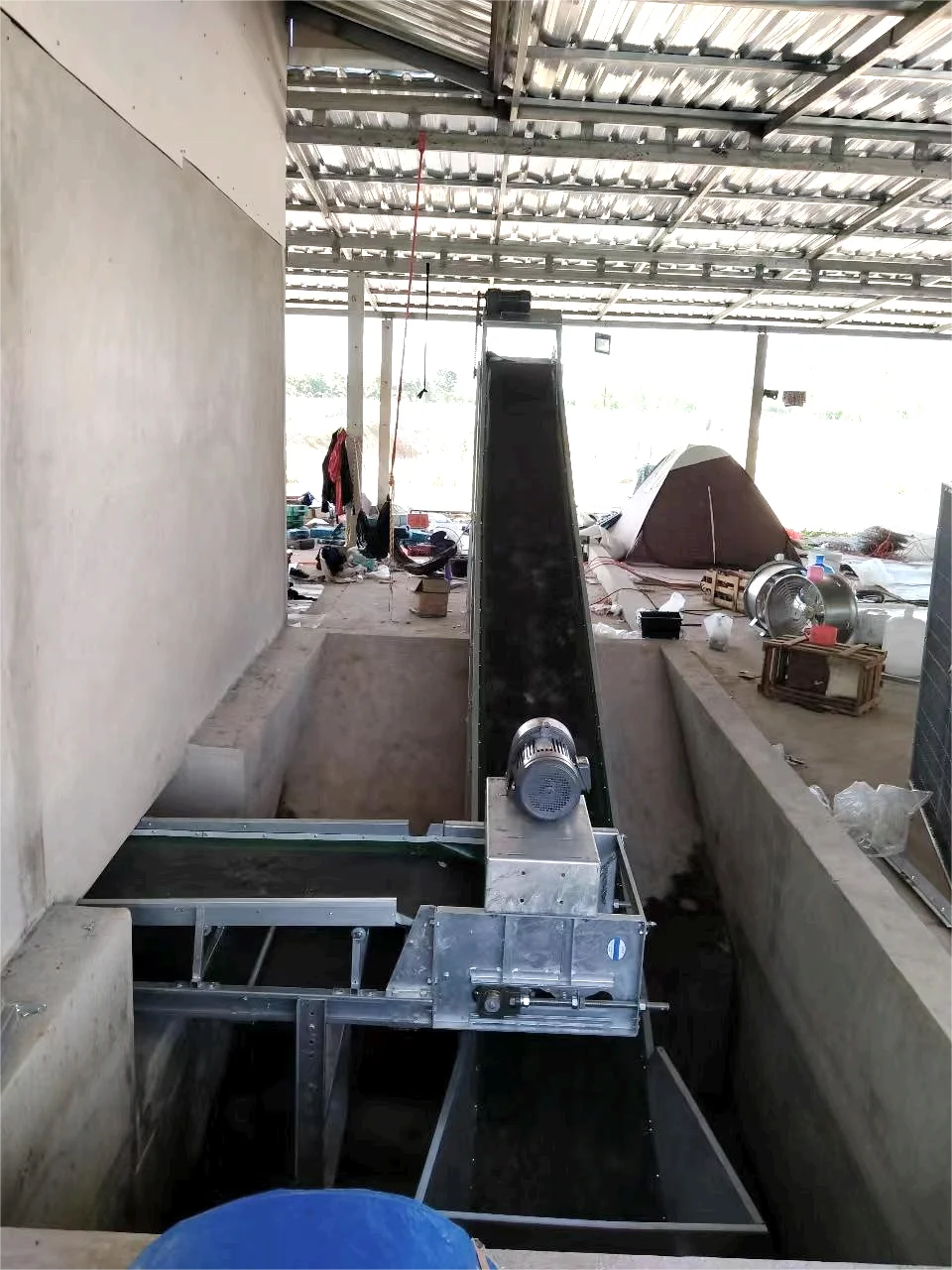

6.Manure Cleaning System
Automatic manure cleaning system,improve the air condition and reduce
amonia percentage(3-5ppm)in the house. The manure belt is automatically cleaned by manure scraper.
amonia percentage(3-5ppm)in the house. The manure belt is automatically cleaned by manure scraper.
1. 3mm hot-dip galvanized side panels, 1mm hot-dip galvanized steel chain safety door, running speed 3m/min.
Taiwanese Minquan engine 1.5kw motors
2.PP Belt:Thickness 1mm,Width:1.13m,transport speed is 3m/min.
3.Supporting beam 1.0mm hot-dip galvanized sheet 275g coating production

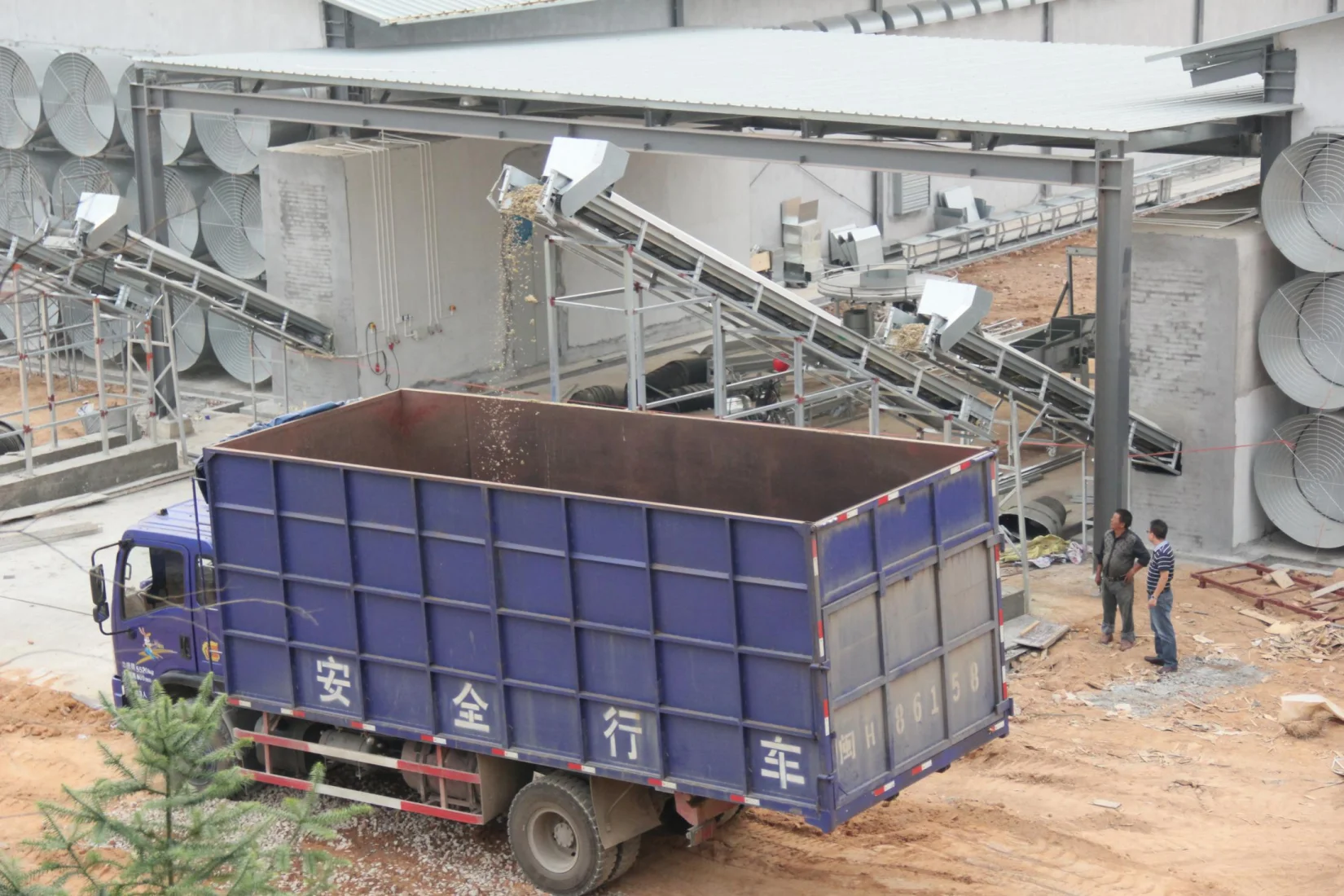

4.1 set for each room, horizontal and bevel distribution separately, material welded with 5mm angle steel. Stool tape: The power of 5mm thick rubber tape is 3kw.The horizontal conveyor system uses rubber conveyor belts. There was no fecal leakage during transportation
Taiwanese Minquan engine 1.5kw motors
2.PP Belt:Thickness 1mm,Width:1.13m,transport speed is 3m/min.
3.Supporting beam 1.0mm hot-dip galvanized sheet 275g coating production
4.1 set for each room, horizontal and bevel distribution separately, material welded with 5mm angle steel. Stool tape: The power of 5mm thick rubber tape is 3kw.The horizontal conveyor system uses rubber conveyor belts. There was no fecal leakage during transportation

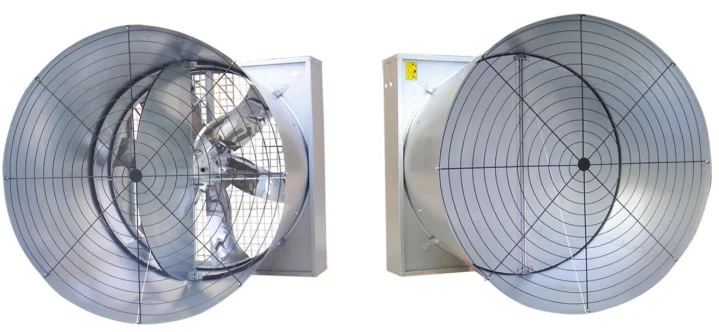

The fan blades are made of high quality 304 stainless steel ,large air volume,no
deformation,no fracture,no rust,beautiful
deformation,no fracture,no rust,beautiful
Anti-UV ingredients are added to the raw material ,strong anti-againg,long
service life.Better sealing,flexable opening,and anti-bird net at the air inlet. A pulley device is used on the air inlet doors to reduce friction and enhance the rope serive life.
service life.Better sealing,flexable opening,and anti-bird net at the air inlet. A pulley device is used on the air inlet doors to reduce friction and enhance the rope serive life.

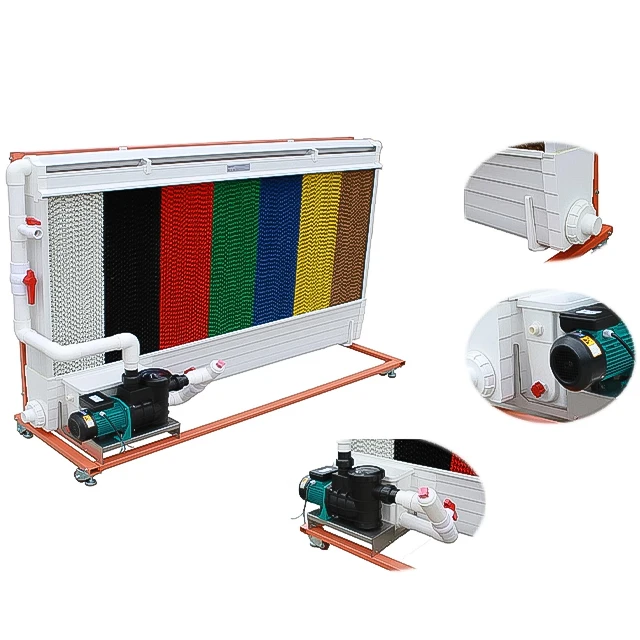

It's the most economical and effective cooling measure in summer.
2,Reasonable structure,stable running ,high efficiency

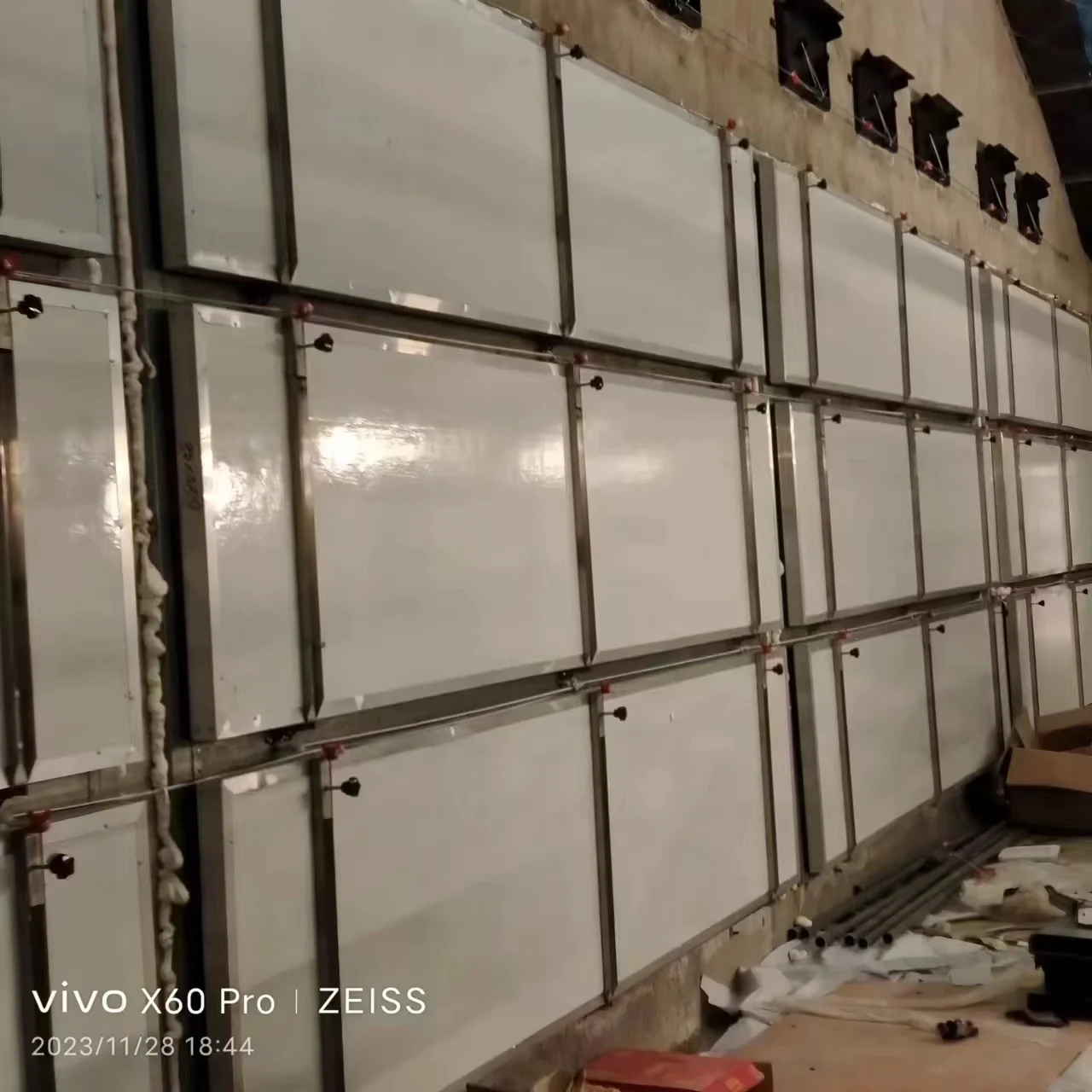

The panel door is made of 50mm PU board. Good heat insulation.
Drived by electric winch with rack.Good sealing performance.
Drived by electric winch with rack.Good sealing performance.

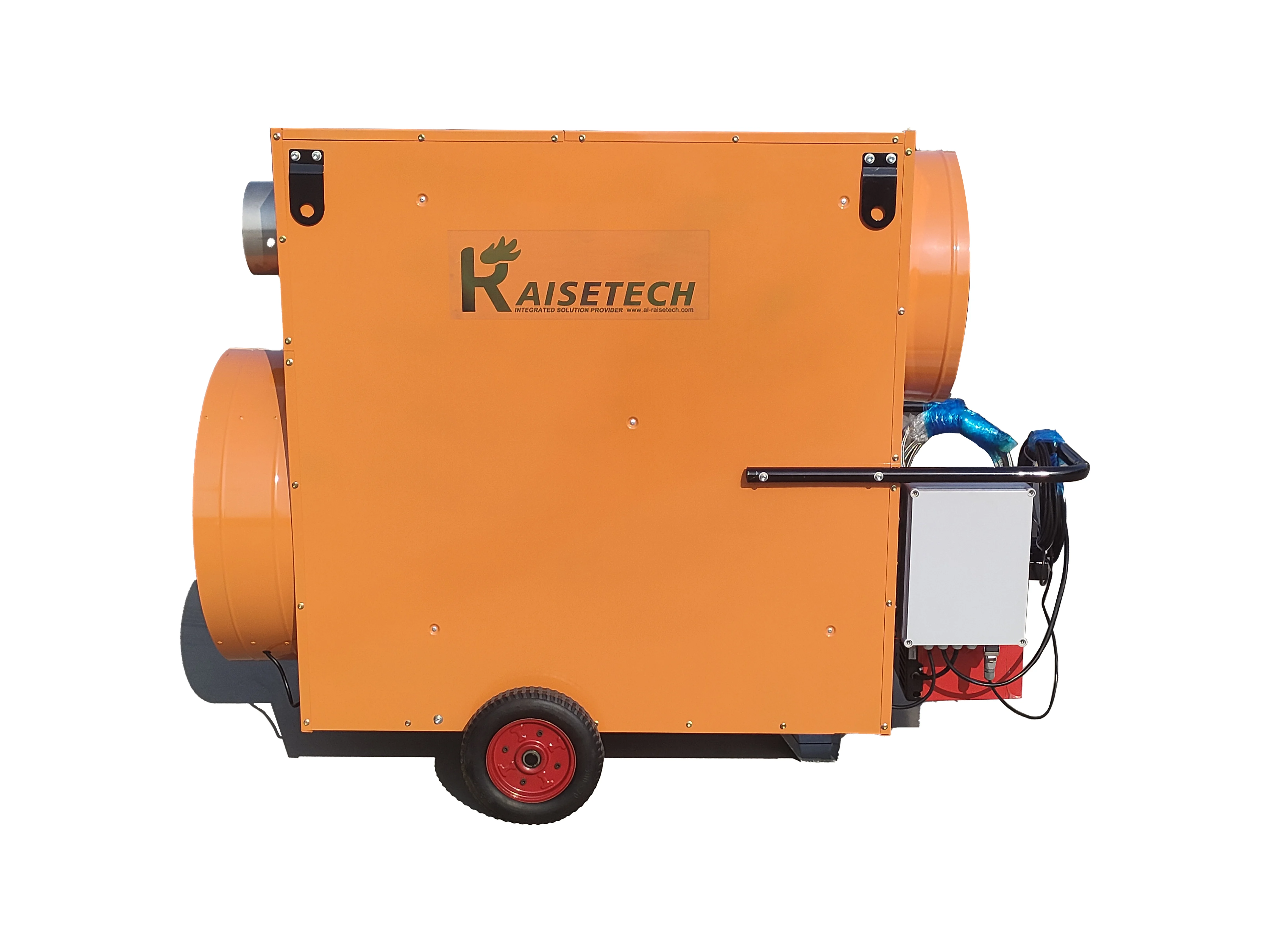

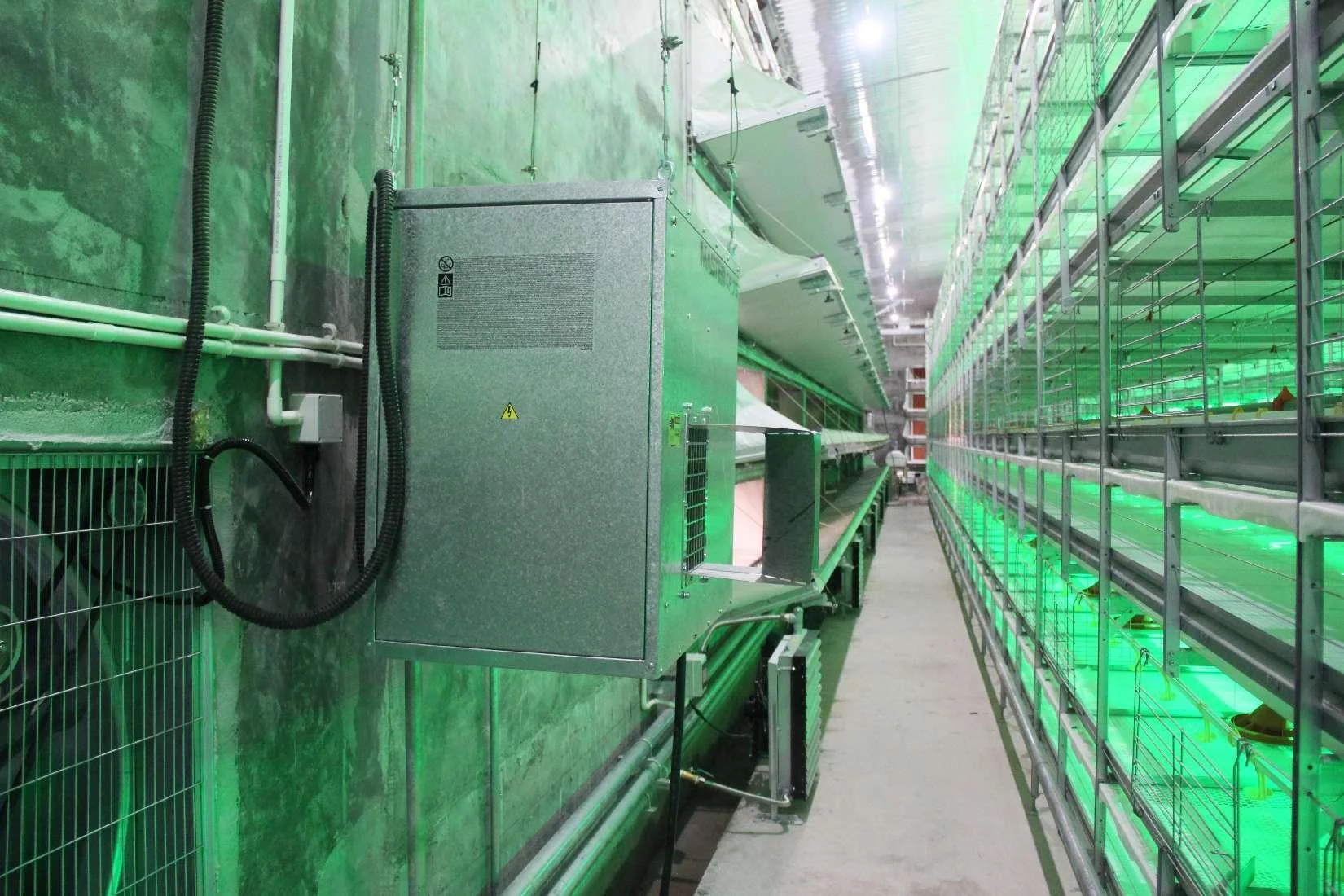

After setting,burner would automatically start on, fire,supply airand stop,keep steady temperature. Save large labor and financial resourc_x005f_x005f_x005f_x005f_x0002_e. All the technical index meet the national environmental protection standard

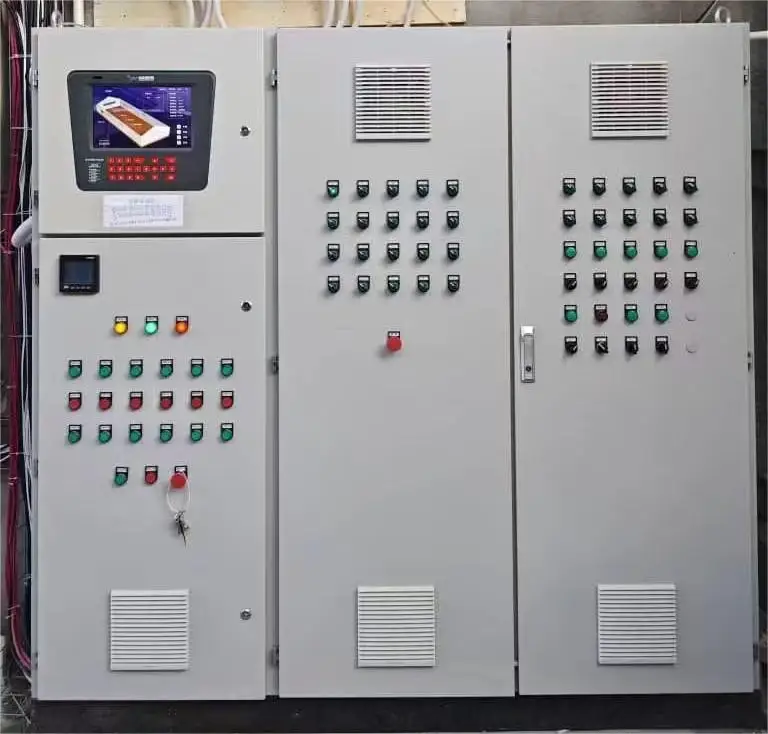

Controlling scope :Drinking, feeding ,manure removing ,fan ,cooling pad ,air inlet ,roll curtain ,spraying device ,heating device ,light modular and alarm system etc.

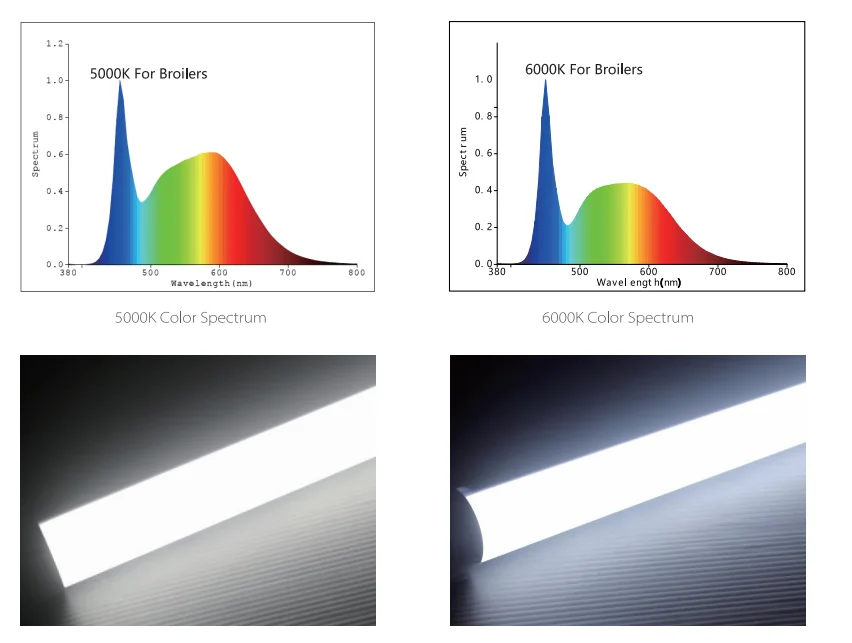

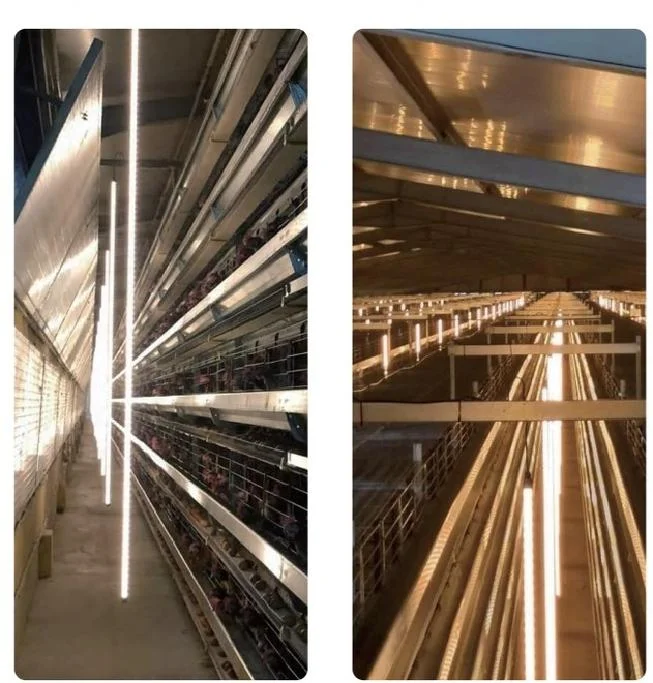

LED dimmable light,
No flash screen,
Five years warranty,
The power system of chicken house collects environmental information in real time through intelligent sensors, users can control the environmental situation through the environmental controller.realizes automatic control and management, greatly reduces the workload of farmers. Easy to operate.
