High Quality Slitting Line.
Slitting line is also called slitting unit, slitter, cutter, shear, which is mainly used for slitting and shearing of coils of tinplate, galvanized iron, silicon steel sheet, cold rolled strip steel, stainless steel strip, aluminium strip, steel strip and so on.It is to cut the metal coil into strips of various widths as required, and then collect the strips into small rolls for the next process, which is the necessary equipment for transformer, motor industry and other metal strips to be cut precisely.
Generally speaking, the slitting line is a non-standard product, which is designed and manufactured according to customer requirements.
The product parameters
Main Specifications | ||||||||
1 | Feeding Width | 1250mm or as required | ||||||
2 | Raw Material | GI,SI, SST,Al.etc | ||||||
3 | Max.Slitting Strips No. | 25 strips or as required | ||||||
4 | Min. Width of Strip | 40mm or as required | ||||||
5 | Thickness of Raw Material | Max.2mm | ||||||
6 | Max.Working Speed | 100-140 m/min | ||||||
7 | Capacity of Hydraulic Decoiler | 10T/15T or as required | ||||||
8 | Capacity of Hydraulic Recoiler | 10T/15T or as required | ||||||
Working flow
From right to left.

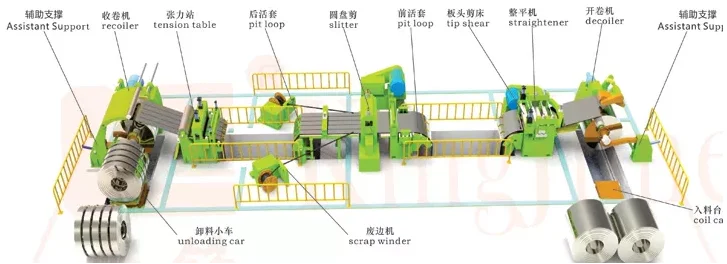

Hydraulic Recoiler←Tension Stand←Storage Pit 2←Scrap Winder←Slitting Station←Storage Pit 1←Shearing station←Flattening and Guiding Station←Hydraulic Decoiler
Product Details

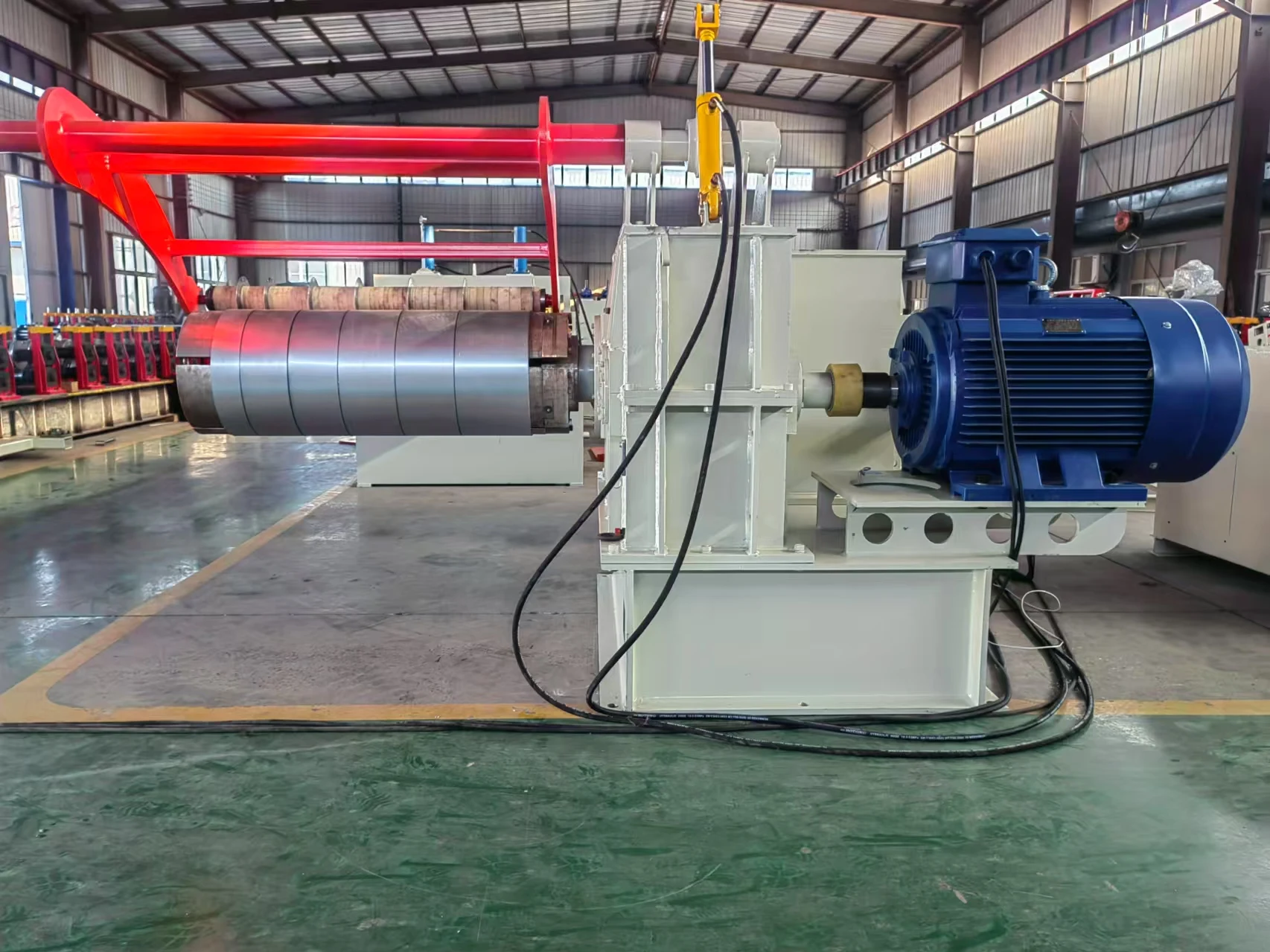

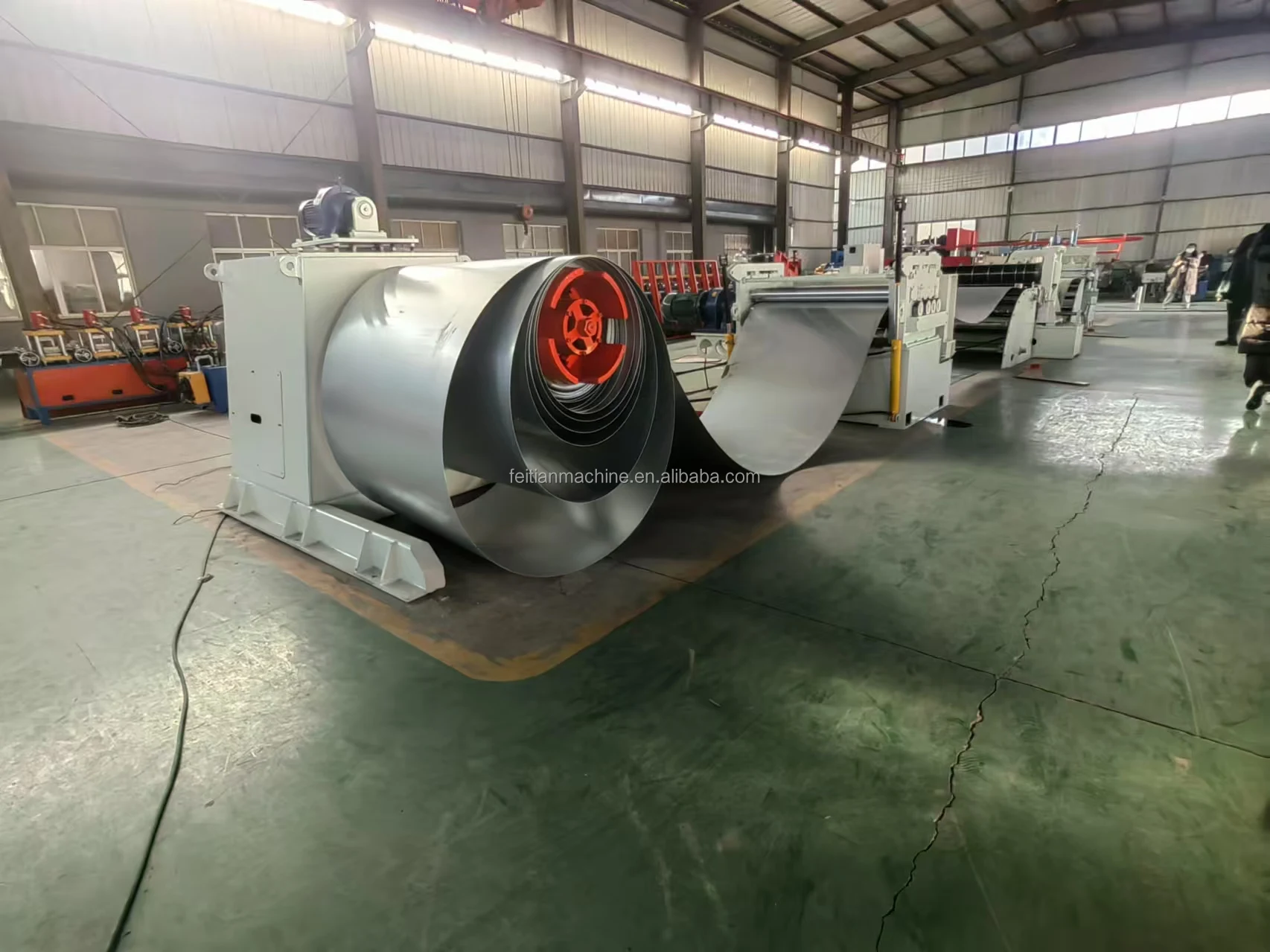

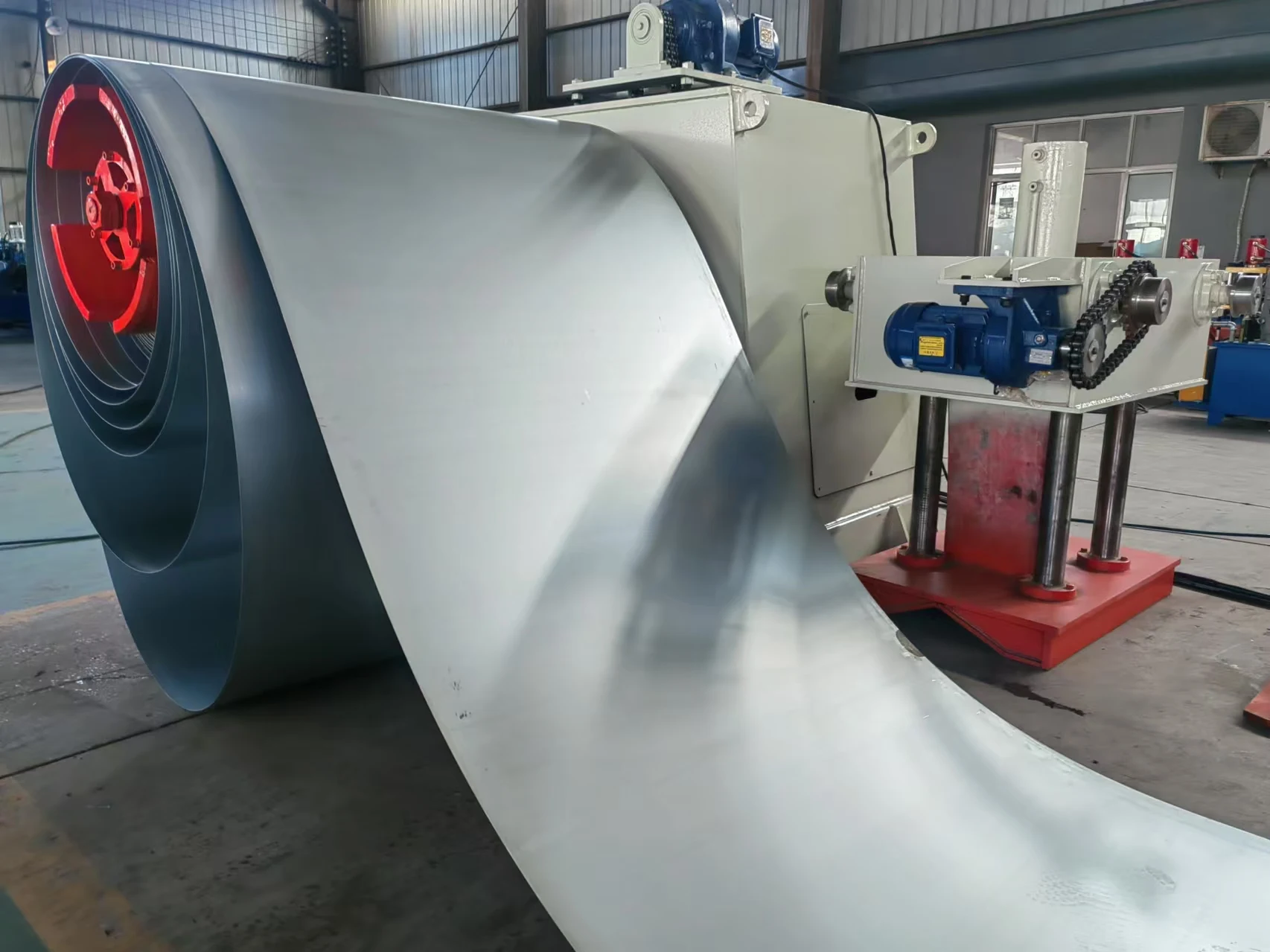

Hydraulic Decoiler.
Expanding type\t :Hydraulic expanding
Decoil type\t :Motorized active decoil
Loading capacity\t :10T
Control type\t :Its speed is automatically adjusted to main machine
Inner diameter\t :480-580mm
Motor power\t :7.5kw with Alternating Current
Auxiliaries facilities :With hydraulic press arm and & brake
Coil loading car\t :1 set
Dimension \t :6.2m*1.9m*2.25m
Weight\t :About 3t
Decoil type\t :Motorized active decoil
Loading capacity\t :10T
Control type\t :Its speed is automatically adjusted to main machine
Inner diameter\t :480-580mm
Motor power\t :7.5kw with Alternating Current
Auxiliaries facilities :With hydraulic press arm and & brake
Coil loading car\t :1 set
Dimension \t :6.2m*1.9m*2.25m
Weight\t :About 3t

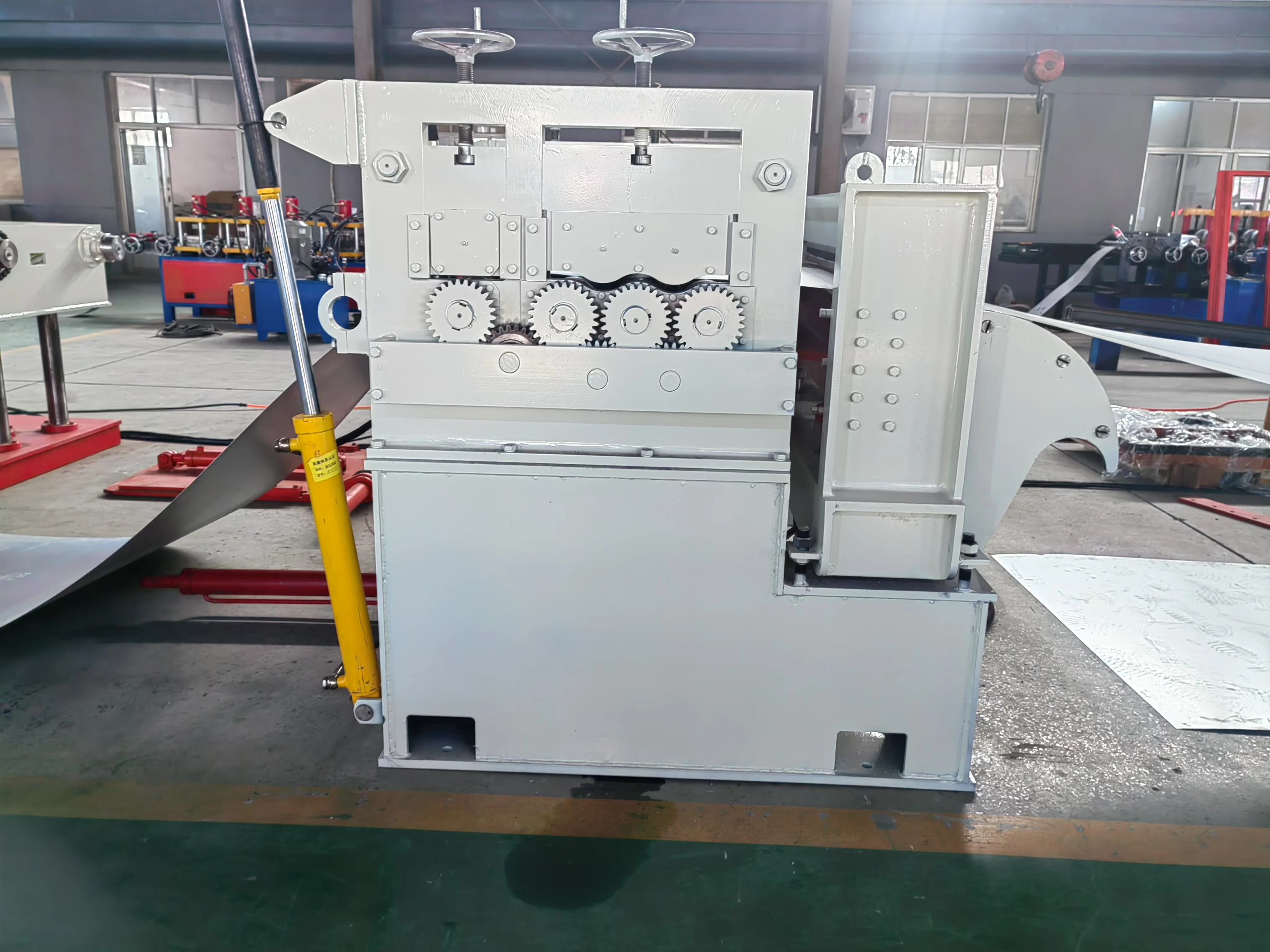

Flattening and Guiding Station.
Flattening Rollers\t 5 upper and 6 lower
Rollers Diameter\t 70mm
Base Frame\t Q235 steel plate welded
Guiding Device\t 2 pinch roll and rack
Driving mode\t All rollers are connect with gear box,and drive by 30Kw of adjustable speed motor with Alternating Current.
Function\t Level and guide the steel plate ,make it smooth and easy to feed
Rollers Diameter\t 70mm
Base Frame\t Q235 steel plate welded
Guiding Device\t 2 pinch roll and rack
Driving mode\t All rollers are connect with gear box,and drive by 30Kw of adjustable speed motor with Alternating Current.
Function\t Level and guide the steel plate ,make it smooth and easy to feed

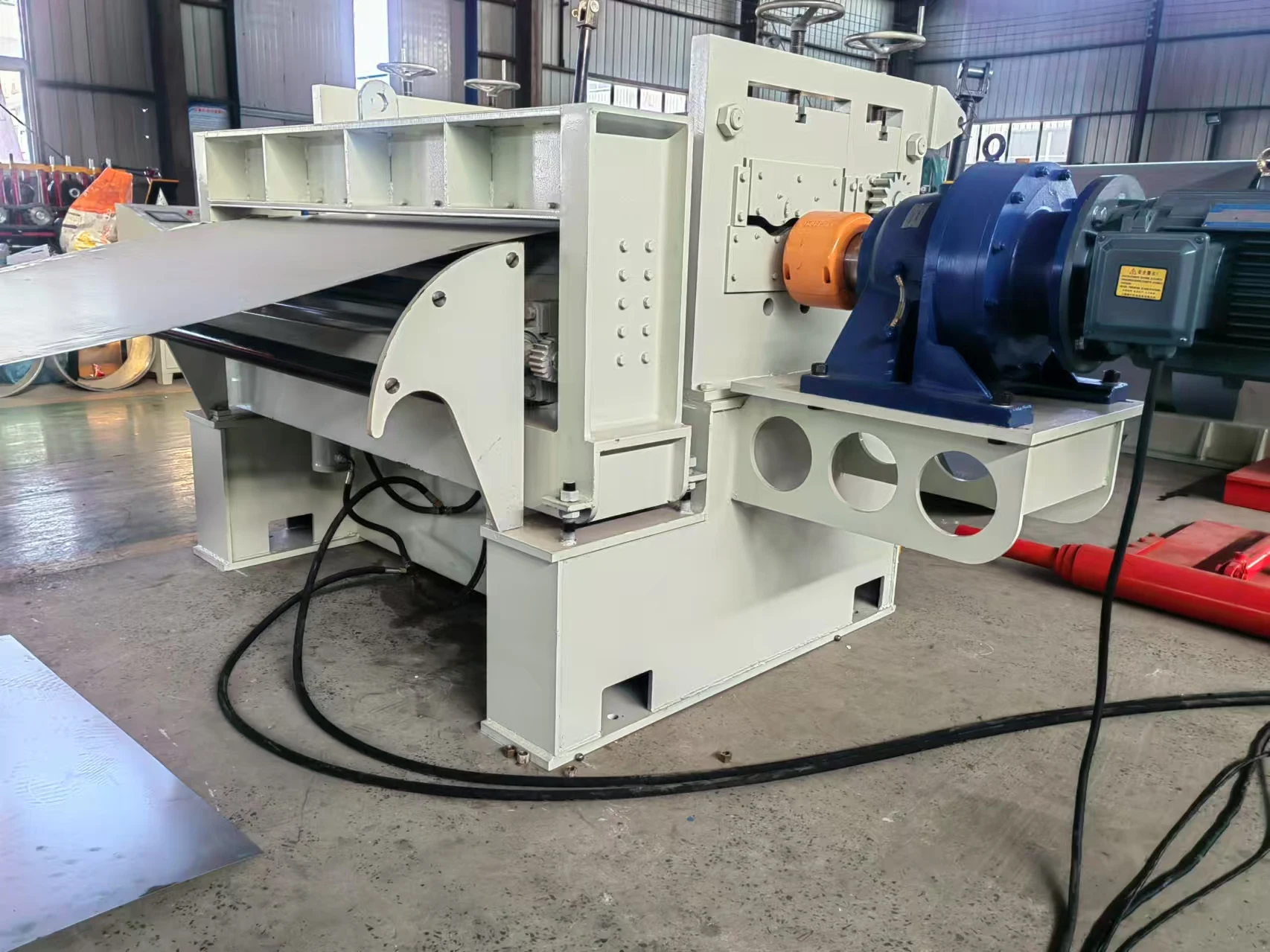

Slitting Station.
Shaft diameter of Blade Pivot\t Ø240mm,
material： 40Cr
Blade material\t 9CrSi
Main machine\t Main section is made up of base, fixed brackets, large slide block, 2 blade pivot, movable brackets, slide block, the adjustment device of front and back of the brackets and the lifting device of blade pivot, supporting blades, isolating cover and rubber ring, etc
Electric motor \t to drive the shaft up and down
Reducer power\t 55Kw with Direct Current
Blade material\t 9CrSi
Main machine\t Main section is made up of base, fixed brackets, large slide block, 2 blade pivot, movable brackets, slide block, the adjustment device of front and back of the brackets and the lifting device of blade pivot, supporting blades, isolating cover and rubber ring, etc
Electric motor \t to drive the shaft up and down
Reducer power\t 55Kw with Direct Current
Scrap Wider.
Consist\tBase, the shaft and plate of scrap material, friction wheel, supporting wheel chain, chain, decelerator and motor
Function\t It is used to wind the waste materials after slitting on the both sides of sheets
Motor Power\t 3Kw
Function\t It is used to wind the waste materials after slitting on the both sides of sheets
Motor Power\t 3Kw

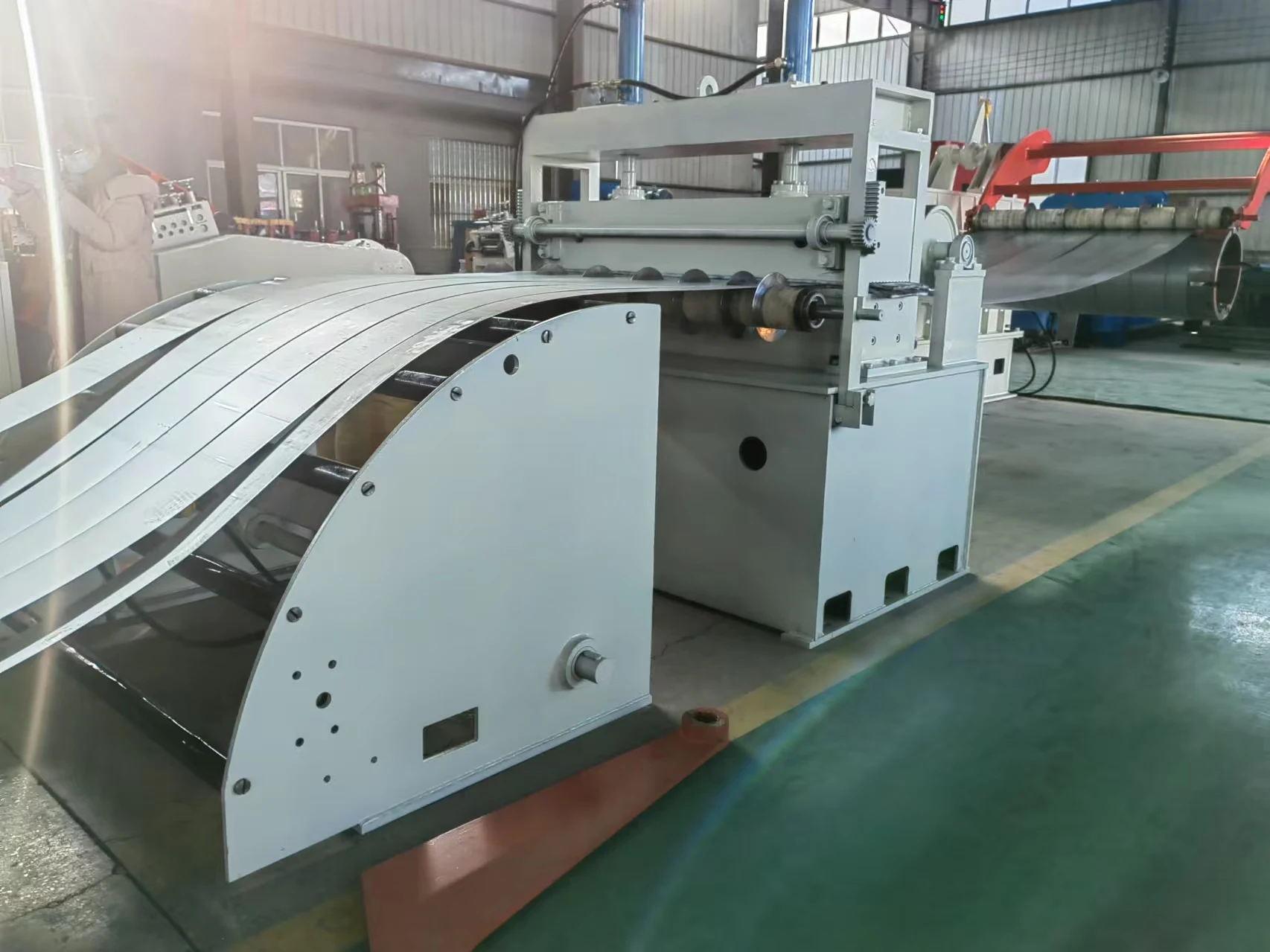

Tensioning Station.
Consist\tBase, pre-dividing shaft, bracket, press shaft, damp device and shaft lifting the press down device.
Function\t There are two dividing shafts which the spacers will be put on and the press device, all these design are used to ensure the recoiling quality, to make the coils tight and even.
Pressure roller and the material of roller is equipped with a pair of cylinder, respectively, on the control of elevator
Declutch shaft is design as linear guide，which make it easy to adjust or modify
Function\t There are two dividing shafts which the spacers will be put on and the press device, all these design are used to ensure the recoiling quality, to make the coils tight and even.
Pressure roller and the material of roller is equipped with a pair of cylinder, respectively, on the control of elevator
Declutch shaft is design as linear guide，which make it easy to adjust or modify

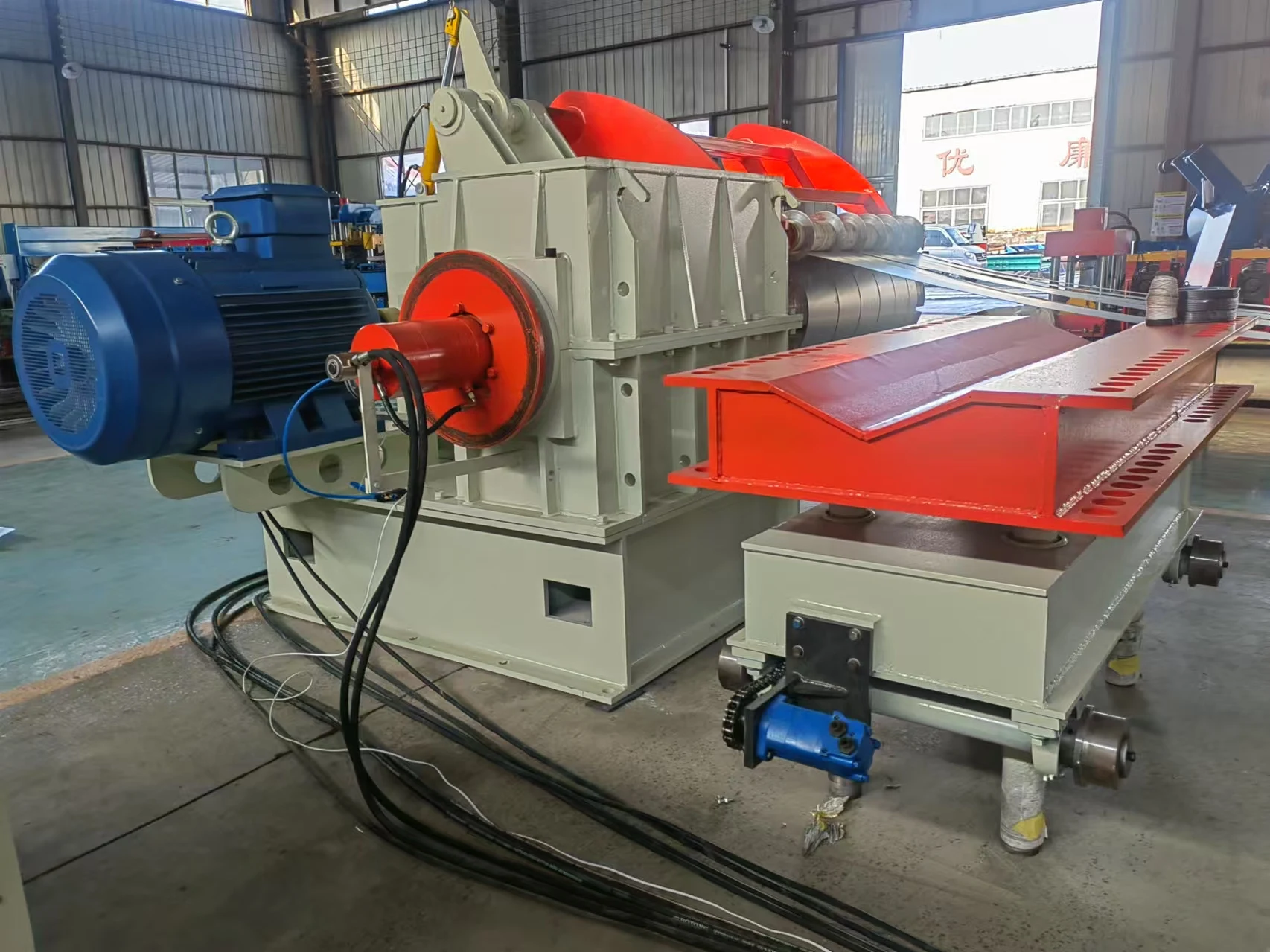

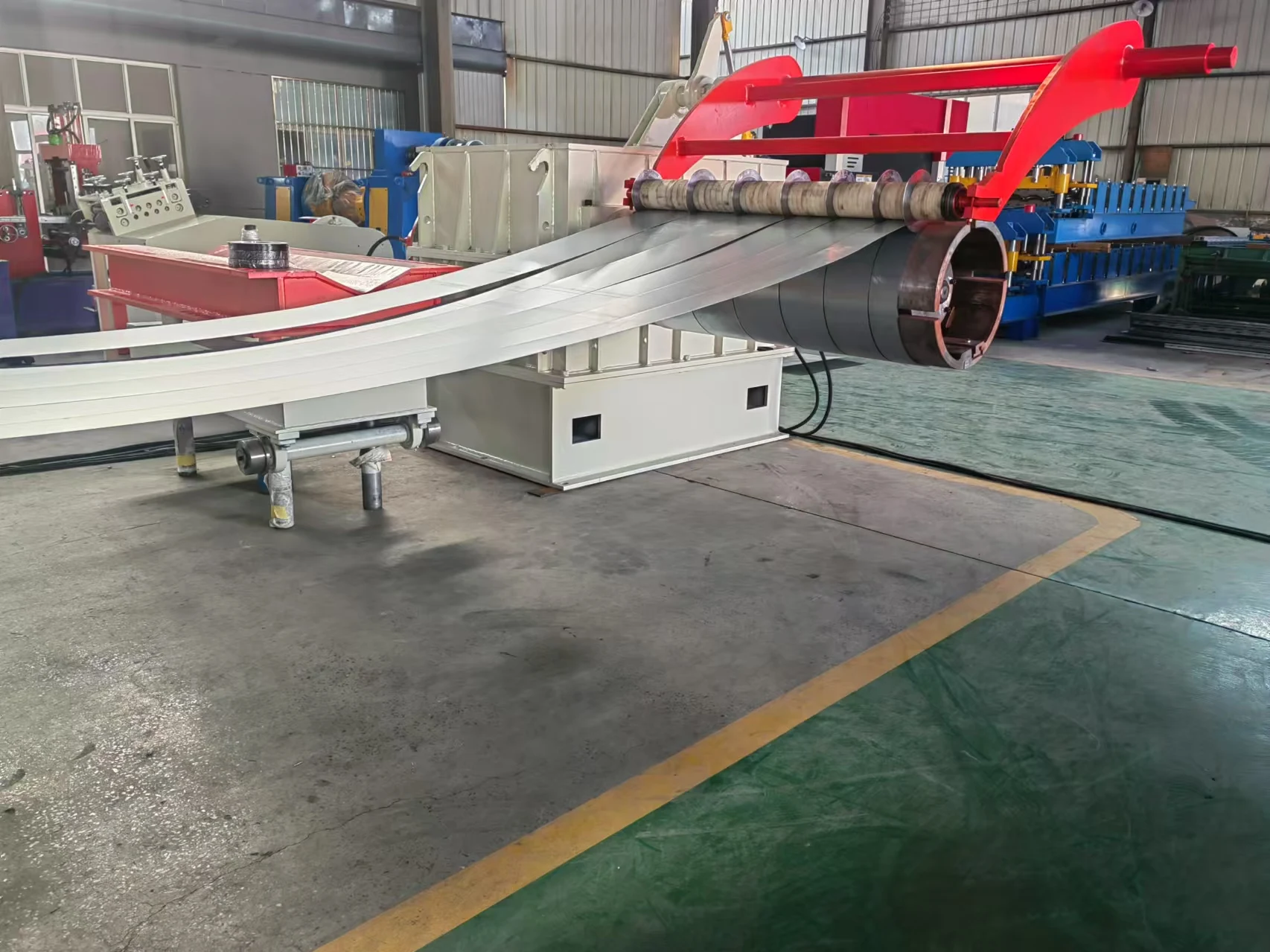

Hydraulic Recoiler.
Loading capacity\t 10T/15T or as required
Motor power\t 110Kw with Direct Current
Auxiliaries facilities With hydraulic press arm and & brake
Coil loading car\t 1 set
Dimension\t 6.4m*1.9m*2.25m
Pressure arm is driven by hydraulic to move up and down,Equipped with push board to help unloading coil to the car
Motor power\t 110Kw with Direct Current
Auxiliaries facilities With hydraulic press arm and & brake
Coil loading car\t 1 set
Dimension\t 6.4m*1.9m*2.25m
Pressure arm is driven by hydraulic to move up and down,Equipped with push board to help unloading coil to the car
Consist\tElectric control cabinet、operating station、DC cabinet
Function:Oulu590 DC controller and PLC control mode，LCD touch screen,Centralized control and work at the same time
Function:Oulu590 DC controller and PLC control mode，LCD touch screen,Centralized control and work at the same time
