High precision 3 axis integrated angular rate sensor fiber optic gyroscope wih wide range
- Category: >>>
- Supplier: Shenzhen Fire Power Control Technology Co. Ltd.Shenzhen Ltd.
Share on (1601338540783):
Product Overview
Description
Product Description

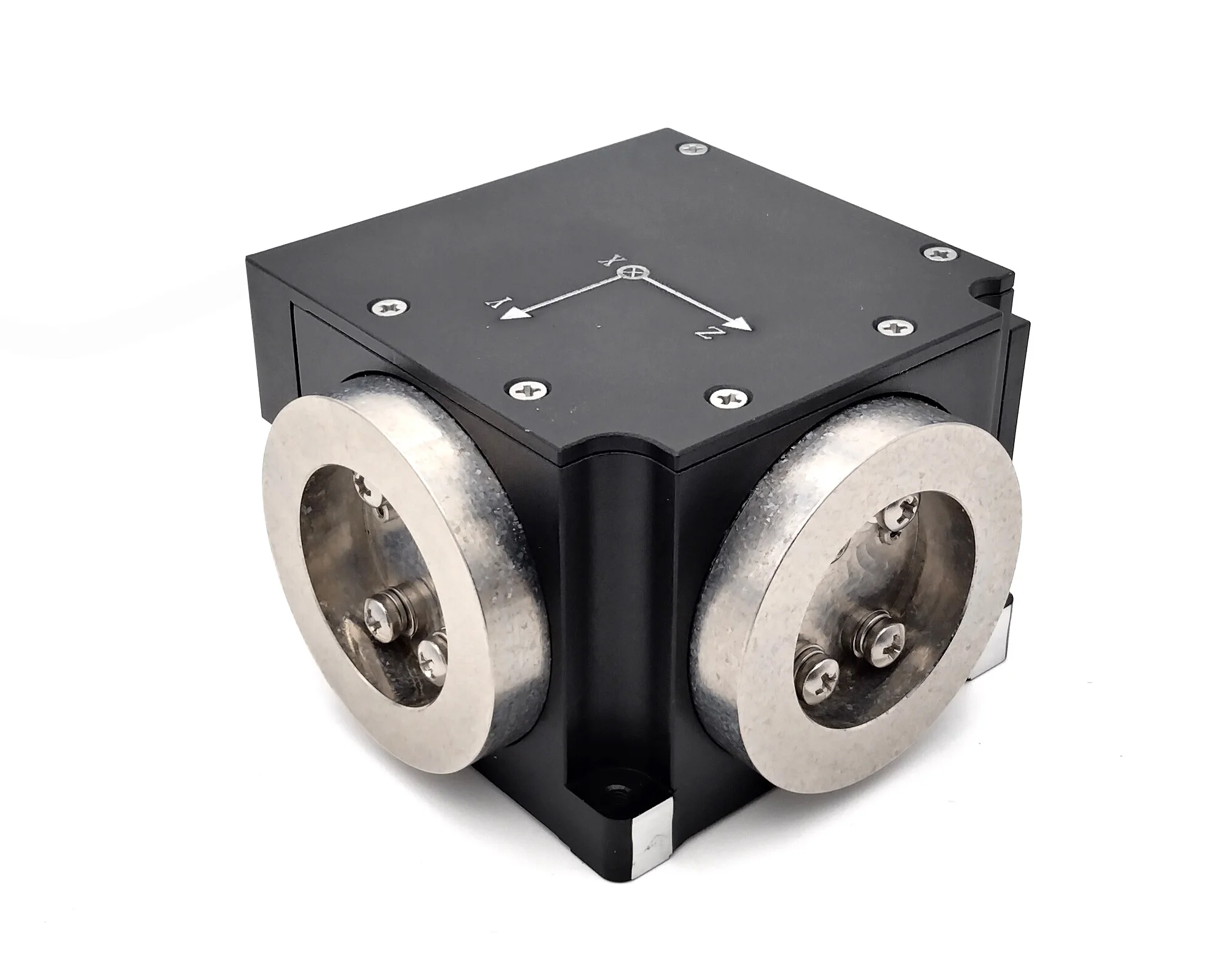

3OG-40M is an inertial angular rate sensor based on the optical Sagnac effect, which is used to measure the angular velocity of the carrier along the sensitive axis of the product. An angular velocity sensing unit of the product is an optical fiber ring, a digital closed-loop detection circuit is adopted to extract the optical path difference of clockwise and counterclockwise propagation light caused by external physical angular velocity and sensed by the optical fiber ring, and meanwhile, a voltage signal converted from an optical path difference signal is subjected to closed-loop feedback and control, so that the modulation and demodulation of the signal are realized, and the purpose of high-precision angular velocity signal detection is achieved
Details Images
Technical Parameter
Serial number | Test item | Unit | 3OG-40 | 3OG-40M | 3OG-56 | ||
1 | Overall dimensions | mm | 71.5×71.5×45 | ||||
2 | Starttime | S | 3 | 3 | 3 | ||
3 | Zero position | (°)/h | ≤1 | ≤1 | ≤1 | ||
4 | Zero bias stability at room temperature (constant temperature) | (°)/h | ≤0.08(10s) | ≤0.3(10s) | ≤1(10s) | ||
6 | Zero-bias repeatability | (°)/h | ≤0.08 | ≤0.3 | ≤1 | ||
7 | Zero bias sensitivity | (°)/h/Gs | ≤0.05 | ≤0.07 | ≤0.1 | ||
8 | Random walk coefficient | ()/h1/2 | ≤0.01 | ≤0.01 | ≤0.05 | ||
9 | Scale factor nonlinearity | ppm | ≤20 | ≤50 | ≤100 | ||
10 | Scale factor asymmetry | ppm | ≤10 | ≤30 | ≤50 | ||
11 | Scale factor repeatability | ppm | ≤20 | ≤50 | ≤100 | ||
12 | Threshold | (°)/h | ≤0.05 | ≤0.05 | ≤0.08 | ||
13 | Resolution | (°)/h | ≤0.05 | ≤0.05 | ≤0.05 | ||
14 | Bandwidth | Hz | ≥200 | ≥200 | ≥200 | ||
15 | Operating temperature | ℃ | -45～+70 | -45～+70 | -45～+70 | ||
16 | Storage temperature | ℃ | -55～+80 | -55～+80 | -55～+80 | ||
17 | Dynamic range | (°)/s | ±500/±800 | ±500/±800 | ±500/±1000 | ||
18 | Supply voltage | V | +5 | +5 | +5 | ||
19 | Steady-state power consumption | W | ≤4 | ≤4 | ≤4 | ||
20 | Full temperature steady state power consumption | W | ≤8 | ≤8 | ≤8 | ||
21 | Start the instantaneous current | A | <2 | <2 | <2 | ||

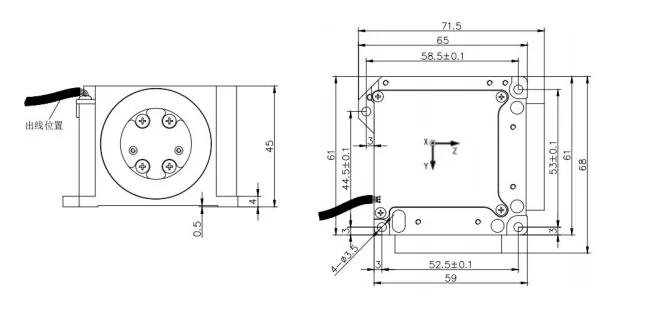

Outline Drawing
