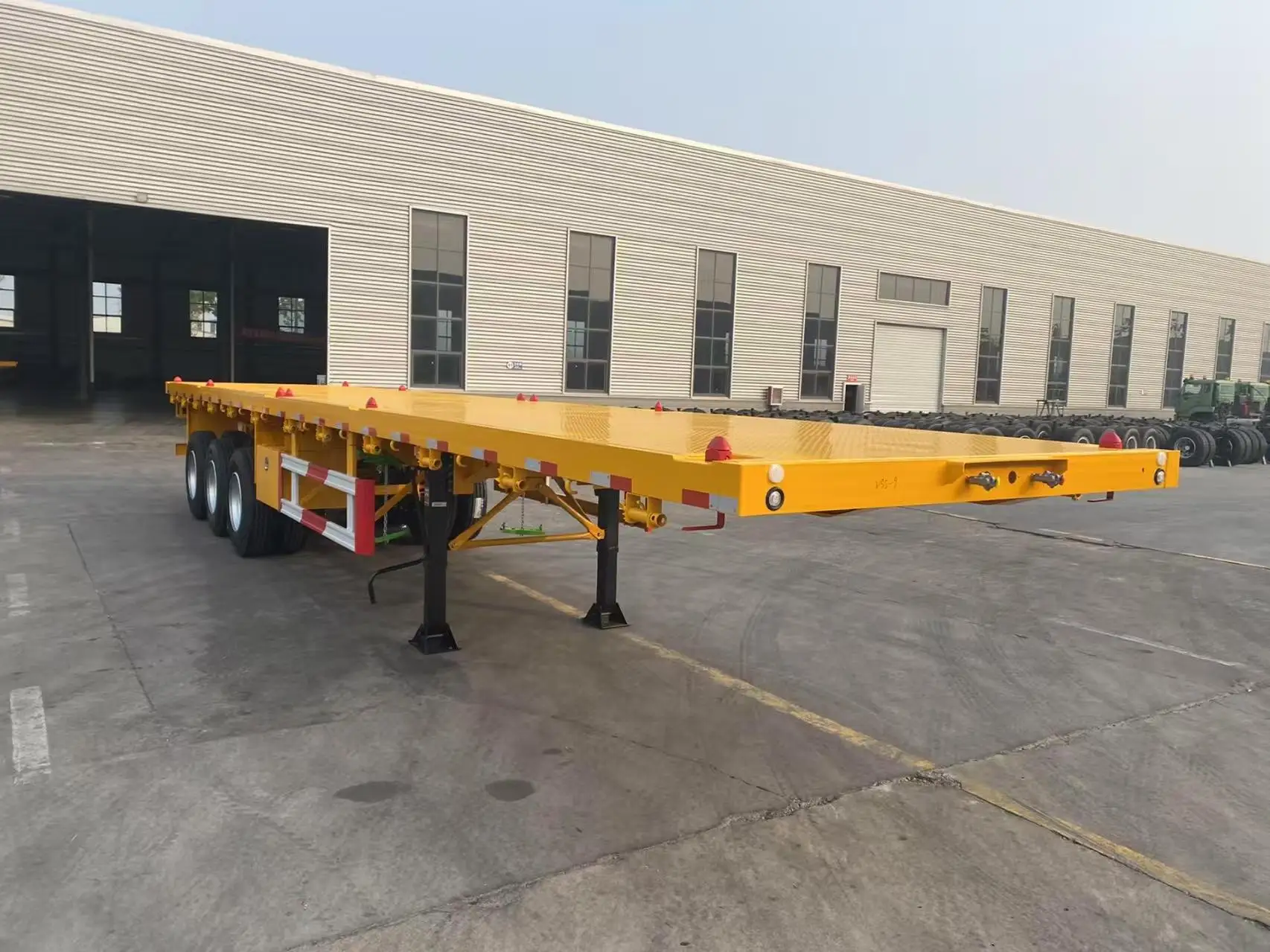

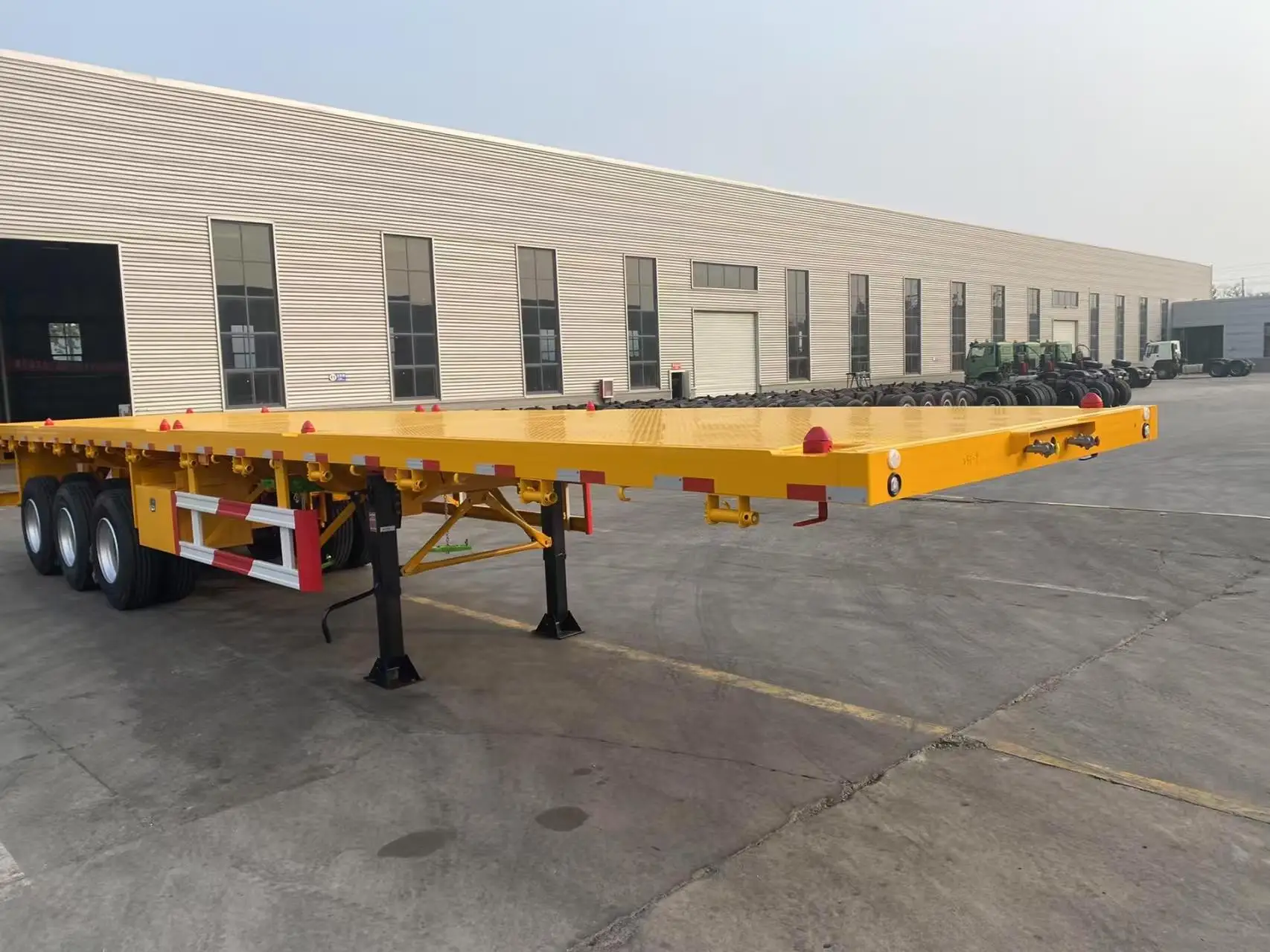

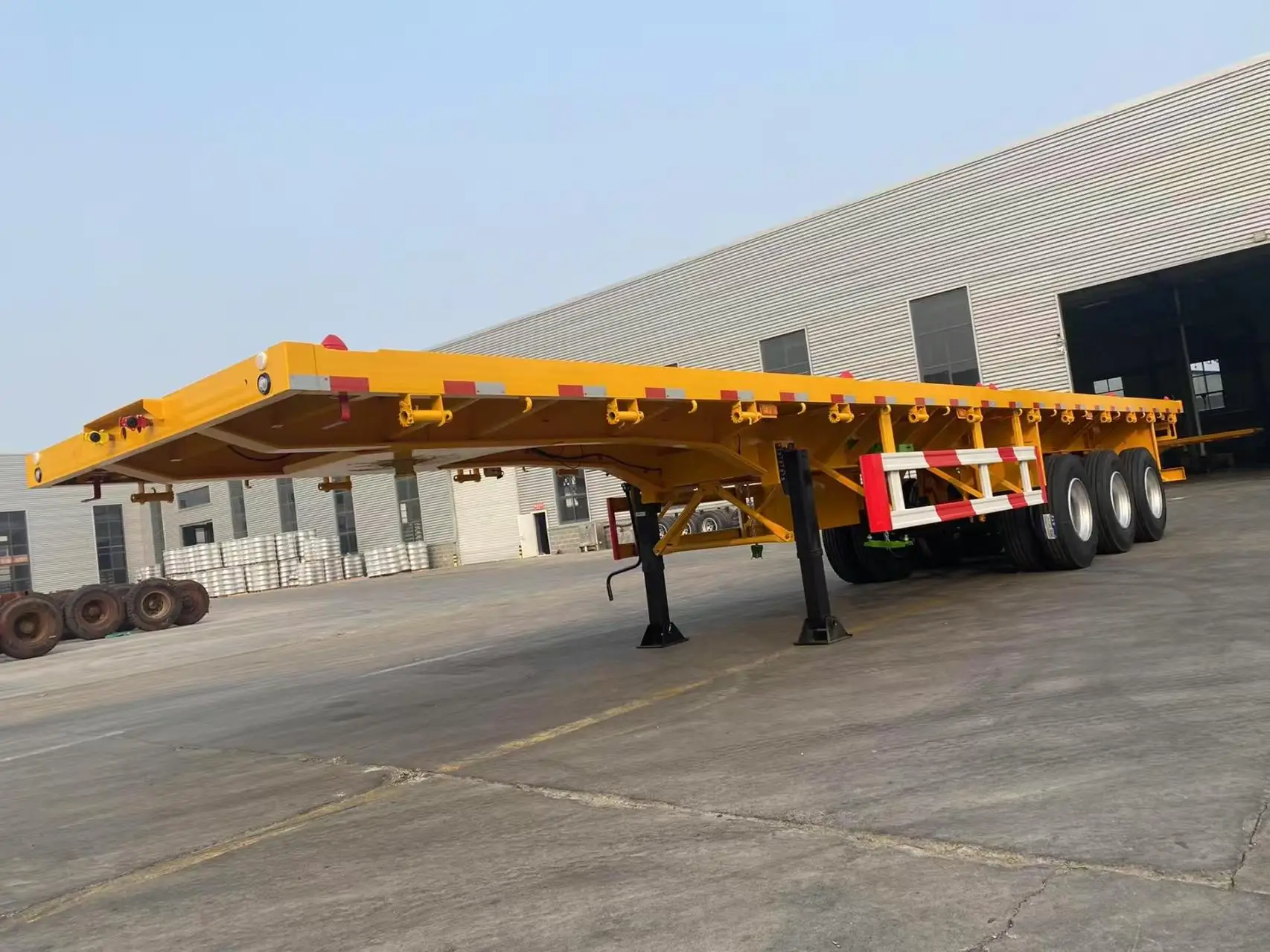

2024 GHANA Local Factory Truck Trailer 3 Axle 40ft Container Semi Trailer
- Category: >>>
- Supplier: Tangshan Yingdong International Trading Co. Ltd.Tangshan Ltd.
Share on (1601341694417):
Product Overview
Description
Products Description

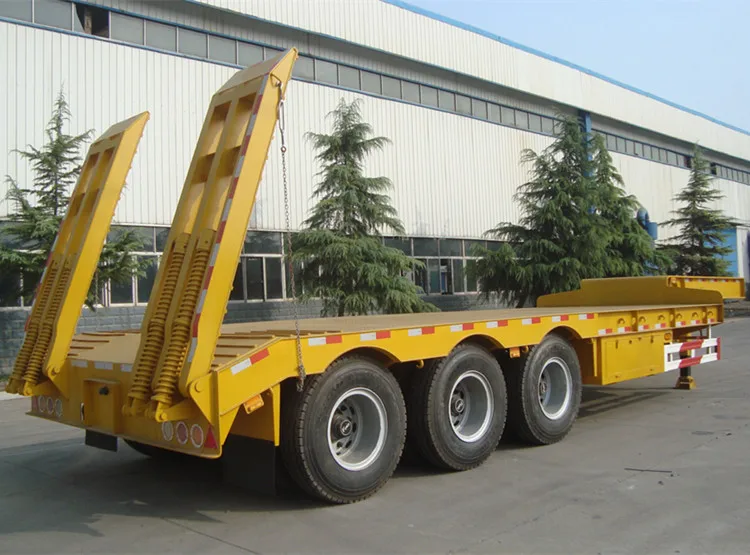

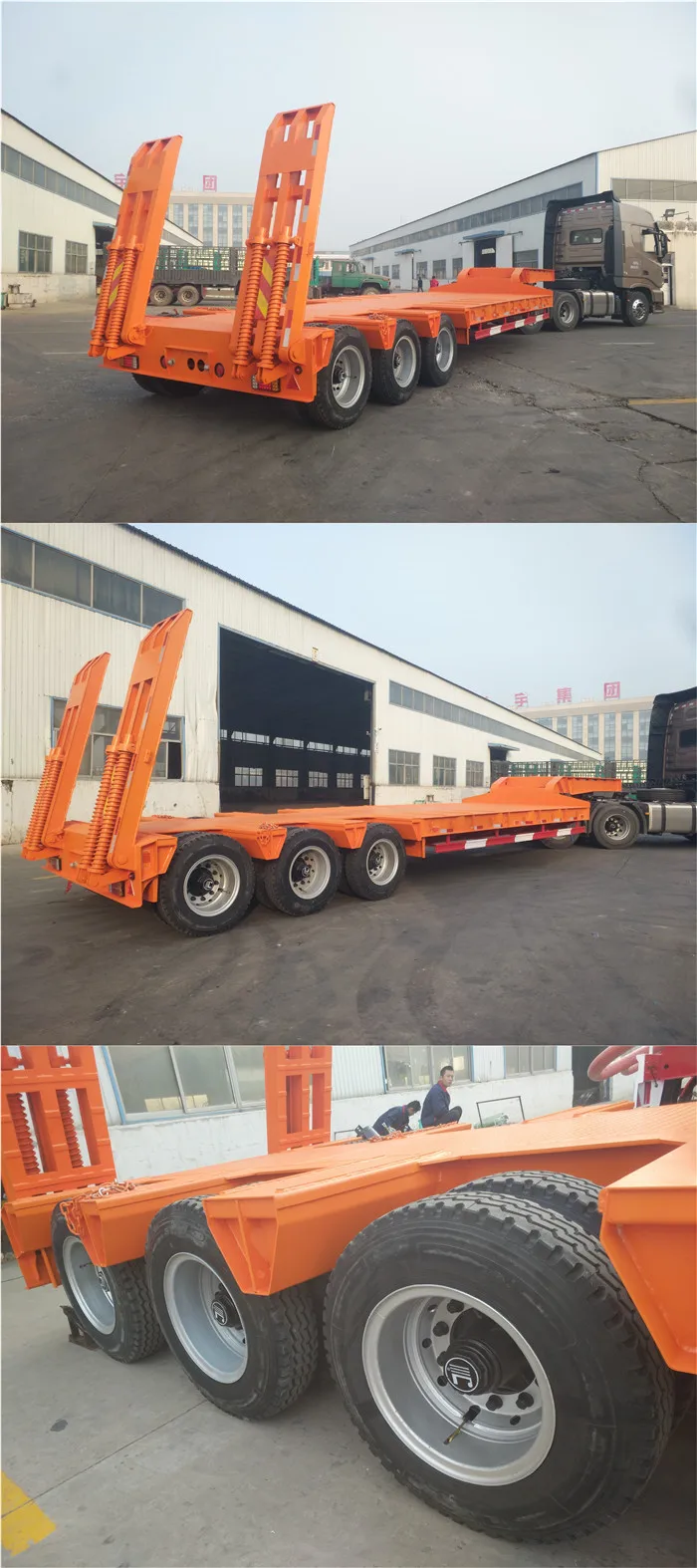

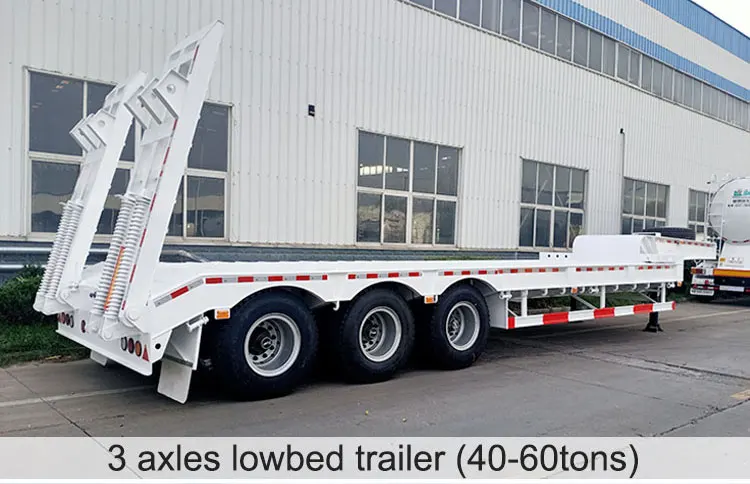

3 Axles Lowboy Trailer
Low Bed Semi Trailer, as known as low bed trailer, lowbed trailer, lowboy trailer. Our lowbed trailer choose Q345B carbon
high-tensile steel material. We adopt world famous brand of parts, like JOST, WABCO braking valve etc. We can also produce the semi trailers like flatbed trailer, Skeleton trailer, dump semi trailer etc. trailers will be inspected before painting ensure every detail in good condition. We are manufacturer, provide customized service, design as the customers’ every request. Our design ability has reached a domestic first level, rich production experience, short delivery time. Our company has passed ISO9001 quality system certification, production of lowbed trailer in China has already occupied a very high market share in Africa and Russia. Our phone service 24 hours service for you.
high-tensile steel material. We adopt world famous brand of parts, like JOST, WABCO braking valve etc. We can also produce the semi trailers like flatbed trailer, Skeleton trailer, dump semi trailer etc. trailers will be inspected before painting ensure every detail in good condition. We are manufacturer, provide customized service, design as the customers’ every request. Our design ability has reached a domestic first level, rich production experience, short delivery time. Our company has passed ISO9001 quality system certification, production of lowbed trailer in China has already occupied a very high market share in Africa and Russia. Our phone service 24 hours service for you.

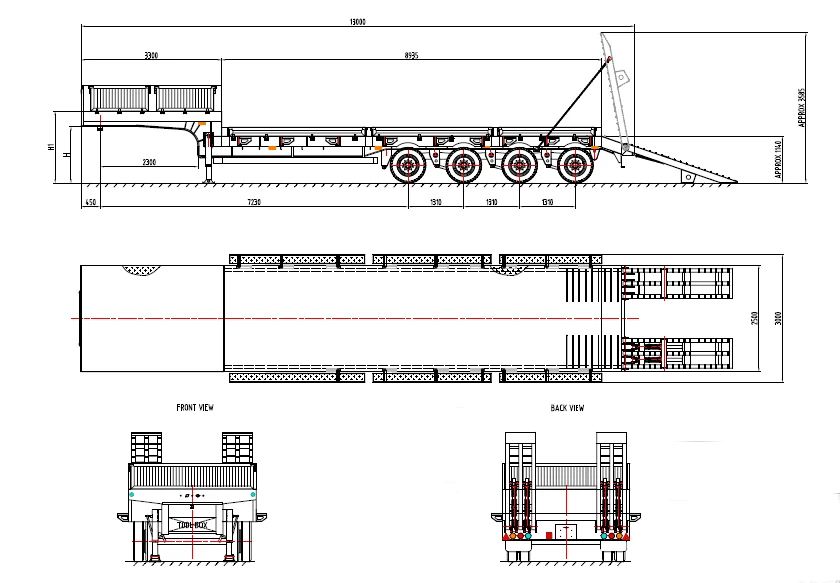

Specification For Low Bed Semi Trailer | ||
Type | Low bed semi trailer | |
Dimension | 9500-16500*2500-3000*3200 (can be customized) | |
Tare weight | Approx. 8000kgs-12800kgs | |
Capacity | 30 ton - 100 ton | |
Main beam | Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm down plate is 16mm-25mm ; Material is Q345B Steel. | |
Side beam | 16 mm- 25 mm channel steel (Material is Q235 steel) | |
Platform | 3 mm - 5 mm thickness chequered plate or can be optional | |
Gooseneck | For chosse | |
Ladder | Manual type or Hydraulic type | |
Axle | 13/16T, FUWA / BPW / SHENGRUN brand etc | |
King pin | Jost 2.0 or 3.5 inch bolted type | |
Suspension | Mechanical suspension(Germany type or America type) or Air suspension | |
Leaf spring | 90 mm(Width) * 13 mm(Thickness) * 10 layer or 100 mm * 12 mm * 12 layer | |
Braking system | WABCO 6 relay valve, spring brake chamber, 2 pieces of 45L air tank | |
Rim | 9.0*22.5 / 8.0-20 / 8.5-20 | |
Tire | 12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 brand can be optional | |
ABS | Optional | |
Fire extinguiser | Two pieces 4 kgs | |
Spare tire carrier | 2 pieces | |
Safety guard | With standard | |
Tool box | One piece, 1mx0.5mx0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) | |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
Accessories | One standard tool box | |
Light | LED light | |
Shipping terms | By bulk vessel or RORO or 40 HQ container | |
Any parts fitted could according to clients request, contact us to get more. | ||
Application for Truck Trailer or Semi Trailer
1. This series container semi trailers are mainly suitable for the MID/Long distance transportation of Standard containers or ISO tank container,this series container semi trailer divides the flatbed.skeleton type etc.
Carrying for dry cargos, 1*40FT,2*20FT,1*20FT or 1*45FT etc. containers / High Quality Body/BPW, FUWA or Certificated Chinese Axles / ABS brake system / JOST or Chinese brand parking leg and king pin / Air and Mechanical Suspension / Strengthen the Chassis Instructure.
2. The capacity is for 50tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs .
Additional information for Truck Trailer or Semi Trailer
1.The parameters of the truck trailer are just common configurations, not absolute.The specific configuration of thetruck trailer will be executed according to your needs.
2.We also do OEM and ODM.If you are interested in understanding our abilities and the truck trailer, we are always welcome.
3.The final price of all truck trailer is determined by the truck trailer configuration you choose.Therefore, if you are
interested in purchasing products, please contact us.
1. This series container semi trailers are mainly suitable for the MID/Long distance transportation of Standard containers or ISO tank container,this series container semi trailer divides the flatbed.skeleton type etc.
Carrying for dry cargos, 1*40FT,2*20FT,1*20FT or 1*45FT etc. containers / High Quality Body/BPW, FUWA or Certificated Chinese Axles / ABS brake system / JOST or Chinese brand parking leg and king pin / Air and Mechanical Suspension / Strengthen the Chassis Instructure.
2. The capacity is for 50tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs .
Additional information for Truck Trailer or Semi Trailer
1.The parameters of the truck trailer are just common configurations, not absolute.The specific configuration of thetruck trailer will be executed according to your needs.
2.We also do OEM and ODM.If you are interested in understanding our abilities and the truck trailer, we are always welcome.
3.The final price of all truck trailer is determined by the truck trailer configuration you choose.Therefore, if you are
interested in purchasing products, please contact us.
Packing & Shipping
We usually adopt shipping by bulk cargo, flat rack, container container and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.

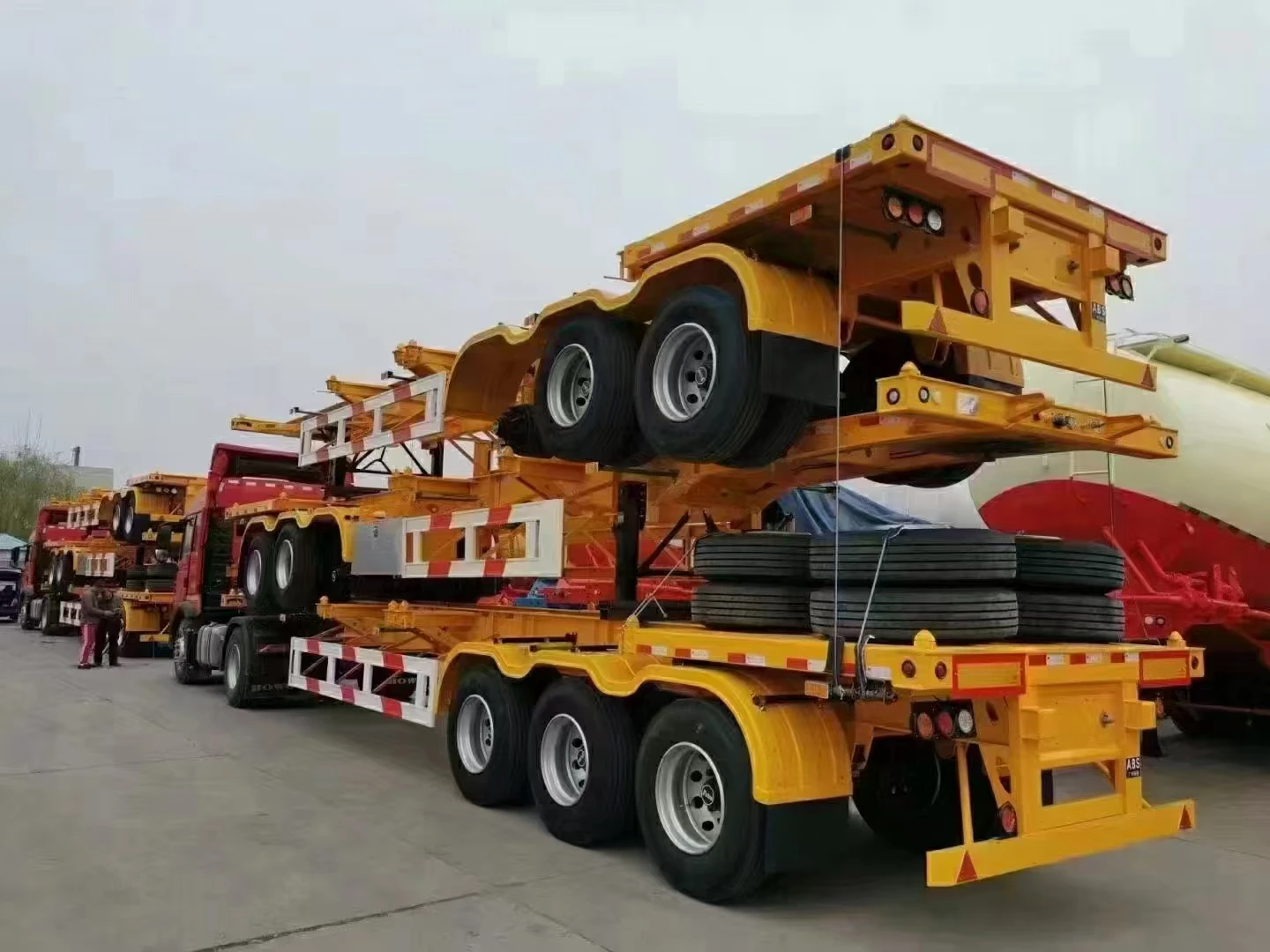

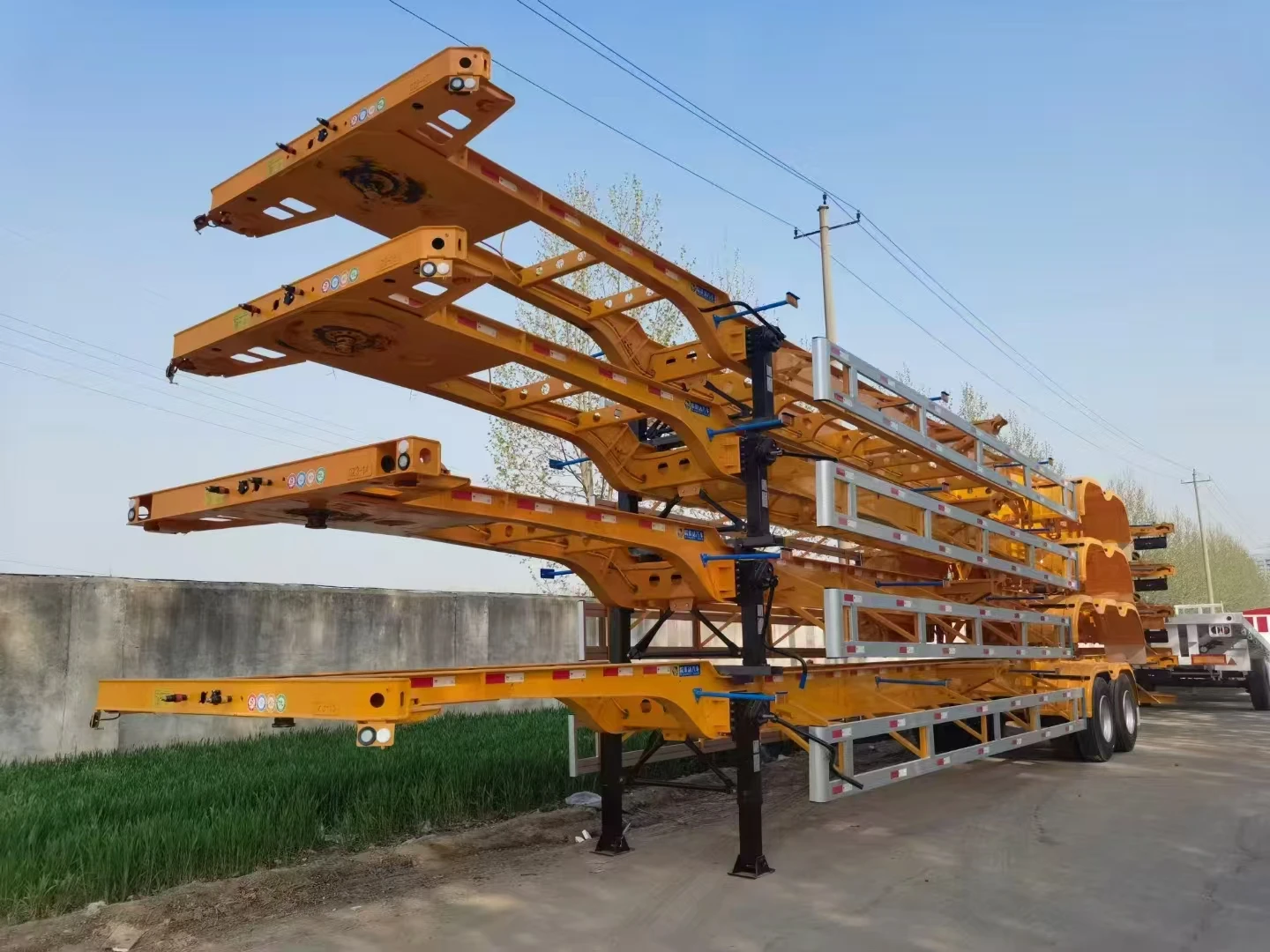

1. 3 sets stacked, and the whole trailer will be waxed before shipment, it can prevent our trailers suffering from seawater corrosion during the shipping.
2. We will transport our trailers by bulk cargo carrier, RO-RO ship or 40/45 HQ
Delivery time:10-20 working days after payment receipt confirmed (based on actual quantity).
Packing:Standard export packing, or customized packing as your request.
Professional goods shipping forwarder.
Our Service
1. Advanced equipment and rich experience workers are applied during the whole producing process to ensure the quality of Low bed semi trailer.
2. We have passed ISO9001:2008, CCC, BV, SGS, TUV.
3. We have more than 20 years of experience and a strong team of engineers, we are manufacturer, we could design the product according to your special requirements.
4. We have rest assured after-sales service.
2. We have passed ISO9001:2008, CCC, BV, SGS, TUV.
3. We have more than 20 years of experience and a strong team of engineers, we are manufacturer, we could design the product according to your special requirements.
4. We have rest assured after-sales service.
Company Introduction
Established in 2008, Tangshan YingDong is one of the biggest truck tipper exporter in china. Located in Bohai Economic Rim of China, near to the Jingtang Port and Tianjin Port, fast cargo loading and land freight saving.
One-stop shop of truck tipper, meet all of your requirements.
Indepent Logistic in Air, train and sea, offer best service with good quality.
YingDong is accredited with ISO9001-2000 quality system authentication, owning a professional and strict technical inspection team to ensure the quality by tracking whole course from production to shipment. This guarantee our customers could get the best quality products and best business relationship with us.
FAQ
Our products are manufactured in strict accordance with national and international standards, and we test each product before delivery. If you would like to view our quality certification and various test reports, please contact us.
We are a factory and able to give you the lowest price. Please trust the quotation we would give you, and it is professional one.
Choosing us happens because of quality, then price, and we can give you both. Additionally, we can also offer professional products inquiry,products knowledge train(for agents), smooth goods delivery, excellent customer solution proposals.
Our company supports Alibaba online trading, which not only ensures the safety of the buyer's funds, but also guarantees the quality of the goods. From the outbound, to the loading, and finally to the receiving, the whole process is transparent.
We are a factory with a large inventory of stock, which guarantees that the goods will be shipped within the shortest time from the date of signing the contract.
We can provide samples for buyer's testing free of charge, but buyers need to pay for shipping costs.
