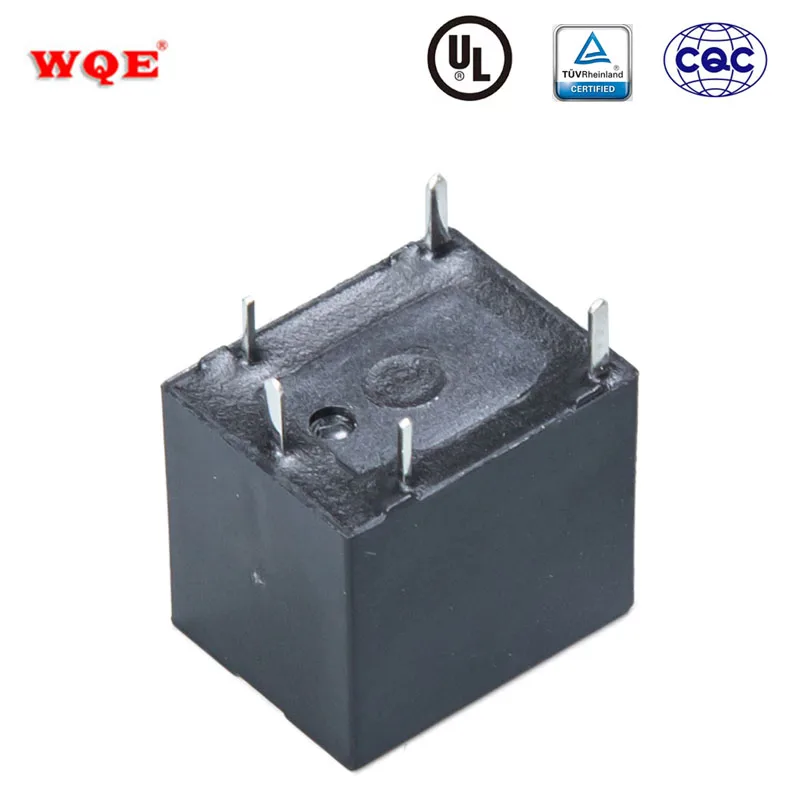

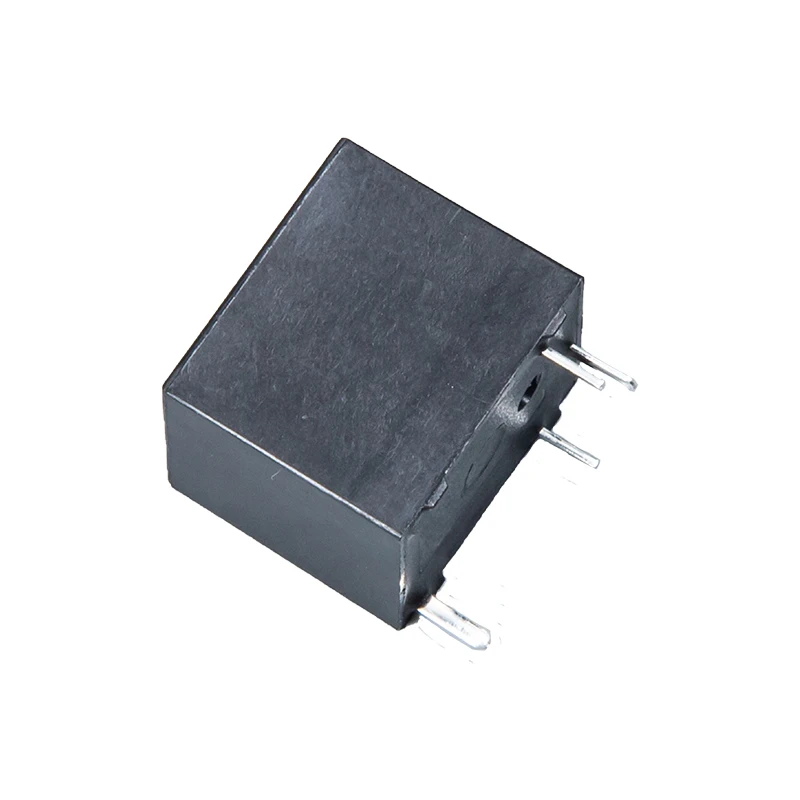

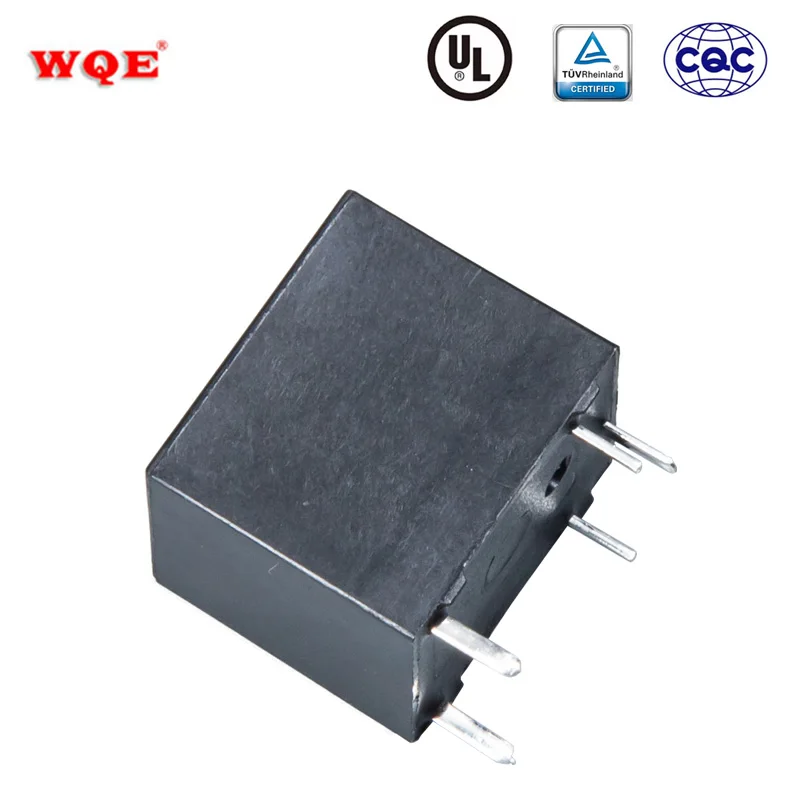

Alternative for Relay HLS T78 DC5V A HLS T78 DC12V A HLS T78 DC24V A 4Pin 10A 125VAC One normally open
- Category: >>>
- Supplier: Jiangxi Weiqi Electric Co. Ltd.Jiangxi Ltd.
Share on (1601345984759):
Product Overview
Description
Product Description

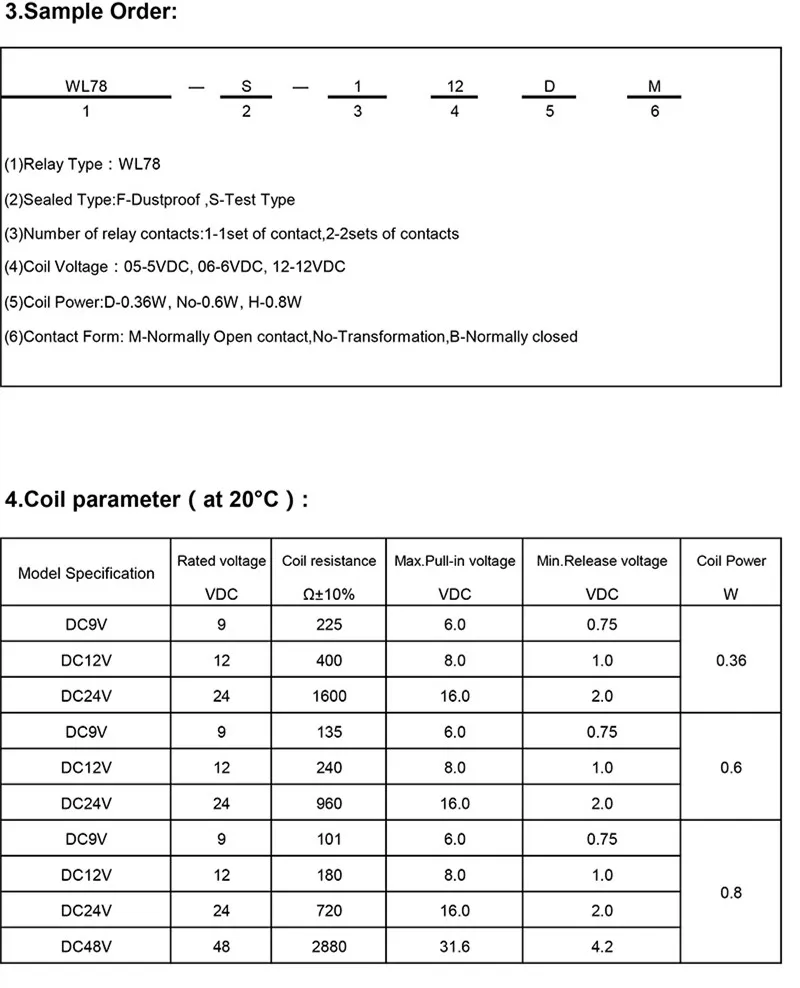

All part number about this model as below
F: Flux Proofed
S: Plastic Sealed
1: 1 gruop pole
coil voltage: 6-48vdc
Contact type: M-normally open, None-Form C, B: normally closed U: 2 pole of normally open
If you need customized, please leave a message.
| Construction | number of poles | coil voltage and coil power | contact type | Part# |
| F | 1 | 6VDC, 0.6W | M | WL78-F-106M |
| F | 1 | 6VDC, 0.6W | NONE | WL78-F-106 |
| F | 1 | 6VDC, 0.6W | B | WL78-F-106B |
| F | 1 | 9VDC, 0.36W | M | WL78-F-109DM |
| F | 1 | 9VDC, 0.36W | NONE | WL78-F-109D |
| F | 1 | 9VDC, 0.36W | B | WL78-F-109DB |
| F | 1 | 9VDC, 0.6W | M | WL78-F-109M |
| F | 1 | 9VDC, 0.6W | NONE | WL78-F-109 |
| F | 1 | 9VDC, 0.6W | B | WL78-F-109B |
| F | 1 | 12VDC, 0.36W | M | WL78-F-112DM |
| F | 1 | 12VDC, 0.36W | NONE | WL78-F-112D |
| F | 1 | 12VDC, 0.36W | B | WL78-F-112DB |
| F | 1 | 12VDC, 0.6W | M | WL78-F-112M |
| F | 1 | 12VDC, 0.6W | NONE | WL78-F-112 |
| F | 1 | 12VDC, 0.6W | B | WL78-F-112B |
| F | 1 | 12VDC, 0.8W | M | WL78-F-112HM |
| F | 1 | 12VDC, 0.8W | NONE | WL78-F-112H |
| F | 1 | 12VDC, 0.8W | B | WL78-F-112HB |
| F | 1 | 24VDC, 0.36W | M | WL78-F124DM |
| F | 1 | 24VDC, 0.36W | NONE | WL78-F124D |
| F | 1 | 24VDC, 0.36W | B | WL78-F124DB |
| F | 1 | 24VDC, 0.6W | M | WL78-F124M |
| F | 1 | 24VDC, 0.6W | NONE | WL78-F124 |
| F | 1 | 24VDC, 0.6W | B | WL78-F124B |
| F | 1 | 48VDC, 0.8W | M | WL78-F-148HM |
| F | 1 | 48VDC, 0.8W | NONE | WL78-F-148H |
| F | 1 | 48VDC, 0.8W | B | WL78-F-148HB |
| F | 2 | 6VDC, 0.6W | U | WL78-F-206U |
| F | 2 | 9VDC, 0.36W | U | WL78-F-209DU |
| F | 2 | 9VDC, 0.6W | U | WL78-F-209U |
| F | 2 | 12VDC, 0.36W | U | WL78-F-212DU |
| F | 2 | 12VDC, 0.6W | U | WL78-F-212U |
| F | 2 | 12VDC, 0.8W | U | WL78-F-212HU |
| F | 2 | 24VDC, 0.36W | U | WL78-F-224DU |
| F | 2 | 24VDC, 0.6W | U | WL78-F-224U |
| F | 2 | 48VDC, 0.8W | U | WL78-F248HU |
| S | 1 | 6VDC, 0.6W | M | WL78-S-106M |
| S | 1 | 6VDC, 0.6W | NONE | WL78-S-106 |
| S | 1 | 6VDC, 0.6W | B | WL78-S-106B |
| S | 1 | 9VDC, 0.36W | M | WL78-S-109DM |

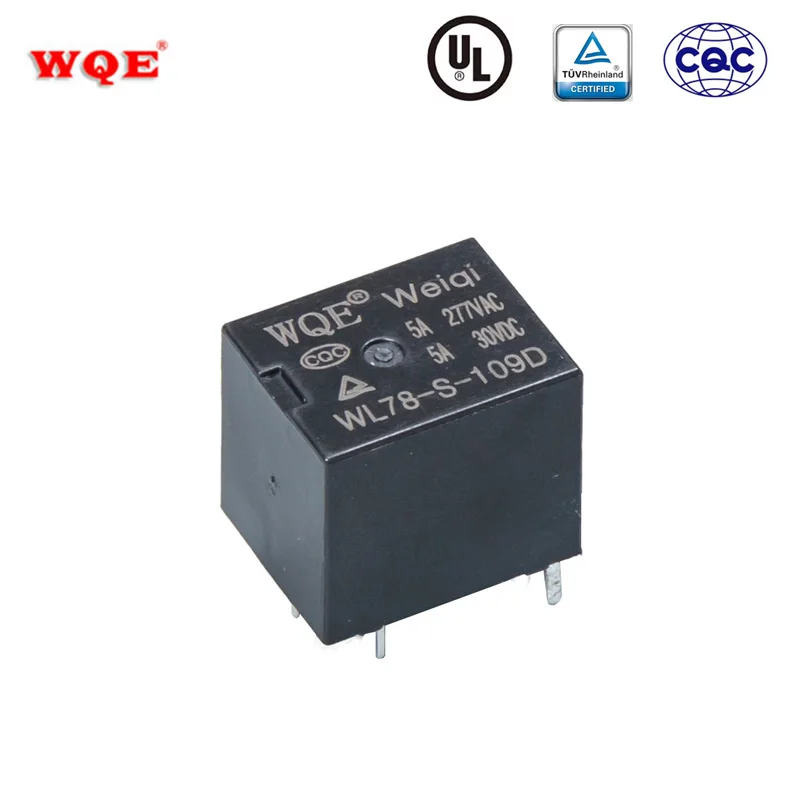

| S | 1 | 9VDC, 0.36W | NONE | WL78-S-109D |
| S | 1 | 9VDC, 0.36W | B | WL78-S-109DB |
| S | 1 | 9VDC, 0.6W | M | WL78-S-109M |
| S | 1 | 9VDC, 0.6W | NONE | WL78-S-109 |
| S | 1 | 9VDC, 0.6W | B | WL78-S-109B |
| S | 1 | 12VDC, 0.36W | M | WL78-S-112DM |
| S | 1 | 12VDC, 0.36W | NONE | WL78-S-112D |
| S | 1 | 12VDC, 0.36W | B | WL78-S-112DB |
| S | 1 | 12VDC, 0.6W | M | WL78-S-112M |
| S | 1 | 12VDC, 0.6W | NONE | WL78-S-112 |
| S | 1 | 12VDC, 0.6W | B | WL78-S-112B |
| S | 1 | 12VDC, 0.8W | M | WL78-S-112HM |
| S | 1 | 12VDC, 0.8W | NONE | WL78-S-112H |
| S | 1 | 12VDC, 0.8W | B | WL78-S-112HB |
| S | 1 | 24VDC, 0.36W | M | WL78-S124DM |
| S | 1 | 24VDC, 0.36W | NONE | WL78-S124D |

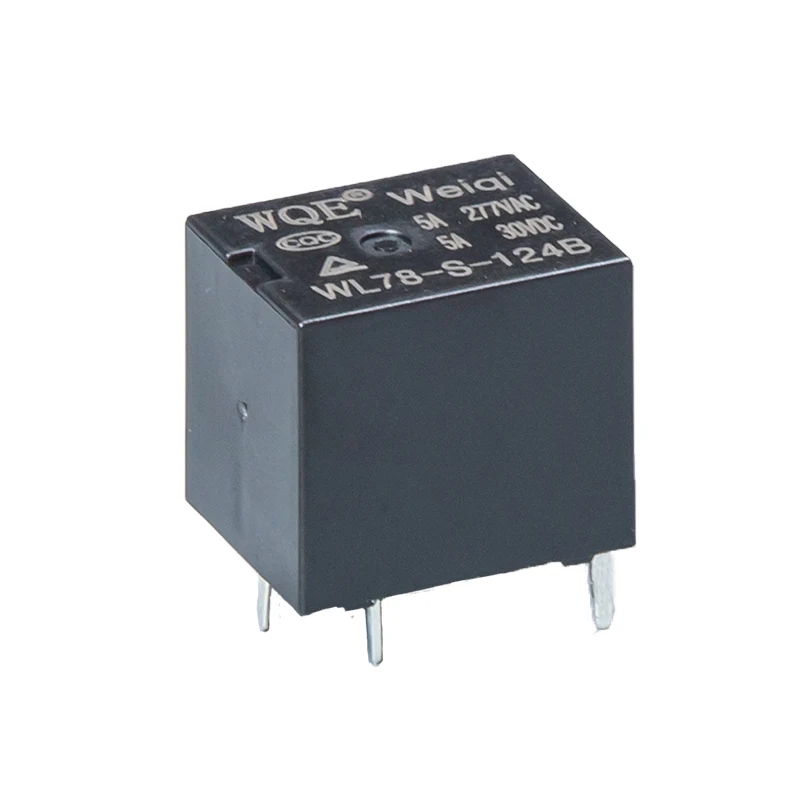

| S | 1 | 24VDC, 0.36W | B | WL78-S124DB |
| S | 1 | 24VDC, 0.6W | M | WL78-S124M |
| S | 1 | 24VDC, 0.6W | NONE | WL78-S124 |
| S | 1 | 24VDC, 0.6W | B | WL78-S124B |
| S | 1 | 48VDC, 0.8W | M | WL78-S-148HM |
| S | 1 | 48VDC, 0.8W | NONE | WL78-S-148H |
| S | 1 | 48VDC, 0.8W | B | WL78-S-148HB |
| S | 2 | 6VDC, 0.6W | U | WL78-S-206U |
| S | 2 | 9VDC, 0.36W | U | WL78-S-209DU |
| S | 2 | 9VDC, 0.6W | U | WL78-S-209U |
| S | 2 | 12VDC, 0.36W | U | WL78-S-212DU |
| S | 2 | 12VDC, 0.6W | U | WL78-S-212U |
| S | 2 | 12VDC, 0.8W | U | WL78-S-212HU |
| S | 2 | 24VDC, 0.36W | U | WL78-S-224DU |
| S | 2 | 24VDC, 0.6W | U | WL78-S-224U |
| S | 2 | 48VDC, 0.8W | U | WL78-S248HU |
Packaging & Shipping
| 10kpcs | 3 days | |
| 100Kpcs | 5days | |
| 500K | 7days |
