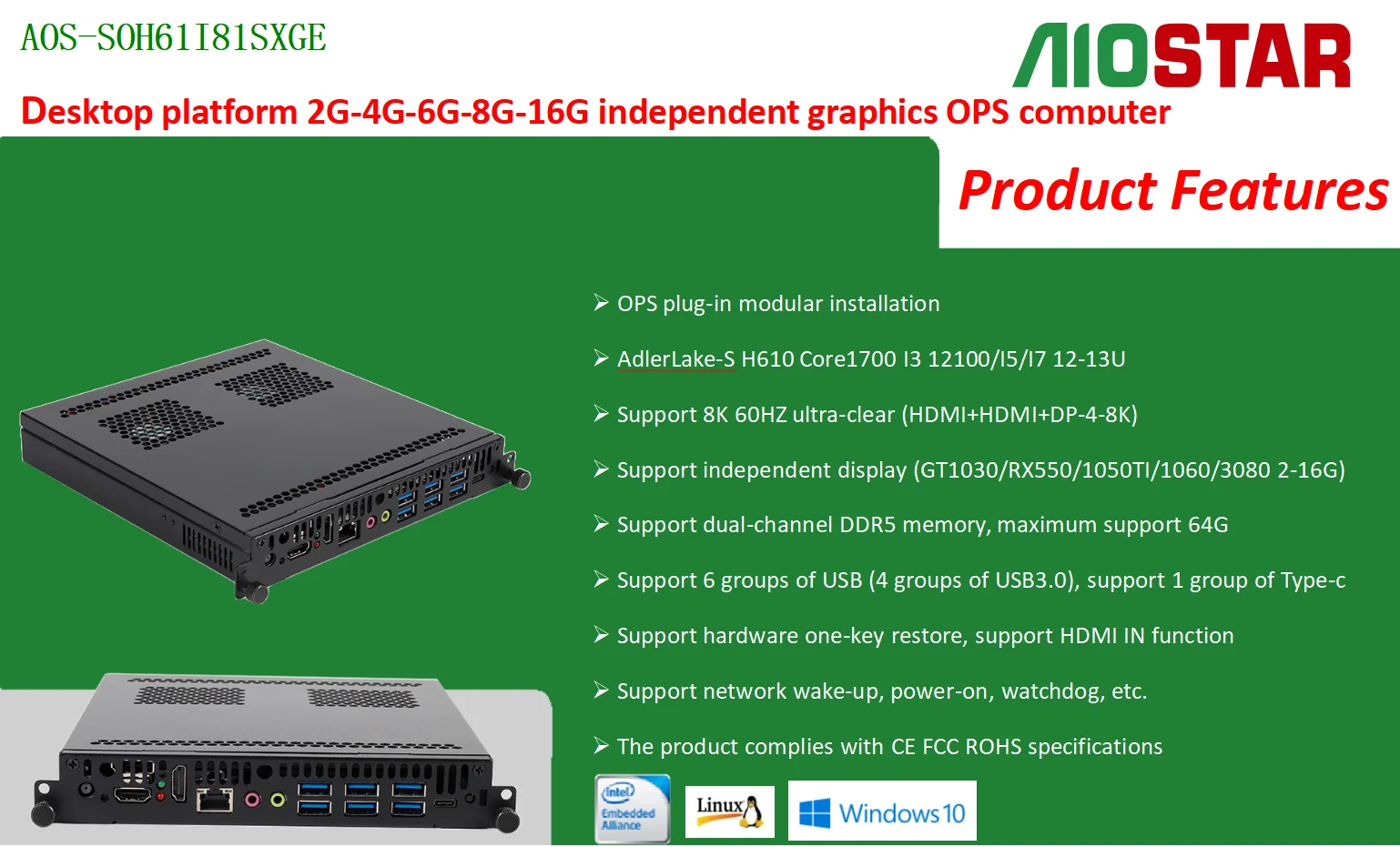

Intel Core i3 12100 cpu Desktop platform 2G 4G 6G 8G 16G RAM DDR5 4800MHz memory discrete graphics for OPS computer

Processor

CPU

Intel Core i3-12100 (3.3GHz/4 CORE/8-threads/12MB/HD730/14nm/60W/LGA1700)

Chipset

Intel® H610/B660/Q670

BIOS

AMI 32Mbit,Support diskless boot, network wake-up, power-on boot, watchdog and other functions

Memory

Capacity

8GB SO-DIMM DDR5 4800MHz memory ,  Max.64GB

Storage

M.2 interface

SATA interface

MINI PCIE

Integrated graphics output

Input

128G SSD  NGFF/NVME

HDD optional

1X M.2 Mini PCIE

HD-M interface+HD-M interface+DP+DP single display, dual display, triple display, quad display (synchronous/asynchronous display)

1 × HD-M interface2.0 (maximum supported resolution: 3840x2160)

1 × HD-M interface2.0 (maximum supported resolution: 3840x2160)

1 × DP1.4 (maximum supported resolution: 3840x2160/7860*4320)

1 x HD-M interface IN (optional)

Display

Discrete graphics card output

Optional Discrete graphics card models and display output channels

HD-M interface+HD-M interface+HD-M interface+DP single display, dual display, triple display, quad display (synchronous/asynchronous display)

1 × HD-M interface (maximum supported resolution: 3840x2160)

1 × HD-M interface (maximum supported resolution: 3840x2160)

1 × DP (maximum supported resolution: 3840x2160/7860*4320)

GTX1030 2GB(HD-M interface/DP)

GTX1050 2GB(HD-M interface/HD-M interface/DP)

RX550 4GB(HD-M interface/HD-M interface/HD-M interface)

GTX1050TI 4GB(HD-M interface/HD-M interface/DP)

GTX1650 4GB(HD-M interface/HD-M interface/DP)

GTX1060 6GB(HD-M interface/HD-M interface/DP)

GTX1070 8GB(HD-M interface/DP/DP)

GTX1080 8GB(HD-M interface/DP/DP)

RTX3060 6-12GB(HD-M interface/HD-M interface/DP)

RTX3070 8GB(HD-M interface/HD-M interface/DP)

RTX3080 16GB(HD-M interface/HD-M interface/DP)

A1000 4G(DP/DP)

A2000 8G(DP/DP)

T1000 4G(DP/DP)

P1000 4G(DP/DP)

P2000 4G(DP/DP)

P3000 6G(DP/DP)

Network

Chip

WIFI

4G/5G

1 × RTL8111H  10/100/1000M(optional2*RJ45 LAN)

1 x WIFI Module support 802.11b/g/n (M.2-KEY-A half card)

1 x M.2-NGFF-KEY-B (optional)

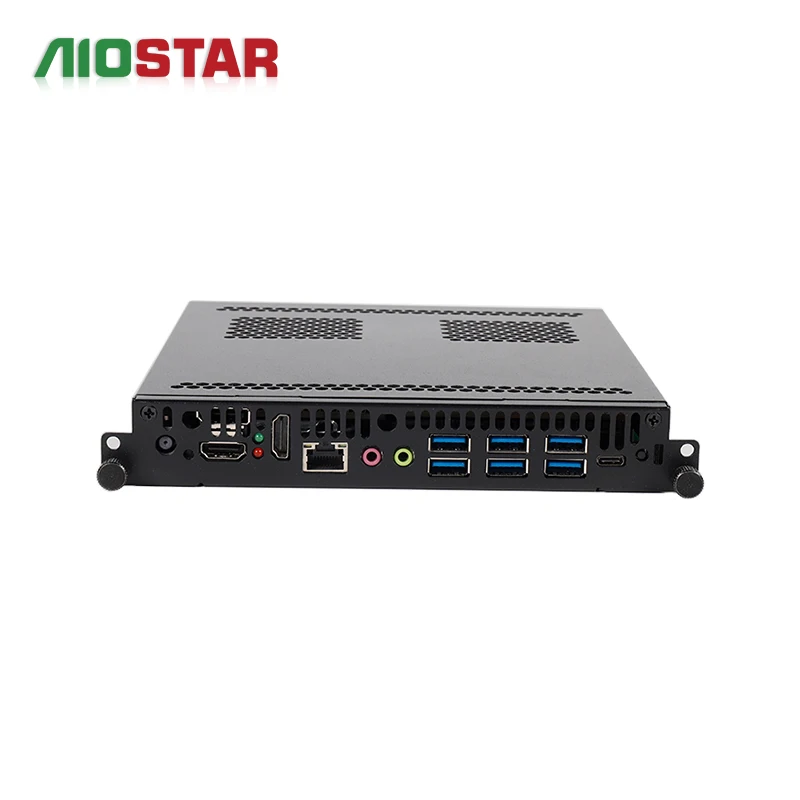

I/O

USB 3.0

USB2.0

Type-c

COM

Power button

Reset

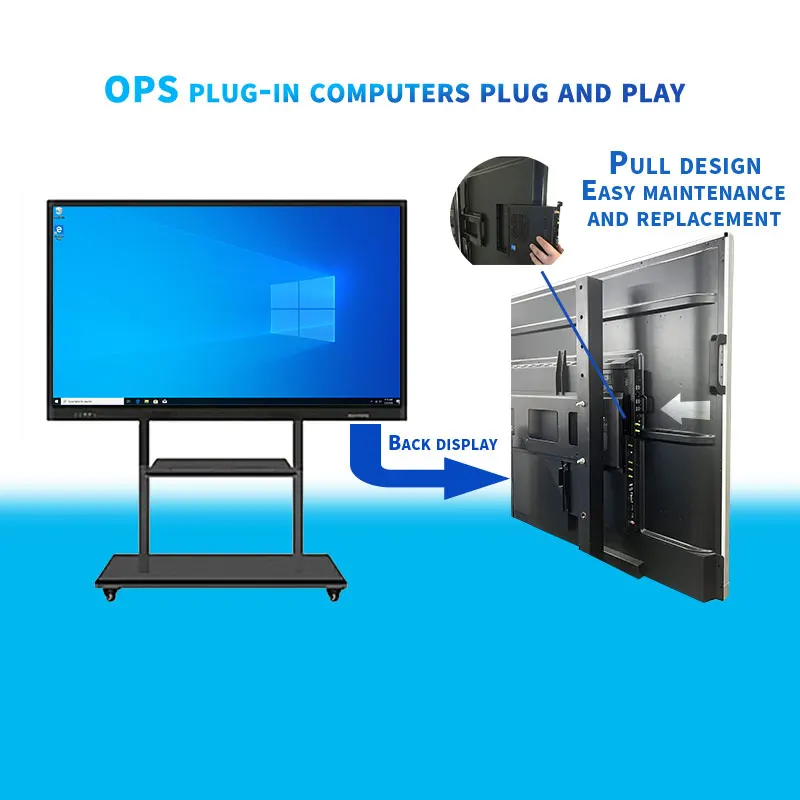

OPS interface

LED light

DC JACK

One-click restore

Audio

4× USB3.0

2× USB3.0

1x Type-c

1x COM (optional 6COM)

1 × power button

1 × Reset button

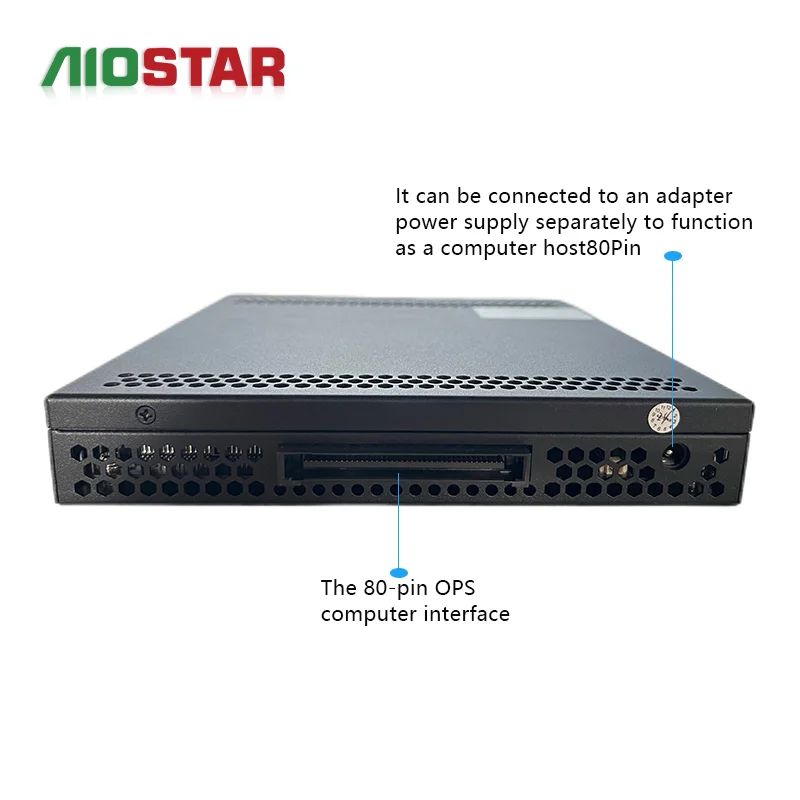

1 × OPS interface (80pin)

1 x power indicator light & 1x hard disk indicator light

1 × DC JACK

1 x one-button restore

1 × LINE-OUT & MIC-IN

Power

Input

Rated power

DC  12~19V

90-300W

Watchdog

Output

Interval

Interrupt, system restart

255-level timing interval

Physical parameters

Dimensions

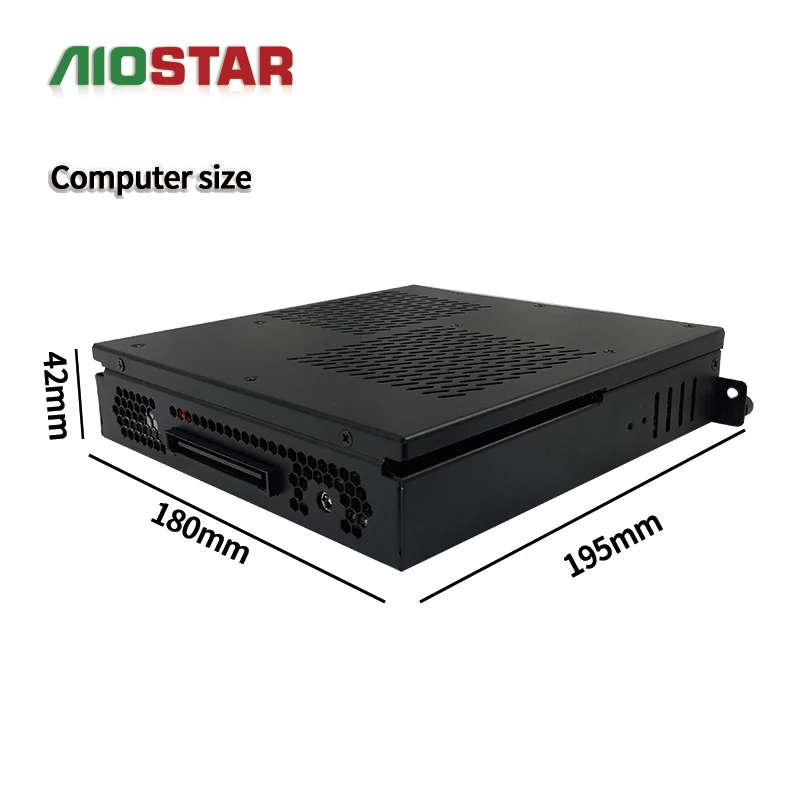

180mm (L) x 195mm (W) x 42mm (H)

Environment

Temperature

Humidity

Operating temperature: 0°C ~50°C Storage temperature: -20~70°C

5%~90% non-condensing

Operating system

Version

Windows 10/ Linux

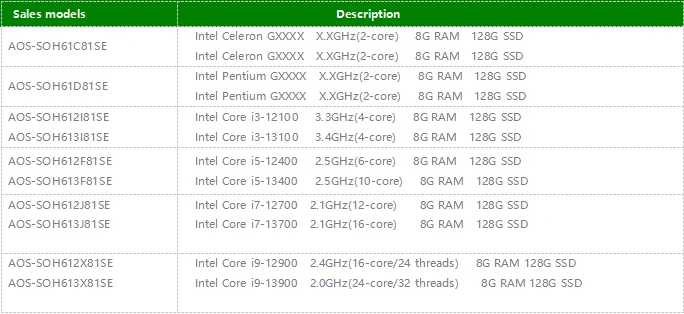

 Sales models

Description

AOS-SOH612I81S3GE

AOS-SOH613I81SR5GE

Intel Core i3-12100   3.3GHz(4-core)   8G RAM  128G SSD   GTX1030  2G Discrete graphics

Intel Core i3-13100   3.4GHz(4-core)   8G RAM  128G SSD   RX550 4G Discrete graphics

AOS-SOH612F81S5IGE

AOS-SOH613F81S65GE

Intel Core i5-12400   2.5GHz(6-core)    8G RAM  128G SSD  GTX1050TI 4G Discrete graphics

Intel Core i5-13400   2.5GHz(10-core)   8G RAM  128G SSD  GTX1650 4G Discrete graphics

AOS-SOH612J81S60GE

AOS-SOH613J81S6SGE

Intel Core i7-12700  2.1GHz(12-core)    8G RAM  128G SSD  GTX1060 6G Discrete graphics

Intel Core i7-13700  2.1GHz(16-core)    8G RAM  128G SSD  GTX1660S 6G Discrete graphics

AOS-SOH62X81S36GE

AOS-SOH63X81S38GE

Intel Core i9-12900 2.4GHz(16-core/24 threads) 8G RAM 128G SSD RTX3060 12G Discrete graphics

Intel Core i9-13900 2.0GHz(24-core/32 threads) 8G RAM 128G SSD RTX3080 16G Discrete graphics
