Advantech AIMC 2000 Industrial Computer & Accessories IPC Dual LAN IOT J1900 Ubuntu embedded Fanless Mini Micro PC with 8 USBs
- Category: >>>
- Supplier: Beijing Kangtai Bokong Technology Co. Ltd.Beijing Ltd.
Share on (1601349896702):
Product Overview
Description

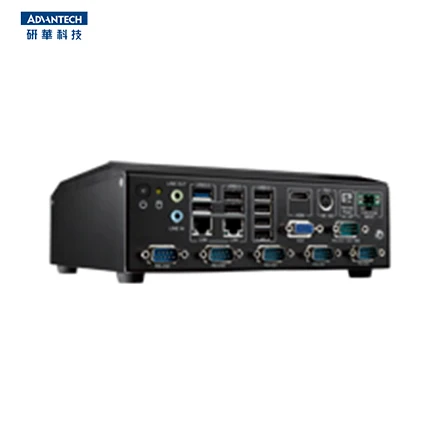

Advantech AIMC-2000 Industrial Computer & Accessories IPC Dual LAN IOT J1900 Ubuntu embedded Fanless Mini Micro PC with 8 USBs
Features
* Intel® Baytrail Platform
– Intel® Celeron® J1900 SoC
– Fanless Design
* Compact & Rich I/O Configuration
– One internal 2.5" SATA HDD bay & one mSATAslot for storage
– VGA , HDMI, 2 GbE LAN, 7 USB 2.0, 1 USB 3.0, 5 RS-232,
1 RS-232/422/485
– One mini PCIe expansion to support full size module
– Line in , Line out with 6W amplifier
* Energy Savings
– DC 12V power input
– Intel® Celeron® J1900 SoC
– Fanless Design
* Compact & Rich I/O Configuration
– One internal 2.5" SATA HDD bay & one mSATAslot for storage
– VGA , HDMI, 2 GbE LAN, 7 USB 2.0, 1 USB 3.0, 5 RS-232,
1 RS-232/422/485
– One mini PCIe expansion to support full size module
– Line in , Line out with 6W amplifier
* Energy Savings
– DC 12V power input
Part Number | AIMC-2000 | ||
Processor System | CPU Core Base Frequency L2 Cache BIOS | Intel J1900 4 2.0 GHz 2 MB AMI 64Mb SPI Flash | |
Memory | Technology Max. Capacity Socket | Dual Channel DDR3L 1333/1066 MHz (Non ECC) 8 GB (4 GB perSO-DIMM) 2 x 204-pinSODIMM | |
Graphics | Chipset Integrated | Integrated Intel HD Graphics | |
Expansionslot | mini PCIe | 1,full size | |
Ethernet | Interface Controller | 10/100/1000 Mbps 2 x Realtek 8119I | |
Drive bay | 2.5" HDD (internal) mSATA | 1 1 | |
I/O Interface | Display USB Serial PS/2 Audio DC jack | VGA , HDMI 7 USB 2.0, 1 USB 3.0 1 RS-232/422/485, 5 RS-232 1, KB/MS Line in, Line out with 6W amplifier 1, Phoenix 2 pin | |
Power Supply | Connector Type Input Voltage Power consumption | Phoenix 2 pin connector DC 12V Typical: 8.27W Max: 16.39W | |
Miscellaneous | LED Indicators Control | HDD Power on/off switch | |
Temperature | Operating Temperature：-20 ~ 60° C (mSATA); 0 ~40° C (HDD) Non-operating Temperature：-40 ~ 85° C | ||
Environment | Humidity | Operating Humidity：95% @ 40° C, non-condensing Non-operating Humidity：95% @ 60° C, non-condensing | |
Vibration | Operating Vibration：1Grms, random, 5~500Hz, 3 axes, 1 hr/axis (HDD) 3Grms,random,5-500Hz,3 axes,1hr/axis (mSATA) Non-operating Vibration： 2G,sine, 5~500Hz, 3 axes, 1 hr/axis (HDD) | ||
Environment | Shock EMC Safety | 10G, half sine wave, 11 ms duration (HDD) 30G,half-sine wave,11ms duration (mSATA) CE/FCC, CCC, BSMI CCC, UL, BSMI | |
Physical Characteristics | Dimension (W x H x D) Weight | 200 x 69 x 200 mm 1.8 kg (3.97 lbs) | |
Notice | |||
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer with over 18 years of OEM/ODM experience. We are confident to provide you with better quality, better price satisfactory products.
Q2: Do you accept OEM/ODM orders?
A2: Of course,we have our own R&D team to support the customization of motherboard design and machine design, testing and production.
Q3: What terms of payment do you accept?
Q3: What terms of payment do you accept?
A3: We suggest you try Alibaba Trade Guarantee first. It will be more advantageous for you.
Q4: Do you provide sample service?
Q4: Do you provide sample service?
A4: Yes, we can provide samples on your request before mass production.
Q5: How long is your product warranty?
Q5: How long is your product warranty?
A5: Under normal circumstances, we provide 1 year warranty for all products. If you want to extend the warranty period, we can negotiate according to the actual situation of your order.
Q6: What kind of packaging do you provide for the motherboard?
Q6: What kind of packaging do you provide for the motherboard?
A6: We usually use bulk packing as the standard, but if you need retail packing, please let us know before placing your order and we will provide it for you.
