Factory Price New Mobile Concrete Pump Truck Electric/Diesel Concrete Pump Trucks Concrete Pumping Machine
- Category: >>>
- Supplier: Shandong Jiezhuo Machinery Co. Ltd.Shandong Ltd.
Share on (1601350146934):
Product Overview
Description
Product Overview

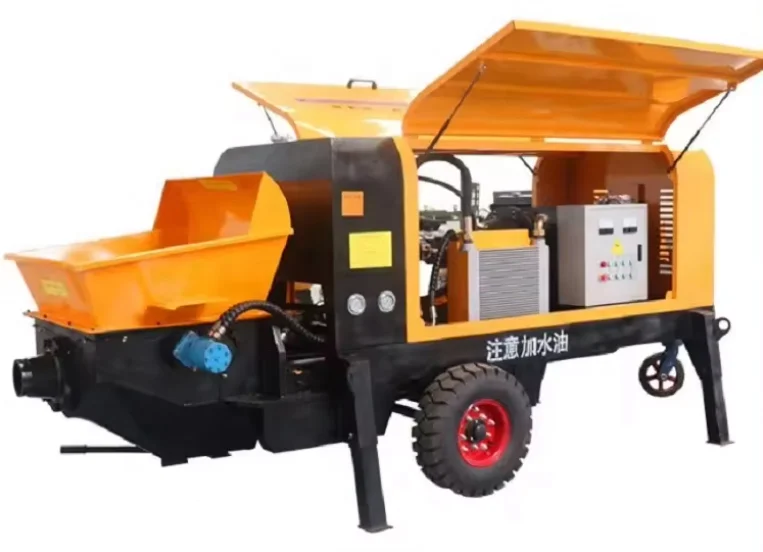

2024 Factory Price High Efficiency Mobile Portable Small Concrete Pump Machine Concrete Pump For Sale
Product features:

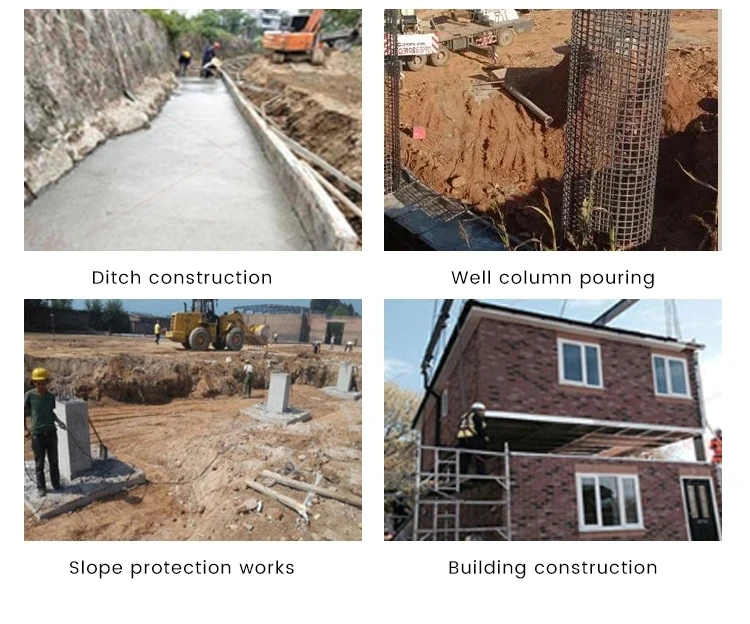

High- floor cement mortar pump is a small fluid mixture conveying equipment, widely not only used for wet-mixed mortar pumping and wall plastering in high- floor building construction, but also for support lining construction in ground heating project, tunnels, mines and other underground engineering. could pump less than 25mm fine aggregate concrete with lower investment cost and operating cost, it is first choice ideal equipment for engineering construction. It adopts S tube as distributing valve to meet large aggregate concrete pumping.
High- floor cement mortar pump is a small fluid mixture conveying equipment, widely not only used for wet-mixed mortar pumping and wall plastering in high- floor building construction, but also for support lining construction in ground heating project, tunnels, mines and other underground engineering. could pump less than 25mm fine aggregate concrete with lower investment cost and operating cost, it is first choice ideal equipment for engineering construction. It adopts S tube as distributing valve to meet large aggregate concrete pumping.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
EASY MAINTENANCE
VERSATILITY
BEST PRICE
1
2
3
PRODUCT SPECIFICATIONS
Conveying volume | 15m^3/h |
Pumping pressure | 10mpa |
Distribution valve form | S pipe swing valve |
Conveying pipe inner diameter | Ø76/89mm |
Transmission distance horizontal | 300m |
Transmission distance vertical | 120m |
Concrete Bore / Stroke | Ø120×650mm |
Hopper volume | 0.4m^3 |
Loading height | 1350mm |
Aggregate size | 0.5-2mm |
Main motor power | 30kw |
Rater speed | 1480rpm |
Voltage | 380v |
Fuel tank capacity | 260L |
Dimensions (L * W * H) | 3000*1400*1500mm |
Weight | 1700kg |
PRODUCT CONFIGURATION
1
2
3
Exhibition
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
FAQ
Q1: Do you have after-sales service?
A: Yes.
1. Our sales team will answer your questions within 24 hours (holiday).
2. Technical support will be available at all times. Once the fault caused by the quality of our products is confirmed, a free
replacement will be provided.
Q2: Where is our factory? How do I get there?
A: Our factory is located in Jining City, Shandong Province, China. We warmly welcome you to visit us.
Q3: Do you test all items before shipping?
A: Yes, we have passed 100% testing before delivery. We will attach our inspection report to each machine.
Q4: What are your terms of trade?
A: FOB, CFR and CIF are acceptable.
Q5: How do you build long-term and good business relationships with us?
A:1. We maintain excellent quality and competitive prices to ensure that our customers benefit; 2. We respect each customer and regard it as a friend, no matter where they come from, we sincerely do business with them and make friends.
Q6: What is your payment terms?
A: T / T is 30% of the deposit and 70% before delivery. Before you pay your balance, we will show you a photo or video of the product and packaging.
Q7: What is your delivery time?
A: The exact delivery time depends on the item and quantity you ordered.
Q8: What warranty does our machine have?
A: Our mainframe has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide videos on machine installation and operation.
Q9: What is your packaging condition?
A: Usually, we use the standard export wooden box for LCL cargo and fix the full container.
Q 10: Are you willing to provide consumables for trading customers?
A: Yes, we have a record for your customers and want to provide accessories for our customers.
