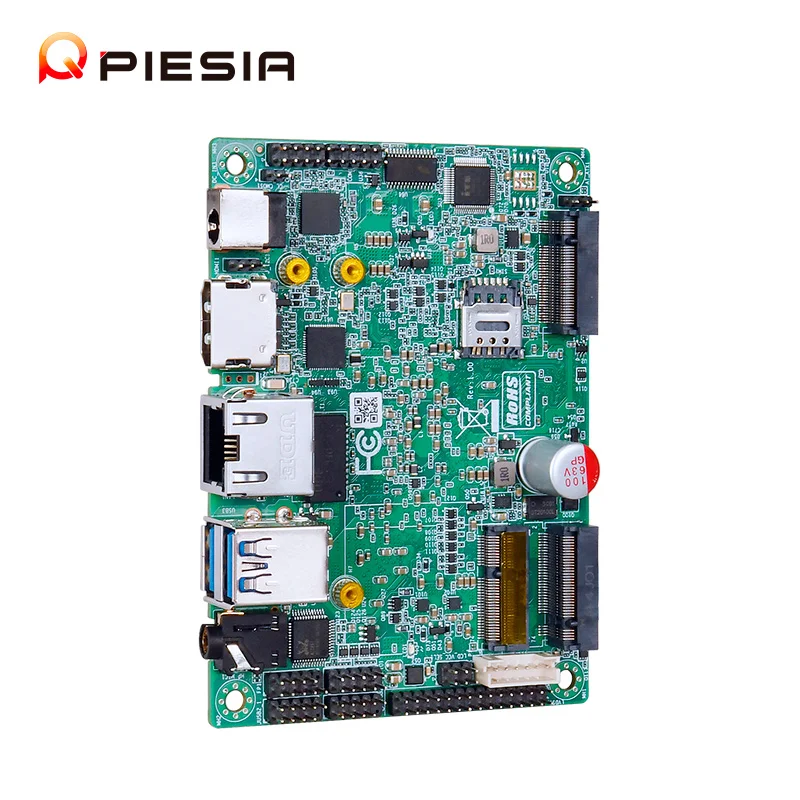

Piesia 100x72mm Pico Itx Motherboard Intel Ultra 125U 155U 155H 1*Lan 2*Com POE X86 DDR5 8G Industrial 2.5 inch Pico ITX Board
- Category: >>>
- Supplier: Shenzhen Piesia Electronic Technology Co. Ltd.Shenzhen Ltd.
Share on (1601350177246):
Product Overview
Description
Product Description
Main Feature
* Intel Meteor Lake series processor;
* sticker 16GB DDR5 memory particles, optional 8GB;
* 1*RJ45 network port (with POE function);
* sticker 16GB DDR5 memory particles, optional 8GB;
* 1*RJ45 network port (with POE function);
* 1*HD2.1 4K resolution
* M.2 2242,E-key,B-key;
* 2 x COM, 8_bit GPIO
* DC 12V , 90W;
* M.2 2242,E-key,B-key;
* 2 x COM, 8_bit GPIO
* DC 12V , 90W;
* Size: 100x72mm
Specification
Processor System | Intel Meteor Lake series processor, TDP 15W/28W fan by default, |
EFI BIOS | |
Memory | sticker 16GB DDR5 memory particles, optional 8GB |
Storage | 1*M.2 M-KEY 2242 (SATA3.0, PCIe_x4 NVME) SSD |
1*M.2 B-KEY 2242 (PCIe x1),M.2 B-KEY 2242 SSD supportable | |
Display | 1*HD2.1 4K resolution |

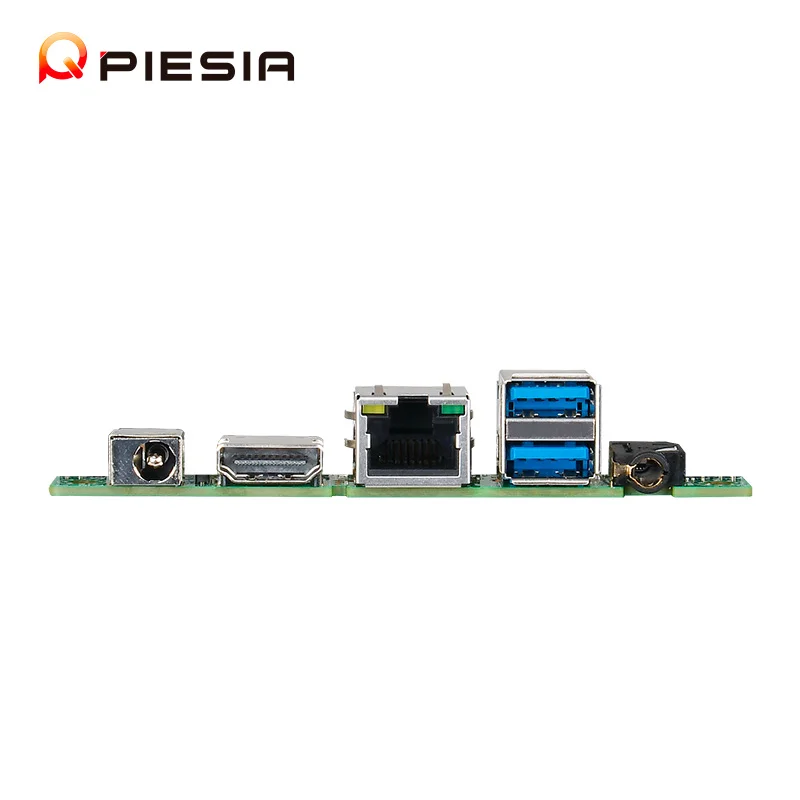

Extended interface/function | 1*DC 12V interface, 1*HD2.1, 2*USB3.2, 1*RJ45 network port (with POE function) |
1*Audio (line out+mic in) | |
1*TPM2.0 (chip optional, default not with), 1*SMBus/I2C | |
2*COM (support RS232/422/485), default RS232, 1*8-bit GPIO pins | |
1* Invertor (12V/5V/3.3V screen voltage optional) | |
Support WiFi/BT module, SIM/4G/5G | |

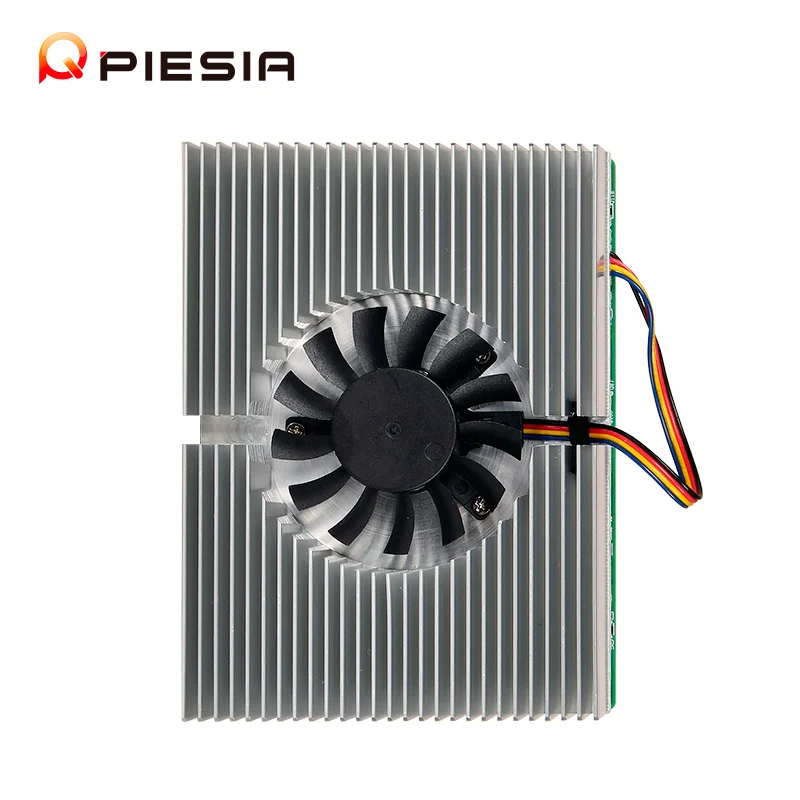

1*CPU Intelligent Temperature Control Fan 4Pin, 1*F_Panel | |
Power Supply | DC 12V, 90W |
Working Environment | Working temperature: -20℃ ~ +60℃; Working humidity: 5% ~ 90% |
Storage temperature: -40℃ ~ +85℃; Storage humidity: 5% ~ 90% | |
Operating System | Win10, Win11, Linux |
Size | 100 x 72 mm |
Net Weight | Approx. 150g without heat sink |

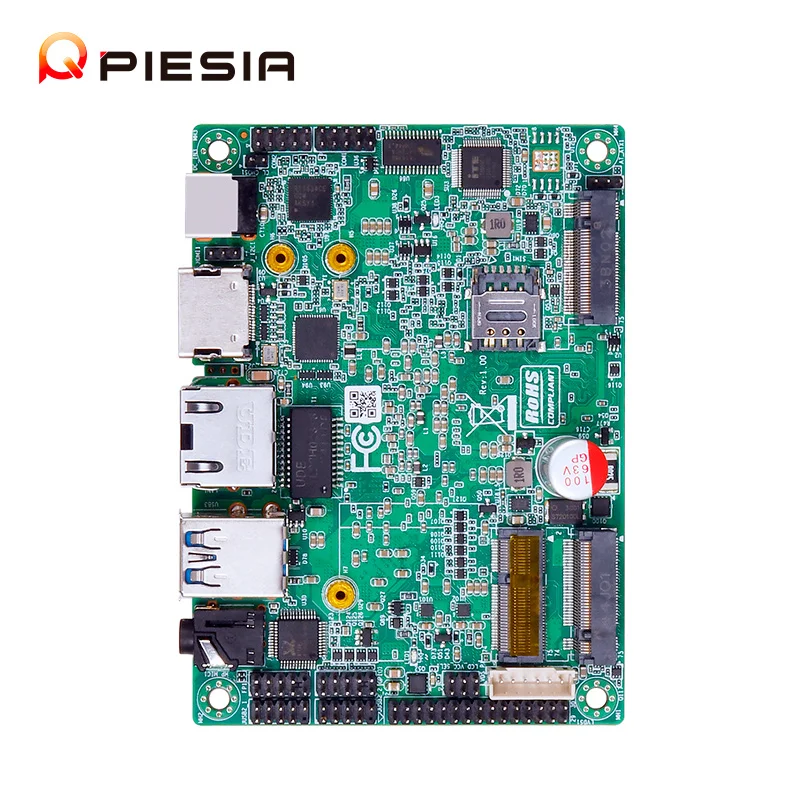

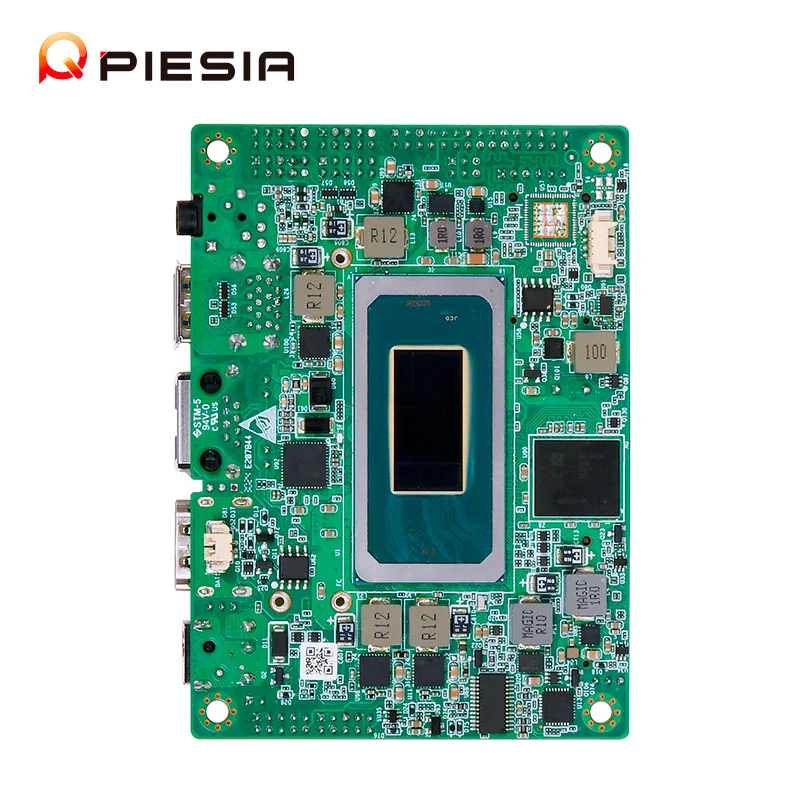

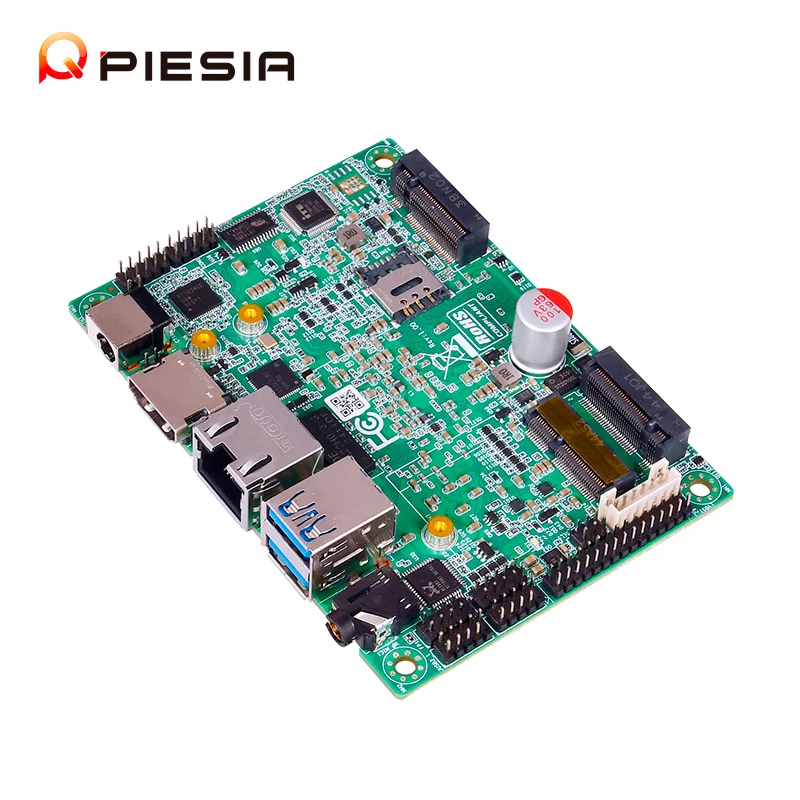

Details Images
Packing & Delivery

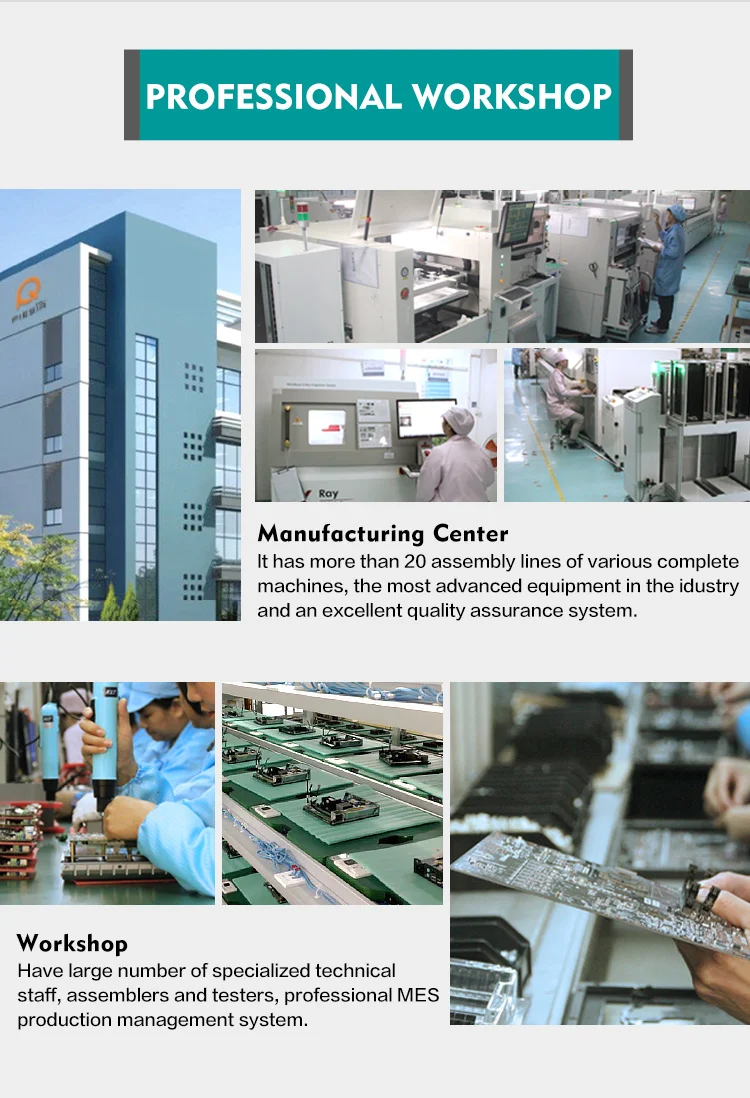

Company Profile
