Price:$3,900.00-4,500.00

Quantity:


Product Overview

Description



Best Quality Diesel Engine 66kw Ready Mix Pumped Concrete Prices Water Pumping Machine Action Concrete Foundation Design


Exhibition






Model comparison

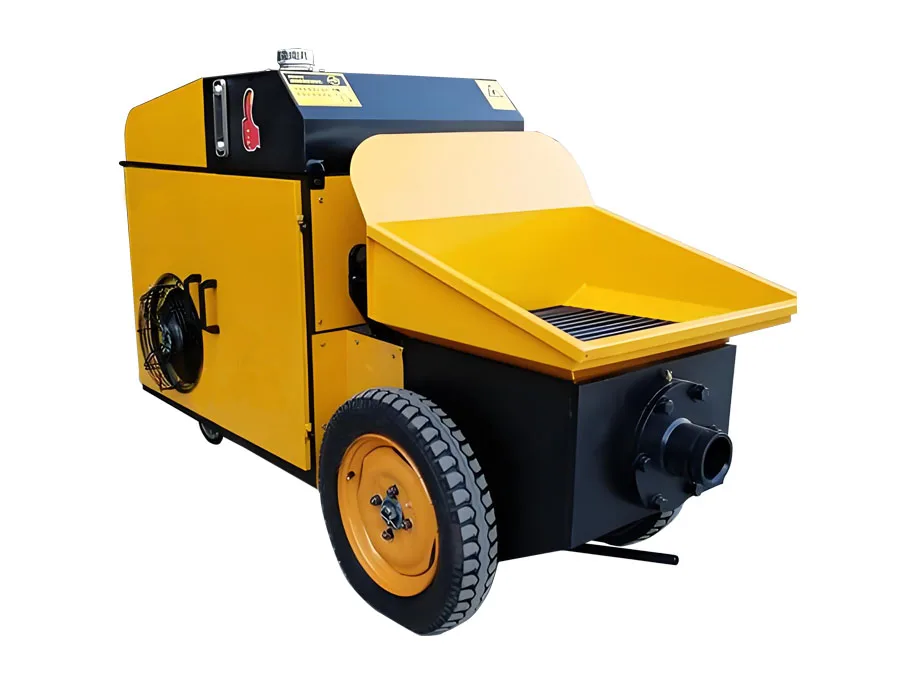

Diagonal concrete delivery pump
Motor power（kw）:15KW
Stone particles (cm):≤1.5
Concrete conveying capacity（m³）:5-8
Vertical pumping distance（m）:≤20
Horizontal conveying distance（m）:≤50
External dimensions（mm）:2000*800*1250
Whole machine weight（kg）:650

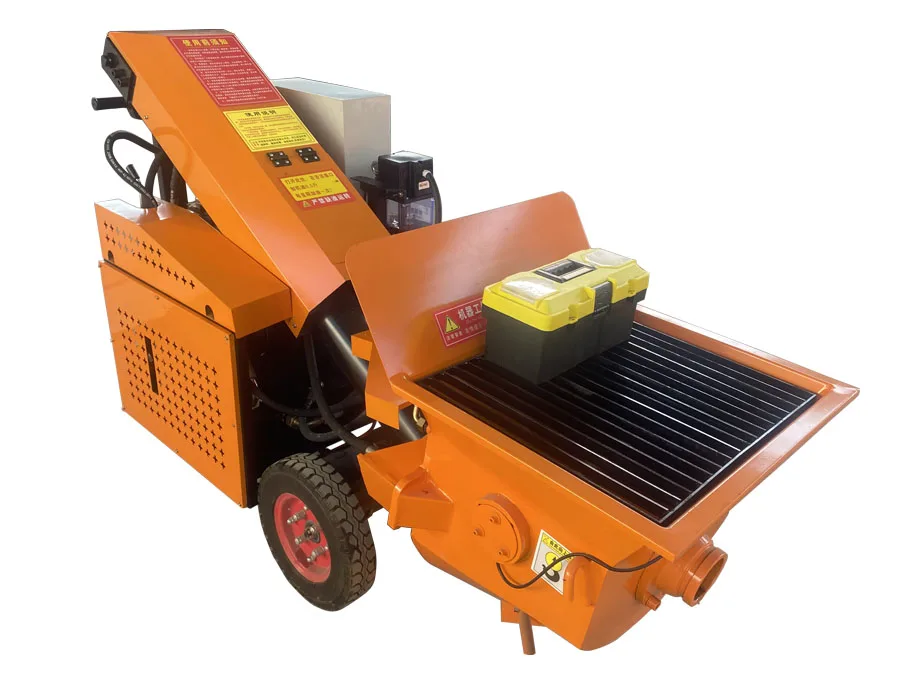

Horizontal Concrete Transfer Pump
Motor power(kw):15kw
Working efficiency:8-10m³/h
Working pressure:10mpa
Aggregate size:0-1.5cm
Vertical conveying distance:20-30m
Horizontal conveying distance:80-100m
Conveying pipe diameter:80-100mm
Weight of the whole machine:600kg
Overall dimension: 2500x1000x1500mm

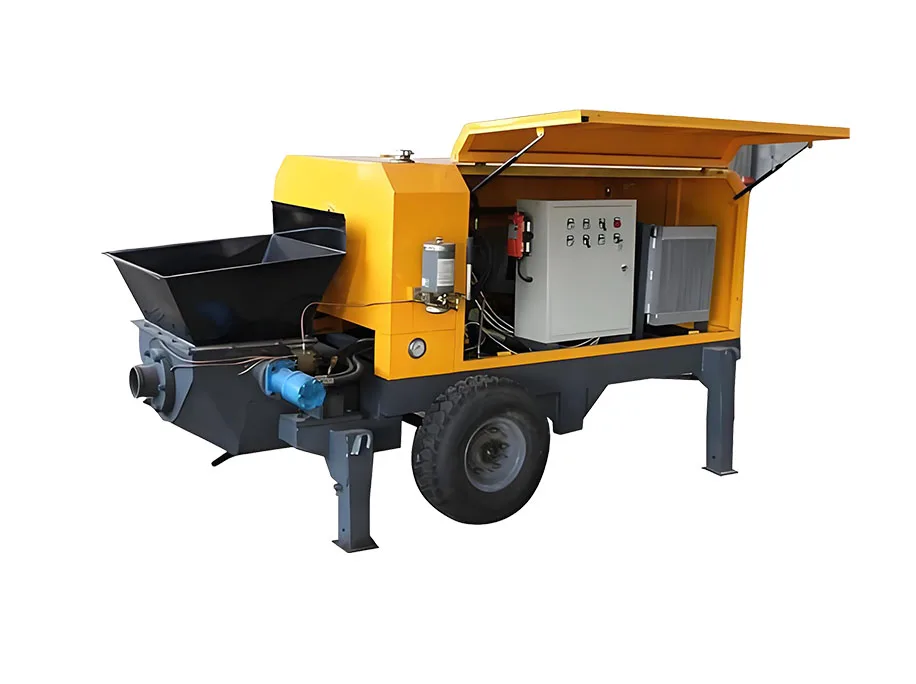

Motor concrete Conveying pump
Models
20 pumps 30 pumps 40 pumps 50 pumps
60 pumps
Motor power
22kw 37kw 45kw 55kw 90kw
Working efficiency
8-12m³/h 13-15m³/h 20-25m³/h 30-35m³/h
8-12m³/h
Aggregate size
0-2cm 0-3cm 0-4cm 0-4cm 8-12m³/h
Vertical conveying distance
40-50m 20-60m 30-130m 30-150m 8-12m³/h
Horizontal conveying distance
80-100m 50-150m 50-350m 50-500m 8-12m³/h
Conveying pipe diameter
80-100mm 80-125mm 80-125mm 80-125mm 8-12m³/h

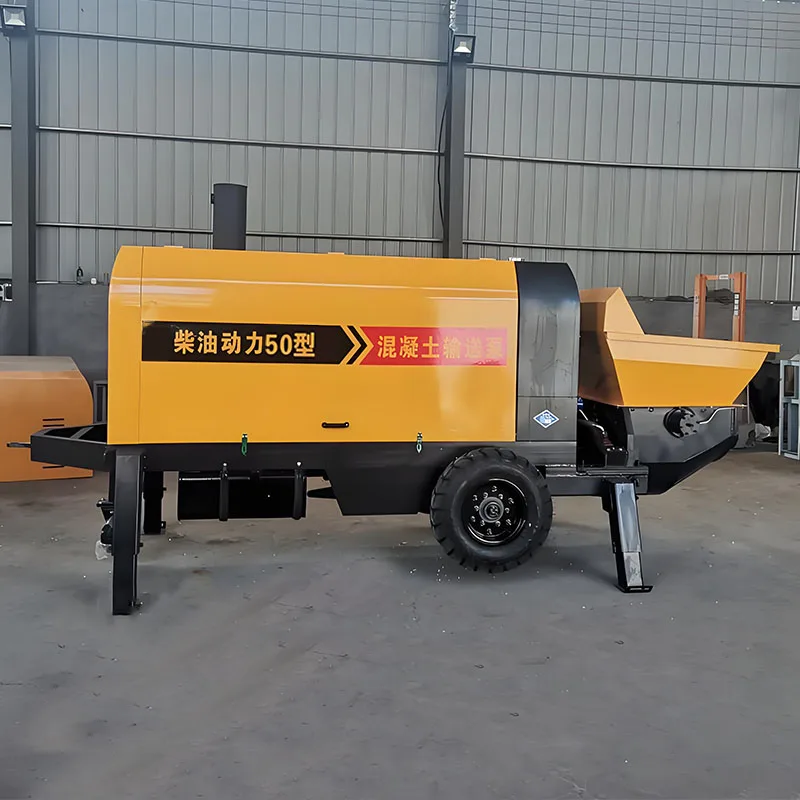

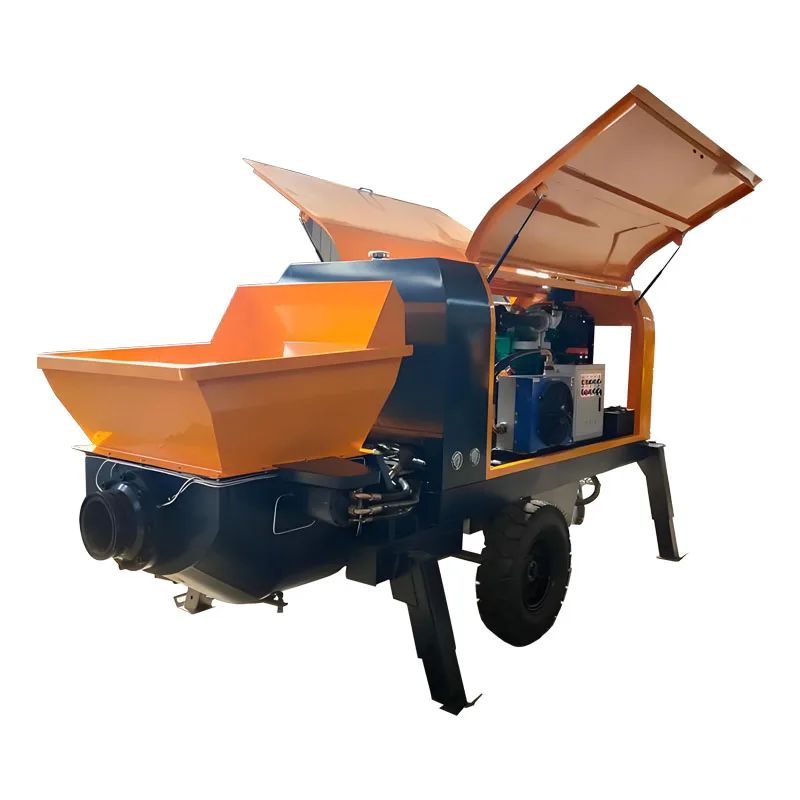

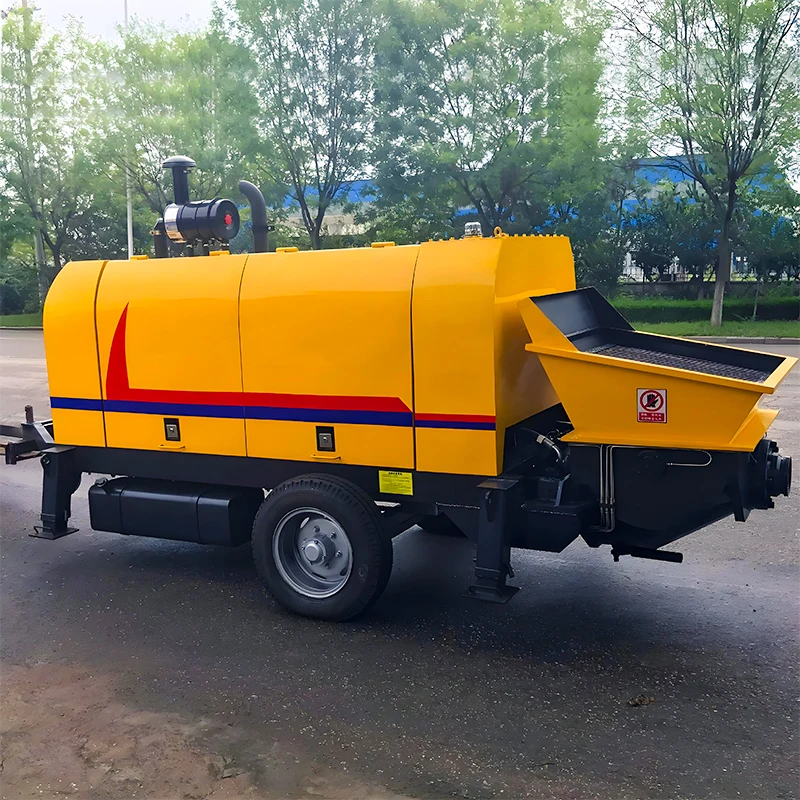

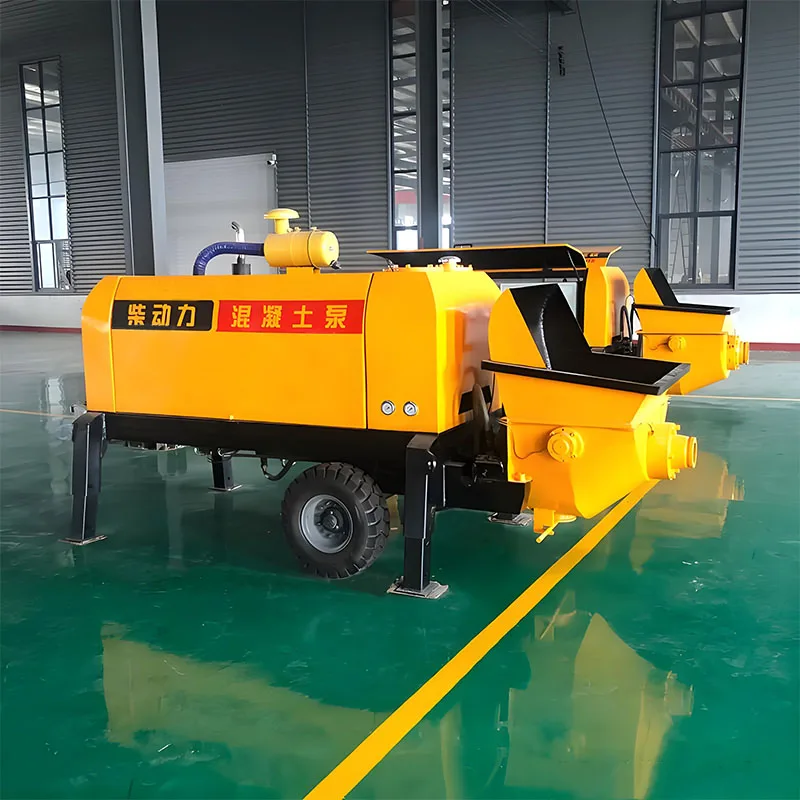

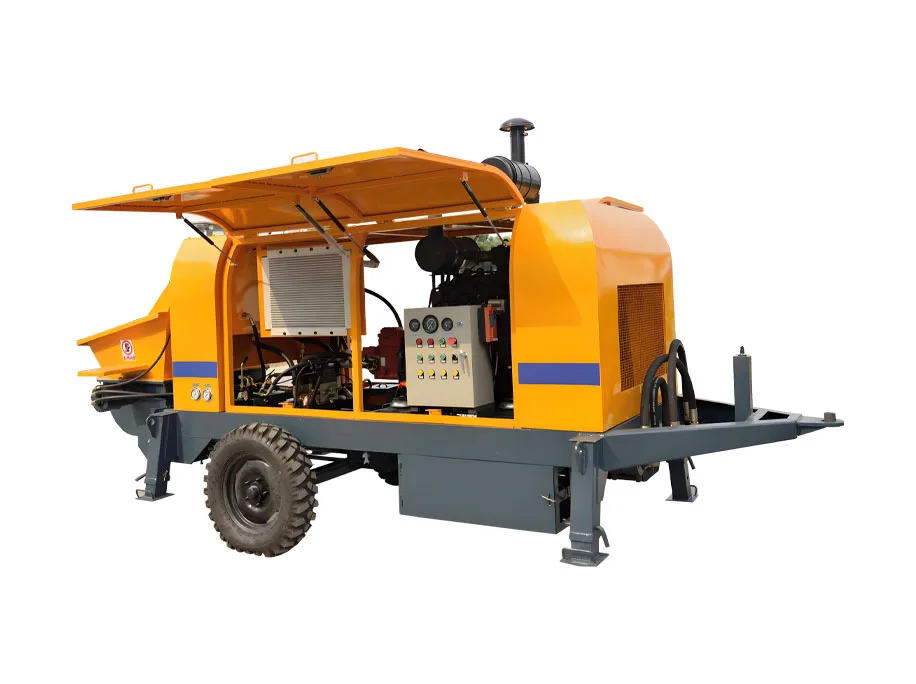

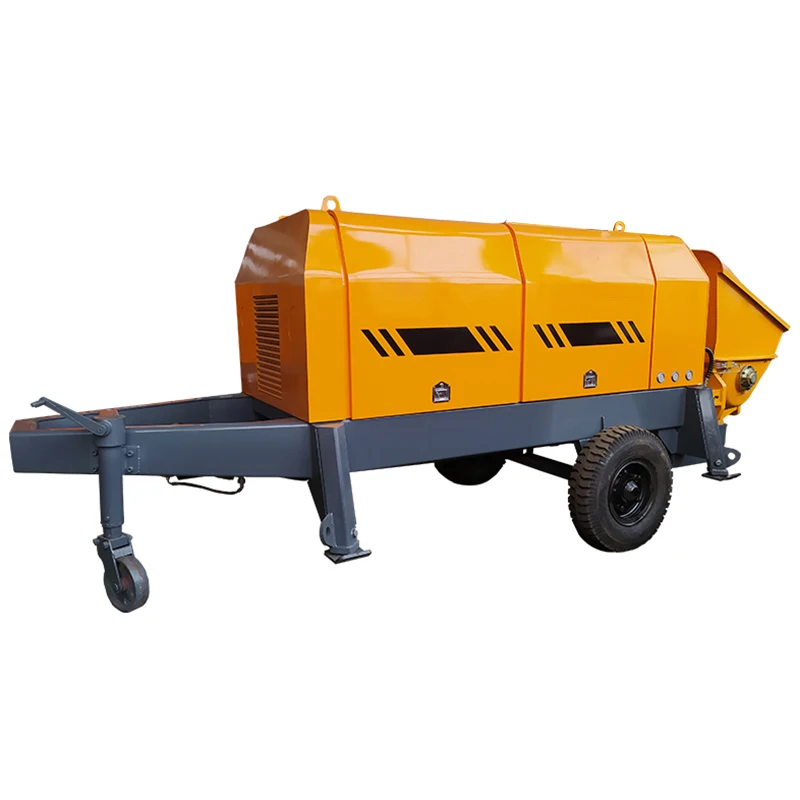

Diesel Concrete Pump
Models
20 pumps 30 pumps 40 pumps 50 pumps
Working efficiency
8-12m³/h 13-15m³/h 20-25m³/h 30-35m³/h
Aggregate size
0-2cm 0-3cm 0-4cm 0-4cm
Vertical conveying distance
40-50m 20-60m 30-130m 30-150m
Horizontal conveying distance
80-100m 50-150m 50-350m 50-500m
Conveying pipe diameter
80-100mm 80-125mm 80-125mm 80-125mm

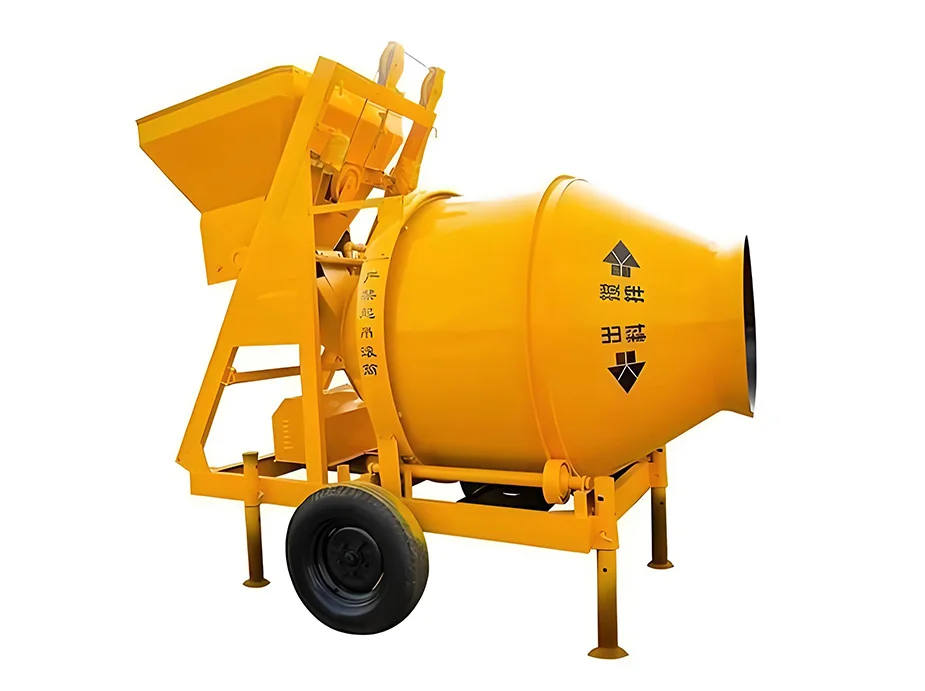

Ladder concrete mixer
Product model:JZC300 Mixing drum: speed14r/min
Product model:JZC320 Productivity:8-10M³/H
Product model:JZC350 Feed capacity:560L
Product model:JZC350 Mixingdrum:speed14R/MIN
Product model:JZC350 Drum diameter:1.48m
Product model:JZC350 Mixing drum speed:14R/MIN
Product model:JZC350 Diesel generator set:25KW


Product Details










    High quality solenoid valve
High-quality solenoid valve with stable performance, fast speed and good effect, longer service life










          Lubrication system
The lubricant is piped directly to all parts of the machine that need lubrication, making the equipment more durable.









                     Outlet
125mm outlet, smooth pumping without blocking the pipe, fast discharging, higher efficiency









              Alloy Eye Plate
The spectacle plate is made of alloy material with high wear resistance, good sealing and durability




Product Configuration


Concrete pump
A concrete transfer pump is a special equipment used to transport concrete from a mixing station or mixer truck to a construction site. It pumps concrete efficiently and stably through a hydraulic system and is widely used in construction, bridges, tunnels and other engineering projects.

Efficient transportation: A large amount of concrete can be quickly transported to the target location, significantly improving construction efficiency.

Strong stability: Hydraulic drive ensures smooth operation and reduces the separation of concrete during transportation.


Electric Concrete Pump Configuration Sheet
Model
Motor power
（kw）
particle size
(cm)
Concrete Delivery
（㎥）
Vertical pumping distance
（m）
Horizontal pumping range
（m）
Overall dimensions
(mm)
Weight
(kg)
slanting type
15
≤1.5
5-8
≤20
≤50
2000*800*1250
650
MX-15E
15
≤1.5
5-8
≤20
≤50
2000*800*1250
650
MX-20E
22
≤1.5
8-12
≤50
≤150
2500*1200*1200
1000
MX-30E
30
0.5-1.5
12-15
70
200
3250*1450*1550
1500
1-2
30
100
1-3
15
60
MX-37E
37
0.5-1.5
15-18
90
260
3580*1500*1580
1800
1-2
50
150
1-3
30
100
MX-45E
45
0.5-1.5
20-25
120
350
3980*1500*1580
2500
1-2
80
200
1-3
50
150
2-4
30
100
MX-55E
55
0.5-1.5
30-35
150
400
3980*1650*1650
2800
1-2
100
250
1-3
70
180
2-4
50
150


Configuration table of diesel concrete pump
Model
diesel power
particle size
(cm)
Concrete Delivery
（㎥）
Vertical pumping distance
（m）
Horizontal pumping range
（m）
Overall dimensions
(mm)
Weight
(kg)
MX-20
4102
≤1.5
8-12
≤50
≤150
2600*1200*1500
1000
MX-30
4102
0.5-1.5
15-18
90
260
3950*1500*1700
1800
1-2
50
150
1-3
30
100
MX-37
4105
0.5-1.5
15-18
90
260
3950*1500*1700
1800
1-2
50
150
1-3
30
100
MX-40
4108
0.5-1.5
30-35
150
400
3980*1650*1750
2800
1-2
100
250
1-3
70
180
2-4
50
150
MX-50
6105
0.5-1.5
30-35
150
400
3980*1650*1750
2800
1-2
100
250
1-3
70
180
2-4
50
150




Packaging and Transportation










F A Q
Q: Are you a manufacturer?
A: Yes, Manxing factory is 150 thousands square meters large,established in 2003 and located in Xingyang, China. We welcome all of our customers to visit our factory

Q: What do you sell?
A: We mainly deal in concrete mixing plants, concrete mixer trucks,concrete mixing tanks, and supporting mechanical products and accessories

Q: How to pay?
A: We acceptT/T、L/C、Western Union or Alibaba trade insurance

Q: How to deliver?
A: We accept EXW, FOB, CFR, CIF or DDP

Q:Do you have after-sale service?
A: Yes, we have a one-year insurance policy. lf any part of the prodcut is damaged or malfunction during proper operation, we will send you another one for free.

Q: Why choose Manxing?
A: As a manufacturer we are albe to provide you with best productsin lowest price, and we are capable of supplying large quantity
