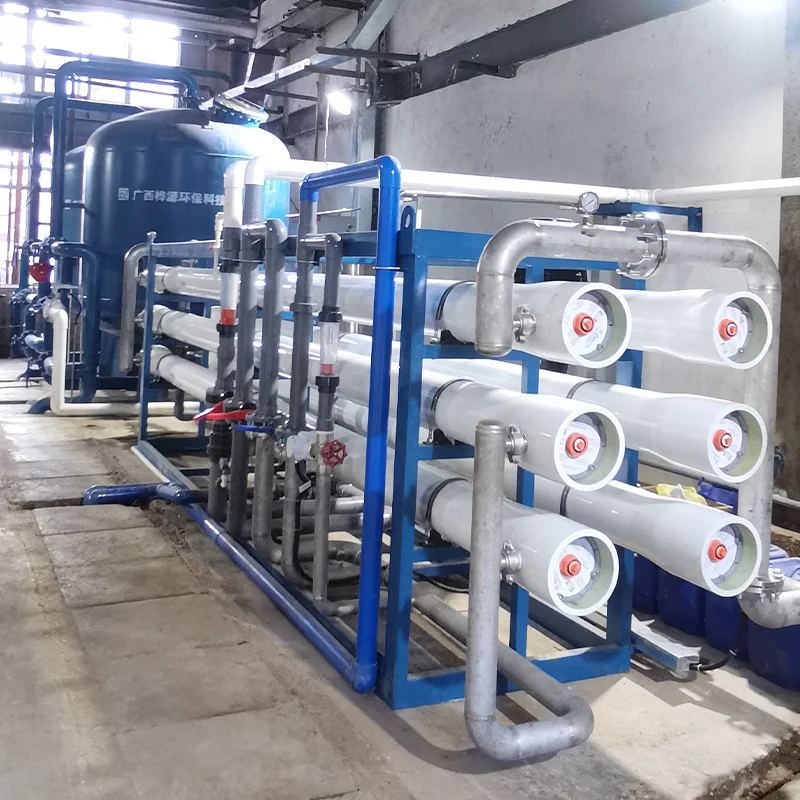

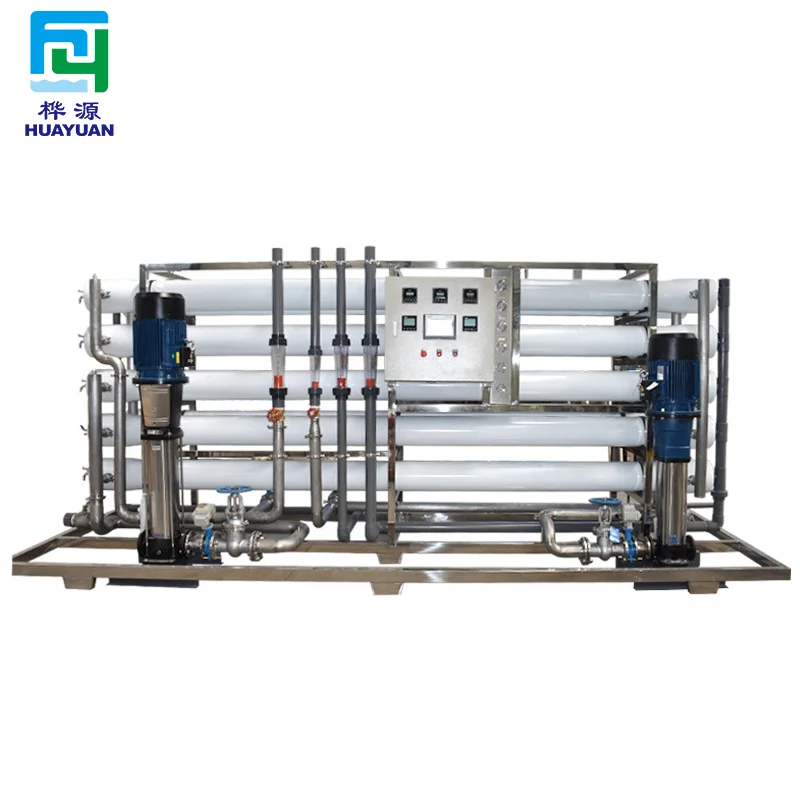

Reverse Osmosis Ro Purifying Purification System 20000lph Mineral Filter Purifier Purify Water Treatment Machine Plant
- Category: >>>
- Supplier: Guangxi Huayuan Environmental Protection Technology Co. Ltd.Guangxi Ltd.
Share on (1601352554055):
Product Overview
Description
Product details

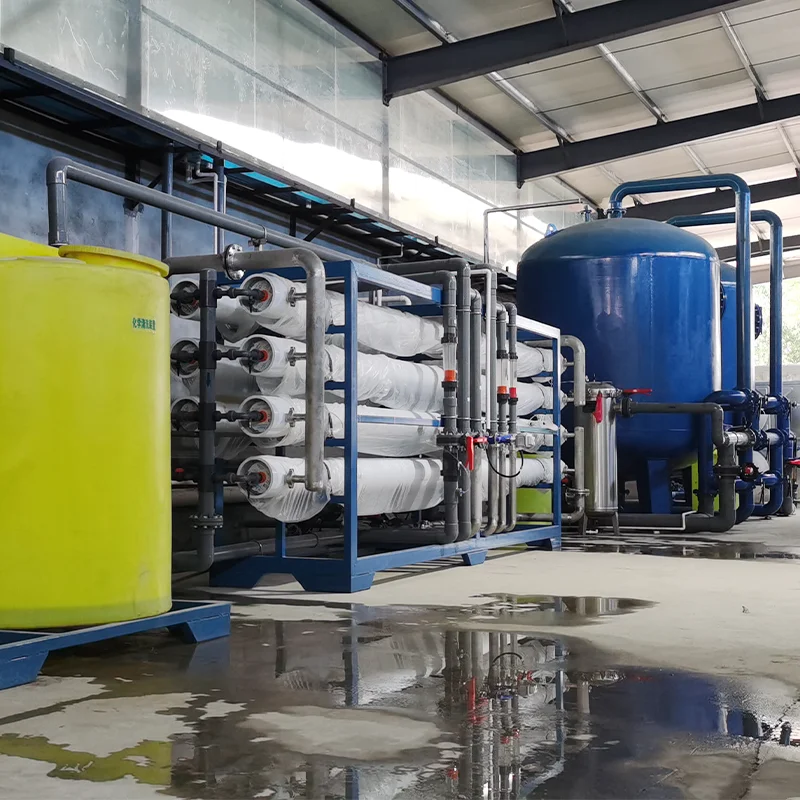

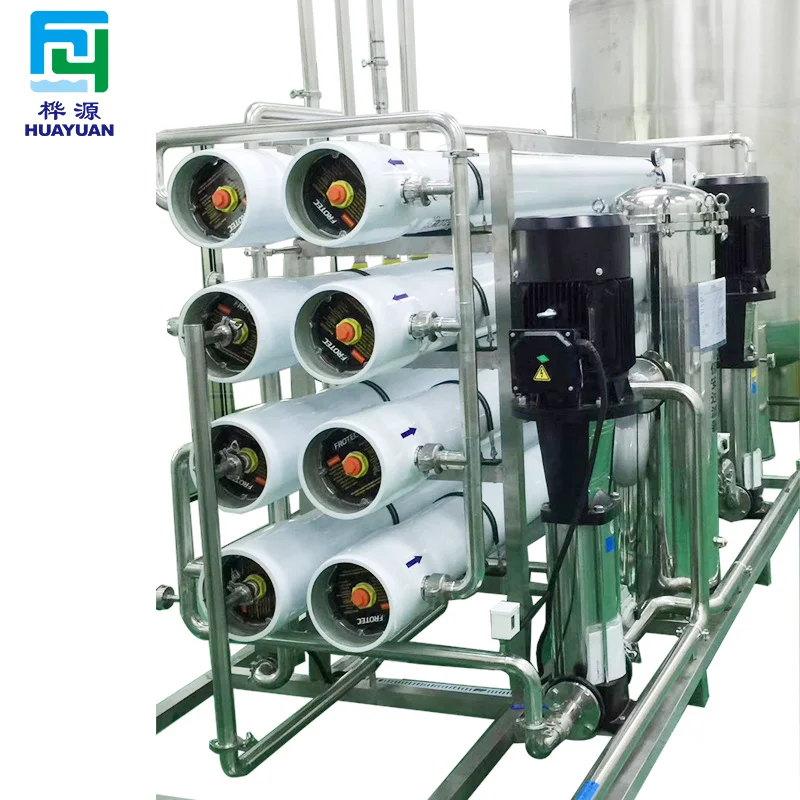

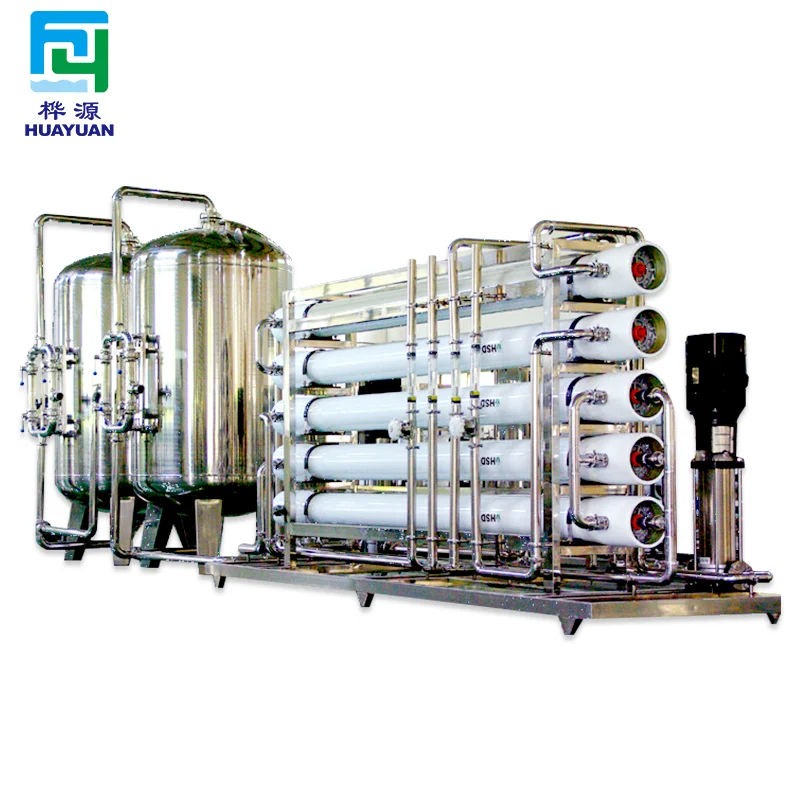

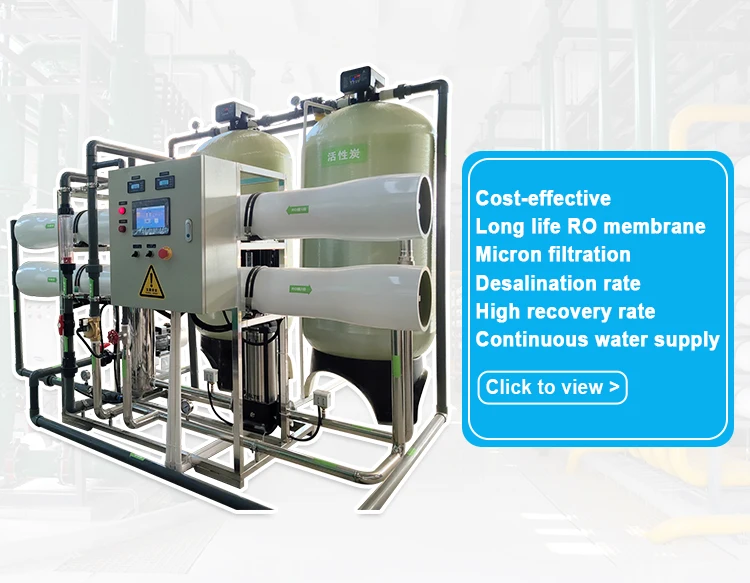

Reverse Osmosis System
Reverse Osmosis(RO) is a process that uses semi-permeable spiral wound membranes to separate and remove dissolved solids,organic,pyrogens,submicron colloidal matter,color,nitrate and bacteria from water. Feed water is delivered under pressure through the semi-permeable membrane,where water permeates the minute pores of the membrane and is delivered as purified water called permeate water.Impurities in the water are concentrated in the reject stream and flushed to the drain is called concentrate water.
RO Membrane is mainly used in different small systems, such as domestic water Hospital and laboratory cleaning and other cleaning water equipment. Achieve the same high flux as conventional low pass and salt.
Reverse Osmosis(RO) is a process that uses semi-permeable spiral wound membranes to separate and remove dissolved solids,organic,pyrogens,submicron colloidal matter,color,nitrate and bacteria from water. Feed water is delivered under pressure through the semi-permeable membrane,where water permeates the minute pores of the membrane and is delivered as purified water called permeate water.Impurities in the water are concentrated in the reject stream and flushed to the drain is called concentrate water.
RO Membrane is mainly used in different small systems, such as domestic water Hospital and laboratory cleaning and other cleaning water equipment. Achieve the same high flux as conventional low pass and salt.
Product Parameter
Function | Drinking water, Bottle water, Industrial water, Commercial water |
System | Reverse osmosis system, Ultrafiltration system, EDI ultrapure system, Water reuse system, Seawater desalination, Brackish water desalination |
Capacity | 250/500/750/1000LPH, 2TPH, 3TPH, 4TPH, 5TPH, etc |
Voltage | 380V, 220V/50HZ etc; (Power supply can be Customized) |
Power | 2-10 kw |
Raw Water | TDS ≤ 1000PPM Working temperature: 0 ≤ 45°C Well water, tap water, seawater, salt water, brackish water |
Produced water quality | Conductivity ＜10μs/cm Total organic carbon ≤ 0.5mg/L Microorganism ＜100cfu/ml |
Desalination rate | 96-99% |
Water recovery rate | 50-70% |
Work pressure | Pretreatment: 0.2—0.4MPa, RO host: 0.8—1.6Mpa |
Material | FRP tank, Stainless steel 304, PVC pipe, |
Control | Automatic or manual |
Process | Quartz sand filter → Activated carbon filter → Water softener → High pressure pump → Ro system → UV → Ozone generator |
Working Process:

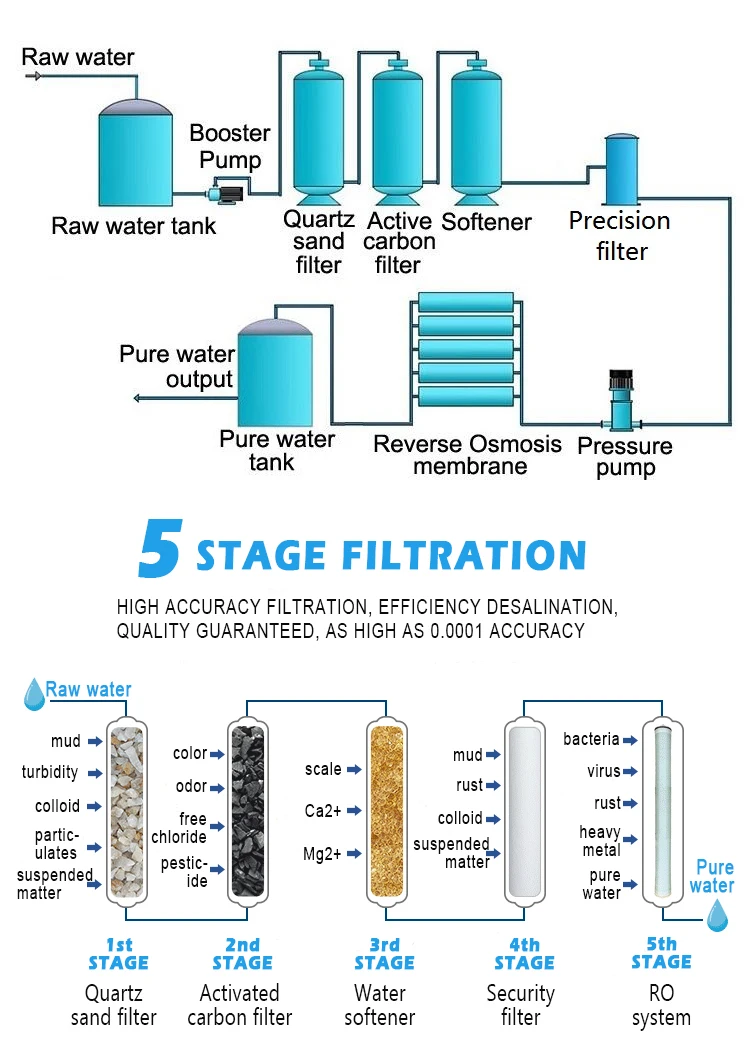

Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→ security filter→ high pressure pump →reverse osmosis system→ Ozone sterilizer (UV sterilizer).

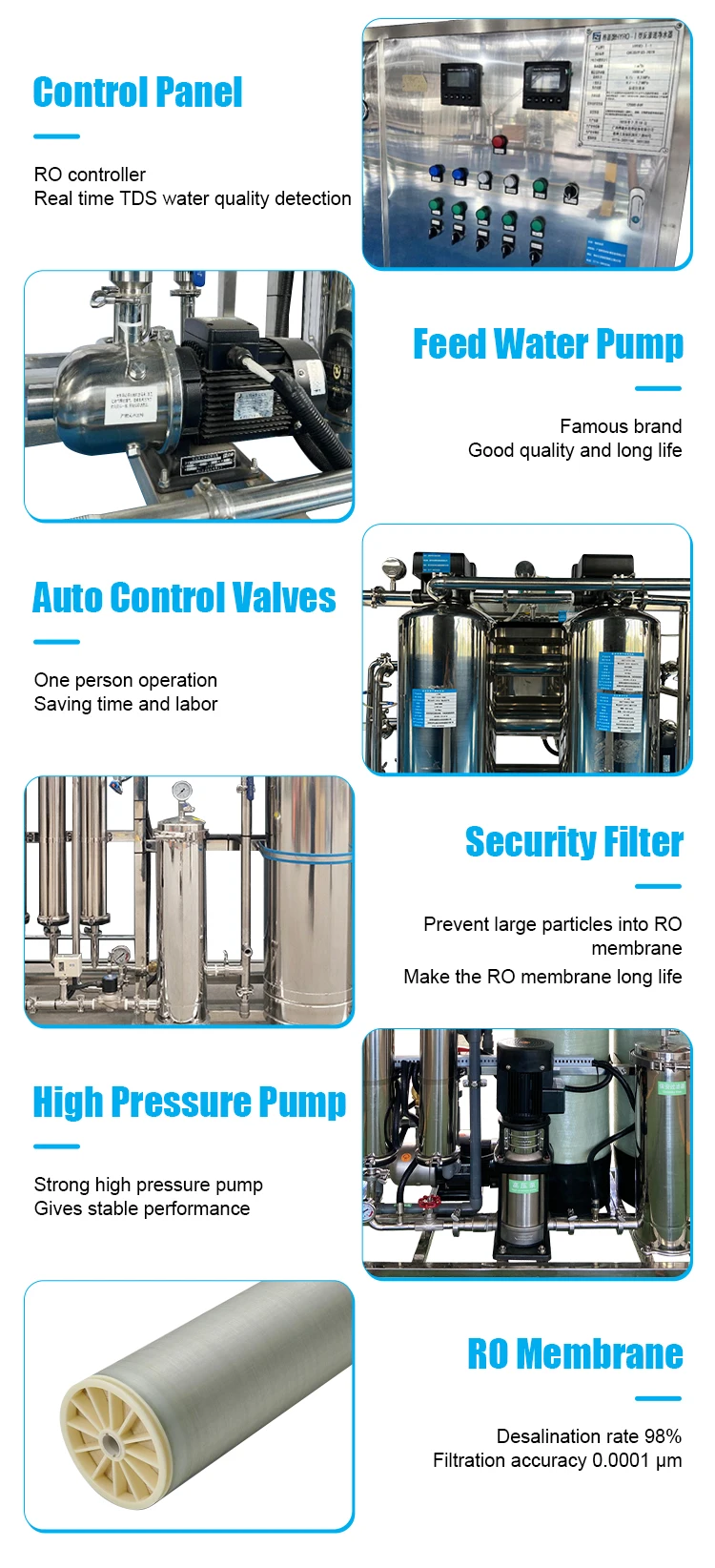

1. Water tank: storage of tap water, to solve the problem of insufficient tap water pressure and the back booster pump due to the impact of insufficient water, reduce the failure rate
2. Booster pump: equipped with a stainless steel pump, to provide sufficient pressure for subsequent filtration
3. Quartz sand filter: mainly remove the mud, suspended solids and large particles in the tap water
4. Carbon filter: mainly remove organic substances, residual chlorine and odor in tap water
5. Water softener filter: mainly remove the calcium and magnesium in tap water, reduce the hardness of water
6. Security filter: further filtration, protection of reverse osmosis membrane
7. High pressure pump: provide enough pressure for reverse osmosis system
8. Reverse osmosis unit: the core part of pure water equipment, the production of high-purity water.
9. Pure water tank: storage pure water, can change the size of the water tank,after the below process,The water result is pure enough for different application.
You can choose frp or stainsteel tank filter system and with or without pre-filter.We can customize the system according to your requirements.
Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→ security filter→ high pressure pump →reverse osmosis system→ Ozone sterilizer (UV sterilizer).
1. Water tank: storage of tap water, to solve the problem of insufficient tap water pressure and the back booster pump due to the impact of insufficient water, reduce the failure rate
2. Booster pump: equipped with a stainless steel pump, to provide sufficient pressure for subsequent filtration
3. Quartz sand filter: mainly remove the mud, suspended solids and large particles in the tap water
4. Carbon filter: mainly remove organic substances, residual chlorine and odor in tap water
5. Water softener filter: mainly remove the calcium and magnesium in tap water, reduce the hardness of water
6. Security filter: further filtration, protection of reverse osmosis membrane
7. High pressure pump: provide enough pressure for reverse osmosis system
8. Reverse osmosis unit: the core part of pure water equipment, the production of high-purity water.
9. Pure water tank: storage pure water, can change the size of the water tank,after the below process,The water result is pure enough for different application.
You can choose frp or stainsteel tank filter system and with or without pre-filter.We can customize the system according to your requirements.
