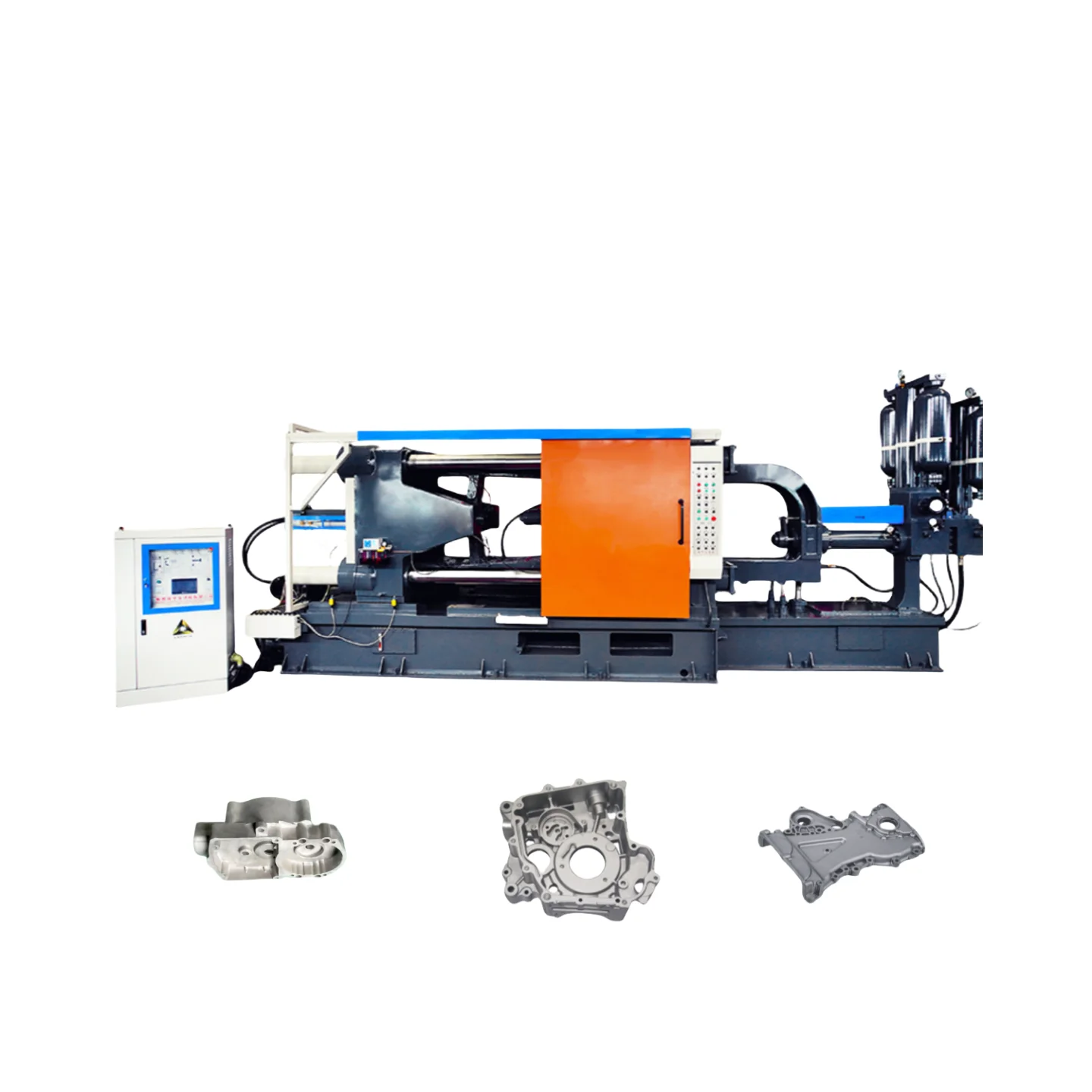

Manufacturer Die Casting Car Pistons Machine Cold Chamber Die Casting Aluminium Machine 300 Ton
- Category: >>>
- Supplier: Bengbu Longhua Die Casting Machine Co. Ltd.Bengbu Ltd.
Share on (1601352684879):
Product Overview
Description
LH标准系列参数表(300T) LH series of standard parameter table (300 t) | ||||||
项目 ITEMS | 单位 | 参数Specification | ||||
锁模力 Clamping Force | KN | 3000 | 锁模部分 Clamping Unit | |||
锁模行程 Opening stroke | mm | 460 | ||||
模具厚度（最小—最大）Die thickness(Min--Max) | mm | 250～650 | ||||
格林柱内距 Space between tie bars | mm | 560*560 | ||||
顶出行程 Ejector stroke | mm | 100 | ||||
顶出力 Ejector force | KN | 110 | ||||
压射位置 Injection position（0 as center） | mm | 0，-160 | 压射部分 Injection Unit | |||
压射力(增压）Injection force（intensification) | KN | 330 | ||||
压射行程 Injection stroke | mm | 380 | ||||
冲头直径 Plunger diameter | mm | ￠50 ￠60 ￠70 | ||||
射料量(铝) lnjection weight(aluminum) | Kg | 3 | ||||
铸造压力（增压）Casting pressure (intensification) | MPa | 168/116/85 | ||||
最大铸造面积(40Mpa) Max. casting area(40Mpa) | CM2 | 700 | ||||
压射冲头推出距离 Injection plunger penetration | mm | 140 | ||||
压射室法兰直径 Diameter of pressure chamber flange | mm | 110 | ||||
压射室法兰凸出定板高度 Height of pressure chamber flange | mm | 10 | ||||
最大工作压力 Max.working pressure | MPa | 14 | 其他 Others | |||
电机功率 Motor power | Kw | 15 | ||||
外型尺寸(长*宽*高) Dimensions (L*W*H) | m | 6.4*1.7*2.8 | ||||
机器吊装参考重量 Machine lifting reference weight | T | 12 | ||||
油箱容量Oil tank capacity | L | 650 | ||||
Marketing Campaign
Customer Photos
FAQ
1. Who are we?
We are based in Anhui, China, start from 2014,sell to Domestic Market(50.00%),Southeast Asia(15.00%),South Asia(12.00%),South America(8.00%),Eastern Asia(8.00%),Africa(5.00%),Mid East(2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Die Casting Machine/Robot For Die Casting Machine,Compressor,Die Casting Machine Parts,Mould And Castings,Melting Furnace
4. Why should you buy from us not from other suppliers?
Longhua Die Casting Machine has 39 years of production experience, and cooperate with the Chinese Academy of Science and Technology, you know that China's space shuttles are cooperating with the Chinese Academy of Science and Technology.
5. What services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese
We are based in Anhui, China, start from 2014,sell to Domestic Market(50.00%),Southeast Asia(15.00%),South Asia(12.00%),South America(8.00%),Eastern Asia(8.00%),Africa(5.00%),Mid East(2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Die Casting Machine/Robot For Die Casting Machine,Compressor,Die Casting Machine Parts,Mould And Castings,Melting Furnace
4. Why should you buy from us not from other suppliers?
Longhua Die Casting Machine has 39 years of production experience, and cooperate with the Chinese Academy of Science and Technology, you know that China's space shuttles are cooperating with the Chinese Academy of Science and Technology.
5. What services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese
