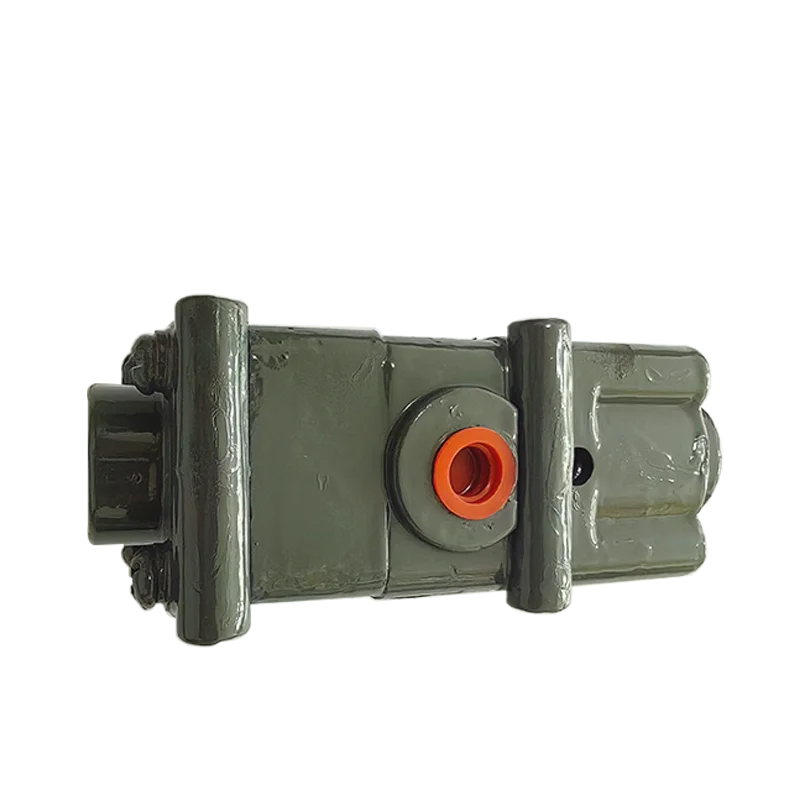

23QB L8 GeologicalProspecting Drill air regulator air pressure valve 23QB L8 control air control valve for Drill Truck 23QB L8
- Category: >>>
- Supplier: Weihai Zhonghao Pneumatic Hydraulic Co. Ltd.Weihai Ltd.
Share on (1601353495901):
Product Overview
Description
model | QF502 | ||
Nominal diameter | 8mm | 8 | |
Nominal pressure | 1MPA | 20 | |
Leakage | ml/min≤50 | ||
Effective cross-sectional area S value | ≥20 | ||
Normal commutation performance | flexible commutation, accurate without abnormal sound and jamming phenomenon | ||
Pressure resistance | 1.5MPA | ||
Working environment temperature | -25～60℃（Note: -40℃ low temperature resistant products need special customization） | ||

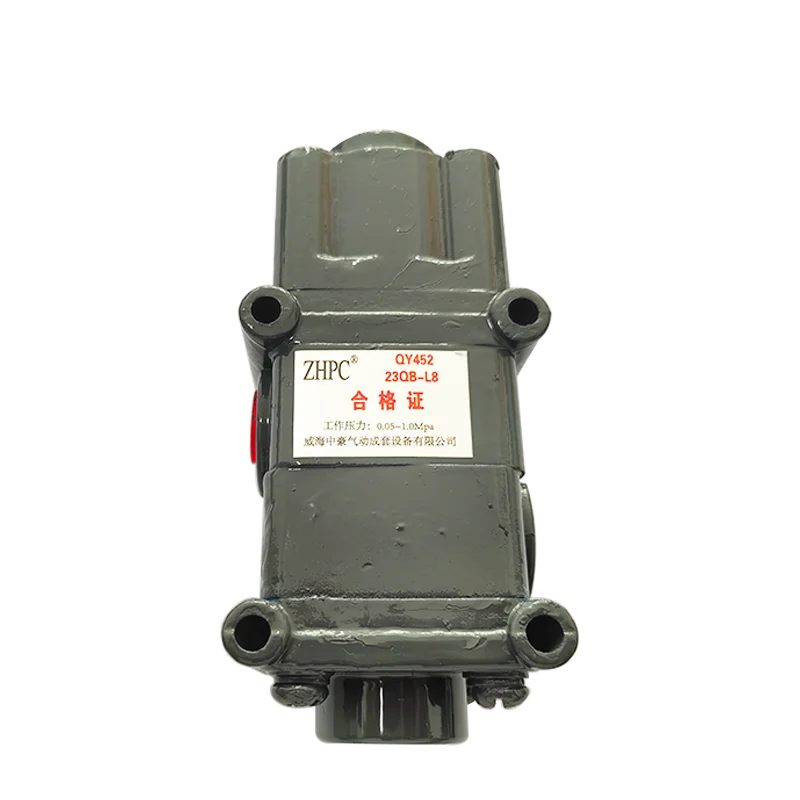

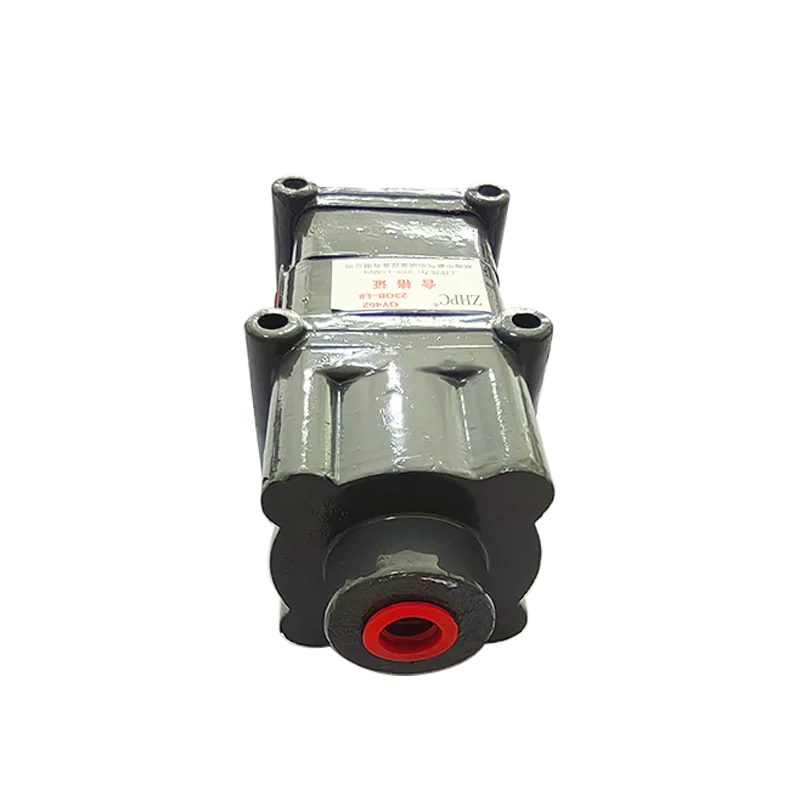

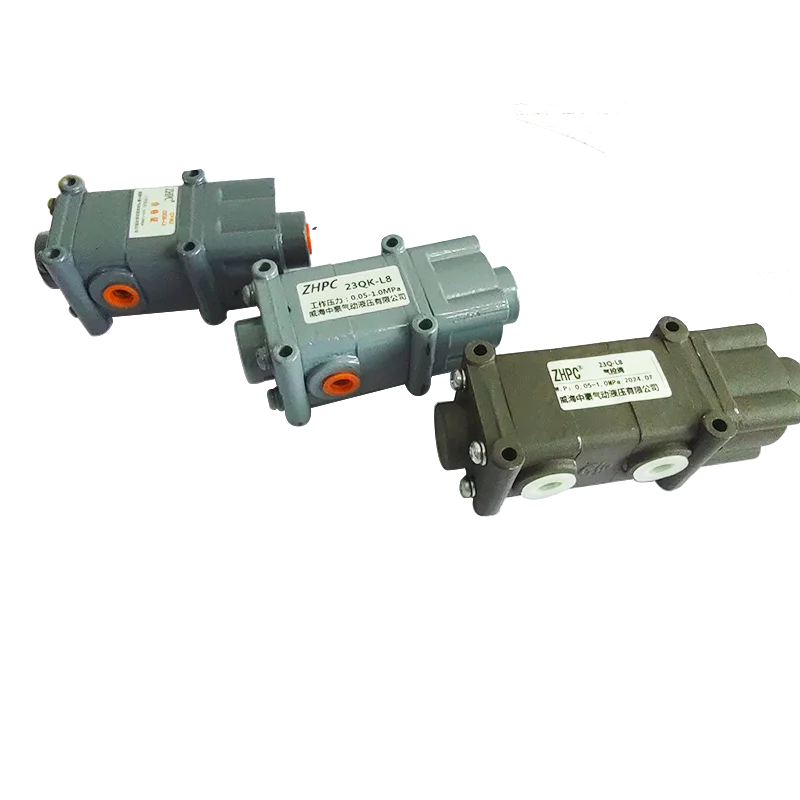

The 23QB-L8 two-position, three-position normally closed pneumatic control valve is an advanced new type of pneumatic control valve, which is a modification of the original QF506 dual-purpose gas relay.
The 23QB-L8 two-position-three-usually closed pneumatic control valve is composed of valve body, valve sample, cap, live cold, lower cover, seal, elastic and other parts.

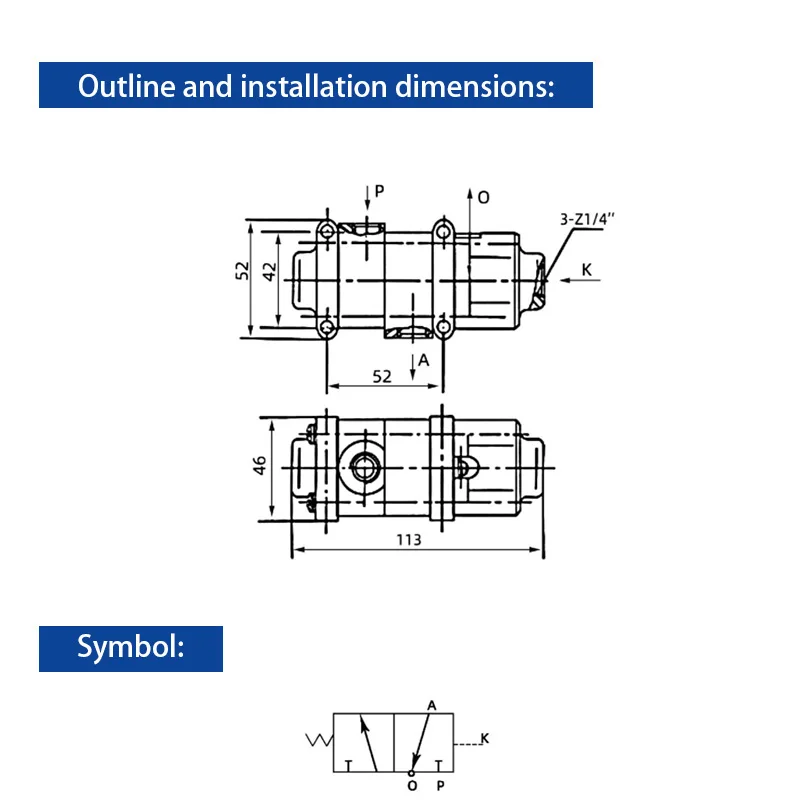

The valve has an air source port (P), an output port (A), an exhaust port (0) and a control port (K), through the action of the control gas, the piston in the valve moves forward, the valve core and the seal open the air source port and the output port communicate, and at the same time cut off the channel between the output port and the exhaust port. In the absence of control gas, the output port is connected with the exhaust port, and the compressed air in the actuator and the output line is emptied through the exhaust port.
The valve is used for long-distance control and short-distance intake and gas intake and release in the pneumatic control system of oil drilling rigs and geological exploration drilling rigs. The valve can also be used in pneumatic systems of other installations.
The 23QB-L8 two-position-three-usually closed pneumatic control valve is composed of valve body, valve sample, cap, live cold, lower cover, seal, elastic and other parts.
The valve has an air source port (P), an output port (A), an exhaust port (0) and a control port (K), through the action of the control gas, the piston in the valve moves forward, the valve core and the seal open the air source port and the output port communicate, and at the same time cut off the channel between the output port and the exhaust port. In the absence of control gas, the output port is connected with the exhaust port, and the compressed air in the actuator and the output line is emptied through the exhaust port.
The valve is used for long-distance control and short-distance intake and gas intake and release in the pneumatic control system of oil drilling rigs and geological exploration drilling rigs. The valve can also be used in pneumatic systems of other installations.
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time？
A: According to the order quantity, small order usually need 3-7 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive L/C,Western Union,D/P,D/A,T/T and etc
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time？
A: According to the order quantity, small order usually need 3-7 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive L/C,Western Union,D/P,D/A,T/T and etc
