GLTV7S Stainless steel probe capacitive fuel level sensor
US $112.00-$361.00
PTFE Type Liquid Level Transmitter Alibaba Supplier Anti corrosion Water Level Gauge 4 20mA
- Category: >>>
- Supplier: Shanghai Yanken Sensor Technology Co. Ltd.Shanghai Ltd.
Share on (1601354397049):
Product Overview
Description
Product Description
Feature
Multi-standard signal output, Convenient for customers to choose / Anticorrosion, moisture-proof, dew-proof, leak-proof function/ High accuracy, good stability/LED on-site display/ Echo processing technology, more real data; acoustic matching technology, better signal radiation; multi-point emission circuit, more reliable of the measurement results
high measurement range: Wider range, up to 60m
Technical specifications
Range | 0-1 mH2O ~60mH2O |
Combined Accuracy | 0.25%FS; 0.5%FS; 1%FS |
Repeatability | Full range of 0.05% |
Output signal | 4-20mA (two-wire system), 2MV/V, 0-5V; 0-10V (three-wire system); |
Supply voltage | Standard DC24V, OptionalAC220V |
Operating temperature range | -20-80℃ |
Dielectric material | Pressure joint material is SS, shell material is SS or hard aluminium optional |
Electrical connector | Ventilation Cable, Straight-plug installation, Flange Connection |
Pressure connector | G1/4,G1/2, 1/2NPT, 1/4NPT, M20*1.5, flange etc.(customer design) |
IP grade | IP68 |
Example of ordering

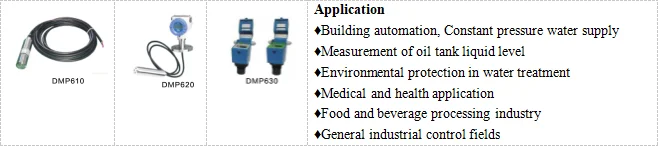

DMP 610 620 630 | Mounting way | Range | Lead length | Accuracy | |||||
|
|
|
|
|
|
| |||
| |||||||||
(G4)G1/4,(G2) G1/2, (M20) M20 x 1.5, (N2)1/2NPT, (F)flange connection, customer design | |||||||||
| |||||||||
1m-60m (1)1m..(5)5mmeter…(60)60meter | |||||||||
(1)1meter(2)2meter(3)3meter(4)4meter(5)5metercan be customized | |||||||||
| |||||||||
(A)0.25% (B)0.5% (C)1% | |||||||||
Example of ordering: DMP630-M20-5
Packaging & Shipping
Company Information
FAQ
1.Q: How about the warranty ?
A: We provide 18 months warranty .
2 Q: How about the management quality?
A: We have complete quality control system, and all the products will be inspected by QC department before delivery.
3.Q: Other supplier have a better pice than yours.
A: If you have a better price , please let us know we will try best to meet your price and support you.
4.Q: What about shipment ?
A: We have many forwarder channel with competitive price , and also cutsomers can also use their own freight forwarders.

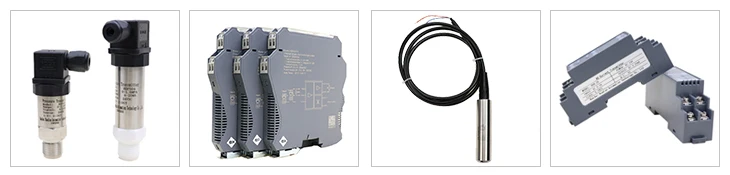

We Recommend
