Coupling Sleeve T38 T45 T51 T45 Sleeve Type Coupling Couplings Sleeve
- Category: >>>
- Supplier: Yantai Panda Equipment Co. Ltd.Yantai Ltd.
Share on (1601354450011):
Product Overview
Description
Product Description
Coupling sleeve for Extension Drill Rod connection.High quality of alloy steels and CNC machining guarantee our reliable and consistent quality control of coupling sleeves.when using rock drills with male shank adapters and a conventional drifter rod, a coupling is required to join the adapter to the rod, ensuring the ends touch for efficient energy transmission.
Coupling sleeves are also used to connect several rods to each other in the same way. Coupling sleeves have a middle stop to prevent over-threading on to the drill rod.
Thread: R22, R25, R28, R32, R38, T38, T45, T51,
Function: Coupling sleeve, Adapter Coupling
Type: Full-bridge, Semi-bridge
Coupling sleeves are also used to connect several rods to each other in the same way. Coupling sleeves have a middle stop to prevent over-threading on to the drill rod.
Thread: R22, R25, R28, R32, R38, T38, T45, T51,
Function: Coupling sleeve, Adapter Coupling
Type: Full-bridge, Semi-bridge
PANDADRILL can make length and thread according to your request!

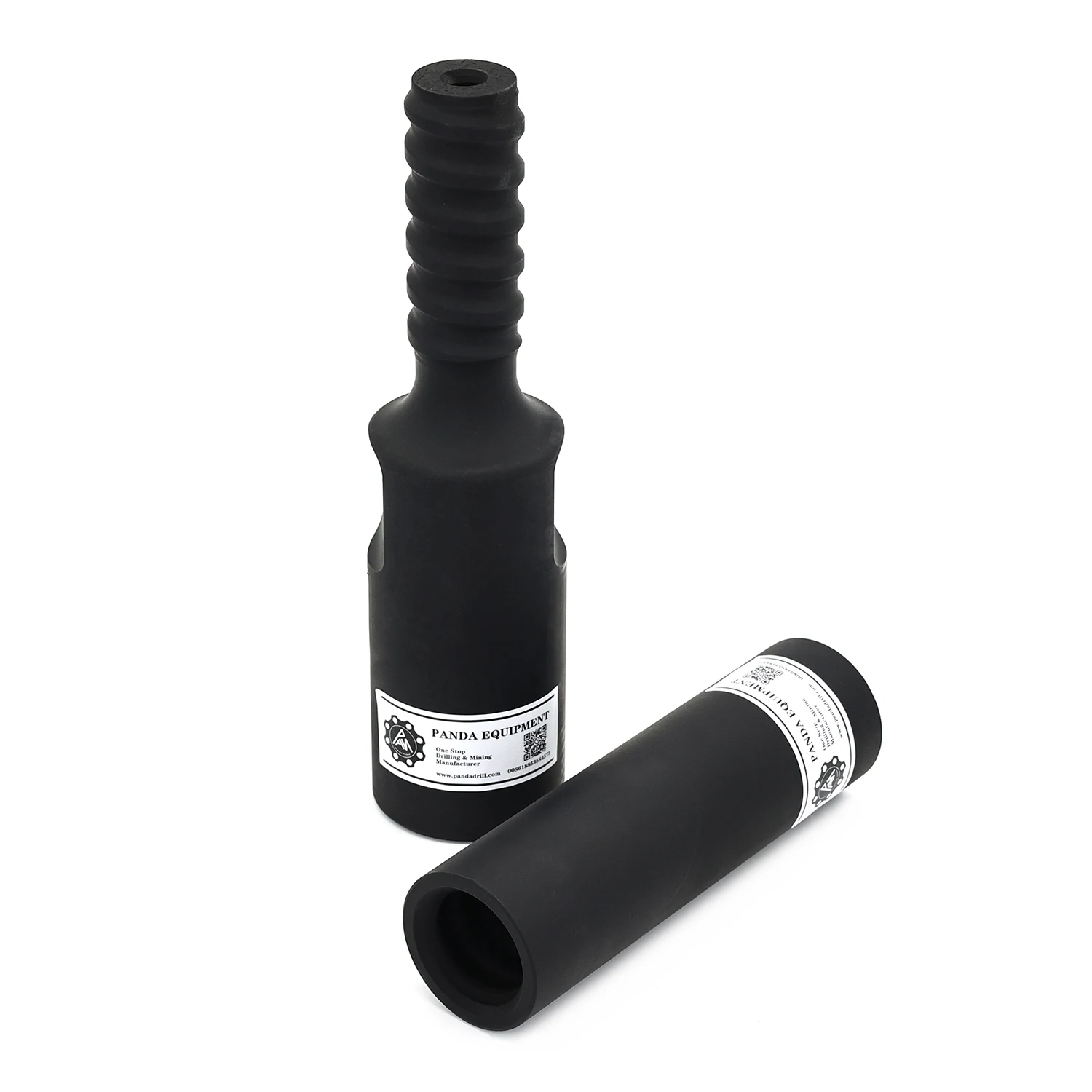

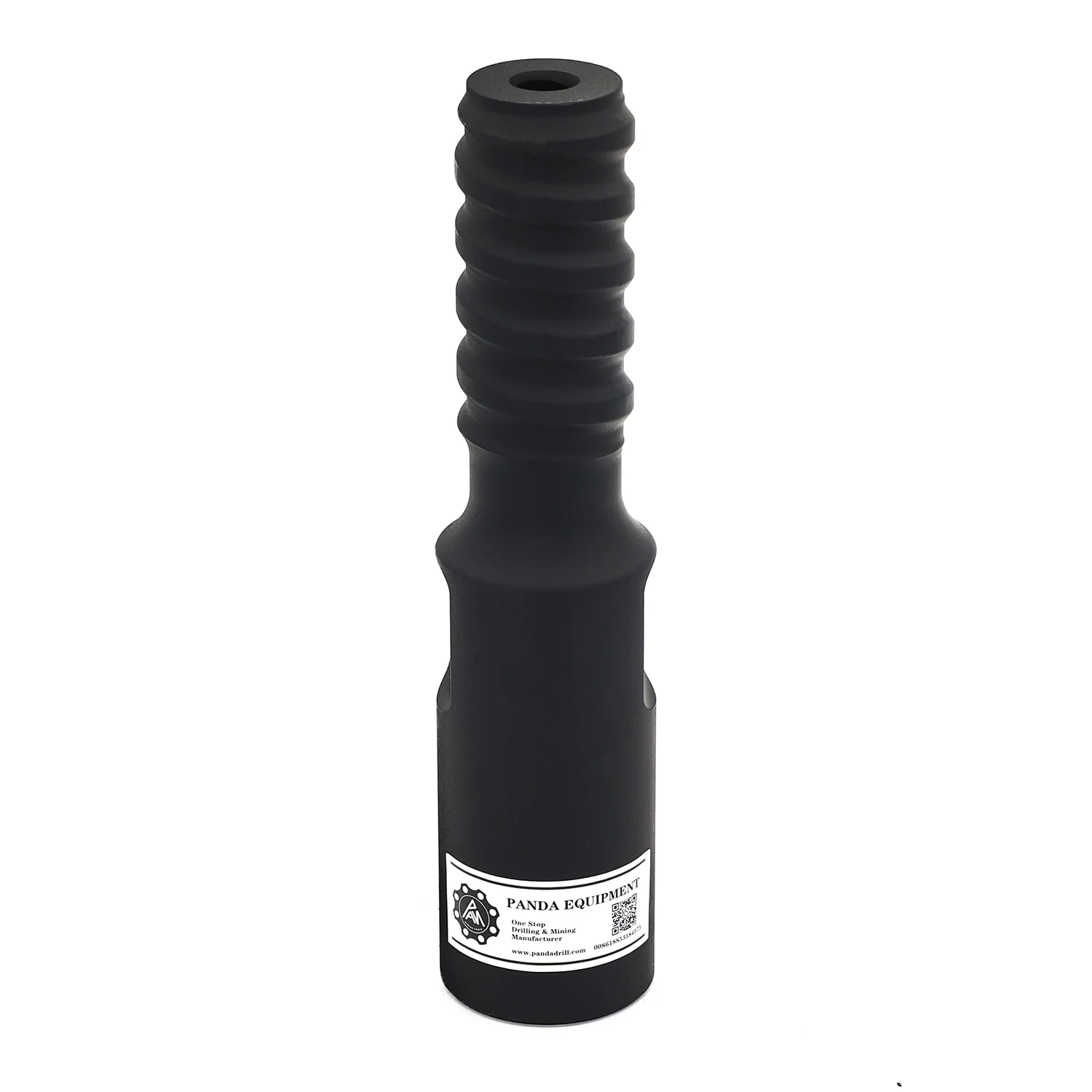

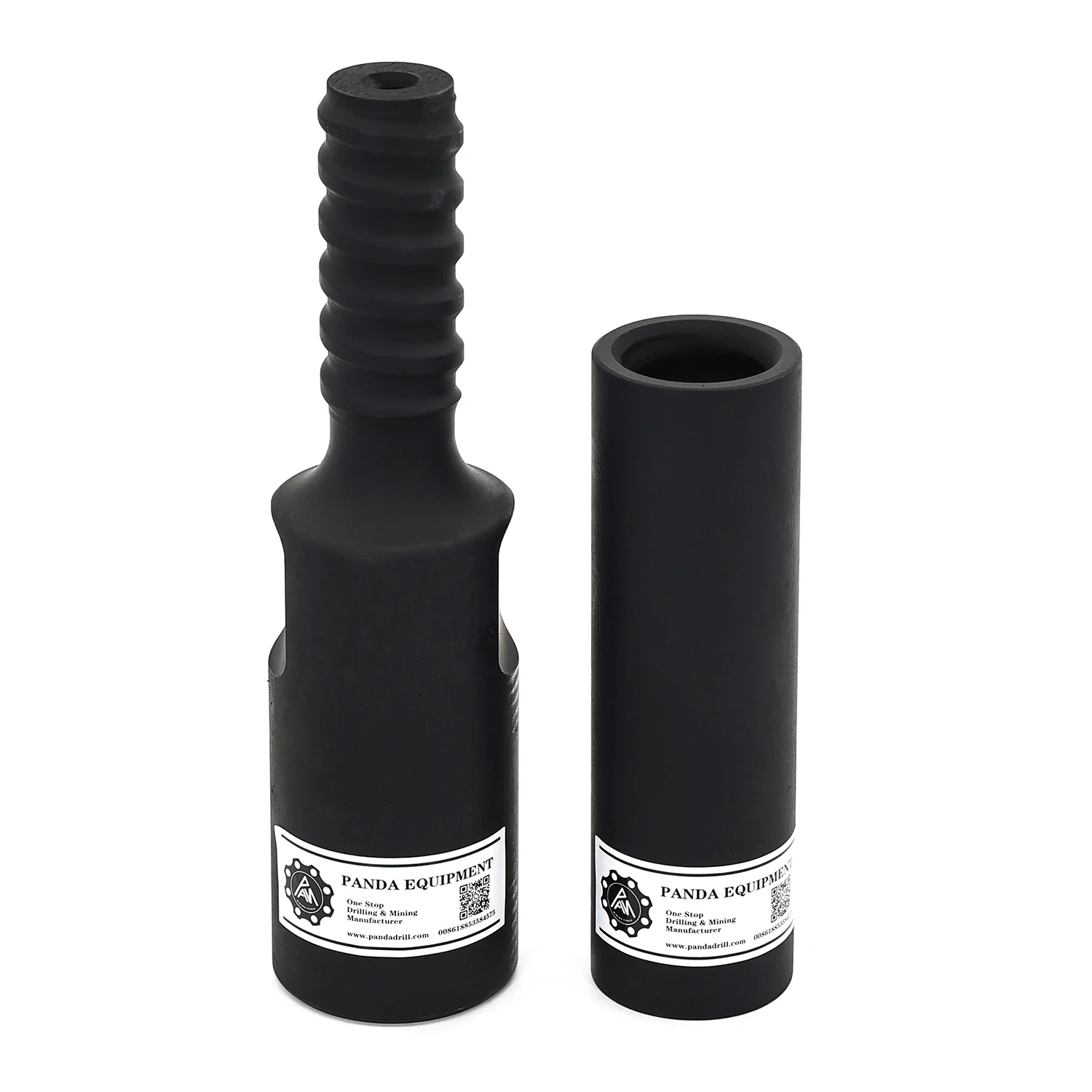

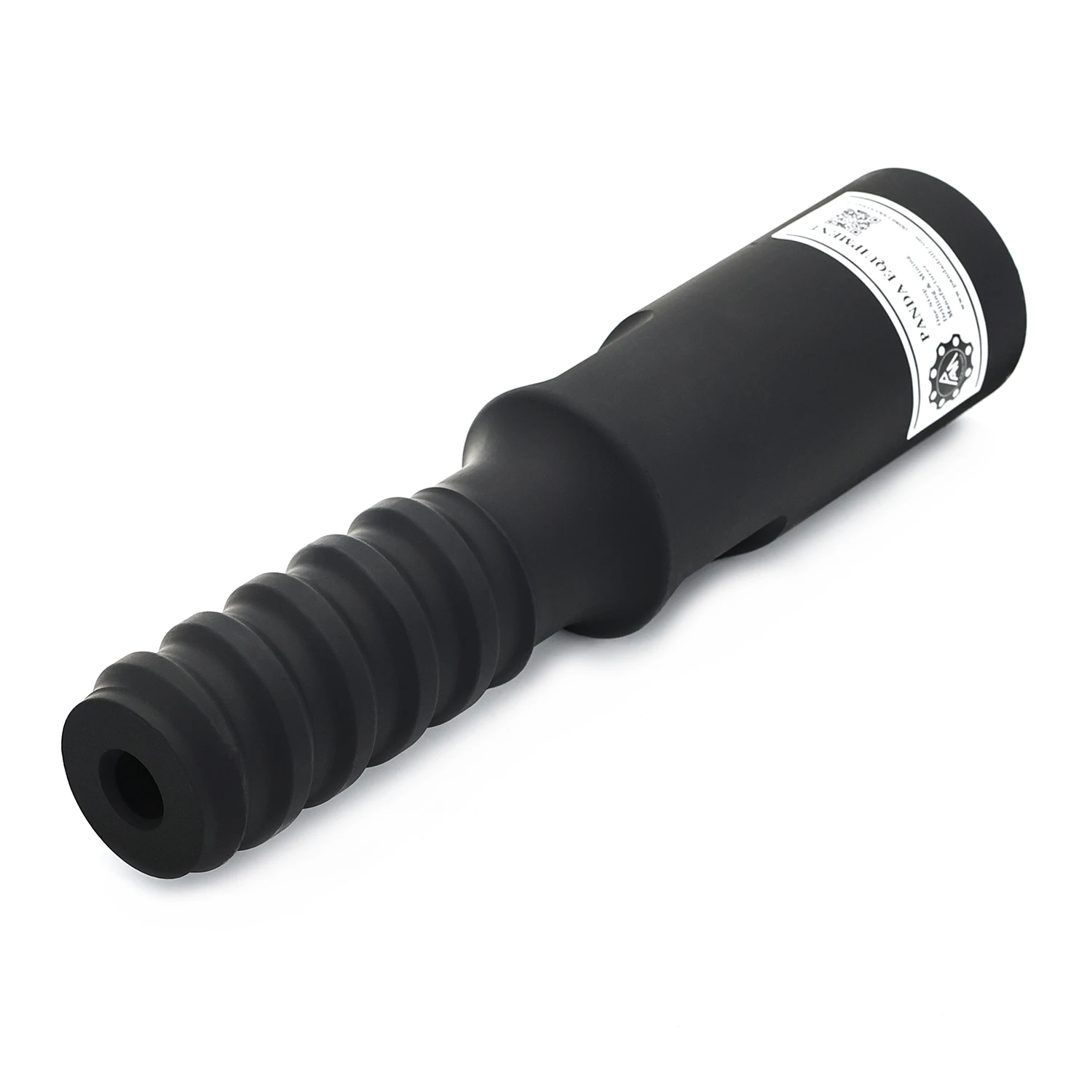

Detailed Images
Normal Specifications:
Thread model | Length(mm) | Panda Part No. |
R22*R22 | 140 | R22*140*R22 |
R25*R25 | 150 | R25*150-R25 |
R28*R28 | 150 | R28-150-R28 |
R32*R32 | 150 | R32-150-R32 |
R32*R32 | 160 | R32-160-R32 |
R32*R32 | 170 | R32-170-R32 |
T38*T38 | 170 | T38-170-T38 |
T38*T38 | 180 | T38-180-T38 |
T38*T38 | 190 | T38-190-T38 |
How to Connect Rod & Bit:
Thread Types: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60
Production Application:
REVIEWS FROM CLIENTS

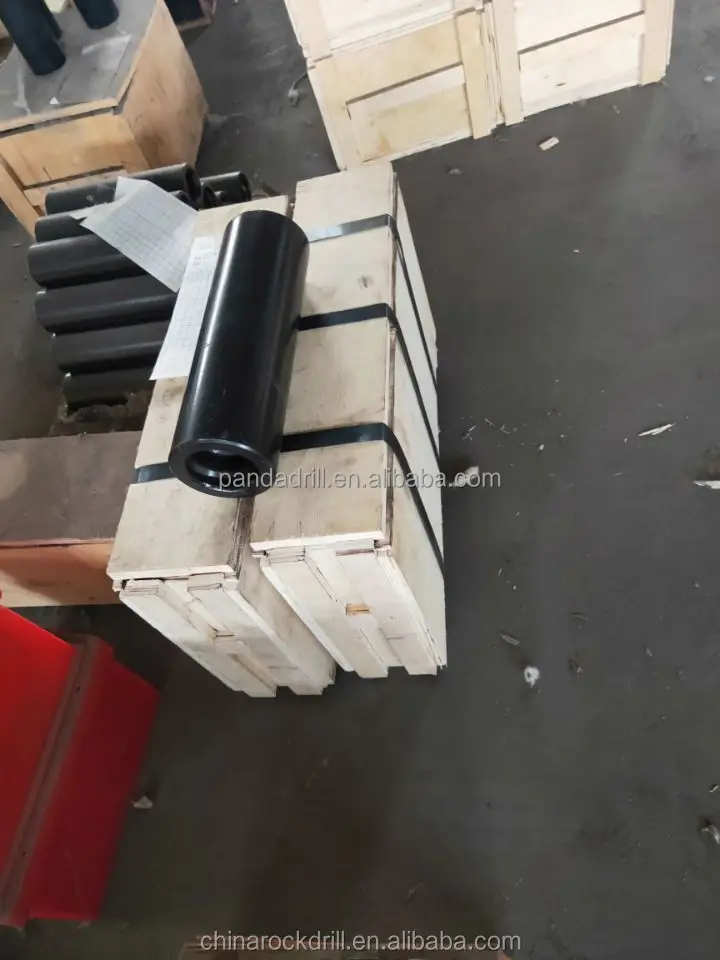

Packing & Delivery
Ply-Wooden Boxes + Pallet
Protect your goods from door to door
By Air/Sea/Express
Fast and Safe Delivery Team

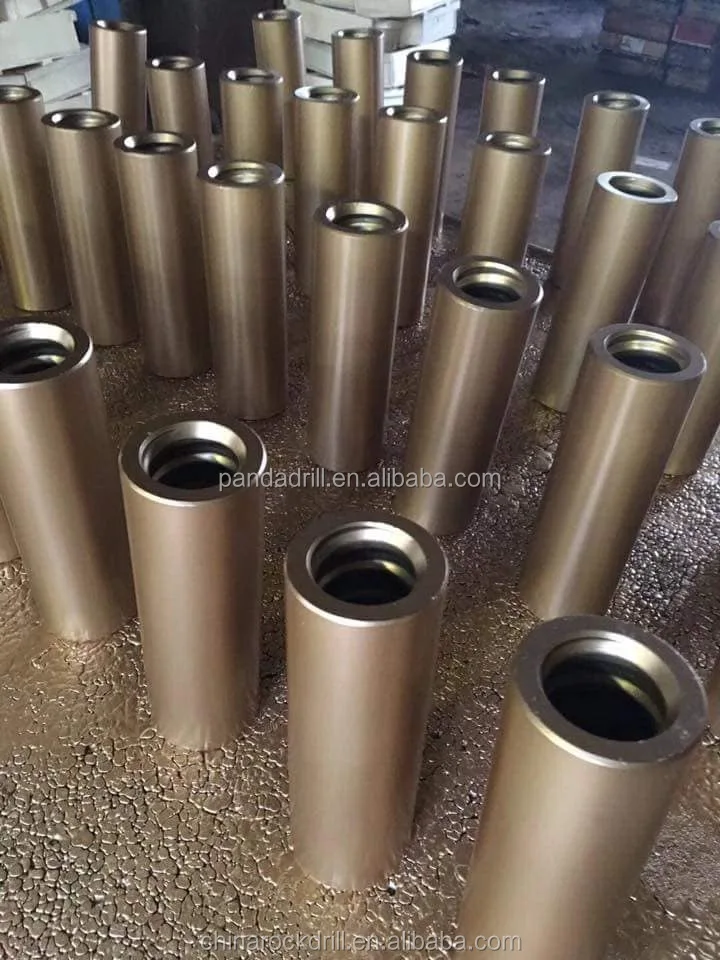

WORKSHOP VIEW
Related Products
FAQ:
Q1: Can I have a sample for testing?
A:Samples are still to be paid but discounted price can be provided.
Q2: Do you have the inspection procedures?
A:100% strict inspection and testing for every order before packing.
Q3: How can i get the after sale services?
A:Free replacement will provide once the problems casued by our product quality.
Q4: Can I have a visit to your factory before the order?
A: Sure, welcome, here is our address: Yantai, Shandong.
