279FC Multimeter Thermal Imaging Camera brand new original and genuine in stock
- Category: >>>
- Supplier: Jiangxi Shuoda Electric Co. Ltd.Jiangxi Ltd.
Share on (1601354611214):
Product Overview
Description
General information
Brand Name | Flu&ke |
Place of Origin | USA |
Model Number | 279FC |
Package Type | 1pc in a carton |
Warranty period | 365 days |
Specification
Thermal imaging cameras | ||
Infrared resolution | 102 x 77 | |
Image capture frequency | 8 Hz | |
Field of view | 36° (w) x 27° (h) | |
NETD | ≤200 mK | |
Infrared spectral bands | 7.5 to 14 microns | |
center | Yes (with center point temperature) | |
Focusing mechanism | Fixed focus | |
Temperature range (°C and °F selectable) | -10 °C to 200 °C (14 °F to 392 °F) Accuracy: ±5 °C (9 °F) or (±5% of test result) | |
Emissivity | 0.95 fixed | |
Background compensation | Fix at 20 °C | |
Memory storage | Approx. 100 images (interior) | |
file format | Non-radiated .is2 | |

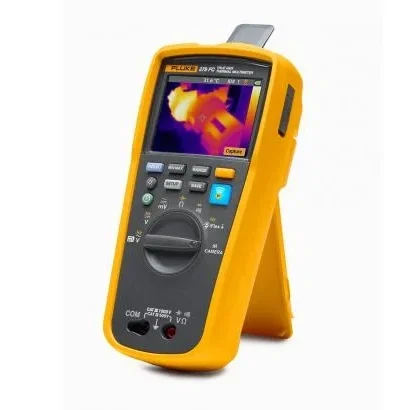

Fluke 279FC Economy Multimeter Thermal Imaging Camera
Key features:
At the same time, it has the functions of thermal imaging, multimeter and clamp meter, and is cost-effective
There are a total of 15 measurement functions, including: AC voltage (with low-pass filter), DC voltage, resistance, continuity, capacitance, diode detection, min/max/average, AC current (via iFlex flexible current probe), frequency

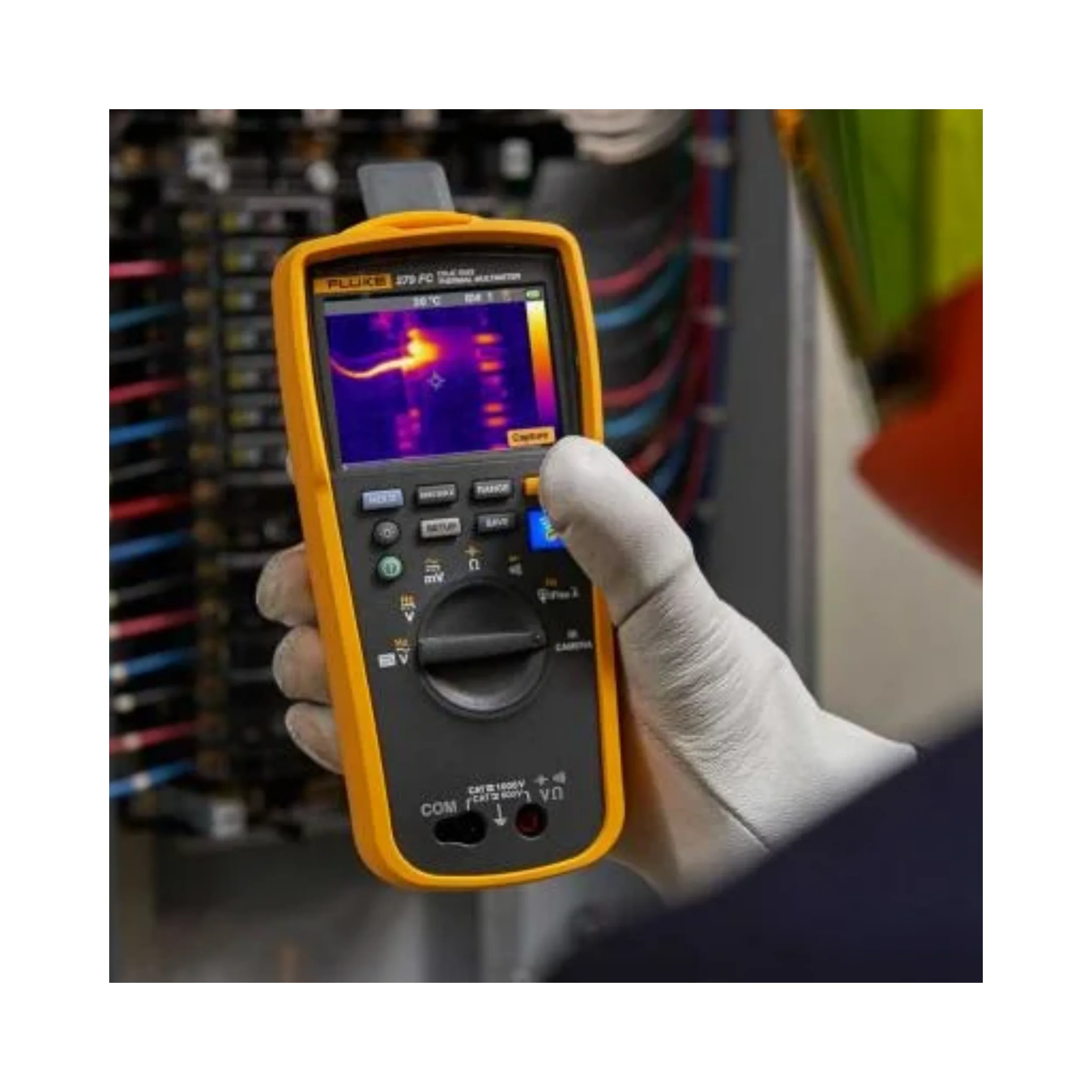

With thermal imaging, a wide range of electrical problems can be detected quickly and safely without the need for time-consuming testing and validation
2-in-1 tools to boost productivity – you don't need to go back to the workshop or office to pick up a shared camera or wait for a thermographer – and solve problems in a limited amount of time!
The iFlex flexible current probe expands your measurement capabilities – measuring current in deep, narrow, hard-to-reach spaces (up to 2500 A AC)
Wireless communication with smartphones up to 20 ft./6.1 m away (when there are no obstacles) allows measurements and images to be saved
Image resolution – 102 x 77
3.5 in./8.89 cm color LCD screen
Rechargeable lithium battery for a full day (more than 10 hours) under normal operating conditions
Assembled in the USA
Three-year standard warranty
Automatic power off to save power
CAT III 1000 V、CAT IV 600 V Measurement category

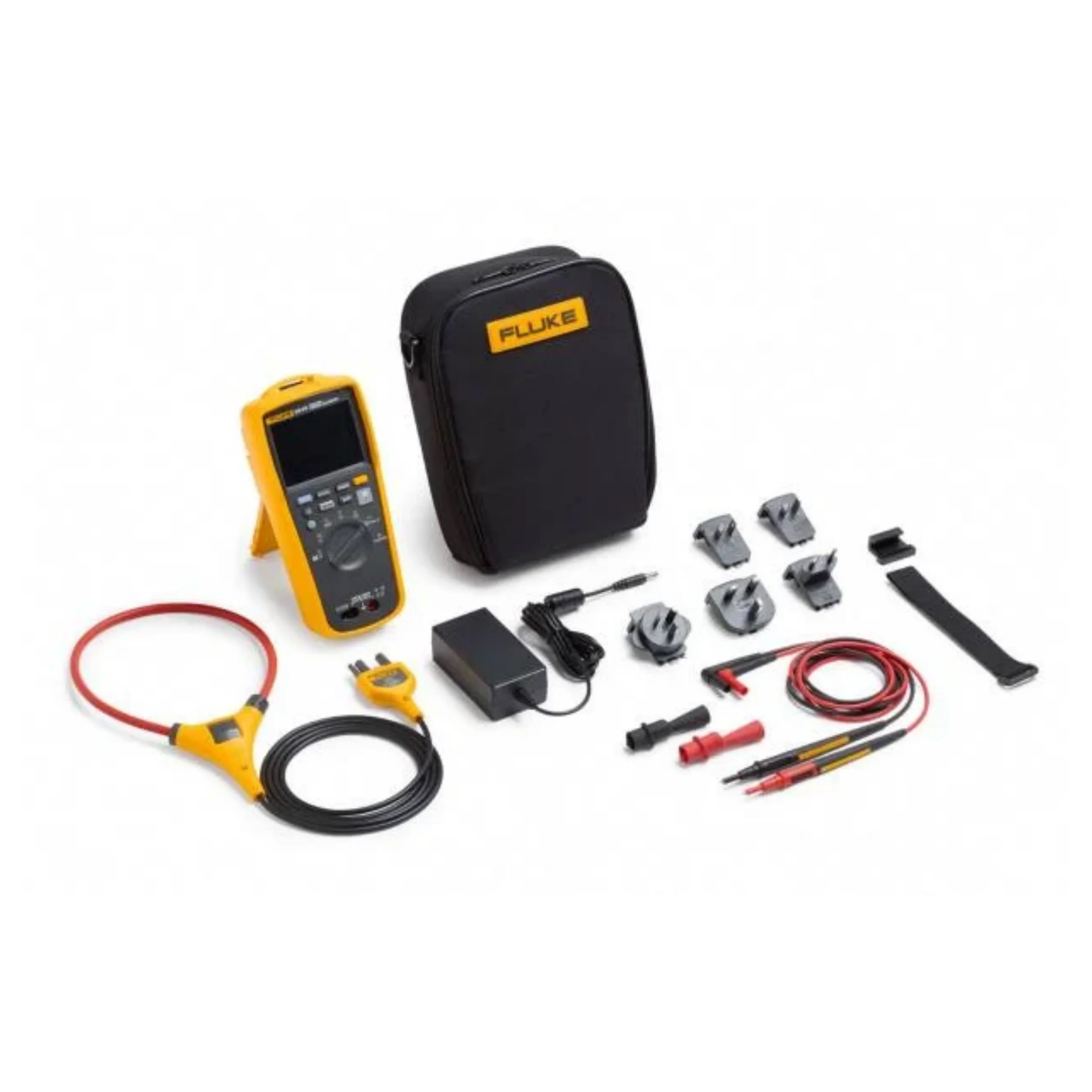

Options: Fluke i2500-10 or i2500- 18 iFlex® Flexible Current Probe, Fluke BC500TDMM AC Charger and Fluke BP500 Lithium Ion Battery 3000 mAh
Durable, withstanding a drop height of 3 m (9.8 ft), double insulated and with a textured rubber sheath for added protection
At the same time, it has the functions of thermal imaging, multimeter and clamp meter, and is cost-effective
There are a total of 15 measurement functions, including: AC voltage (with low-pass filter), DC voltage, resistance, continuity, capacitance, diode detection, min/max/average, AC current (via iFlex flexible current probe), frequency
With thermal imaging, a wide range of electrical problems can be detected quickly and safely without the need for time-consuming testing and validation
2-in-1 tools to boost productivity – you don't need to go back to the workshop or office to pick up a shared camera or wait for a thermographer – and solve problems in a limited amount of time!
The iFlex flexible current probe expands your measurement capabilities – measuring current in deep, narrow, hard-to-reach spaces (up to 2500 A AC)
Wireless communication with smartphones up to 20 ft./6.1 m away (when there are no obstacles) allows measurements and images to be saved
Image resolution – 102 x 77
3.5 in./8.89 cm color LCD screen
Rechargeable lithium battery for a full day (more than 10 hours) under normal operating conditions
Assembled in the USA
Three-year standard warranty
Automatic power off to save power
CAT III 1000 V、CAT IV 600 V Measurement category
Options: Fluke i2500-10 or i2500- 18 iFlex® Flexible Current Probe, Fluke BC500TDMM AC Charger and Fluke BP500 Lithium Ion Battery 3000 mAh
Durable, withstanding a drop height of 3 m (9.8 ft), double insulated and with a textured rubber sheath for added protection
