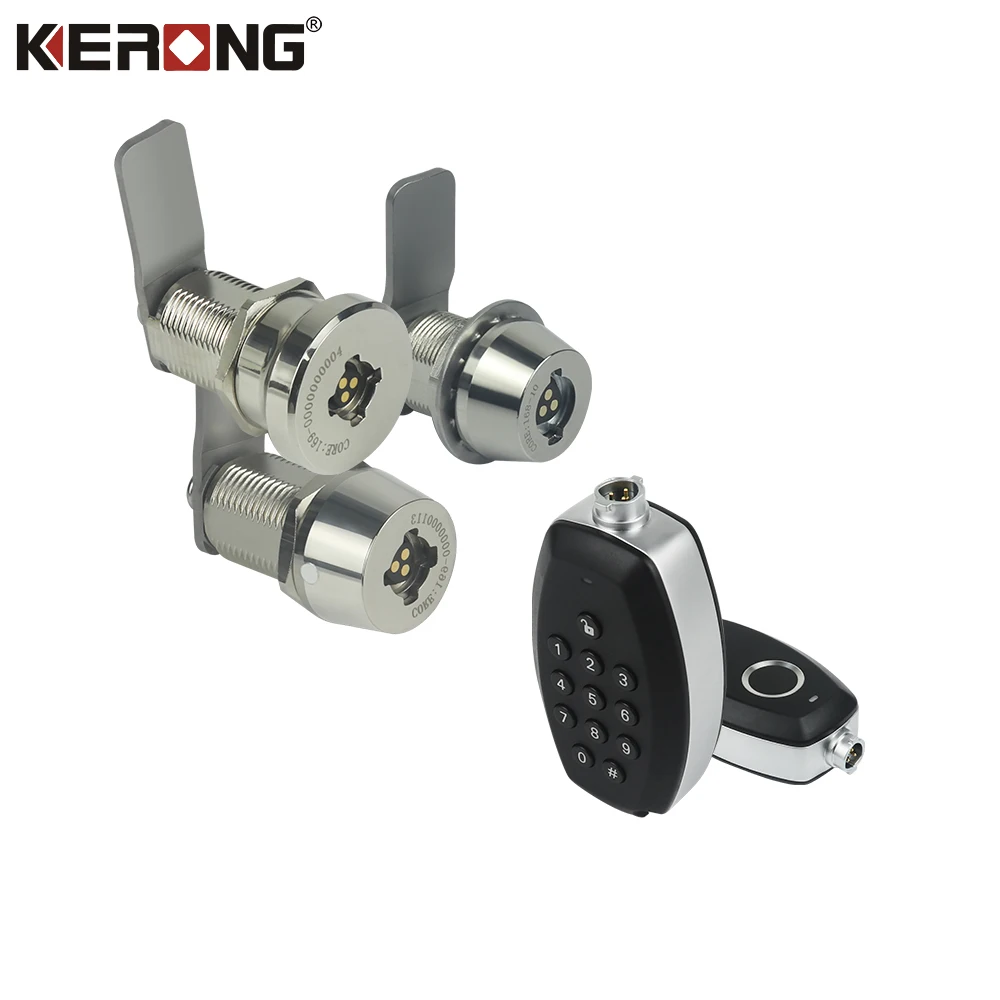

KERONG Management System Passive Battery free Cam Lock Handle Lock unlock by Electronic Key and Lock Management System
- Category: >>>
- Supplier: Shenzhen Kerong Smart Technology Co. LimitedShenzhen Limited
Share on (1601354994680):
Product Overview
Description

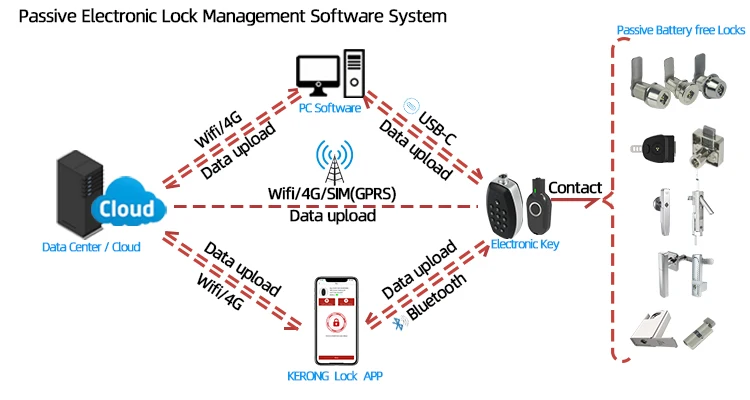

Passive Locks and System
Product Parameters
Feature: 1. One lock can be paired with 10 electronic keys.
2. The lock cylinder can store 32 logs.3. With high safety electrostatic protection, over current protection;
4. The lock has waterproof, dust-proof and rust-proof design, up to lP66 grade.The lock has added a door magnetic detection function, which can detect the lock status in real time and remind the user in time.

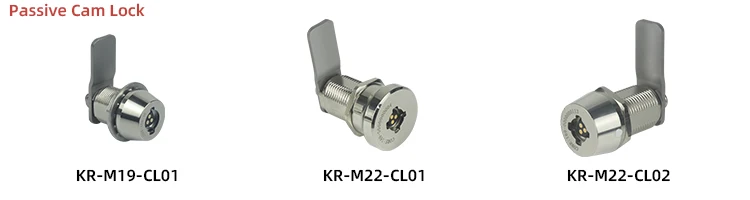

Model | KR-M19-CL01 | KR-M22-CL01 | KR-M22-CL02 | ||
Unlock method | K19 Electronic Key | K22 Electronic Key | K22 Electronic Key | ||
Colour | Silver | ||||
Size | Ф 25*42*19*16 mm | Ф 32*54.8*22*19mm | Ф 28*54.8*22*19 mm | ||
Material | Zinc Alloy | ||||
Surface treatment | Nickel Plating | Nickel Plating | Nickel Plating | ||
Cam length | 19.8 mm | 26.85 mm | 29.4 mm | ||
Door thickness | ≤10 mm | ≤18 mm | ≤18 mm | ||
Protection class | / | IP66 | IP66 | ||
Key pairing capacity | 10 | 10 | 10 | ||
Log entry capacity | 32 | ||||
Operating Temperature | -25℃~65℃ | ||||
Relative Humidity | 10%~90%RH | ||||

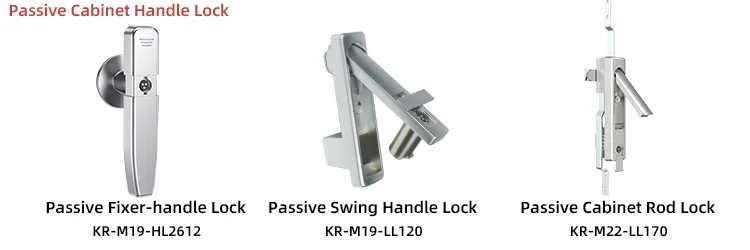

Model | KR-M19-HL2612 | KR-M19-LL120 | KR-M22-LL170 | ||
Unlock method | K19 Electronic Key | K19 Electronic Key | K22 Electronic Key | ||
Colour | Silver | ||||
Size | 120*26*66 mm | 120*30*41.5 mm | 170*32*20 mm | ||
Material | Zinc Alloy | ||||
Surface treatment | Hang plated with bright chrome | Hanging Pearl Chrome Plating | Hanging Pearl Chrome Plating | ||
Cam length | 12.2 mm | 11 mm | / | ||
Door thickness | ≤8 mm | ≤7 mm | 0.8~3 mm | ||
Protection class | IP66(Anti-drenching) | ||||
Key pairing capacity | 10 | ||||
Log entry capacity | 32 | ||||
Operating Temperature | -25℃~65℃ | ||||
Relative Humidity | 10%~90%RH | ||||

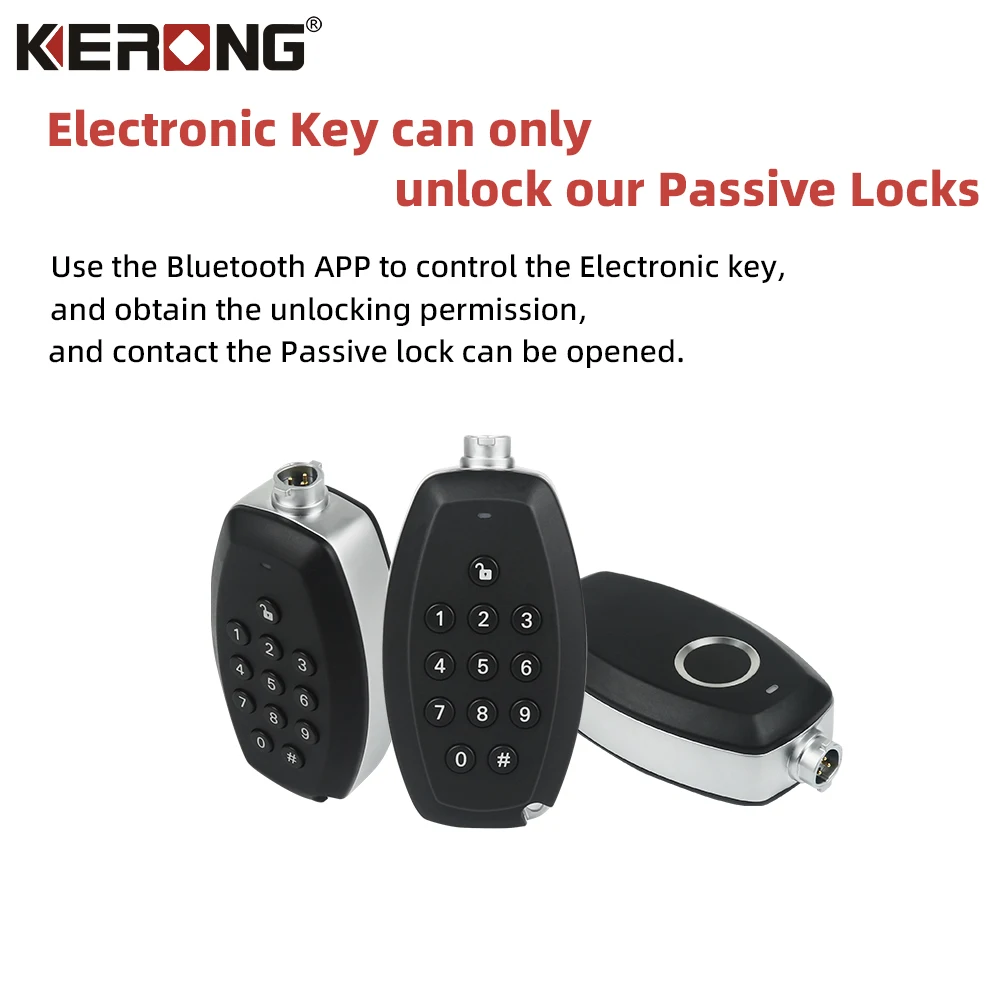

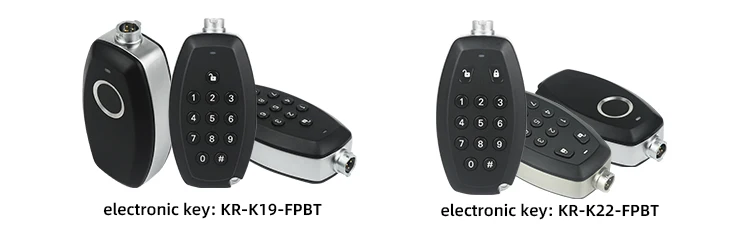

Electronic Keys
Product Name | Electronic Key | ||
Model Name | KR-K19-FPBT | KR-K22-FPBT | |

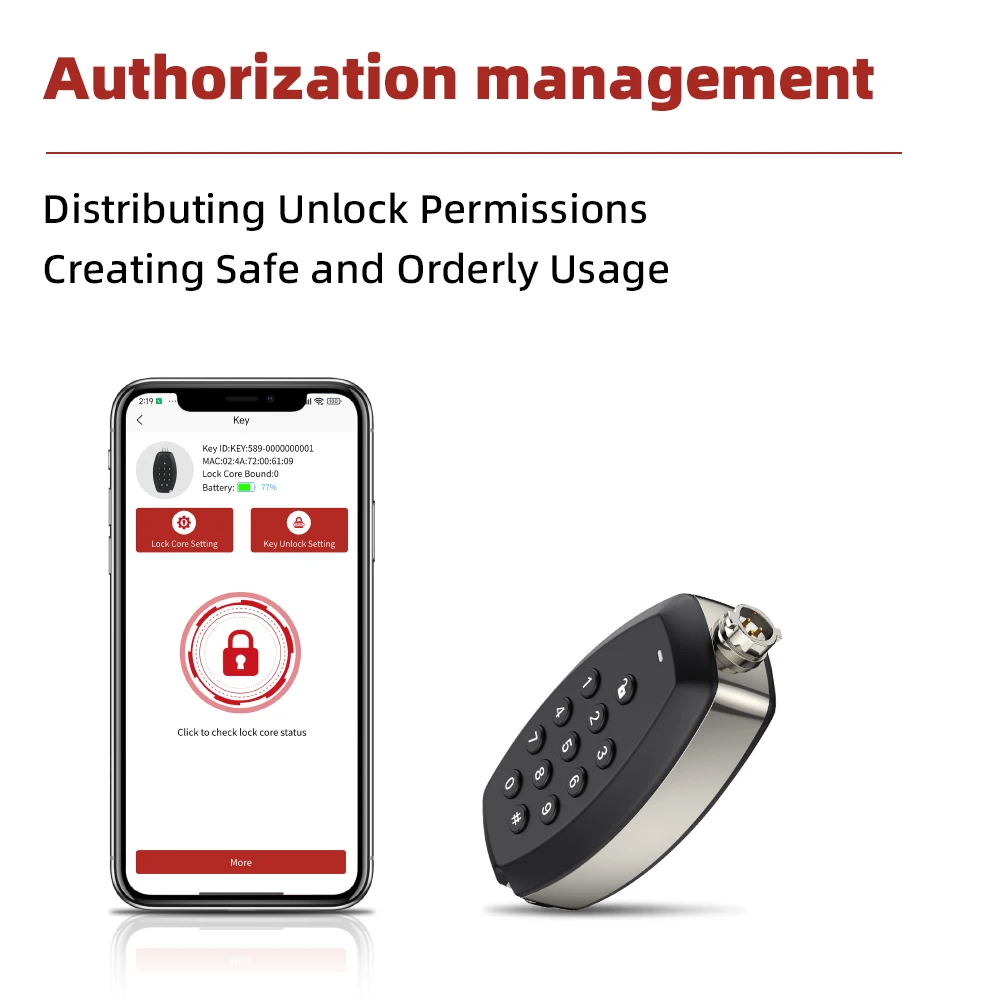

Unlock Method | Fingerprint+password +KERONG lock Bluetooth APP | ||
Lock and Unlock | After key reset, electronic lock locks automatically | Both unlocking and locking require the electronic key | |
button | Only the “Unlock” button | Both "unlock" and ”lock“ button | |
Dimension | 84*44*24.8mm | ||
Material | Zinc Alloy+ABS+20%PC | ||
Type of an External interface | Type-C | ||
Battery Type & Capacity | 3.7V 700mAh Rechargeable lithium-ion battery | ||
Pair able lock core capacity | 10000 | ||
Indicates the number of logs | 10000 | ||
Fingerprint /password capacity | 50/50 | ||
Wide Range of Scenarios

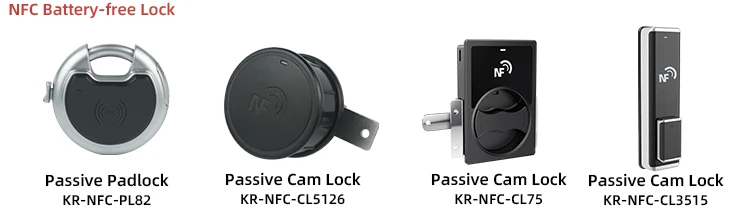

More Battery-free Lock Products
Passive Lock Cylinder
Passive Padlock
Others Passive Lock

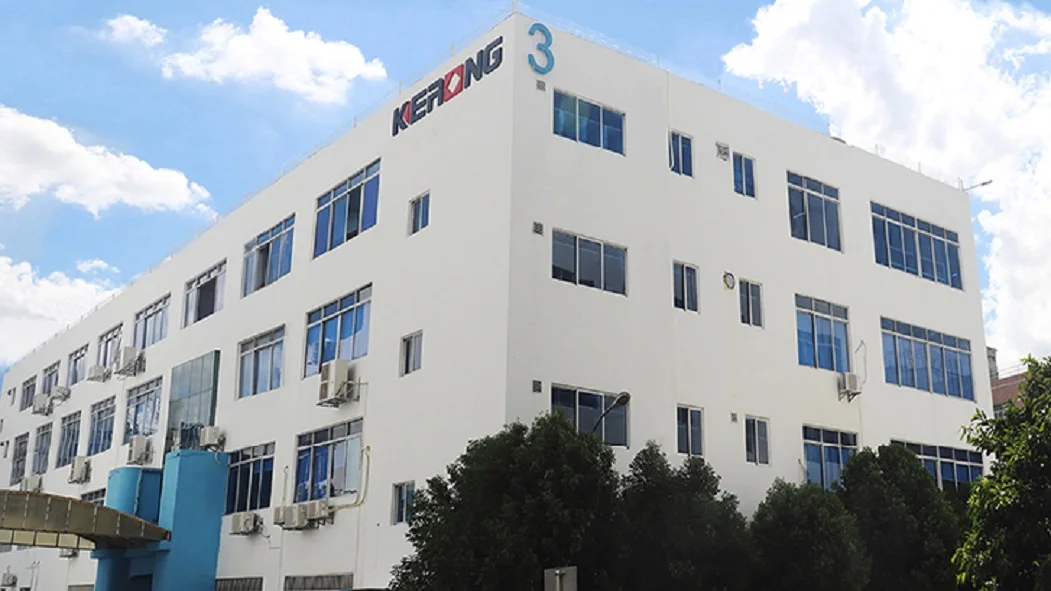

Company Profile

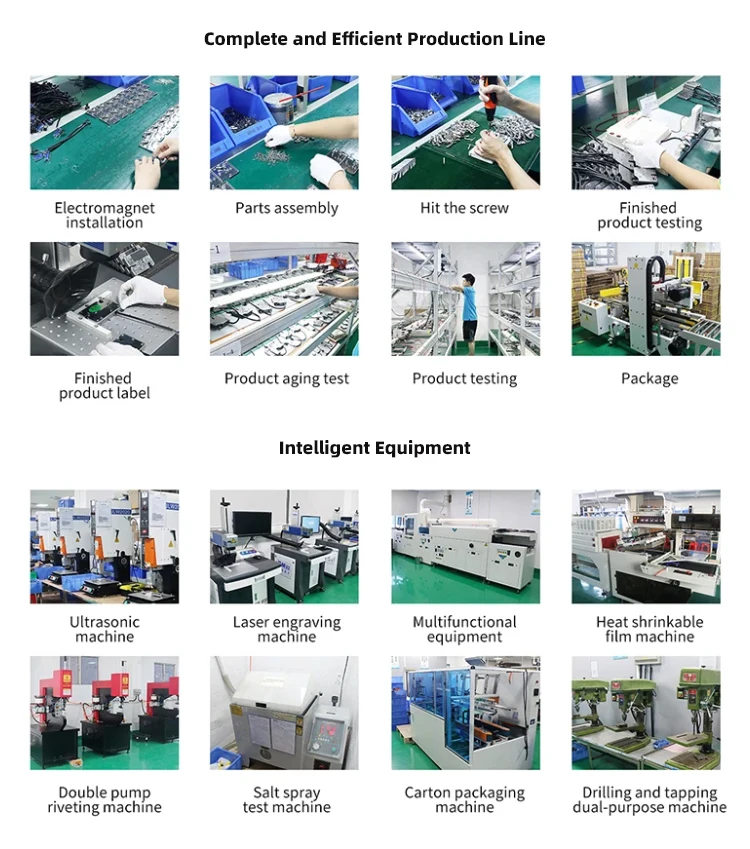

VR in production workshops（The third floor）
VR
WHY CHOOSE US

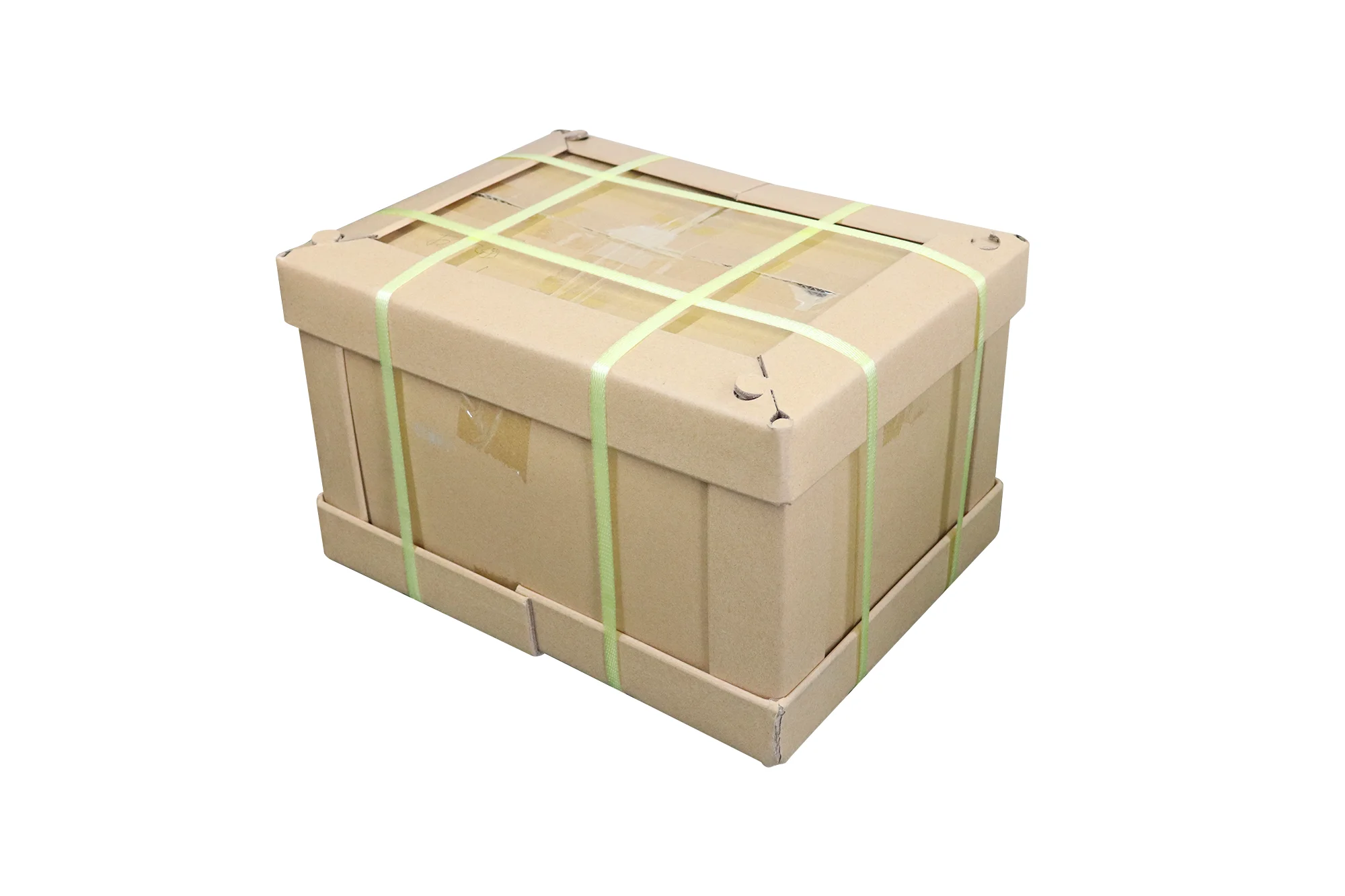

Packaging&Shipping
