Product Overview
Description

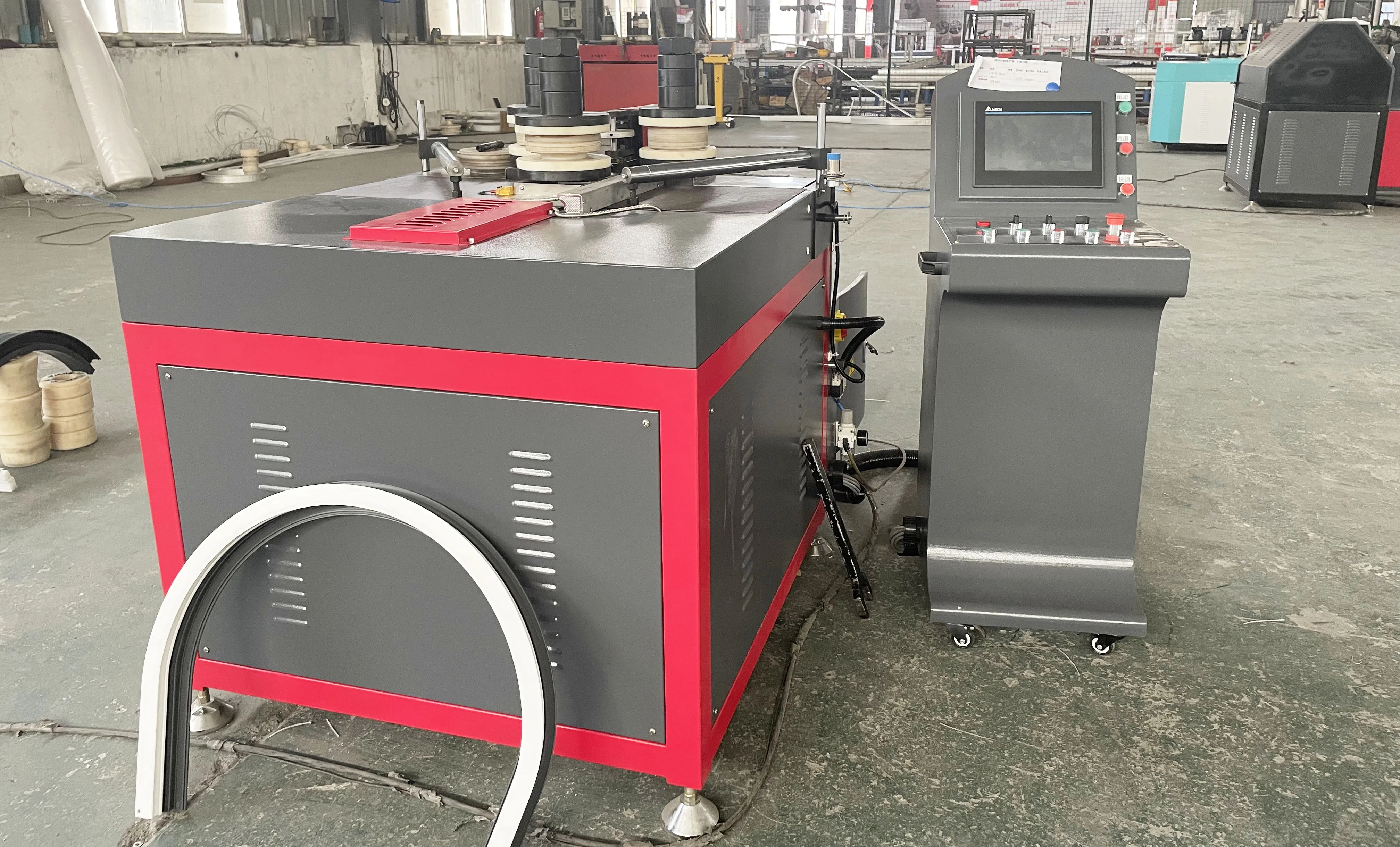

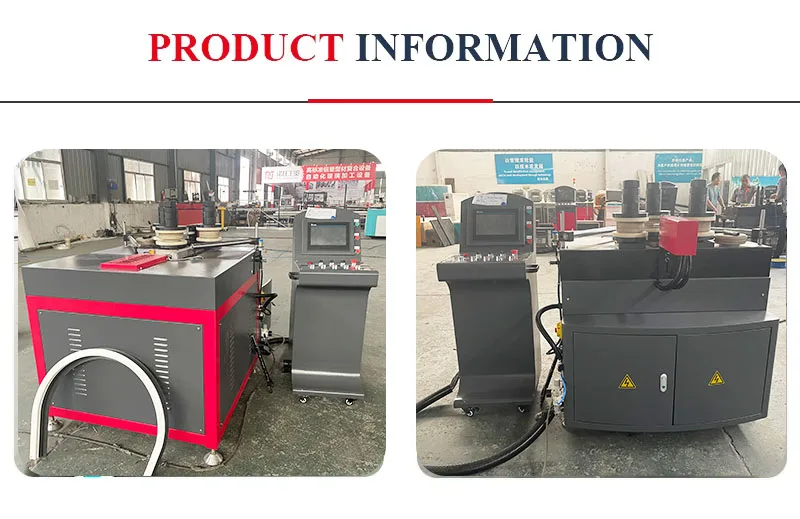

Fully automatic CNC bending machine (LWYJ-20T) (horizontal)
Equipment advantages：
Suitable for bending and arc processing of various metal profiles or special-shaped profiles (aluminum alloy door and window profiles, insulated bridge profiles).
This machine adopts a fully automatic numerical control system and specialized bending software, with simple and convenient operation. It adopts horizontal bending and is suitable for materials with long or large shapes (heavy materials)
Suitable for bending and arc processing of various metal profiles or special-shaped profiles (aluminum alloy door and window profiles, insulated bridge profiles).
This machine adopts a fully automatic numerical control system and specialized bending software, with simple and convenient operation. It adopts horizontal bending and is suitable for materials with long or large shapes (heavy materials)
Equipment advantages：
Can perform system compensation based on the rebound data of the profile, with high processing accuracy.Adopting a CNC hydraulic system control to ensure precise positioning.
Its product performance meets the standards of advanced European CNC arc bending machines.
Equipment configuration
Control System: Mitsubishi PLC Controller (with good stability)

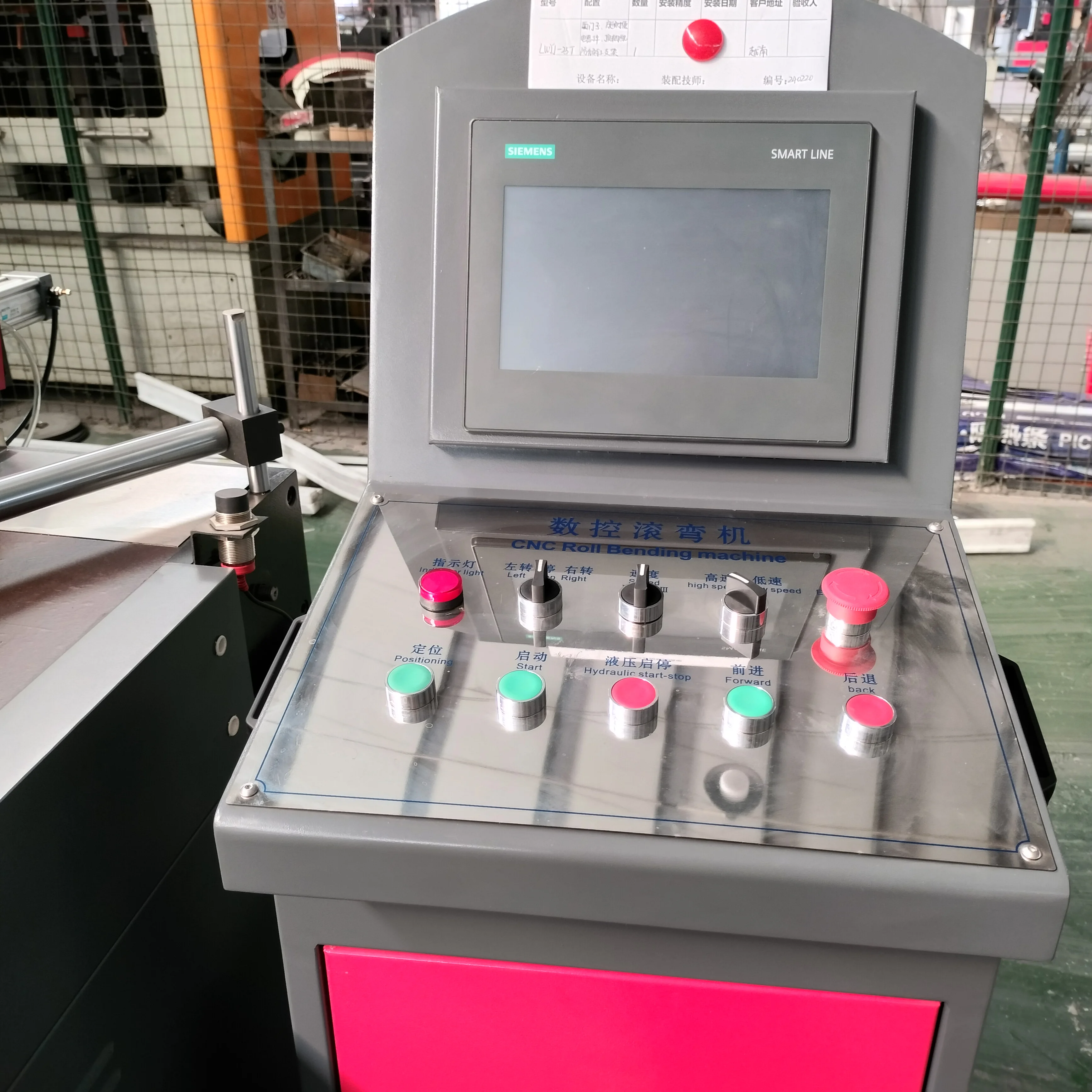

2. Operation screen: Delta ten inch touch screen (easy to use)
3 Oil Research Hydraulic System
4. Deceleration device: Taiwan Emerson
5 grating ruler: Guangzhou Xinhe, a well-known domestic brand
6 Electrical components: Delixi
7 Detection switches and limit switches: Taiwan Jiazhun
2. Operation screen: Delta ten inch touch screen (easy to use)
3 Oil Research Hydraulic System
4. Deceleration device: Taiwan Emerson
5 grating ruler: Guangzhou Xinhe, a well-known domestic brand
6 Electrical components: Delixi
7 Detection switches and limit switches: Taiwan Jiazhun
Total power: | 5.2KW. |
Power supply: | three-phase four wire AC380V, 50HZ |
Roller speed: | 3. 0-15 revolutions per minute. |

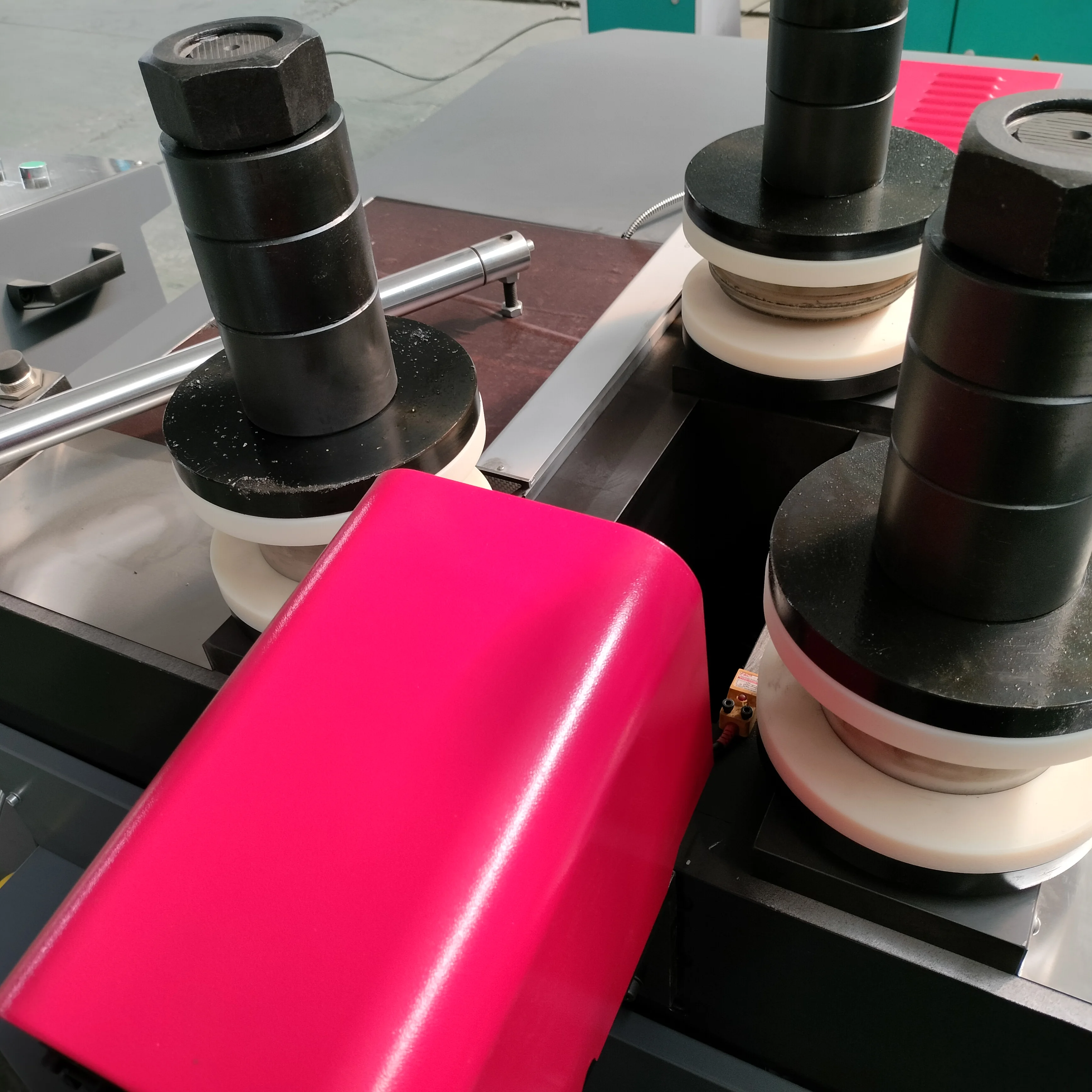

Maximum diameter of roller mold: | 230mm, material: nylon. |
Roller diameter: | 65/mm (customizable) (40 chrome, heat-treated). |
Fixed axis center distance: | adjustable from 350-750mm. |
Y-axis oil cylinder thrust: | 20 tons. |
Y-axis oil cylinder positioning accuracy: | ± 0.1mm. |
Maximum torque on the X-axis: | 2000 Newtons Meter * 3=6000 Newton Rice. |
Y-axis feed stroke: | 0-220mm. |
Roller shaft length: | 150mm. |
Processing range of profiles: | height 150 * width 150mm |
X-axis positioning accuracy:< 0.5mm | The Y-axis repeat positioning accuracy is ± 0.1mm. |
Minimum processing radius: | 100mm (inner arc) one-time bending forming (depending on the actual size of the material). |
Dimensions of the operation box: | length * width * height=500 * 510 * 1500mm. |
Host dimensions: | length * width * height=1300 * 1100 * 1500mm. |
Total weight: | 1000kg. |

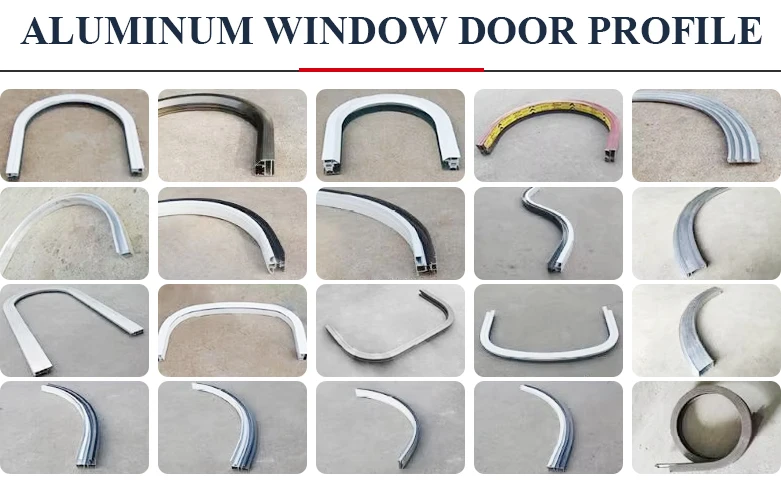

Aluminum window door profile：
1. Suitable for Suitable for bridge aluminum, aluminum-plastic aluminum profiles, aluminum wrapped wood, curtain walls, frame materials and other profiles that can be bent forward and sideways
2. Can be bent in U/C/S. circular, elliptical, square, spiral, irregular and other shapese aluminum, aluminum-plastic aluminum profiles, aluminum wrapped wood, curtain walls, frame materials and other profiles that can be bent forward and sideways
Can be bent in U/C/S. circular, elliptical, square, spiral, irregular and other shapes
2. Can be bent in U/C/S. circular, elliptical, square, spiral, irregular and other shapese aluminum, aluminum-plastic aluminum profiles, aluminum wrapped wood, curtain walls, frame materials and other profiles that can be bent forward and sideways
Can be bent in U/C/S. circular, elliptical, square, spiral, irregular and other shapes

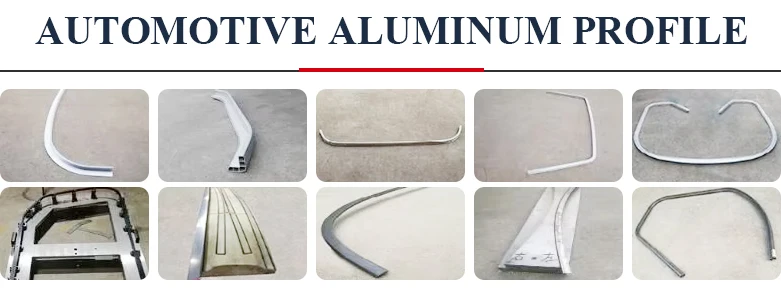

Automotive aluminum profile：
Suitable for bending profiles such as car bumpers, RV windows, dynamic door profiles, electric vehicle frames, and truck glass grooves

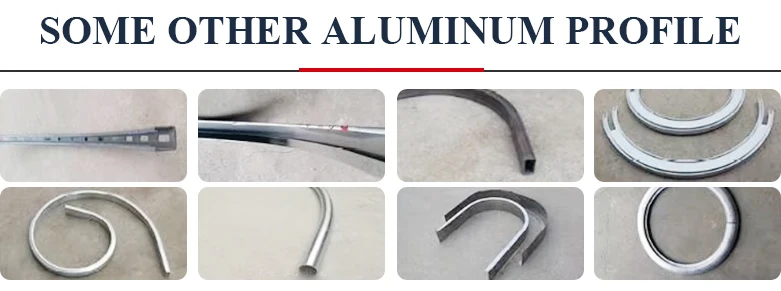

Some other aluminum profile：
Suitable for tunnel C-shaped steel, stainless steel bathroom profiles, square steel pipes, indoor partition materials, spiral, stainless steel, elevators, ship observation windows

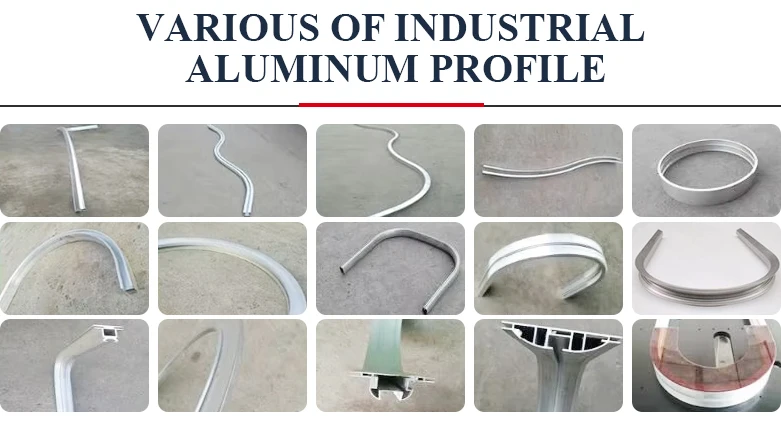

Bending machine:
Bending machine Can bend U-shaped, C-shaped, S-shaped, circular, elliptical, multi radius forming, etc
Bending machine suitable for bending aluminum profiles, PVC, UPVC, and stainless steel profiles
First-class service
Smooth communication, excellent service and an experienced team can support your special customization throughout the order process.
Meet customer requirements
In the whole order process, fully cooperate withtherequiremenls of customers.We can support yourspecial requirements, such
aspacking, loading.coating,free samples and so on.
aspacking, loading.coating,free samples and so on.
RFQ:
1. Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2. Q:Where is the nearest airport to your company?
A: JINAN Airport.
3. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius Value
- The pipe material
- Bends Number on one pipe
- The drawings if possible
4. Q: What certificate do you have?
A: We have both ISO and CE certificate.
5. Q:How about your service?
A: Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.
A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2. Q:Where is the nearest airport to your company?
A: JINAN Airport.
3. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius Value
- The pipe material
- Bends Number on one pipe
- The drawings if possible
4. Q: What certificate do you have?
A: We have both ISO and CE certificate.
5. Q:How about your service?
A: Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.
