Jiabao factory direct sale feed hopper incline screw conveyor for industry
US $180.00-$780.00
Factory Direct Sale High Strength Bearing Flanged End Cap With 5 Labyrinth Seal Kits Heavy Duty Idler Belt Conveyor Roller
- Category: >>>
- Supplier: Hefei Hengan Conveyor Machinery Co. Ltd.Hefei Ltd.
Share on (1601356296559):
Product Overview
Description
FEATURES AT A GLANCE
PRODUCT DESCRIPTION
product name | bearing housing with labyrinth seals | ||||||
bearing housing material | SPCC/SPHC/SPHE steel | ||||||
seal material | Nylon6 / POM/ABS | ||||||
standard | DIN, GB, ISO, JIS ,CEMA | ||||||
outside dia of bearing housing | 50mm,60mm,63.5mm,76mm,89mm,108mm,114mm,127mm,133mm,140mm,152mm,165mm,178mm,194mm,219mm | ||||||
bearing size | 6203,6204,6205,6305,6306,6307,6308,6309,6310,6312 | ||||||
bearing housing thickness | 1.7mm,2.0mm,2.5mm,3.0mm,3.5mm,4.0mm,5.0mm,6.0mm | ||||||
application | Conveyor Roller /Idler | ||||||
Product Overview

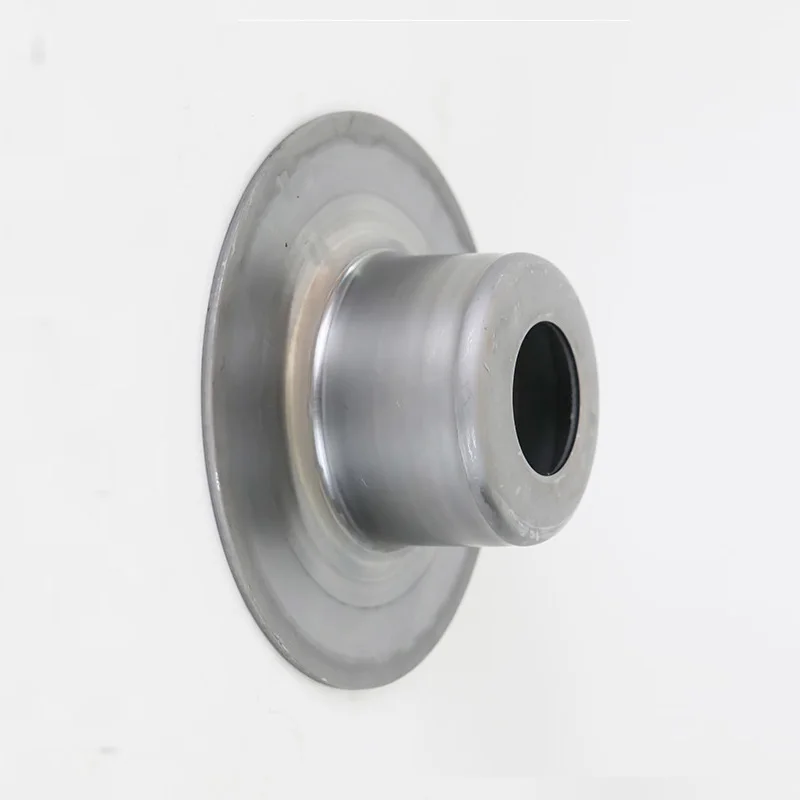

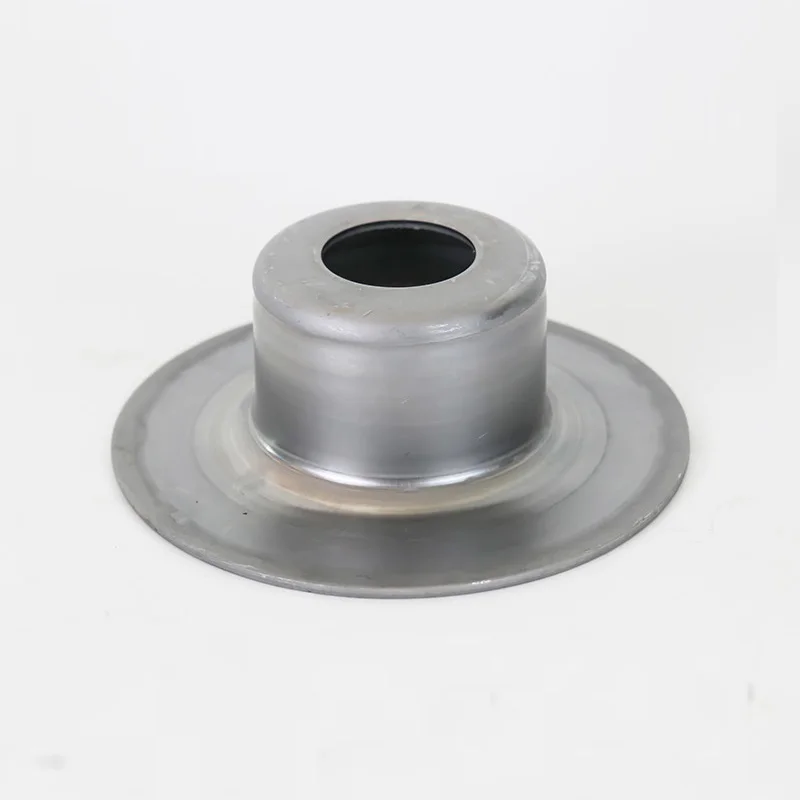

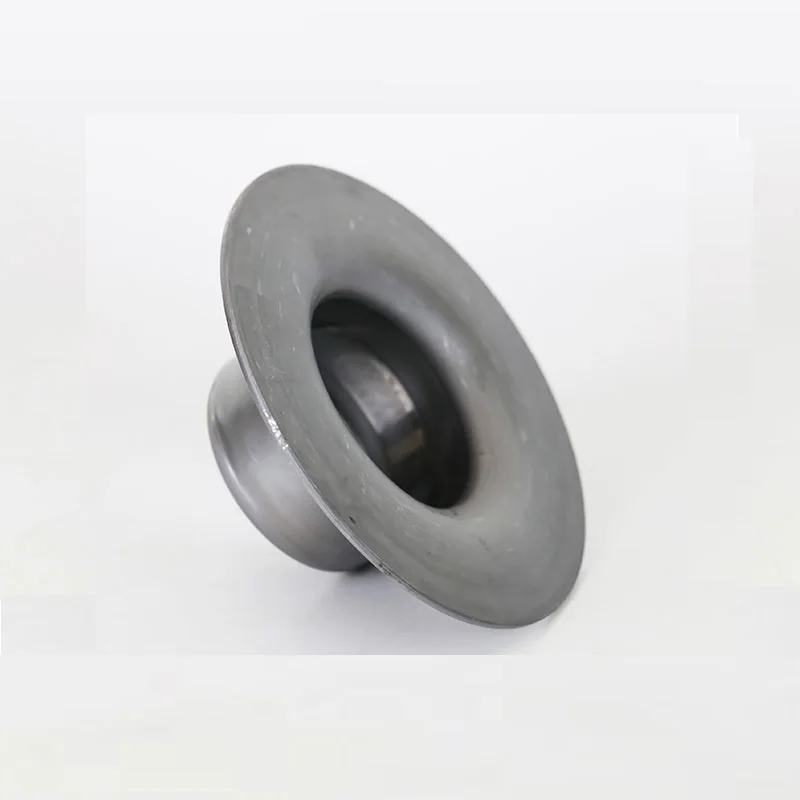

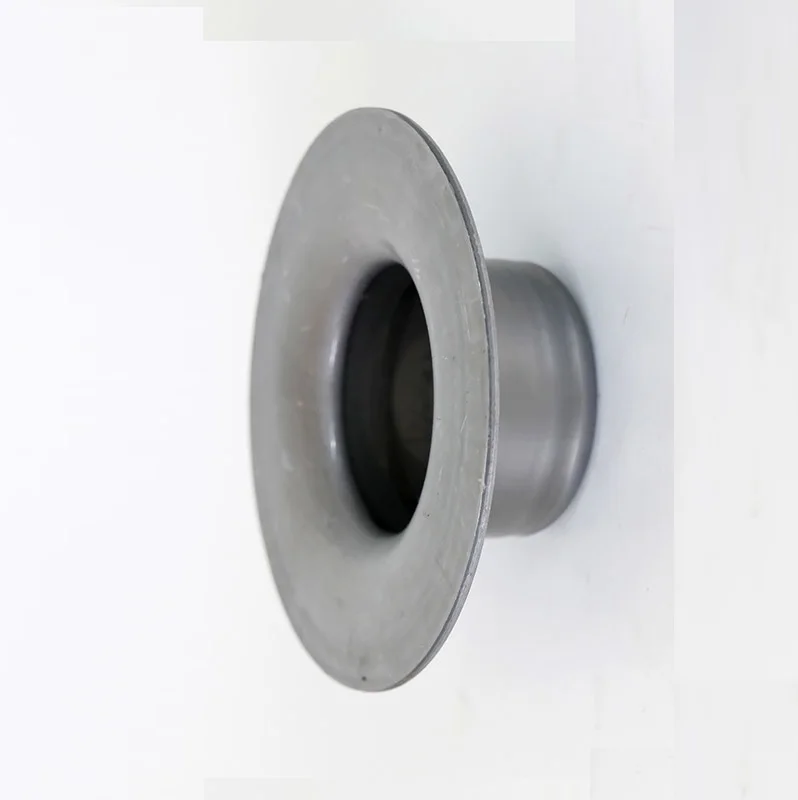

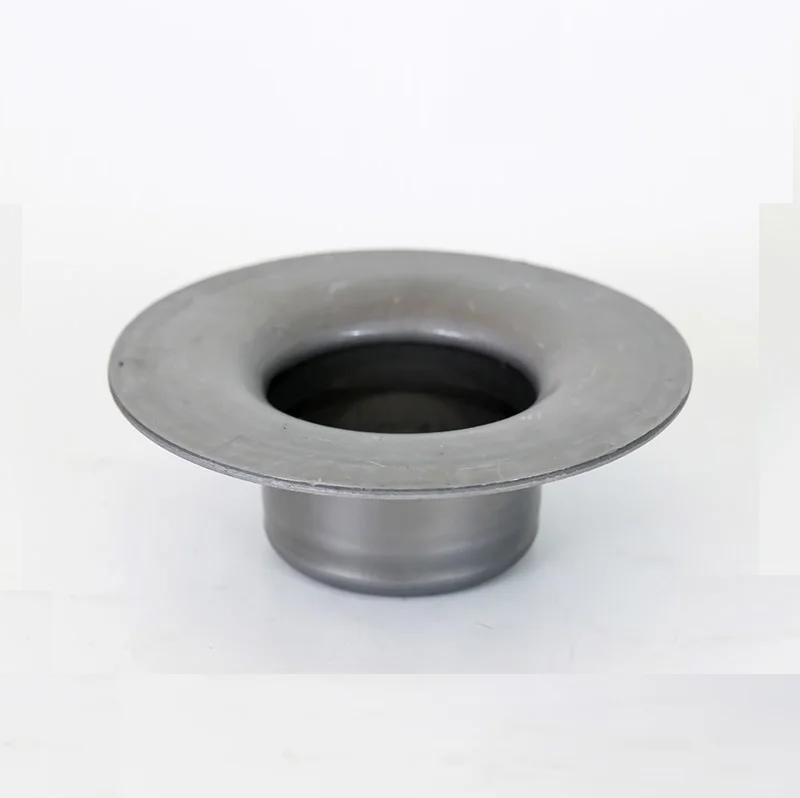

Mining Conveyor Roller Steel Bearing Cover With Labyrinth Seals
The flange bearing end cap is easy to install, remove and adjust the bearing clearance, and the sealing performance is also good. So it is widely used
One of the key advantages of pressed steel bearing housing is its strength. The stamped steel used in these housing is able to withstand significant loads and high speeds without deforming or breaking. This makes them ideal for use in heavy machinery and equipment, as well as in harsh environments where other materials may fail.
We are manufaturer of Idler Roller Bearing Housing to our customer China and It has extensive usage in different industrial application for various purpose. these items are preciously process using advanced machinery and technology these parts are available in various types of shapes sizes and pattern fulfill our diffrent needs of our clients.
DRAWING
PRODUCT SPECIFICATIONS
bearing size | pipe outside dia/mm | shaft dia/mm | D1 | D2 | D3 | D4 | H | H1 |
63 | 59.5 | 2.0/2.5 | ||||||
76 | 72 | 2.0/2.5 | ||||||
89 | 83/84/85 | 2.0/2.5 | ||||||
102 | 97 | 2.5/3.0 | ||||||
108 | 103 | 2.5/3.0 | ||||||
114 | 109/110 | 2.5/3.0 | ||||||
127 | 121/122 | 2.5/3.0 | ||||||
133 | 127/128 | 2.5/3.0 | ||||||
140 | 134/135/136 | 2.5/3.0 | ||||||
152 | 146/147 | 2.5/3.0 | ||||||
159 | 152/153 | 2.5/3.0 | ||||||
89 | 83/84/85 | 2.0/2.5 | ||||||
102 | 97 | 2.5/3.0 | ||||||
127 | 121/122 | 2.5/3.0 | ||||||
133 | 127/128 | 2.5/3.0 | ||||||
140 | 134/135/136 | 2.5/3.0 | ||||||
152 | 146/147 | 2.5/3.0 | ||||||
159 | 152/153 | 2.5/3.0 | ||||||
127 | 121/122 | 3.0/4.0 | ||||||
133 | 127/128 | 3.0/4.0 | ||||||
159 | 152/153 | 3.0/4.0 | ||||||
178 | 172 | 3.0/4.0 | ||||||
197 | 188 | 3.0/4.0 | ||||||
89 | 25 | 83/84/85 | 2.5/3.0 | |||||
102 | 97 | 2.5/3.0 | ||||||
108 | 103 | 2.5/3.0 | ||||||
127 | 121/122 | 3.0/4.0 | ||||||
133 | 127/128 | 3.0/4.0 | ||||||
159 | 152/153 | 3.0/4.0/5.0 | ||||||
178 | 172 | 3.0/4.0/5.0 | ||||||
194 | 188 | 3.0/4.0/5.0 | ||||||
89 | 30 | 83/84/85 | 3.0/4.0 | |||||
102 | 97 | 3.0/4.0 | ||||||
108 | 103 | 3.0/4.0 | ||||||
127 | 121/122 | 3.0/4.0 | ||||||
133 | 127/128 | 3.0/4.0 | ||||||
159 | 152/153 | 3.0/4.0/5.0 | ||||||
178 | 172 | 3.0/4.0/5.0 | ||||||
194 | 188 | 3.0/4.0/5.0 | ||||||
127 | 35 | 121/122 | 3.0/4.0/5.0 | |||||
133 | 127/128 | 3.0/4.0/5.0 | ||||||
159 | 152/153 | 3.0/4.0/5.0 | ||||||
178 | 172 | 3.0/4.0/5.0 | ||||||
194 | 188 | 3.0/4.0/5.0 | ||||||
219 | 213 | 3.0/4.0/5.0 | ||||||
127 | 121/122 | 3.0/4.0/5.0 | ||||||
133 | 127/128 | 3.0/4.0/5.0 | ||||||
159 | 152/153 | 3.0/4.0/5.0 | ||||||
178 | 172 | 3.0/4.0/5.0 | ||||||
194 | 188 | 3.0/4.0/5.0 | ||||||
219 | 213 | 3.0/4.0/5.0 | ||||||
133 | 127/128 | 3.0/4.0/5.0 | ||||||
159 | 152/153 | 3.0/4.0/5.0 | ||||||
194 | 188 | 3.0/4.0/5.0 | ||||||
219 | 213 | 3.0/4.0/5.0 | ||||||
178 | 50 | 172 | 3.0/4.0/5.0 | |||||
194 | 188 | 3.0/4.0/5.0 | ||||||
219 | 213 | 3.0/4.0/5.0 |

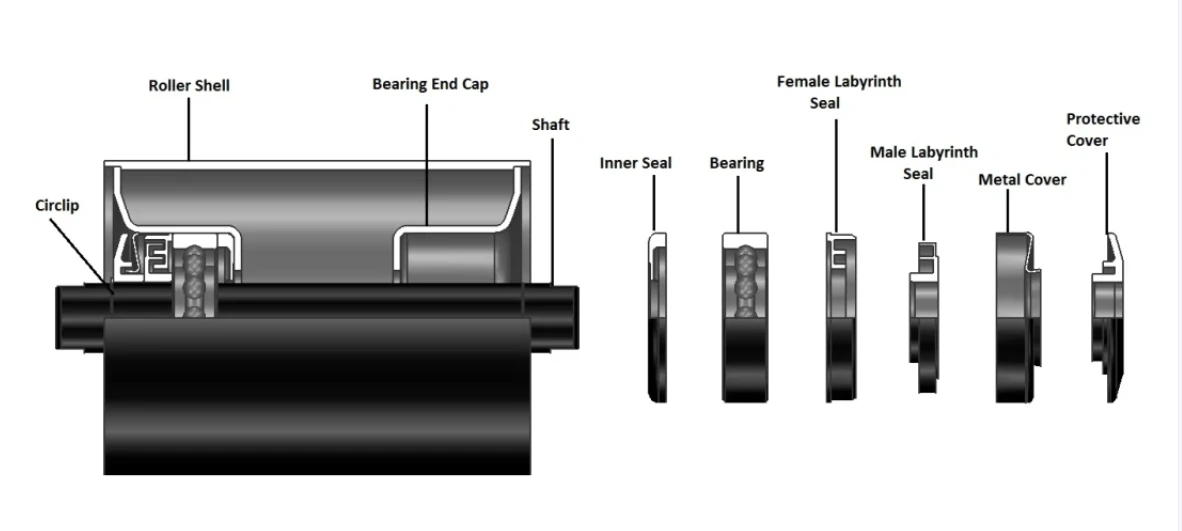

INSTALL DRAWING
APPLICATION
FACTORY STRENGTH
Hefei Hengan has 10 years rich experience in conveying industry. Our quality is endorsed by International CE,ISO certificate institution.We have professional designing team, quality control team and service team to guarantee our good quality and after-sales service. Our products are popular in the Southeast Asia,Europe, USA, Australia, New Zealand, Mexico,the Middle East Africa and other regions in the world.
FACTORY SHOW
CERTIFICATES
SALES AND SERVICE NETWORK
FAQ
Q1：How can I know conveyor roller bearing end cap type and size is that I need?
A1：Contact our sales, add whatsapp 008618095661050 or email haconveyor@gmail.com for roller detail and your requirement.
Q2 : Can you send samples for checking quality firstly?
A2 : Yes, we can send free samples to you.
Q3 : What trade terms do you support?
A3 : We accept FOB China port, CIF, EXW.
Q4 : What payment terms do you accept?
A4 : We accept transfer by T/T, L/C at sight.
Q5 : What about your delivery time?
A5 : 500 pcs is 3 nature days, more quantity needs discuss in detail.
