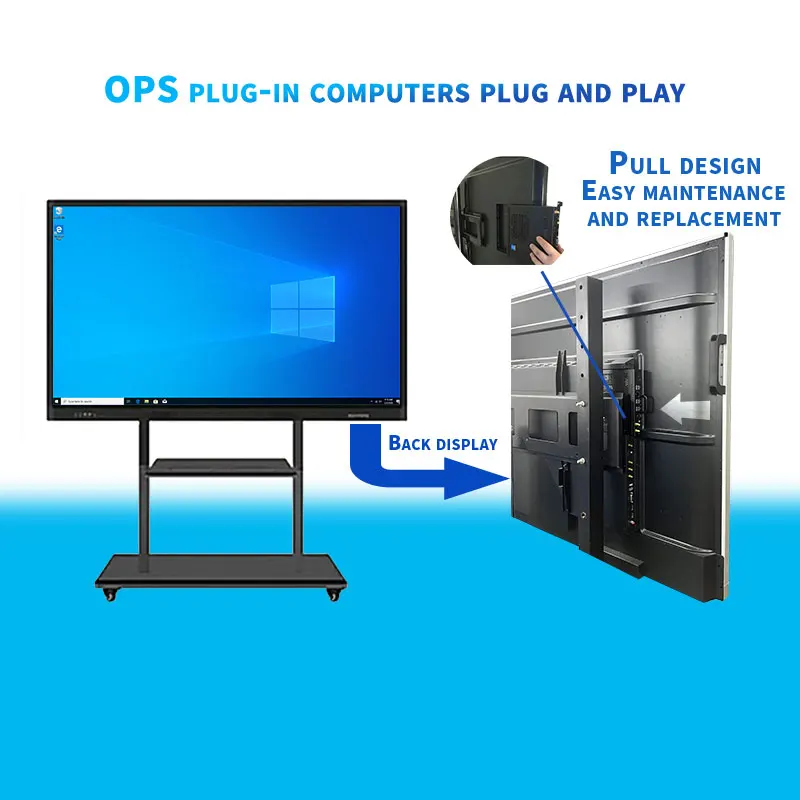

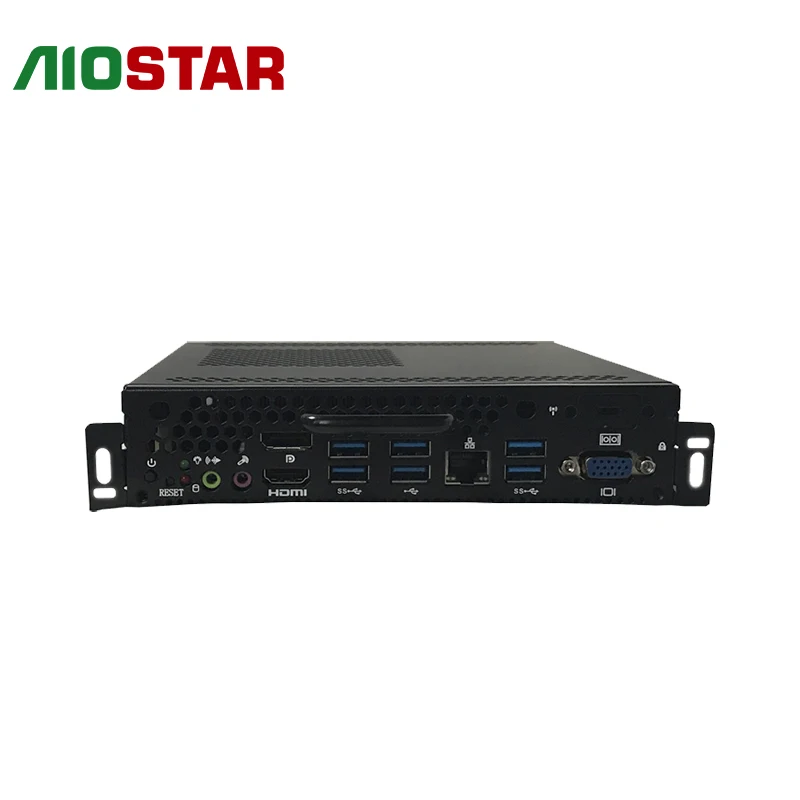

6th Gen i5 H110/Z170 embedded Industrial ops mini pc computer for school smart board,interactive white board

Processor

CPU

Intel Core i3-6100 (3.7GHz/3MB/HD530/14nm/51W/LGA1151)

Chipset

Intel® H110/Z170

BIOS

AMI 32Mbit, support diskless boot, wake on LAN, power-on boot, watchdog etc.

Memory

Capacity

4GB SO-DIMM DDR4 2133-2400MHz memory ,  Max.32GB

Store

SATA interface

MINI PCIE

2.5  5400rpm 500G

1xMini PCIE

Display

Graphics chip

Output

CPU integrated HD Graphics

VGA+HD-M interface   single / dual display,(synchronous/asynchronous display)

1 × VGA   (Max. resolution:1920×1080)

1 ×HD-M interface   (Max. resolution:4096x2304)

1  x DP      ( Max. resolution :4096x2304   optional)

Internet

Lan

WIFI

1 × RTL8111E  10/100/1000M(RJ45 LAN)

1 x WIFI Module support 802.11b/g/n (Mini PCIE half card)

I/O

USB 3.0

USB 2.0

COM

Power button

Reset

OPS interface

LED light

DC JACK

Audio

4x  USB3.0

2× USB2.0

1x  COM

1 × power button

1 × Reset button

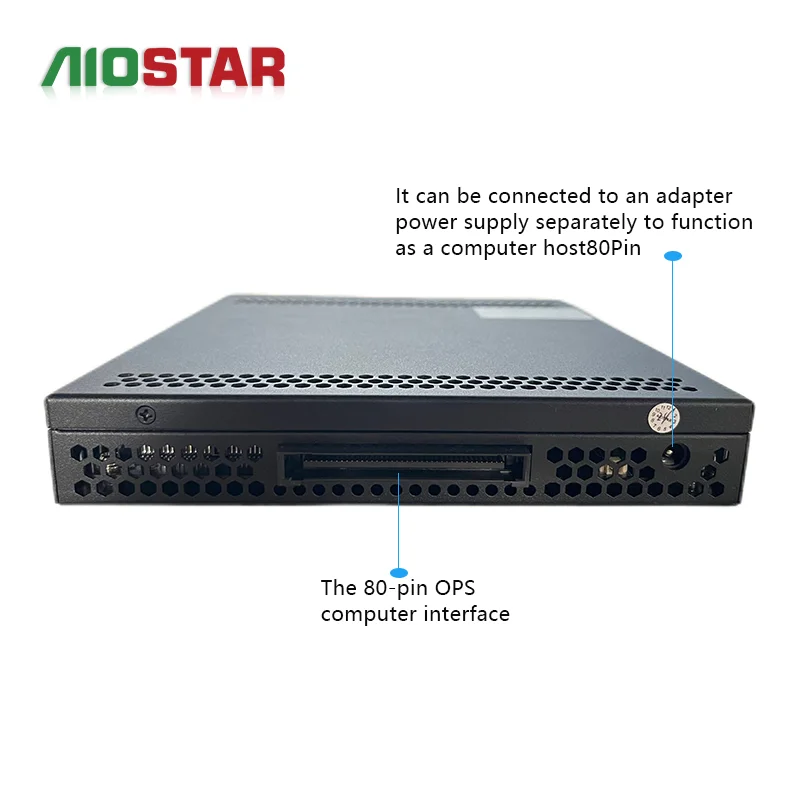

 1 × OPS interface (80pin)

            1 x Power LED & 1x HDD LED

1 × DC JACK

1 × LINE-OUT &  MIC-IN, Integrated 6 audio channel with ALC662 chip

Power

Input

Rated power

DC  12~19V

90W

Watchdog

Output

Interval

Interrupts, system restart

L255 time interval

Physical parameters

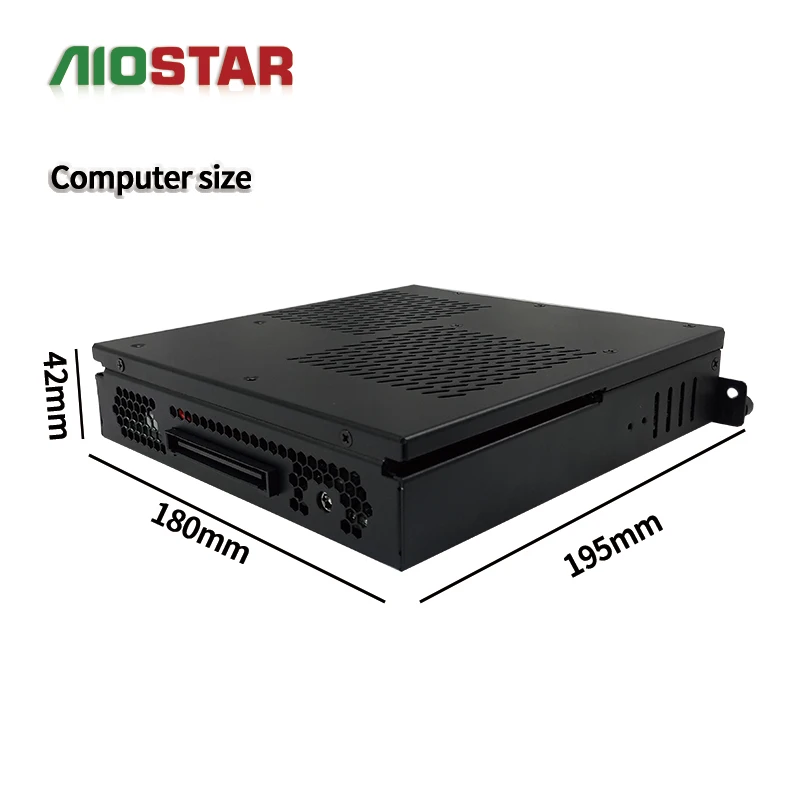

Dimensions

180mm (L) x 195mm (W) x 42mm (H)

Environment

Temperature

Humidity

Working temperature:0°C ~50°C    Storage temperature:-20~70°C

5%~90% No condensation

Operating system

Vision

Windows 10/Windows 7 / windows8 / Linux

Sales Model

Specification

 AOS-SOH11C45B

Intel Celeron G3900   2.8GHz     4G Memory   512G SSD

 AOS-SOH11D45B

Intel Pentium G4400  3.3GHz     4G Memory   512G SSD

AOS-SOH11I45B

Intel Core i3-6100    3.7GHz     4G Memory   512G SSD

 AOS-SOH11F45B

Intel Core i5-6500    3.2GHz     4G Memory   512G SSD

 AOS-SOH11J45B

Intel Core i7-6700    3.4GHz     4G Memory   512G SSD
