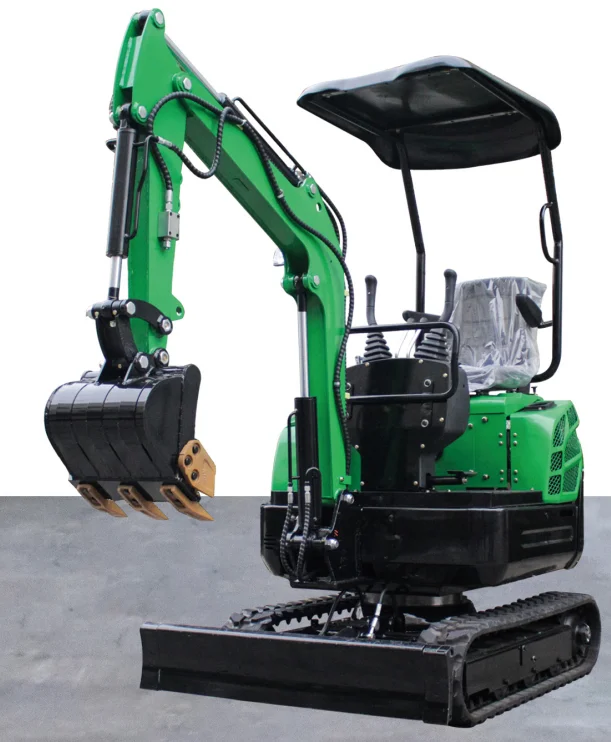

MODEL | KV13-A | |
Bucket capacity | cbm | 0.025 |
Chassis width | mm | 1100 |
Track length | mm | 1300 |
Gradeability | degree | 40 |
Chassis ground clearance | mm | 385 |
Track width | mm | 180 |
Volume of fuel tank | L | 3.5 |
Overall dimension | mm | 2200*1100*2200 |
Transport length | mm | 2400 |
Excavatr height | mm | 2200 |
Hydraulic flow | L/Min | 40 |
Hydradulic tank capacity | L | 16 |
Working pressure | Mpa | 16 |
Engine | KOOP 192F Diesel Engine(Euro 5) | |
Engine power | kw | 7 |
EPA engine optional | Briggs&Stratton gasoline/13.5hp | |

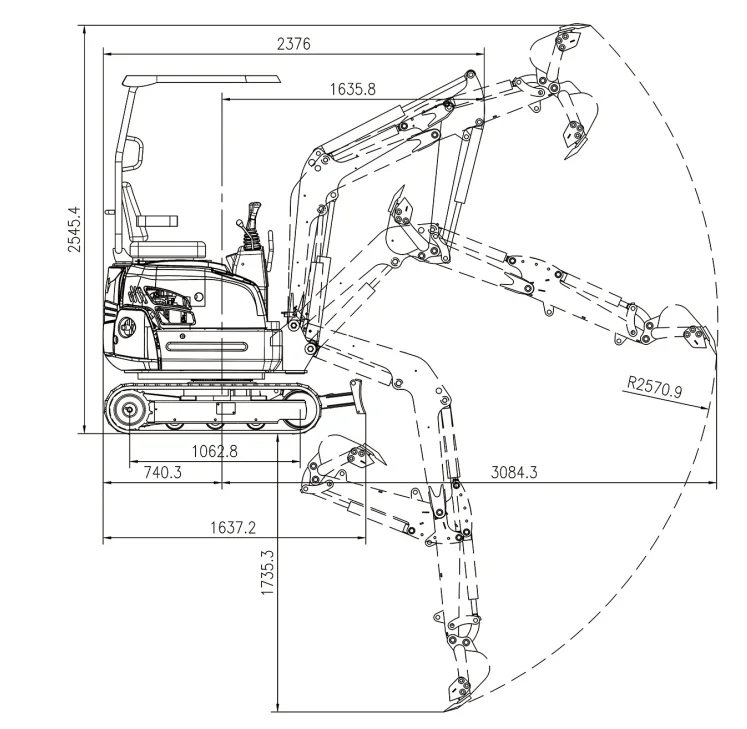

Max.digging height | mm | 2550 |
Max. dumping height | mm | 1710 |
Max.digging depth | mm | 1740 |
Max.digging radius | mm | 3100 |
Turning radius | mm | 1635 |
Bucket excavating force | KN | 11 |
Operating weight | KG | 1100 |

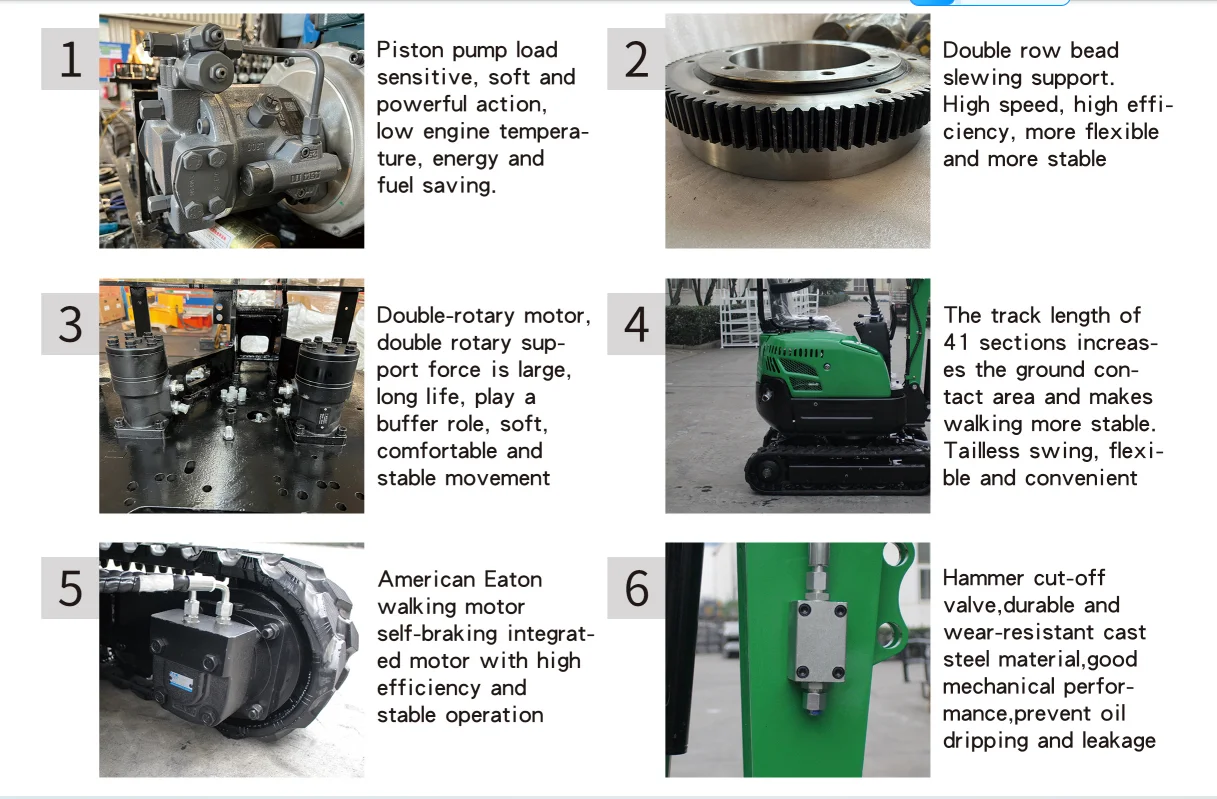

Configuration | Valve:beifang brand | |
Pump:K Jun brand | ||
Pison pump | ||
Eaton Walking Motor |
