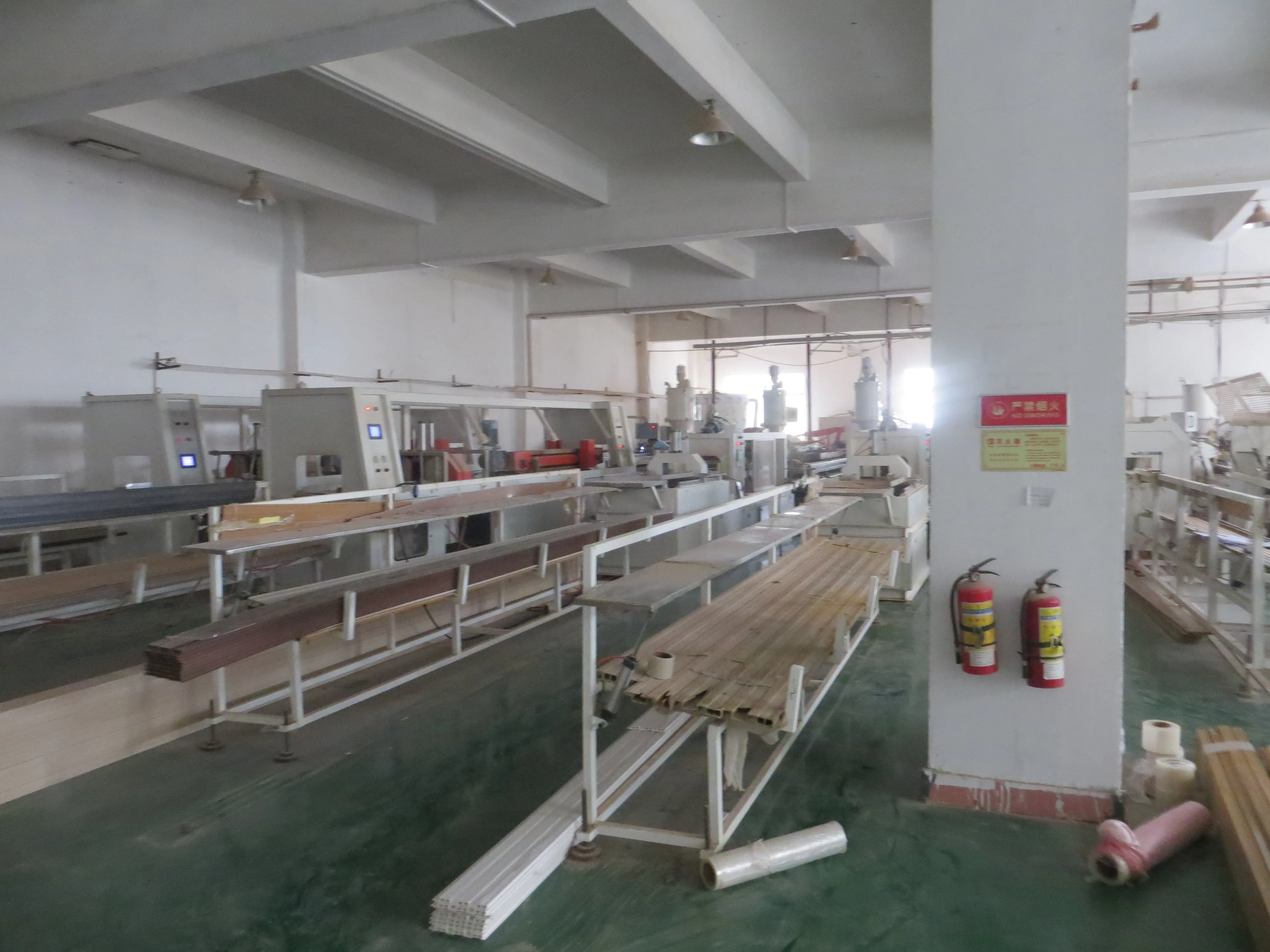

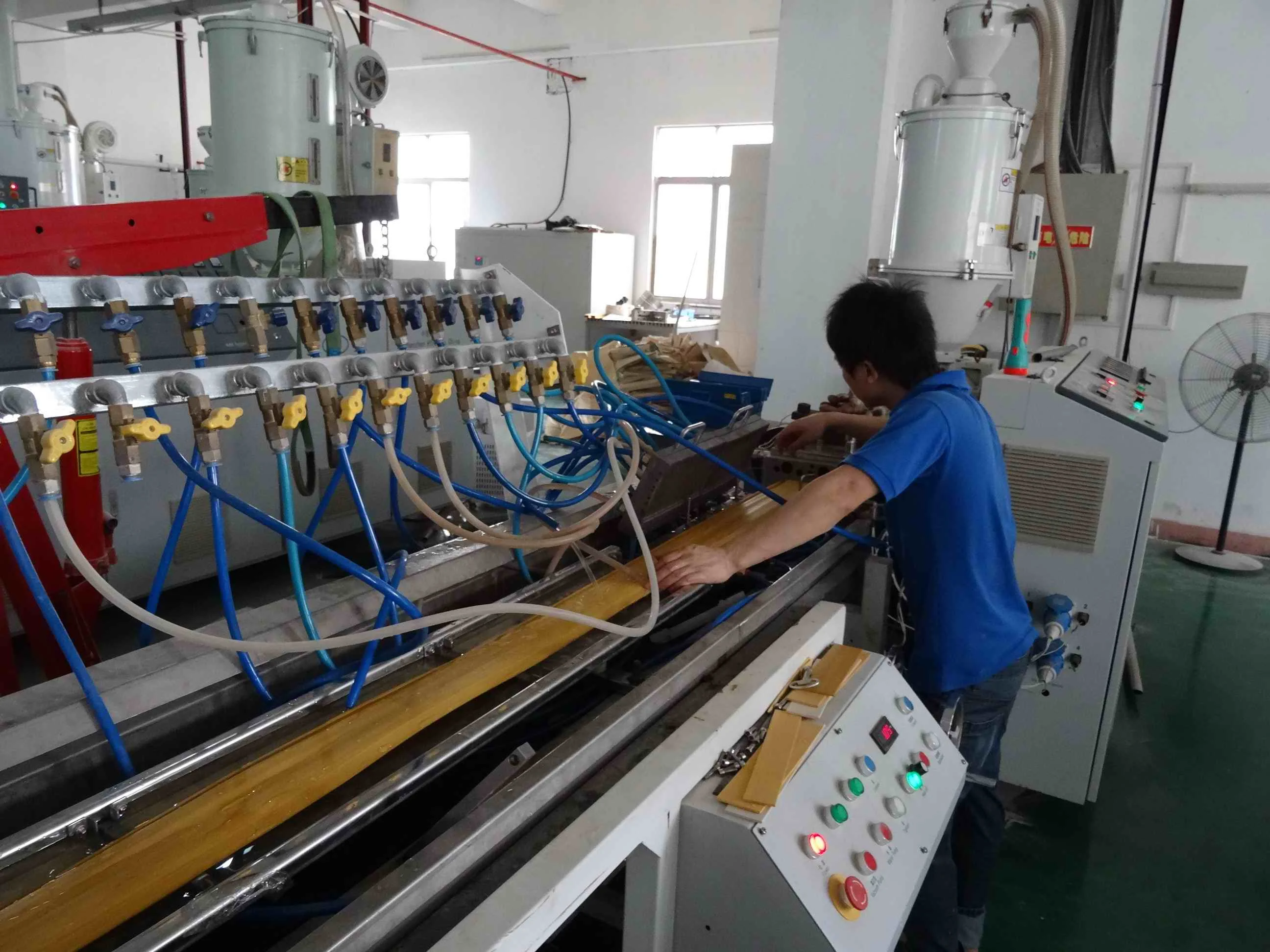

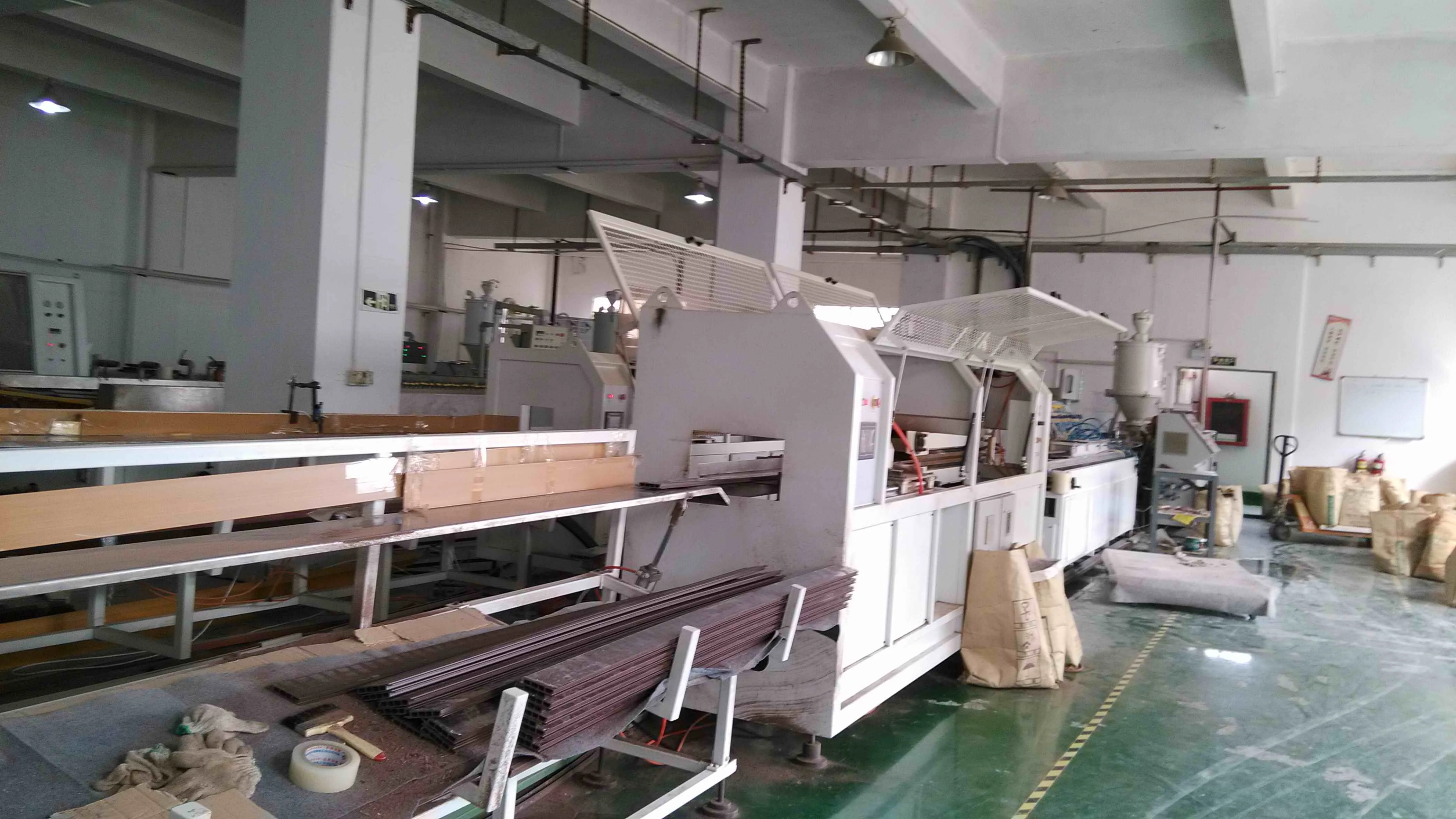

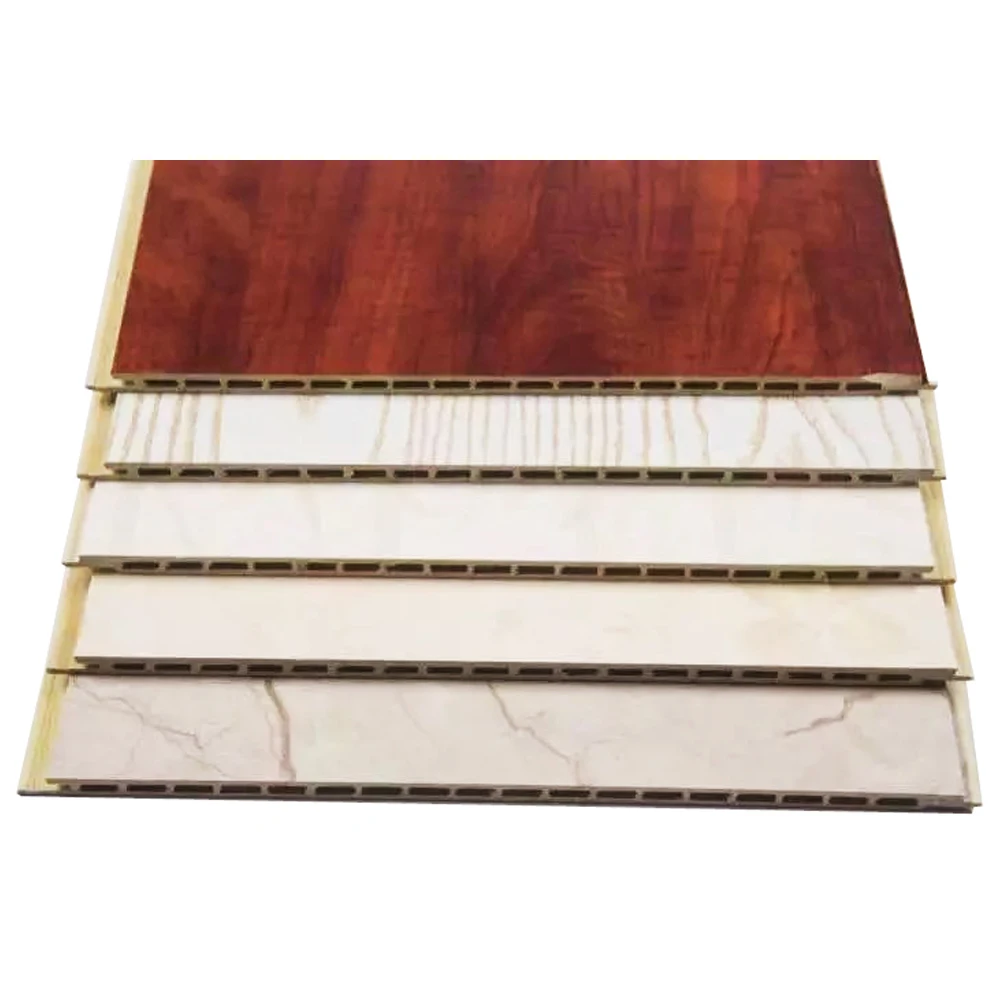

pvc wood veneer surface board production line PVC WPC decorative great wall panel ceiling board production line
- Category: >>>
- Supplier: Shenzhen HYPET Co. Ltd.Shenzhen Ltd.
Share on (1601356996178):
Product Overview
Description
Product Description
WPC Decorative panel production line
WPC Outdoor decking production line
WPC door frame production line
WPC Door panel production line
Marble plastic sheet production line
Series Lines & Data
Profile & Sheet production ine series | ||||||||||||
Final product | Width | Output | Extruder | Motor | Calibrator | Price | ||||||
PVC-WPC decoration panel | 300 | 250 | ZS65/132 | 37kw | 6m | 39430 | ||||||
PVC-WPC decoration panel | 600 | 350 | ZS65/132 | 45kw | 6m | 49980 | ||||||
PVC-WPC decoration panel | 600 | 450 | ZS80/156 | 55kw | 6m | 60980 | ||||||
PVC-WPC indoor profile | 75 | 40 | SJ55/28 | 11kw | 3m | 20330 | ||||||
PVC-WPC indoor profile | 110 | 90 | SJ65/28 | 18.5kw | 3.5m | 23920 | ||||||
PVC-WPC indoor profile | 180 | 130 | SJ75/28 | 22kw | 4m | 28240 | ||||||
PVC-WPC indoor profile | 240 | 170 | SJ90/28 | 45kw | 4m | 34420 | ||||||
WPC two layers outdoor profile | 300 | 250 | ZS65+SJ40 | 37+5.5 | 8m | 42930 | ||||||
WPC two layers outdoor profile | 240 | 250 | ZS65+SJ35 | 37+4 | 8m | 40760 | ||||||
WPC two layers outdoor profile | 180 | 160 | ZS55+SJ30 | 30+3 | 8m | 35900 | ||||||
PVC-WPC door | 1000 | 600 | ZS92/188 | 110kw | 8m | 83980 | ||||||
PVC-WPC door frame | 240 | 250 | ZS65/132 | 37kw | 8m | 37040 | ||||||
PVC-WPC door cover | 120 | 160 | ZS51/110 | 22kw | 8m | 28570 | ||||||

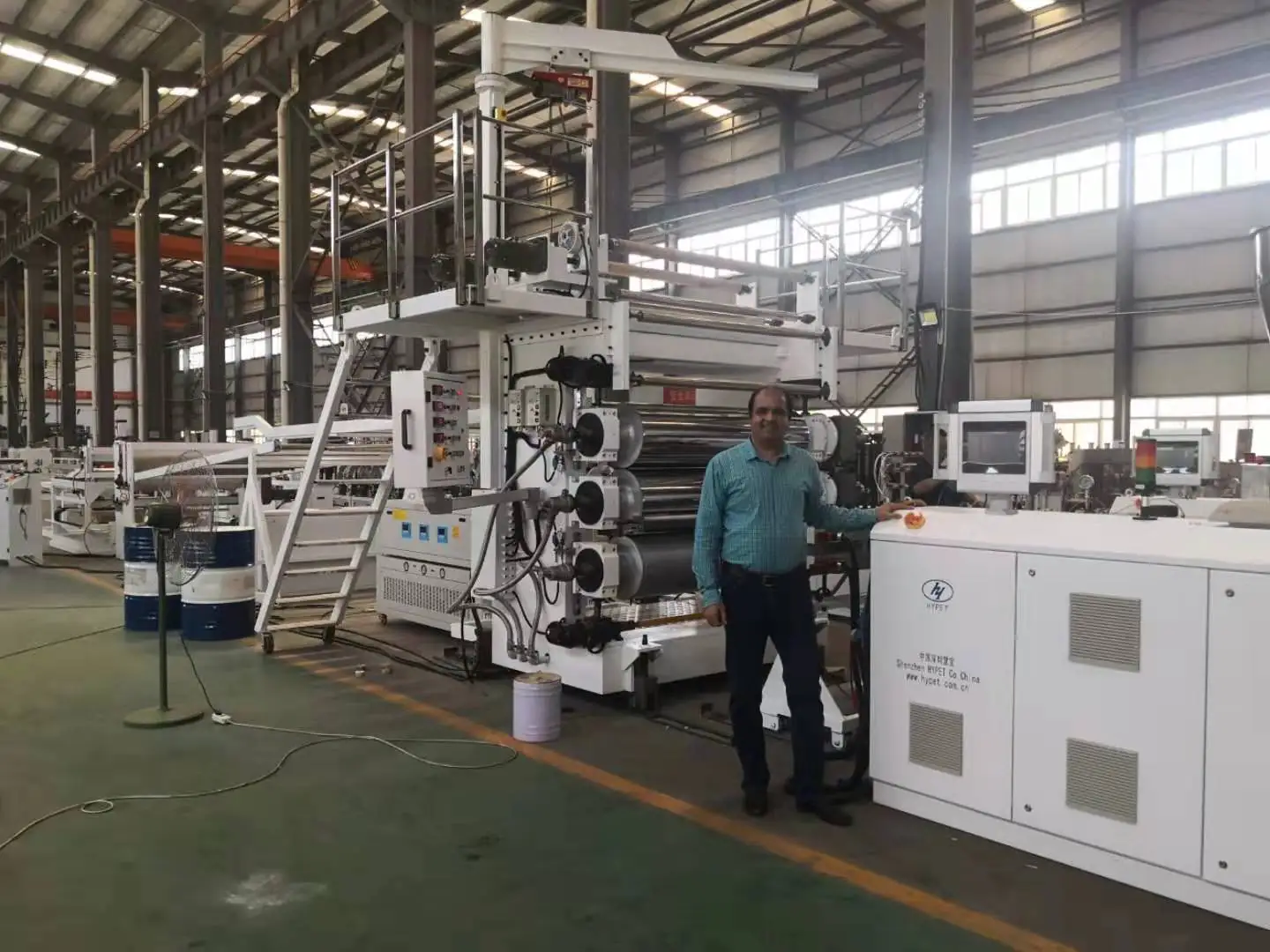

Plastic marble sheet | 1220 | 450 | ZS80/156 | 55kw | 3 rollers | 100660 | ||||||
SPC floor | 1220 | 650 | ZS92/188 | 110kw | 5rollers | 123000 | ||||||
Recommend Products
Auxiliary machine for option
Puliverizer
Recycled scraps into powder
Mixer
Mixing PVC, filler, chemical agent
Crusher
Recycle the bad final product into scrap
Precise cutter
Cutting the door edge
Polishing machine
Brushing the door surface
Hotstamping machine
Door surface pattern film
CNC machine
Door pattern design
Door sealing machine
Sealing the top and bottom of door
Lamination machine
Door surface lamination
PVC High Speed Mixer | ||||||||||||||
Model | 200/500 | 300/600 | 500/1000 | 800/2500 | 1000/3500 | 1300/4500 | ||||||||
Structure | Vertical | Horizontal | ||||||||||||
Hot | General capacity | 200L | 300L | 500L | 800L | 1000L | 1300L | |||||||
Effective capacity | 150L | 225L | 375L | 600L | 750L | 975L | ||||||||
Feeding capacity /batch | 60kg | 110kg | 160kg | 260kg | 380kg | 490kg | ||||||||
Output kg/h | 250-300 | 500-600 | 700-800 | 1100-1300 | 1500-1700 | 1960-2400 | ||||||||
Motor power | 45kw | 55kw | 75kw | 110kw | 160kw | 200kw | ||||||||
Mixing time /batch | 8-10min | 10-12min | 11-13min | |||||||||||
Wall thickness | 8-10mm | 8-12mm | ||||||||||||
Cold | General capacity | 500L | 600L | 1000L | 2500L | 3500L | 4500L | |||||||
Effective capacity | 320L | 390L | 640L | 1600L | 2240L | 2880L | ||||||||
Motor power | 11kw | 11kw | 18.5kw | 30kw | 37kw | 45kw | ||||||||
Cooling way | Water cooling | |||||||||||||
Cooling time | 8min | 8-10min | ||||||||||||
Wall thickness | 6-8mm | 8-10mm | 8-12mm | |||||||||||
With Inverter | / | / | Delta | |||||||||||
EXW price in USD | 10400 | 12200 | 17800 | 34000 | 42400 | 57500 | ||||||||
Crusher Series | ||||||||||||||||||
Model | Caliber | Ability | Blade Number | Power | Speed | Mesh | Price | |||||||||||
mm | kg/h | Static | Rotary | HP | Kw | r/min | mm | USD | ||||||||||
HYP-10 | 410*320 | 100-300 | 2 | 12 | 10 | 7.5 | 520 | 8 | 1460 | |||||||||
HYP-20 | 600*330 | 220-500 | 2 | 18 | 20 | 15 | 520 | 10 | 2450 | |||||||||
HYP-30 | 720*460 | 300-700 | 3 | 21 | 30 | 22 | 520 | 12 | 4730 | |||||||||
HYP-50 | 820*560 | 350-900 | 4 | 24 | 50 | 37 | 500 | 14 | 6950 | |||||||||
HYP-50 | 920*560 | 400-950 | 4 | 27 | 50 | 37 | 500 | 14 | 7720 | |||||||||
HYP-60 | 1020*650 | 450-1000 | 4 | 30 | 60 | 45 | 480 | 14 | 10760 | |||||||||
HYP-75 | 1030*830 | 700-1200 | 4 | 15 | 75 | 55 | 460 | 16 | 22480 | |||||||||
Pulverizer Series | ||||||||||
Model | SMW-500 | SMW-500 | SMW-600 | SMW-800 | SMW-800 | |||||
Diameter of Disc /mm | Ø483±1 | Ø483±1 | Ø583±1 | Ø783±1 | Ø783±1 | |||||
Rotary blade | 24 | 24 | 28 | 36 | 36 | |||||
Static blade | 12 | 12 | 14 | 19 | 19 | |||||
Main motor power /kw | 37 | 45 | 55 | 90 | 110 | |||||
Capacity kg/h | 200-300 | 250-350 | 350-400 | 650-700 | 800-900 | |||||
Price USD | 6393 | 6940 | 7670 | 16430 | 18250 | |||||
