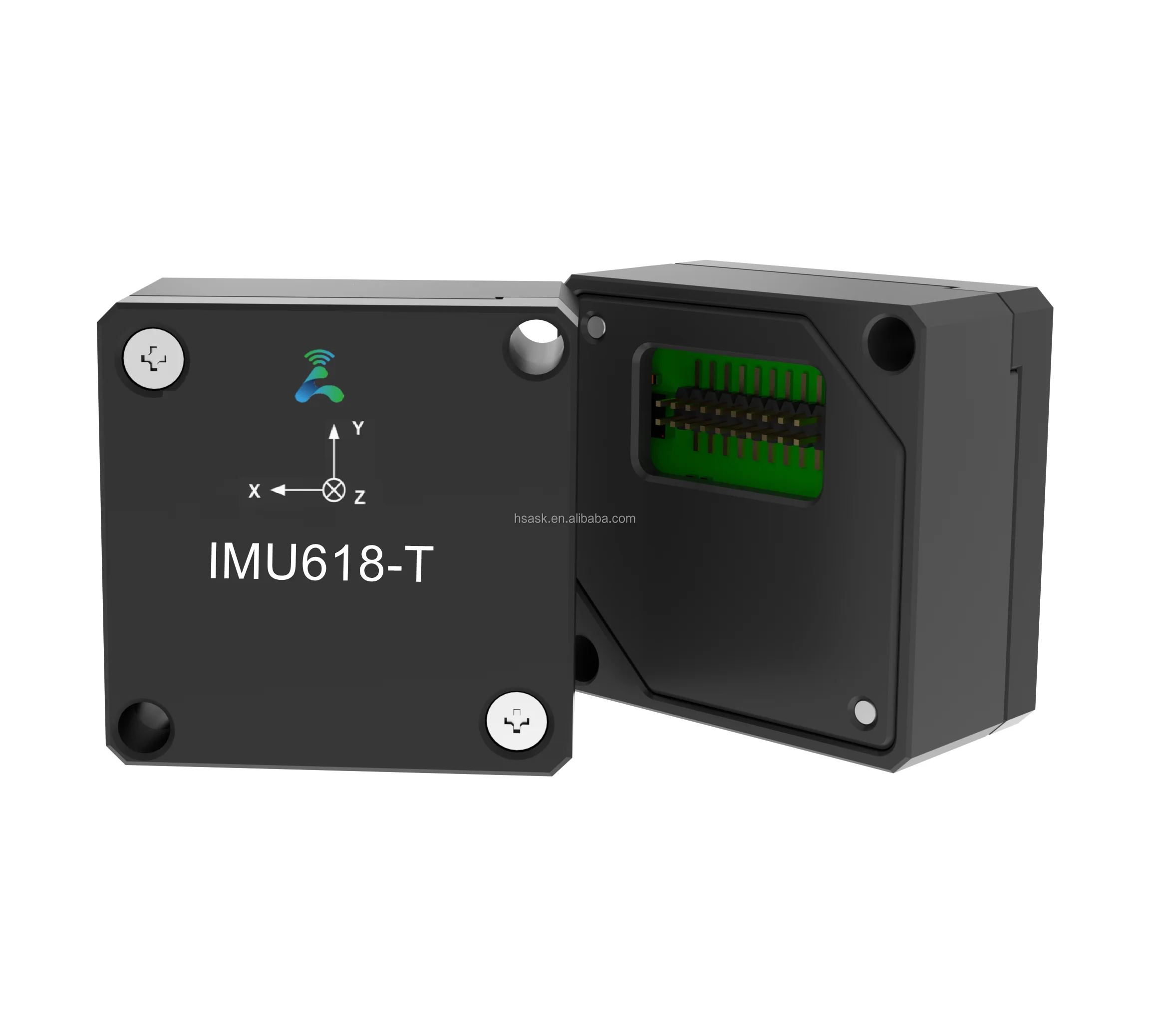

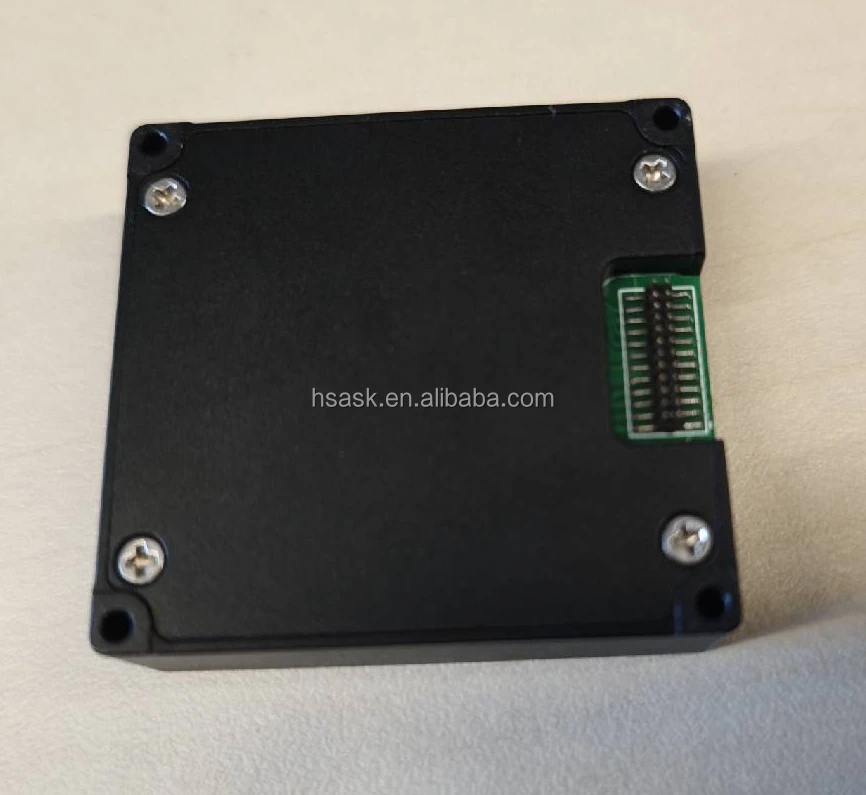

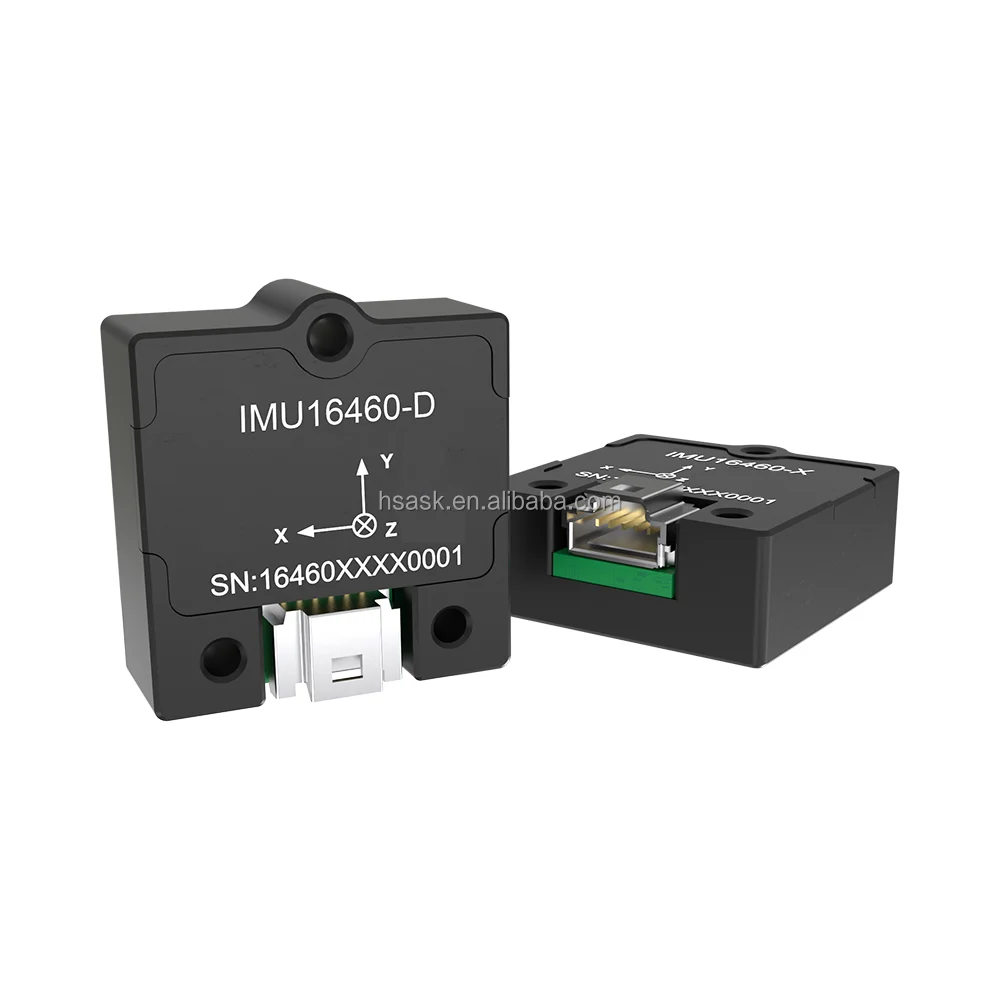

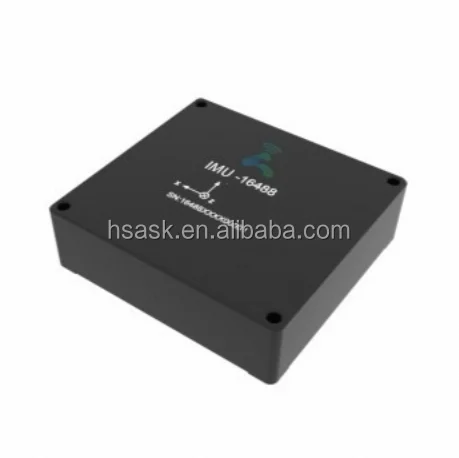

HSASK High Precision IMU16488 UAV Autonomous Driving Underwater Navigation Control Sensor Equipment Inertial Measurement Unit
- Category: >>>
- Supplier: Changchun Hsask Electronics Co. Ltd.Changchun Ltd.
Share on (1601357229571):
Product Overview
Description
Product Description
Technical Parameter
Gyroscope | Parameters | Test Conditions | Typical | unit |
Measuring range | 500 | °/s | ||
Zero Bias instability | @25,ALLAN variance, 1σ | X: 1 Y, Z: 0.8 | °/hr | |
Misalignment | 0.02 | deg | ||
Internal low-pass cutoff frequency | Software adjustable | 47 | Hz | |
ODR | 200 | Hz | ||
Measuring delay | 7 | ms | ||
Full-temperature bias drift | -40 to 85 ° C, <=1 ° C/min@1σ | 0.08 | °/s | |
Random walk | @25,ALLAN variance, 1σ | X: 0.15 Y, Z: 0.1 | °/√hr | |
scale coefficient error | 1.5 | ‰ | ||
scale factor nonlinear | 200 | ppm | ||
Accelerometer | Measuring range | ± 6 | g | |
zero Bias instability | @25,ALLAN variance, 1σ | 10 | μg | |
Misalignment | 0.02 | deg | ||
Internal low-pass cutoff frequency | Software adjustable | 47 | Hz | |
ODR | 200 | Hz | ||
Measurement delay | 7 | ms | ||
Full-temperature bias drift | -40 to 85 ° C, <=1 ° C/min@1σ | X,Y: 1.0 Z: 2 | mg | |
Random walk | @25,ALLAN variance, 1σ | X,Y: 0.015 Z: 0.02 | m/s/√hr | |
scale coefficient error | 0.015 | ‰ |
Company Profile
HSASK, a branch of Italy ASK Industrial, which was established in 2010, and has grown into a well-known enterprise in the Automotive Electronics Industry after more than ten years of development.Up to now, our products cover multiple series related to intelligent driving, such as Inertial Measurement Units(IMU), high-precision Integrated Inertial Navigation Systems(INS), Telematic Position Systems(TPS), Intelligent Central Gateway(ICG) and Data Storage and
recording Systems for Automated Driving(DSSAD), as well as vehicle sound quality solutions, intelligent antennas and Automotive high-frequency and high-speed cables, etc. We’ve already established stable and long-term strategic cooperation relationships with many domestic and global automakers such as FAW-Volkswagen, Anhui Volkswagen, FAW Hongqi, FAW Car, FAW Jiefang, BAIC, Baidu, Pony AI, Deeproute.AI, Plus AI, and etc.
With the joint efforts of excellent professional teams and first-class strategic partners, we carry out international operations to provide global customers with the best solutions of good quality, highly competitive prices, and fast & convenient services. HSASK is one of the few that has mass-produced and provided products for Automotive industry. Nowadays, HSASK has obtained several Automotive-grade certifications and information safety certifications, including IATF 16949, ASPICE L2, TISAX AL3, as well as ISO 14001, and ISO 45001.
Our products have been widely used in various professional fields, including Intelligent Driving, Robotaxi, Robotruck, Robotics, AMRs, Drones, Smart Agricultural Machinery, Port and Mining Automation, Surveying, Mapping, and etc.

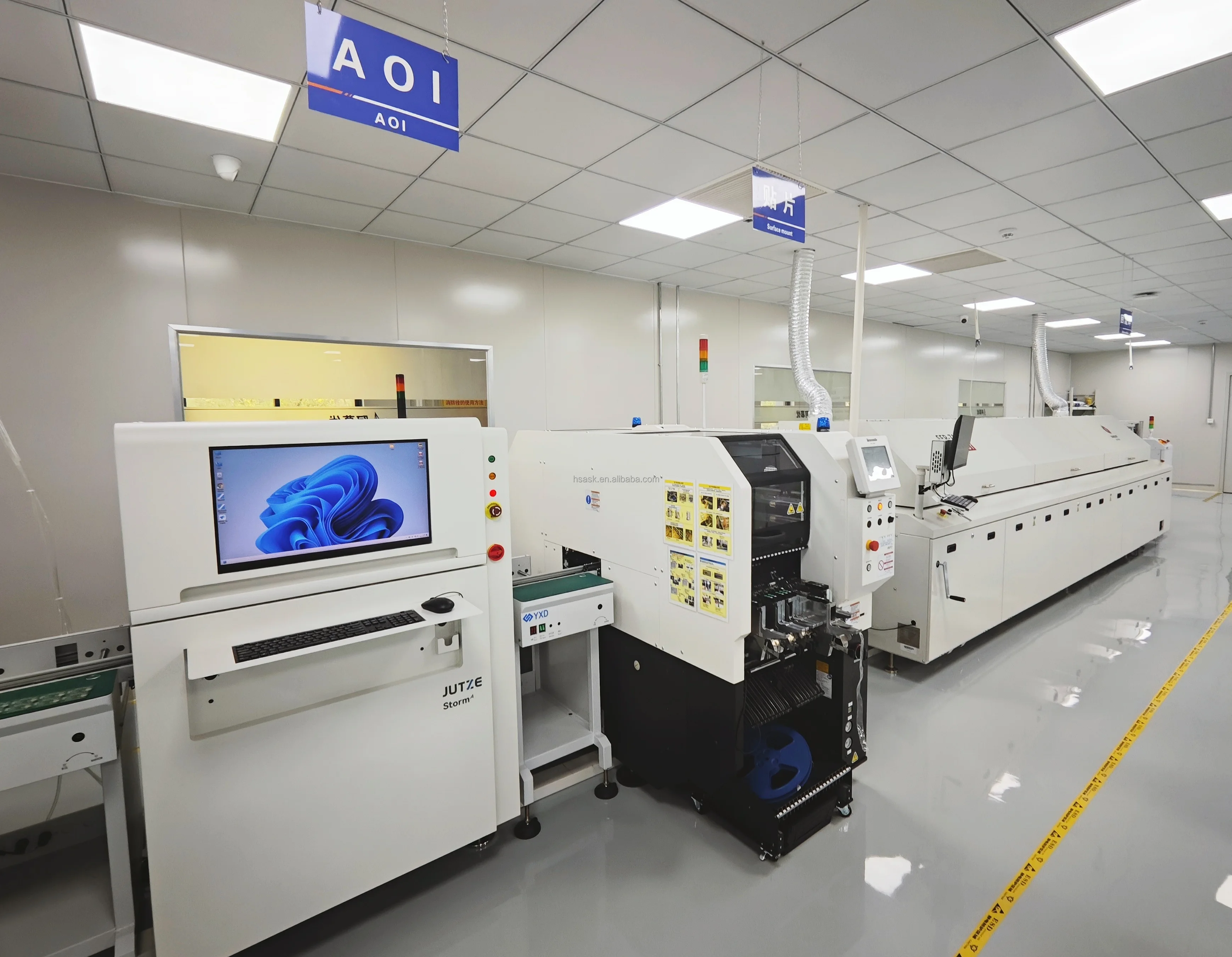

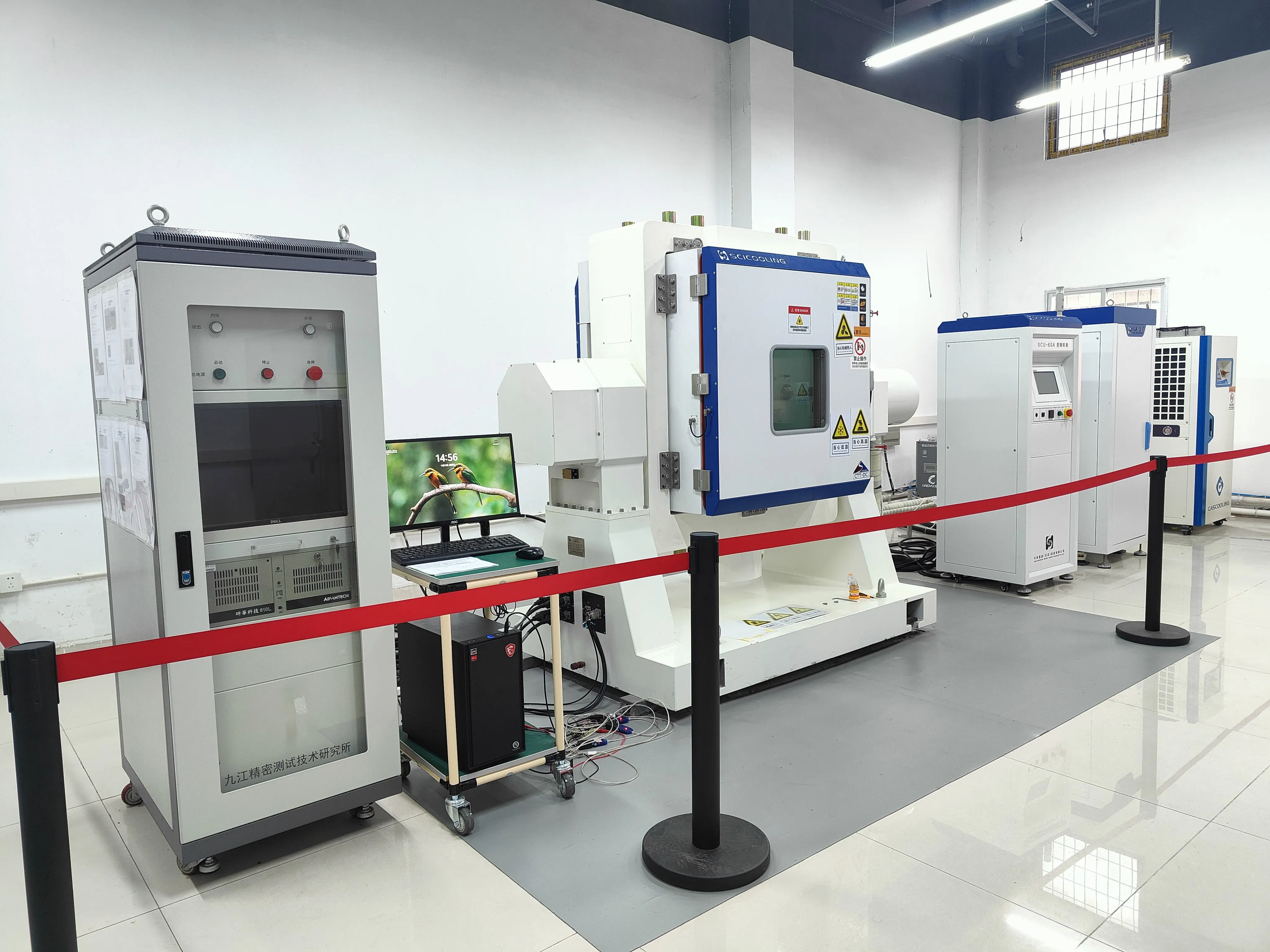

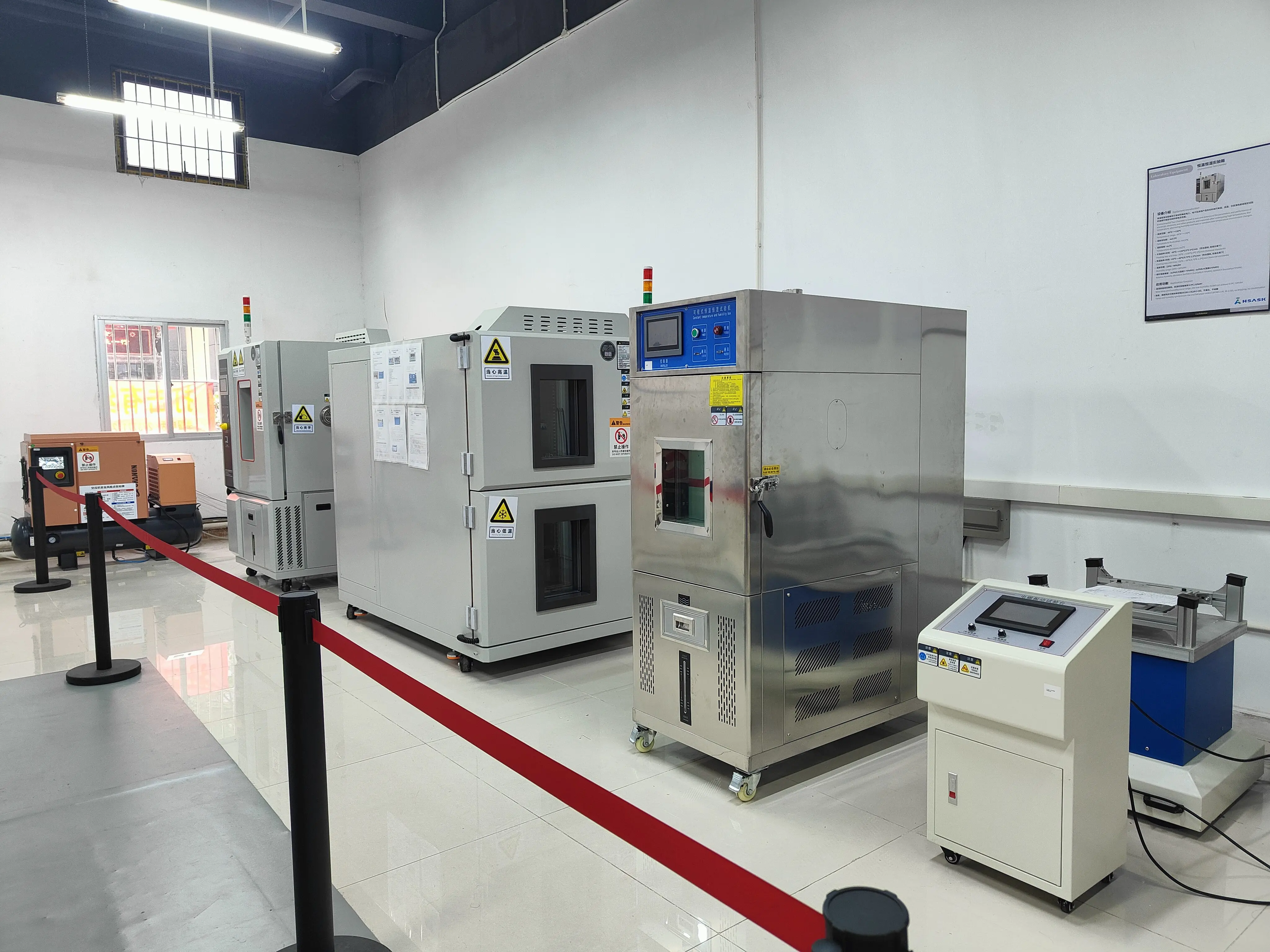

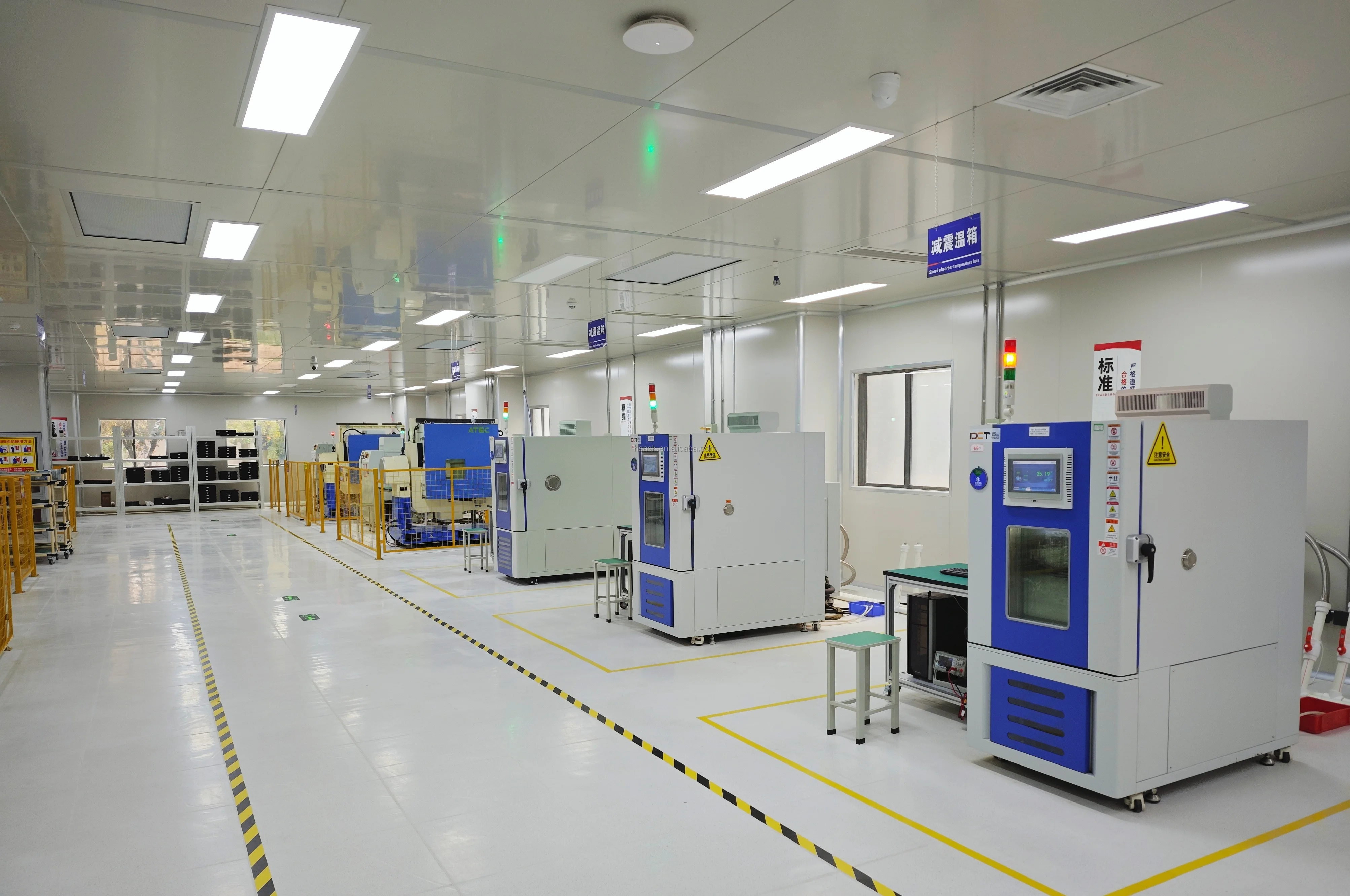

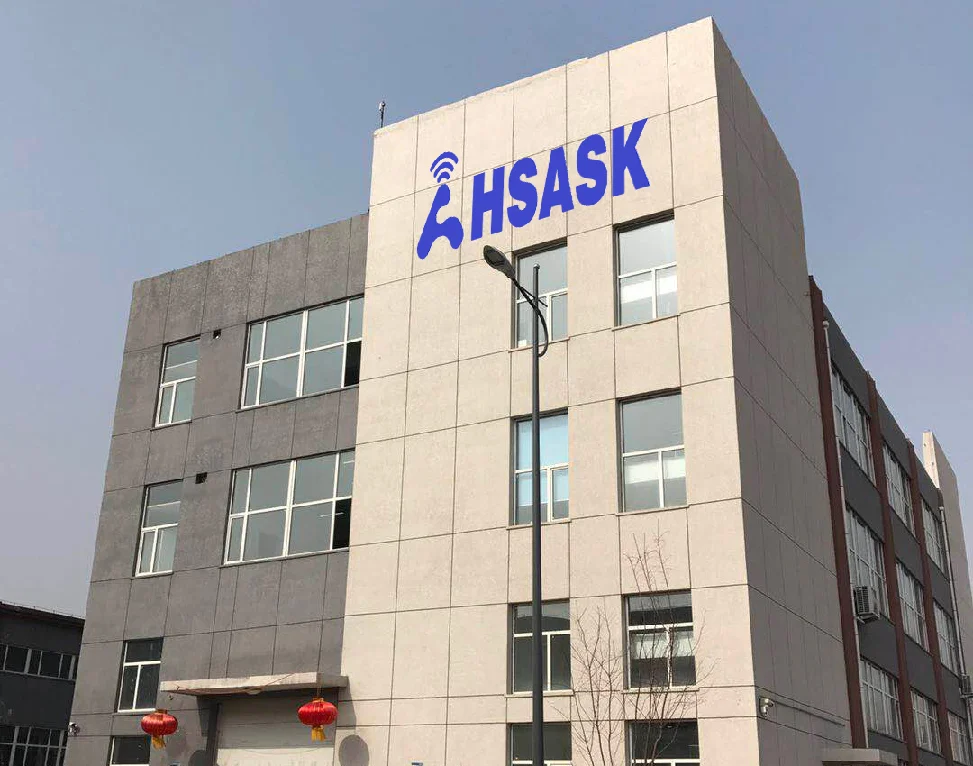

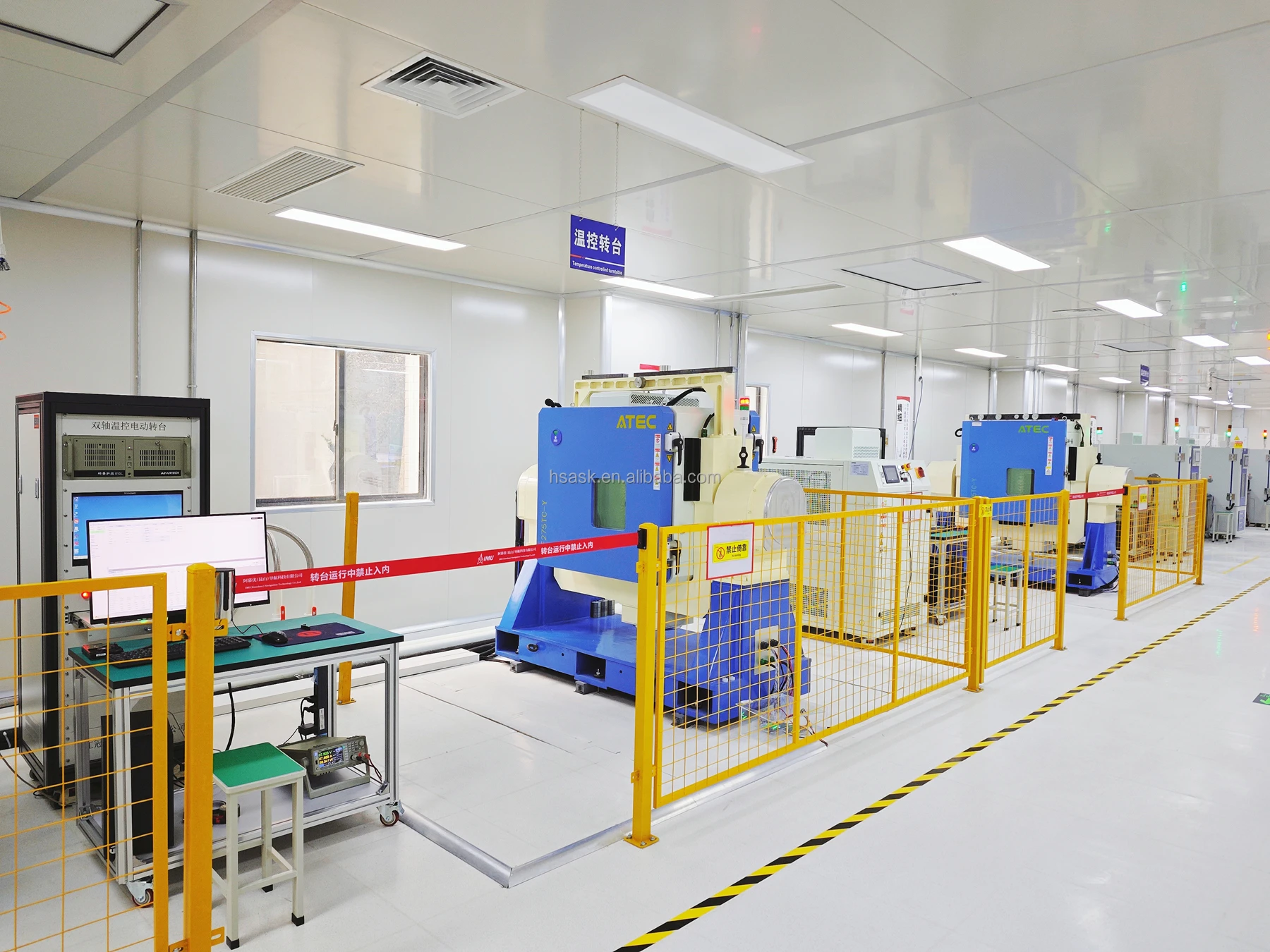

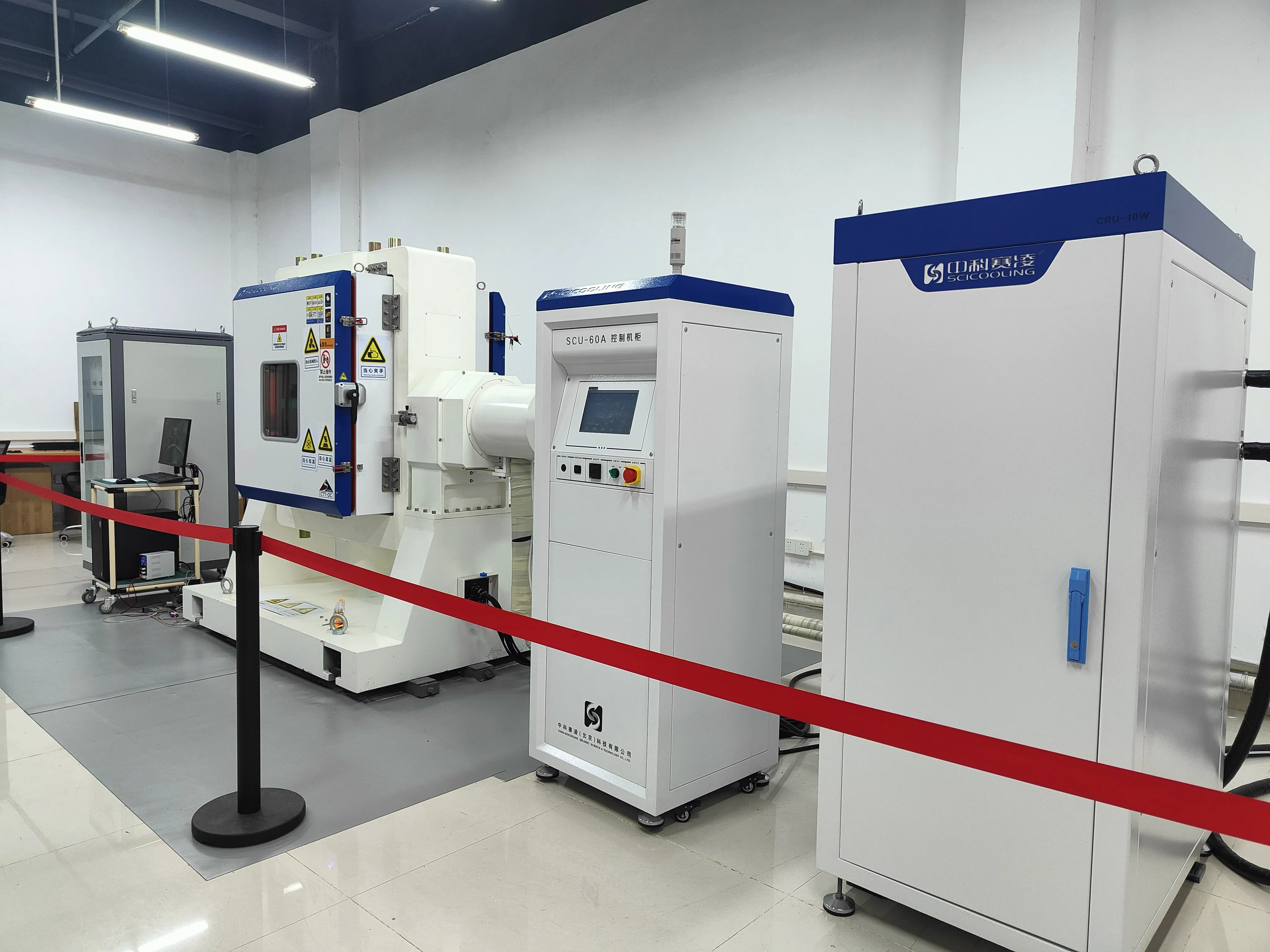

Besides, we'd like to show you around our factory as below:
Why Choose Us
1.Core technical advantages in hardware, software, algorithm, OTA;
2.Engaged in Inertial Navigation in multiple applications;
3.Well recognized by famous manufacturers.
Certifications
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. |
Company Team
FAQ
Q: What is your lead time?
HSASK: Stock: 5-15 days in general. No stock: 30-45 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities.
Q: How does your factory do regarding quality control?
HSASK: Quality is priority, and customer satisfaction is our core value.We always attach great importance to quality control from the very beginning tothe end: We have the special test and calibration before shipment, to make sure provide our customers with stable quality products.
1)We produce products in strict accordance with the agreed technical requirements;
2)We do full tests according to test methology;
3)We have a professional QA/QC team to ensure the quality
Q: Do you accept OEM or ODM order?
HSASK: Yes, HSASK is a professional manufacturer, which is capable of providing both OEM and ODM service as per customer's needs.
Q: How can I get technical support?
HSASK: Firstly there's a complete set of technical support document to support you: Datasheet, User Manual, Test Report, if you still have questions, please write us at any time to bella.chen@hsask.com or directly contact your Sales Engineer.
Q: What are your terms of delivery?
HSASK: EXW, FOB, ClF, etc.is available for us. You can choose the one which is the most convenient for you.
Q:How do you ship the goods and what is the cost?
HSASK: Generally we ship out by DHL, and the price fluctuates frequently, please make enquries at the time of order, and we could also choose the shipping company as your request, like TNT/UPS/FEDEX/ARAMEX/EMS etc.
Q: What is the payment way?
HSASK: TT, L/C, Pay Later, West Union, Online Bank Payment.
Q: How long is the warranty period of your product？
HSASK: The standard is 12 months, longer warranty can be negotiated.
Q: How about the packing quality?
HSASK: For sample orders, we use carton box with sponge, and for batch orders, we use wooden cases.
Q: How to select the product type?
HSASK: We are professional manufacturer, we could provide standard product or products by customer's specific requirements:
1)Choose from our alibaba platform or our webiste;
2)Customer could raise detail different technical requirements based on standard products;
3)Customer provide specific and comprehensive technical requirements to sales to evaluate;
4)Customer explain application to sales to provide suitable products.
HSASK: Stock: 5-15 days in general. No stock: 30-45 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities.
Q: How does your factory do regarding quality control?
HSASK: Quality is priority, and customer satisfaction is our core value.We always attach great importance to quality control from the very beginning tothe end: We have the special test and calibration before shipment, to make sure provide our customers with stable quality products.
1)We produce products in strict accordance with the agreed technical requirements;
2)We do full tests according to test methology;
3)We have a professional QA/QC team to ensure the quality
Q: Do you accept OEM or ODM order?
HSASK: Yes, HSASK is a professional manufacturer, which is capable of providing both OEM and ODM service as per customer's needs.
Q: How can I get technical support?
HSASK: Firstly there's a complete set of technical support document to support you: Datasheet, User Manual, Test Report, if you still have questions, please write us at any time to bella.chen@hsask.com or directly contact your Sales Engineer.
Q: What are your terms of delivery?
HSASK: EXW, FOB, ClF, etc.is available for us. You can choose the one which is the most convenient for you.
Q:How do you ship the goods and what is the cost?
HSASK: Generally we ship out by DHL, and the price fluctuates frequently, please make enquries at the time of order, and we could also choose the shipping company as your request, like TNT/UPS/FEDEX/ARAMEX/EMS etc.
Q: What is the payment way?
HSASK: TT, L/C, Pay Later, West Union, Online Bank Payment.
Q: How long is the warranty period of your product？
HSASK: The standard is 12 months, longer warranty can be negotiated.
Q: How about the packing quality?
HSASK: For sample orders, we use carton box with sponge, and for batch orders, we use wooden cases.
Q: How to select the product type?
HSASK: We are professional manufacturer, we could provide standard product or products by customer's specific requirements:
1)Choose from our alibaba platform or our webiste;
2)Customer could raise detail different technical requirements based on standard products;
3)Customer provide specific and comprehensive technical requirements to sales to evaluate;
4)Customer explain application to sales to provide suitable products.
