Cocoa Bean Cleaner Sunflower Seed Processing Machine specific Gravity Separator machine

Share on (1601358199180):


Price:$9,000.00

Quantity:


Product Overview

Description



Hyde Machinery Bussiness Scope
-Seed processing plant: 1~20 t/h
- Flour mill plant: 1~1000 t/d
-Steel plate silo: Customized
- Manufacturer since 1976




Product Description

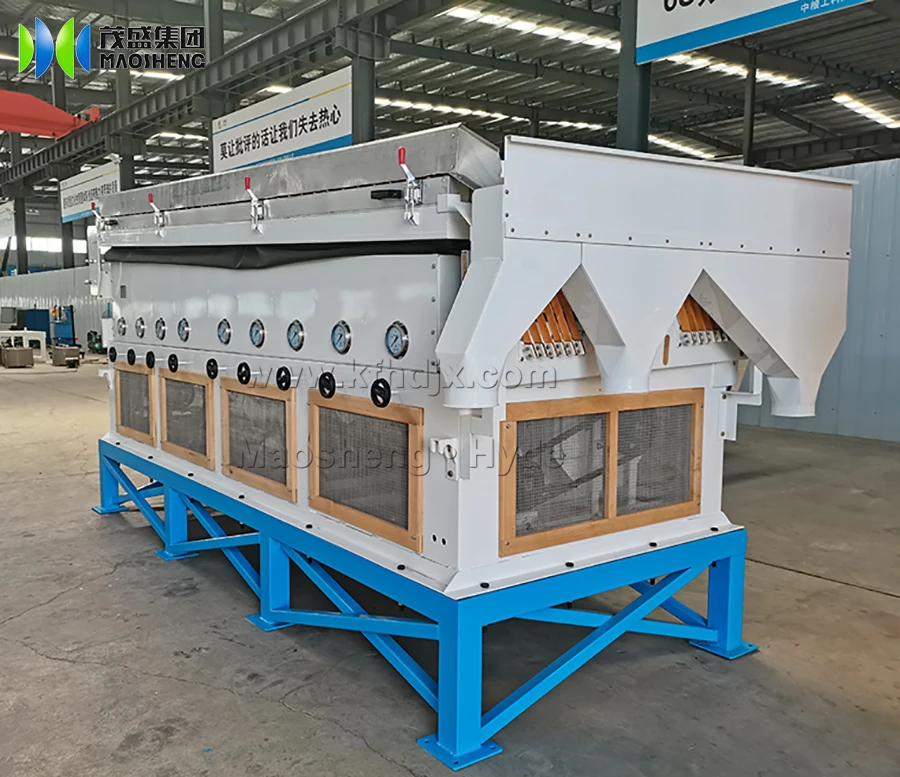

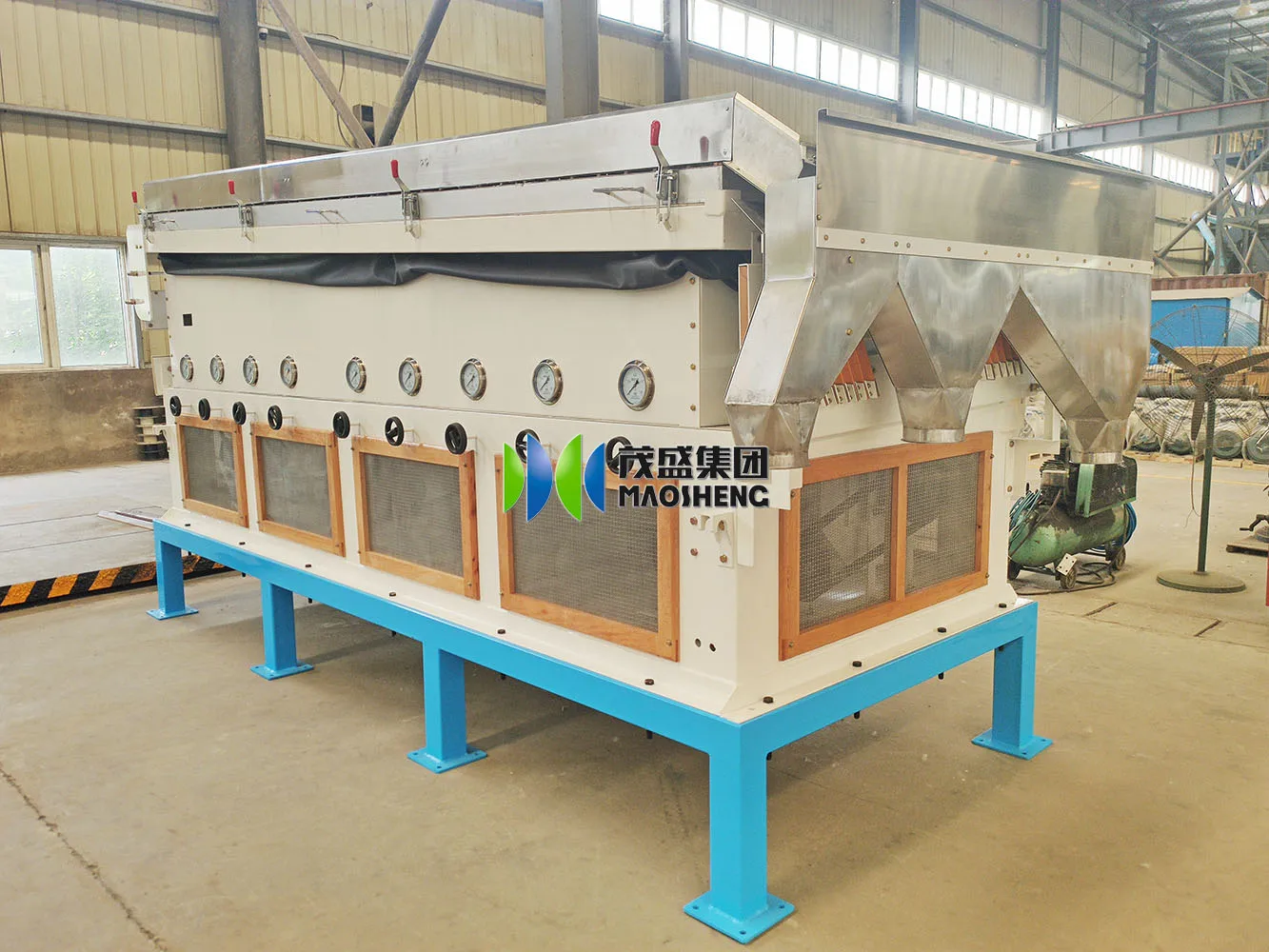

5XZ Gravity Separator for Imperfect Grain Seed Removing
1) Function: fine cleaning, sorting, separating to remove bad, immature, insect damaged, moldy and germinated seeds, impurities,
and admixtures such as same-size stones but with different specific weight.
2) Application: granular grains and seeds.
3) Capacity: 3t/h, 5t/h, 10t/h, 15~20t/h (wheat).





Gravity Separator, also known as gravity separation table, specific gravity separator, or density separator, is key processing machines for the perfect separation of products which are already treated by air screen cleaner and indented cylinder.

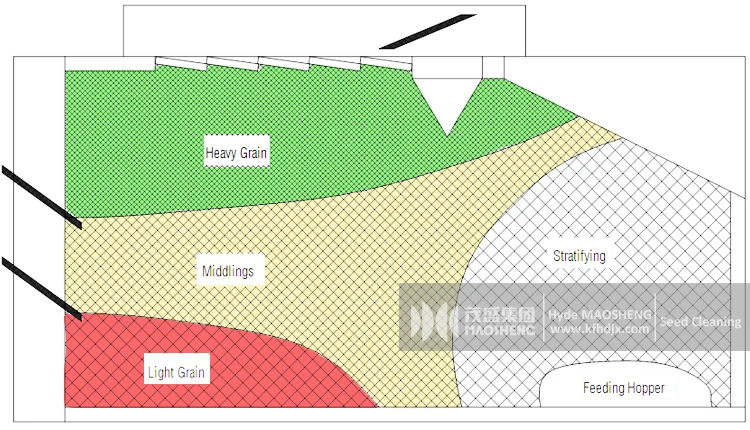

Working Principle of 5XZ Seed Gravity Separator Machine

Seeds and grains can be separated and graded by the suspension and friction characteristics.
Seeds flow over the inclined vibrating screen covered rectangular deck, in which pressurized air is forced through causing the material to be suspended and stratify according to its specific weight. The heavy particles float uphill while the light particles travel downhill.
Rectangular deck makes the particles travel a longer distance, ensuring the cleaner separation of light and heavy particles and the lowest percentage of middlings, improving the quality of the end product.




Wide Application of 5XZ Seed Gravity Separator
5XZ series gravity separator is widely used to remove impurities, admixture, insect damage and immature kernels from cereal grains such as wheat, barley, oilseed rape, peas, beans, cocoa beans, hazelnuts, linseed.




Technical Parameters


Item
Unit
Specification
Model
5XZ-3
5XZ-5
5XZ-10
5XZ-15/20
Dimension
(L x W x H)
mm
2050×1350×1200
3840×2110×1710
4300×2300×2500
5100×2300×2700
Total Weight
kg
1650
1900
2150
3500
Rated Capacity
t/h
3.0
5.0
10.0
15~20
Total Power
kW
6
8.95
15
21.3
Amplitude
mm
7
7
7
7
Dip Angle
°
30
30
30
30
Frequency
1/s
300~800
300~800
300~800
300~800
Screen Area
m2
1.64
3.4
5.36
8
Selection Efficiency
%
≥98.5
≥98.5
≥98.5
≥98.5
Cleaning Efficiency
Light
%
≥95
≥95
≥95
≥95
Heavy
%
≥90
≥90
≥90
≥90


Why choose our gravity separator?

Because of the Advantages of our 5XZ Gravity Separator
1. Hyde 5XZ seed gravity separators are designed with accuracy in separation of as slight as 0.5% difference in specific density.
2.Optimal effects rely on the precise adjustment of feed rate, screen deck inclination (lengthwise and sidewise), vibration speed and air volume.

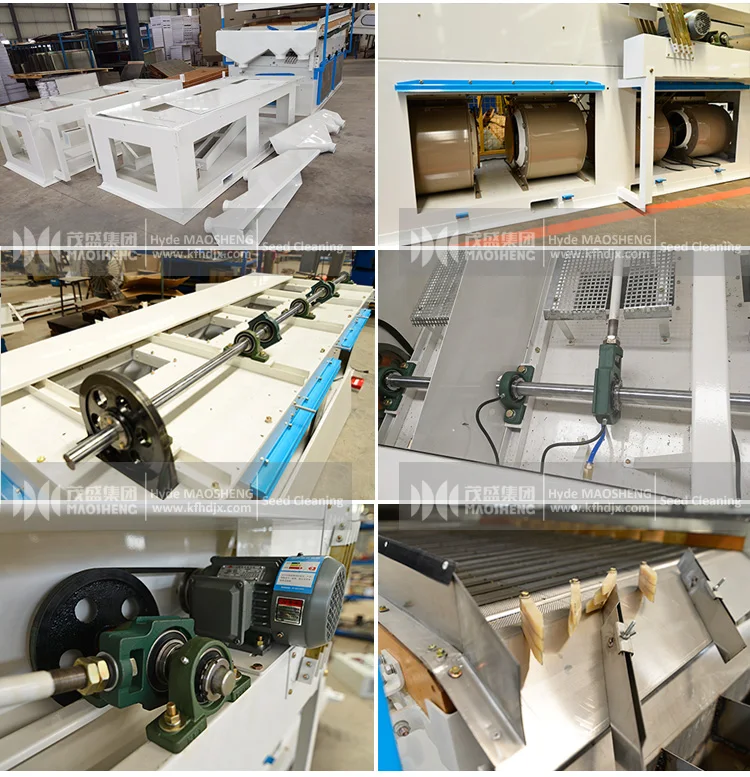

3. Structural features:
1) Heavy duty and robust steel structural frame to absorb the vibrations.
2) Fans are dynamically balanced with individual adjustable controller for each fan for precise control of air flow and easy
maintenance.
3) Cellular vertical air distribution device mounted under the deck make the air lifting evenly.
4) Square woven mesh screen made of steel wire with no bottom fabric ensures air passing through no dead band.
5) Variable feed speed, deck inclination, vibration speed and air volume by individual control units.
6) Safe guards to all moving parts ensure the safe operation.
7) Environmentally friendly with screen dedusting cover, low noise.




4.Special features:
1) Built-in fans are air-conditioner fans with lower noise, higher pressure and larger amount of wind.
2) Larger motor for heavy seed.
3) Self-lubrication system can be added.
4) Stainless steel available for edible products.

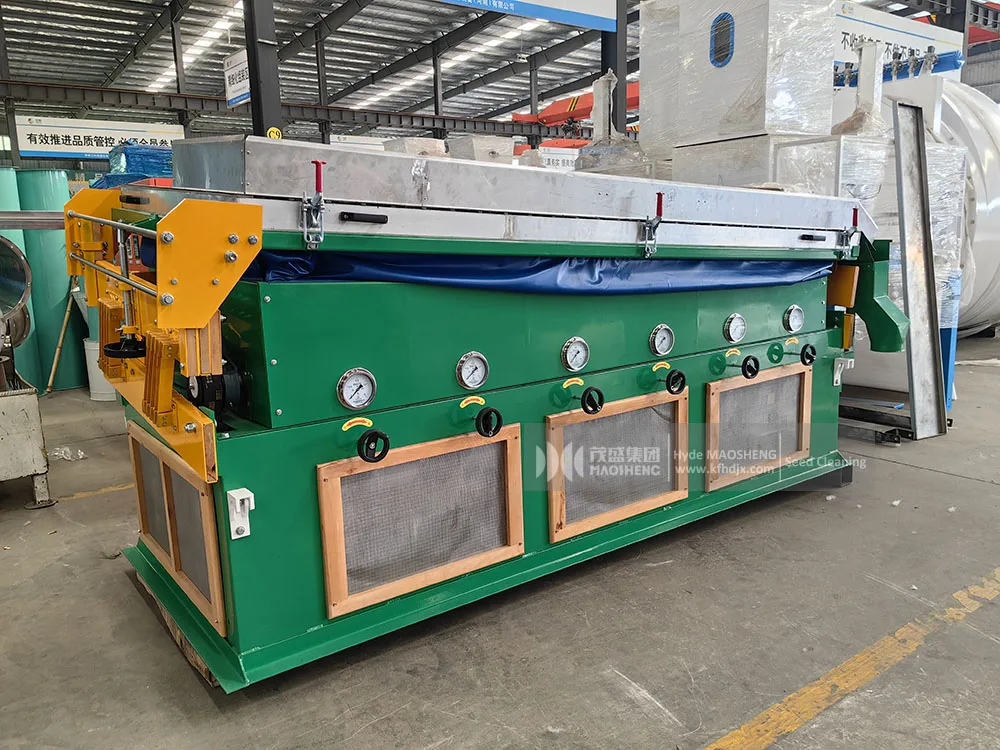

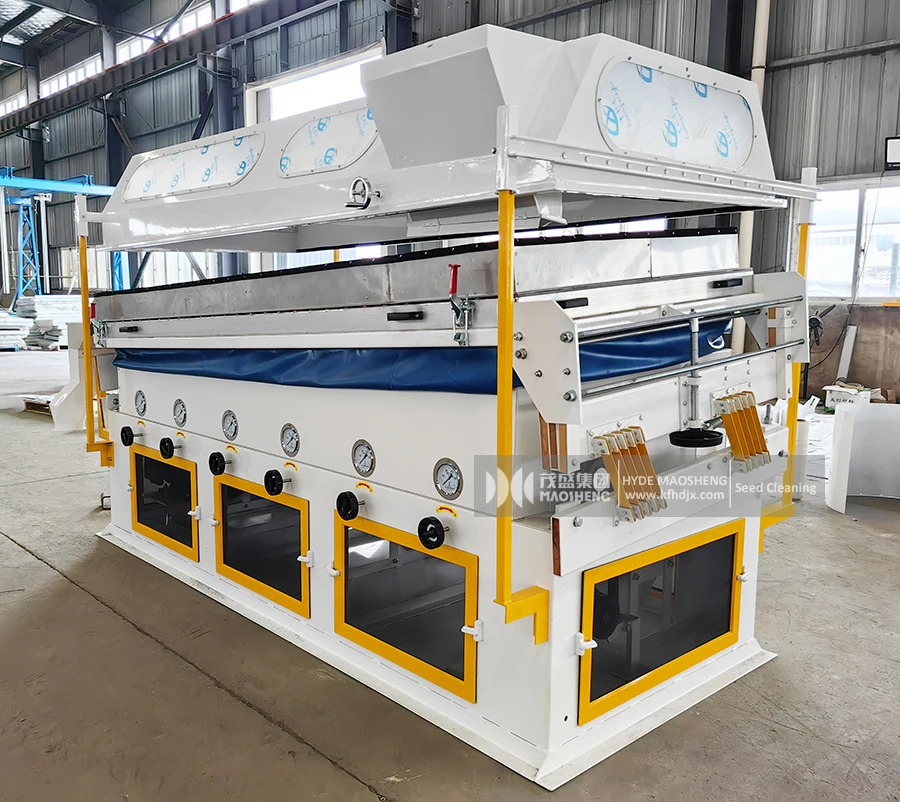

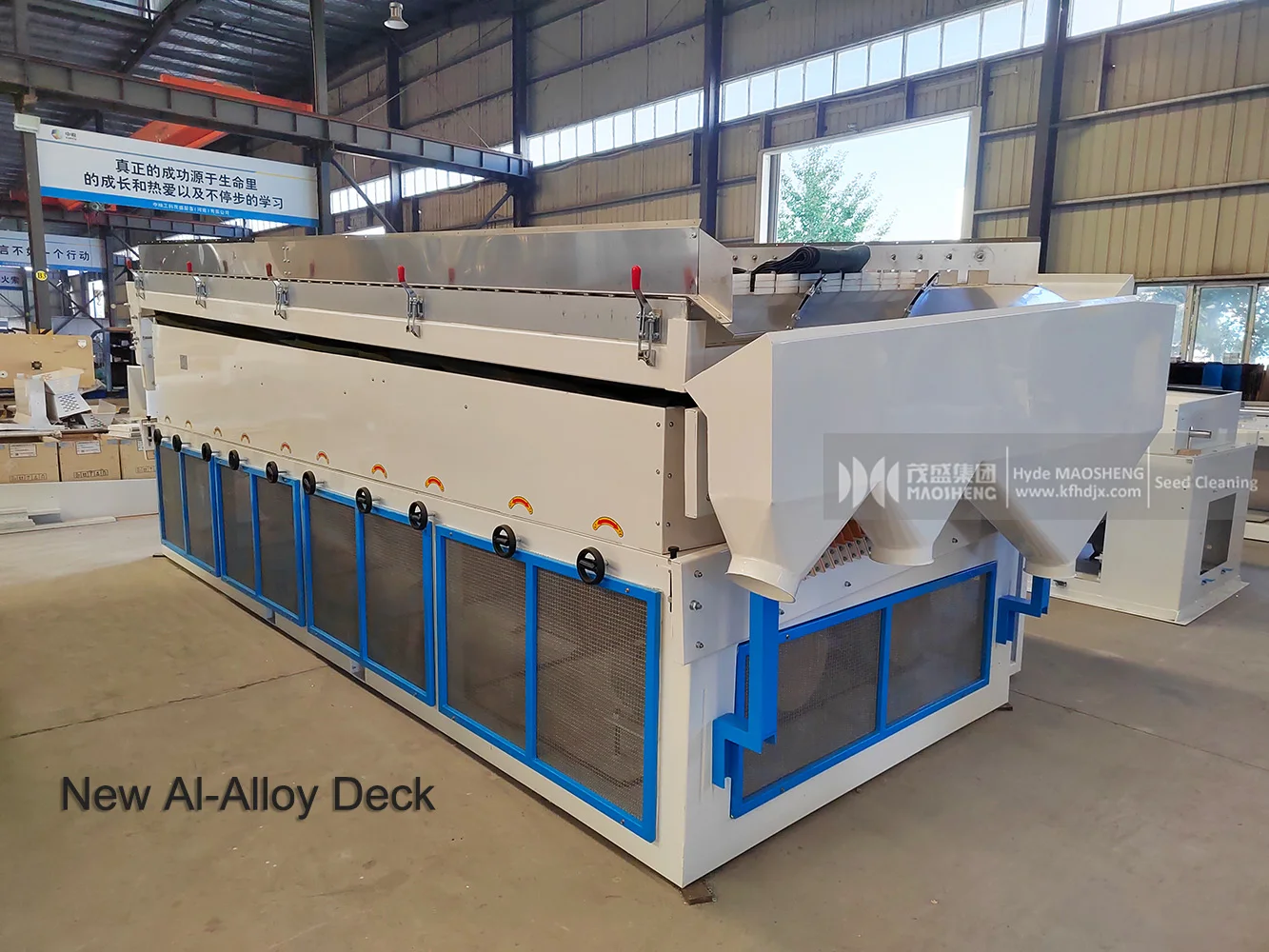

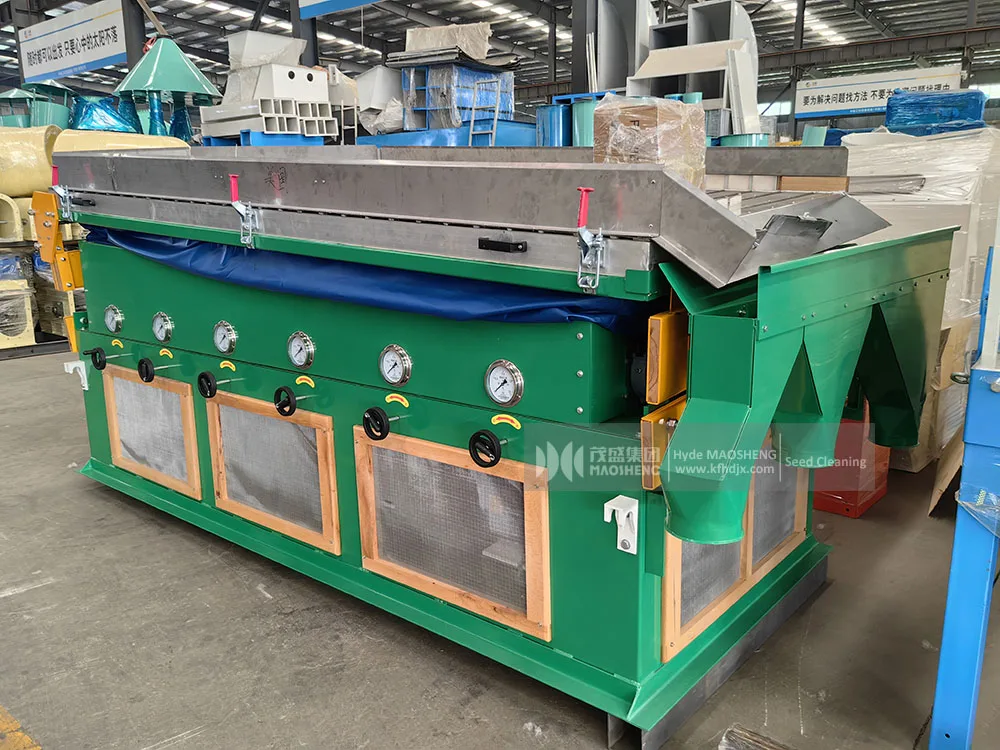

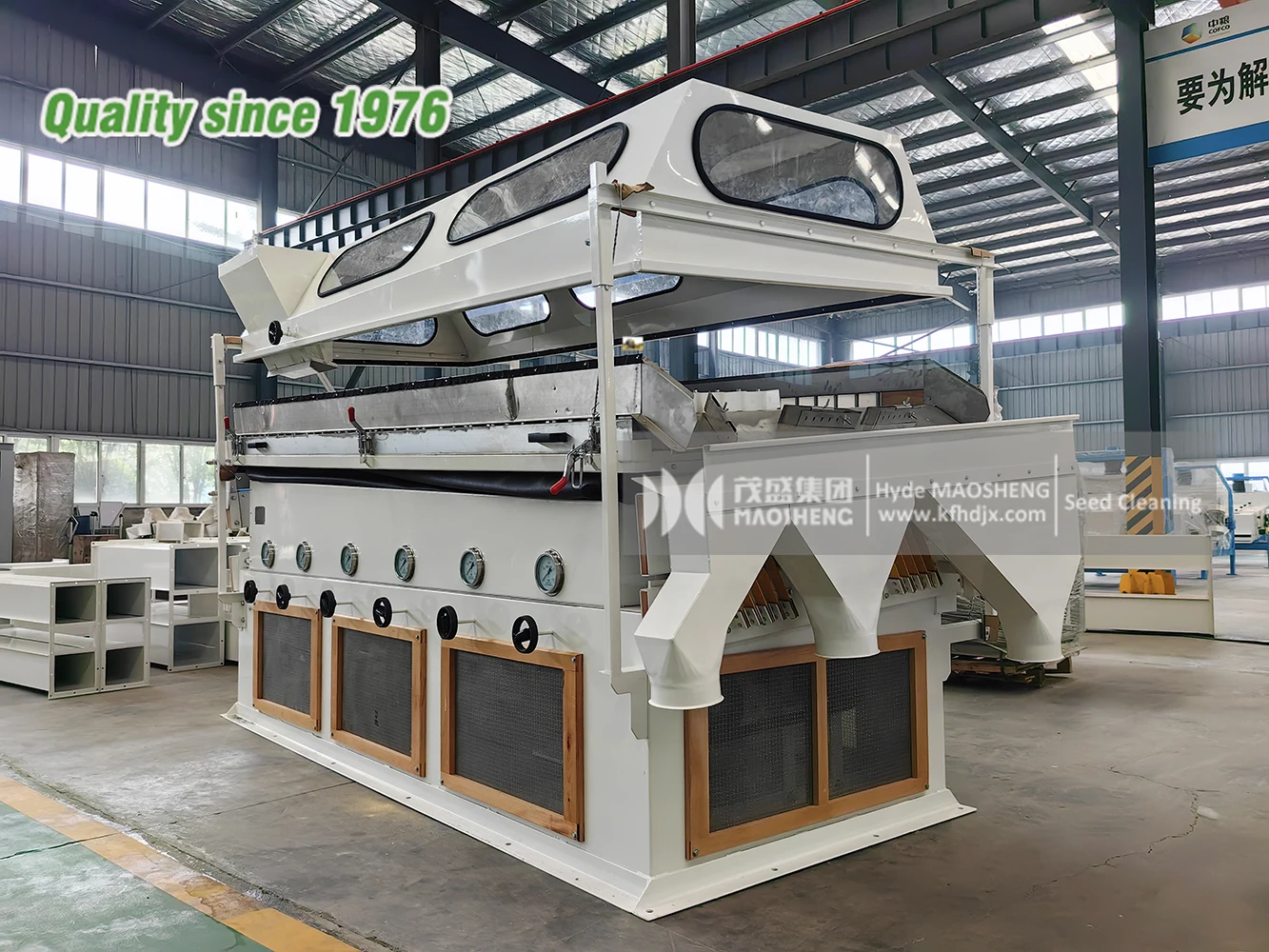

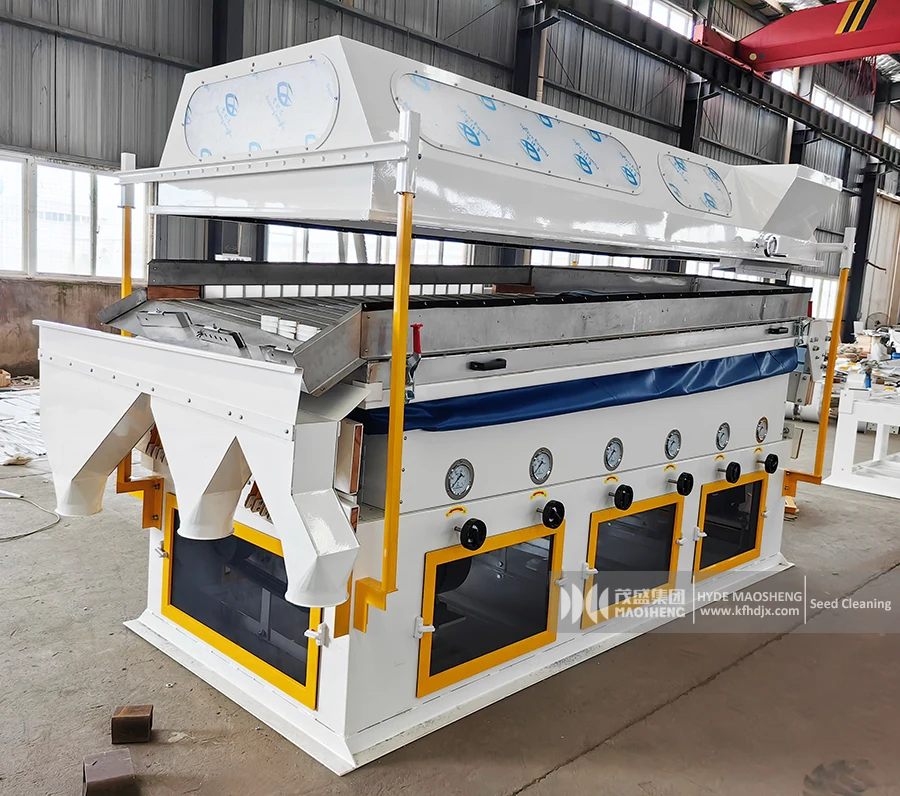

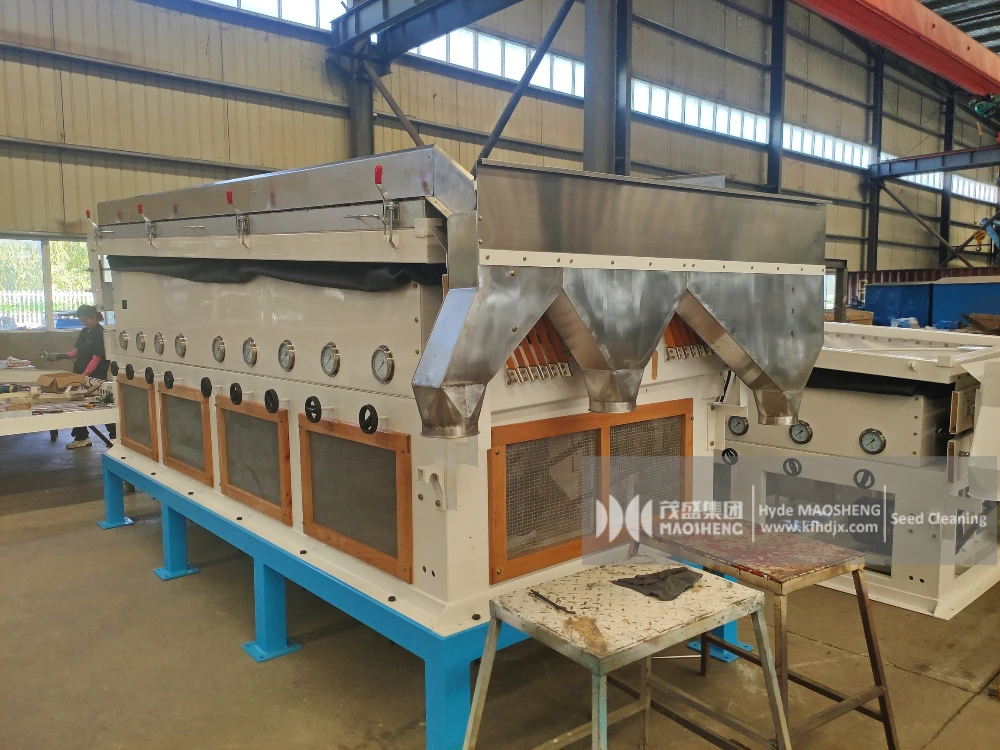

Different type gravity separator for your choice

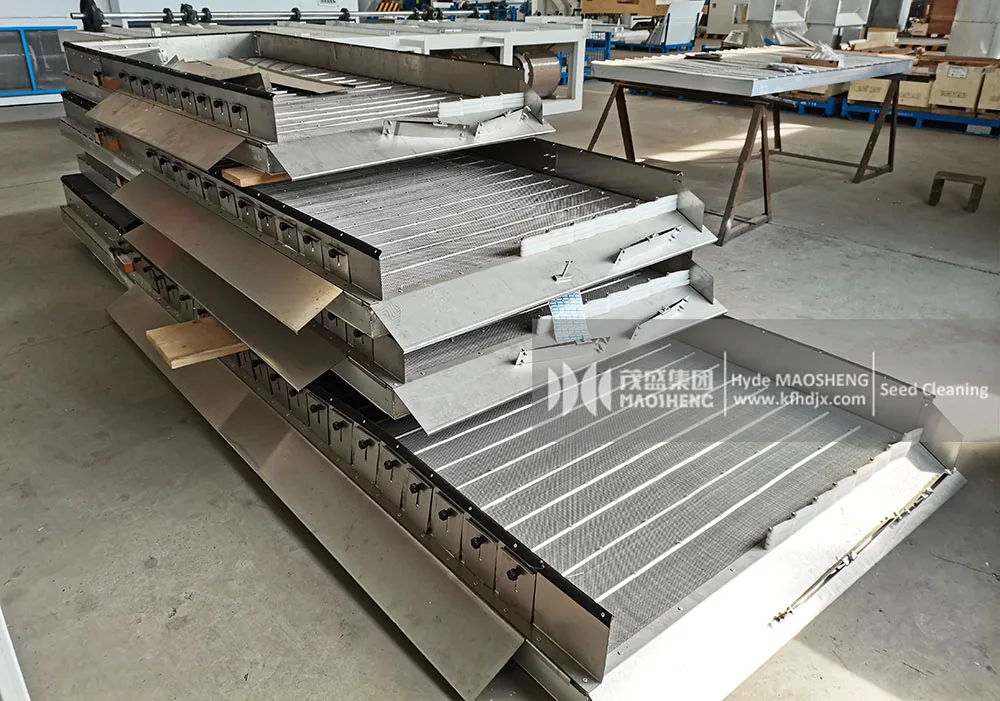

(mobile type and new Al-alloy deck)

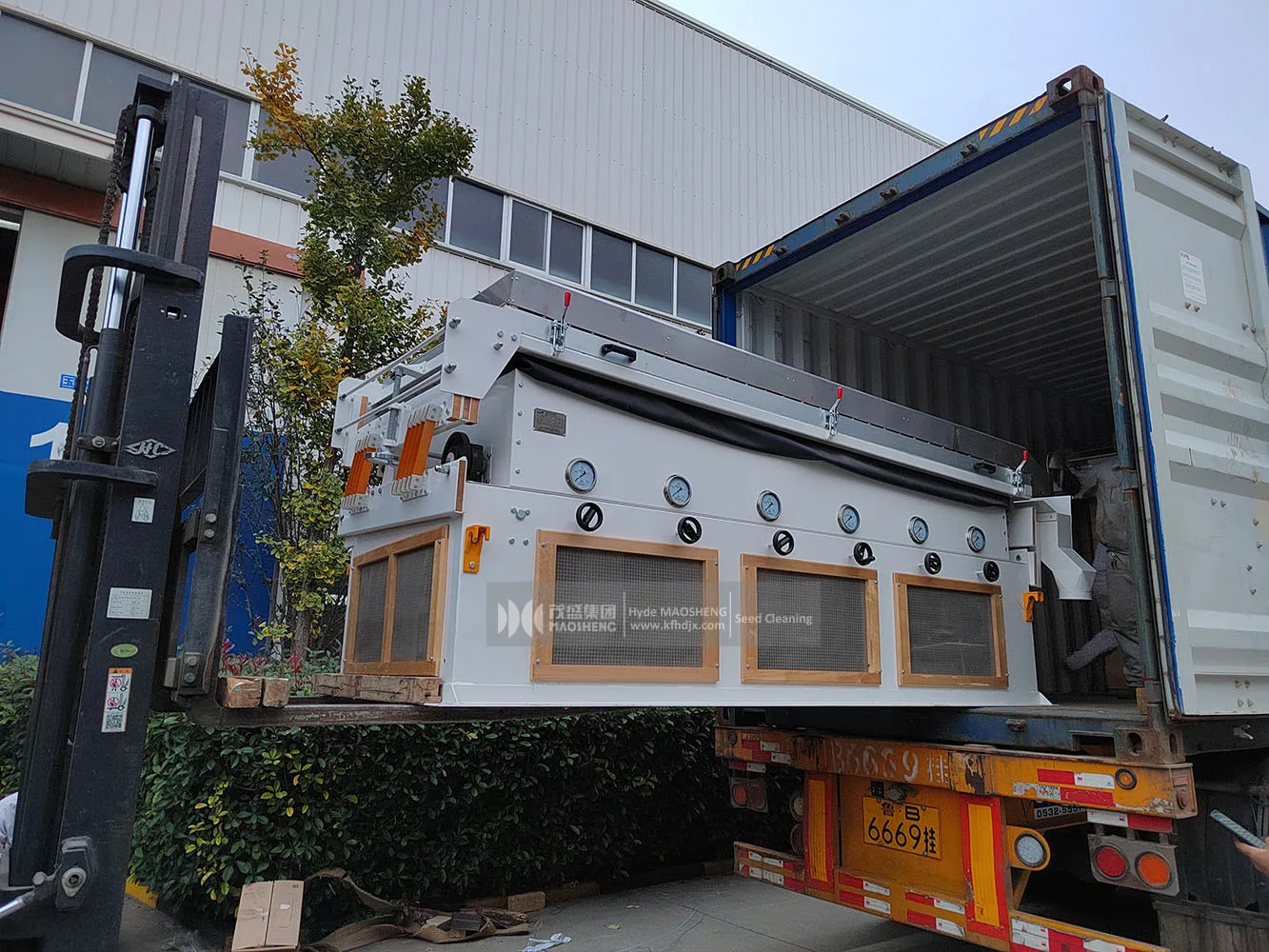

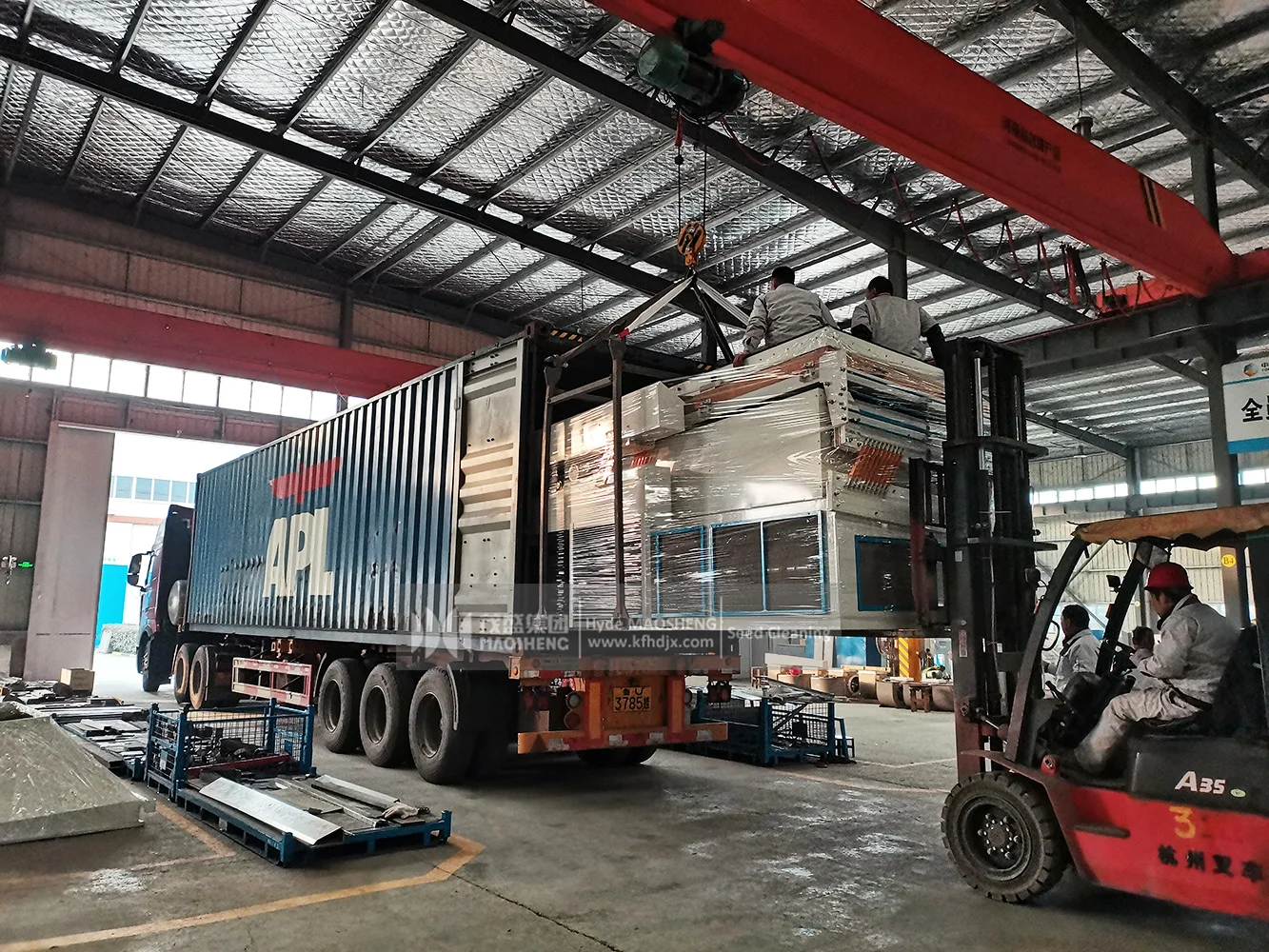

Packing & Delivery

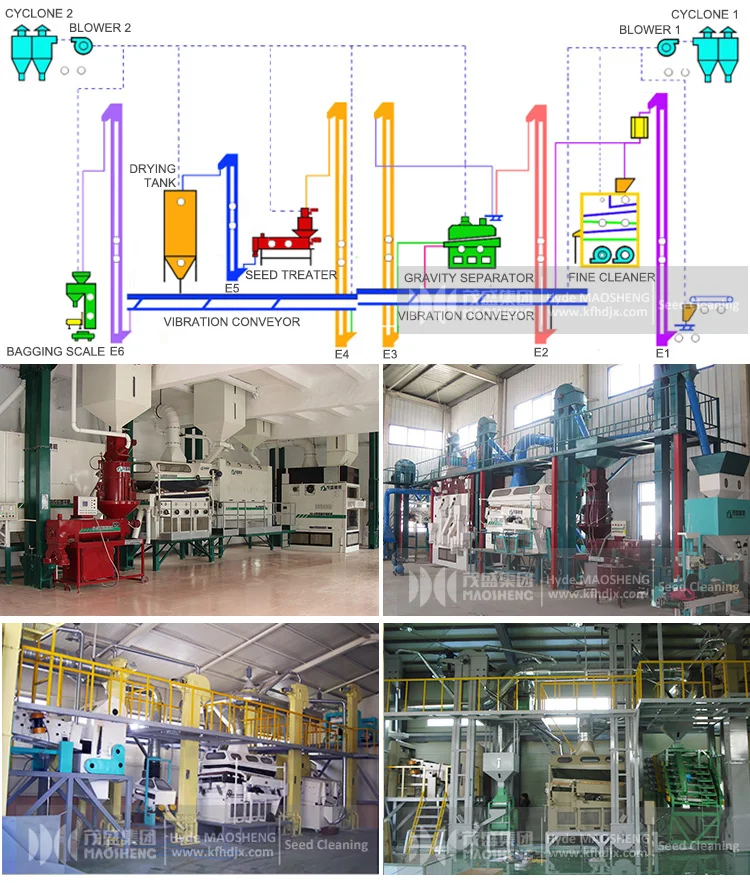

Related Products

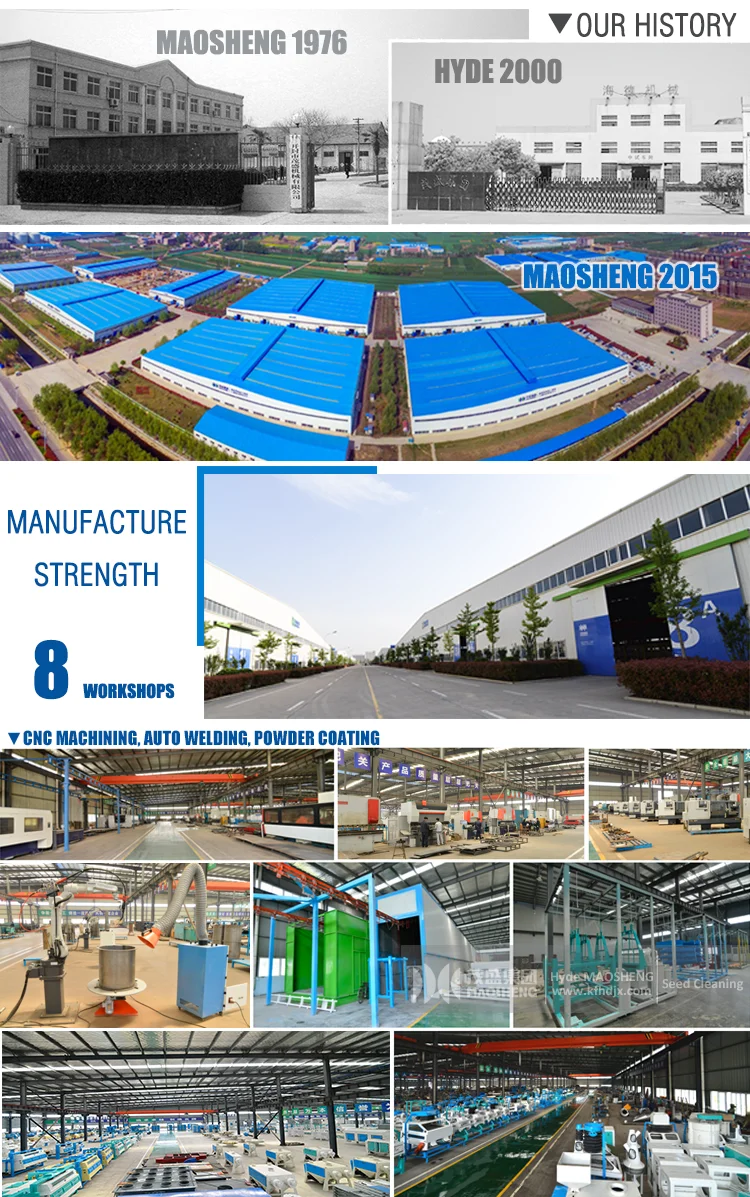

Company Profile


Kaifeng Hyde Machinery is a branch company of Henan Maosheng Group, which is formerly known as Kaifeng 2nd Grain and Oil Machinery and has specialized in engineering and equipment manufacturing for grain handling, storage, flour milling and seed processing since 1976.
With 40 years' growth, Maosheng Group company has become one of CHINA TOP 10 Grain Processing Machinery Manufacturer. In addition, Maosheng is the host of CHINA National Grain Processing Technology Research Center.
Kaifeng Hyde Machinery, separated in 2000 as a branch company, mainly manufactures a full range of advanced grain and seed processing machines.




Honors of Our company




With decades of our effort, our machines have obtained China Top 10, China Famous Brand and enjoyed high reputation in domestic and oversea markets. Member of 13 China national standards DRAFTER in grain industry. 75 patents including 4 inventions (till 2017).


Customers Visiting




FAQ


Q: What do you need to know for fast communication and quotation?
A: It would be highly appreciated if you can provide details of your processing material specs, capacity and efficiency request,
screen specification, motor power supply voltage and special brand needed, and other working conditions.

Q: What about the lead time?
A: 10~30 workdays, depending on the type of machine and parts availability.

Q: What is your payment terms?
A: T/T, L/C, Western Union, Cash accepted.
30% deposit with purchase order, 70% balance paid before shipment.

Q: How can you guarantee the quality?
A: Quality control by incoming material inspection, 100% in-production check and random check after packaging.
Spare parts and technical solutions provided timely for machine failure.

Q: How do we visit your company?
A: Hyde Machinery is located in Kaifeng City, Henan Province, China.
1 hour drive from Zhengzhou airport.


Contact: If any question, please contact me any time.
Phone: +8615637889902
Whatsapp:+8615637889902
wechat:cathy15637889902
