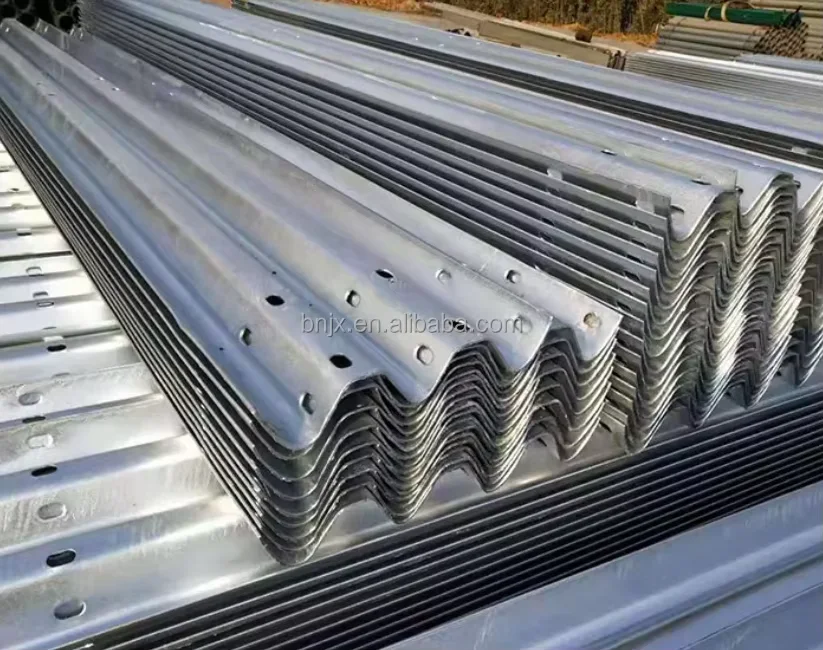

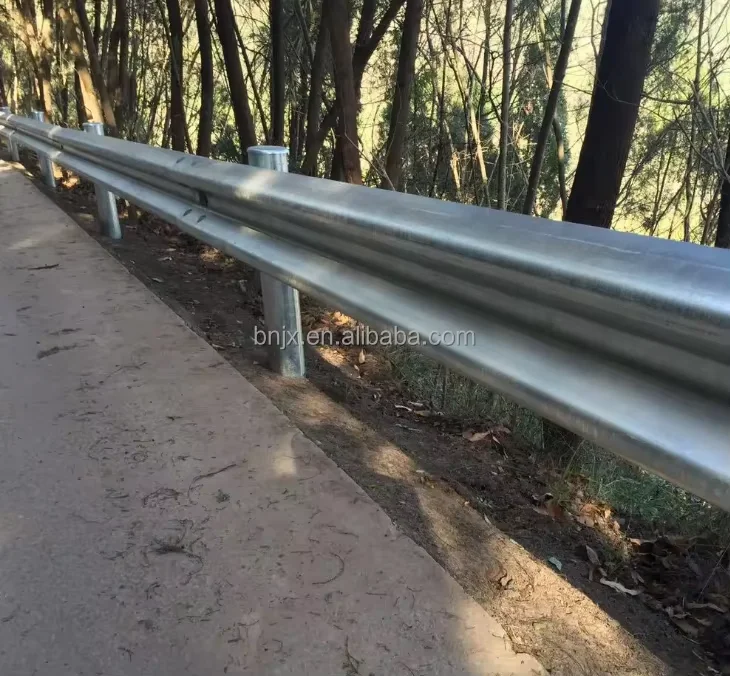

BN 2025 Customized Light Steel Frame Machine Guardrail Steel Making Machines Highway Guardrail Roll Former with Punching Hole
- Category: >>>
- Supplier: Jiangyin Bangnuo Machinery Co. Ltd.Jiangyin Ltd.
Share on (1601358750855):
Product Overview
Description
Description | Explaination | ||||||
Working speed | 10-15 m/min（Shear time is not included） | ||||||
Pressed plate thickness | 2.0-4.0mm | ||||||
Control mode | Panasonic PLC | ||||||
Discharging rack | 3 t manual discharging rack | ||||||
Front punching | 3 sets【Two sets of connecting holes, one set of middle holes】 | ||||||
Number of molding passes | 16 stations(depend on the profile) | ||||||
Roll material | Gcr15 steel is processed and quenched to HRC58-62℃, and the surface is chrome-plated | ||||||
Shaft material and diameter | 45# Steel finishing，Shaft diameter is￠100mm | ||||||
Main engine power | 45kw | ||||||
Power of hydraulic station | 7.5kw | ||||||
Hydraulic pressure | 12Mpa | ||||||
Scissors material | Cr12Mov， quench HRC 58-62℃ | ||||||
Length tolerance | 3m±1.5mm | ||||||
Voltage | 380V, 50HZ,3 phase（According to customer requirements can be adjusted） | ||||||
Transmission mode | Gear box transmission | ||||||
Equipment form | Archway structure | ||||||
Equipment color | Company color | ||||||
Equipment size | L*W*H—15.5m*1.6m*1.2m | ||||||
Date of delivery | 80 days | ||||||
Payment method | 30% advance charge，70% pay off on delivery | ||||||

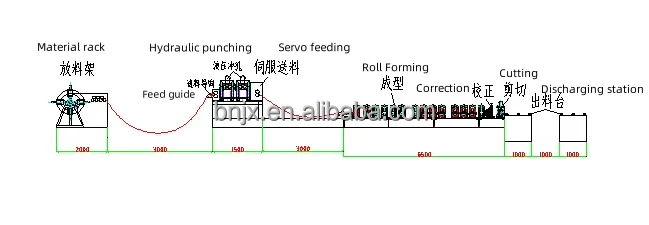

3t manual discharging rack | 1 set | ||||||
Leveling structure | 1 set | ||||||
Punching structure | 3 sets | ||||||
Molding machine | 1 set | ||||||
Shear structure | 1 set | ||||||
Control cabinet | 1 set | ||||||
Hydraulic station | 1 set | ||||||
Discharge table | 2 sets | ||||||

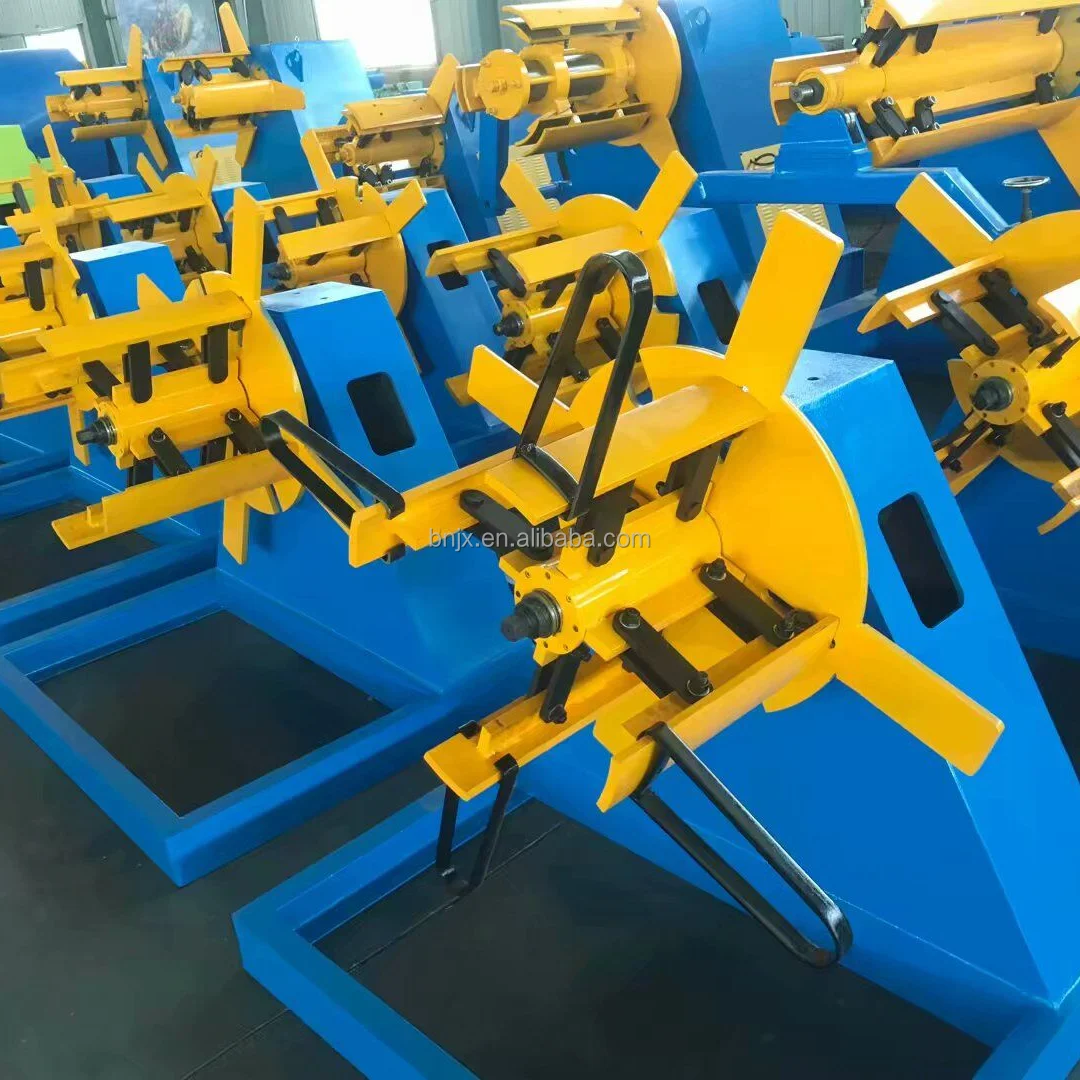

Decoiler
- Safe material storage,accident prevention.
- Manual operation,convenient and fast.
- Save space, optimize layout，
- Speed up the process,improve efficiency.
- Low cost, easy to maintain.

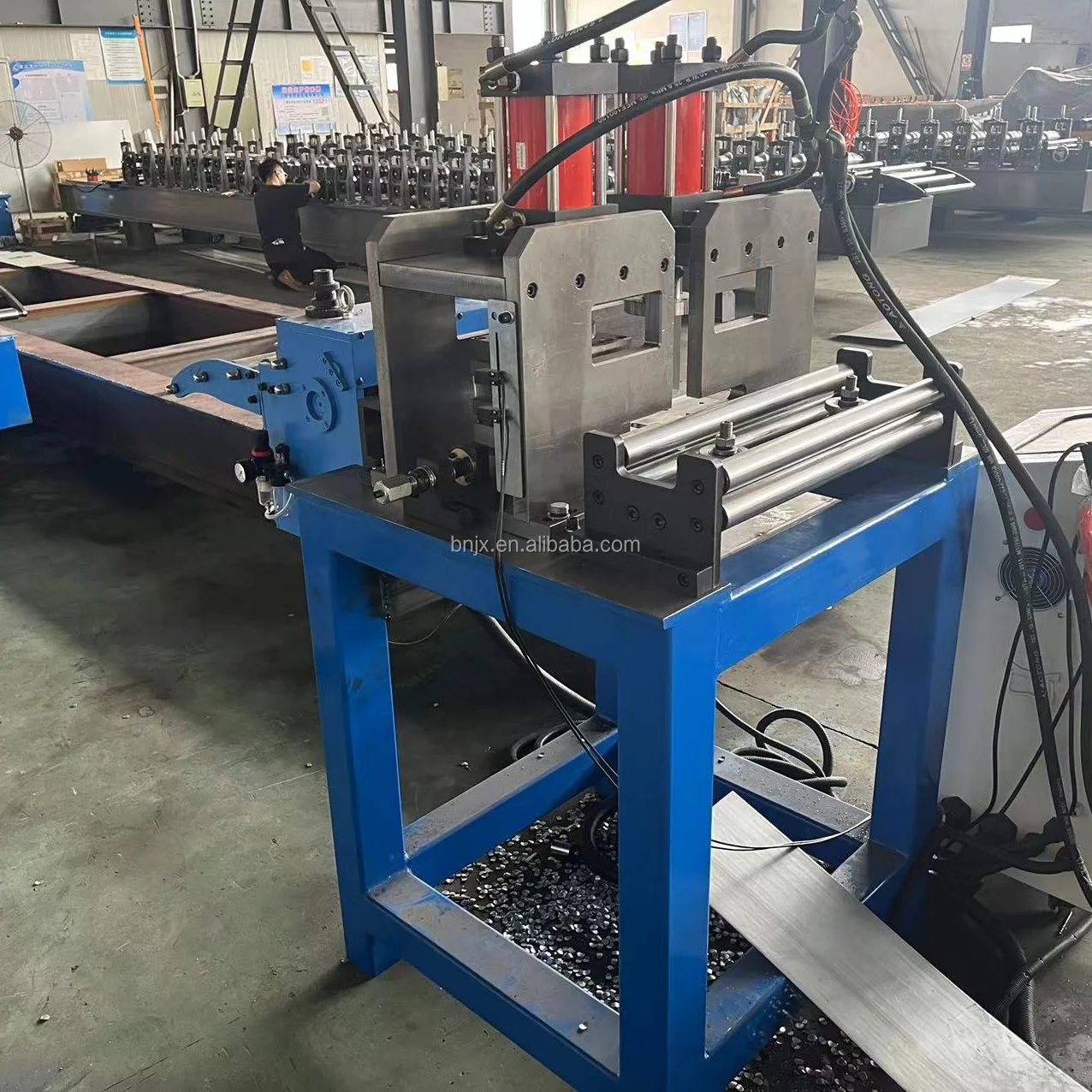

Hydraulic punching machine
The Hydraulic Punching Machine offers precision and efficiency for metalworking tasks. It features a robust hydraulic system,ensuring powerful and accurate punching operations. Ideal for industrial applications, it enhances productivity and reduces manual
effort.
effort.

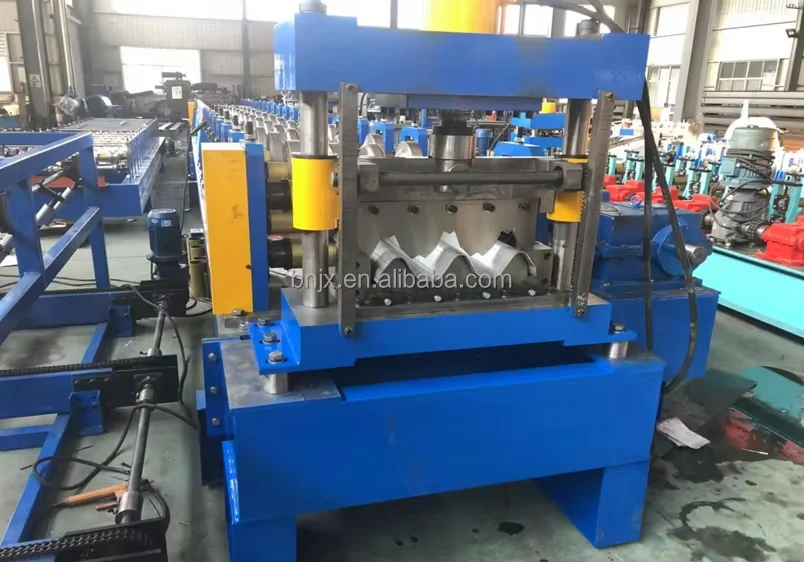

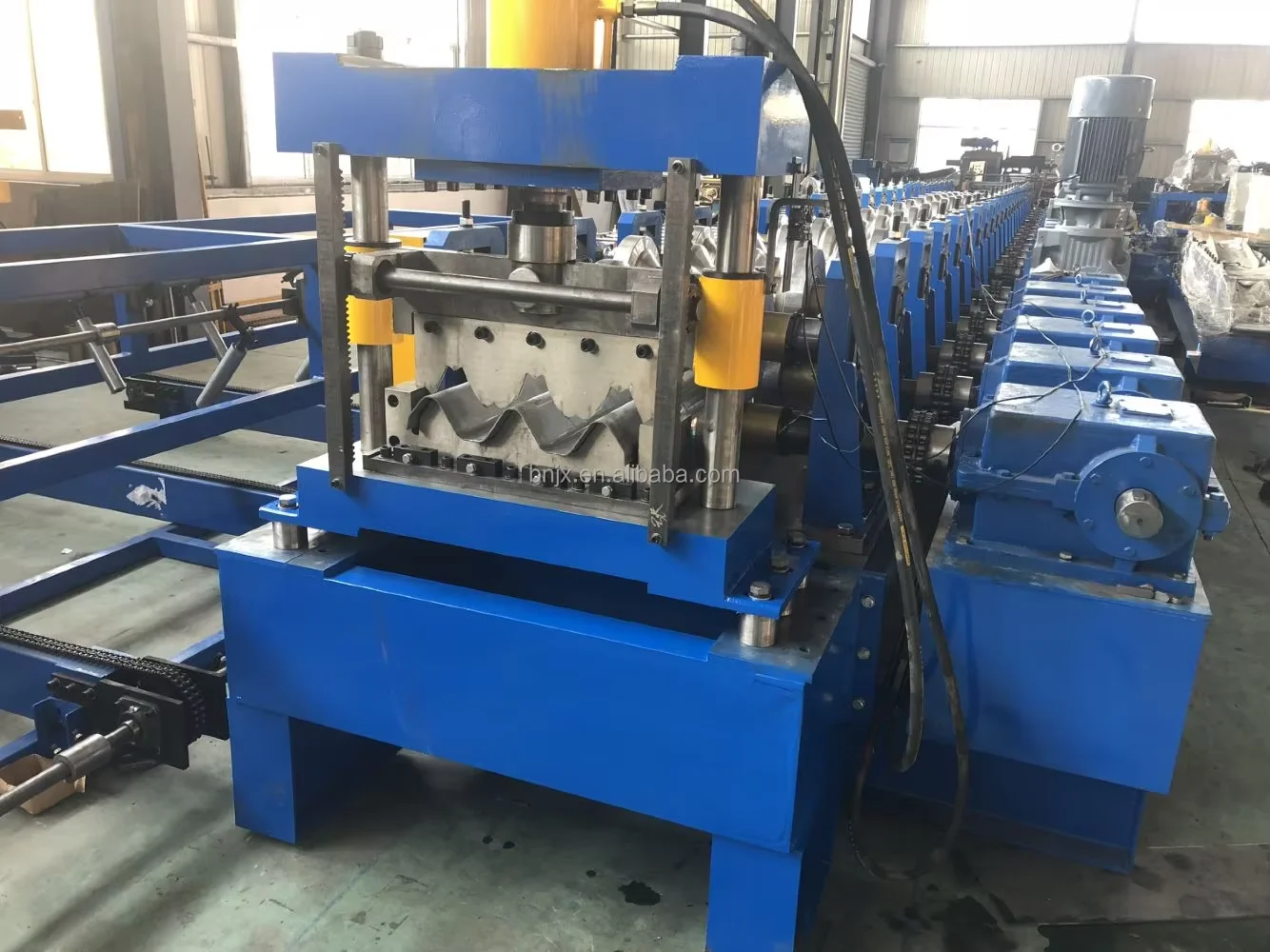

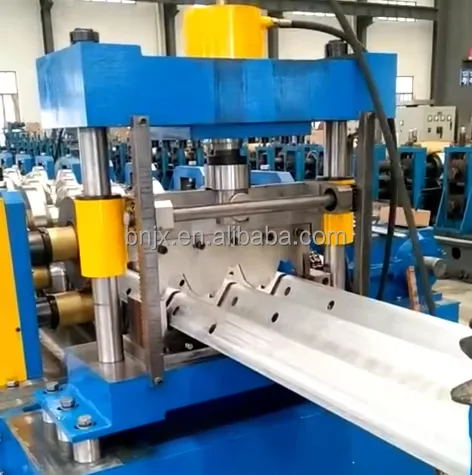

Main Roll Forming Machine
- Press materials into specified shapes.
- Precisely adjust the size to ensure specifications.
- Increase material strength and
stability.
stability.
- Support efficient batch production.
- Optimize material use and reduce costs.
- Automation ensures product
consistency.
consistency.

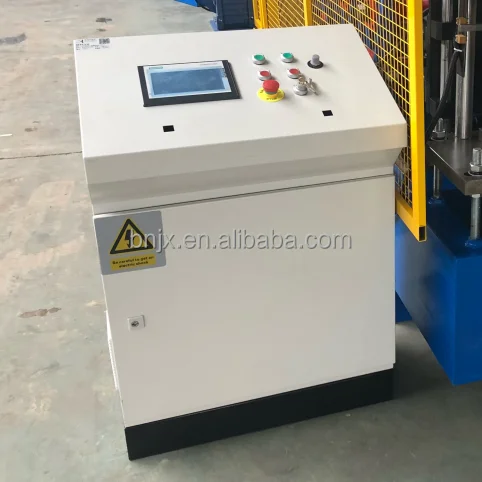

PLC Control Console
As the brain of the industrial
automation system,PLC is
responsible for receiving
sensor signals, executing
preset programs, controlling
the actions of actuators such
as motors, valves, and switches, and realizing automated production and process monitoring.
automation system,PLC is
responsible for receiving
sensor signals, executing
preset programs, controlling
the actions of actuators such
as motors, valves, and switches, and realizing automated production and process monitoring.
Hydraulic Machine
- Efficient processing of metal
parts.
- Built-in fan to prevent overheating.
- Stable operation in high
temperature environment.
- No water source required,low maintenance.
- Reliable under changing
working conditions.
- Intuitive interface, safe and
convenient.
parts.
- Built-in fan to prevent overheating.
- Stable operation in high
temperature environment.
- No water source required,low maintenance.
- Reliable under changing
working conditions.
- Intuitive interface, safe and
convenient.

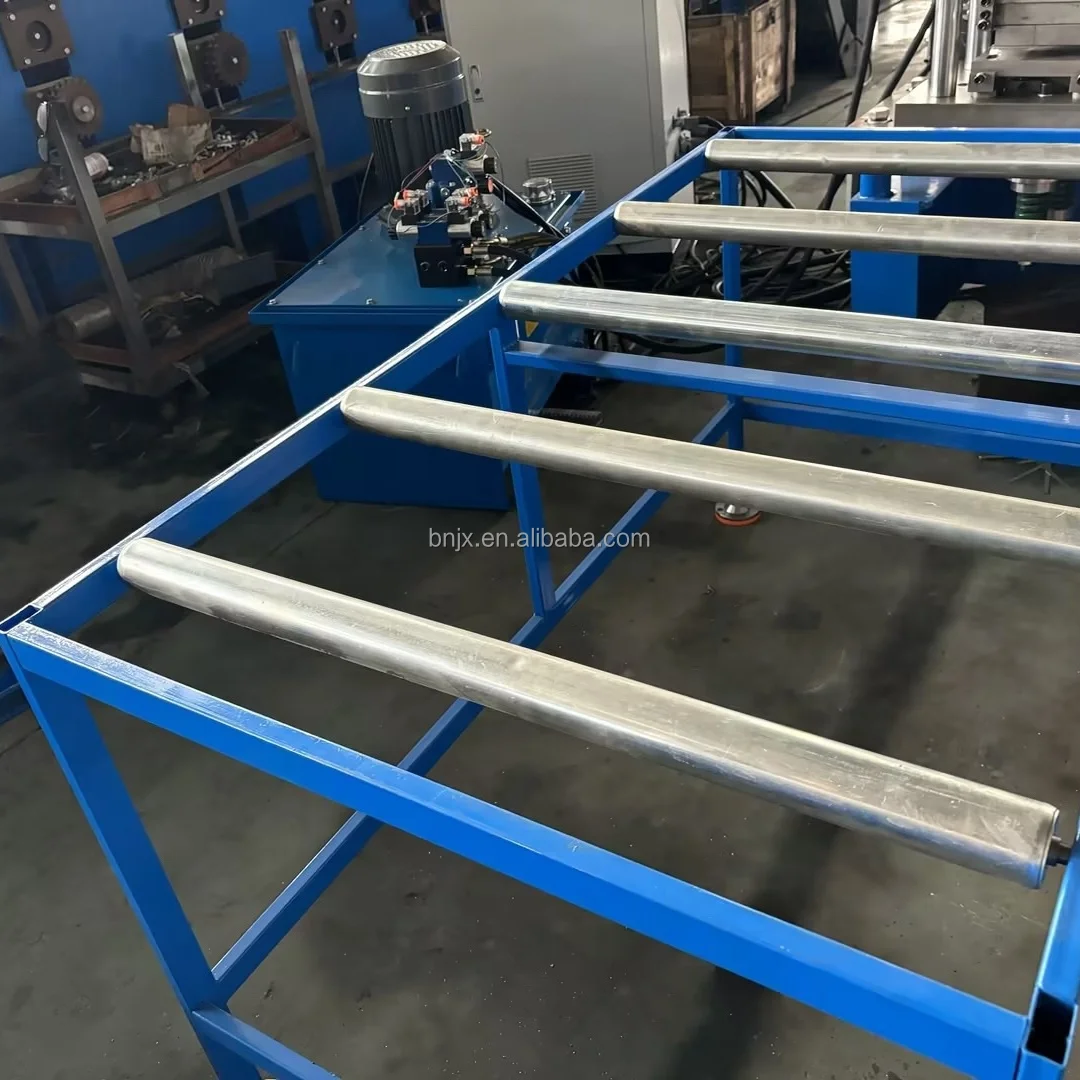

Wide Discharge Table
- Temporary storage of finished
products.
- Smooth connection of
production processes.
- Initial sorting and organization.
- Preventing falling and protecting personnel.
- Accelerating material turnover.
products.
- Smooth connection of
production processes.
- Initial sorting and organization.
- Preventing falling and protecting personnel.
- Accelerating material turnover.
Cutting
- Optimize material use to reduce waste.
- Keep the product intact and
prevent deformation.
- Improve efficiency and speed up production.
- Design safety to ensure operation.
- Diverse materials and wide
application.
- Keep the product intact and
prevent deformation.
- Improve efficiency and speed up production.
- Design safety to ensure operation.
- Diverse materials and wide
application.
Jiangyin Bangnuo Machinery Co., Ltd. is an original manufacturer specializing in the production of metal building materials machinery, located in the golden zone - Yangtze River Delta, enjoying unique transportation advantages. It is adjacent to Wuxi International Airport and Shanghai Yangshan International Port. The company covers an area of 3,000 square meters and has more than 26 experienced employees, including engineers, salespersons and all kinds of skilled workers. As a leader in the design and manufacture of cold forming machines, we are deeply engaged in the research and development of middle and high-end building material forming machines, and provide comprehensive ODM and OEM services. All of them are CE certified with excellent quality. We are highly trusted and praised by our customers. Our products are exported to more than 30 countries in seven continents,including the United States, Australia, the United Kingdom, Brazil, Argentina, South Africa and India, etc., and are highly trusted and praised by customers.
Q1.Does one machine can only produce one size?
Not exactly. It depends on the type and version of machine you need.
Q2.Do you have after sales support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
Q3. You are trade company or factory?
We are Manufacturer,and also a CE manufacturer.
Q4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we
can make it for you less than a month.
Q5. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide.Our engineers can offer the best
professional solution to our worldwide clients.Meanwhile we can provide door-to-door service.
Q6.How to visit your factory?
By high speed train from Shanghai to Wuxi, half an hour.You can also fly directly to Wuxi.
Q7.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the
Buyer’s Installation site.
Q8.May we visit your factory?
Sure,Warmly welcome to our factory at any time.
Q9. How to get a quotation?
1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
Not exactly. It depends on the type and version of machine you need.
Q2.Do you have after sales support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
Q3. You are trade company or factory?
We are Manufacturer,and also a CE manufacturer.
Q4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we
can make it for you less than a month.
Q5. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide.Our engineers can offer the best
professional solution to our worldwide clients.Meanwhile we can provide door-to-door service.
Q6.How to visit your factory?
By high speed train from Shanghai to Wuxi, half an hour.You can also fly directly to Wuxi.
Q7.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the
Buyer’s Installation site.
Q8.May we visit your factory?
Sure,Warmly welcome to our factory at any time.
Q9. How to get a quotation?
1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
Warmly welcome customers to visit our factory!
