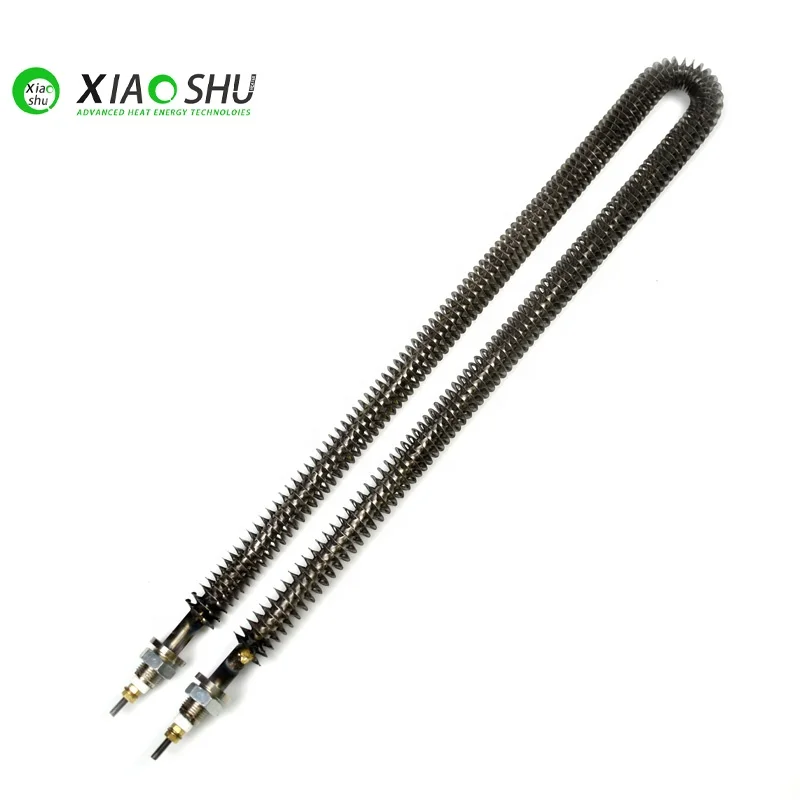

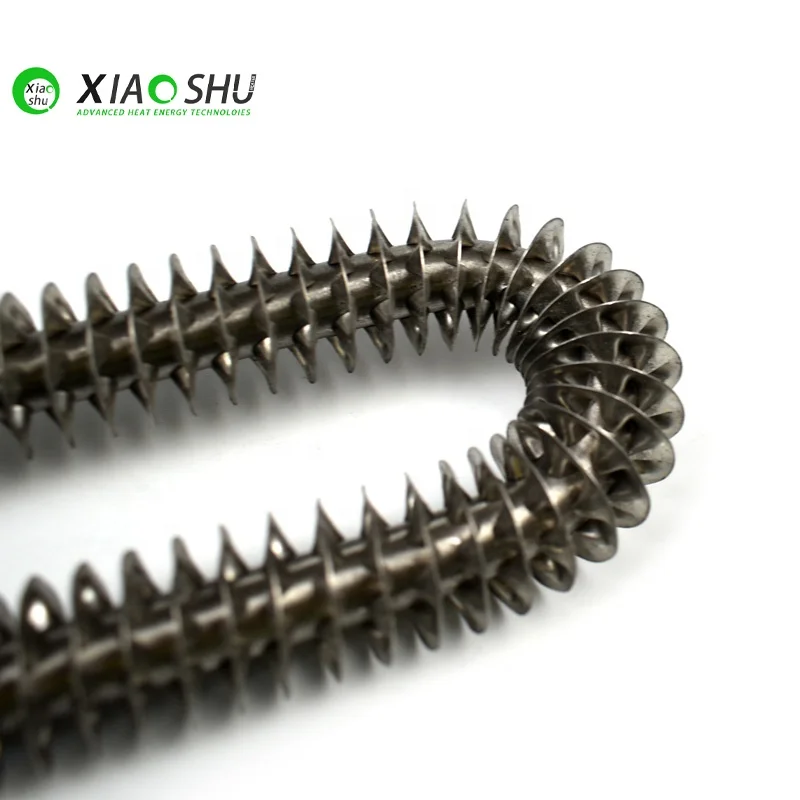

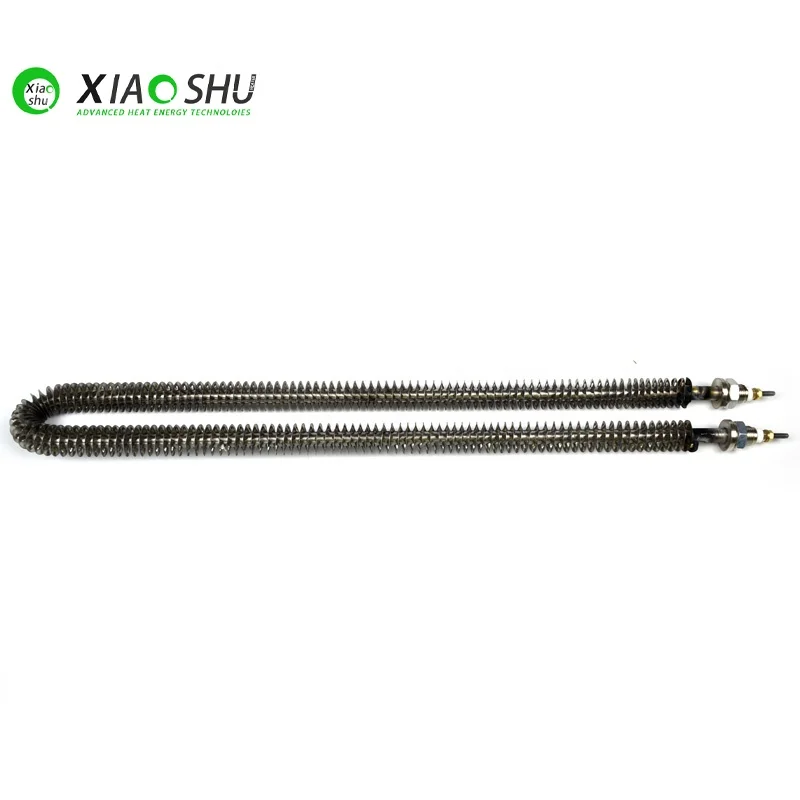

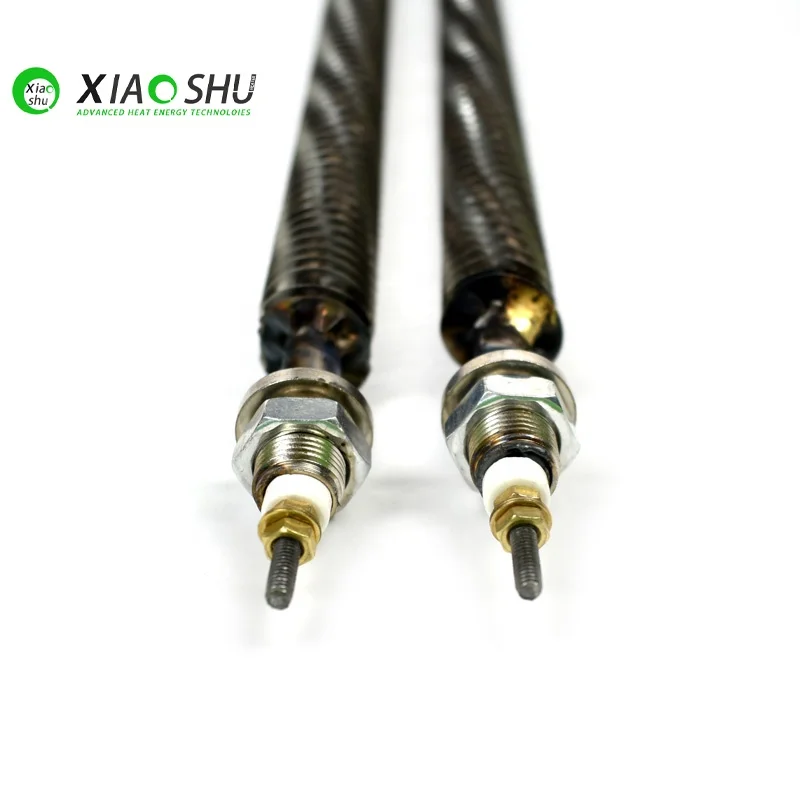

XIAOSHU 230v 500w 1500w 494mm Length Stainless Steel 304 Air Tubular Finned Heater With M14 Screw Connection
- Category: >>>
- Supplier: Yancheng Xiaoshu Technoloy Co. Ltd.Yancheng Ltd.
Share on (1601359708752):
Product Overview
Description
Product Model | CPG-101000 2301500-U |
Voltage | 230V |
Power | 1500W |
Product Size | Diameter=10MM Length=494MM*2 |
Net Weight | 0.5KG |
Material | Stainless Steel |
Product Name | Finned Tubular Heater | ||||||
Tube Material | Stainless Steel/Copper/Incoloy | ||||||
Voltage | 12V~600V or customized | ||||||
Power | 50W~2000W or customized | ||||||

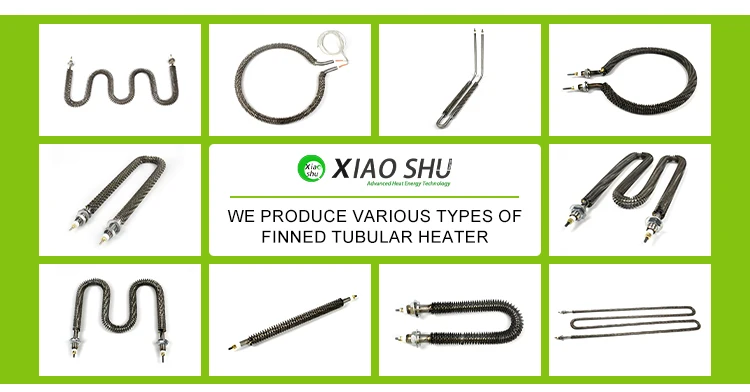

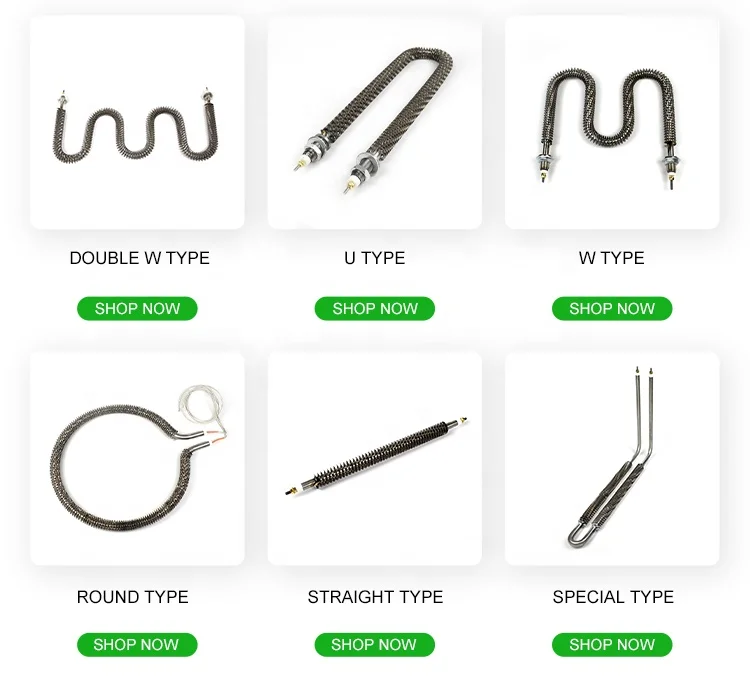

Shape | U/ W/ Doube W/ Straight /Round type or customized | ||||||
Tube Diameter | 8MM 10MM 12MM 14MM 16MM 18MM 20MM or customized | ||||||
Terminal Styles | Plain Pins/ Flag Terminals/ Spade Terminal/ Screw Terminal/ Special Terminal | ||||||
Maximum Leakage Current (cold) | ≤ 0.5 mA | ||||||
Insulation Resistance (cold) | ≥ 500 MΩ | ||||||
Certification | CE, ROHS | ||||||
TUBE MATERIAL | FIN MATERIAL | TUBE DIA. (MM) | FIN HEIGHT (MM) | FIN THICKNESS (MM) | FIN PITCH (MM) |
SS304/316/ 321/Incoloy | SS304/316 /321/Incoloy | Φ6.7 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/ Incoloy | S.Steel / mild Steel | Φ8 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/ Incoloy | S.Steel / mild Steel | Φ9 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/ Incoloy | S.Steel / mild Steel | Φ10 | 5-7 | 0.3-0.4 | 3-7 |
SS304/316/321/ Incoloy | S.Steel / mild Steel | Φ12 | 5-7 | 0.3-0.4 | 3-7 |
SS304/316/321/ Incoloy | S.Steel / mild Steel | Φ14 | 5-10 | 0.3-0.4 | 3-7 |
SS304/316/321/ Incoloy | S.Steel / mild Steel | Φ16 | 5-10 | 0.3-0.4 | 5-7 |
SS304/316/321/ Incoloy | S.Steel / mild Steel | Φ20 | 5-10 | 0.3-0.4 | 7-10 |
