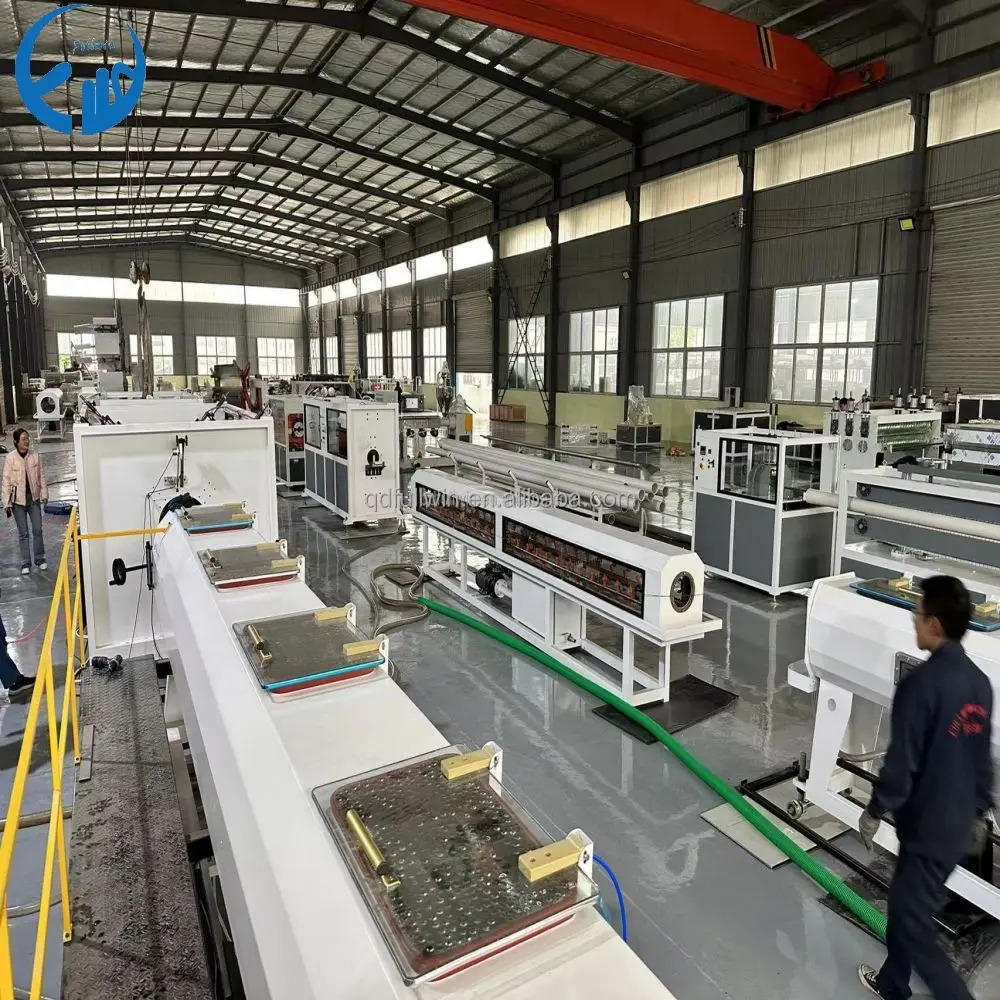

Factory Sales 20 110mm Pe Hdpe Pipe Making Machinery/plastic Tube Production Line For Water Pipe Production
- Category: >>>
- Supplier: Qingdao Fullwin Machinery Co. Ltd.Qingdao Ltd.
Share on (1601360342174):
Product Overview
Description
PE/PP/PPR/HDPE/LDPE production line is our main product which yearly sold more than 95sets and service more than 60 countries.
We are a Plastic extrusion line manufacturer with 15+ years experienced in the development and design of different kinds of
patented products ,which Service more than 60 countries and SGS certified golden supplier in Alibaba.
We are a Plastic extrusion line manufacturer with 15+ years experienced in the development and design of different kinds of
patented products ,which Service more than 60 countries and SGS certified golden supplier in Alibaba.

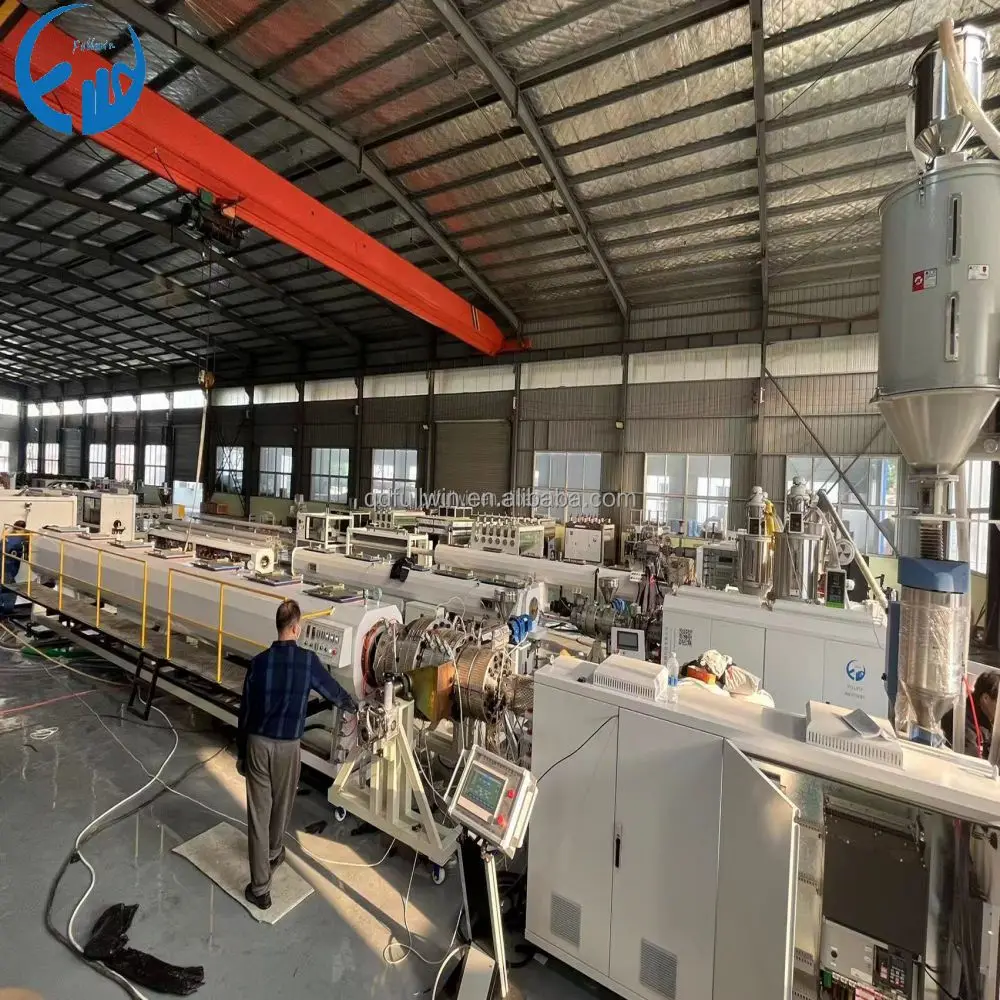

PRODUCTION LINE
Factory Sales 20-110mm Pe Hdpe Pipe Making Machinery/plastic Tube Production Line For Water Pipe Production
PE/PP/PPR/HDPE/LDPE pipe production line,can be used to produce PPR hot and cold water pipes,PE pipe,silicon core tube,the production line can be used to produce a single extruder monochrome tube,can also be used to produce multiple extruders through the co-extrusion head multi-layer color tube.
The commonly used PE irrigation pipe pressure range is between 0.6-1.6MPa, the color is mostly black or white, and the material is high-density polyethylene (HDPE) pipe
The commonly used PE irrigation pipe pressure range is between 0.6-1.6MPa, the color is mostly black or white, and the material is high-density polyethylene (HDPE) pipe
Process Flow:
Single screw extruder →Co-extruder for color string & Multi Layers → Mould → Vacuum Calibration Tank → Spray Cooling Water Tank→Haul-off → No Dust Cutter → Stacker → Final Product Inspecting &Packing
Single screw extruder →Co-extruder for color string & Multi Layers → Mould → Vacuum Calibration Tank → Spray Cooling Water Tank→Haul-off → No Dust Cutter → Stacker → Final Product Inspecting &Packing
Technical parameter for pe pipe extrusion line: | ||||||||||||||||
Pipe range(mm) | ||||||||||||||||
Extruder model | ||||||||||||||||
Motor power(kw) | 30/37 | 55/75 | 75/90 | 90/110 | 132 | 160 | 280 | 335 | ||||||||
Capacity(kg/h) | 60-130 | 100-150 | 200-300 | 220-350 | 300-400 | 350-450 | 500-600 | 700-900 | ||||||||
Max speed | 15m/min | 10m/min | 8m/min | 6m/min | 3m/min | 1.2m/min | 1m/min | 0.8m/min | ||||||||
DETAILS OF OUR PRODUCT
NO | MACHINE LIST | QTY |
1 | SJ 65/30 high efficiency single screw extruder | 1set |
2 | New design die head | 1set |
3 | Core bar mouth mold and copper sizing sleeve | 1set |
4 | Vacuum sizing water tank | 1set |
5 | Spraying water tank | 1set |
6 | Hauling off machine | 1set |
7 | Cutting machine | 1set |
8 | Winding machine | 1set |
9 | Auto stocker | 1set |

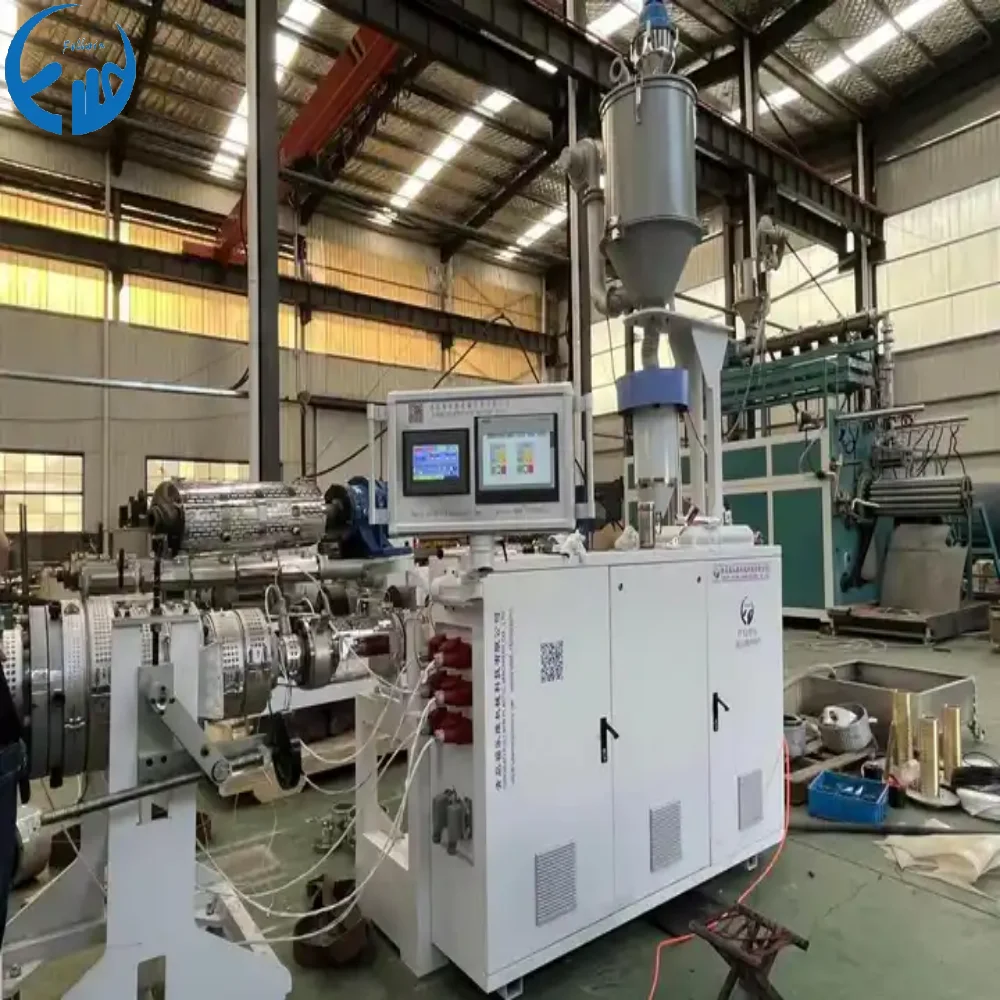

1)SJ 65/30 high efficiency single screw extruder
Length and diameter ratio:30:1
Auto loader and dryer
Omron temperature controller
Siemens contactor
Siemens motor
ABB inverter
Screw and barrel material:38CrMoAIA
Auto loader and dryer
Omron temperature controller
Siemens contactor
Siemens motor
ABB inverter
Screw and barrel material:38CrMoAIA
Siemens PLC computer control panel

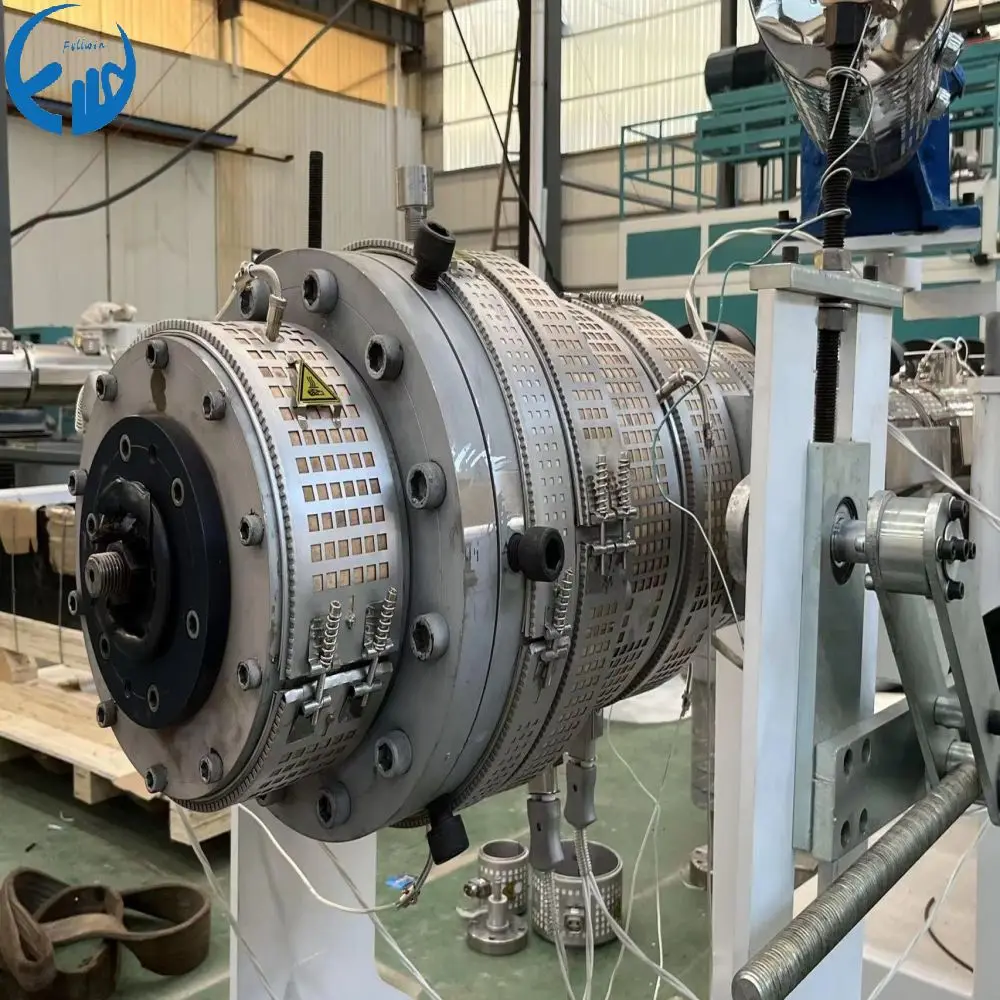

2)New design die head
Material:Stainless steel
40GR forged,hard chrome plated energy
saving heating ring can save 30% electricity cost.
Mould surface with teflon material ,it has high temperature and wear resistance,and does not stick to raw materials.
3)Core bar mouth mold and copper sizing sleeve
Core bar mouth mold electroplating material
Copper sleeve material by polishing
Copper sleeve material by polishing

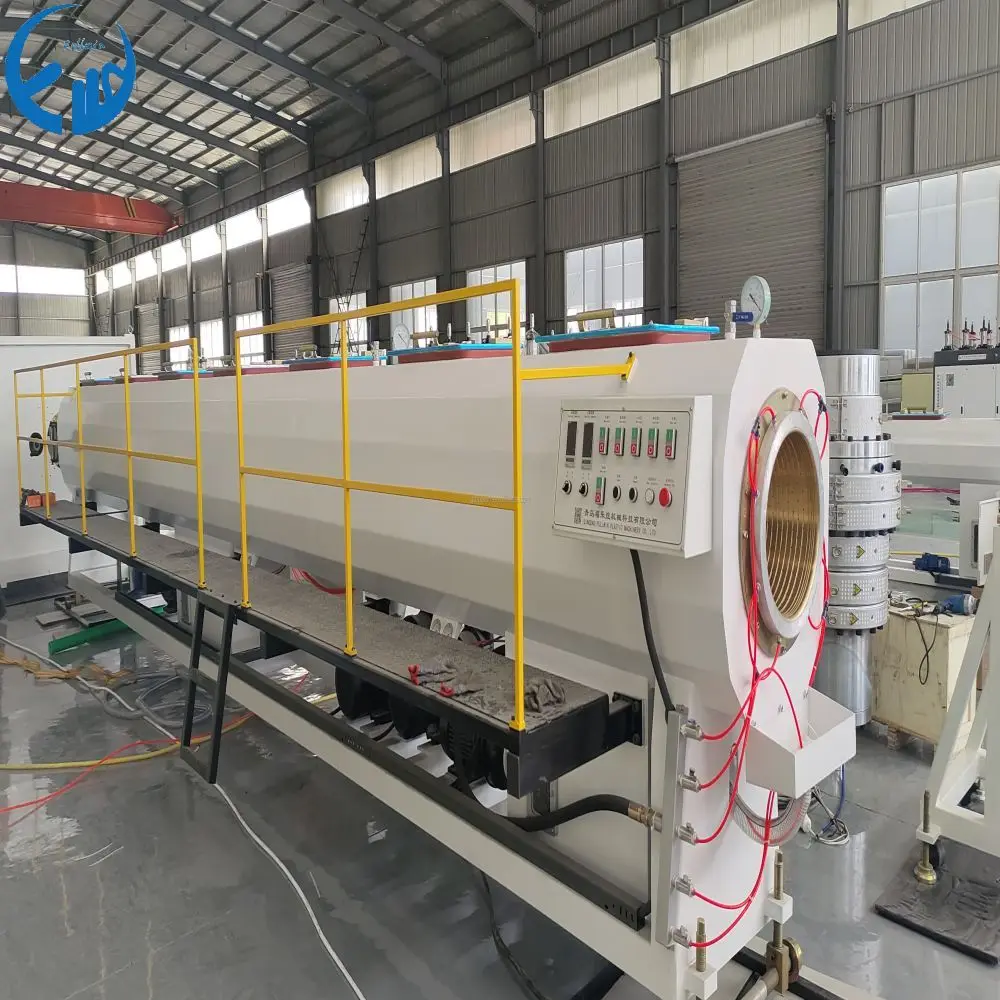

4)Vacuum sizing water tank
Standard length: 6m
Meterstank material: 304stainless steel
Vacuum pump: 4kw 2sets
Water pump 4kw 2 sets
Motor:0.75kw
Vacuum pump: 4kw 2sets
Water pump 4kw 2 sets
Motor:0.75kw
5)Spraying water tank
Length:6000mm
Tank material:stainless steelWater pump:4kw
With galvanized pipe+spray nozzle
With tempered glass window
Tank material:stainless steelWater pump:4kw
With galvanized pipe+spray nozzle
With tempered glass window
6)Halling off machine:
1.pipe size: 20mm-160mm
2. caterpillar tractor
3. effective traction lenth:750mm
4. halling off speed: 0.3-6 m/min
3. effective traction lenth:750mm
4. halling off speed: 0.3-6 m/min
The length can be set online according to customer requirements
7)Cutting machine：
Customer can set pipe length according to the
requirement.
Cutting design:16mm-40mm
Fly-knife cutting：50mm-250mm
Chip-less design
8)Double station winding machine
Winding machine used for small size PP PE PPR HDPE LDPE pipe.
9)Auto stocker
Stacker used for big size pipe.
Cooperation brand
All the parts using domestic and foreign well-known brands：
Schneider、Delixi、RKC、Delta、ABB、Siemens、Omron、Jc
PACKING AND DELIVERY
SALES AND SERVICE NETWORK
Sales and service network
- After all machines are delivered to customer’s factory; Buyer is responsible for all preparation work, e.g. electricity
supply,water supply, labors and cranes, etc.
- Fullwin will prepare for visa application for their engineers, who are responsible for guide of machine installation and testing at the Buyer’s factory.
- The Buyer will buy the round-trip air ticket for Engineer if visa application is approved.
The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for each engineer.
- If buyer doesn’t request installation and commissioning by Seller’s engineer in 4 months since date of bill of lading, which to be accounted all the machines has been successfully tested by buyer.
supply,water supply, labors and cranes, etc.
- Fullwin will prepare for visa application for their engineers, who are responsible for guide of machine installation and testing at the Buyer’s factory.
- The Buyer will buy the round-trip air ticket for Engineer if visa application is approved.
The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for each engineer.
- If buyer doesn’t request installation and commissioning by Seller’s engineer in 4 months since date of bill of lading, which to be accounted all the machines has been successfully tested by buyer.
COMPANY PROFILE
Qingdao Fullwin Plastic Machinery Co., Ltd
Is a manufacturer specializing in plastic extrusion machine and auxiliaries, including single-wall corrugated pipe production lines, double-wall corrugated pipe production lines, PVC/PP water supply pipe production lines,
profile and sheet production lines, etc. Fullwin corrugated pipe production line has won a number of invention patents, and the company also has various certifications such as CE, ISO, etc. Fullwin machinery product exported to countries all over the world, such as Germany, Switzerland, the Middle East, Southeast Asia, South America, Africa and other countries.
CERTIFICATION
FAQ
1. How can we guarantee quality?
2.What can you buy from us?
Single Wall Corrugated Pipe Machine,
3. Why should you buy from us not from other suppliers?
1.Advanced production technology with design capability.
4. What services can we provide?
Accepted Delivery Terms: FOB,CFR, CIF, EXW ,Express Delivery；
Accepted Payment Currency: USD,EUR;
Accepted Payment Type: T/T,L/C,Money Gram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
Always a pre-production sample before mass production; Always final Inspection before shipment;
2.What can you buy from us?
Single Wall Corrugated Pipe Machine,
Double Wall Corrugated Pipe Machine,
PVC/ PP Water Supply Pipe Machine,
WPC/PVC Profile and Sheet Profile Machine,PVC Fiber Reinforced Pipe Machine
3. Why should you buy from us not from other suppliers?
1.Advanced production technology with design capability.
2.Reasonable price with good quality and best delivery time.
3.Our sales team will give prompt feedback within 24 hours .
3.Our sales team will give prompt feedback within 24 hours .
4.Professional after sales service system,our engineer will go to customer factory.
4. What services can we provide?
Accepted Delivery Terms: FOB,CFR, CIF, EXW ,Express Delivery；
Accepted Payment Currency: USD,EUR;
Accepted Payment Type: T/T,L/C,Money Gram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
