NTC Thermistor MF52 Thermistor 1K 2K 5K 10K 15K 20K 30K 50K 100K 3435 3950 4100 4250 4500 B Value 1% PVC Or Enamelled Wire
- Category: >>>
- Supplier: Dongguan Linkun Electronic Technology Co. Ltd.Dongguan Ltd.
Share on (1601360370478):
Product Overview
Description
Product Description

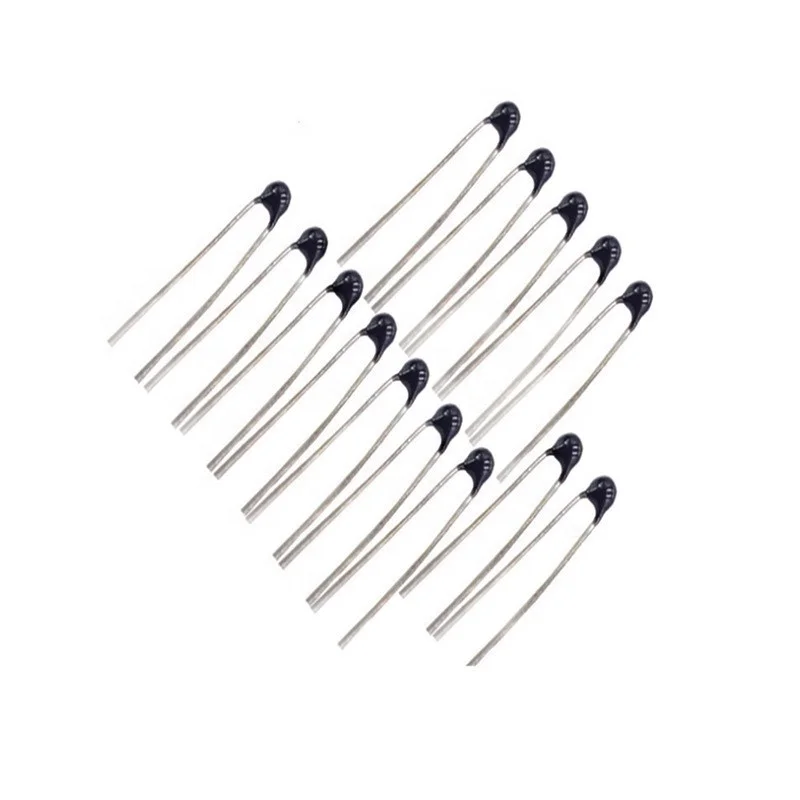

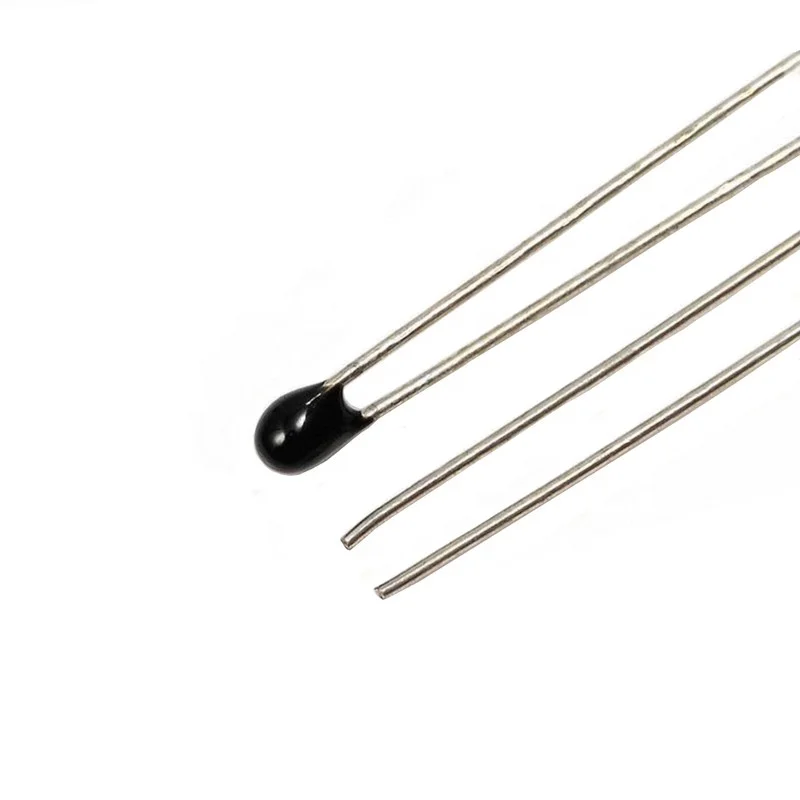

MF52 Thermistor Product Brief
MF52 bead temperature NTC thermistor is a small type epoxy resin coating ,which produced bynew material and new technology, has the advantages of high precision and fast response. Application Air condition, central heating,electronic thermometer,liquid sensor, auto，electroniccalendar,and mobile phone batteries Features High testing precision,small size, fast response,working stability for long time,interchangeability and good consistency.
Application
Air condition, central heating,electronic thermometer,liquid sensor, auto，electroniccalendar,and mobile phone batteries
Features
High testing precision,small size, fast response,working stability for long time,interchangeability and good consistency.
Company Profile

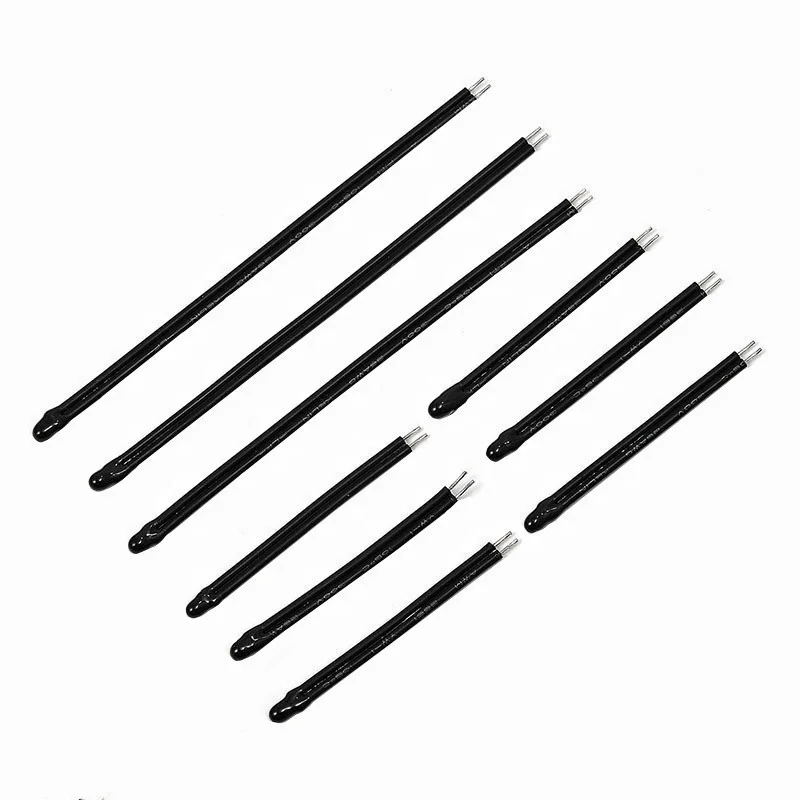

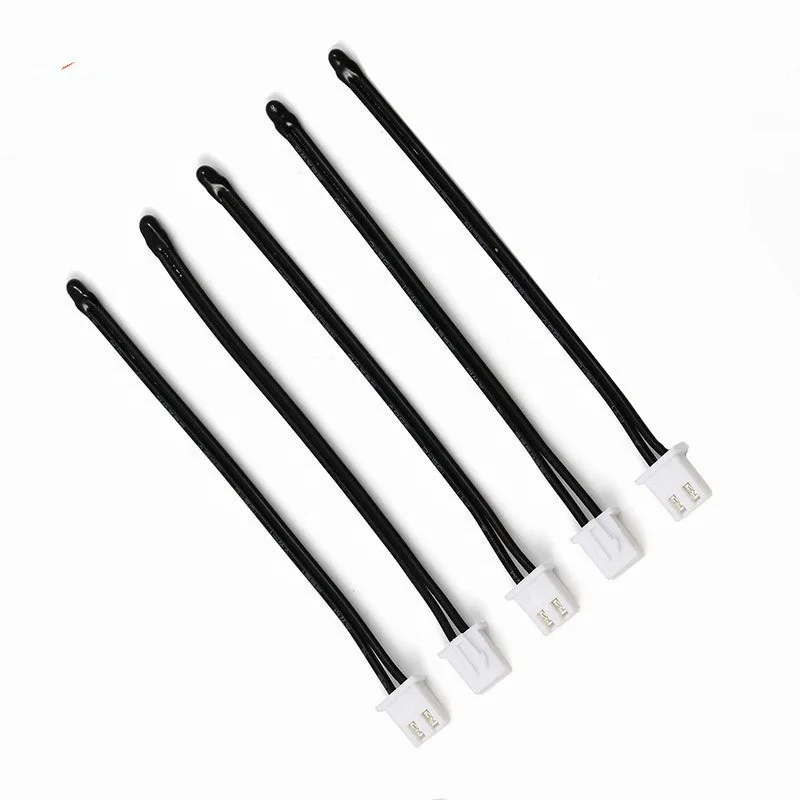

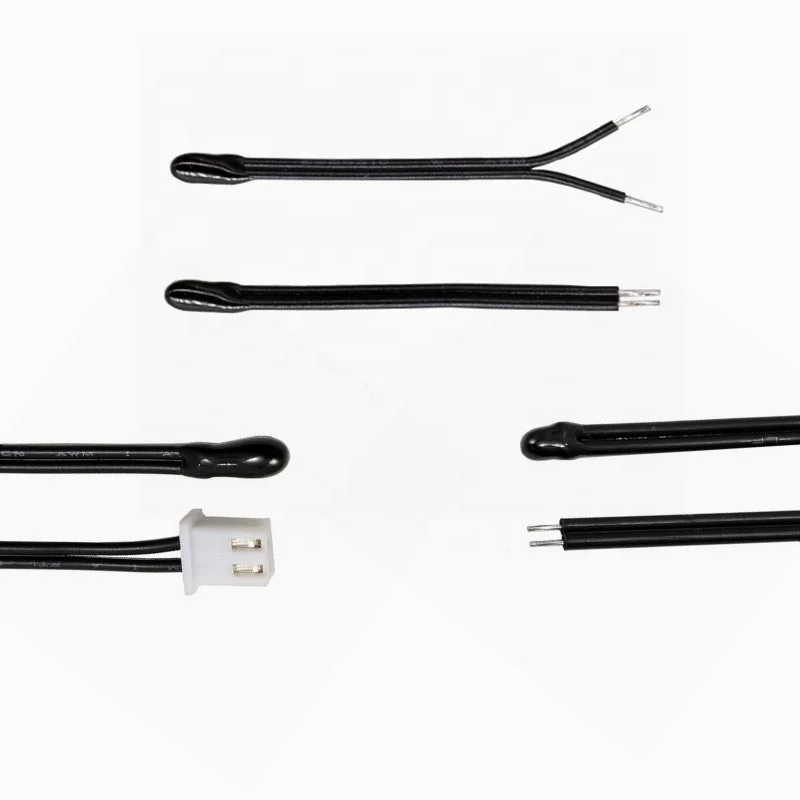

Features of Epoxy Coating NTC Thermistor Sensor
Waterproof 1KΩ～100KΩ Resistive Epoxy Coated
NTC Type Thermistor Temperature Probe Sensor
Product name: Epoxy resin encapsulated NTC temperature sensor
Standard resistance (according to customer requirements): R25℃=10KΩ±5% B25/50=3950K±1%
Working temperature: -30~125℃
Features: Ambient temperature measurement/sensitive response/small size/good consistency
Applicable to: heaters, air conditioners, refrigerators, wine cabinets, motors, lithium batteries, street lights, chargin piles,etc.
NTC Type Thermistor Temperature Probe Sensor
Product name: Epoxy resin encapsulated NTC temperature sensor
Standard resistance (according to customer requirements): R25℃=10KΩ±5% B25/50=3950K±1%
Working temperature: -30~125℃
Features: Ambient temperature measurement/sensitive response/small size/good consistency
Applicable to: heaters, air conditioners, refrigerators, wine cabinets, motors, lithium batteries, street lights, chargin piles,etc.
Features of Epoxy Coating NTC Thermistor Sensor
2. Wide resistance range: 500KΩmax
3. High accuracy of resistance and B value
4.Moisture proof, good insulation, high reliability, small time constant
5. Small volume, fast reflection speed
1. MF52 series products are coaxial lead epoxy resin coating type
2. Wide resistance range: 500KΩmax
3. High accuracy of resistance and B value
4.Moisture proof, good insulation, high reliability, small time constant
5. Small volume, fast reflection speed
6. Can work steadily for a long time, good consistency
7. Wide range of operating temperature
7. Wide range of operating temperature
Application Of Epoxy Resin Thermistor NTC Sensor
measurement for induction cooker, rice cooker, microwave oven, water machine, electric kettle, heater, air conditioner,
refrigerator, water dispenser, disinfection cabinet, washing machine, coffee maker and so on household appliances. Besides, the
sensors are applicable to automobile, Internet of things,medical temperature measurement, industrial temperature measurement,
garden temperature control and breeding industry etc.
NTC sensor is widely used in temperature
measurement for induction cooker, rice cooker, microwave oven, water machine, electric kettle, heater, air conditioner,
refrigerator, water dispenser, disinfection cabinet, washing machine, coffee maker and so on household appliances. Besides, the
sensors are applicable to automobile, Internet of things,medical temperature measurement, industrial temperature measurement,
garden temperature control and breeding industry etc.
A:(Tin. nickle Cu or Cp wire)
Normal dimension table
Code | Dmax | L1max | L2min | d ±0.05 | F ±0.5 |
A1 | 2.5 | 4 | 25 | 0.3 | 1.7 |
A2 | 3 | 4.5 | 25 | 0.45 | 2.2 |
B:(Enamelled cu wire)
Normal dimension table
Normal dimension table
Code | Dmax | L1max | L2min | L3 ±1 | d±0.05 |
B1 | 2 | 3.5 | by user determine | 3 | 0.2 |
B2 | 3 | 4 | by user determine | 3 | 0.3 |
C:(High-temperature wire)
Normal dimension table
Normal dimension table
Code | Dmax | L1max | L2min | L3 ±1 | Wire AWG |
C1 | 3 | 7.5 | by user determine | 5 | 30# |
C2 | 4 | 7.5 | by user determine | 5 | 28# |
D:(Normal temperature wire)
Normal dimension table
Normal dimension table
Code | Dmax | L1max | L2min | L3 ±1 | Wire AWG |
D1 | 3 | 7.5 | by user determine | 5 | 30# |
D2 | 4 | 7.5 | by user determine | 5 | 28# |
E:Lead and head are all special specification)
Normal dimension table
Normal dimension table
Code | Dmax | L1max | L2min | L3 ±1 | Wire AWG |
E1 | by user determine | by user determine | by user determine | 5 | by user determine |
E2 | by user determine | by user determine | by user determine | 5 | by user determine |
DE:(Cp Lead Coated with epoxy resin)
Normal dimension table
Normal dimension table
Code | Dmax | L1max | L21max | L3 | d±0.05 | F±0.05 |
DE1 | 3 | 6.0 | 55 | By user determine | 0.3 | / |
DE2 | 4 | 7.5 | 35 | by user determine | 0.45 | / |
F:(Tinned steel wire)
Normal dimension table
Code | Dmax | L1max | L2±1.5 | d±0.01 | f±0.05 | T max |
F | 3.8 | 9.5 | 17 | 0.6 | 2.5 | 3.5 |
Series Data Of The NTC Thermistor Temperature Sensor
Part No. | Rated Resistance R25(KΩ ) | B Value(25/50°KΩ) | Rated Power (mw) | Dissi. Coef. (mw/°C) | Thermal time Constant(S) | Operating Temp. (°C) |
MF52□□□3100 | 0.1 ~20 | 3100 | In Still Air | In Still Air | ||
MF52□□□ 3270 | 0.2 ~20 | 3270 | ||||
MF52□□□ 3380 | 0.5 ~50 | 3380 | ||||
MF52□□□ 3470 | 0.5 ~50 | 3470 | ||||
MF52□□□ 3600 | 1 ~100 | 3600 | ||||
MF52□□□ 3950 | 5 ~100 | 3950 | ||||
MF52□□□ 4000 | 5 ~100 | 4000 | ||||
MF52□□□ 4050 | 5 ~200 | 4050 | ||||
MF52□□□ 4150 | 10 ~250 | 4150 | ||||
MF52□□□ 4300 | 20 ~1000 | 4300 | ||||
MF52□□□ 4500 | 20 ~1000 | 4500 |
Temperature Measurement With Thermistor Sensor
The thermistor sensor, which is used to measure temperature, is simple in structure and low in price.
Thermistors without external protective layers can only be used in dry areas; sealed thermistors are resistant to moisture and can be used in harsh environments. Because the resistance value of thermistor sensor is relatively large, the resistance and contact resistance of its connecting wires can be ignored.
Therefore, thermistor sensor can be applied in long-distance temperature measurement up to several thousand meters, and the measurement circuit mostly adopts bridge.The principle can also be used for other temperature measurement, temperature control circuit.
Thermistors without external protective layers can only be used in dry areas; sealed thermistors are resistant to moisture and can be used in harsh environments. Because the resistance value of thermistor sensor is relatively large, the resistance and contact resistance of its connecting wires can be ignored.
Therefore, thermistor sensor can be applied in long-distance temperature measurement up to several thousand meters, and the measurement circuit mostly adopts bridge.The principle can also be used for other temperature measurement, temperature control circuit.
