19 inch 1U rack mount LED KVM switch with touch pad Mouse 104keys keyboard with integrated Digital&E switch keys KVM drawer

Product Overview

Description

19 inch 1U rack mount LED KVM switch with touch pad+Mouse +104keys keyboard with integrated Digital&E-switch keys KVM drawer

Main feature:

« 19’’ 1U rack mount LED KVM switch with touch pad+Mouse +104keys keyboard with integrated Digital&E-switch keys.

« Supports front USB for keyboard/mouse

« Support USB+PS2 local console
« Excellent video effects, the best resolution is up to 1920*1080@ 75HZ.

Introduction:

« Withdrawing installation design, the length can be adjusted to fit the rack space.
« Humanized design, can be installed and removed by only one person , which improves the efficiency of the administrator.
« To switch the host computer though the hot key or OSD menu.

« Password security protection, only authorized users can view and manage on-line computer.

« Support a variety of brand industrial computer and the sever, eg: EVOC / Lenovo / IBM / DELL / HP/ SUN, etc.
« Support various operating system: Window XP, 7 /8 / 10 ,Microsoft, Linux, Unix,etc.

Specification:

Model	KVM-1901S
Computer connect	Direct  1
Keyboard	104 Mechanical mute Keyboard
Mouse	Touch pad
Switch Mode	Hot key , OSD Menu
Switch Scan Time	1-255 second  ( OSD adjustable )
Cable Port	D-SUB15(LED,PSII&USB keyboard, mouse). OSD switch Support.
Panel	Size	19’’ TFT LED
	Resolution	1024*1280(1920*1080 optional)
	Max Color	16.7M
	Brightness	300nit
	Contrast ratio	700:1
	Pixel Pitch	0.297mm (H) x 0.297 mm(V)
Power input	12V DC input ( AC100-240V 47-63Hz, 35W )optional
Work environment	Operating Temp	-10℃~60℃
	Storage Temp	-20℃~70℃
	Humidity	0%-95%RH
Cabinet Material	high-strength and Anti-corrosive steel plate
Color	Insulated black(optional)
For Cabinet	600-600mm / 800-1040mm
Net weight	16KG
Gross Weight	20KG
Dimension	481.6mm*450mm*44mm (L x W x H)
Package	708mm*608mm*195mm (L x W x H)
Certificate	CE , FCC , RHOS

Ordering information:



KVM- 1901S

1U Rack mount 19" TFT LED W/1 VGA port KVM switch, W/ 12V power supply, W/PSII&USB cable.

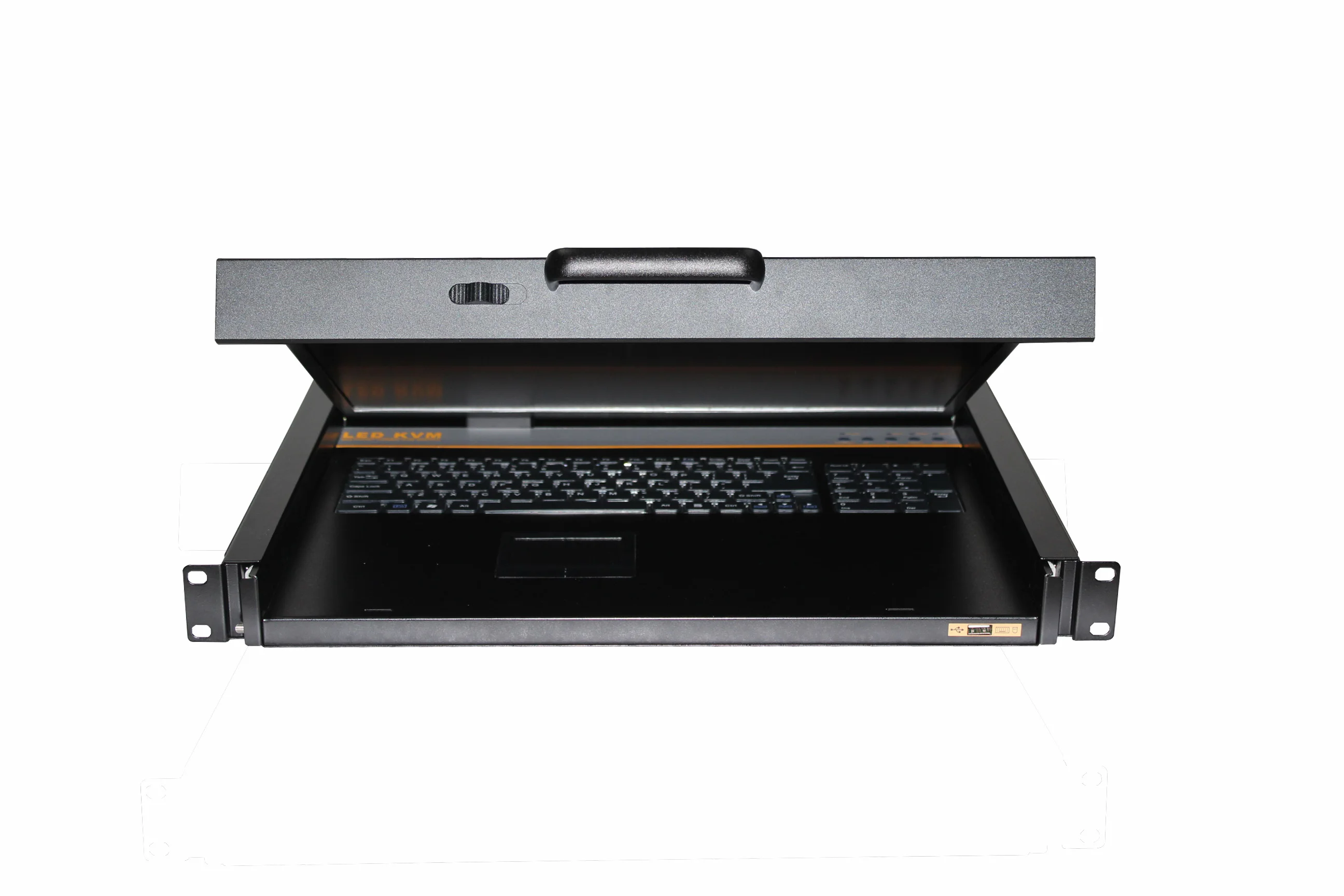

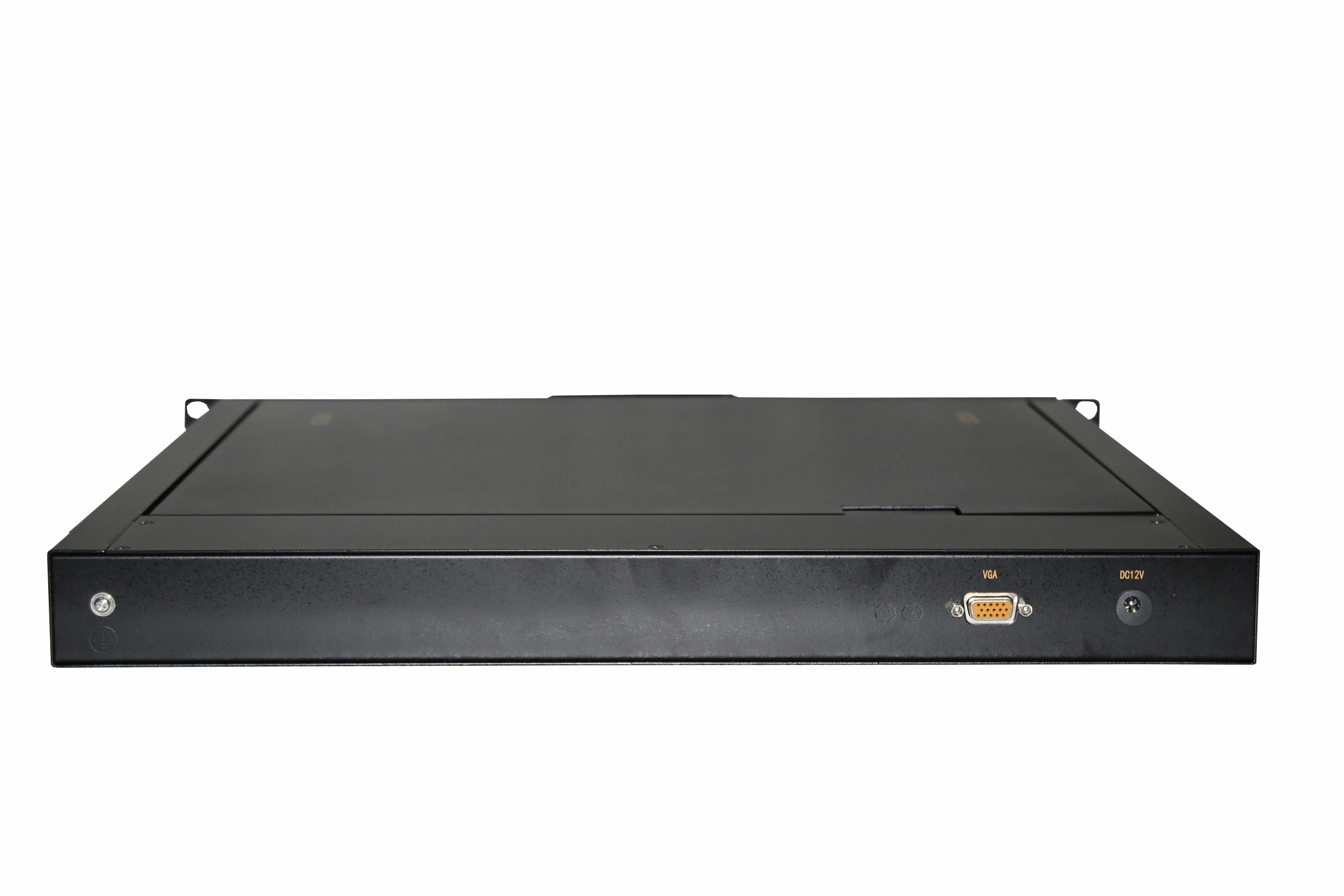

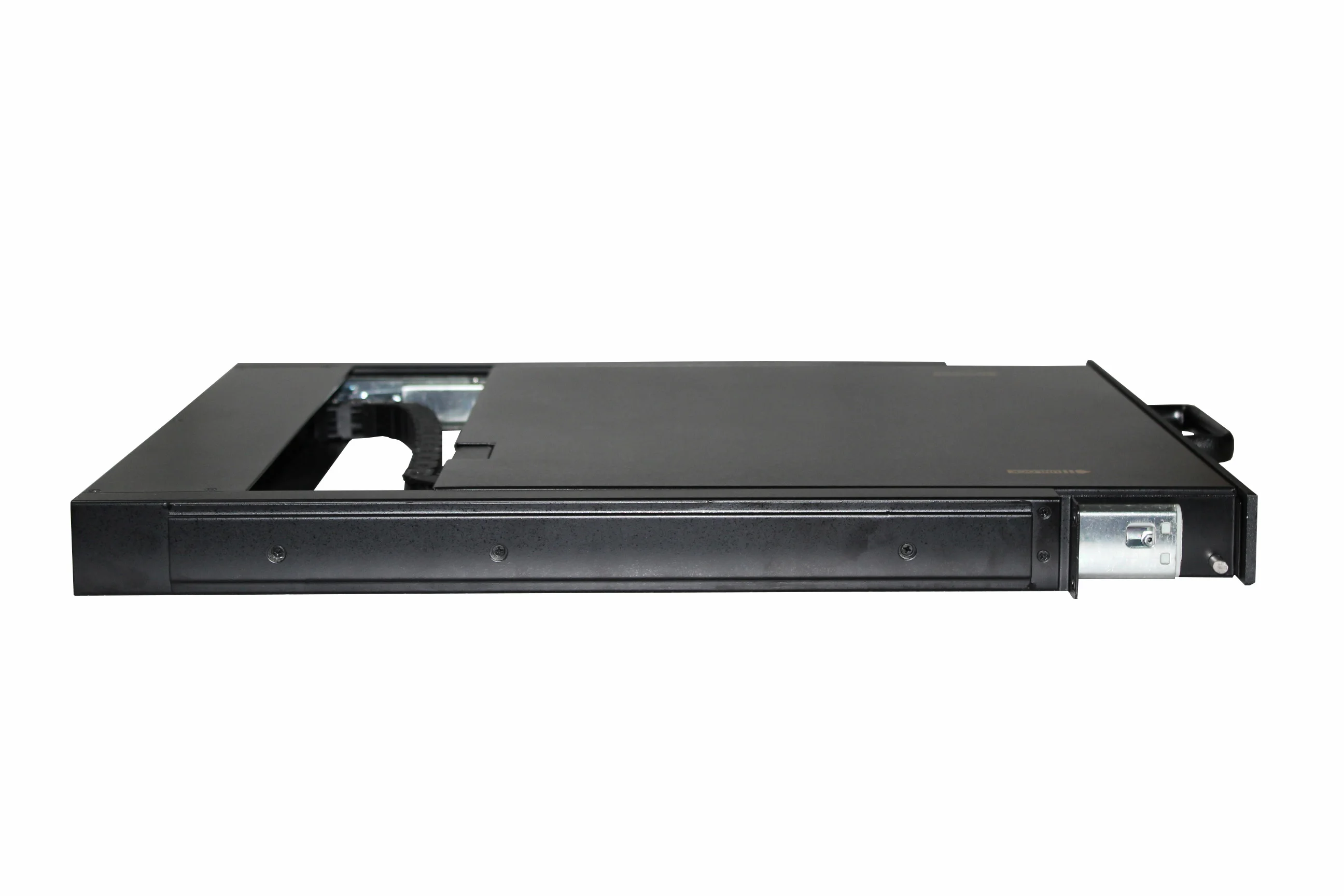

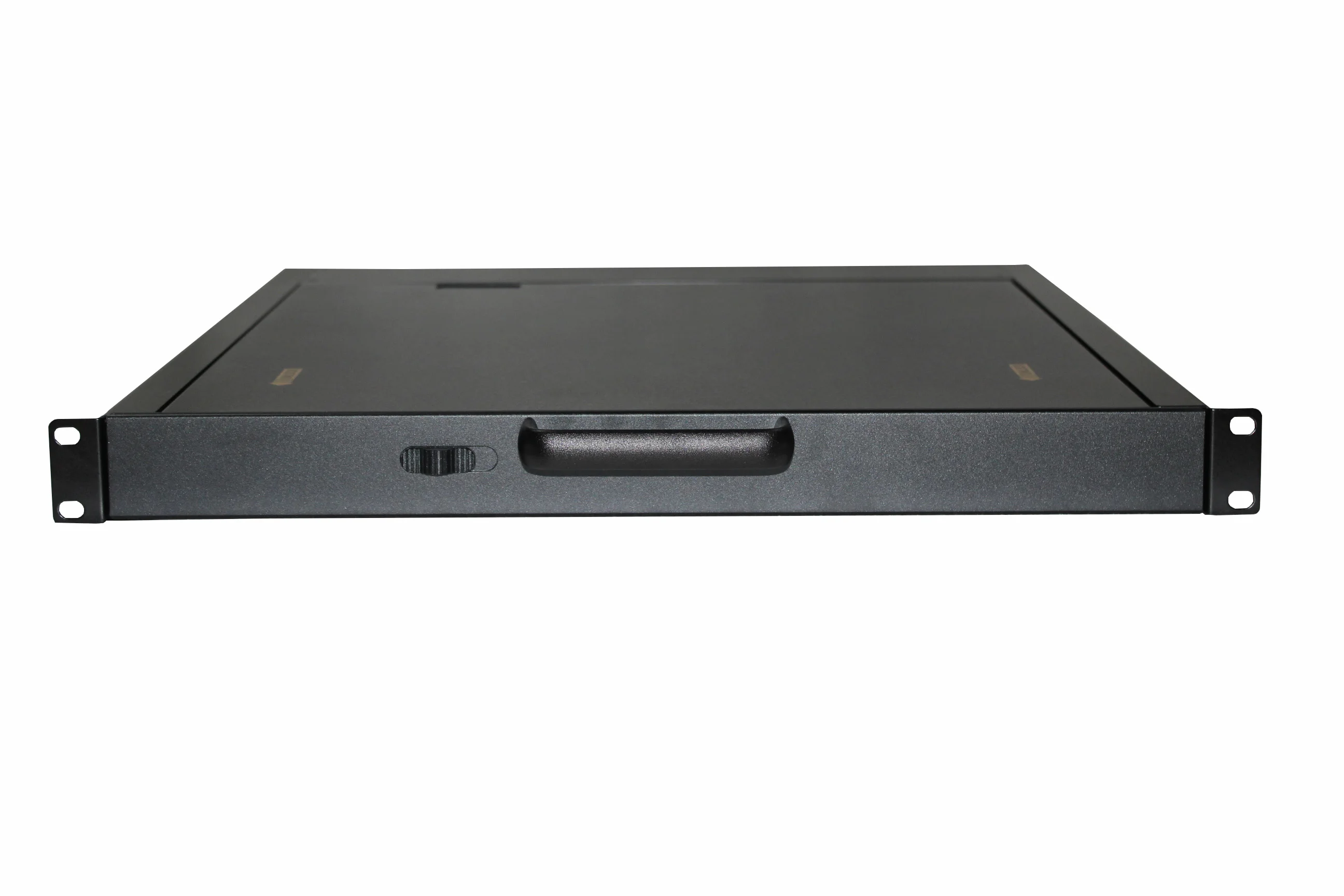

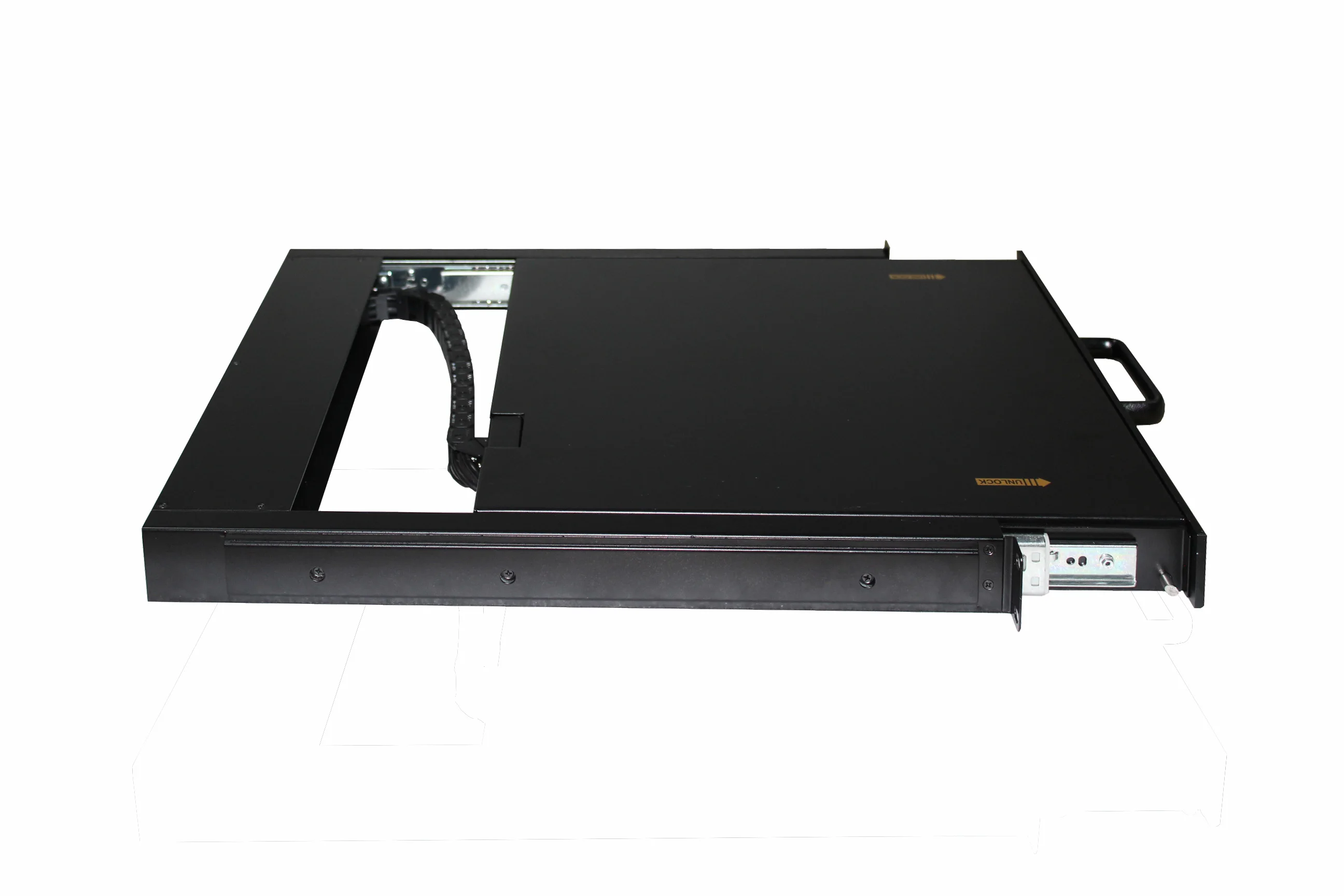

Details view:
