hydraulic hammer mining 4 inch high pressure DTH rock drill for Blast Hole Drill DTH Hammer
- Category: >>>
- Supplier: Shandong Qirui Machinery Co. Ltd.Shandong Ltd.
Share on (1601360397341):
Product Overview
Description
Product Overview
High Press Dth Hammer
DTH Hammer has a wide range of use in all kinds of hard and abrasive rocks.
FEATURES AT A GLANCE
It has following advantages:
It has following advantages:
Bit without foot valve will avoid the problem of foot valve broken or thermal expansion
Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher
than the one with foot valve.
Less parts, simplified, and with parts proper heating treated.
Extend the life of using and easier to repairing.
Bit without foot valve will avoid the problem of foot valve broken or thermal expansion
Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher
than the one with foot valve.
Less parts, simplified, and with parts proper heating treated.
Extend the life of using and easier to repairing.
1:DTH hammers are used for blast hole drilling and blasting, mainly applied in Mining
2:Marble quarry or well drilling and other construction projects.
3:New products designed based on mining condition in china, improving by advanced technology from global market.
4:Superior materials, advanced process,guaranteed quality.
5:Faster drilling rate.
6:Hardness can be enhanced to expand the lifespan of hammer, and lower the cost.
7:Huge impulse with low consumption of electricity.
8:The modern theory is adopted in the structural design, which makes the stress.
9:wave duration longer, the stress amplitudes lower, and the piston life is long.
2:Marble quarry or well drilling and other construction projects.
3:New products designed based on mining condition in china, improving by advanced technology from global market.
4:Superior materials, advanced process,guaranteed quality.
5:Faster drilling rate.
6:Hardness can be enhanced to expand the lifespan of hammer, and lower the cost.
7:Huge impulse with low consumption of electricity.
8:The modern theory is adopted in the structural design, which makes the stress.
9:wave duration longer, the stress amplitudes lower, and the piston life is long.
Application：
DTH hammers are used for blast hole drilling and blasting, mainly applied in Mining,
Marble quarry or well drilling and other construction projects.Urban high-rise building construction, high-speed rail, highways, bridges, subway construction, hydroelectric stations, nuclear power plant，construction projects will involve the pile foundation project. With the increasing demand for hard rock drilling in the project.
Marble quarry or well drilling and other construction projects.Urban high-rise building construction, high-speed rail, highways, bridges, subway construction, hydroelectric stations, nuclear power plant，construction projects will involve the pile foundation project. With the increasing demand for hard rock drilling in the project.

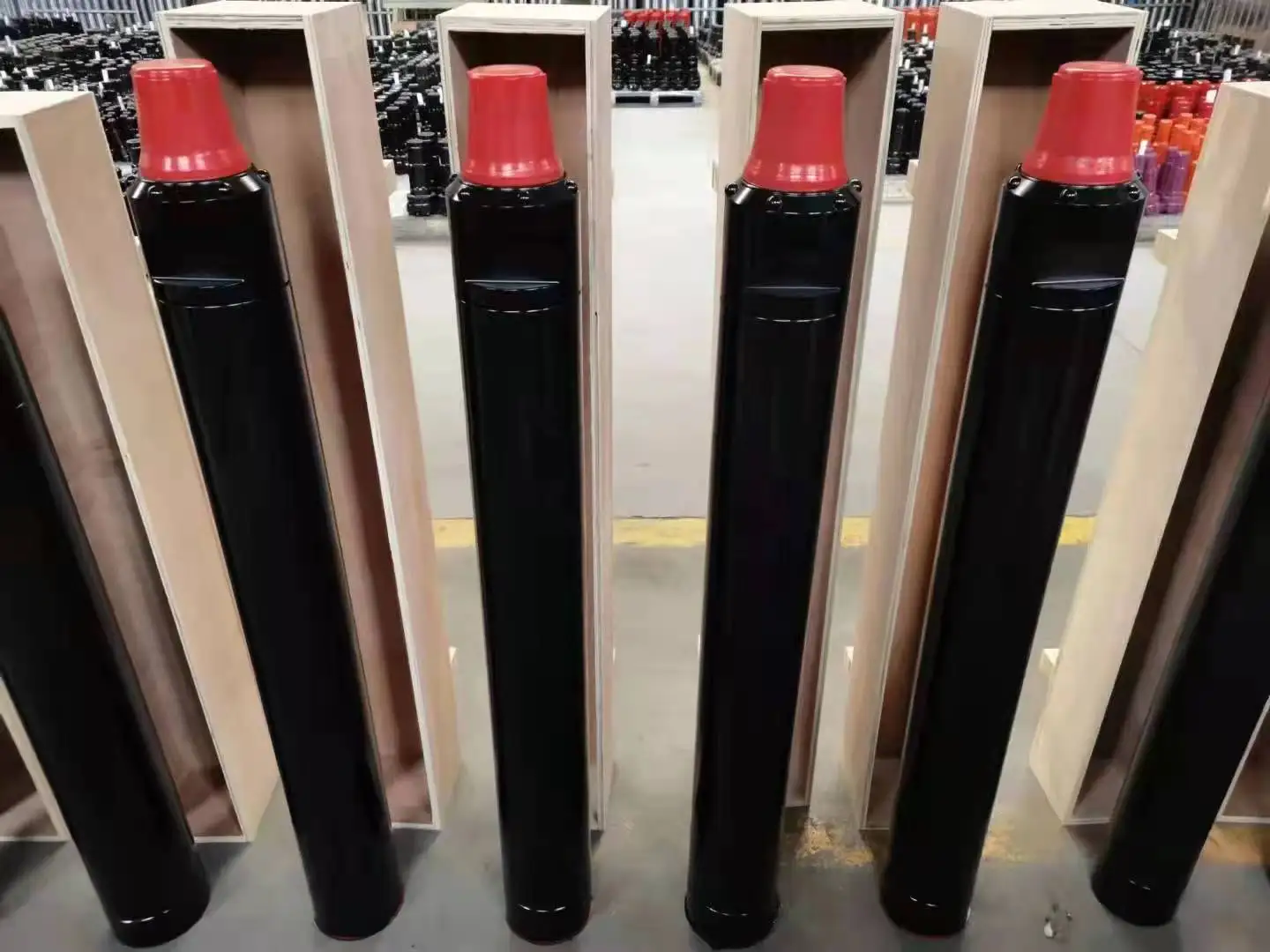

finish Install

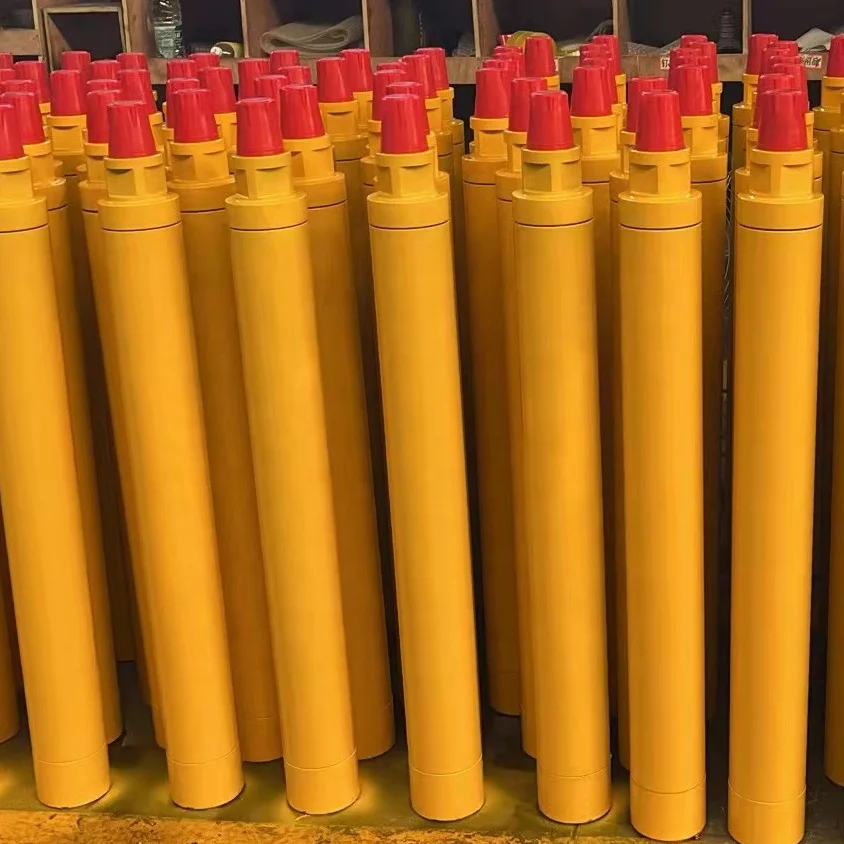

painting
Package
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | model | 3.5inch-24inch | ||
2 | drilling application | mining,water well drilling | ||
3 | drilling hole size | 80-600mm | ||
4 | weight | 25-1000kg | ||
5 | work pressure | 1.2-2.7Mpa | ||
6 | air consumption | 7.5m³/min-40m³/min | ||
7 | thread | API 2 3/8"REG,3 1/2" REG etc | ||
8 | Recommended Rotation Speed | 30-60 r/min |
Type | Model | Length | Weight | External Dia.(mm) | Hole Range | |||
(mm) | (kg) | (mm) | ||||||
2.5inch | ND25A | 872mm | 16 | ∅71 | ∅76-90 | |||
3.5 inch | ND35A | 886 | 24.2 | ∅82 | ∅90-115 | |||
DHD3.5 | 930 | 25 | ∅82 | ∅90-110 | ||||
4 inch | DHD340 | 1030 | 39 | ∅99 | ∅110-135 | |||
QR480 | 1084 | 40.5 | ∅99 | |||||
QL40 | 1097 | 41 | ∅99 | |||||
Mission40 | 1005 | 40 | ∅99 | |||||
ND45A | 986 | 40.5 | ∅99 | |||||
5 inch | DHD350 | 1214 | 76.5 | ∅125 | ∅135-155 | |||
QR480 | 1175 | 72.5 | ∅125 | |||||
QL50 | 1147 | 73 | ∅125 | |||||
Mission50 | 1110 | 68.5 | ∅125 | |||||
ND55A | 1122 | 70 | ∅126 | |||||
ND55S | 1119 | 62 | ∅117 | ∅127-145 | ||||
6 inch | DHD360 | 1248 | 100 | ∅142 | ∅155-190 | |||
QR480 | 1261 | 100 | ∅142 | |||||
QL60 | 1212 | 95 | ∅146 | |||||
Mission60 | 1161 | 90 | ∅146 | |||||
ND65A | 1210 | 106 | ∅148 | ∅158-203 | ||||
7inch | ND75A | 1225 | 143.5 | ∅165 | ∅178-216 | |||
8 inch | D85 | 1492 | 188 | ∅180 | ∅195-254 | |||
QR480 | 1463 | 192 | ∅180 | |||||
QL80 | 1465 | 182 | ∅180 | |||||
Mission80 | 1338 | 176 | ∅180 | |||||
ND85A | 1354 | 193 | ∅185 | |||||
10 inch | QR480 | 1502 | 290 | ∅226 | ∅254-311 | |||
NUMA100 | 1510 | 288 | ∅226 | |||||
N100A | 1475 | 299.5 | ∅225 | |||||
12 inch | DHD1120 | As request | ||||||
Numa120 | ||||||||
Numa 125 | ||||||||
N125A | ||||||||
14inch | ND140A | 1861 | 851 | ∅332 | ∅350-550 | |||
PRODUCT CONFIGURATION
Parts of hammer
Produce workshop
Produce workshop
Successful Project
Project in Africa
Project in Australia
Project in Russia
Company Profile
Qirui Drill
Shandong QiRui Machinery Co., Ltd. is a professional manufacturer and trader.specialized in the research and development, sales and service of the industry of drilling.geological exploration,jet grouting drilling, water well drilling field.
Our factory covers more than 7, 000 square meters. Equipped with near 20 years professional manufacturing experience and professional production team as well as more than 100 excellent skillful workers, more than 10 experienced engineers.
The geological drilling rig(full hydraulic core drilling rig and vertical spindle core drill rig) and geological drill tools(drill rod ,drill bit core barrel and parts of machine etc), water well drilling rig(dth type and mud rotary type) and drilling tools(air compressor,drill pipe,hammer tools ,mud pump,winch and rotary head etc) , dth rock drill rig and rock drill tools (drill rod and drill bit) .The series of all products has gained the provincial appraisal and achieved the advanced level in China and abroad.
The drilling tools are our traditional well-known production for its particular manufacturing technical and reliable quality. Our productions have been sold in domestic and abroad, with general recognition and best customer satisfaction.Wish we can support you more and more in China.
Our factory covers more than 7, 000 square meters. Equipped with near 20 years professional manufacturing experience and professional production team as well as more than 100 excellent skillful workers, more than 10 experienced engineers.
The geological drilling rig(full hydraulic core drilling rig and vertical spindle core drill rig) and geological drill tools(drill rod ,drill bit core barrel and parts of machine etc), water well drilling rig(dth type and mud rotary type) and drilling tools(air compressor,drill pipe,hammer tools ,mud pump,winch and rotary head etc) , dth rock drill rig and rock drill tools (drill rod and drill bit) .The series of all products has gained the provincial appraisal and achieved the advanced level in China and abroad.
The drilling tools are our traditional well-known production for its particular manufacturing technical and reliable quality. Our productions have been sold in domestic and abroad, with general recognition and best customer satisfaction.Wish we can support you more and more in China.

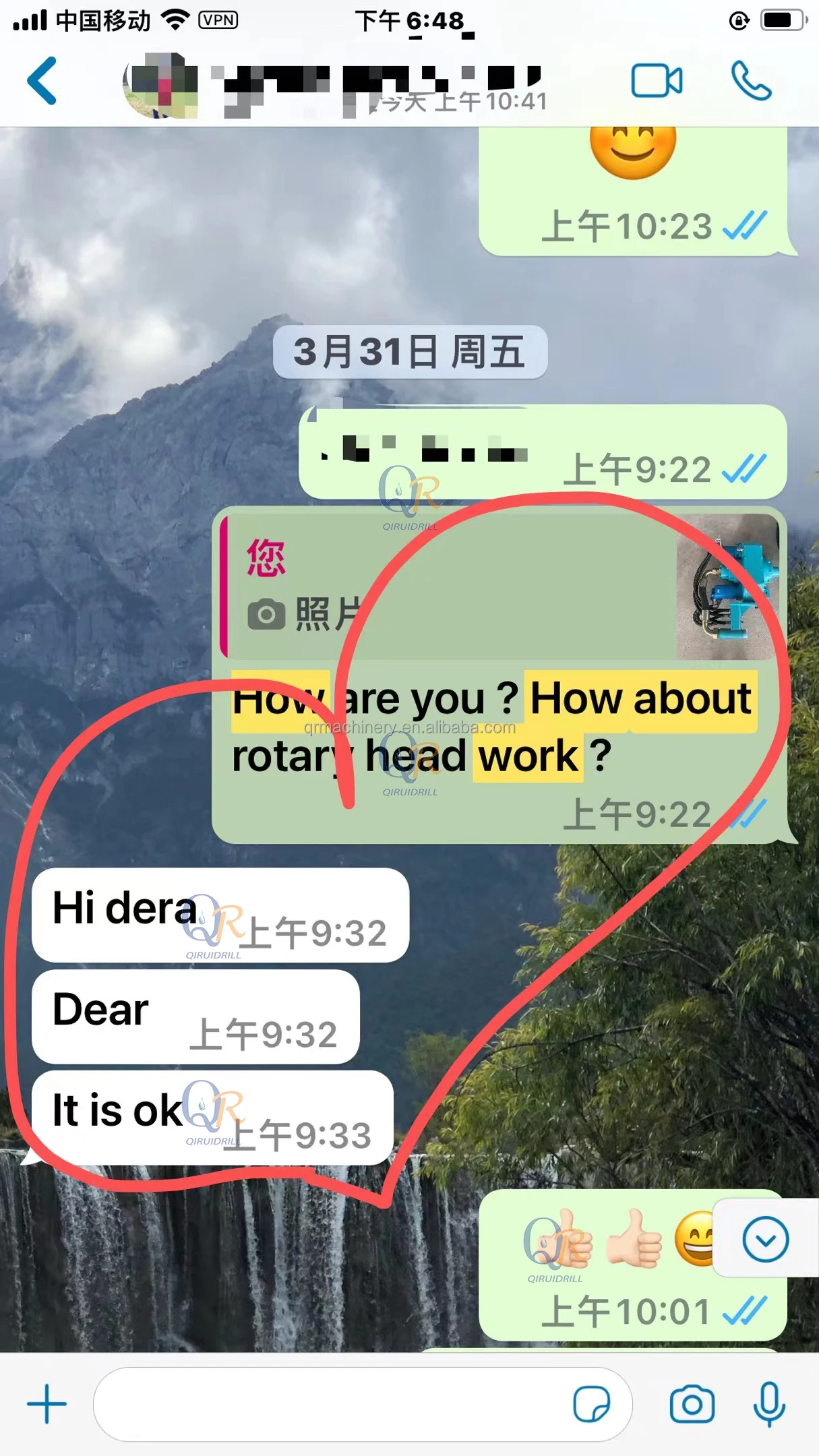

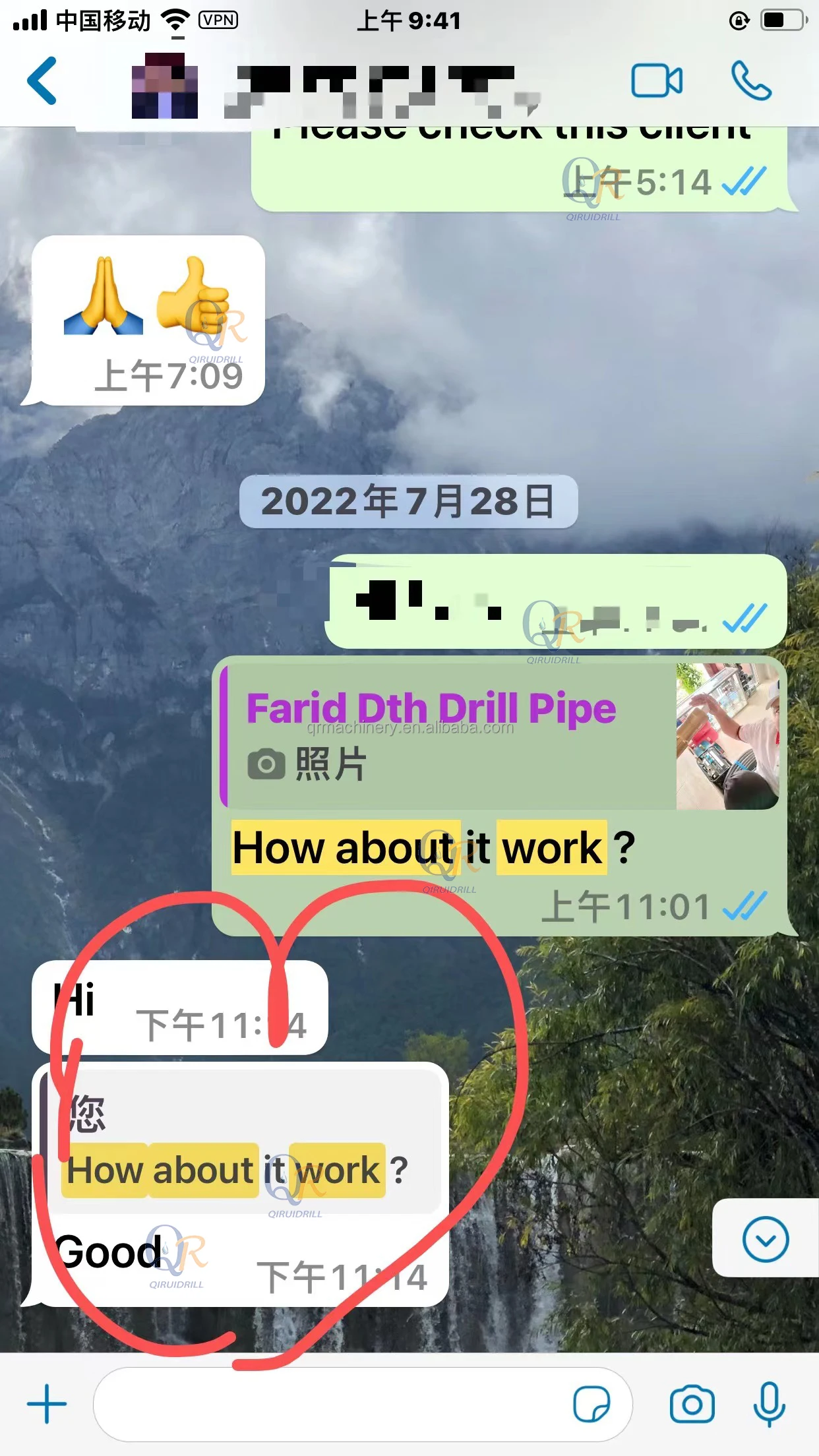

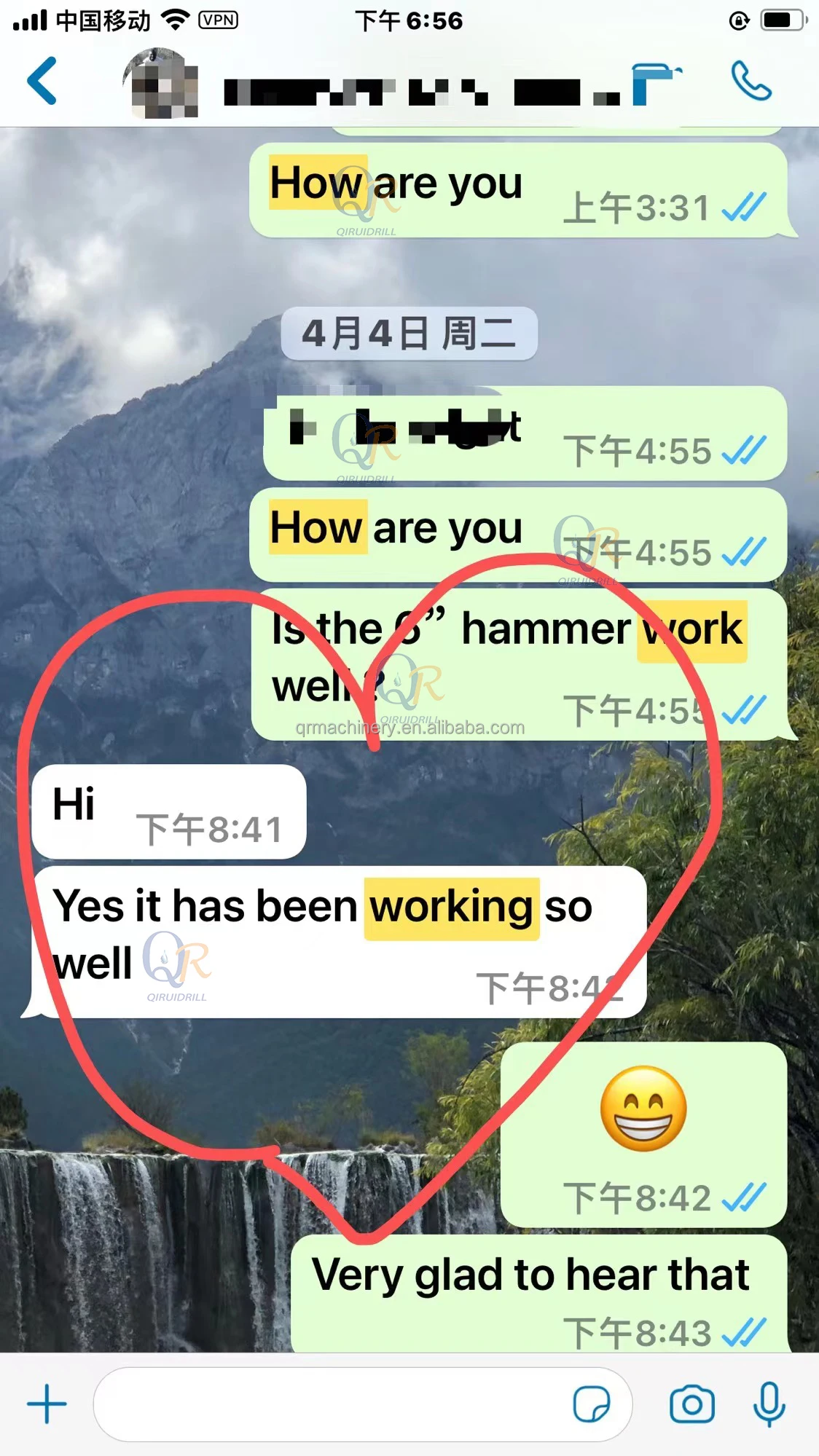

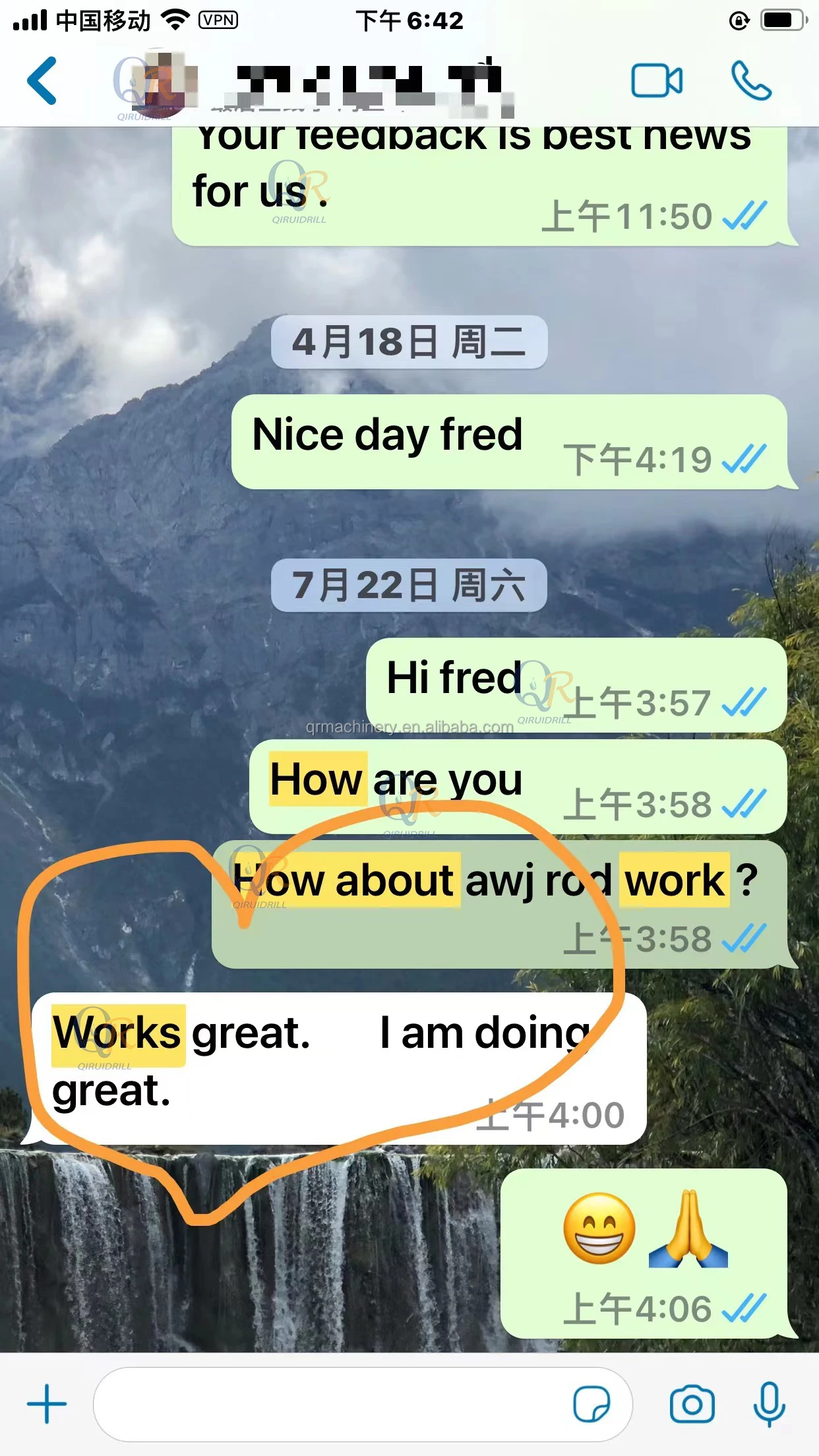

Customer Feedback
SALES AND SERVICE NETWORK
ＦＡＱ
FAQ
Q1: what can you buy from us?
A1: Well Drilling Machine,Drilling Tools and Accessories,Screw Air Compressor
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production;always final inspection is done before shipment;and our main unit has a
one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and
operation videos.
Q3: Will you provide some spare parts of the machines?
A3: Yes, of course.We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make
samples for you ASAP.
Q4: Which payment term can you accept?
A4: 30% T/T in advanced, 70% T/T against the B/L copy.
Q5: How long will you take to arrange production?
A5: we can delivery the goods within 7-15 days.
Q6: Do you have any certificates for your machine?
A6: All of our products coming with the certificates of CE,ISO9001,EPA.
Q7: Which trade term can you accept?
A7: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
Q1: what can you buy from us?
A1: Well Drilling Machine,Drilling Tools and Accessories,Screw Air Compressor
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production;always final inspection is done before shipment;and our main unit has a
one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and
operation videos.
Q3: Will you provide some spare parts of the machines?
A3: Yes, of course.We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make
samples for you ASAP.
Q4: Which payment term can you accept?
A4: 30% T/T in advanced, 70% T/T against the B/L copy.
Q5: How long will you take to arrange production?
A5: we can delivery the goods within 7-15 days.
Q6: Do you have any certificates for your machine?
A6: All of our products coming with the certificates of CE,ISO9001,EPA.
Q7: Which trade term can you accept?
A7: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
Feel freely to contact us !
