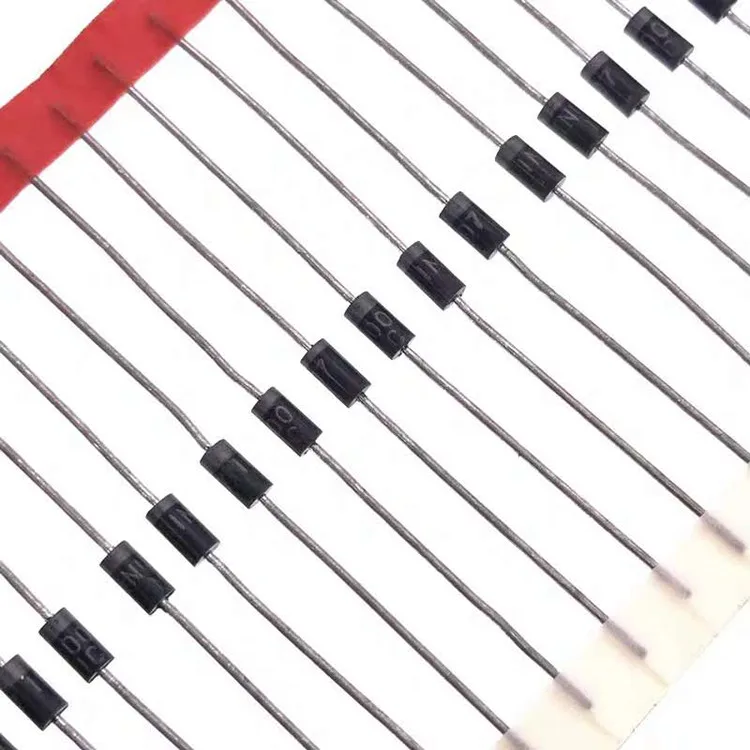

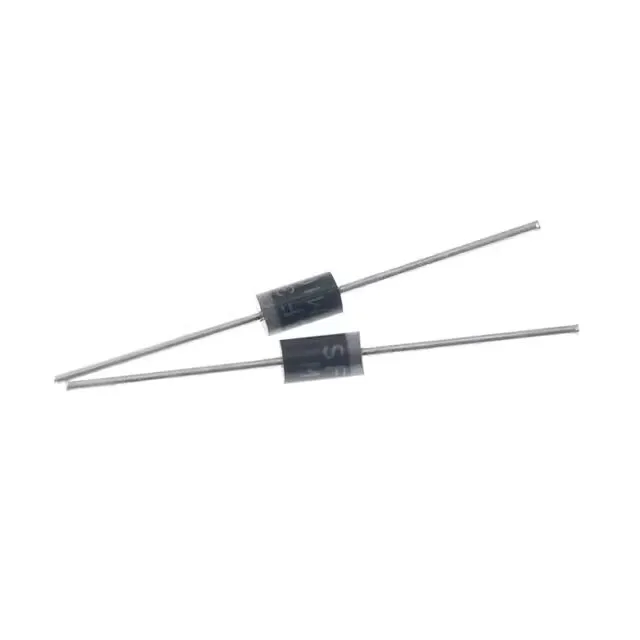

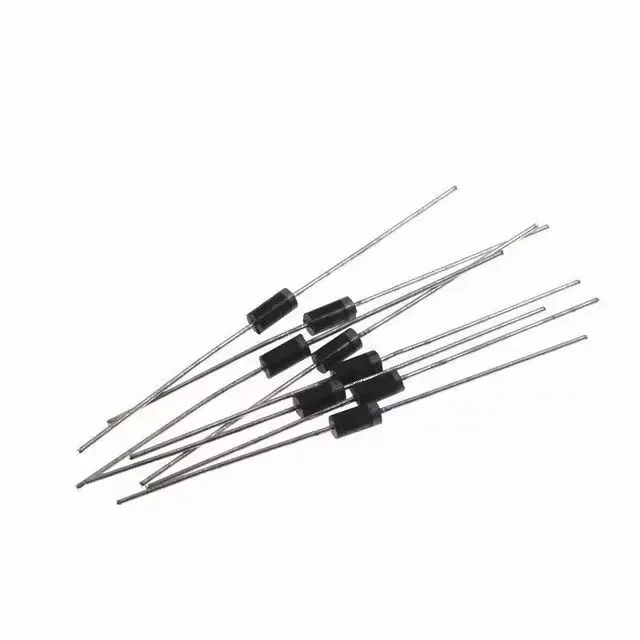

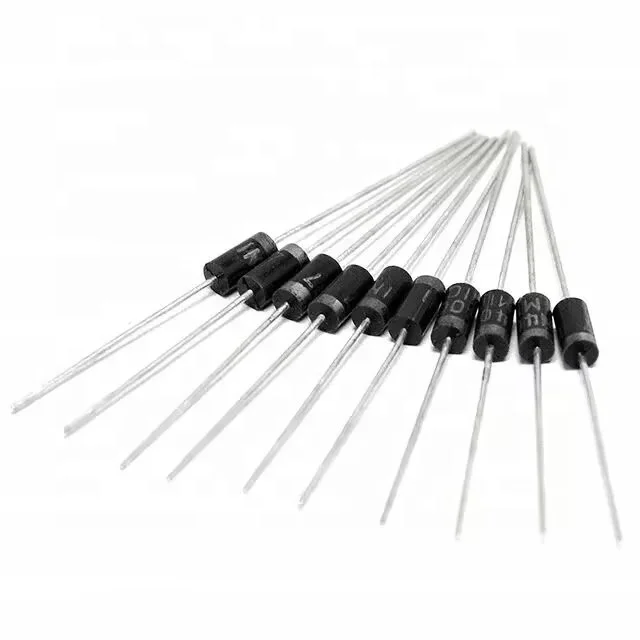

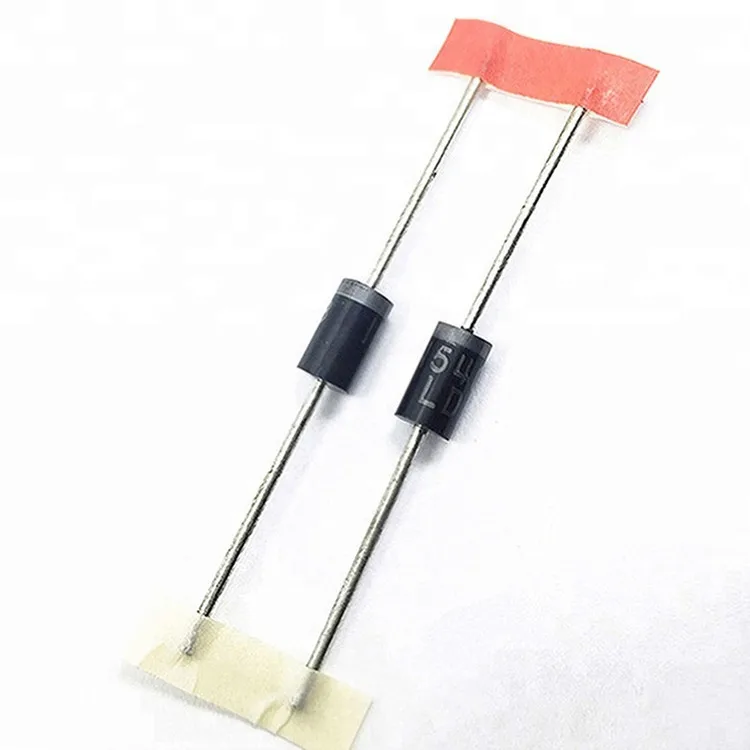

1A 400V 600V 1000V IN4001G IN4005G IN4007G DO 41 Rectifier Diode 0.68MM 42MILGPP
- Category: >>>
- Supplier: Dongguan City Hanxiang Electronics Co. Ltd.Dongguan Ltd.
Share on (1601364369643):
Product Overview
Description
Product Description
参数 Parameter | 符号 | GBP 301 | GBP 302 | GBP 303 | GBP 304 | GBP 305 | GBP 306 | GBP 310 | 单位 | ||||||
Symbols | Unit | ||||||||||||||
最大可重复峰值反向电压 | VRRM | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V | ||||||
Maximum repetitive peak reverse voltage | |||||||||||||||
最大均方根电压 Maximum RMS voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | 700 | V | ||||||
最大直流阻断电压 | VDC | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V | ||||||
Maximum DC blocking voltage | |||||||||||||||
最大正向平均整流电流 | IF(AV) | 3.0 | A | ||||||||||||
Maximum average forward rectified current | |||||||||||||||
正向不重复浪涌电流 8.3 ms单一正弦半波 | IFSM | 80 | A | ||||||||||||
Non-repetitive peak forward surge current | |||||||||||||||
8.3 ms singlehalf sine-wave | |||||||||||||||
最大正向电压 @IF=3.0A | VF | 1.1 | V | ||||||||||||
Maximum forward voltage | |||||||||||||||
熔断系数 t≤ 8.3 ms Current squared time t≤ 8.3 ms | I 2t | 26.5 | A2 S | ||||||||||||
最大反向电流 @VDC TA = 25℃ | IR | 5 | μA | ||||||||||||
Maximum reverse current | |||||||||||||||
典型热阻 Typical thermal resistance (Note 1) | RθJA | 30 | ℃/W | ||||||||||||
工作结温和存储温度 | Tj, TSTG | -55 --- +150 | ℃ | ||||||||||||
Operating junction and storage temperature range | |||||||||||||||
Single phase Silicon Bridge Rectifiers
Reverse Voltage 50 ~ 1000 V
Forward Current 3.0 A特征 Features\t
特征 Features\t
●反向漏电流低 Low reverse leakage
●正向浪涌承受能力强 High forward surge capability
●高信赖性 High reliability
●玻璃钝化芯片 Glass passivated chip
●引线和管体皆符合RoHS标准
Lead and body according with RoHS standard
机械数据 Mechanical Data

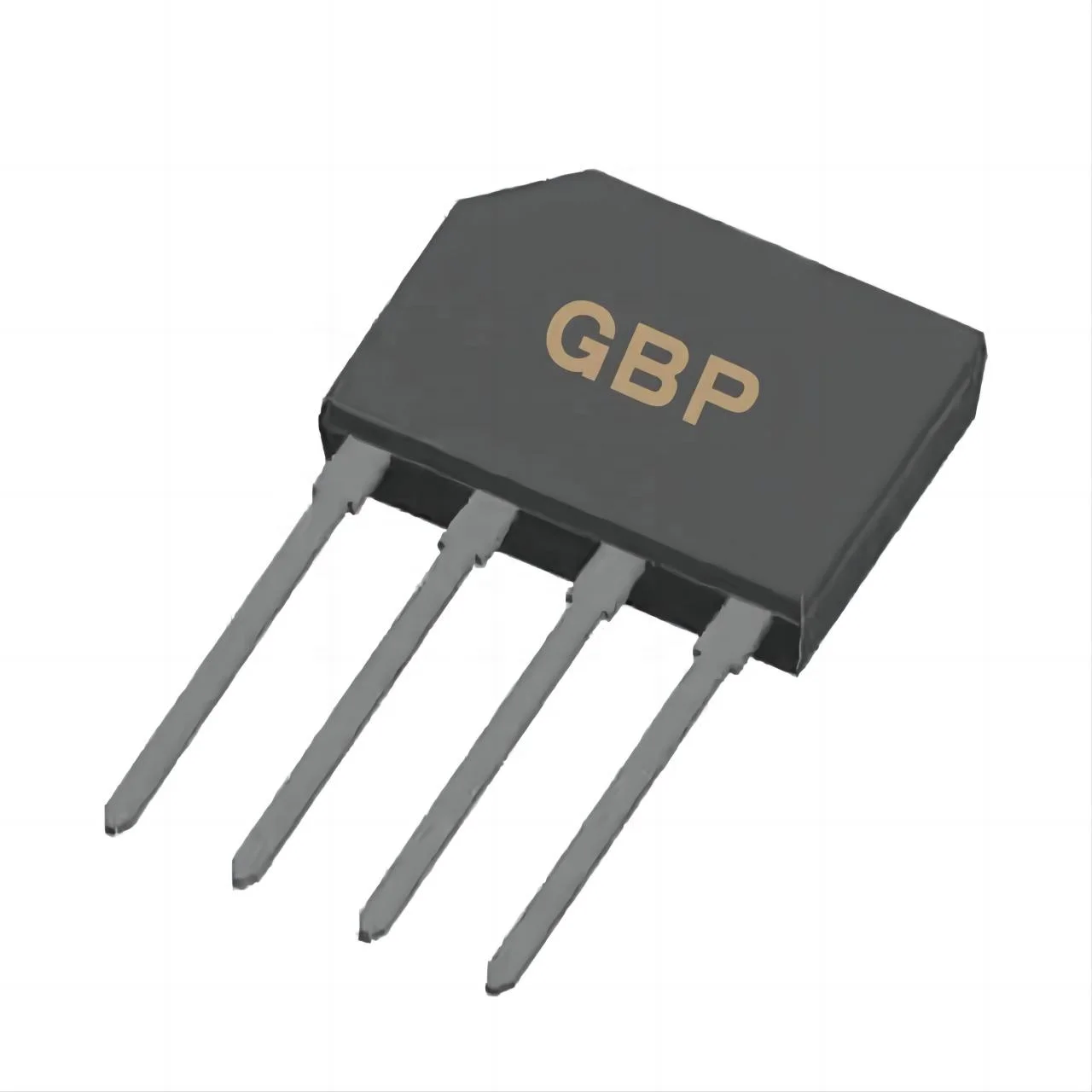

●封装外形:GBP 塑封 Case:GBP Molded plastic
●环氧树脂：UL易燃等级：94V-0 Epoxy: UL 94V-0 rate flame retardant
●引脚：镀锡,无铅 Lead: Pure tin plated, lead free
●安装位置: 任意 Mounting Position: Any
●反向漏电流低 Low reverse leakage
●正向浪涌承受能力强 High forward surge capability
●高信赖性 High reliability
●玻璃钝化芯片 Glass passivated chip
●引线和管体皆符合RoHS标准
Lead and body according with RoHS standard
机械数据 Mechanical Data
●封装外形:GBP 塑封 Case:GBP Molded plastic
●环氧树脂：UL易燃等级：94V-0 Epoxy: UL 94V-0 rate flame retardant
●引脚：镀锡,无铅 Lead: Pure tin plated, lead free
●安装位置: 任意 Mounting Position: Any
