Cheap Poultry Manure Conveyor Belt Customized Size PP White Durable for Layer Chicken Cage
- Category: >>>
- Supplier: Qingdao Ejoy Farming Machinery Co. Ltd.Qingdao Ltd.
Share on (1601364963949):
Product Overview
Description

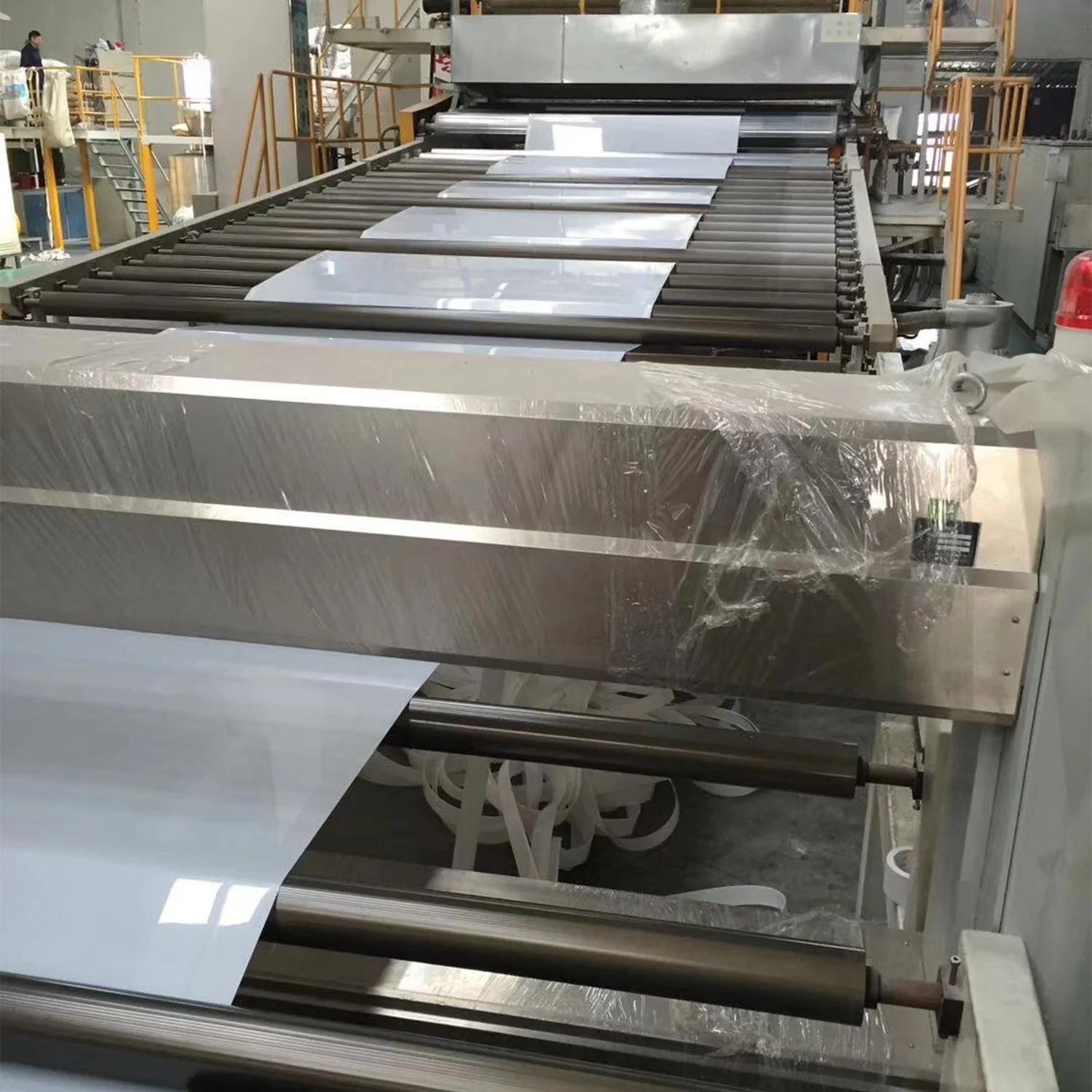

Product Description
Name | PP conveyor belt |
Color | White or as required |
Material | PP or HDPE |
Length | According to the customer |
Width | 1000-2500mm |
Thickness | 1.0mm or 1.2mm |
Usage | Matching for poultry cages equipment |
Feature | Can work in -50 degree, etc |
Report | CNAS/CMA, etc |

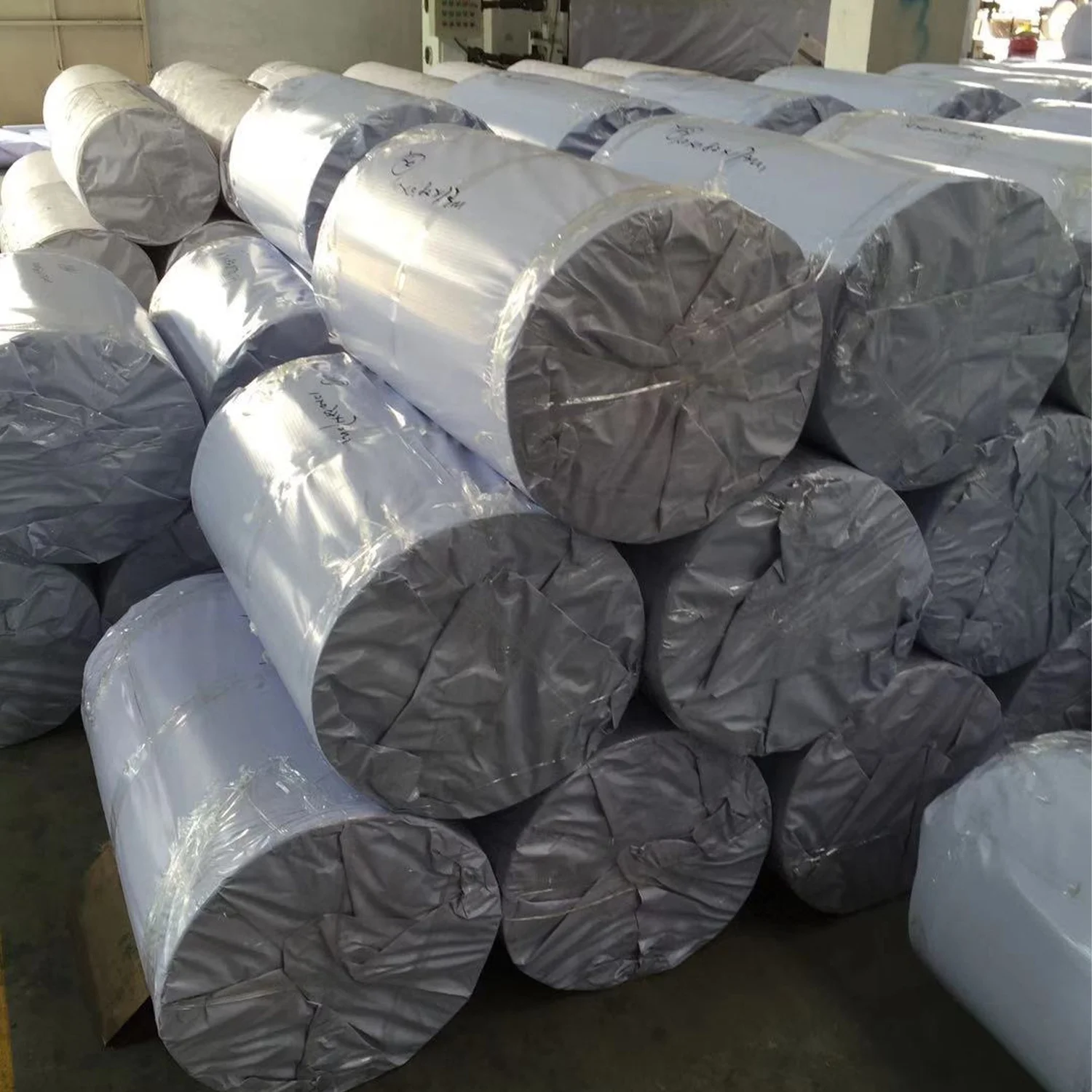

Package | By roll as required |

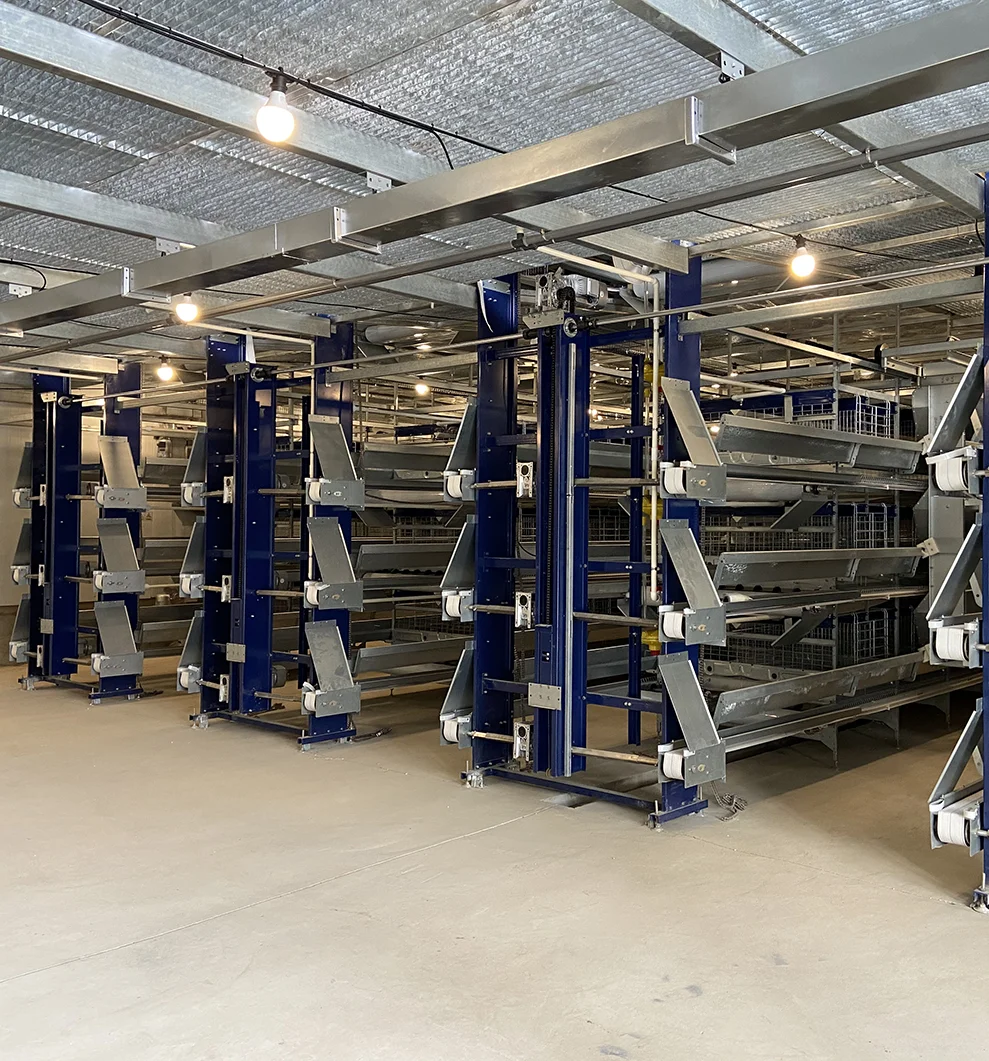

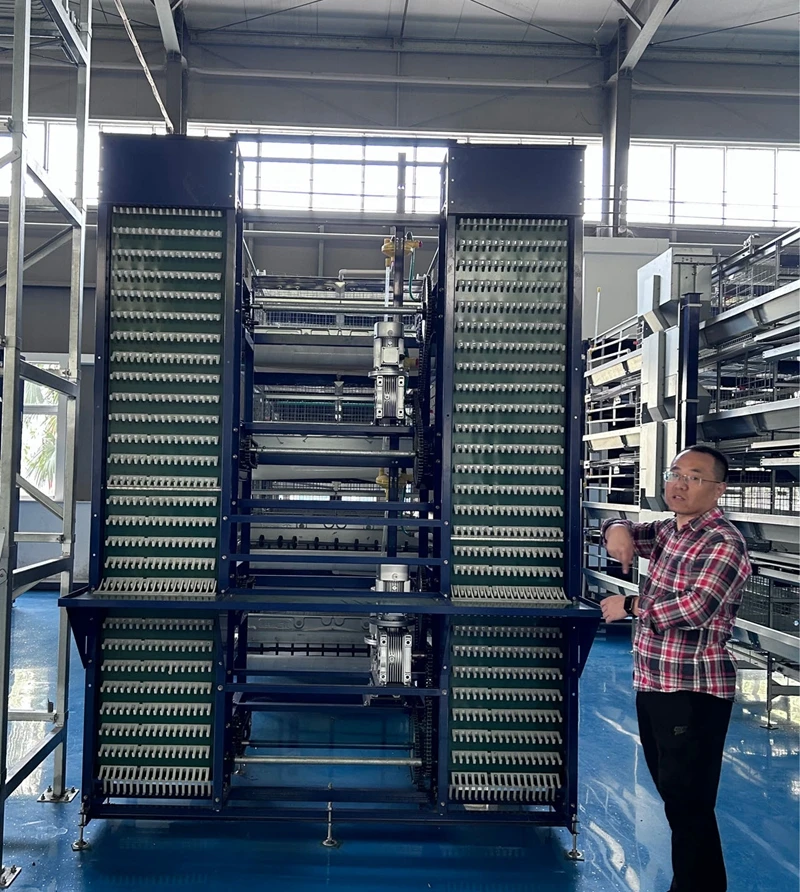

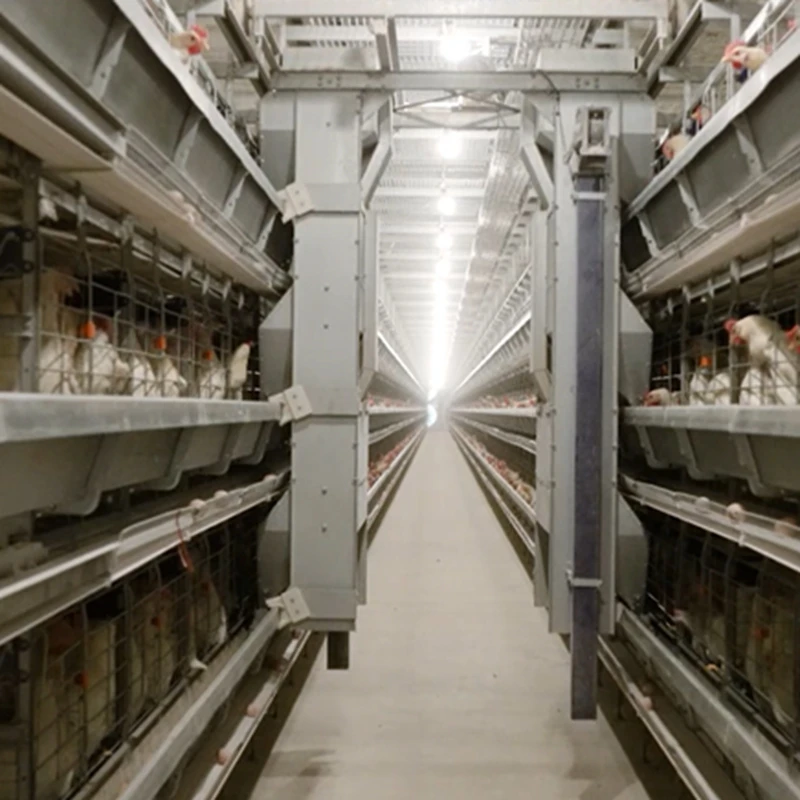

Ejoy Fully Automatic Layer Cage System
H type fully automatic layer cage includes 6 parts:
1. Cage frame
2. Cage mesh
3. Drinking system
4. Feeding system
5. Egg collection system
6. Manure cleaning system
3. Drinking system
4. Feeding system
5. Egg collection system
6. Manure cleaning system
Details Images

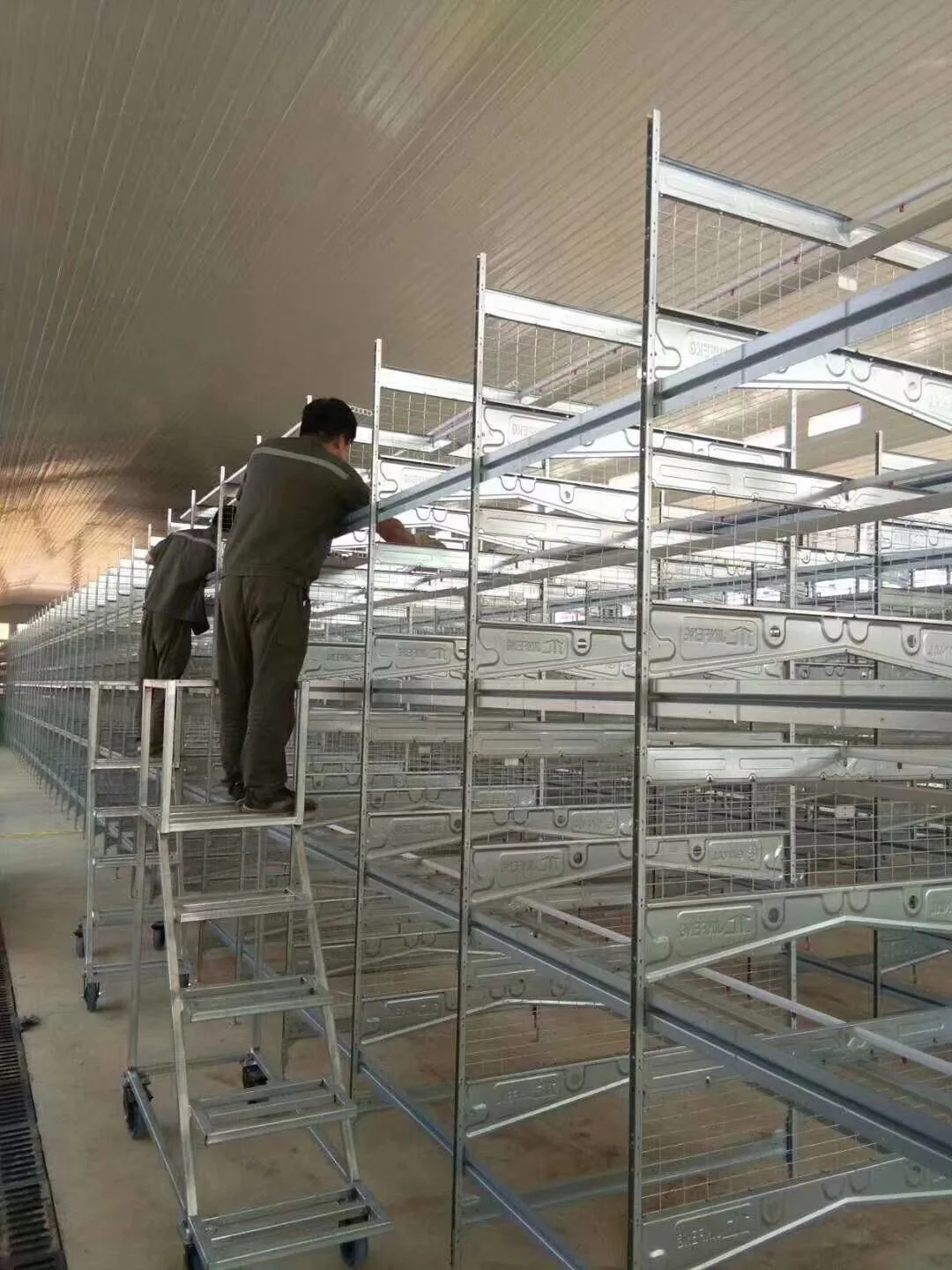

1.Cage frame
Galvanized sheet ,the material strength can reach more than 450MPa, and galvanized coat content reach 275g, C shape leg is formed of hot galvanized sheet ,it is firm and easy to clean. The distance between adjacent legs is 1206mm, so that it make frame firm and strong. Because of accurate processing, diagonal tolerance is within 1.5mm. Accurate assembly make a error no more than 37.5px in 100m length.
The whole frame is made of Aluminum-Zinc plate, with reasonable design, durable, not easy to deform, and more firm; the use of high-precision CNC machine tools for positioning and cutting ensures that the error range of a 100-meter-long chicken house does not exceed 1 cm.

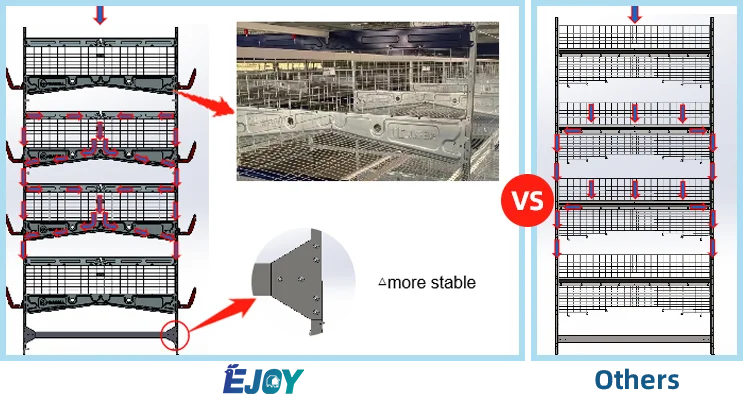

Each tier is connected and fixed with two upper and lower steel plates, and a triangular reinforcing plate is designed at the lower end, so that each cage can effectively distribute the pressure evenly regardless of the longitudinal or transverse force, thereby reducing.
The tension deformation of the cage makes the device more stable during use.

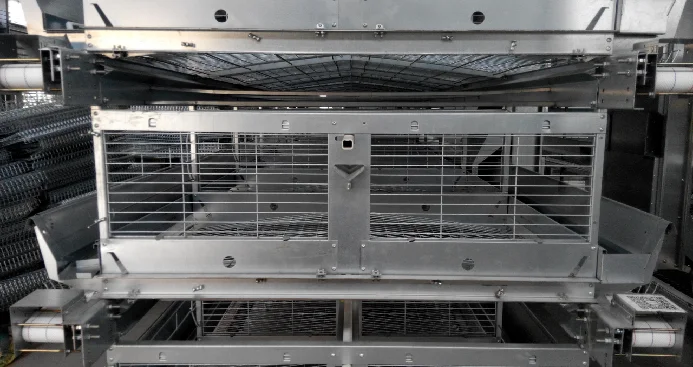

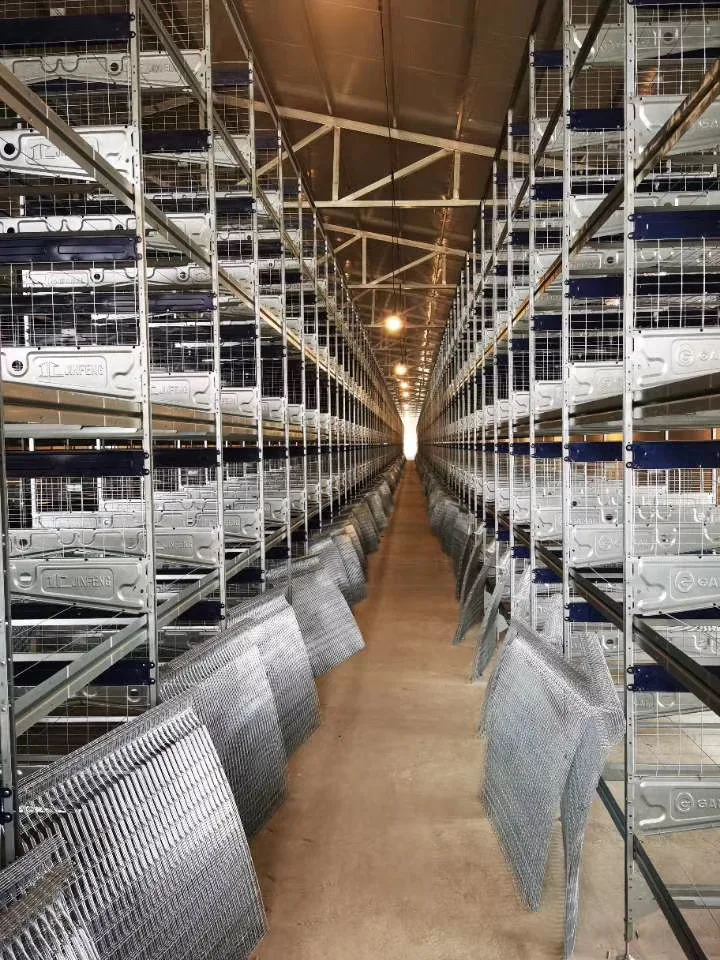

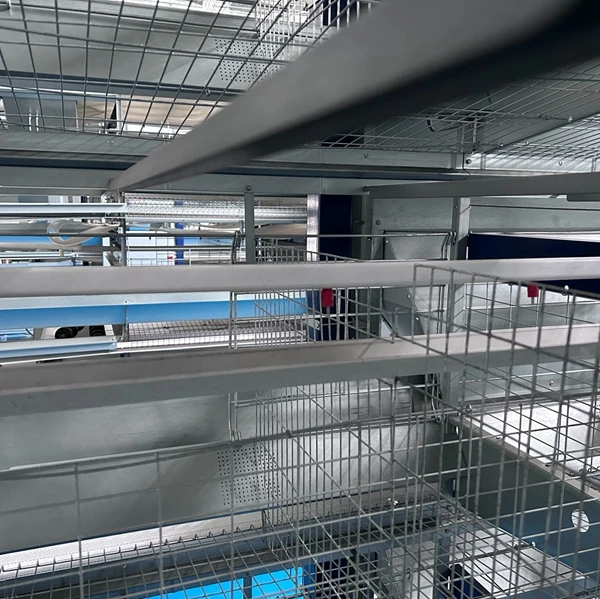

2.Cage mesh
• Cage mesh material galvanized coat content reach 275g, GALFAN wires (5%AL 95%zinc) life service is up to 20 years.
• All wires used are Q235 high-quality wires with high carbon content, good elasticity, and elongation not exceeding 30. • The thinnest wire can be drawn to 1.20-1.80mm, while ordinary wires cannot reach this standard.
Therefore, the products processed from this high quality wire have the advantages of good elasticity, not easy to deform, and long service life.

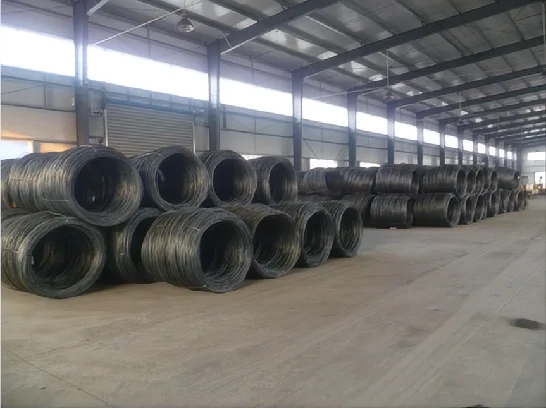

• The thickness of the original wire is 6.5mm. Traditional wire drawing uses 3 processes. In order to ensure that the surface of the steel wire is not scratched, our wire drawing goes through 6 processes, and the wire is flat and smooth, to avoid the hurt of chicken scratch.

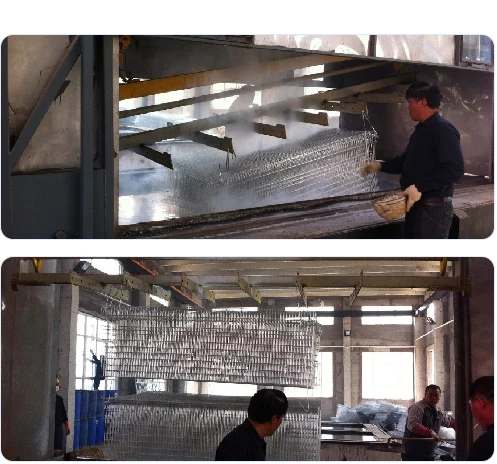

• Hot-dip galvanized processing has the advantages of thicker galvanization, longer salt spray resistance and stronger corrosion resistance. It is generally used in the corrosion resistance of industrial equipment.
• Our hot-dip galvanized process includes: rust removal, cleaning, flux, zinc immersion, cooling, air drying, etc.

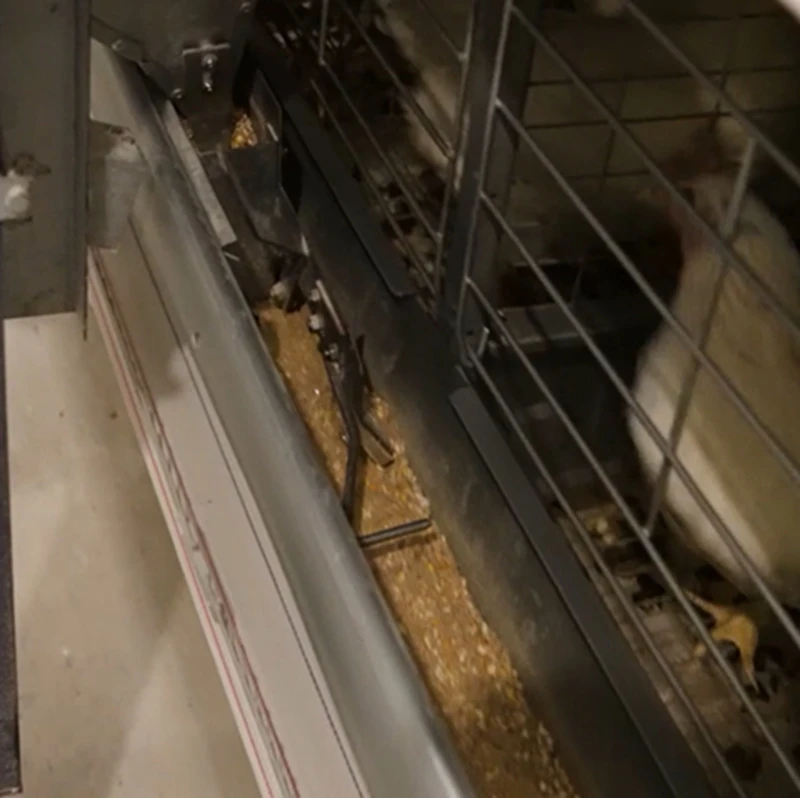

3. Feeding system
One trolley one row, the feeding trolleys run steadily and distribute feed even. More over the trolleys can be set to run automatic. The trough is shaped of hot galvanized sheet, that bended through 11 bends. Plug-in connecting structure make trough solid, smooth and precise, the cage frame is more reliable. V-shape bottom ensure the feed distributed uniformly and the chicken can eat up completely, no feed waste.

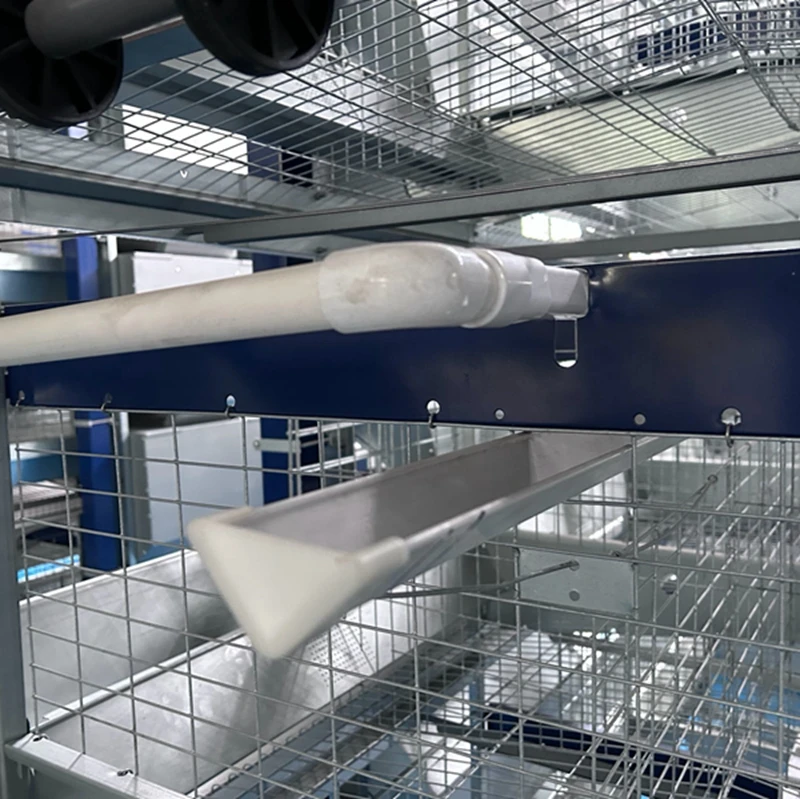

4. Drinking system
Drinking system includes PVC square water pipe, nipple drinker, V-shaped water trough and regulator. The size of square water pipe is 22*22mm. Nipple drinker is made of stainless steel 304, rotated 360 degrees. The service life of nipple drinker is can reach 10~15 years. Below the water line is the V-shaped water trough. It can prevent water from falling on the manure belt.

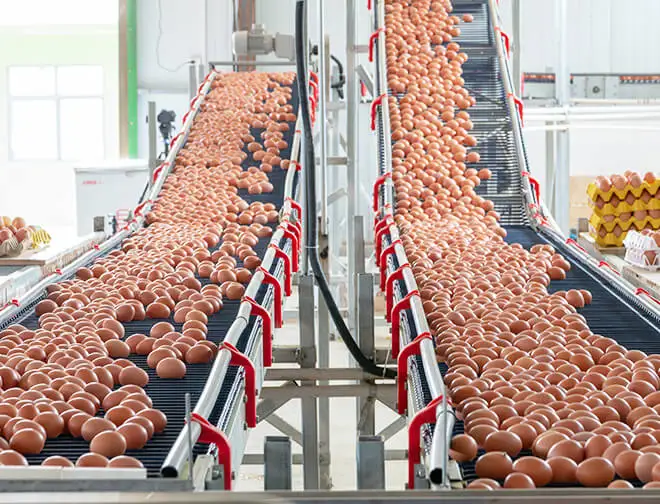

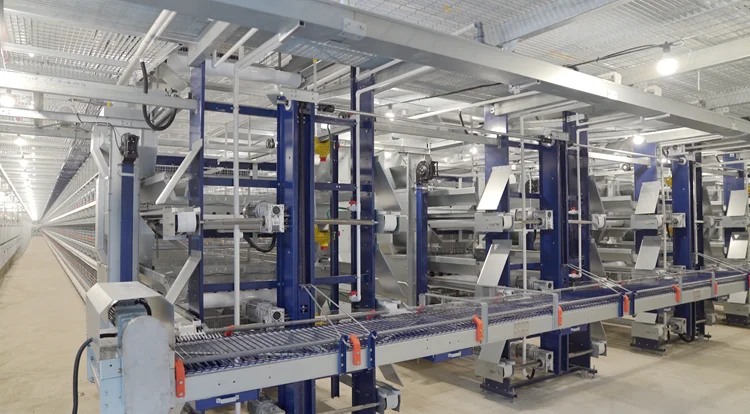

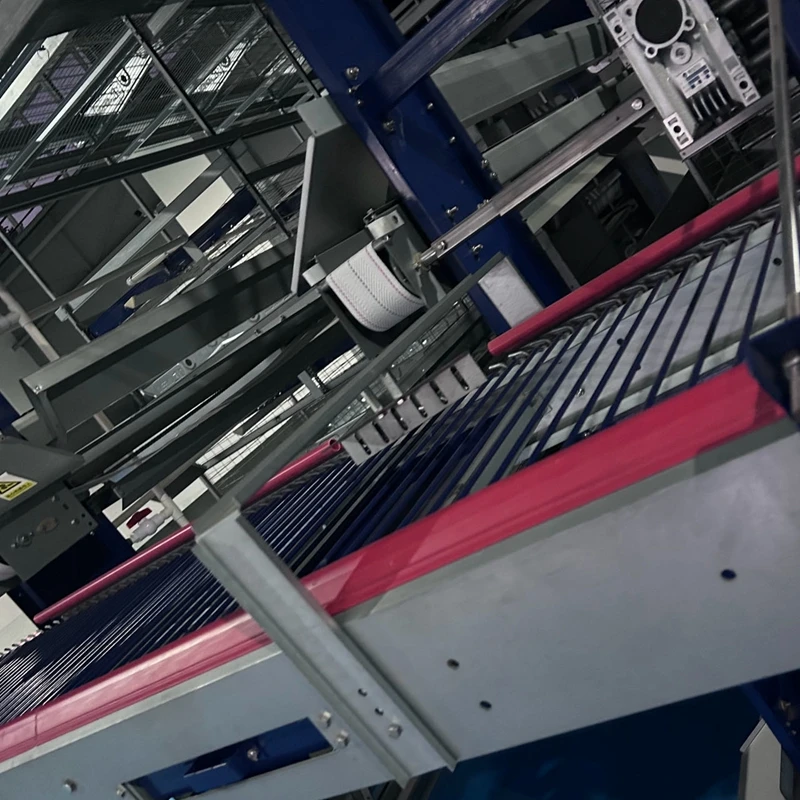

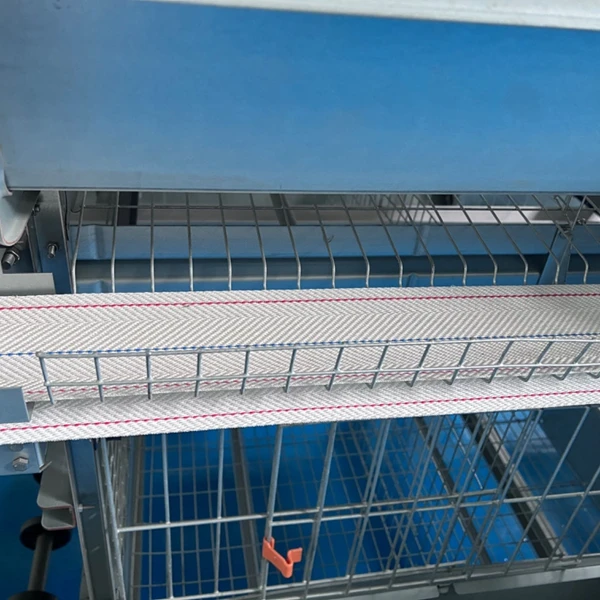

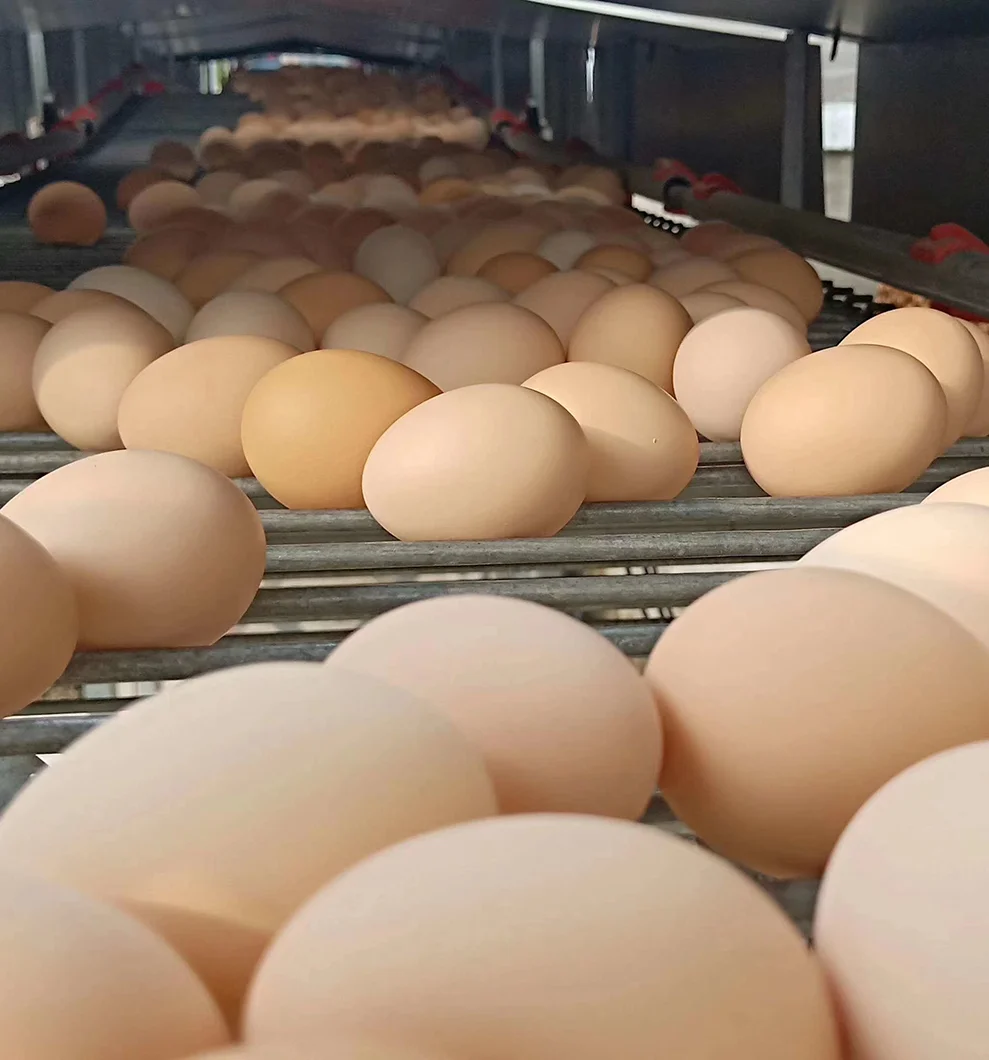

5. Egg collection system
Egg collection system includes egg belt and vertical or central egg collection machine. Our egg belt is made of Nylon.

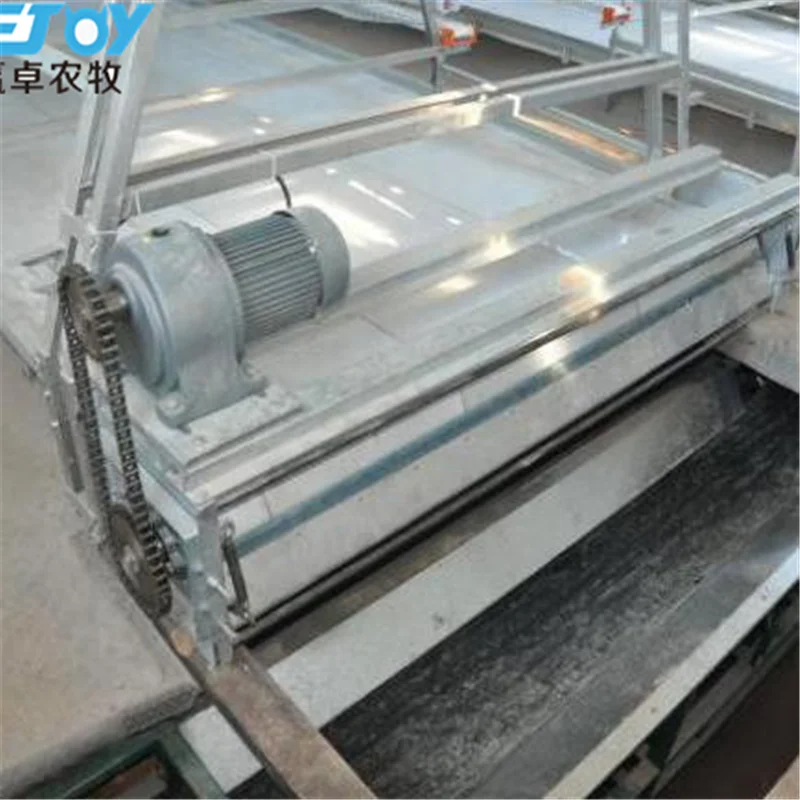

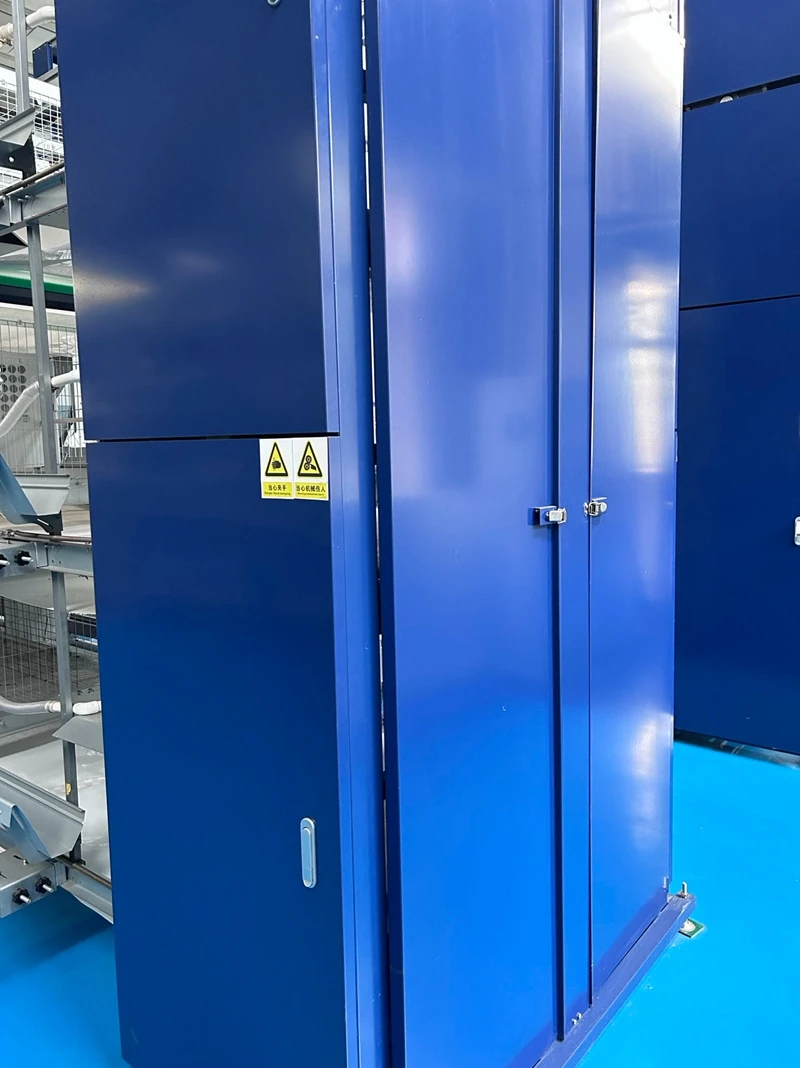

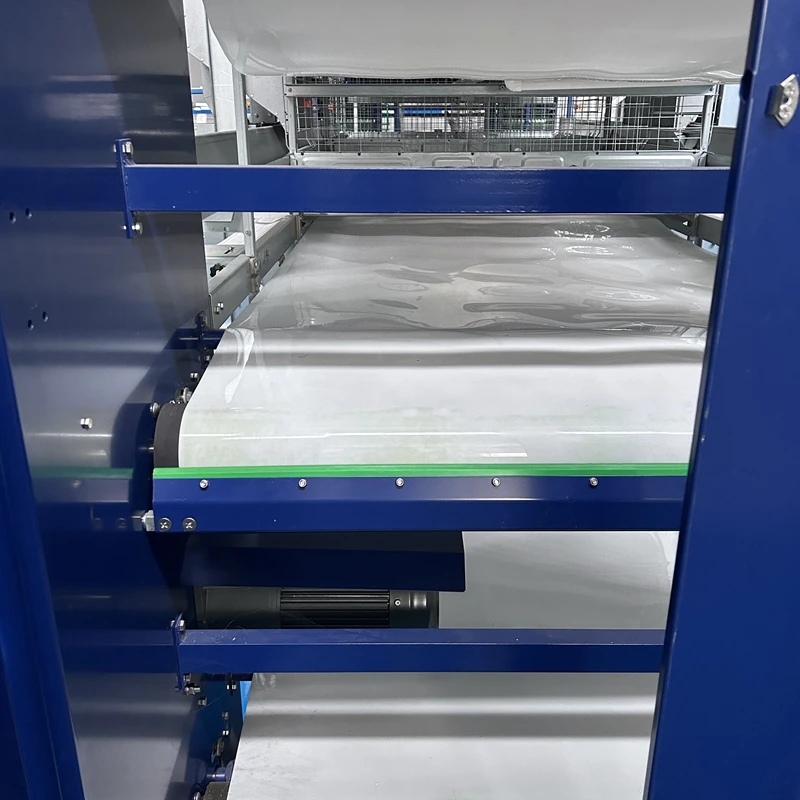

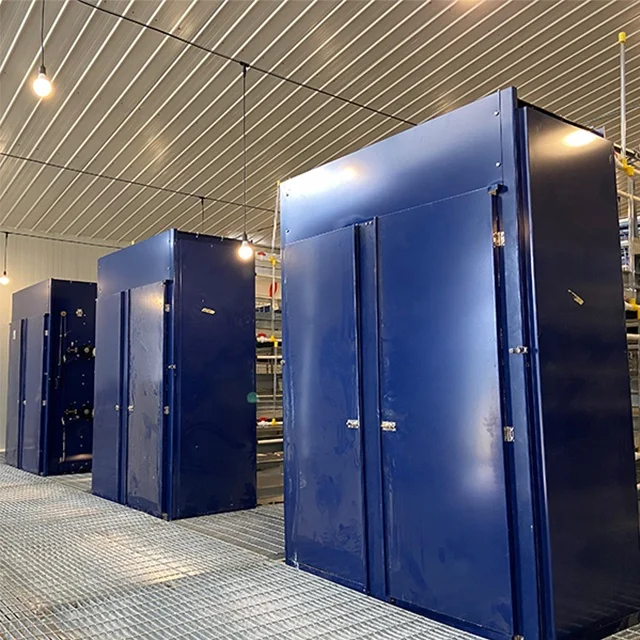

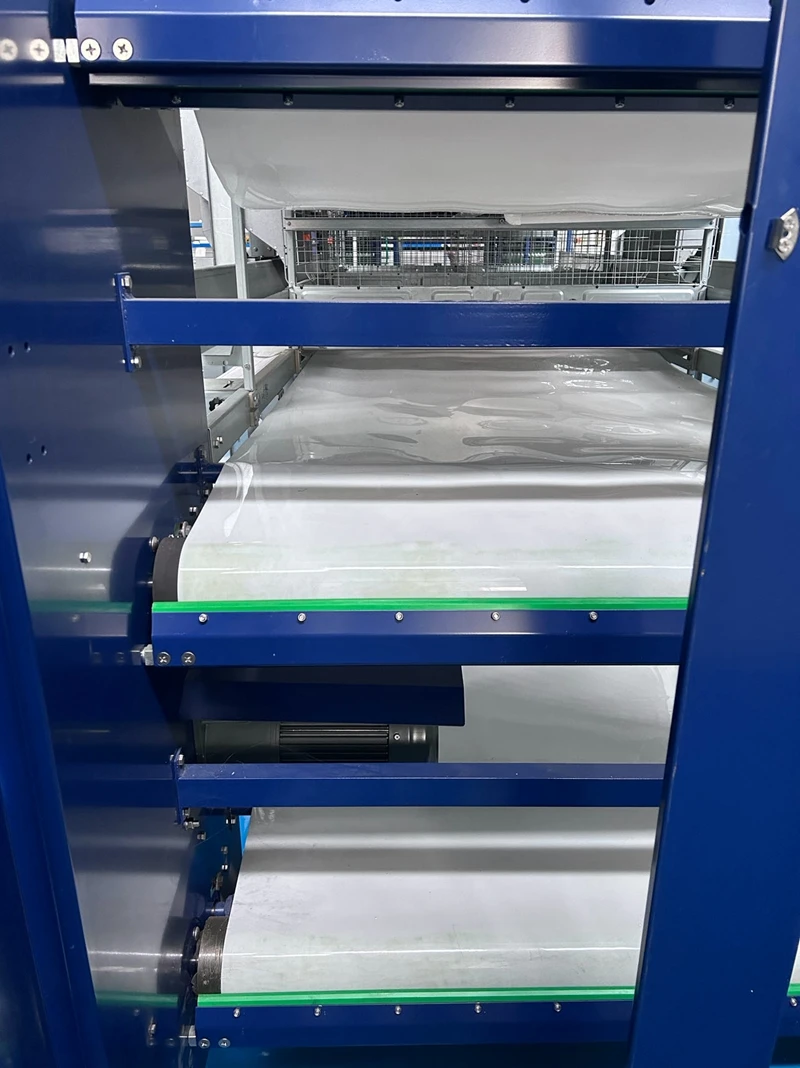

6. Manure cleaning system
Manure cleaning system includes manure belt, manure cleaning machine, horizontal manure cleaning and vertical manure cleaning machine. Our manure belt is made of raw PP material with smooth surface. Manure cleaning machine is sprayed by plastic. It is not easy to rust.
Related Products

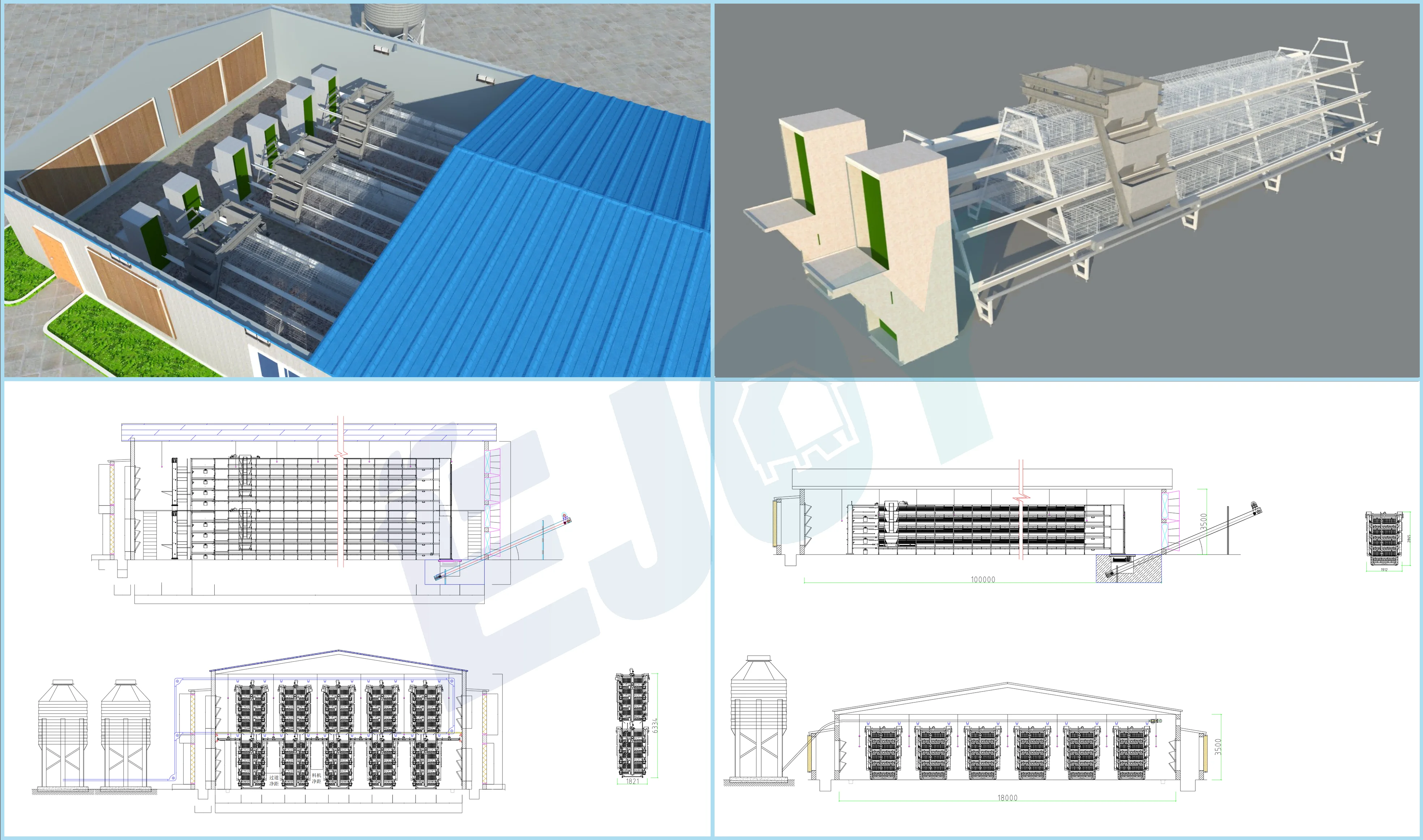

Our Projects

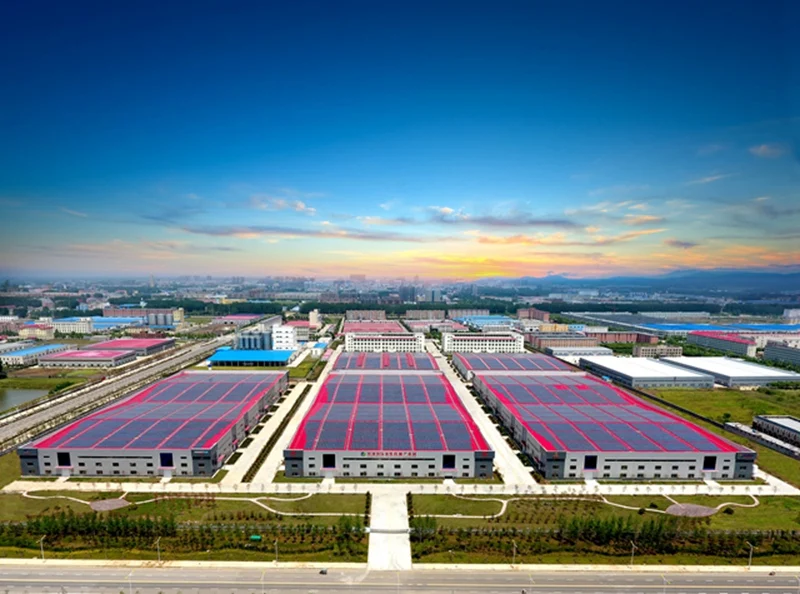

Company Profile
Qingdao Ejoy Farming Machinery Co., Ltd. is the corporation engages in researching, designing and manufacturing products for pig and poultry farming machinery. Besides producing and offering feed system, nipple drinking system, ventilation and cooling system, it also engages in the project design and construction of modernized farms for broilers, breeders, layers and swine.
Exihibition & Clients
FAQ
1. Who are we?
We are based in Shandong, China, start from 2017,sell to Africa(35.00%),Mid East(20.00%),
We are based in Shandong, China, start from 2017,sell to Africa(35.00%),Mid East(20.00%),
Domestic Market(10.00%),Eastern Europe(10.00%),South America(10.00%),Eastern Asia(5.00%),
South Asia(5.00%),Western Europe(5.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
poultry farming equipment,pig farming equipment,Breeder Farming Equipment,
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
poultry farming equipment,pig farming equipment,Breeder Farming Equipment,
Layer Cage Equipment,Broiler floor breeding equipment
4. Why should you buy from us not from other suppliers?
Qingdao Ejoy Farming Machinery Co., Ltd. engages in researching, designing and manufacturing
4. Why should you buy from us not from other suppliers?
Qingdao Ejoy Farming Machinery Co., Ltd. engages in researching, designing and manufacturing
products for livestock, poultry farming machinery. Besides producing and offering feed system,
nipple drinking system, ventilation and cooling system
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,DDP,DDU；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,German
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,DDP,DDU；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,German
