Lithium Battery Negative Electrode Material Sintered Graphite Sagger Casting Application with Sintering Mold
- Category: >>>
- Supplier: Henan Xinyao Graphite Products Co. Ltd.Henan Ltd.
Share on (1601365635246):
Product Overview
Description
Company introduction
Product Overview

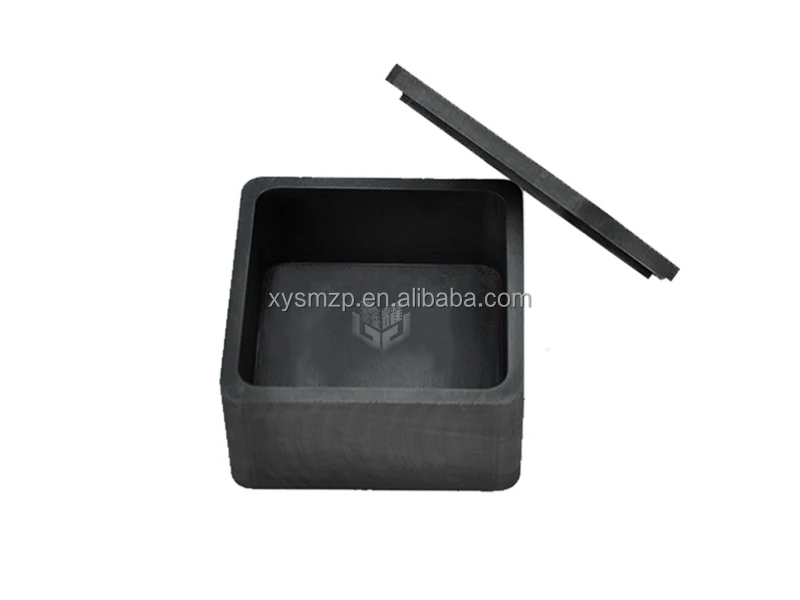

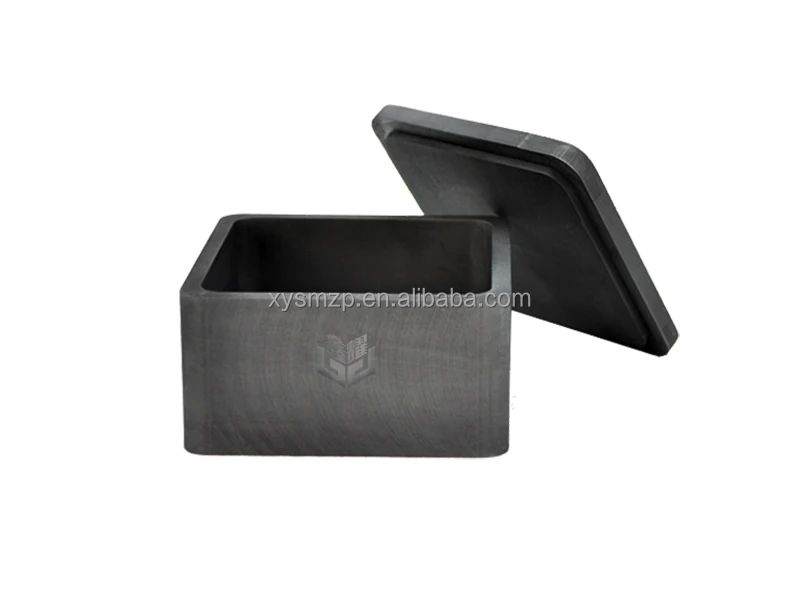

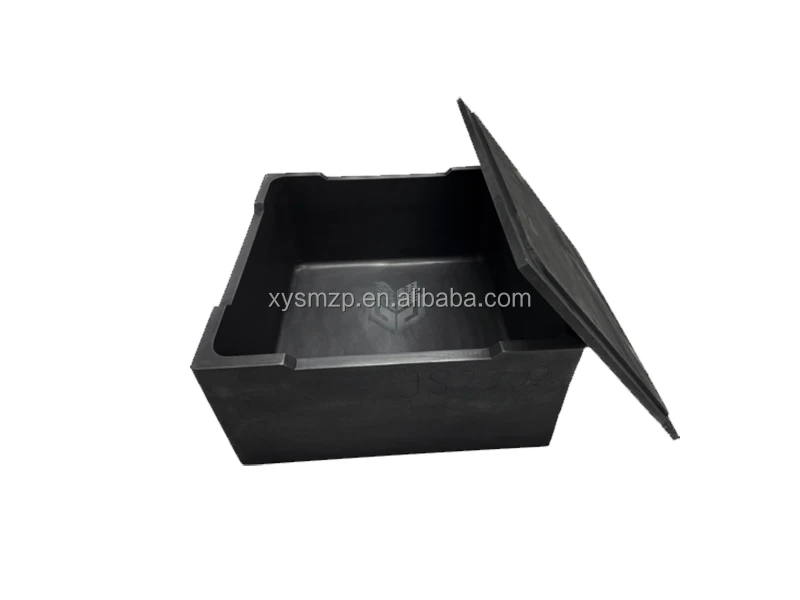

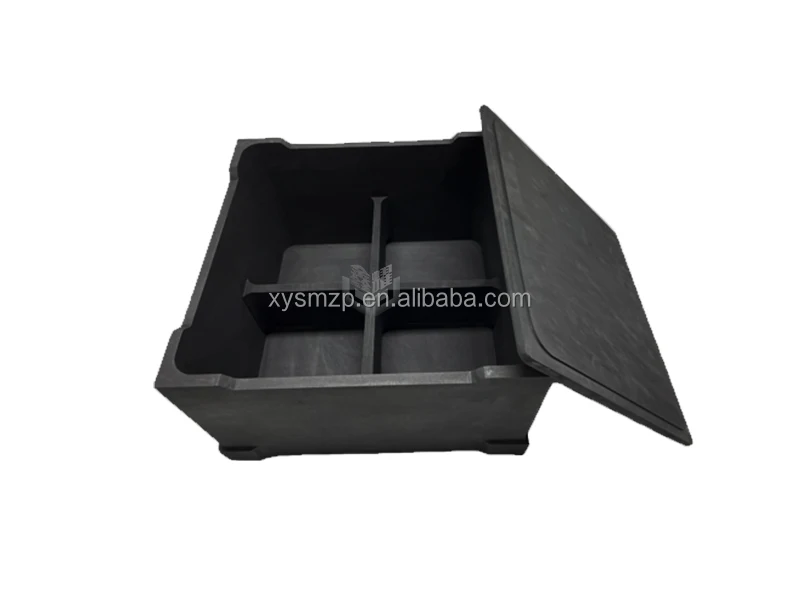

High Purity Graphite sagger
As one of the core materials in the new energy lithium battery industry, graphite saggers play a key role in the production of lithium-ion batteries. With the continuous innovation and advancement of technology and the rapid development of industries such as new energy vehicles, the performance of graphite saggers will be further improved and its market size will also continue to expand.
Graphite sagger is a sintered material box. The main raw material is refractory graphite. It has certain thermal conductivity,
stability and corrosion resistance. It is used to bake lithium battery cathode materials to ensure the quality of the battery.
Special graphite saggers for lithium battery cathode material lithium iron phosphate sintering, electromagnetic material
sintering, ceramic material sintering, etc. have good thermal conductivity and high temperature resistance. During high
temperature use, the thermal expansion coefficient is small, and it has certain resistance to rapid heating and rapid cooling.Strain performance. It has strong corrosion resistance to acid and alkaline solutions and has excellent chemical and physical stability.
stability and corrosion resistance. It is used to bake lithium battery cathode materials to ensure the quality of the battery.
Special graphite saggers for lithium battery cathode material lithium iron phosphate sintering, electromagnetic material
sintering, ceramic material sintering, etc. have good thermal conductivity and high temperature resistance. During high
temperature use, the thermal expansion coefficient is small, and it has certain resistance to rapid heating and rapid cooling.Strain performance. It has strong corrosion resistance to acid and alkaline solutions and has excellent chemical and physical stability.
FEATURES AT A GLANCE
Excellent electrical conductivity and low resistance.
Good thermal conductivity and even heat dissipation.
Good thermal shock resistance and corrosion resistance.
PRODUCT SPECIFICATIONS
Bulk density | g/cm3 | 1.75 | 1.85 |
Resistivity | μΩ.m | 8~11 | 8~10 |
Thermal conductivity (100°C) | W/m.k | 110~120 | 130~140 |
Shore hardness | HSD | 42 | 48 |
Flexural strength | Mpa | 38 | 46 |
Compressive strength | Mpa | 65 | 85 |
Elastic modulus | Gpa | 9 | 10.8 |
Porosity | % | 17 | 11 |
Ash content | PPM | 50 | 50 |
SIMILAR PRODUCTS

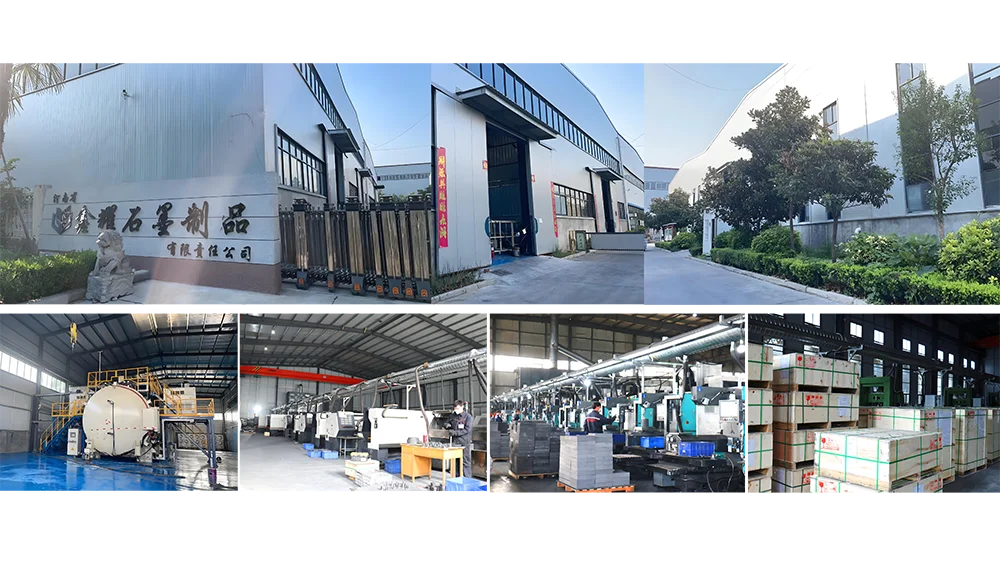

Factory real shots
