Product Overview
Description
Overview
Environmental Control Units, the ultimate solution for achieving unparalleled climate control in the most demanding and challenging environments. Engineered to meet the rigorous standards of operations, our units provide reliable and efficient climate management to ensure the well-being and comfort of personnel in the field. Here's why Geogio Environmental Control Units are the ideal choice for outdoor applications.
---Extreme Durability
---Versatile Climate Control
---Efficient Energy Management
---Rapid Deployment and Mobility
---Integrated Security Features
---Compatibility and Interoperability
---Extreme Durability
---Versatile Climate Control
---Efficient Energy Management
---Rapid Deployment and Mobility
---Integrated Security Features
---Compatibility and Interoperability
New Condition 48V Radiator Capability 180 60 50 190W\\/K for Outdoor Cabinet Temperature Control Tube Heat Exchanger

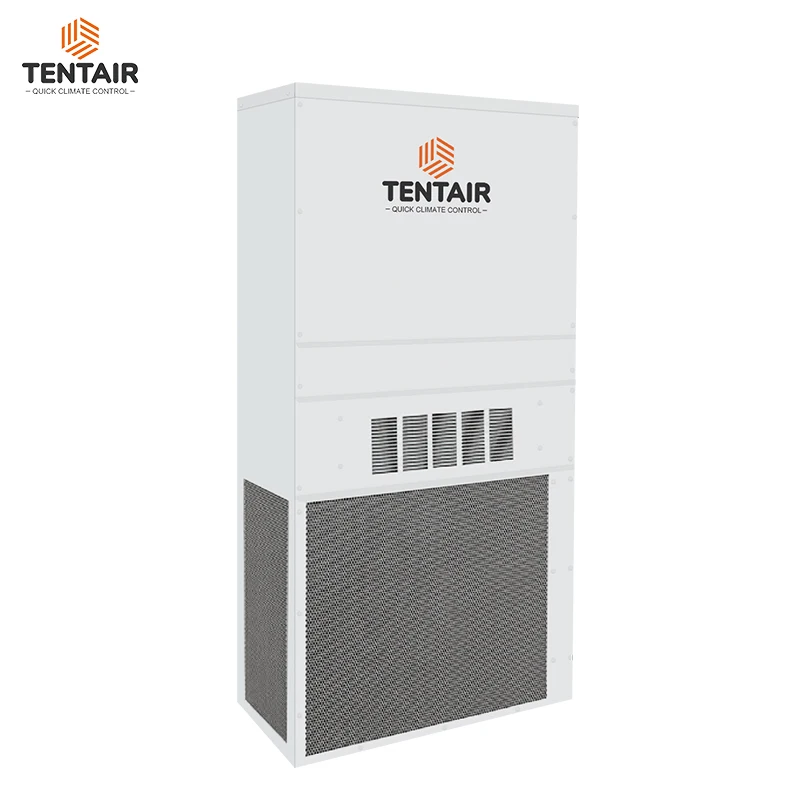

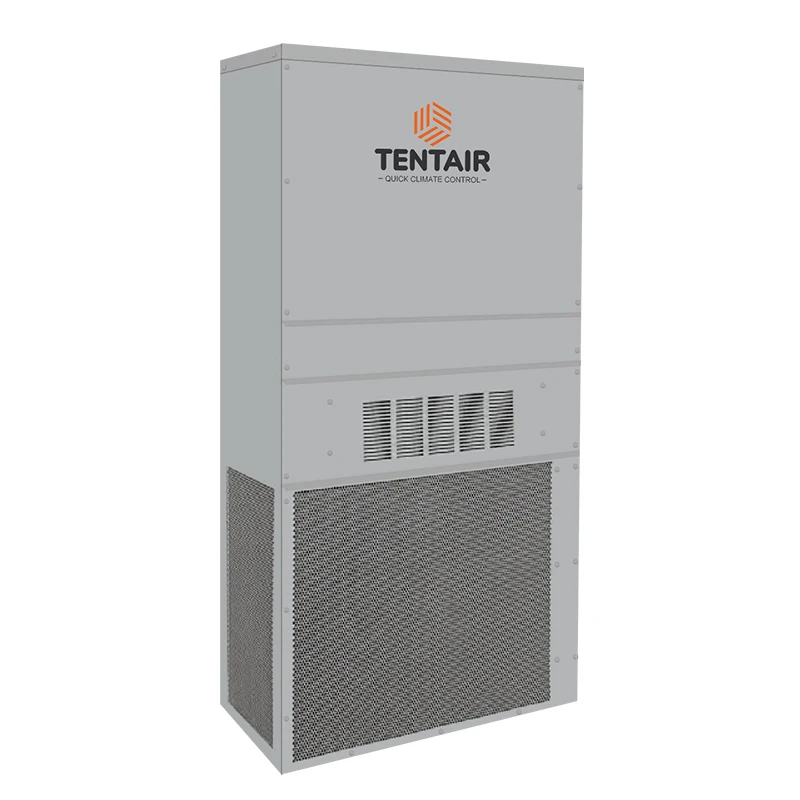

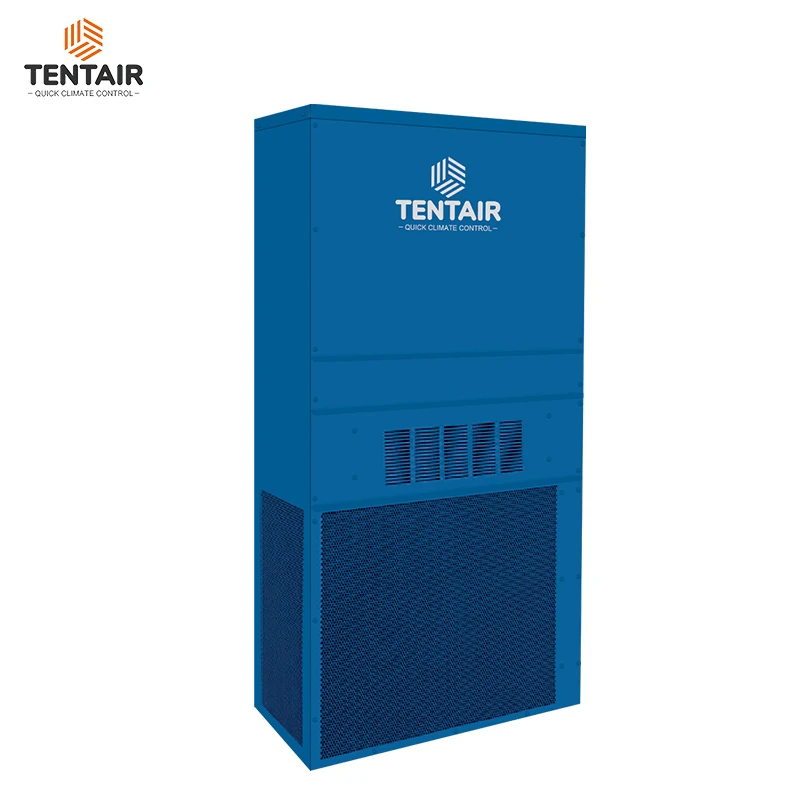

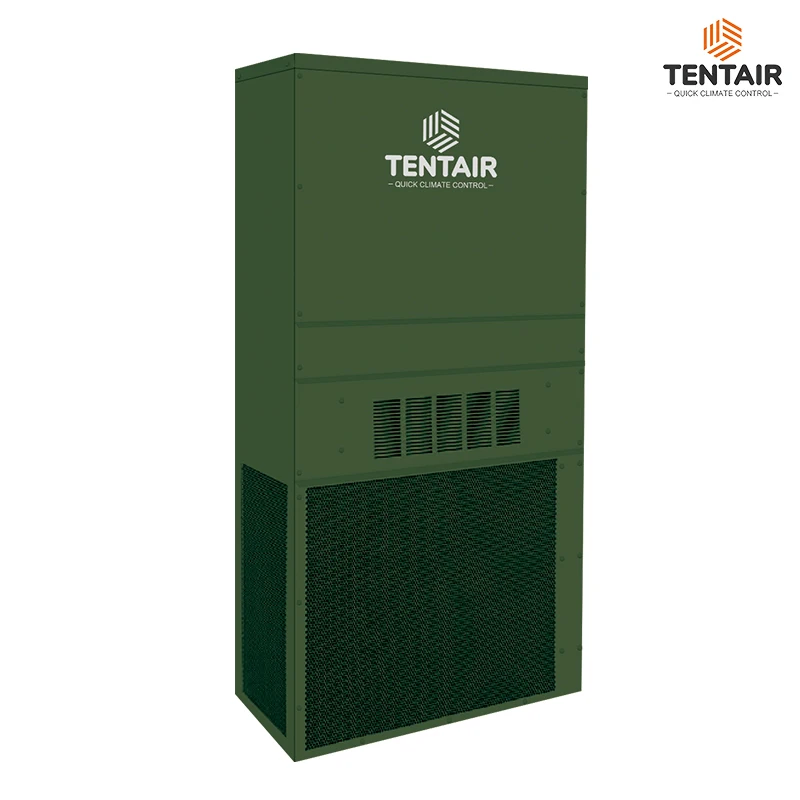

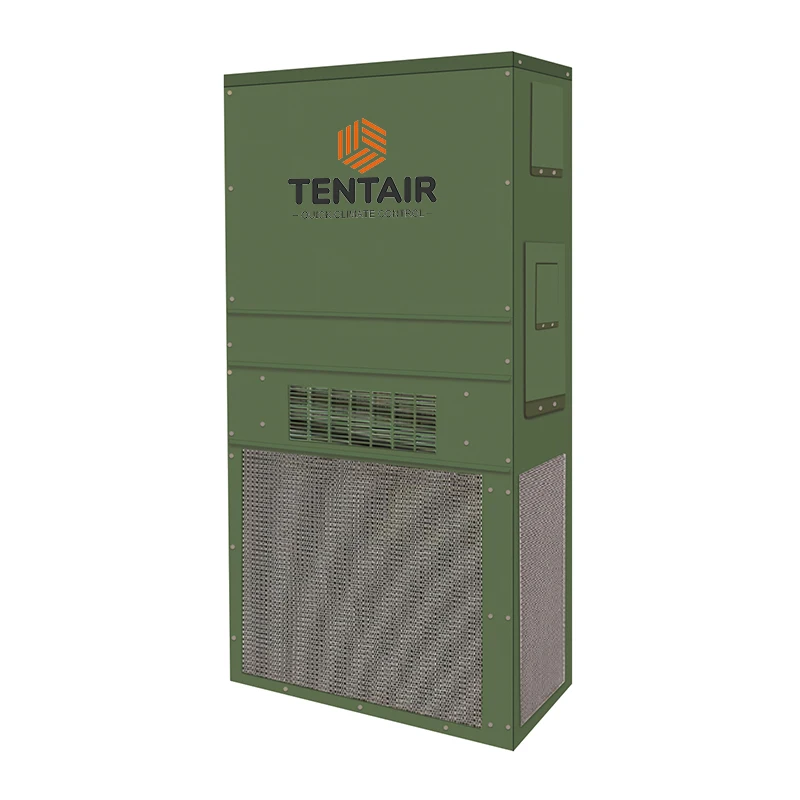

China Electric Cabinet Air Conditioner Air Conditioner Cooling System
MODEL | TEC05A-ME | 5-Ton Basic Enclosure ECU | ||
COLORS | ||||
Available Painting Colors | TAN/ Olive Drab/ White/ Blue | |||
REFRIGERANT | ||||
Type | R410A | |||
PERFORMANCE | ||||
Cooling Btu/hr @80°F DB, 67°F WB, 95°F ambient | 6.0 Ton | 72,000Btu/hr | ||
Cooling Btu/hr @80°F DB, 67°F WB, 120°F ambient | 5.0 Ton | 60,000Btu/hr | ||
Electric Heating Btu/hr | 12.0Kw (Optional) | 41,000Btu/hr | ||
Operating Conditions Cooling | 23~125°F | -10~52℃ | ||
Operating Conditions Heating | -22~80°F | -30℃~26℃ | ||
Air Flow Rate (evaporator) | 1900CFM | 3,231m³/h | ||
POWER SPECIFICAION | ||||
Voltage | 230V | |||
Frequency | 60Hz or 50Hz | |||
Number of Phase | 3 | |||
Max Power Consumption | 12.0Kw | |||
Power Supply Wire Size | 10mm² x 5C, with IEC connector | |||
PHYSICAL CHARACTERISTICS | ||||
Dimension (W x D x H) | 43.4'' x 25.6'' x 72.8'' | 1100 x 650 x 1850mm | ||
Weight, unit | 518.0 lbs | 235kg | ||
Opening | ||||
Evaporator Supply Air Opening | 30.0‘’ x 10.0'' | 762 x 254mm | ||
Evaporator Return Air Opening | 30.0'' x 16.0'' | 762 x 406mm | ||
