EDON DC inverter plasma cutter CUT-40 IGBT CUTTING MACHINE
US $65.00-$91.00
JASIC CUT 160 Compressor Built In Air Plasma Cutting Machine
- Category: >>>
- Supplier: Shenzhen Hanghui Technology Co. Ltd.
Share on (1601367734933):
Product Overview
Description
Products Description
Model | LGK-100N L232 | LGK-130N L231 | LGK-160N L306 |
Input voltage (V) | 3p~AC380V±15% | 3p~AC380V±15% | 3p~AC380V±15% |
Rated input capacity (kVA) | 15 | 23 | 26 |
Power factor | >=0.7 | >=0.7 | >=0.7 |
Rated no-load voltage for cutting (V) | 296 | 300 | 300 |
Rated no-load voltage for manual welding (V) | 78 | 78 | 68 |
Cutting current (A) | 20-80 | 20-110 | 20-120 |
Manual welding current (A) | 50-250 | 50-250 | 50-250 |

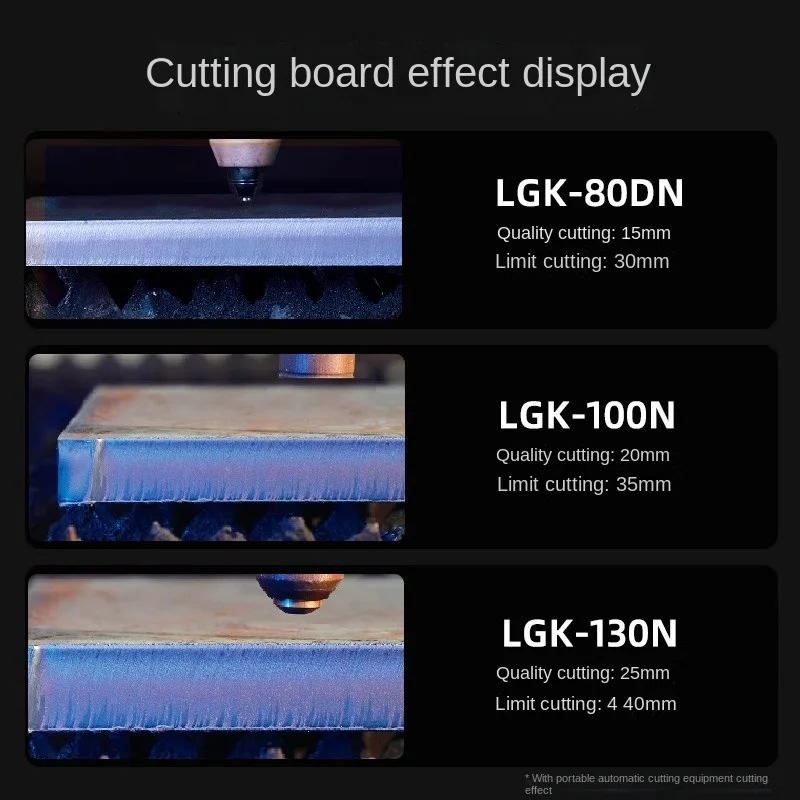

Quality cutting thickness (mm) @ speed: 400mm/min | 20 | 25 | 30 |
Limit cutting thickness (mm) | 35 | 40 | 50 |
Arc striking method | High frequency arc ignition | High frequency arc ignition | High frequency arc ignition |
Rated duty cycle @ 40°C | 30% | 30% | 40% |
Efficiency | >=85% | >=85% | >=85% |
Protection level | IP21S | IP21S | IP21S |
Insulation level | H | H | H |
Dimensions (mm) | 607*649*580 | 607*649*580 | 690*690*650 |
Weight (kg) | 45 | 50.5 | 63 |
