AMC Series CABO Factory Supply UPS Power Supply Capacitor 3 phase capacitor PFC AC input/output filter capacitors
- Category: >>>
- Supplier: CABO Electronics (Foshan) Ltd.CABO Ltd.
Share on (1601368377306):
Product Overview
Description
PRODUCT DESCRIBTION

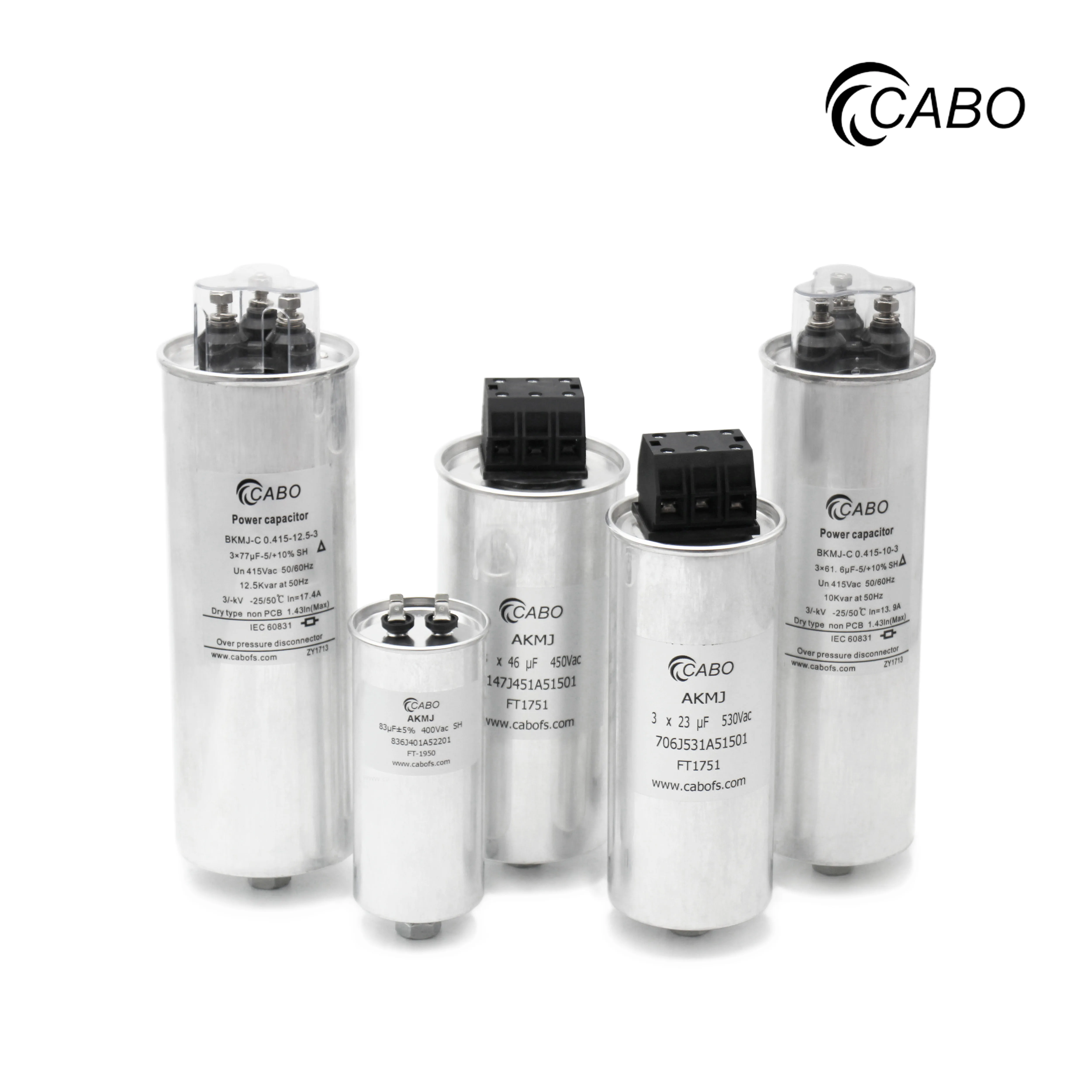

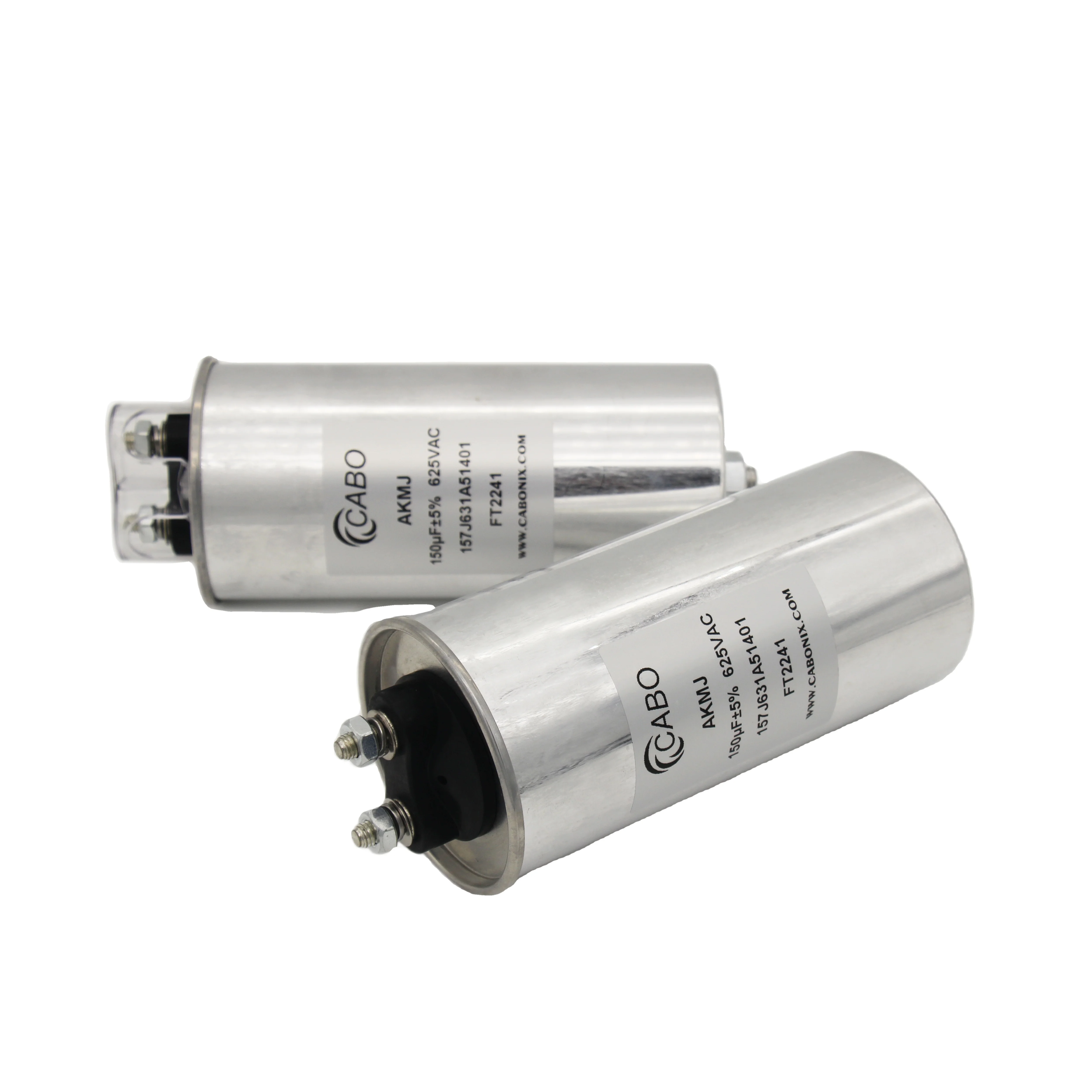

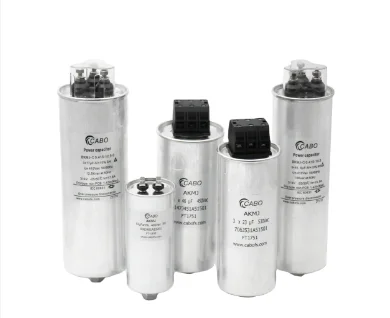

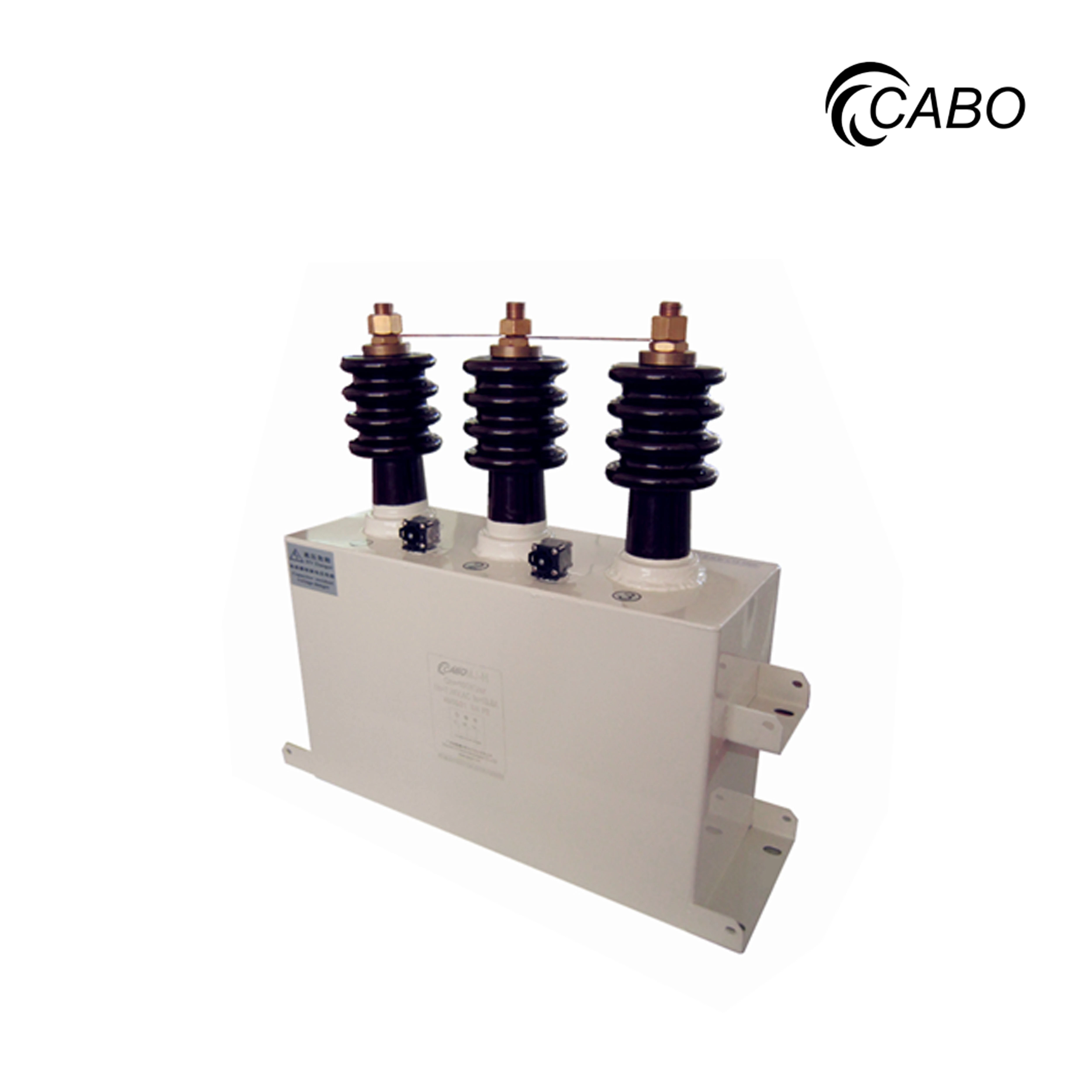

AMC Series Capacitor
AMC capacitors are designed to filter undesirable harmonics at the AC output of large inverter system. This series has a dual protection system utilizing self healing metallized polypropylene and a mechanical pressure interrupter to ensure a safe open circuit mode in the event of overload or end of life. Typical applications include wind turbine PFC controllers, solar inverter output filters, and power line conditioning. Suitable for ac filter circuit in power electronic and UPS power supply, and can withstand high harmonic current, peak current and voltage.
Featres:
Dry type, No leakage risk
High over-voltage and over-current
Over-pressure disconnector inside
Self-healing technology
Metal shell APPLICATIONS
Application:
AC filter circuit
LCL filter
Power factor correction(PFC)
Inverter output filtering
ELECTRICAL CHARACTERISTICS
Capacitance | 8-600μF |
Temperature | -40℃～+85℃ |
Capacitance Tolerance | ±5%(J);±10% (K) |
Rated Voltage | 250～1200V.AC |
Test Voltage between terminals | 2.15Urms 10s @25℃ |
Test Voltage between Terminal/Case | 3800V 50Hz for 10s |
Max.Altitude | ＜2000m |
Flame Resistance | UL 94V-0 |
Lifetime Expectancy | ≥10,000Hours (Un,≤70℃) |

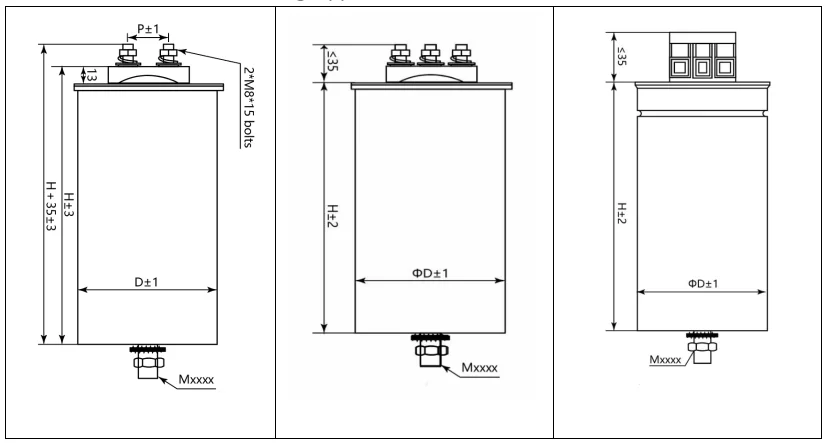

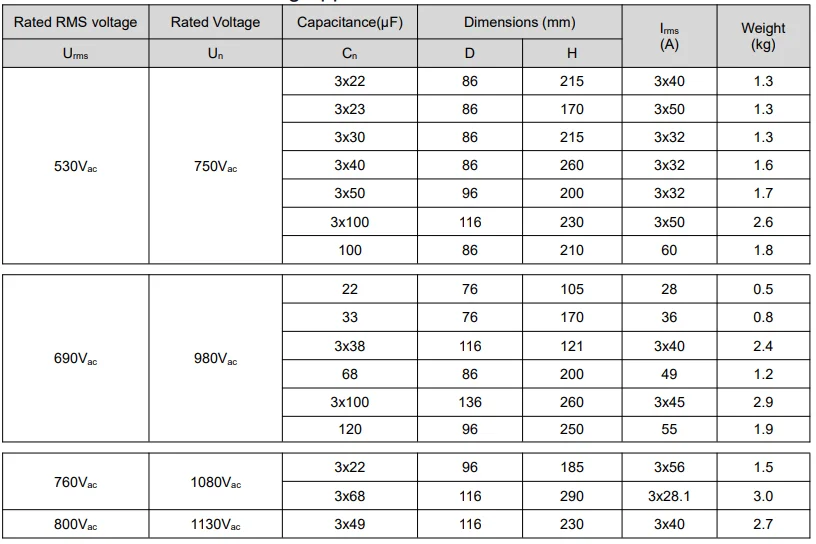

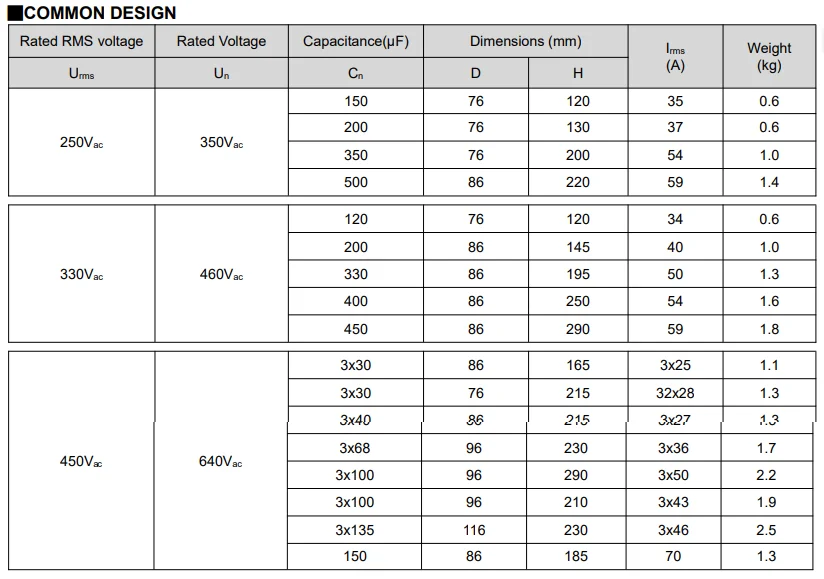

OUTLINE DRAWING
Customization available
Note: The above parameters are for reference only. Please refer to the specifications for specific parameters.
CERTIFIED PATENT
PACKING&DELIVERY
As a company committed to environmental sustainability, CABO adheres to the ISO 9001 and ISO 14001 quality and environmental standards. All of our packaging materials are eco-friendly.
