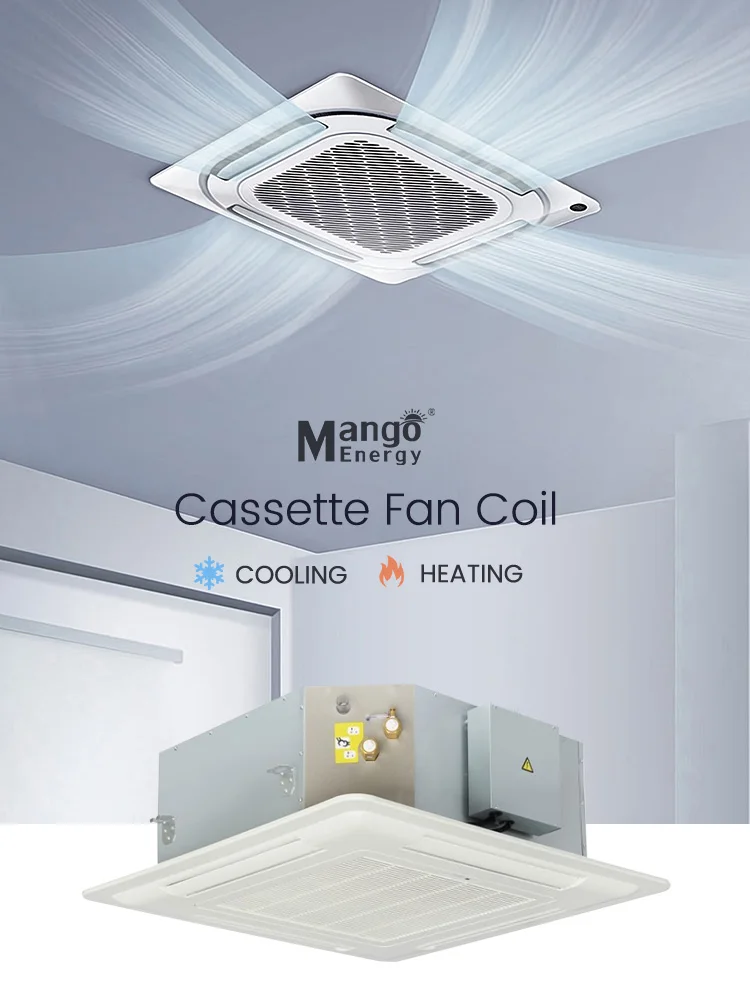

  • Four Way Cassette Fan Coil Unit 4 Pipe Ceiling Central Air Conditioner System cooling and heating
Four Way Cassette Fan Coil Unit 4 Pipe Ceiling Central Air Conditioner System cooling and heating
Four Way Cassette Fan Coil Unit 4 Pipe Ceiling Central Air Conditioner System cooling and heating
Four Way Cassette Fan Coil Unit 4 Pipe Ceiling Central Air Conditioner System cooling and heating
Four Way Cassette Fan Coil Unit 4 Pipe Ceiling Central Air Conditioner System cooling and heating
Four Way Cassette Fan Coil Unit 4 Pipe Ceiling Central Air Conditioner System cooling and heating
Four Way Cassette Fan Coil Unit 4 Pipe Ceiling Central Air Conditioner System cooling and heating
Four Way Cassette Fan Coil Unit 4 Pipe Ceiling Central Air Conditioner System cooling and heating

Four Way Cassette Fan Coil Unit 4 Pipe Ceiling Central Air Conditioner System cooling and heating

Share on (1601368821363):


Price:$154.00-172.00

Quantity:


Product Overview

Description







Products Description






Product Paramenters


Model
FP-34
FP-51
FP-68
FP-85
FP-102
Cooling Ca. (kw) (Water in 7℃)
H
1.98
2.98
3.68
4.98
5.58
M
1.63
2.27
2.81
3.75
4.32
L
1.04
1.51
1.89
2.51
2.85
Heating Ca. (kw) (Water in 60℃)
H
2.98
4.8
5.48
7.2
8.18
M
2.45
3.67
4.19
5.42
6.33
L
1.57
2.44
2.82
3.6
4.52
Air flow（m³/h）
H
340
510
680
850
1020
M
280
390
520
640
790
L
180
260
350
430
520
Advise Area（m2）
10
15
20
25
30
Power Input（W）
34
50
58
72
92
Current (A)
0.151
0.225
0.258
0.32
0.385
Noise d B (A)
34
35
37
39
40
Static pressure (Pa)
12
Power Supply
220-240v/ 1ph/50Hz
Control way
Wired or remote controller
Water flow (m³/h）
0.42
0.52
0.62
0.86
0.98
Water pressure drop(kPa)
14
14
16
18
22
Water pipe for in/out
ZG3/4”


Model
FP-136
FP-170
FP-204
FP-238
Cooling Ca. (kw) (Water in 7℃)
H
7.2
9.9
10.8
12.6
M
5.53
7.51
8.08
9.68
L
5.53
5
5.55
6.45
Heating Ca. (kw) (Water in 60℃)
H
10.8
14.5
16.2
18.9
M
8.17
11
12.35
14.52
L
5.47
7.33
8.48
9.68
Air flow（m³/h）
H
1360
1700
2040
2380
M
1030
1290
1500
1800
L
690
860
1030
1200
Advise Area（m2）
40
50
60
70
Power Input（W）
126
128
152
198
Current (A)
0.561
0.547
0.677
0.882
Noise d B (A)
41
41
43
44
Static pressure (Pa)
12
Power Supply
220-240v/ 1ph/50Hz
Control way
Wired or remote controller
Water flow (m³/h）
1.08
1.58
1.78
1.92
Water pressure drop(kPa)
25
39
44
46
Water pipe for in/out
ZG3/4”

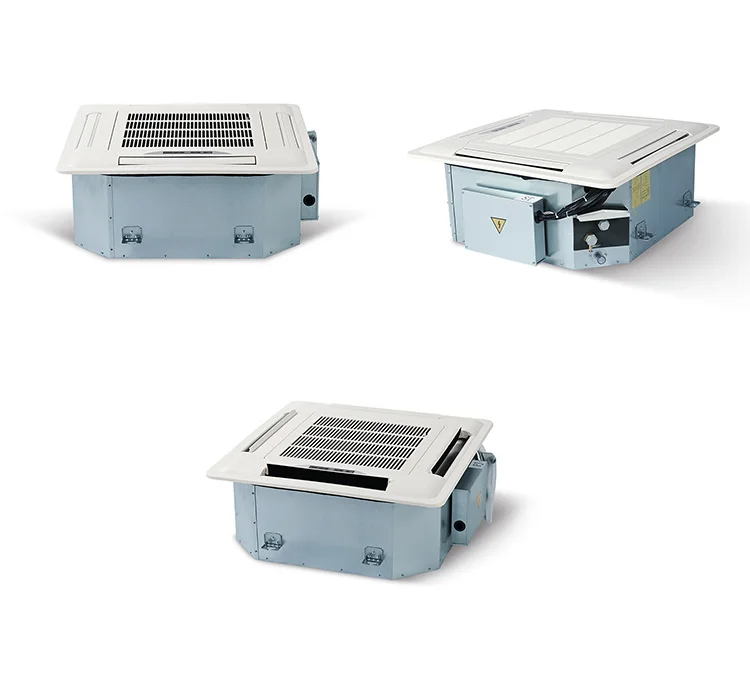

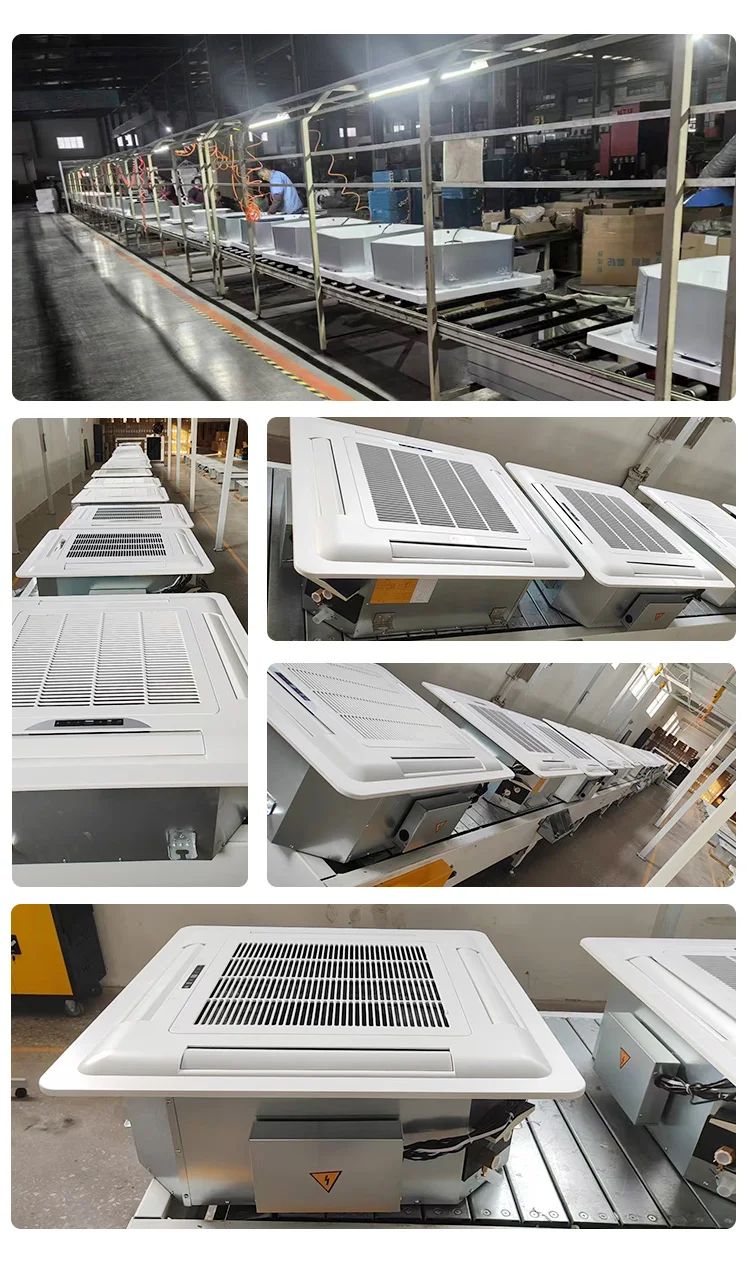

Details Images








Product packaging

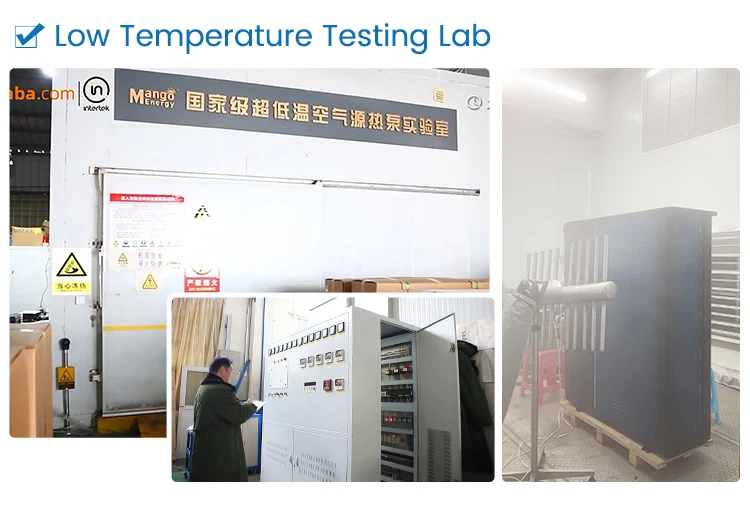

Company Profile















Q1> What does mango energy company do ?
A1: Mango energy is professional manufacturer of ON/OFF heat pump , DC inverter heat pump, air source heat pump,water to water
heat pump , swimming pool heat pump,high temperature heat pump so on all kind of heat pump.

Q2> What is the daily production of Mango energy company ?
A2: Mango energy one day produce heat pump water heater around 150~255 PCS / day.

Q3> What Mango energy do for their agent / distributor /OEM ?
A3 : Mango energy offer sales training , heat pump & solar air conditioner product training,
After sales service training , maintenance machine training , big air chiller ,or heating
Project design case training , inside parts exchange training and test training.

Q4> What Mango energy offer to their business partner ?
A4: Mango energy offer 1%~2% free spare parts according to order quantity .
Offer whole this district market exclusive sales right .
Offer rebate as this district agent sales amount within one year .
Offer best competitive price & repair parts .
Offer 24 hours online service .

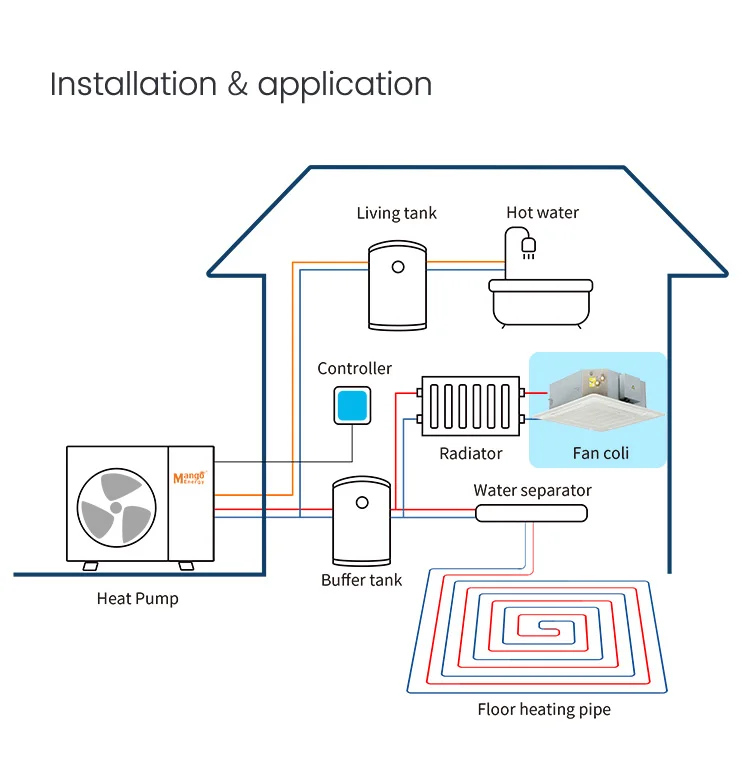

Q5> where is Mango energy heat pump using ?
A5: Because Air source heat pump save energy around 70% , ( EVI heat pump and central cooling & heating heat pump ) is Widely used
in home heating, hotels hot water & heating , restaurants, hospitals,schools,bath center, residential central heating and hot
water plants, etc.
