OEM ODM 152mm DTII 6306 Iron Heavy Duty Conveyor Roller Idler Parts SPHC Steel Bearing Housing With 7 Labyrinth Seals Kits
- Category: >>>
- Supplier: Hefei Hengan Conveyor Machinery Co. Ltd.Hefei Ltd.
Share on (1601368886901):
Product Overview
Description
FEATURES AT A GLANCE
PRODUCT DESCRIPTION
product name | bearing housing with labyrinth seals | ||||||
bearing housing material | SPCC/SPHC/SPHE steel | ||||||
seal material | Nylon6 / POM/ABS | ||||||
standard | DIN, GB, ISO, JIS ,CEMA | ||||||
outside dia of bearing housing | 50mm,60mm,63.5mm,76mm,89mm,108mm,114mm,127mm,133mm,140mm,152mm,165mm,178mm,194mm,219mm | ||||||
bearing size | 6203,6204,6205,6305,6306,6307,6308,6309,6310,6312 | ||||||
bearing housing thickness | 1.7mm,2.0mm,2.5mm,3.0mm,3.5mm,4.0mm,5.0mm,6.0mm | ||||||
application | Conveyor Roller /Idler | ||||||
Product Overview

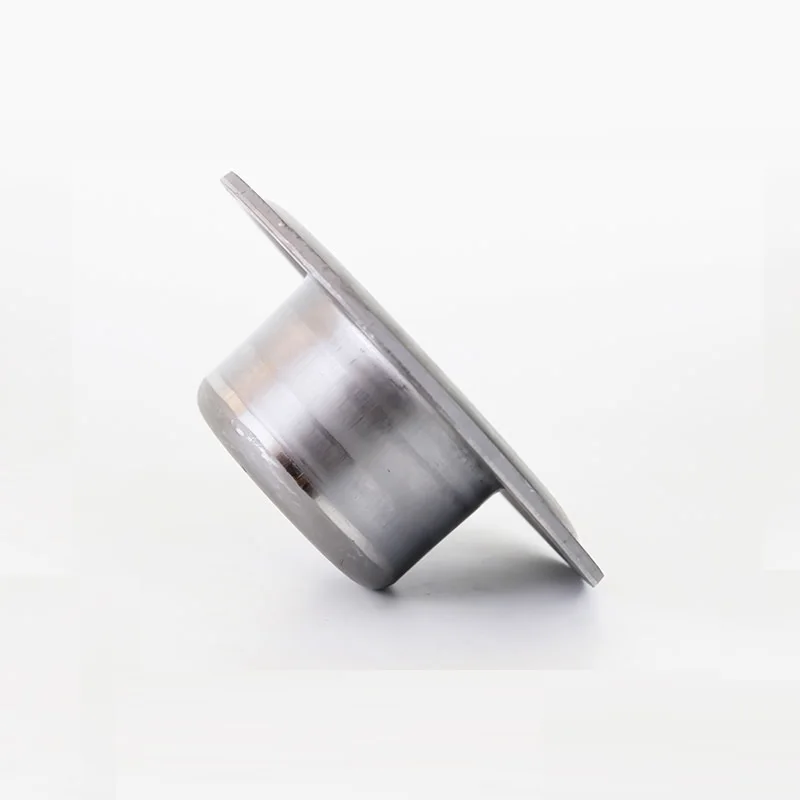

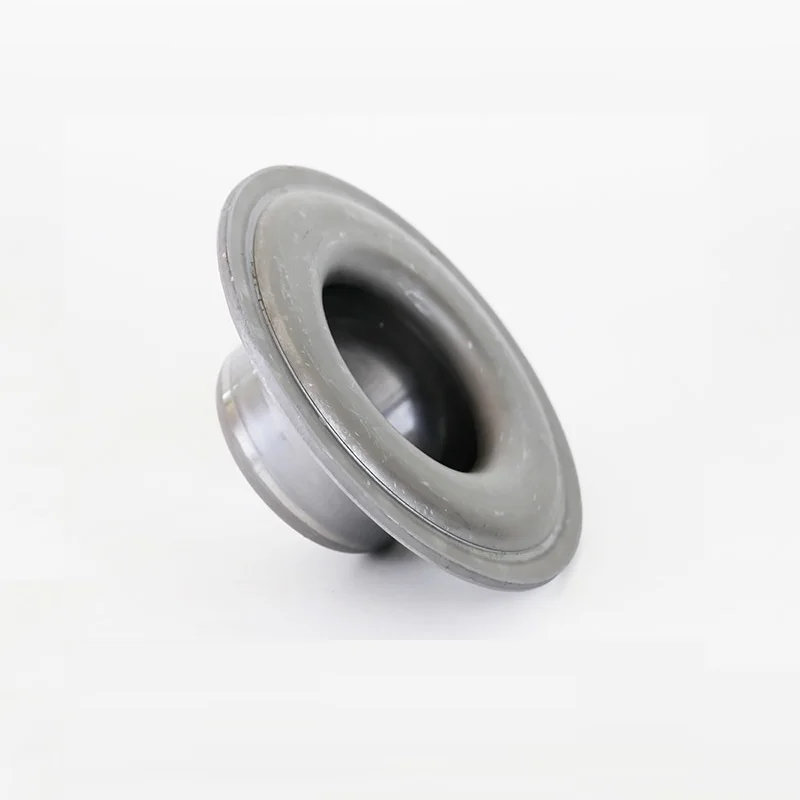

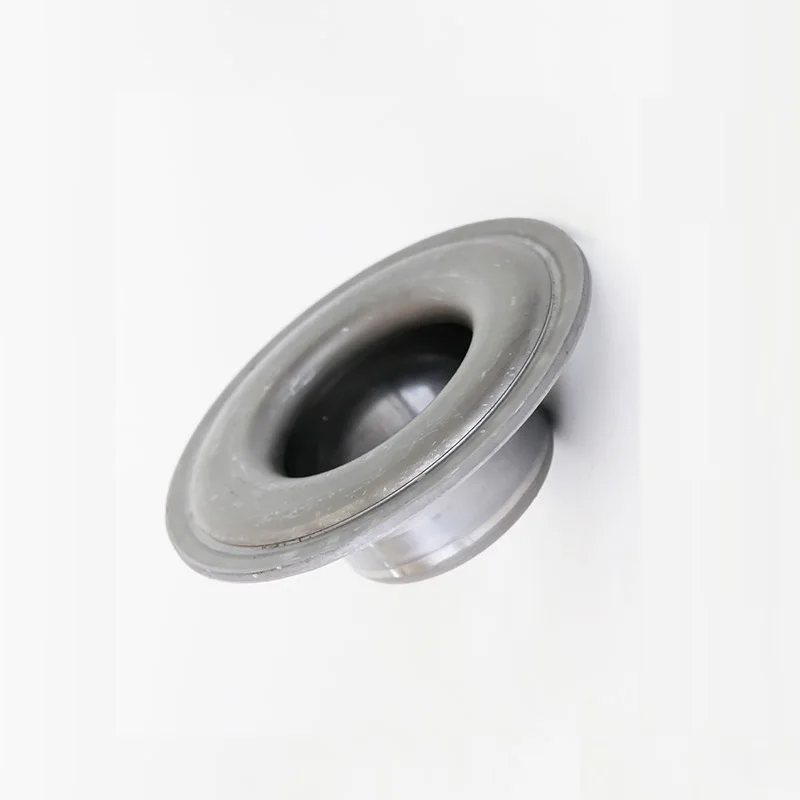

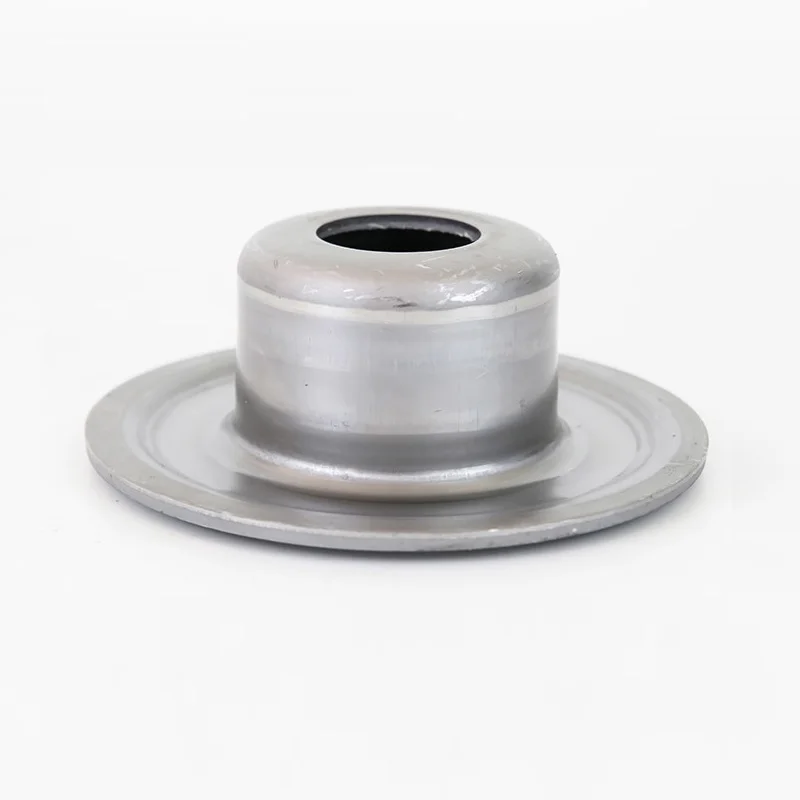

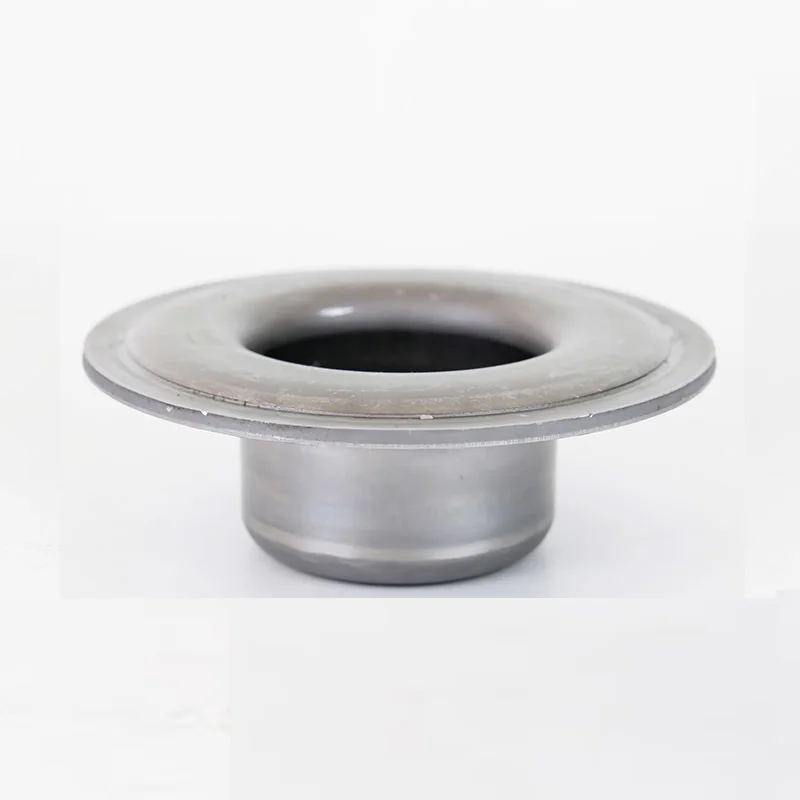

Mining Conveyor Roller Steel Bearing Cover With Labyrinth Seals
Housings with rolling bearings support a rotating shaft, which can be bolted on a machine frame or any other substructure. There is no need to precisely machine a bearing housing in a surrounding casing. This makes these solutions cost-efficient and easy to use, while providing full rolling bearing performance.
HAconveyor are recognized as an eminent manufacturer of quality assured range of Idler Bearing Housing, Metal Dust Cover, Collar Seal Set, etc. Working in close coordination with our skilled employees, we have been successful in delivering quality assured range of products that are in compliance with the set quality standards. Our quality controllers ensure that only top grade basic components are used in the manufacturing process.

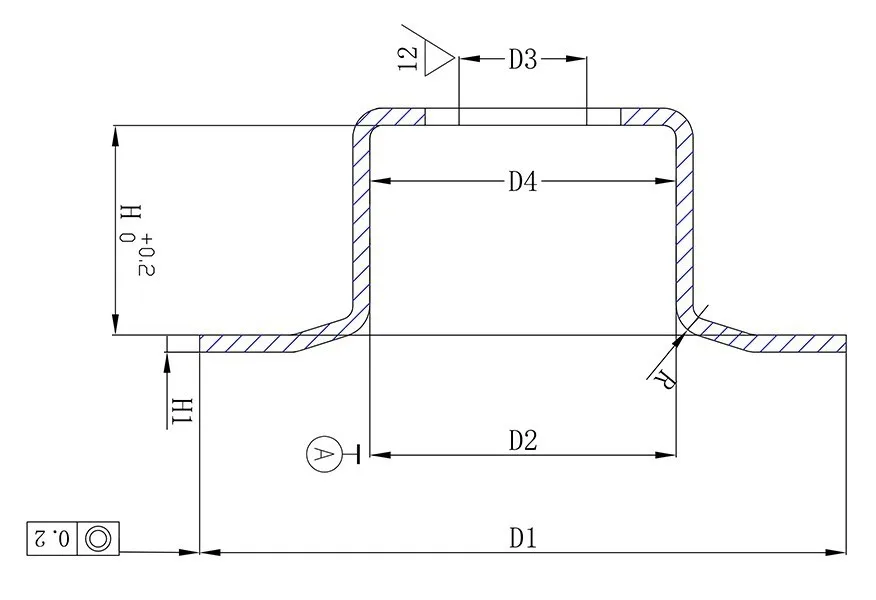

DRAWING
PRODUCT SPECIFICATIONS
bearing size | pipe outside dia/mm | shaft dia/mm | D1 | D2 | D3 | D4 | H | H1 |
63 | 59.5 | 2.0/2.5 | ||||||
76 | 72 | 2.0/2.5 | ||||||
89 | 83/84/85 | 2.0/2.5 | ||||||
102 | 97 | 2.5/3.0 | ||||||
108 | 103 | 2.5/3.0 | ||||||
114 | 109/110 | 2.5/3.0 | ||||||
127 | 121/122 | 2.5/3.0 | ||||||
133 | 127/128 | 2.5/3.0 | ||||||
140 | 134/135/136 | 2.5/3.0 | ||||||
152 | 146/147 | 2.5/3.0 | ||||||
159 | 152/153 | 2.5/3.0 | ||||||
89 | 83/84/85 | 2.0/2.5 | ||||||
102 | 97 | 2.5/3.0 | ||||||
127 | 121/122 | 2.5/3.0 | ||||||
133 | 127/128 | 2.5/3.0 | ||||||
140 | 134/135/136 | 2.5/3.0 | ||||||
152 | 146/147 | 2.5/3.0 | ||||||
159 | 152/153 | 2.5/3.0 | ||||||
127 | 121/122 | 3.0/4.0 | ||||||
133 | 127/128 | 3.0/4.0 | ||||||
159 | 152/153 | 3.0/4.0 | ||||||
178 | 172 | 3.0/4.0 | ||||||
197 | 188 | 3.0/4.0 | ||||||
89 | 25 | 83/84/85 | 2.5/3.0 | |||||
102 | 97 | 2.5/3.0 | ||||||
108 | 103 | 2.5/3.0 | ||||||
127 | 121/122 | 3.0/4.0 | ||||||
133 | 127/128 | 3.0/4.0 | ||||||
159 | 152/153 | 3.0/4.0/5.0 | ||||||
178 | 172 | 3.0/4.0/5.0 | ||||||
194 | 188 | 3.0/4.0/5.0 | ||||||
89 | 30 | 83/84/85 | 3.0/4.0 | |||||
102 | 97 | 3.0/4.0 | ||||||
108 | 103 | 3.0/4.0 | ||||||
127 | 121/122 | 3.0/4.0 | ||||||
133 | 127/128 | 3.0/4.0 | ||||||
159 | 152/153 | 3.0/4.0/5.0 | ||||||
178 | 172 | 3.0/4.0/5.0 | ||||||
194 | 188 | 3.0/4.0/5.0 | ||||||
127 | 35 | 121/122 | 3.0/4.0/5.0 | |||||
133 | 127/128 | 3.0/4.0/5.0 | ||||||
159 | 152/153 | 3.0/4.0/5.0 | ||||||
178 | 172 | 3.0/4.0/5.0 | ||||||
194 | 188 | 3.0/4.0/5.0 | ||||||
219 | 213 | 3.0/4.0/5.0 | ||||||
127 | 121/122 | 3.0/4.0/5.0 | ||||||
133 | 127/128 | 3.0/4.0/5.0 | ||||||
159 | 152/153 | 3.0/4.0/5.0 | ||||||
178 | 172 | 3.0/4.0/5.0 | ||||||
194 | 188 | 3.0/4.0/5.0 | ||||||
219 | 213 | 3.0/4.0/5.0 | ||||||
133 | 127/128 | 3.0/4.0/5.0 | ||||||
159 | 152/153 | 3.0/4.0/5.0 | ||||||
194 | 188 | 3.0/4.0/5.0 | ||||||
219 | 213 | 3.0/4.0/5.0 | ||||||
178 | 50 | 172 | 3.0/4.0/5.0 | |||||
194 | 188 | 3.0/4.0/5.0 | ||||||
219 | 213 | 3.0/4.0/5.0 |

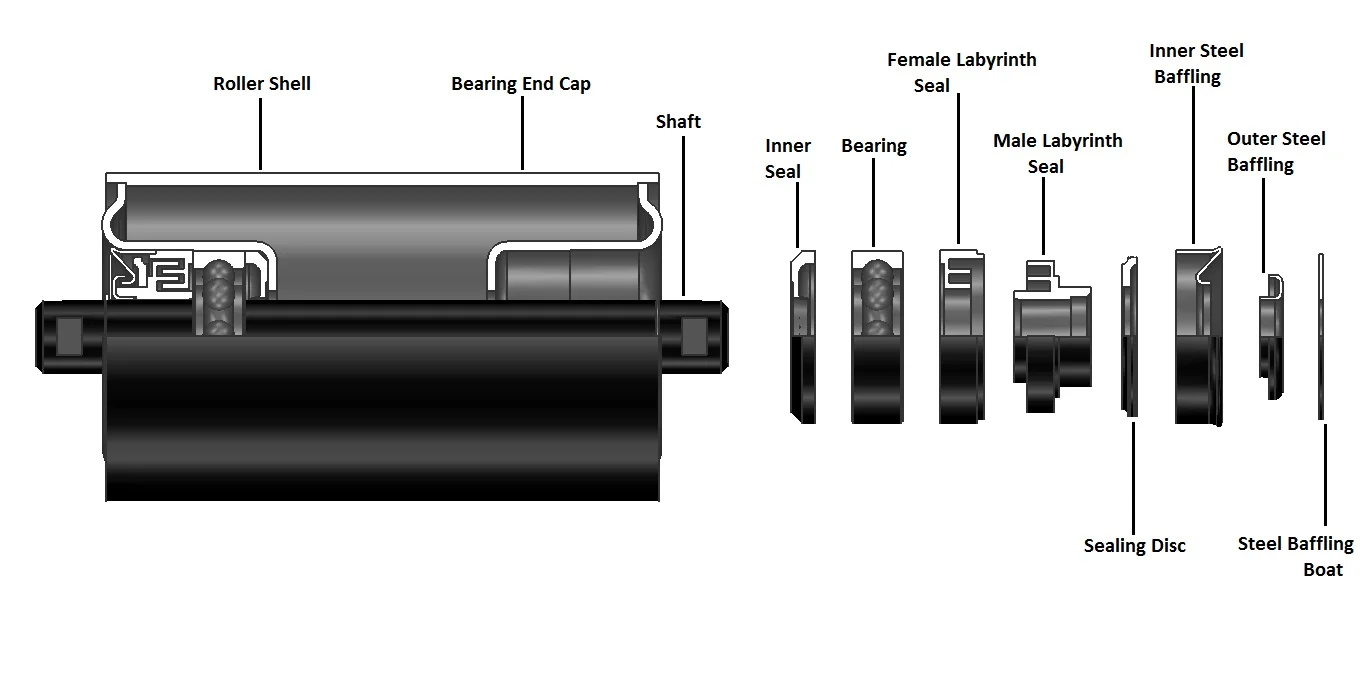

INSTALL DRAWING

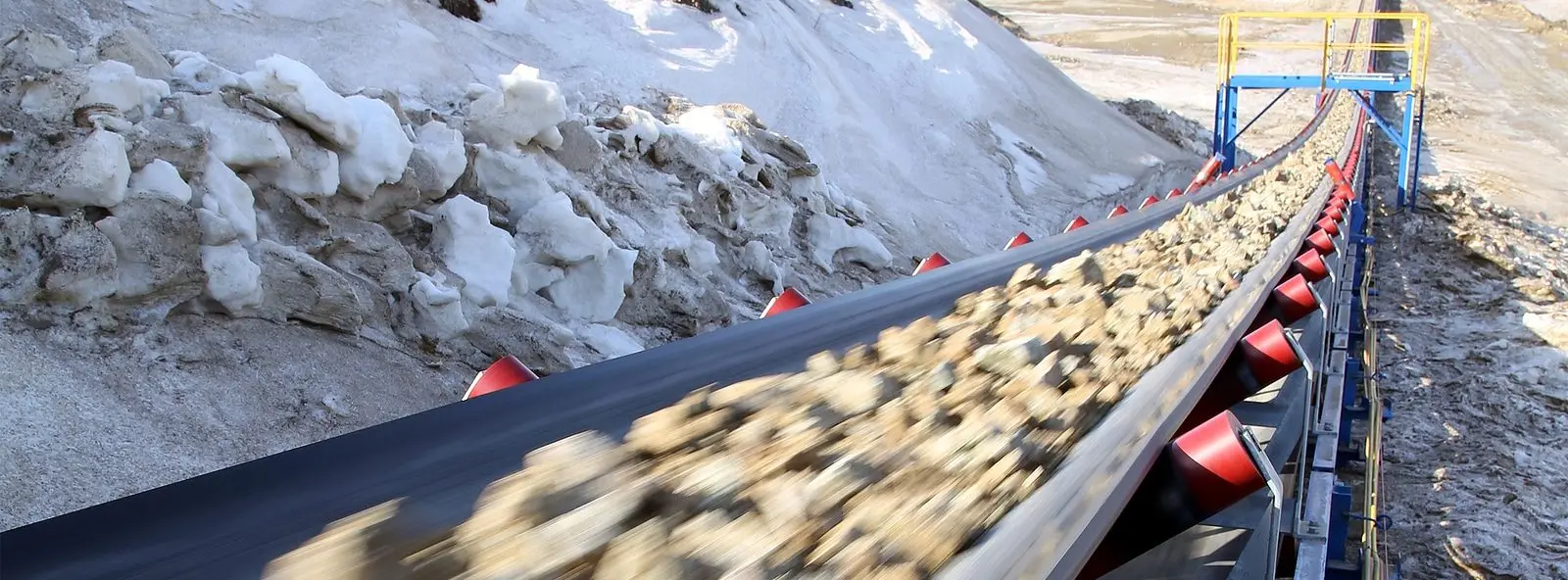

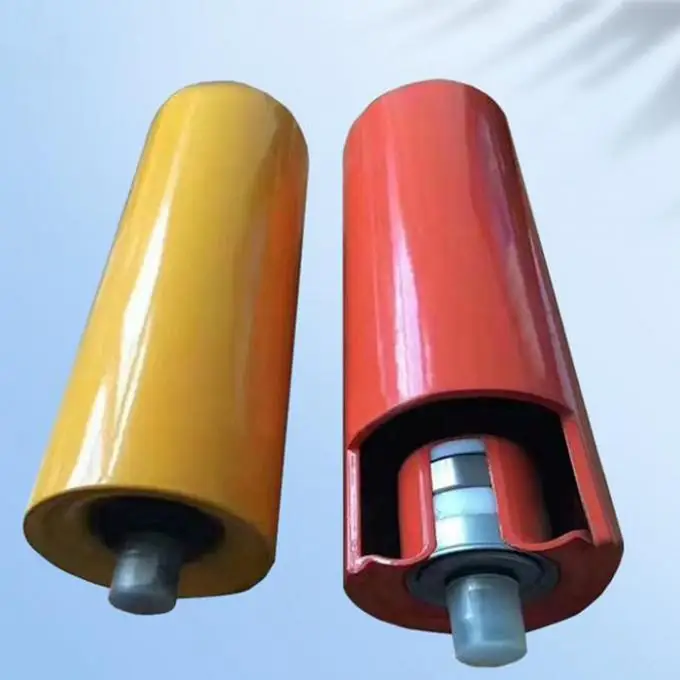

APPLICATION
FACTORY STRENGTH
Hefei Hengan has 10 years rich experience in conveying industry. Our quality is endorsed by International CE,ISO certificate institution.We have professional designing team, quality control team and service team to guarantee our good quality and after-sales service. Our products are popular in the Southeast Asia,Europe, USA, Australia, New Zealand, Mexico,the Middle East Africa and other regions in the world.
1. Reliable manufacturer offers factory direct service and price.
2. Relying on four production lines, we are able to provide a long-term stable supply.
3. Technical support is always here for you from our R&D team and mold centre.
4. Print your logo or website on your products or customize what you want.
5. Feel free to contact us to request free samples and place trial order with no MOQ.
6. Choose any shipping method you prefer, no matter by sea, air, land or express.
7. Variety of payment methods, we accept credit card, T/T, western union etc.
2. Relying on four production lines, we are able to provide a long-term stable supply.
3. Technical support is always here for you from our R&D team and mold centre.
4. Print your logo or website on your products or customize what you want.
5. Feel free to contact us to request free samples and place trial order with no MOQ.
6. Choose any shipping method you prefer, no matter by sea, air, land or express.
7. Variety of payment methods, we accept credit card, T/T, western union etc.

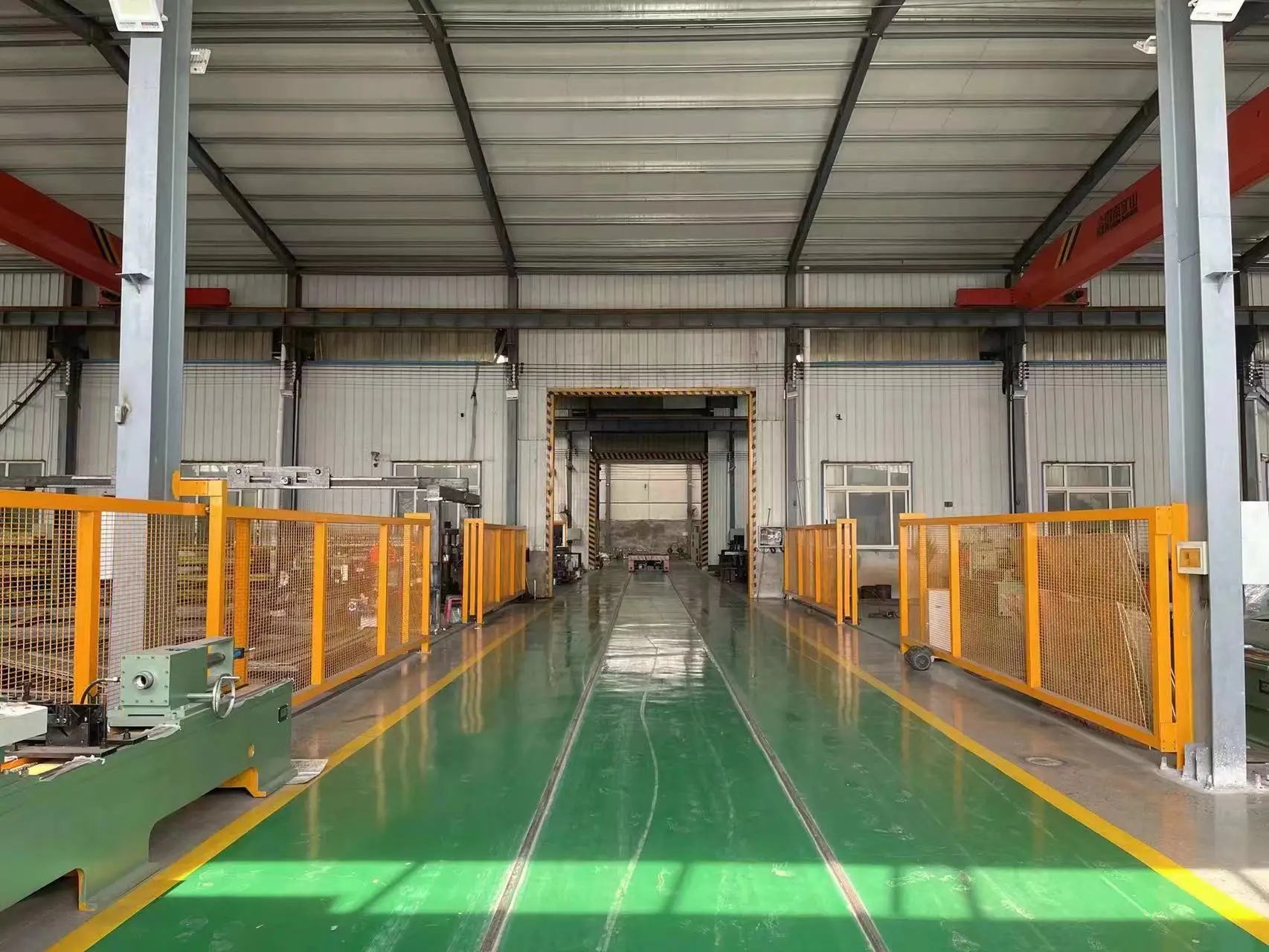

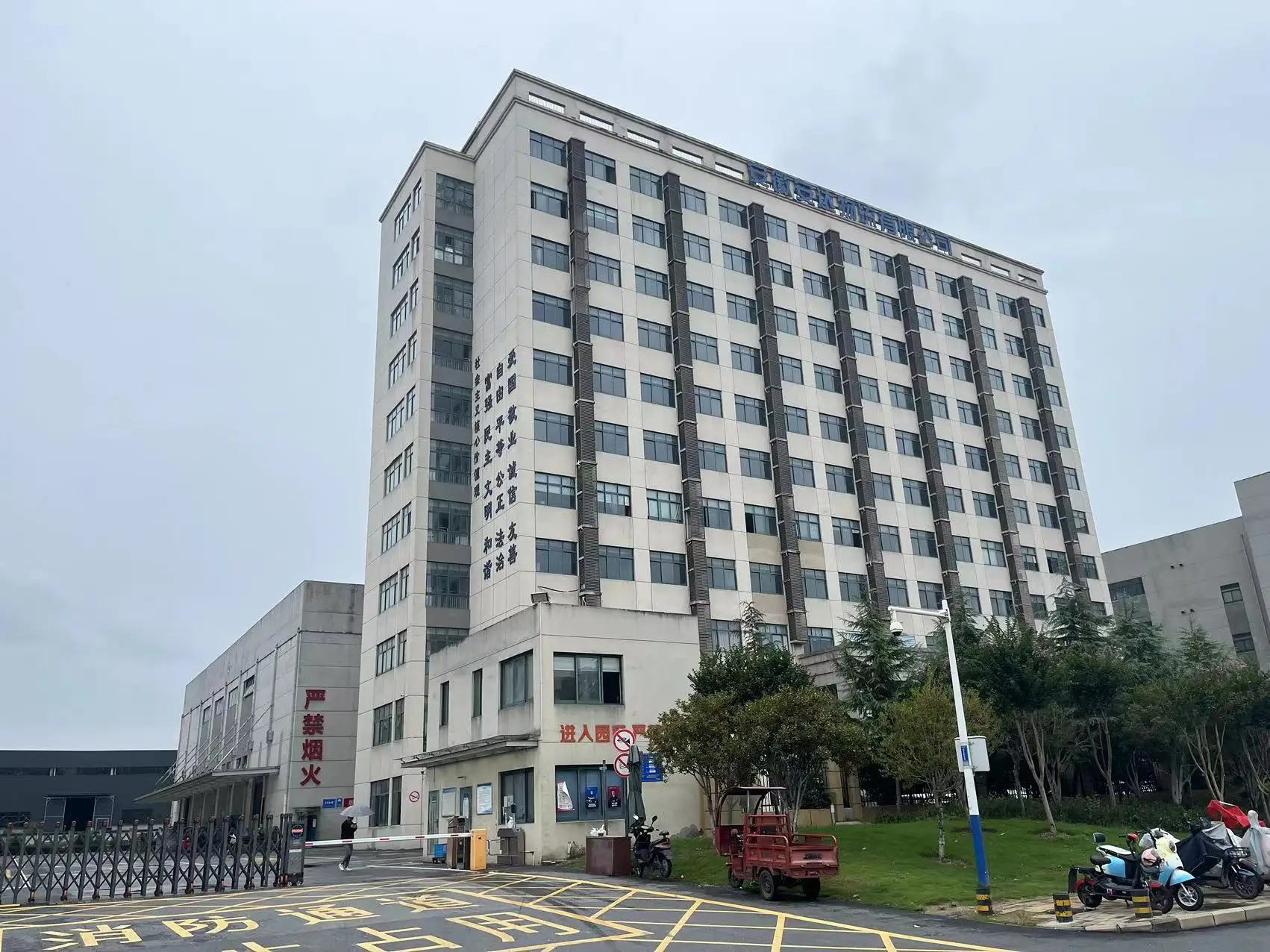

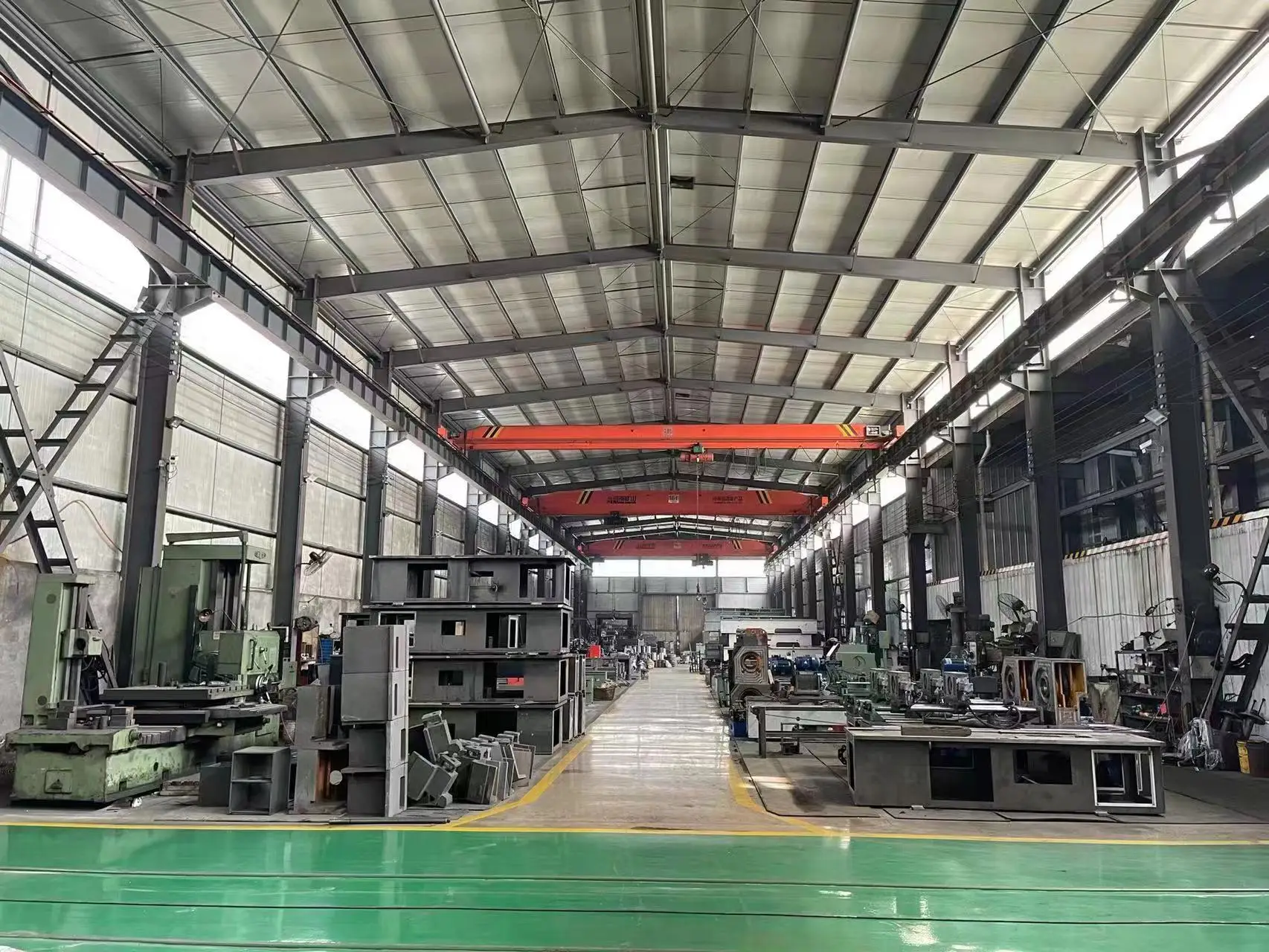

FACTORY SHOW

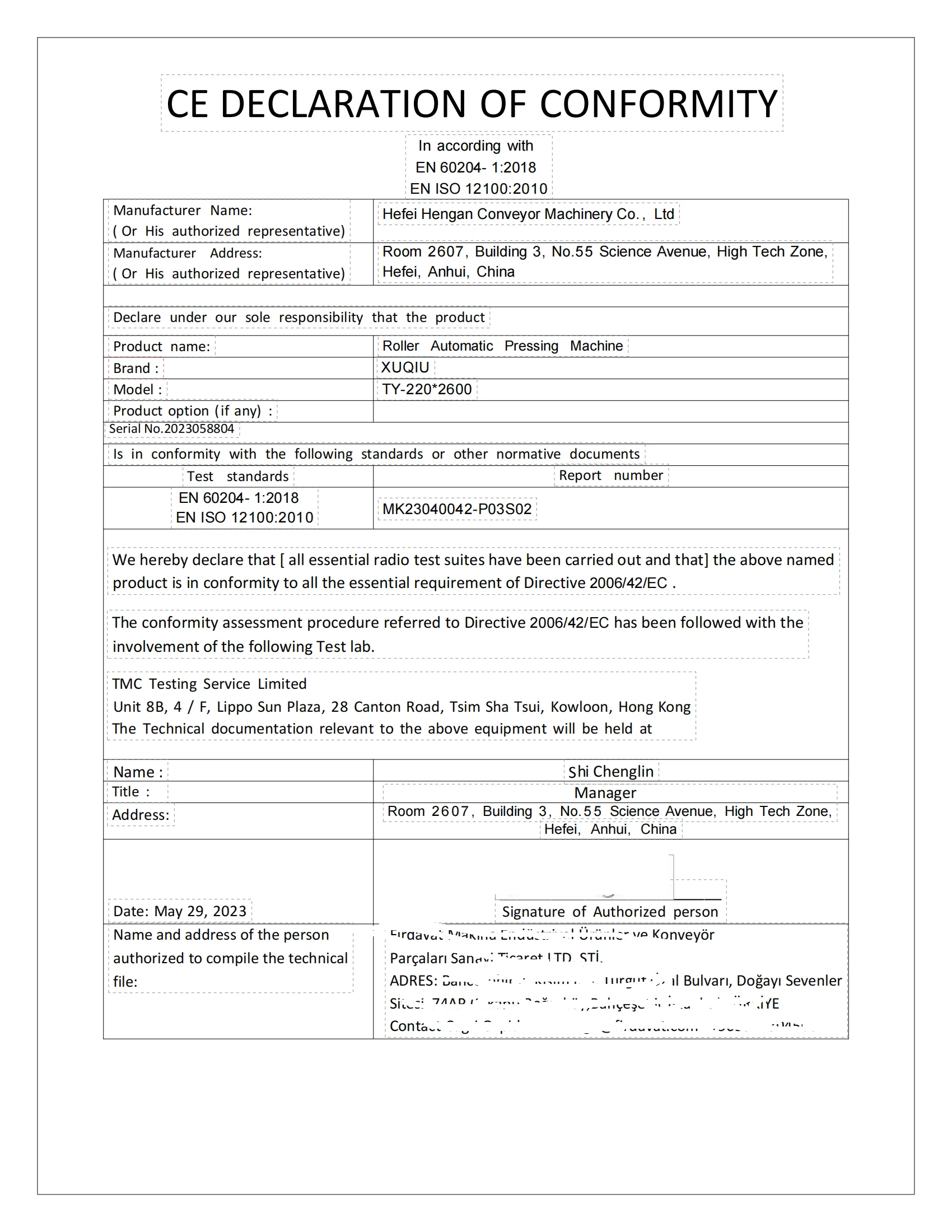

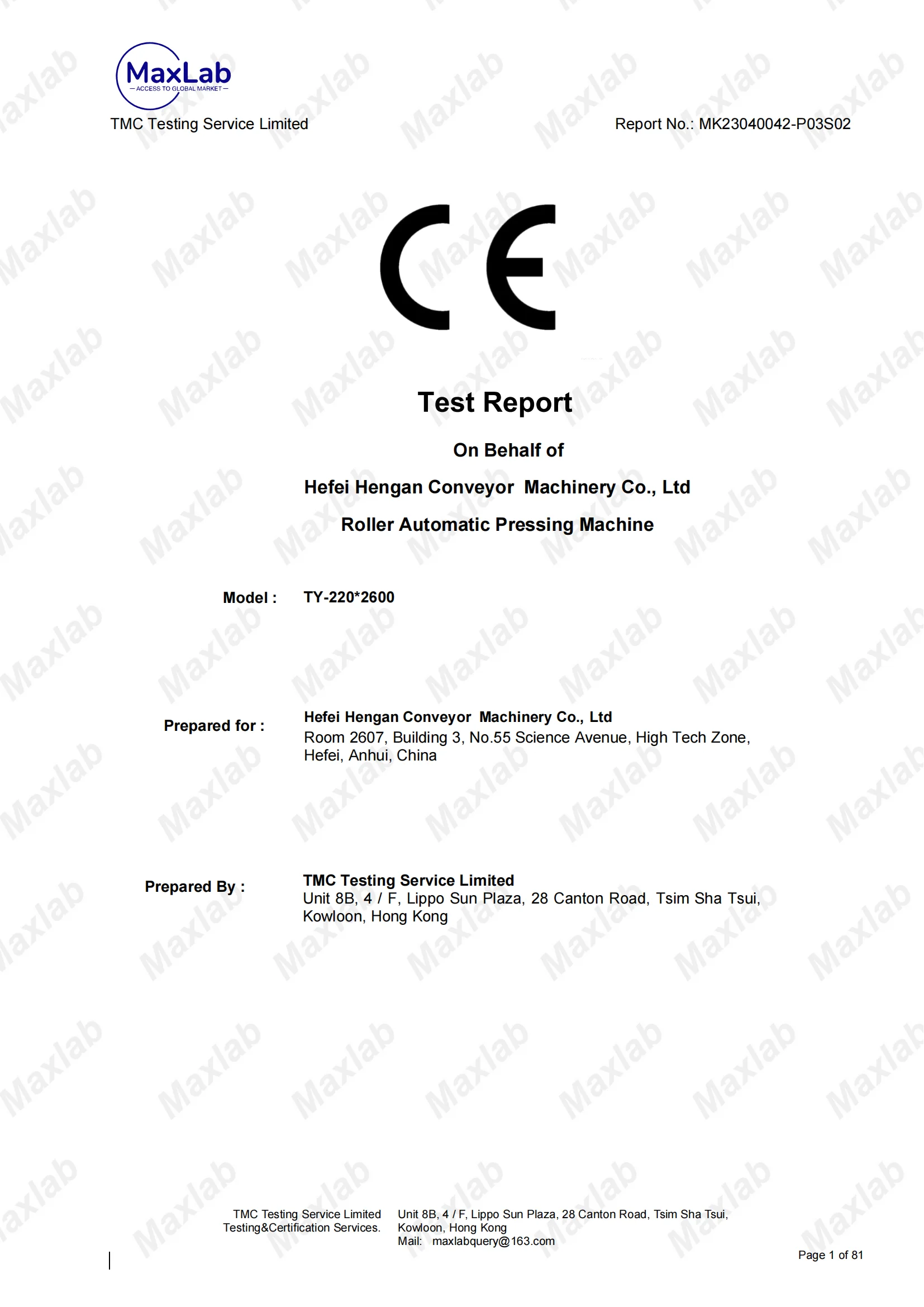

CERTIFICATES
Our all machine are tested by internatioanl famous testing institution. Our machine passed by CE, ISO, EN standard test and achieving certificates.we try to provide the best quality and professional service to our customers and help our customer make the high quality roller with lower cost.
Our team
Engineer team
Engineer team
Sales team
HAconveyor has 20 engineers with more than 10 years experience in mining conveyor, which is the most important guarantee for our product quality.HAconveyor also has 30 sales, who can provide our best service for our customer.
SALES AND SERVICE NETWORK
FAQ
Q1：How can I know conveyor roller bearing end cap type and size is that I need?
A1：Contact our sales, add whatsapp 008618095661050 or email haconveyor@gmail.com for roller detail and your requirement.
Q2 : Can you send samples for checking quality firstly?
A2 : Yes, we can send free samples to you.
Q3 : What trade terms do you support?
A3 : We accept FOB China port, CIF, EXW.
Q4 : What payment terms do you accept?
A4 : We accept transfer by T/T, L/C at sight.
Q5 : What about your delivery time?
A5 : 500 pcs is 3 nature days, more quantity needs discuss in detail.
