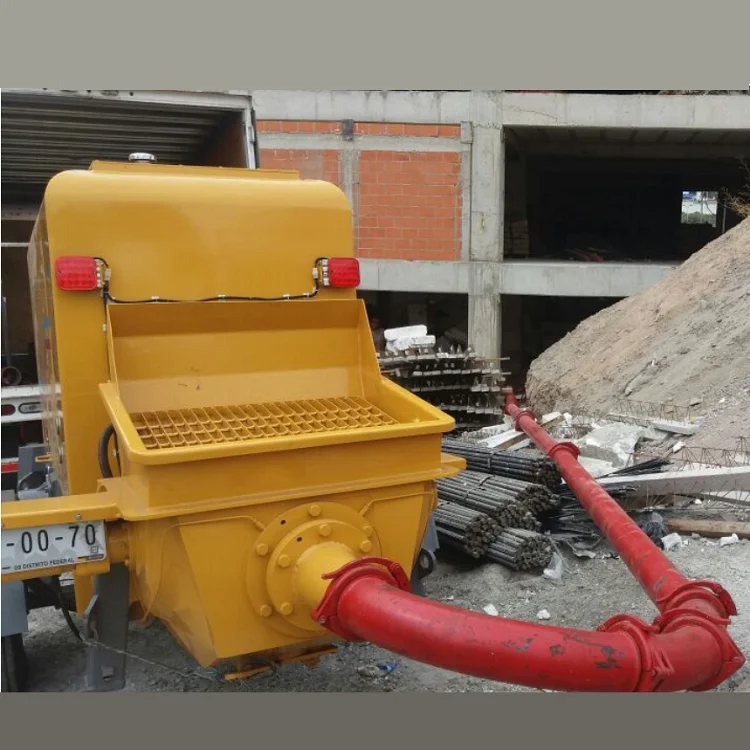

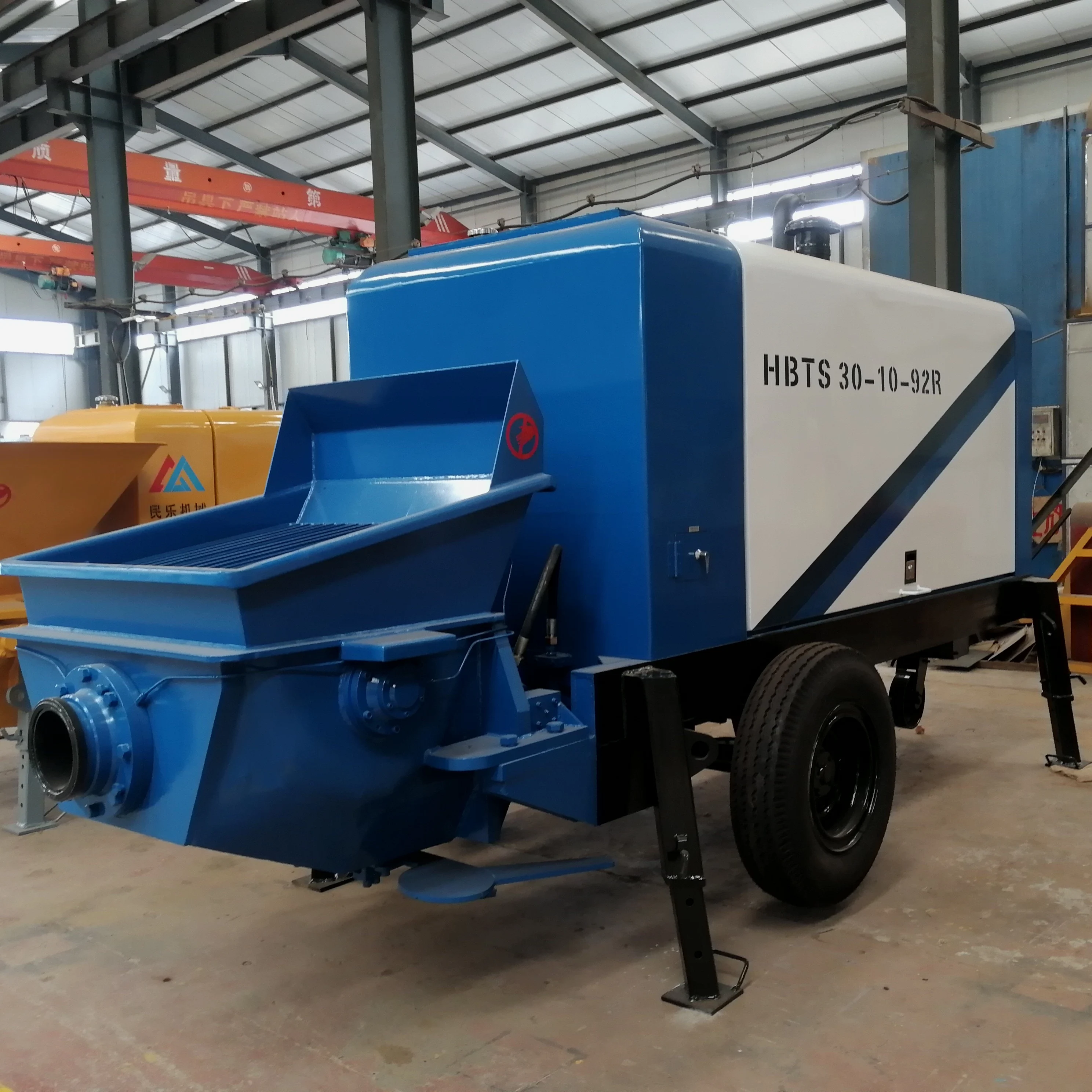

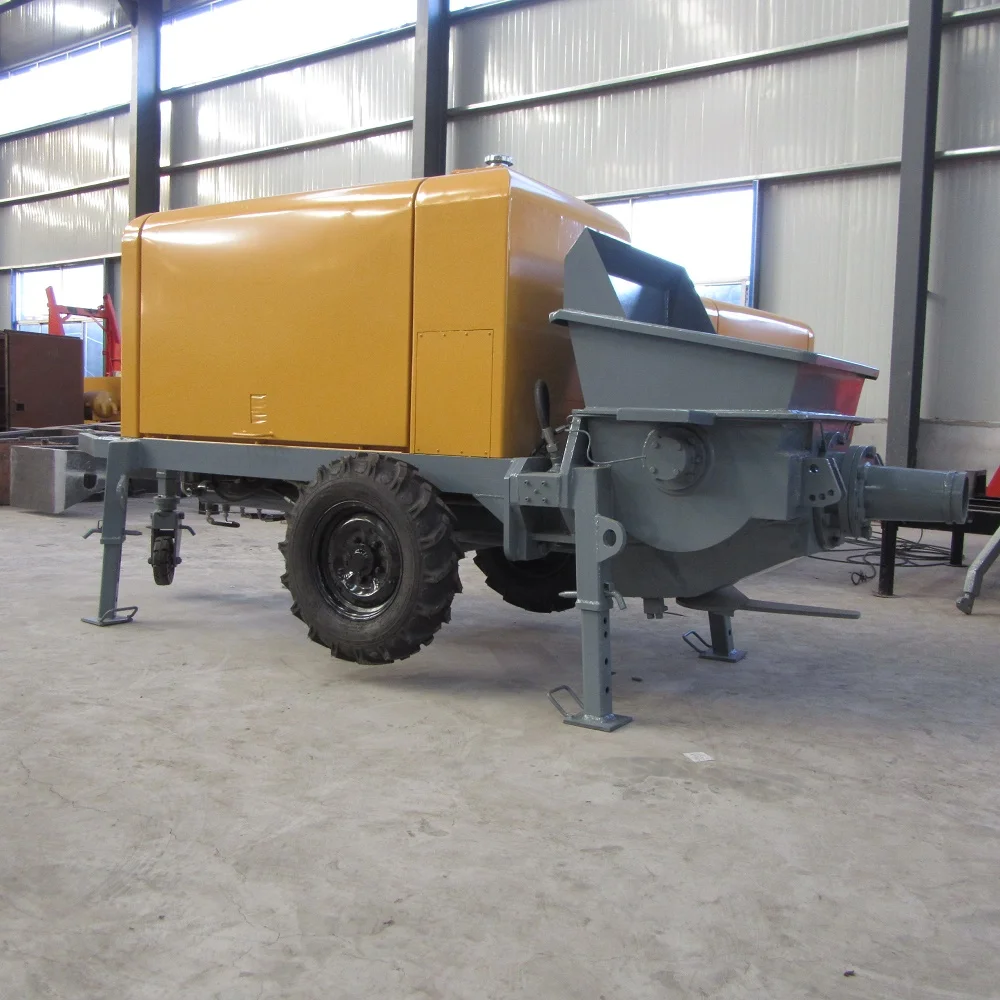

mobile small concrete pump for sale concrete pump Electric concrete line pump
- Category: >>>
- Supplier: Taian Minle Machine Manufacture Co. Ltd.Taian Ltd.
Share on (1601370424911):
Product Overview
Description
Main technical parameters
ltem | Unit | HBTS60-13-130R | HBTS80-16-145R | HBTS90-16-176R |
Max Theoretical Concrete Output iigh/low pressurel | m'/h | 75/46 | 84/50 | 90/54 |
Max Concrete pumping Pressure Highlow pressurel | MPa | 13/7 | 16/9 | 16/9 |
Concrete slump | mm | 120-230 | 120-230 | 120-230 |
Power | kw | 130 | 145 | 176 |
Rotational speed | r/min | 2300 | 2300 | 2300 |
Hopper volume | m3 | 0.8 | 0.8 | 0.8 |
Loading height | mm | 1400 | 1400 | 1400 |
Pipe cleaning method | washing | washing | washing | |
Overall dimension | mm | 6000*2100*2260 | 6000*2100*2260 | 6000*2100*2260 |
Machine weight | kg | 6200 | 6200 | 6700 |
Maximum transmission distance is vertical | m | 270 | 270 | 350 |
Maximum conveying distance level | m | 1200 | 1200 | 1600 |

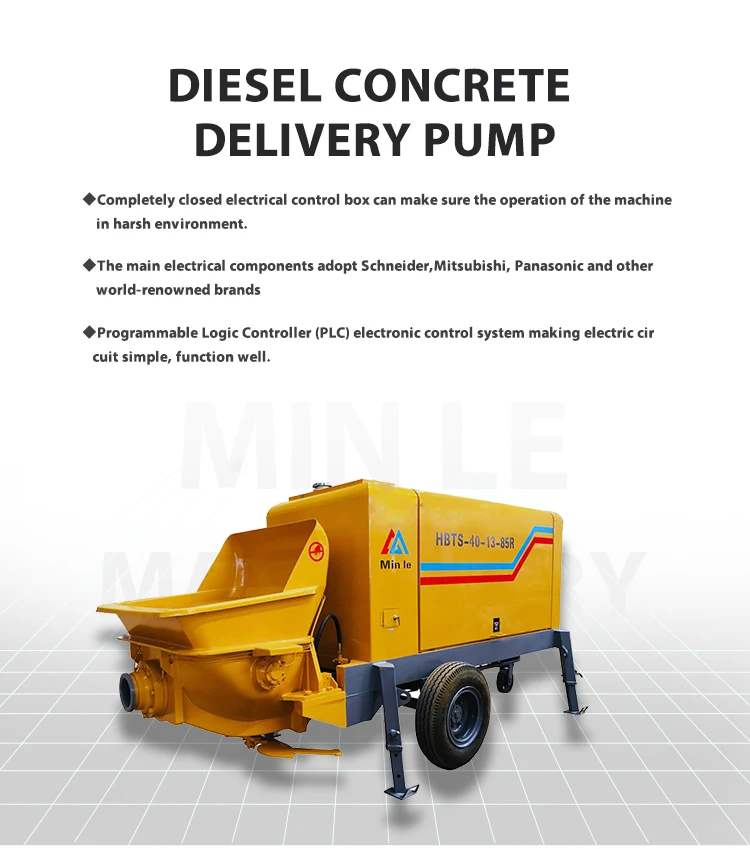

Diesel concrete series
Concrete pump can be divided into fine aggregate concrete pump series, diesel concrete series, concrete mixing and conveying pump series, Mining concrete series.

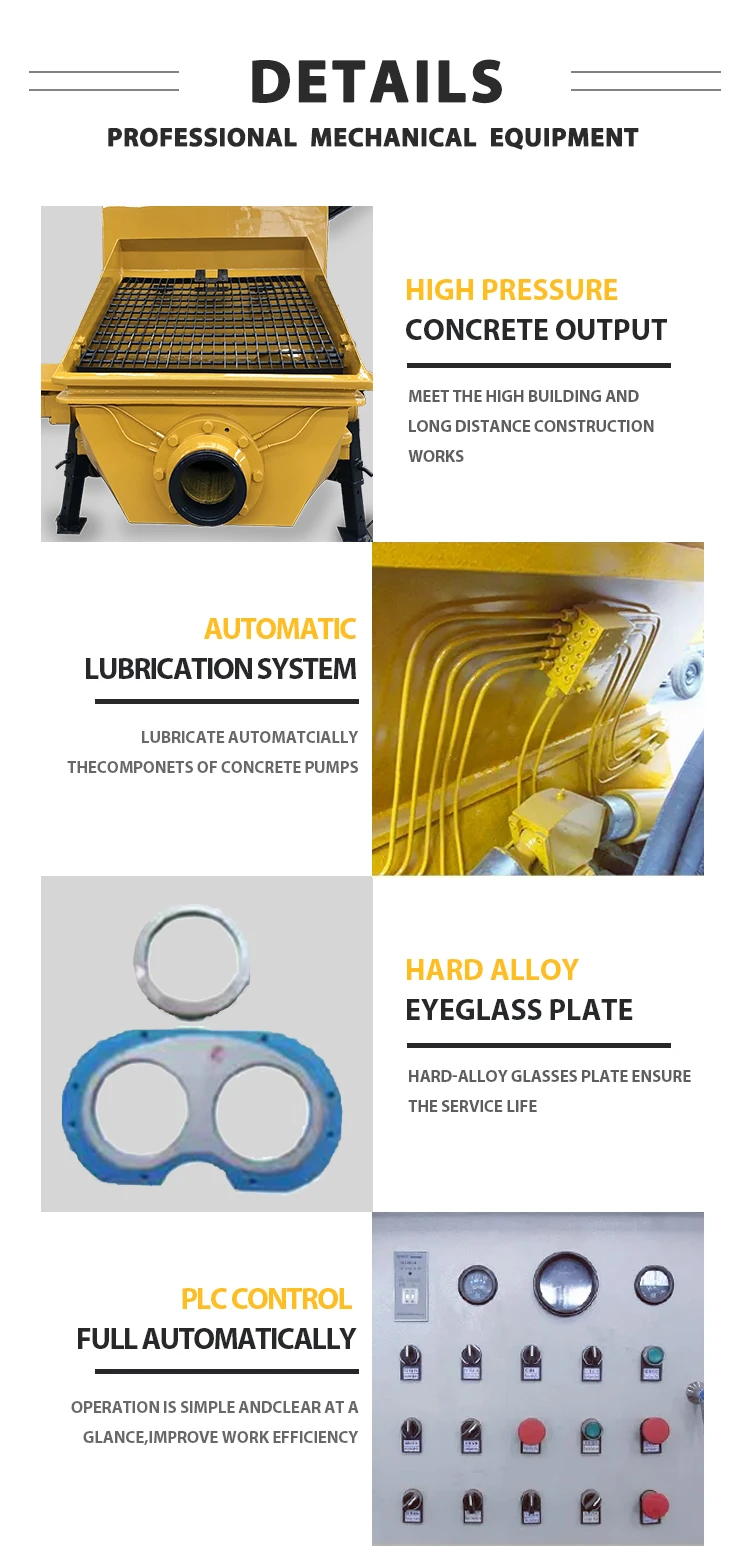

Technical characteristics：
Technical characteristics：
1. Fully closed electrical control box, protect the control device can work in harsh environment.
2. Using PLC programmable controller to simplify the circuit, reliability and life significantly improved, and with fault display function, easy to troubleshoot.
3. Wired remote control safe and convenient operation.
4. Openable side door is convenient to operate and maintain, and side door adopts special technology to effectively reduce working noise.
5 Adopt double pump double circuit open hydraulic system.
6. The hydraulic system is provided with safe overflow protection, overpressure automatic cut-off device, so that the main pump has multilevel reliable protection.
7. The suction filter device is adopted to avoid foreign matter entering the hydraulic circuit and prolong the service life of the system components.
8. Independent forced air cooling heat dissipation, ensure that the oil temperature is below 60℃.
2. Using PLC programmable controller to simplify the circuit, reliability and life significantly improved, and with fault display function, easy to troubleshoot.
3. Wired remote control safe and convenient operation.
4. Openable side door is convenient to operate and maintain, and side door adopts special technology to effectively reduce working noise.
5 Adopt double pump double circuit open hydraulic system.
6. The hydraulic system is provided with safe overflow protection, overpressure automatic cut-off device, so that the main pump has multilevel reliable protection.
7. The suction filter device is adopted to avoid foreign matter entering the hydraulic circuit and prolong the service life of the system components.
8. Independent forced air cooling heat dissipation, ensure that the oil temperature is below 60℃.
1.What's the warranty time?
From the date of shipment, 1 year or 1500 working hours, whichever comes first.
2.What's your payment term?
We accept T/T(30% down payment and balance before shipping) and L/C mostly, But if you prefer other payment terms please contact us for furtherinformation.
3. How long is your delivery time?
Usually, it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
4.Can we paint our label on your product?
Of course! OEM and ODM are acceptable, please send us your logo or brand we'll paint for you..
