Gold Cyanide Leaching Tank for Gold Mining Plant
$980.00-1,250.00
Leaching Tank Mineral Mixing Tank Ore Mixing Flocculent Barrel Blender Leaching Agitation Tank
- Category: >>>
- Supplier: Henan Hengtailong Machinery Co. Ltd.Henan Ltd.
Share on (1601370600215):
Product Overview
Description
Product Description

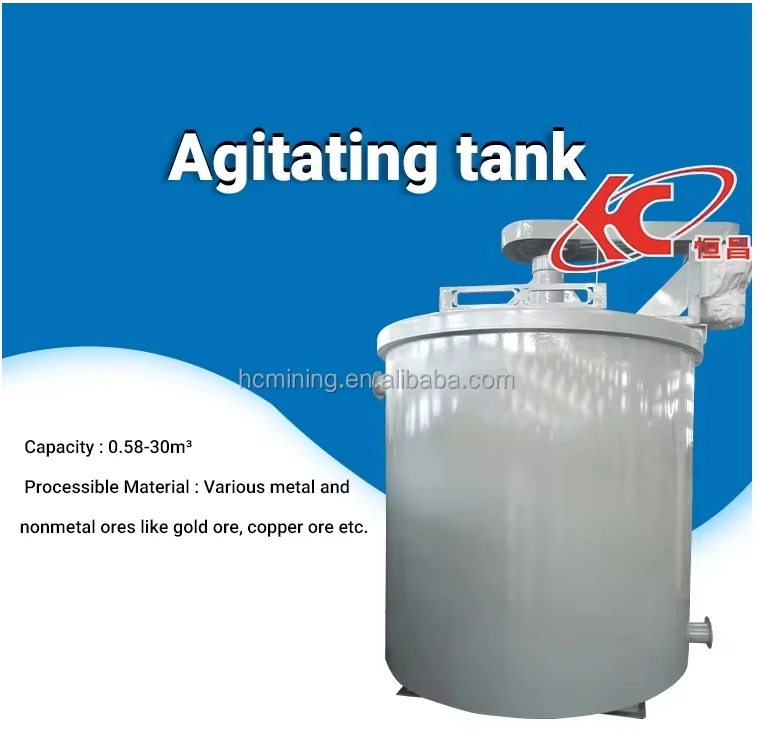

Cyanide Leaching Tank
Cyanide Leaching Tank — Product Description[Introduction]:Leaching agitaion tank is a leaching equipment for cyanide leaching by
referring the USA technical design.[Volume]:6-395m3[Improvement]:Leaching agitation tank for gold extraction with double impeller,
uniform mixing, low energy consumption; the impeller coated by rubber, long service life; multi points to give gas, uniform
inflation.
referring the USA technical design.[Volume]:6-395m3[Improvement]:Leaching agitation tank for gold extraction with double impeller,
uniform mixing, low energy consumption; the impeller coated by rubber, long service life; multi points to give gas, uniform
inflation.

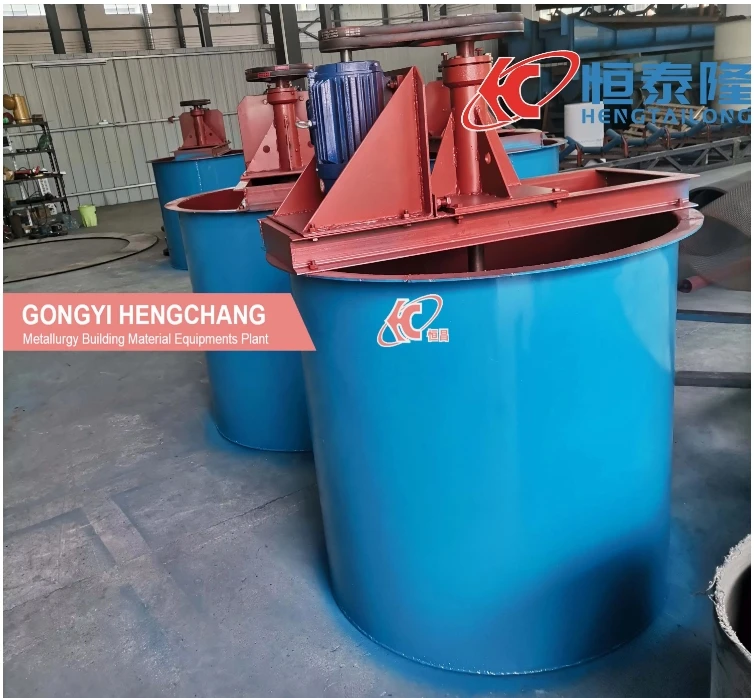

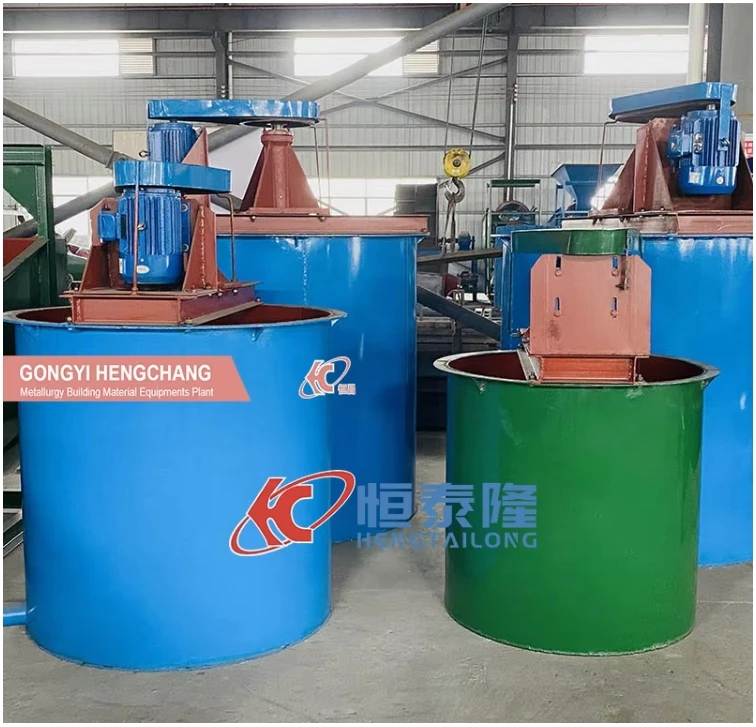

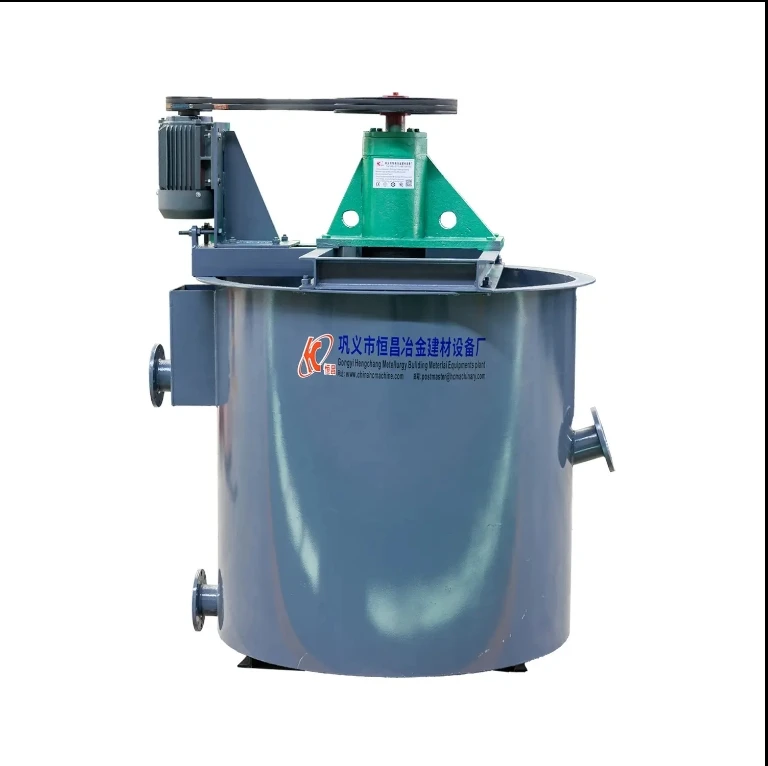

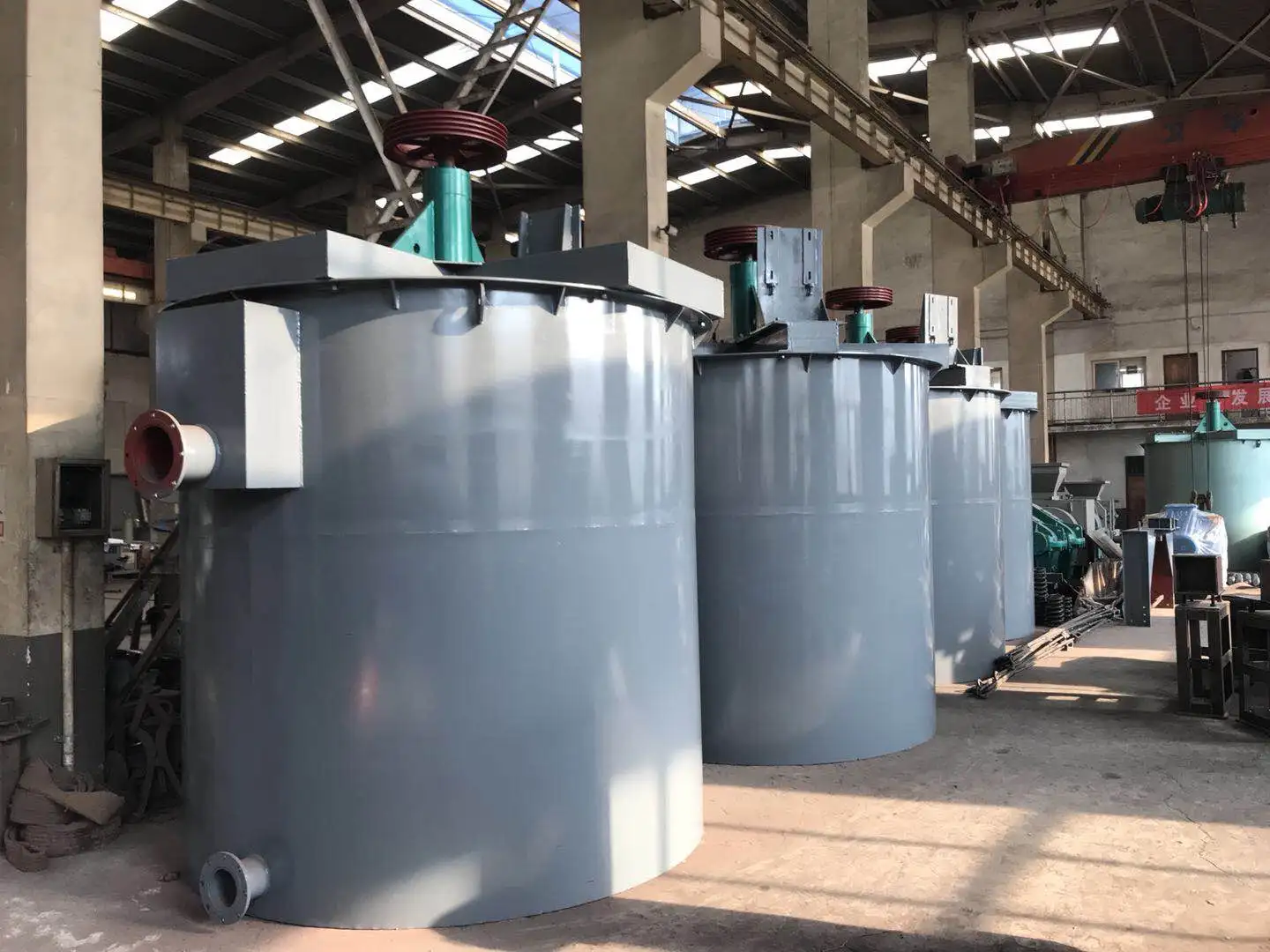

Products Pictures
Technical Parameters
Model | Tank Szie (mm) | Volume (m3) | Impeller Dia(mm) | Impeller Speed(r.min) | Power (KW) | Weight (kg) |
SJ-2025 | Φ2000x2500 | 6 | 900 | 52 | 2.2 | 2100 |
SJ-2531 | Φ2500x3150 | 13.14 | 935 | 52 | 2.2 | 3100 |
SJ-3030 | Φ3000x3000 | 18 | 1130 | 41 | 4 | 4150 |
SJ-3035 | Φ3000x3500 | 21 | 1130 | 43 | 4 | 4400 |
SJ-3535 | Φ3500x3500 | 30 | 1310 | 52 | 5.5 | 4900 |
SJ-3540 | Φ3500x4000 | 32.7 | 1310 | 52 | 5.5 | 5200 |
Product Advantage
Cyanide Leaching Tank — Advantage
Smooth movement of ore flow, even pulp mixture, less power consumption;
The air enters the tank through the transmission hollow shaft, and the air disperse evenly with the blade agitation;
Compact structure, easy to maintain;
Hollow shaft is ventilated to the bottom end, and the air enters into the tank with uniform distribution and small bubbles;
Adopt two new impellers, the agitation tank is featured with large impeller diameter, low rotation speed, small power consumption,
which can reduce the wear of carbon;
Moderate agitation intensity, and uniformly distribution in pulp concentration and fineness, which can improve the leaching rate
of cyanidation and the adsorption rate of carbon.
The impeller of this leaching tank is lined with wear-resistant rubber, low rotation speed and long service life.
The air enters the tank through the transmission hollow shaft, and the air disperse evenly with the blade agitation;
Compact structure, easy to maintain;
Hollow shaft is ventilated to the bottom end, and the air enters into the tank with uniform distribution and small bubbles;
Adopt two new impellers, the agitation tank is featured with large impeller diameter, low rotation speed, small power consumption,
which can reduce the wear of carbon;
Moderate agitation intensity, and uniformly distribution in pulp concentration and fineness, which can improve the leaching rate
of cyanidation and the adsorption rate of carbon.
The impeller of this leaching tank is lined with wear-resistant rubber, low rotation speed and long service life.
Product Application
Cyanide Leaching Tank — Application

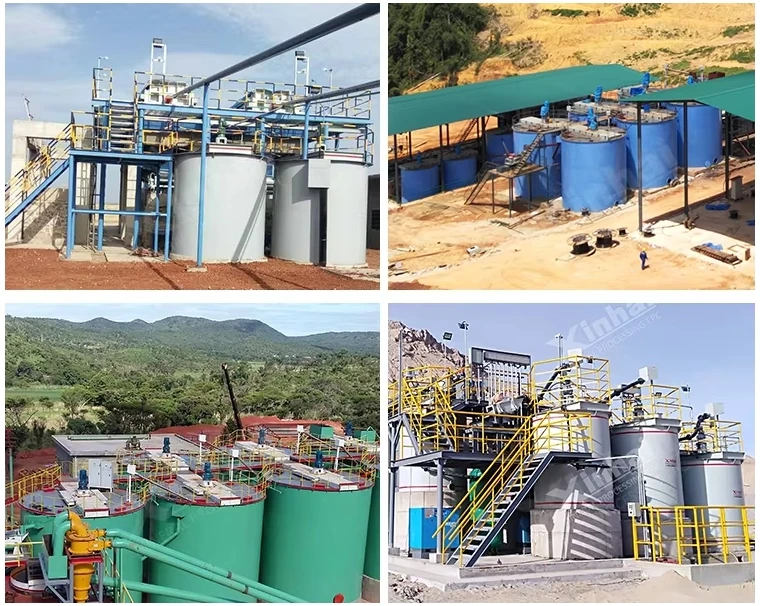

Dual impeller Gold Leaching Tanks is applicable to carbon process and rubber chemical process.
Dual impeller Gold Leaching Tanks is applicable to carbon process and rubber chemical process.
Working Principle

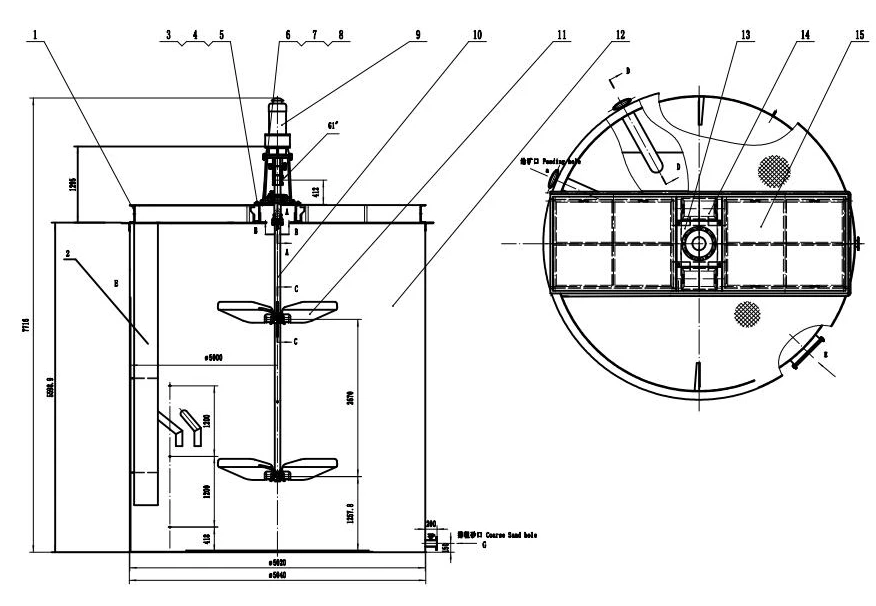

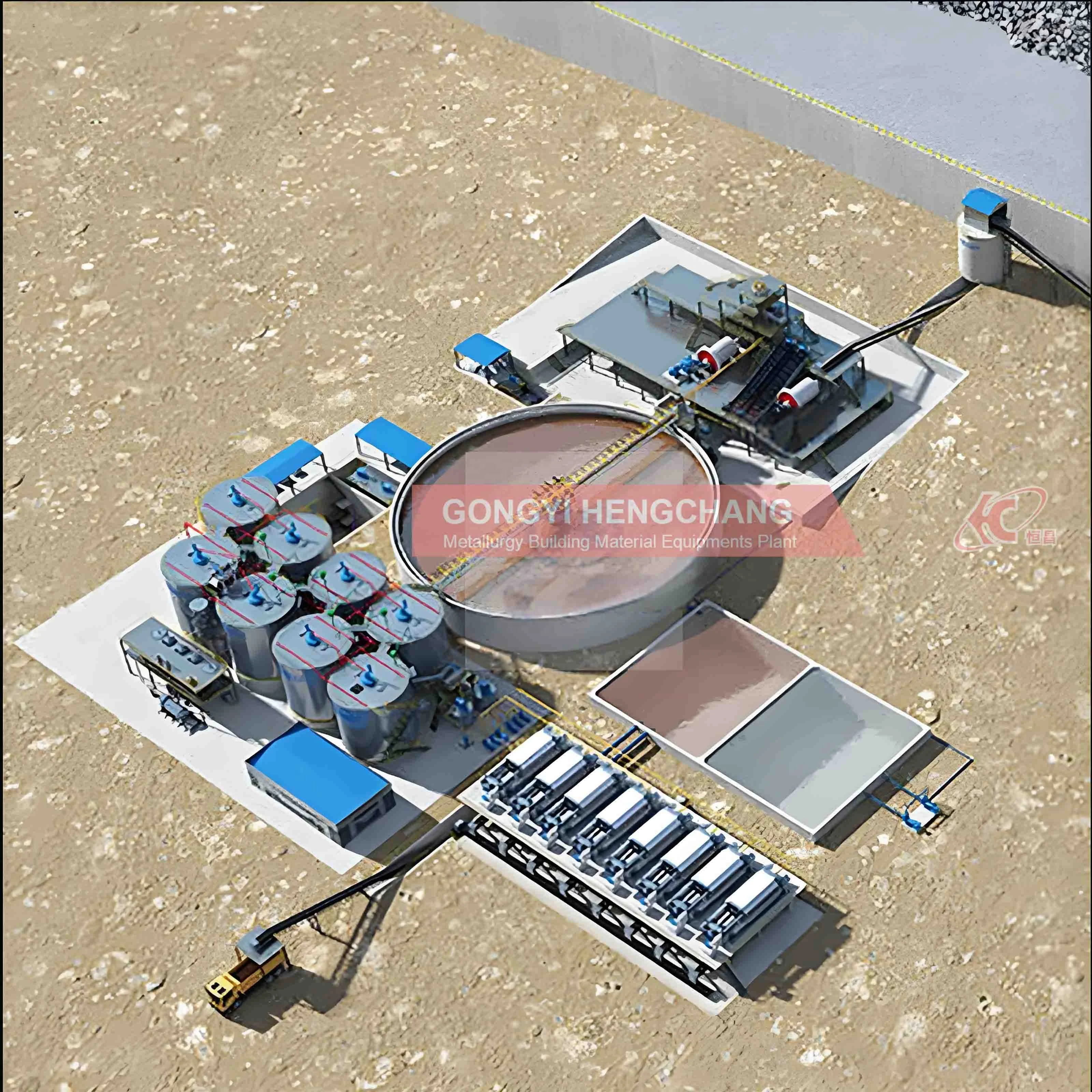

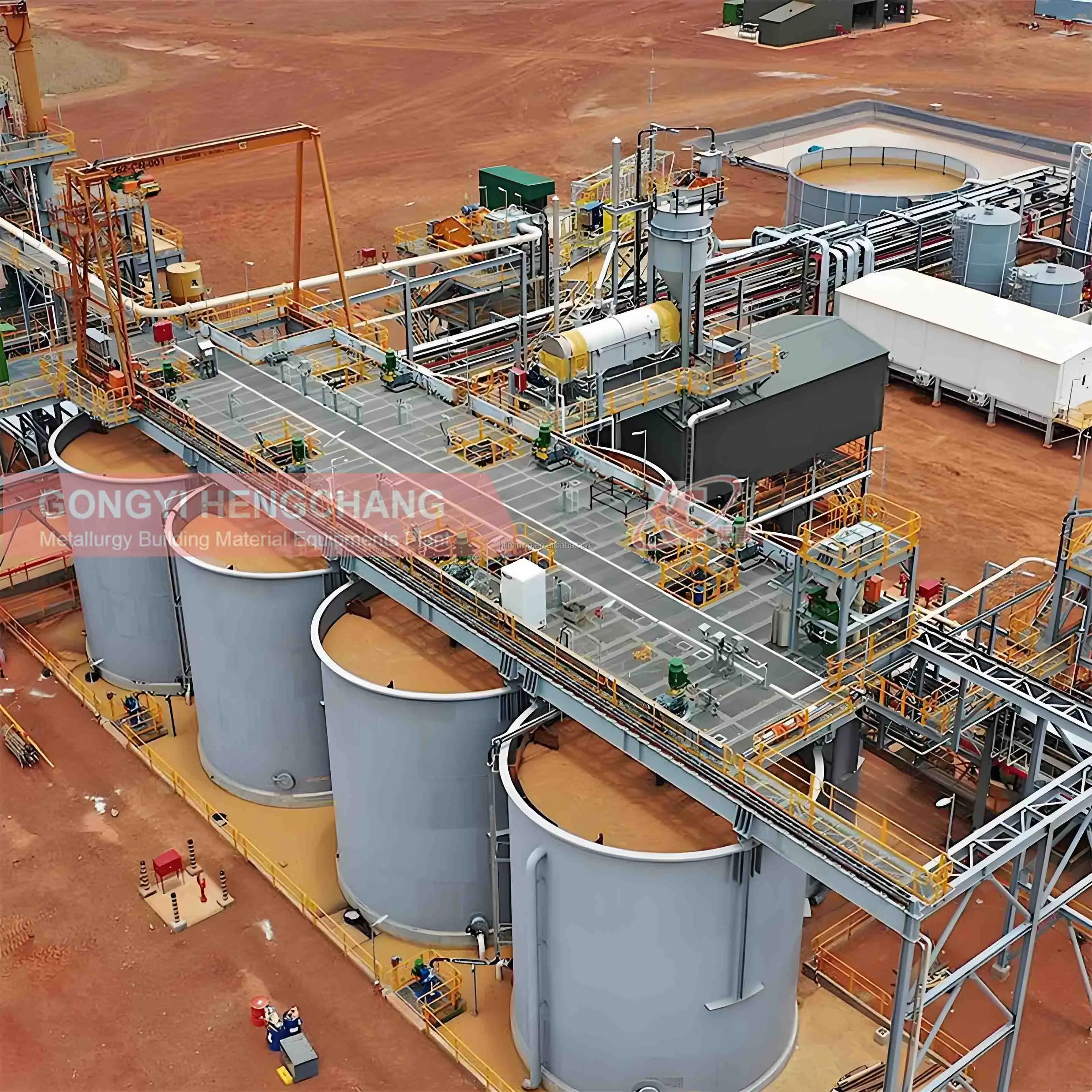

Gold Leaching Tanks bank is equipped with other auxiliary devices like carbon screen and carbon pump, etc. Made of steel and covered with rubber, upper impellers and lower impellers are connected with blot which improves balance capacity and service life. Main shaft is divided into two layer and linked by flange and reduces the slinging height. Multiple and disperse air holes can ensure the performance of mixing air and liquid.
Company Profile

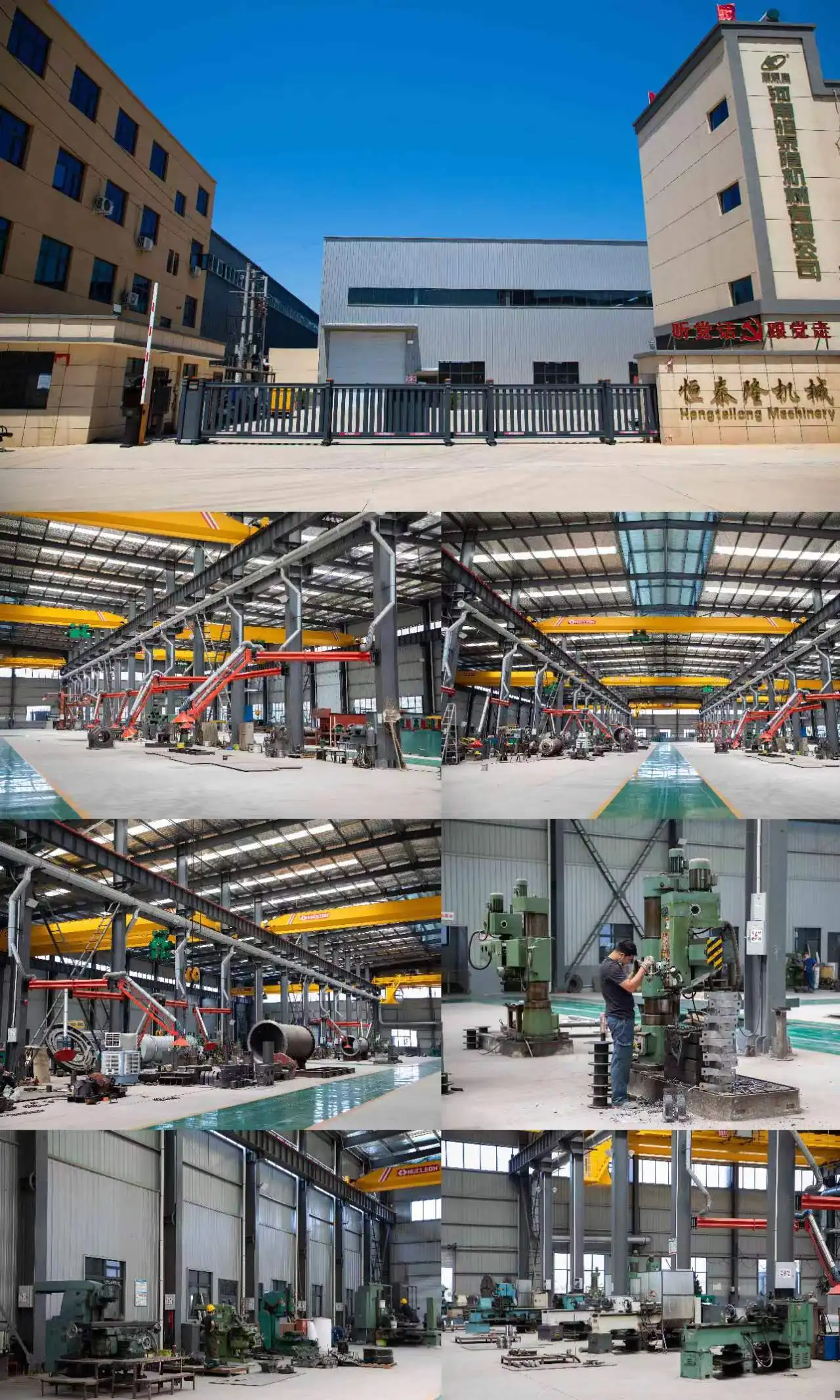

Henan Hengtailong Macinery Co.,Ltd is located in Zhengzhou, Henan Province, China, specializing
in the research and development, manufacturing, and sales services of mining equipment. We can provide a complete set of equipment including crushing, screening, mineral separation, etc.
The product has been exported to markets in Southeast Asia, the Middle East, Africa, and the Americas.
Agents have also been developed in Egypt, Pakistan, Vietnam, and other countries. We provide high-quality products, the best solutions, professional technical support, and excellent after-sales service.
in the research and development, manufacturing, and sales services of mining equipment. We can provide a complete set of equipment including crushing, screening, mineral separation, etc.
The product has been exported to markets in Southeast Asia, the Middle East, Africa, and the Americas.
Agents have also been developed in Egypt, Pakistan, Vietnam, and other countries. We provide high-quality products, the best solutions, professional technical support, and excellent after-sales service.
FAQ
Q: If I don't know how to operate this machine? How can I do? A: Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work. Q: What can I get the price? A: We usually quote within
2 hours after we get your inquiry . If you are very urgent to get the price, please tell us in your email so that we will regard
you inquiry priority. Q :How can I get the sample to check your quality? A :After price confirmation, you can require for samples
to check our product’s quality. Q :What is your term of delivery? A :We accept EXW, FOB Qingdao. You can choose the one which is the most convenient or cost effective for you. Best quality vegetable spiral type oil press/ vegetable seeds edible oil presses.
Q: Can I be a distributor of Hengchang ?
2 hours after we get your inquiry . If you are very urgent to get the price, please tell us in your email so that we will regard
you inquiry priority. Q :How can I get the sample to check your quality? A :After price confirmation, you can require for samples
to check our product’s quality. Q :What is your term of delivery? A :We accept EXW, FOB Qingdao. You can choose the one which is the most convenient or cost effective for you. Best quality vegetable spiral type oil press/ vegetable seeds edible oil presses.
Q: Can I be a distributor of Hengchang ?
A: Of course you can.
