K type custom size Fiberglass Insulated K type Thermocouple Extension Wire

Product Overview

Description

Description:

 Thermocouple Extension wire Type KX-FG/SIL-2*7/0.2


1, SUBJECT

This specification covers the requirements for fiber glass insulated, silicone rubber
sheathed thermocouple extension cable, 2×7/0.2mm, stranded wire, standard
tolerance and color code.

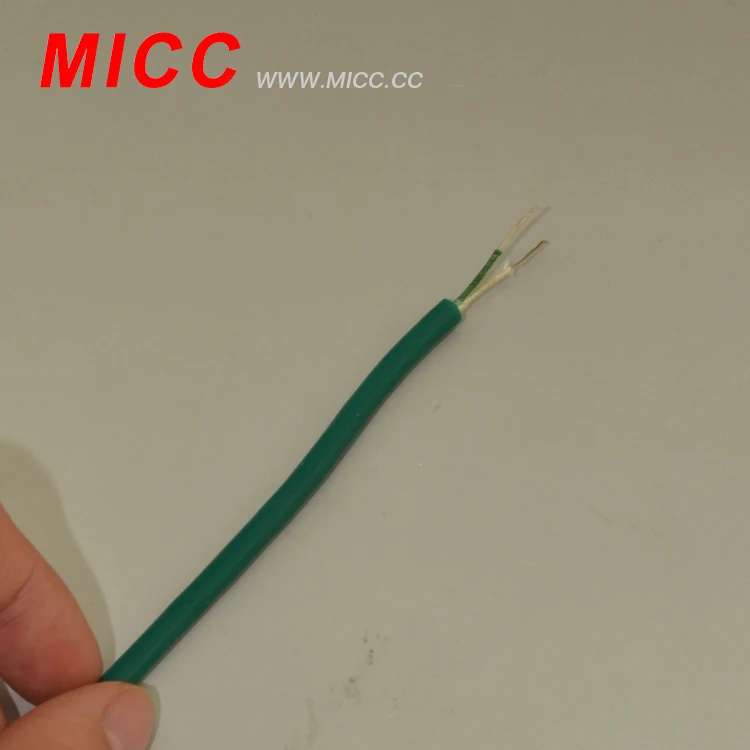

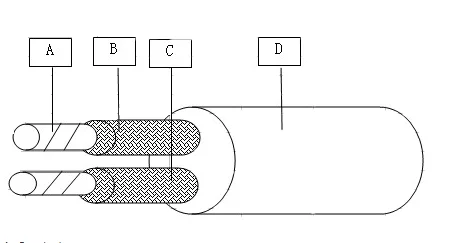

2, TECHNICAL FEATURES

A. Conductors:
Stranded thermocouple extension wire


Conductors Size(AWG)	NO.of Strands &Gauge
24	7/0.2mm


B. Insulation:
Braided fiberglass(400ºC)


Nominal Insulation Thickness

0.19mm±0.2

Color code


Positive	Color	Negative	Color
Chromel	Green	Alumel	White

C. Assembly:
Two conductors (positive and negative) parallel construction.

D. Overall Jacket
Silicone rubber(200ºC)


Nominal Sheath Thickness	0.62mm±0.2
Color code	Green


3, DIMENSIONS AND TOLERANCES


Dimensions/tolerances(mm)

Ø4±0.25


4, CALIBRATION TOLERANCE


Temperature range	Standard tolerance	Special tolerance
0º to 400ºC	±2.2℃ or 0.75%	±1.1℃ or 0.4%

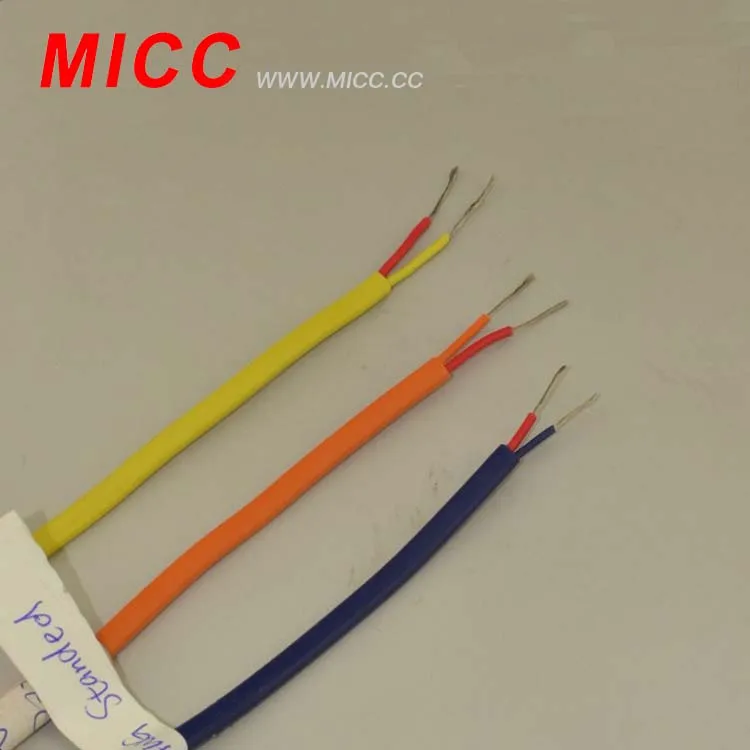

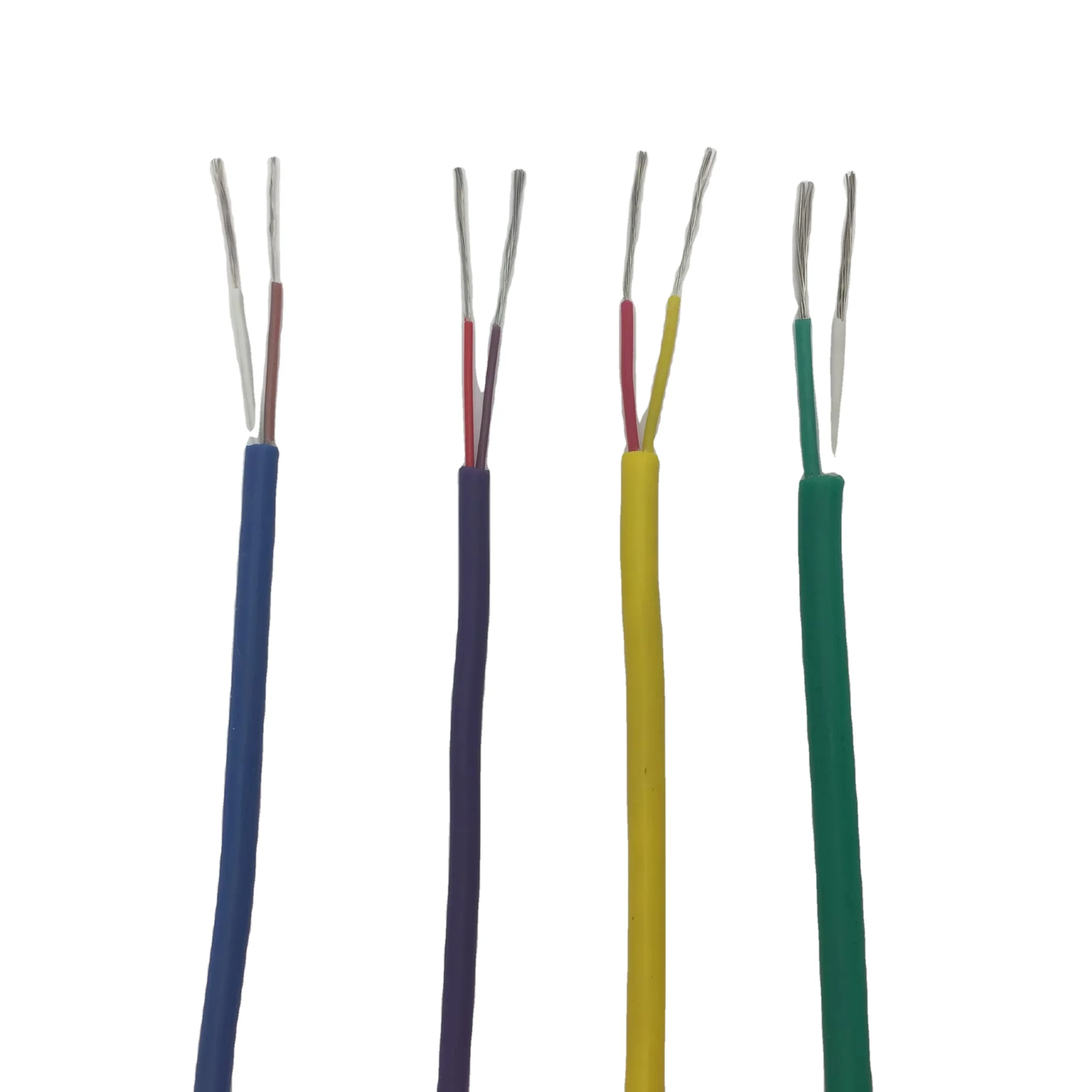

Thermocouple extension wire type available: KX, JX, TX, EX, NX, RX,SX and other
compensating cable like KCA, KCB and so on.
Besides those wires, we can also produce according to your demand.



Color code table
JIS, DIN and others are also available.
