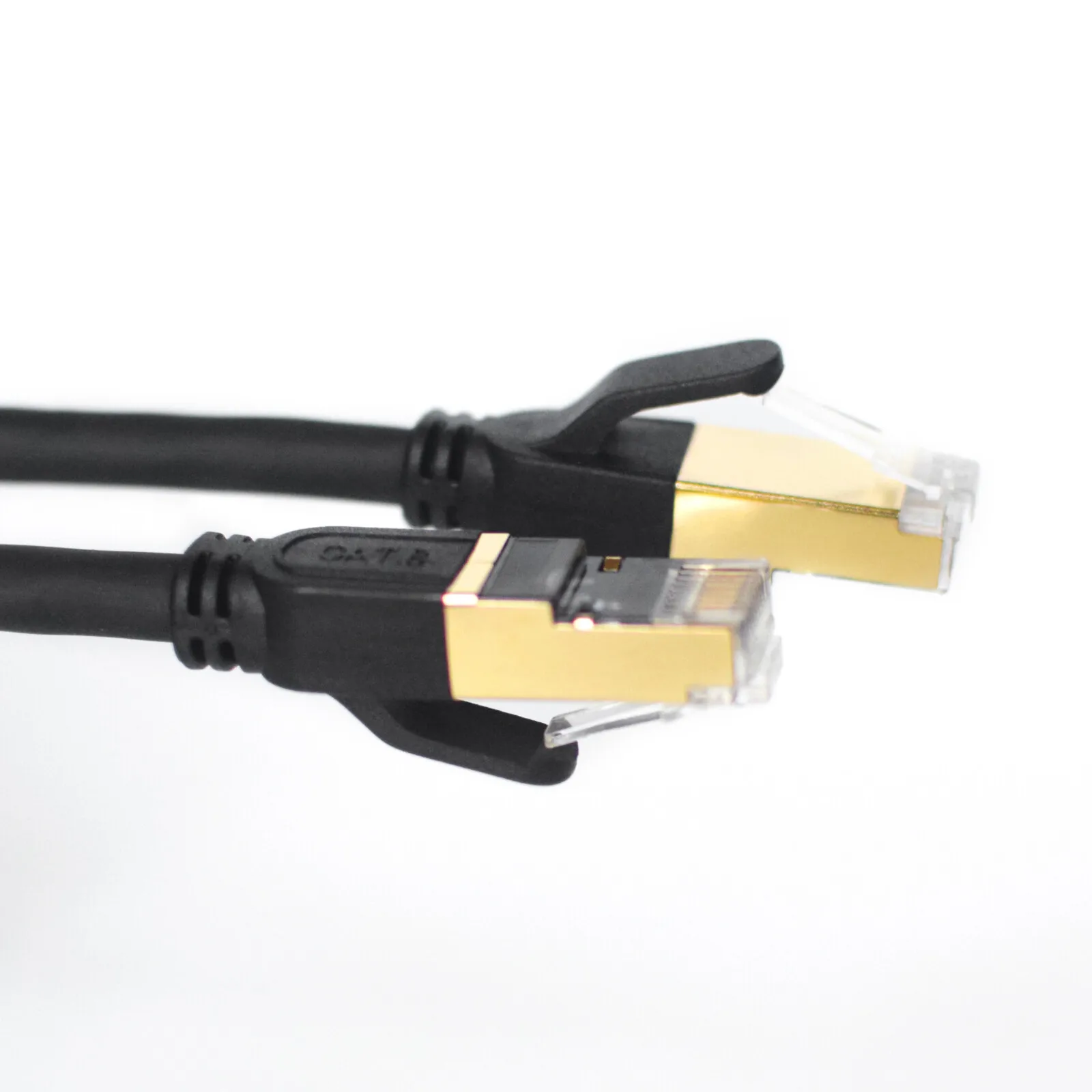

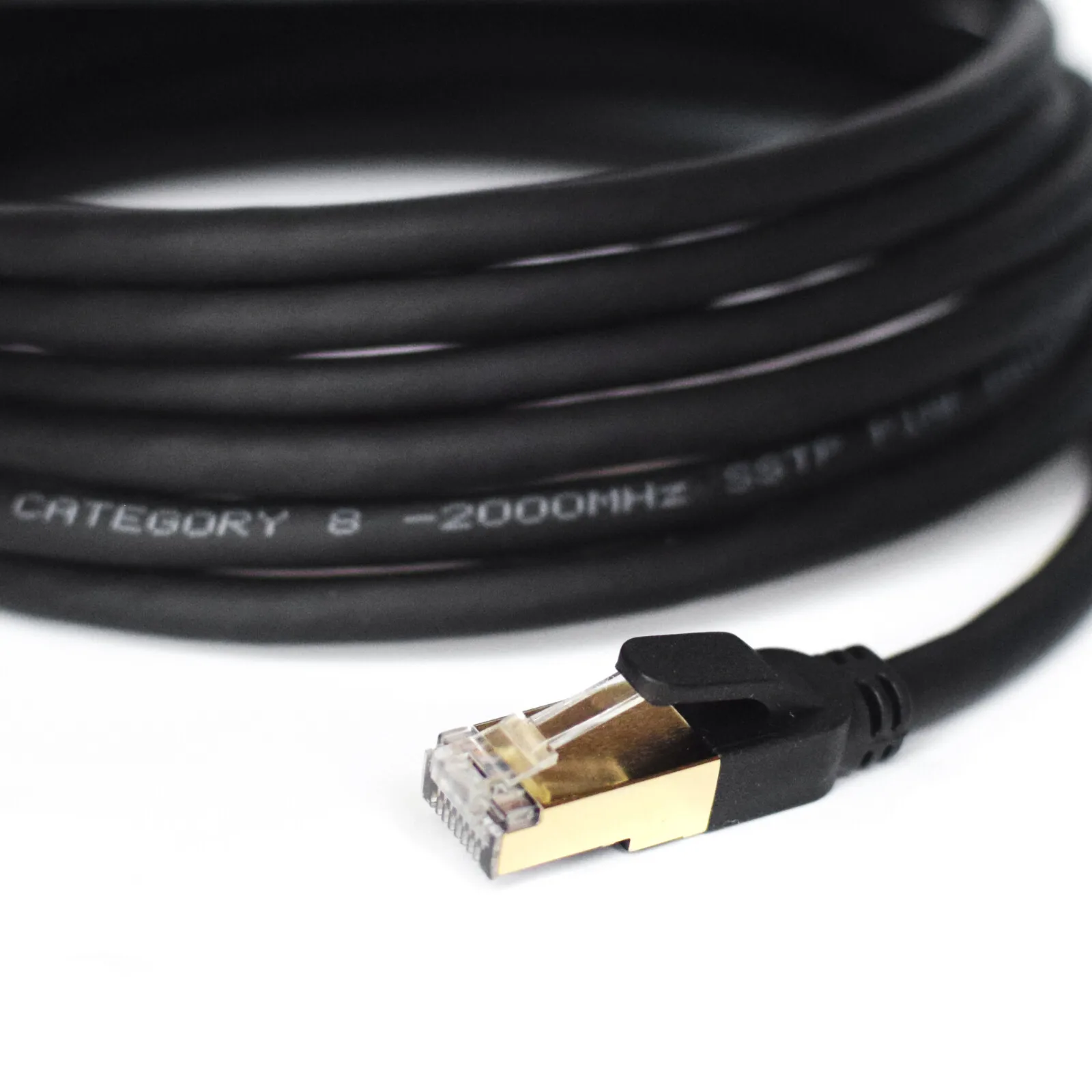

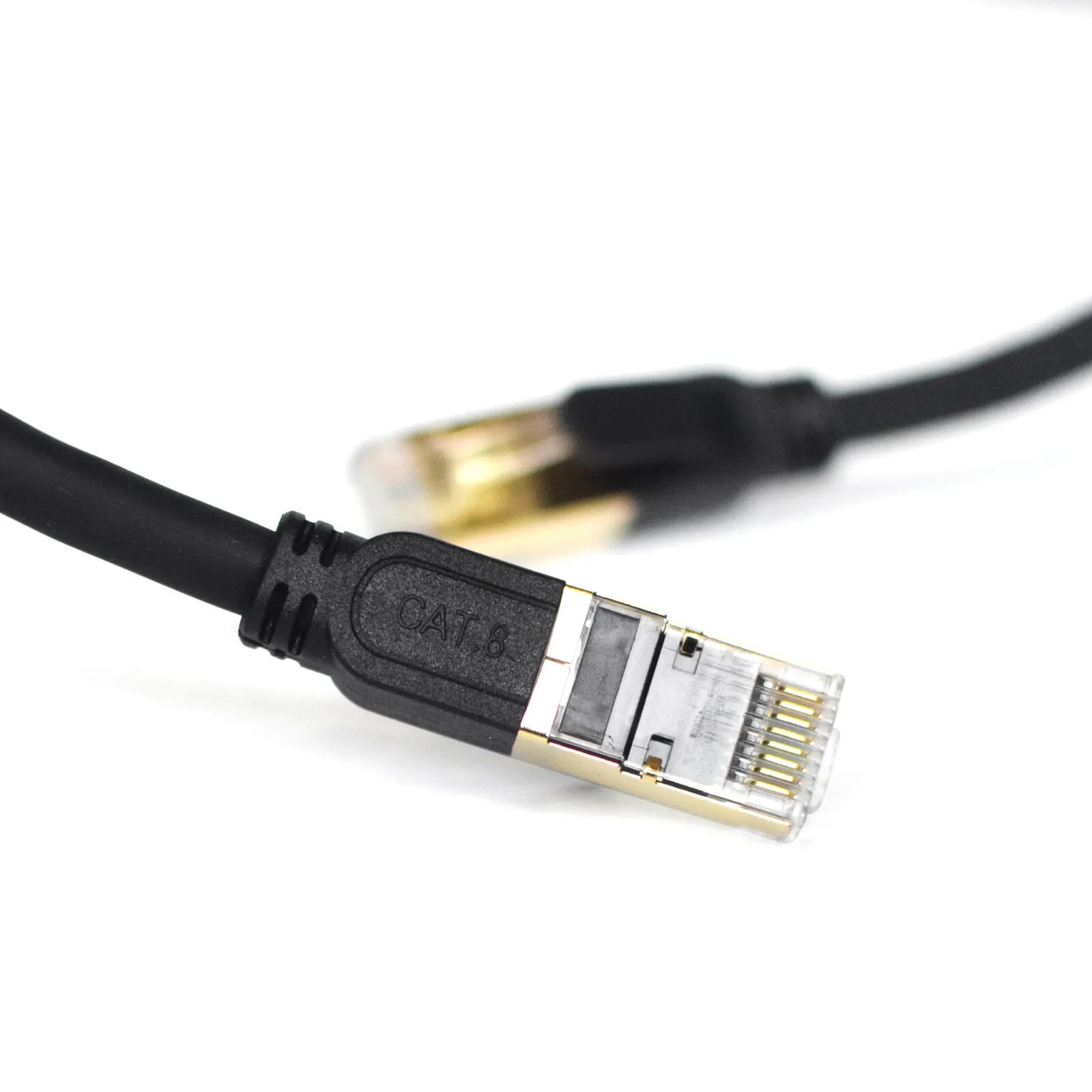

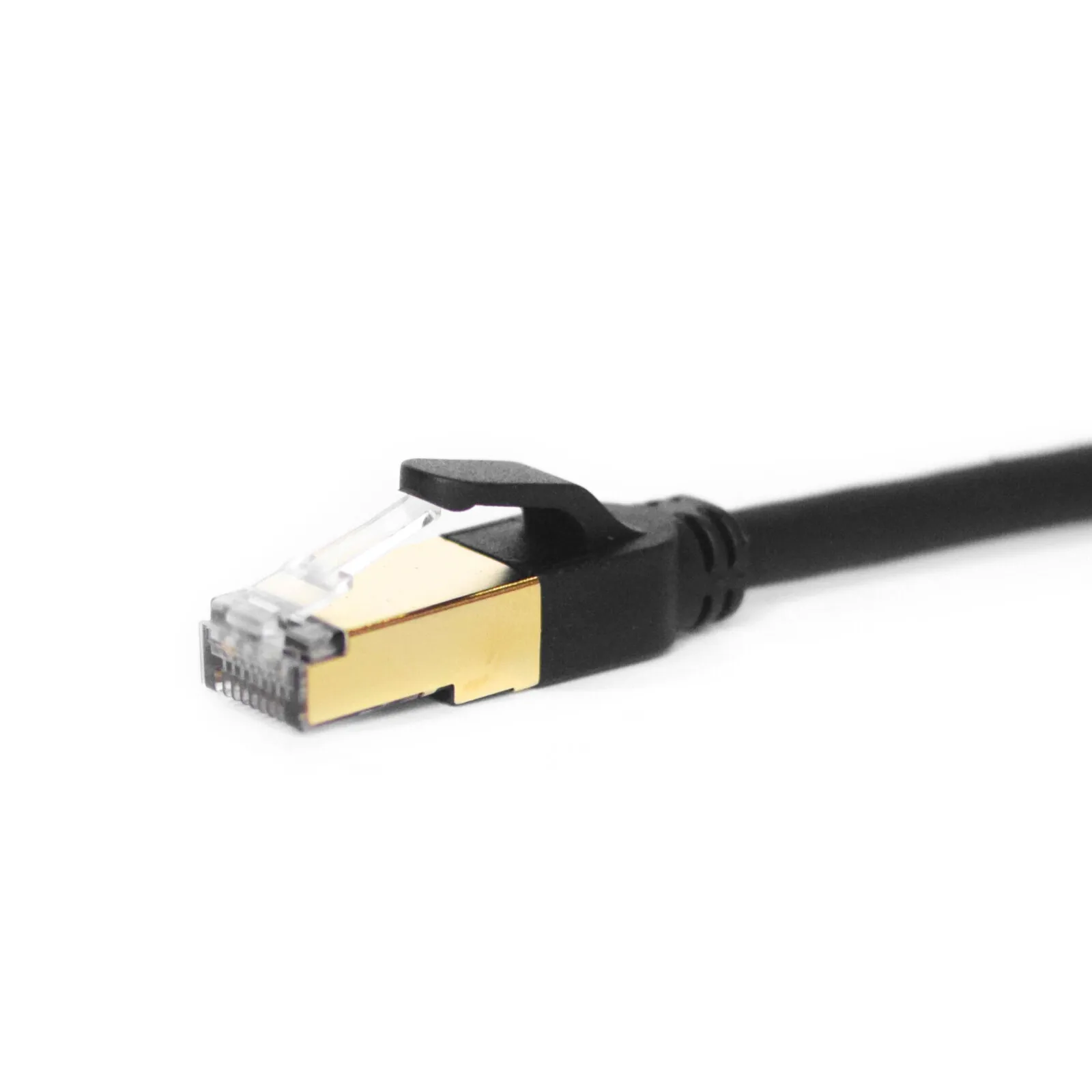

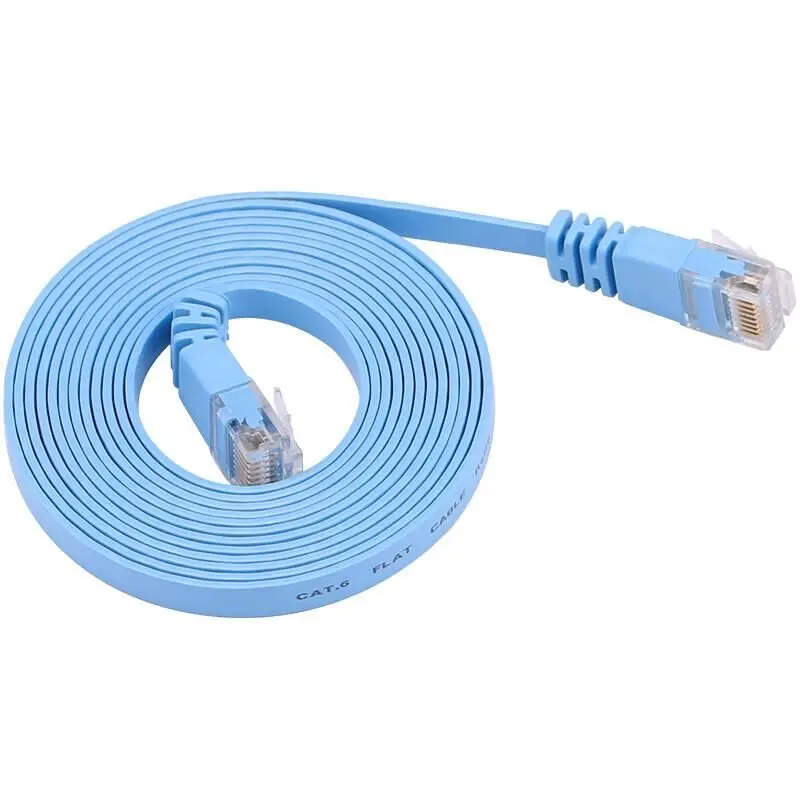

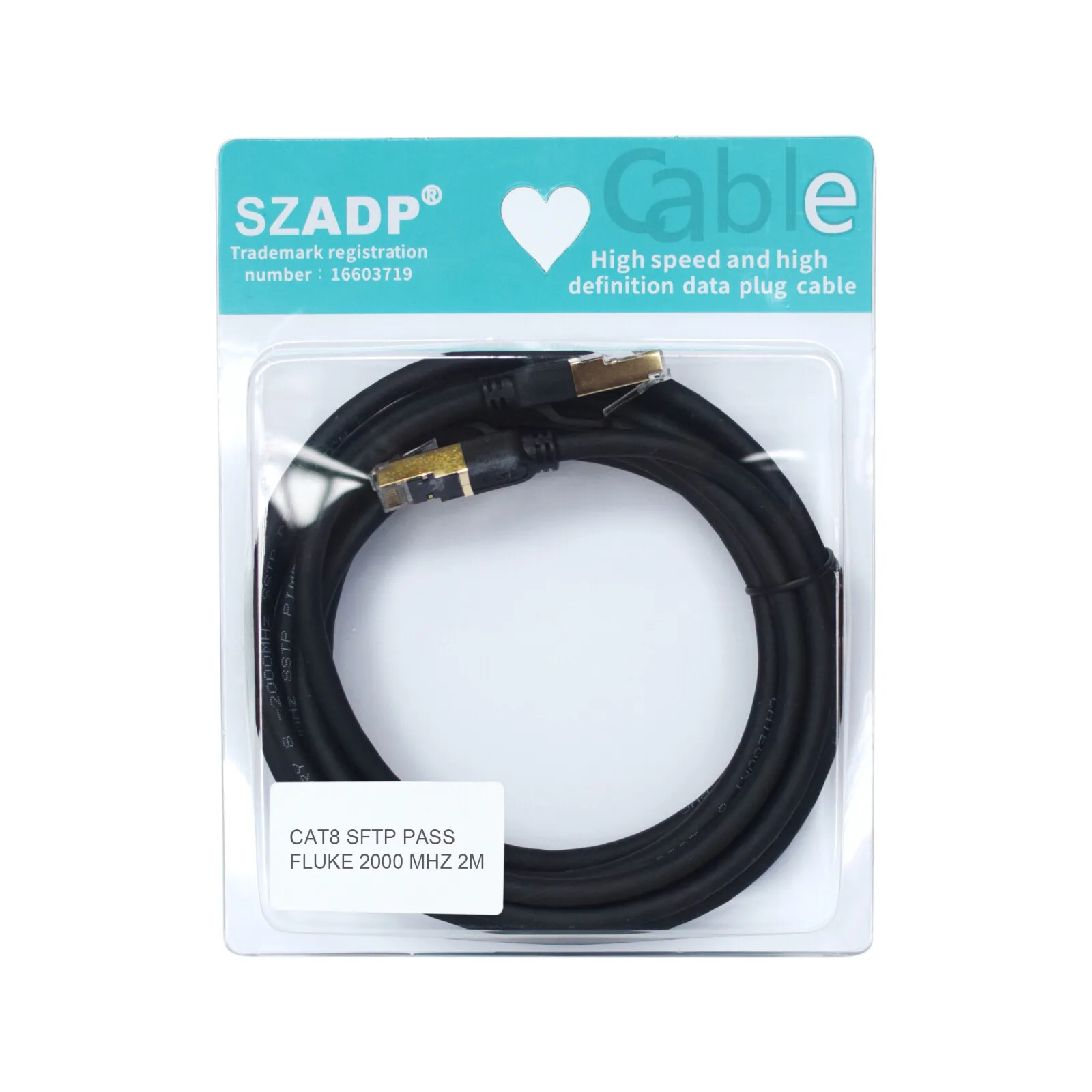

FTP SFTP High Speed Cat6a Cat7 Cat8 Flat Patch Cord 1m 3m 5m 10m 15m Bare Copper CCA Patch Cord RJ45 from China Supplier SZADP
- Category: >>>
- Supplier: Guangzhou Adp Communication Technology Co. Ltd.Guangzhou Ltd.
Share on (1601377197913):
Product Overview
Description
Product Details
Cable data
Conductor: CU, CCA, HCCA
AWG: 23
Conductor Dia(mm): 0.57
Insulation: PE
Average thickness(±0.03mm): 0.22
Min point thickness: 0.18
Insulation Dia(±0.03mm): 1.02
Twisting lay length(mm): 30 undemeath
Cabling lay length(mm): 200 undemeath
Jacket： PVC, ROHS,LSZH
Average thickness： 0.5
Min point thickness： 0.43
Outer Dia(±1.0mm)： 6.0
AWG: 23
Conductor Dia(mm): 0.57
Insulation: PE
Average thickness(±0.03mm): 0.22
Min point thickness: 0.18
Insulation Dia(±0.03mm): 1.02
Twisting lay length(mm): 30 undemeath
Cabling lay length(mm): 200 undemeath
Jacket： PVC, ROHS,LSZH
Average thickness： 0.5
Min point thickness： 0.43
Outer Dia(±1.0mm)： 6.0
Electrical Performance(At 100MHz)
1.0-100.0 MHz Impendance(ohms): 100±15 100.0-250.0 MHz Impendance(ohms): 100±22
Impendance Delay screw(ns/100m): <45 Pair to Ground Capacitance Unbalance(PF/100m): 330Max
Resistance Unbalance(%): 5 Test object: jacket
Test Material: PVC Before Tensile strength(Mpa): ≥13.8
Aging Elongation(%): ≥100 Aging condition(C xhrs): 100×240
After Tensile strength(Mpa): ≥85%of unaged Aging Elongation(%): ≥50%of naged
Cold bend(-20±2℃x4 hrs): No crock
Impendance Delay screw(ns/100m): <45 Pair to Ground Capacitance Unbalance(PF/100m): 330Max
Resistance Unbalance(%): 5 Test object: jacket
Test Material: PVC Before Tensile strength(Mpa): ≥13.8
Aging Elongation(%): ≥100 Aging condition(C xhrs): 100×240
After Tensile strength(Mpa): ≥85%of unaged Aging Elongation(%): ≥50%of naged
Cold bend(-20±2℃x4 hrs): No crock
Product Specification
Frequency (MHZ) | Return loss(dB) | Attenuation (dB/100m) | NEXT (dB) | ACR (dB) | PSNEXT (dB) | ELEFXT (dB/100m) | PSELEXT (dB/100m) | Delay (ns/100m) |
0.772 | 19.4 | 1.8 | 76.0 | 74.0 | 74.0 | 70.0 | 67.0 | 575.0 |
1.0 | 20.0 | 2.0 | 74.3 | 72.0 | 72.3 | 67.8 | 64.8 | 570.0 |
4.0 | 23.0 | 3.8 | 65.5 | 61.0 | 63.3 | 55.8 | 52.8 | 552.0 |
8.0 | 24.5 | 5.3 | 60.8 | 55.0 | 58.8 | 49.7 | 46.7 | 546.7 |
10.0 | 25.0 | 6.0 | 59.3 | 53.0 | 57.3 | 47.8 | 44.8 | 545.4 |
16.0 | 25.0 | 7.6 | 56.2 | 49.0 | 54.2 | 43.7 | 40.7 | 543.0 |
20.0 | 25.0 | 8.5 | 54.8 | 46.0 | 52.8 | 41.8 | 38.8 | 542.0 |
25.0 | 24.3 | 9.5 | 53.3 | 44.0 | 51.3 | 39.8 | 36.8 | 541.2 |
31.25 | 23.6 | 10.7 | 51.9 | 41.0 | 49.9 | 37.9 | 34.9 | 540.4 |
62.5 | 21.5 | 15.4 | 47.4 | 32.0 | 45.4 | 31.9 | 28.9 | 538.6 |
100.0 | 20.1 | 19.8 | 44.3 | 24.5 | 42.3 | 27.8 | 24.8 | 537.6 |
200.0 | 18.0 | 29.0 | 39.8 | 10.8 | 37.8 | 21.8 | 18.8 | 536.5 |
250.0 | 17.3 | 32.8 | 38.3 | 5.5 | 36.3 | 19.8 | 16.8 | 536.3 |
